Siemens 6ES7232-4HD32-0XB0 SIMATIC S7-1200 Analog Output Module
SM 1232 | 4 Analog Outputs | ±10V / 0–20mA / 4–20mA | 24V DC
| Specification |
Verified Product Data |
| Manufacturer |
Siemens |
| Catalog Number |
6ES7232-4HD32-0XB0 |
| Product Family |
SIMATIC S7-1200 |
| Product Designation |
SM 1232, AQ 4 x 14 Bit |
| Product Type |
Analog Output Signal Module |
| Number of Analog Outputs |
4 Channels |
| Analog Output Types |
Voltage or Current |
| Voltage Output Range |
-10V to +10V DC |
| Current Output Range |
0–20mA / 4–20mA |
| Voltage Output Resolution |
14 Bit |
| Current Output Resolution |
13 Bit |
| Rated Supply Voltage |
24V DC |
| Typical Supply Current |
45mA |
| Backplane Bus Supply |
5V DC |
| Typical Backplane Current |
80mA |
| Typical Power Loss |
1.5W |
| Voltage Output Load Impedance |
Minimum 1,000 Ohms |
| Current Output Load Impedance |
Maximum 600 Ohms |
| Maximum Shielded Cable Length |
100m, Shielded Twisted Pair |
| Manufacturer Lifecycle |
PM300 — Active Product |
| Firmware on Photographed Packaging |
V02.01.01 |
| Functional Status on Packaging |
FS:08 |
| Country of Origin |
Germany |
Product Overview
The Siemens 6ES7232-4HD32-0XB0 is a
SIMATIC S7-1200 SM 1232 analog output signal module
designed for industrial automation systems requiring
configurable analog output signals.
The module provides four analog output channels
that can be configured for voltage or current operation.
The voltage output range is -10V to +10V DC
with a manufacturer-specified 14-bit resolution.
For current output operation, the module supports
0–20mA and 4–20mA ranges
with 13-bit resolution.
These output characteristics enable the module
to provide analog control signals to compatible
industrial equipment.
The module is designed for a
24V DC rated power supply
and uses a 5V DC backplane bus supply.
Siemens specifies a typical 24V DC supply
current consumption of 45mA,
a typical backplane current consumption
of 80mA,
and a typical power loss of 1.5W.
For voltage output operation,
the minimum load impedance is
1,000 Ohms.
For current output operation,
the maximum permitted load impedance
is 600 Ohms.
Siemens specifies a maximum shielded cable
length of 100m
using shielded twisted-pair cable.
The catalog number
6ES7232-4HD32-0XB0
identifies the four-channel SM 1232
analog output version.
This exact model should be distinguished
from two-channel analog output modules
and from analog input modules
within the SIMATIC S7-1200 family.
Buyers should confirm the required
channel quantity, analog output signal type,
voltage and current range,
signal resolution, load impedance,
module compatibility and power supply
before ordering.

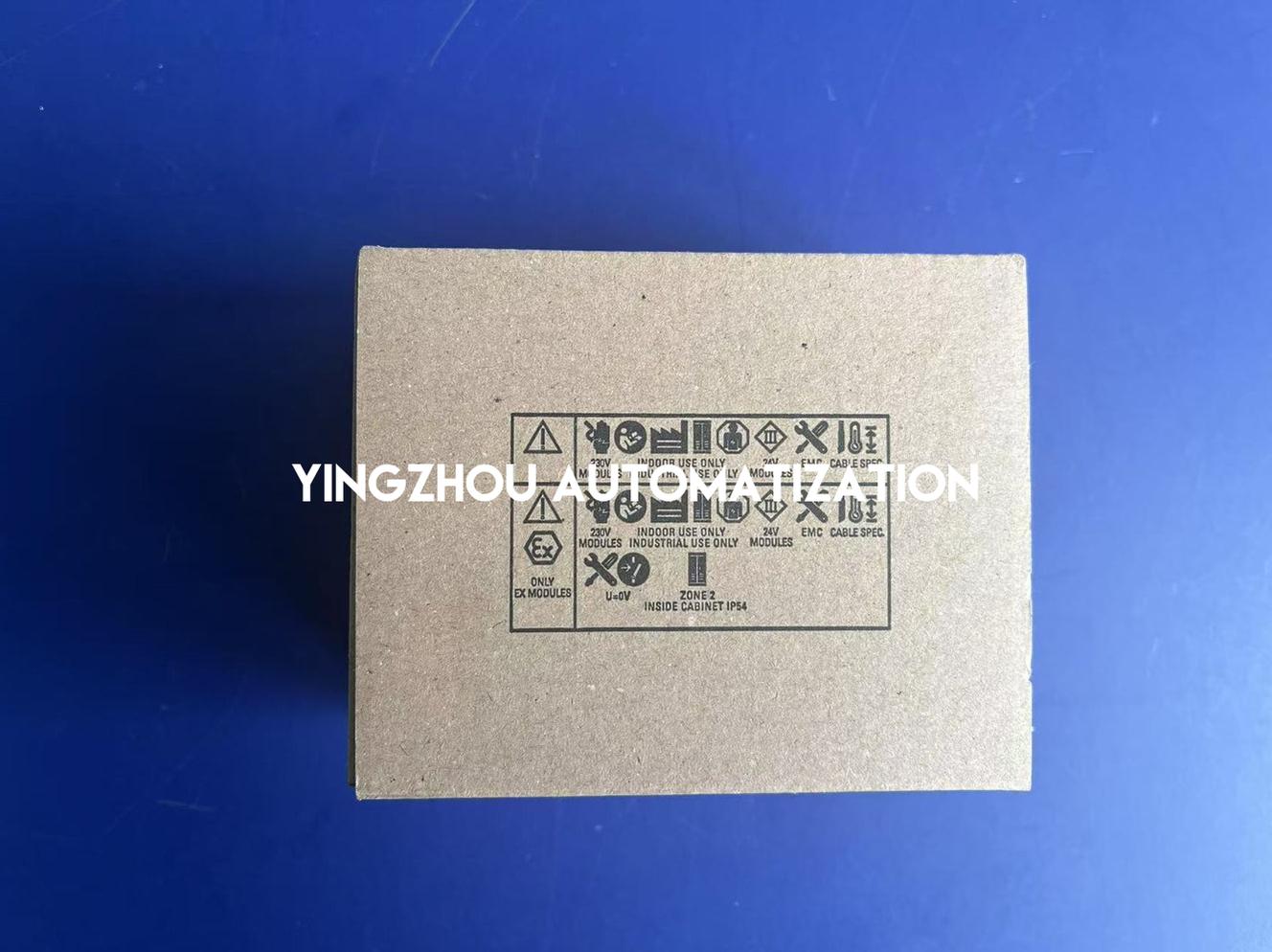

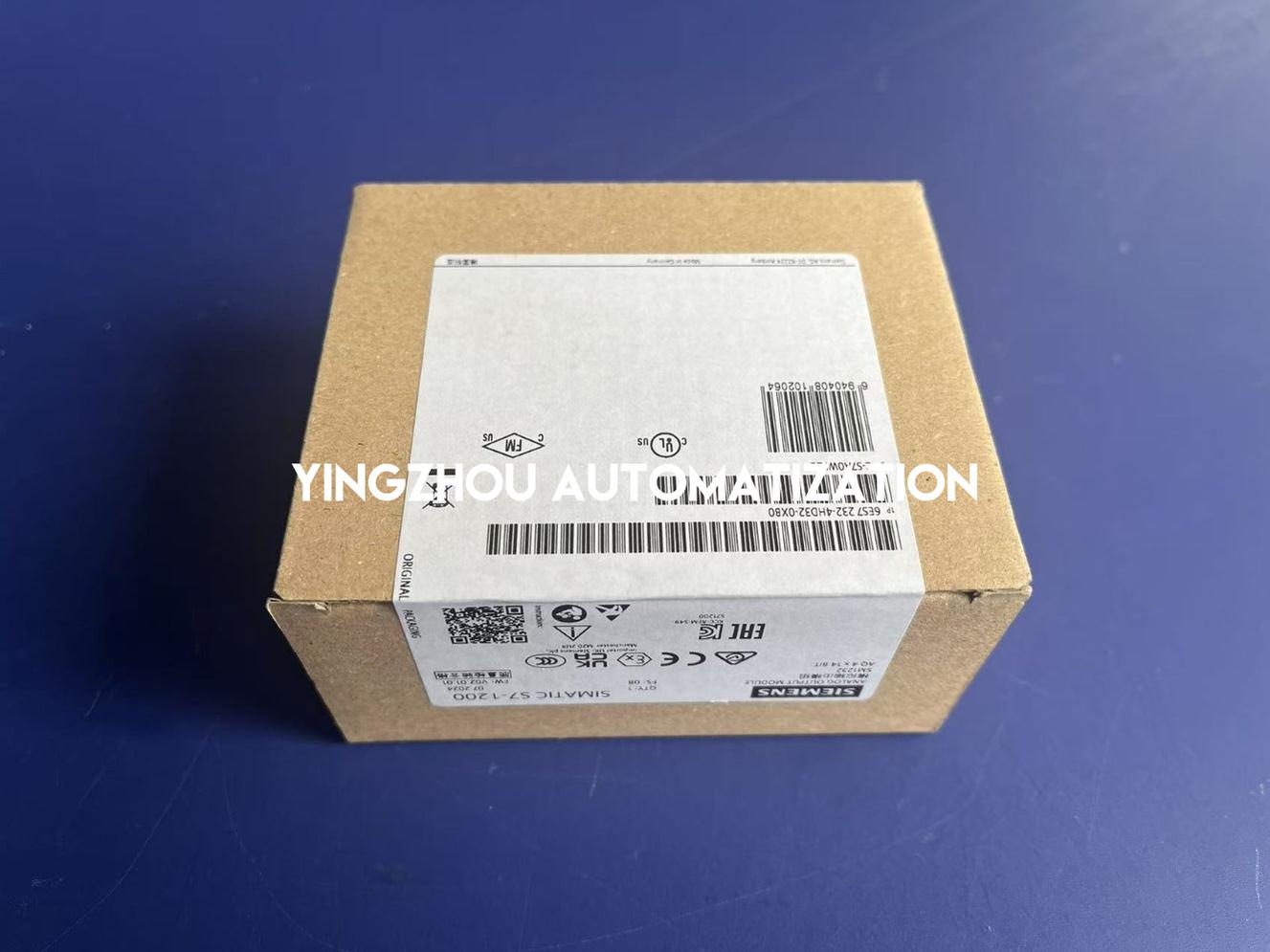

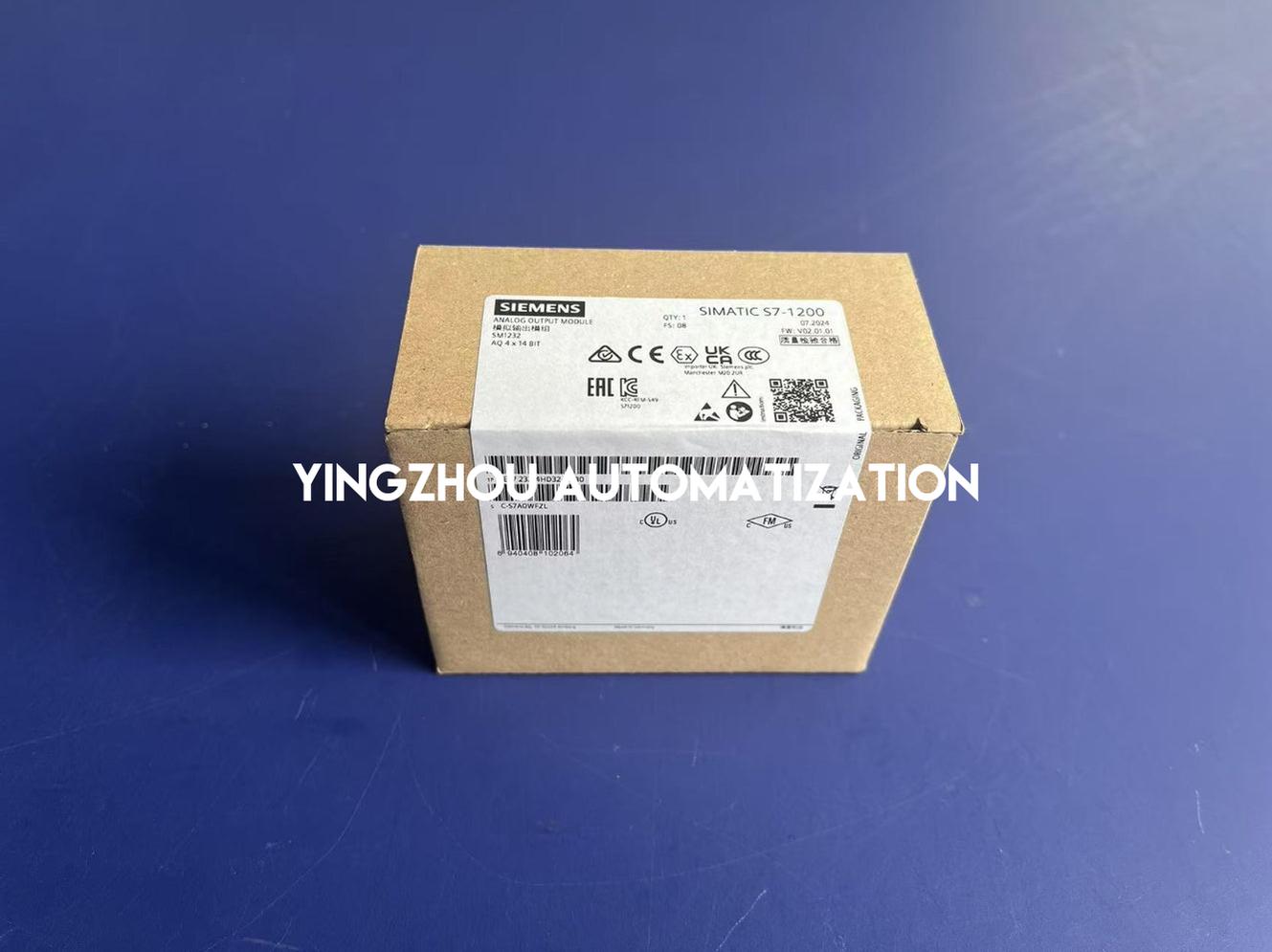

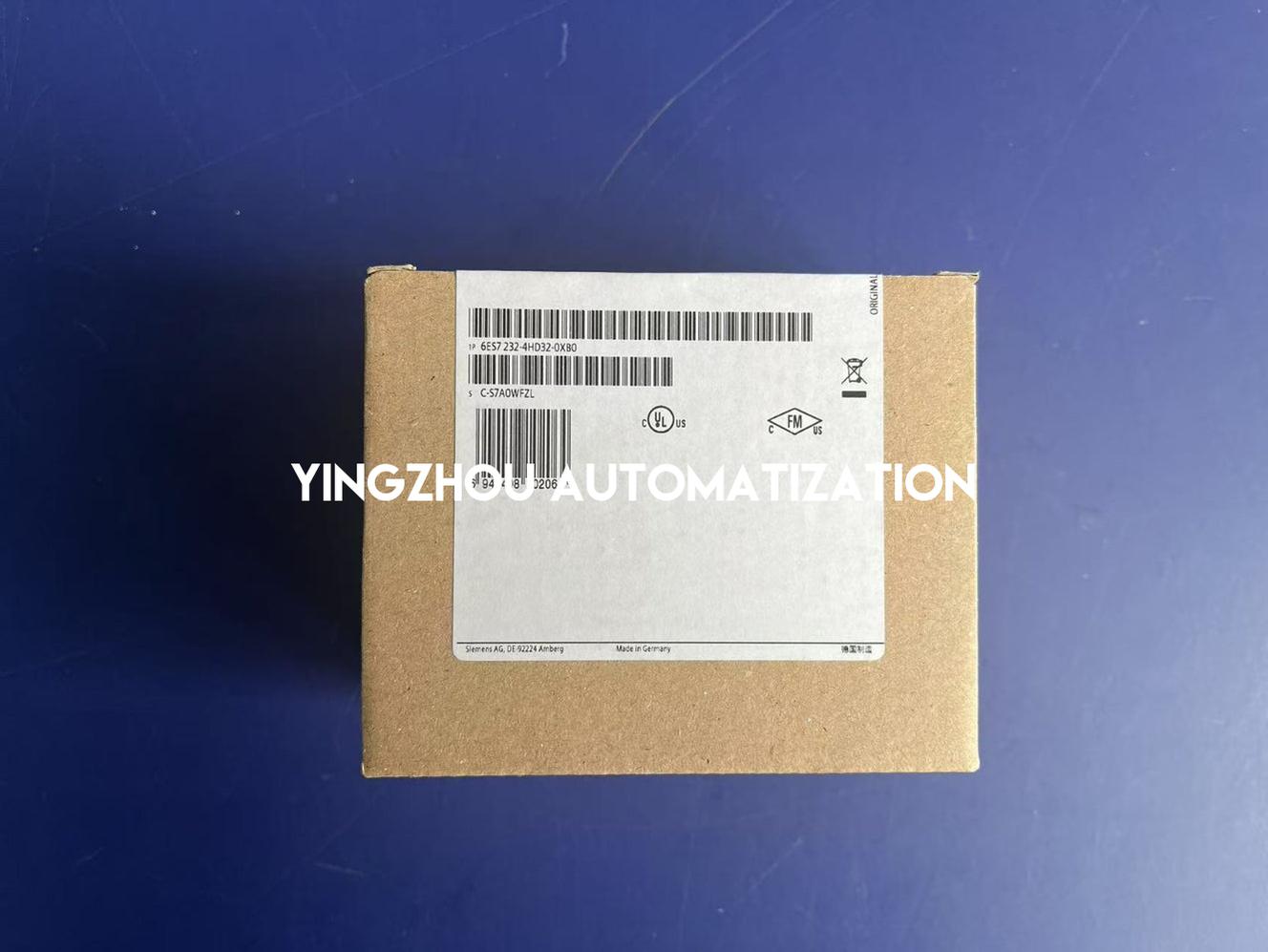

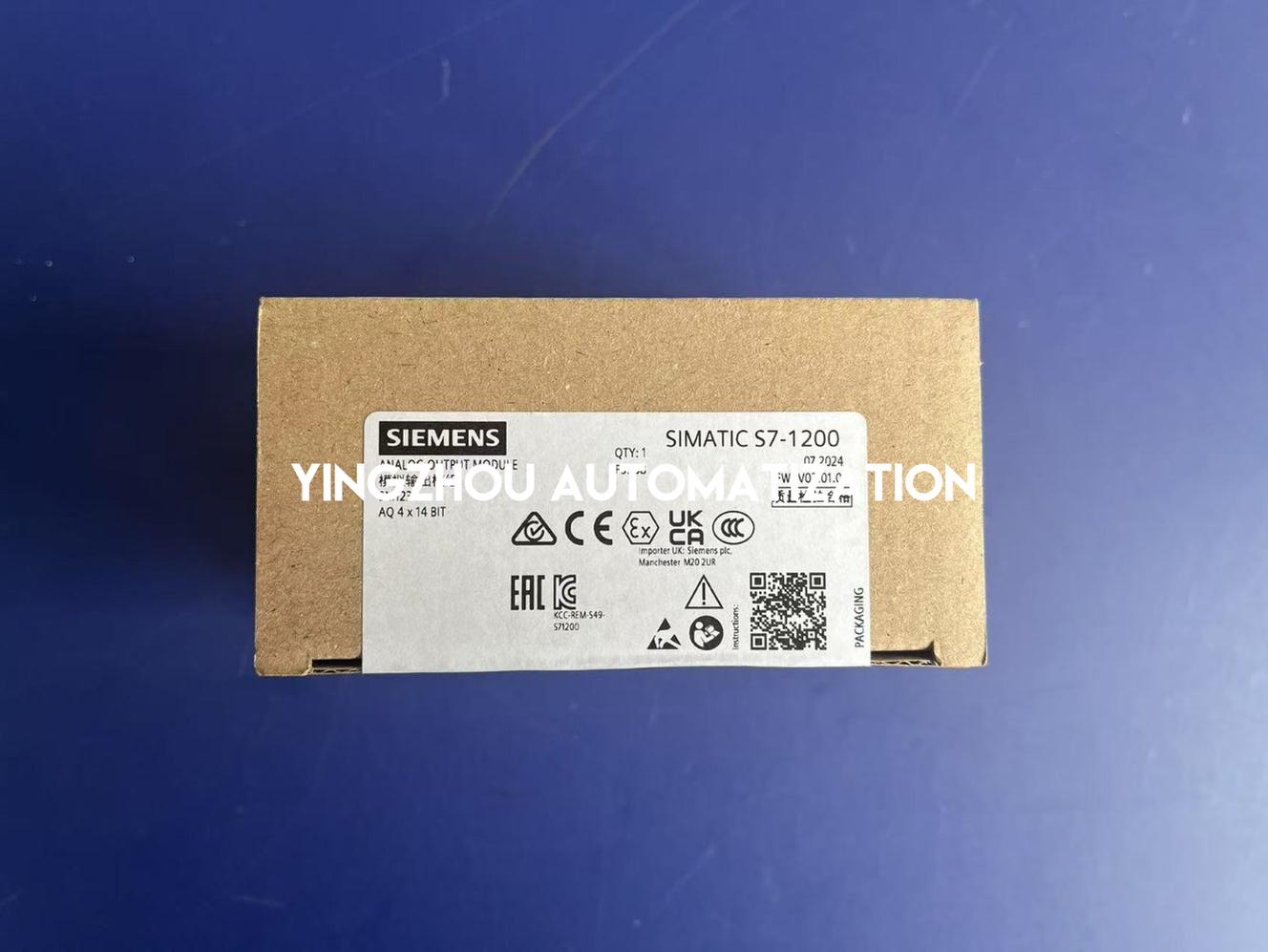

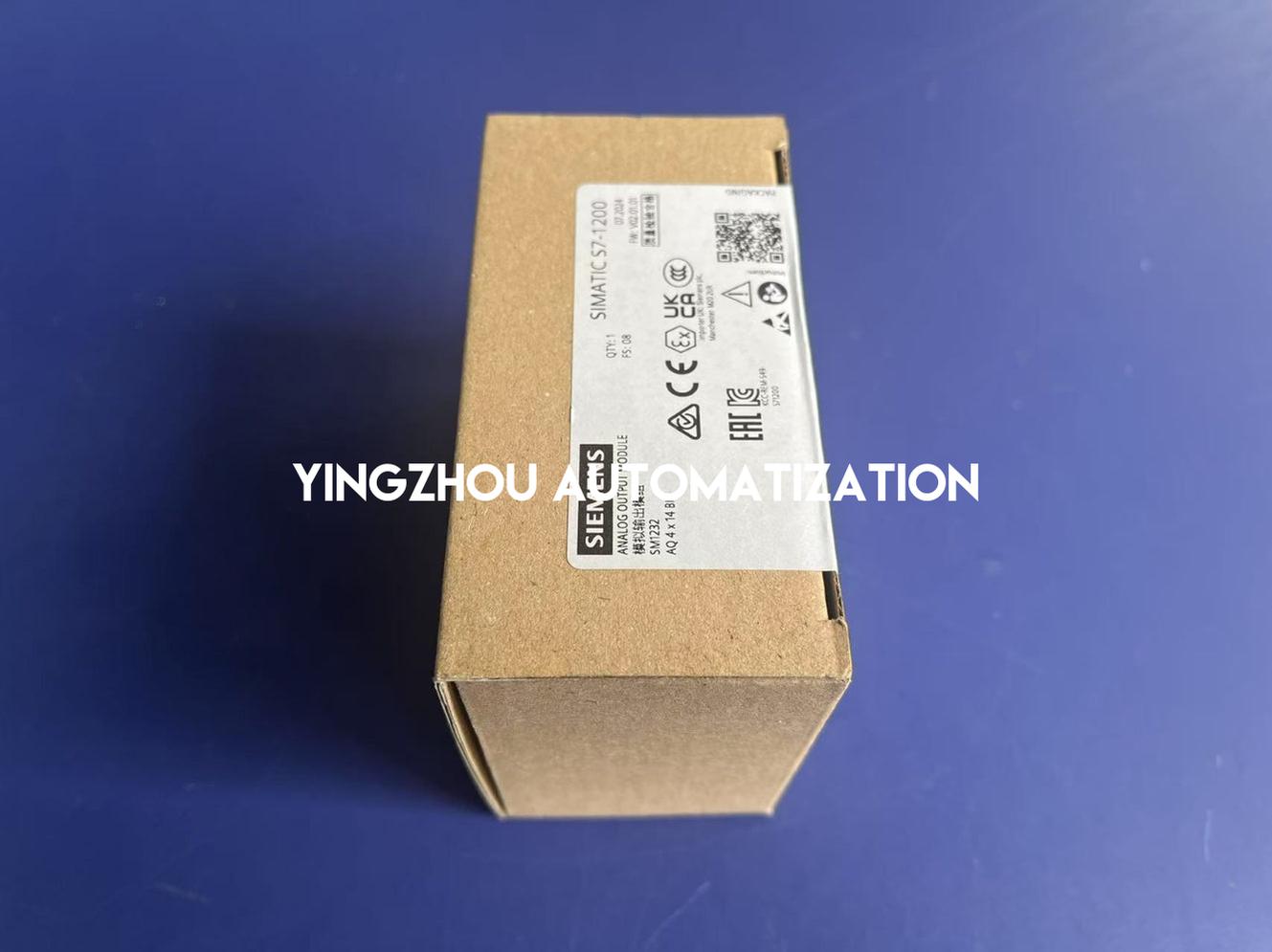

The supplied photographs show
Siemens packaging labeled
6ES7232-4HD32-0XB0,
SIMATIC S7-1200,
SM1232, and
AQ 4 x 14 BIT.
The photographed packaging also displays
firmware V02.01.01,
functional status FS:08,
and a Made in Germany marking.
The physical module nameplate has not
been separately photographed and
should be verified before dispatch.
Key Product Features
-
SIMATIC S7-1200 SM 1232 — Siemens analog output signal module for S7-1200 industrial automation systems.
-
Four Analog Outputs — Provides four channels for configurable voltage or current output.
-
Bipolar Voltage Signals — Supports -10V to +10V DC analog output.
-
Current Signal Options — Supports 0–20mA and 4–20mA analog current output.
-
14-Bit Voltage Resolution — Manufacturer-specified voltage output resolution.
-
13-Bit Current Resolution — Manufacturer-specified current output resolution.
-
24V DC Supply — Rated supply voltage for the analog output module.
-
Output Load Requirements — Minimum 1,000 Ohms for voltage output and maximum 600 Ohms for current output.
-
100m Shielded Cable Support — Manufacturer-specified maximum cable length with shielded twisted-pair cable.
-
Actual Packaging Photographs — The supplied packaging confirms the exact catalog number.
-
In Stock — Availability according to supplied inventory information.
Actual Product Verification
✓ Actual Siemens packaging photographs supplied
✓ Packaging catalog number: 6ES7232-4HD32-0XB0
✓ Product family: SIMATIC S7-1200
✓ Module designation: SM1232
✓ Product type: Analog Output Module
✓ Packaging specification: AQ 4 x 14 BIT
✓ Firmware marking: V02.01.01
✓ Functional status: FS:08
✓ Packaging date: 07.2024
✓ Quantity marking: 1
✓ Country of origin marking: Made in Germany
✓ Packaging model matches the requested catalog number
✓ Physical module nameplate confirmation required before dispatch
In Stock & Available to Order
Siemens 6ES7232-4HD32-0XB0
is marked in stock
according to supplied inventory information.
This SIMATIC S7-1200
SM 1232 analog output module
provides four analog output channels
with selectable voltage and current signal ranges.
The module supports
-10V to +10V DC voltage output
at 14-bit resolution
and 0–20mA or 4–20mA current output
at 13-bit resolution.
It uses a rated
24V DC power supply.
Actual Siemens packaging photographs
are available for catalog number verification.
Before placing an order,
please confirm the required
SIMATIC S7-1200 system configuration,
exact catalog number,
channel count,
output signal range,
load impedance and installation requirements.
Product availability remains subject
to inventory confirmation
at the time of order placement.
