Siemens 6EP1334-2BA20 SITOP PSU100S 24V 10A Power Supply

Siemens 6EP1334-2BA20 SITOP PSU100S 24V 10A Power Supply

$204.99 USD
$204.99 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

Siemens 6EP1334-2BA20 SITOP PSU100S

Stabilized Power Supply | 24V DC | 10A | 240W
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photos  |  Exact Model Packaging Match
Specification Verified Product Data
Manufacturer Siemens
Catalog Number 6EP1334-2BA20
Product Family SITOP
Product Series PSU100S
Product Type Stabilized Switching Power Supply
Input Phases Single-Phase AC
Rated Input Voltage 120/230V AC
Input Voltage Range 85-132V AC / 170-264V AC
Input Range Selection Automatic
Rated Frequency 50/60Hz
Frequency Range 47-63Hz
Rated Output Voltage 24V DC
Rated Output Current 10A
Rated Output Power 240W
Adjustable Output Voltage 22.8-28V DC
Output Voltage Tolerance ±3%
Efficiency 90%
Mains Buffering Time Minimum 20ms under specified conditions
Status Indication Green LED - 24V OK
Signaling Contact Relay NO, 60V DC / 0.3A
Short-Circuit Protection Yes - Constant Current Characteristic
Degree of Protection IP20
Operating Temperature -25 to +70°C (Derating Applies)
Terminal Connection Screw Terminals
Mounting 35mm DIN Rail
Dimensions 70 x 125 x 120 mm (W x H x D)
Manufacturer Lifecycle PM300 - Active Product

Product Overview

The Siemens 6EP1334-2BA20 is a SITOP PSU100S stabilized industrial switching power supply designed to provide a regulated DC supply for industrial automation and electrical control equipment. The unit delivers a rated 24V DC output at 10A, equivalent to 240W rated output power. This model uses a single-phase 120/230V AC input with automatic input range selection. Its specified input voltage ranges are 85-132V AC and 170-264V AC, supporting a nominal mains frequency of 50/60Hz. The regulated output voltage can be adjusted from 22.8V to 28V DC using the onboard potentiometer. Siemens specifies a 90% efficiency rating and an output voltage tolerance of ±3%. The power supply incorporates output short-circuit protection and a status signaling function. A green 24V OK LED indicates normal operation, while a normally open relay signaling contact provides external status monitoring. The manufacturer specifies minimum 20ms mains buffering under defined input and load conditions. The housing is rated IP20 and designed for mounting on a 35mm DIN rail. With physical dimensions of 70 x 125 x 120mm, it is suitable for installation in appropriately designed industrial control cabinets. The supported ambient operating range is -25 to +70 degrees C, subject to the manufacturer's temperature and output-current derating requirements. The SITOP PSU100S 6EP1334-2BA20 is specifically a single-phase 24V DC 10A power supply. It must not be confused with the 6EP1336-2BA10 20A model or with SITOP three-phase power supplies. Customers should verify input voltage, output voltage, output current, installation requirements and exact catalog number before ordering. Supplied actual packaging photographs show 6EP1334-2BA20 with a 24V DC / 10A output designation and a Made in Austria origin marking. The physical power supply nameplate has not been independently verified from the supplied photographs.

Key Product Features

  • SITOP PSU100S Power Supply — Siemens stabilized switching power supply for industrial DC distribution.
  • 24V DC / 10A Rated Output — Delivers 240W of rated DC output power.
  • Single-Phase 120/230V AC Input — Automatic range selection for supported AC mains supplies.
  • Adjustable Output Voltage — Adjustable from 22.8V to 28V DC.
  • 90% Efficiency — Manufacturer-specified efficiency for industrial power conversion.
  • Short-Circuit Protection — Output protection with constant-current limitation.
  • 24V OK Status Monitoring — Integrated LED and relay signaling contact.
  • DIN Rail Mounting — Designed for 35mm rail installation.
  • IP20 Enclosure — Suitable for appropriate industrial cabinet installations.
  • Extended Operating Temperature — -25 to +70 degrees C with applicable derating.
  • Actual Packaging Photographs — Supplied packaging displays the matching Siemens catalog number.
  • In Stock — Availability according to supplied inventory information.

Actual Product Verification

✓ Actual Siemens packaging photographs supplied
✓ Packaging catalog number: 6EP1334-2BA20
✓ Product series: SITOP PSU100S
✓ Packaging input: AC 120/230V, 50-60Hz
✓ Packaging output: DC 24V / 10A
✓ Packaging input current: 4.1/1.9A
✓ Packaging production status: PS 2
✓ Packaging date marking: 06.2024

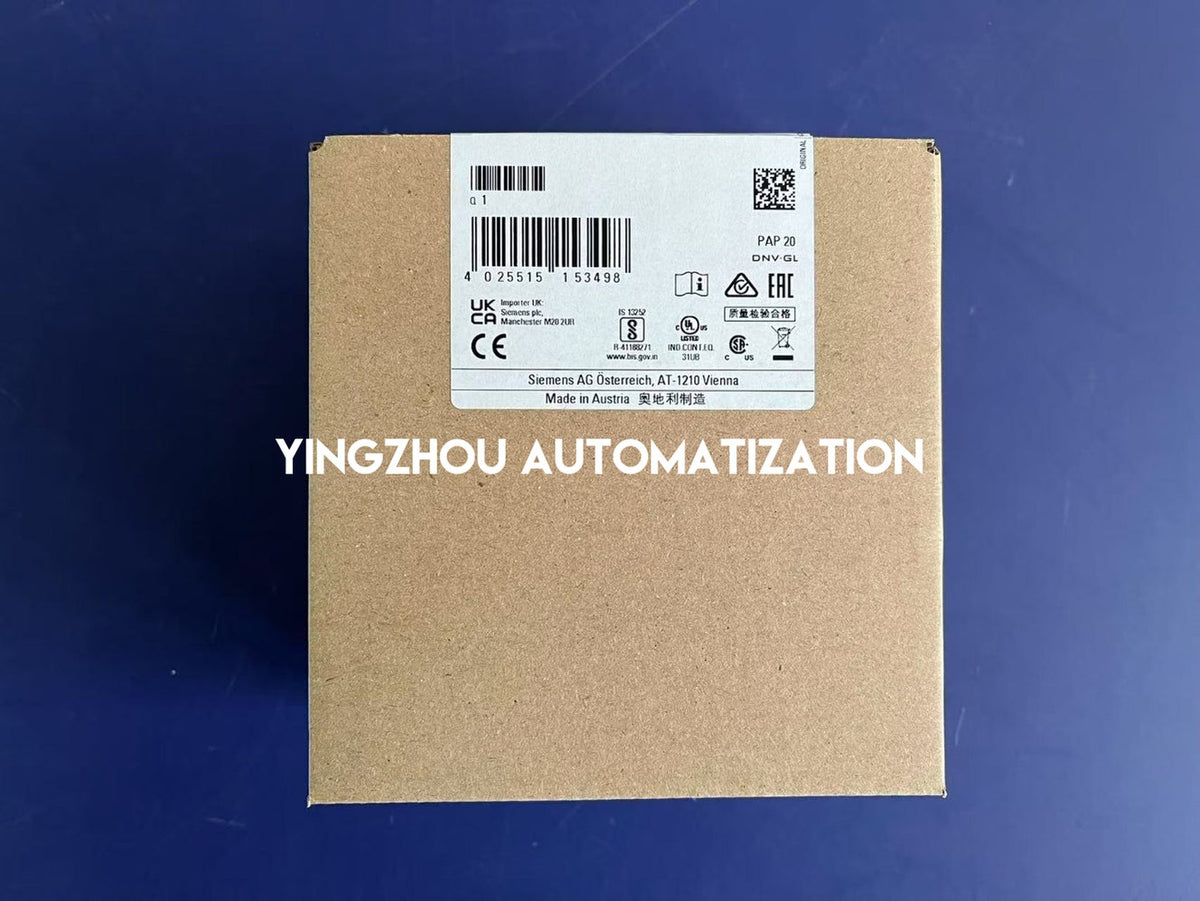

✓ Packaging origin marking: Made in Austria
✓ Packaging model matches the requested catalog number
✓ Physical unit nameplate and contents should be confirmed before order fulfillment

In Stock & Available to Order

Siemens 6EP1334-2BA20 is marked in stock according to the supplied inventory information. This SITOP PSU100S power supply provides a 24V DC / 10A rated output from a single-phase 120/230V AC input. The model features automatic input range selection, adjustable DC output, integrated short-circuit protection and power status monitoring. Its compact industrial design supports DIN rail installation. Actual Siemens packaging photographs are available for catalog-number confirmation. Before placing an order, please confirm the exact model, required input voltage, output voltage and current, installation requirements, quantities and dispatch terms. YINGZHOU supports single-model purchasing, replacement-part inquiries, bulk orders and mixed-brand industrial automation procurement. Contact our sales team to confirm available quantities and commercial shipping arrangements.

IN STOCK

Siemens 6EP1334-2BA20

Contact us for exact-model confirmation, available quantities and bulk pricing. Please verify the required SITOP PSU100S single-phase 120/230V AC input and 24V DC / 10A output configuration before ordering.
