SIEMENS

Siemens 3RV2011-1BA10 SIRIUS 1.4-2A Motor Protection Circuit Breaker

Siemens 3RV2011-1BA10 SIRIUS 1.4-2A Motor Protection Circuit Breaker

$68.99 USD
$68.99 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

Siemens 3RV2011-1BA10 SIRIUS Motor Protection Circuit Breaker

1.4–2.0 A | CLASS 10 | 26 A Magnetic Release | 3-Pole | S00
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Model Label Verified
Specification Verified Product Data
Manufacturer Siemens AG
Catalog Number 3RV2011-1BA10
Product Family SIRIUS 3RV2
Product Type Motor Starter Protector / Circuit Breaker
Protection Function Motor Protection
Frame Size S00
Trip Class CLASS 10
Thermal Overload Release Adjustable 1.4–2.0 A
Magnetic Short-Circuit Release 26 A
Number of Main Poles 3
Rated Operating Voltage 20–690 V AC
Rated Insulation Voltage 690 V AC
Rated Impulse Withstand Voltage 6 kV
Connection Type Screw Terminal
Switching Capacity Class Standard
Operating Temperature −20 to +60 °C
Maximum Installation Altitude 2,000 m
Net Weight 0.344 kg
Packaging Dimensions 49 × 102 × 102 mm
Country of Origin Germany
Manufacturer Lifecycle PM300 — Active Product

Product Overview

The Siemens 3RV2011-1BA10 is a SIRIUS 3RV2 motor starter protector designed for motor circuit protection in industrial electrical control systems. The device features an adjustable thermal overload release range of 1.4–2.0 A and a 26 A magnetic short-circuit release. Its CLASS 10 trip characteristic and three-pole configuration provide overload and short-circuit protection within the manufacturer's rated operating limits. The compact S00 frame uses screw terminals and is classified by Siemens as having standard switching capacity. The rated operating voltage range is 20–690 V AC, subject to applicable electrical specifications. Siemens lists this catalog number as an active PM300 product. The supplied actual product and packaging photographs show matching catalog number 3RV2011-1BA10. Before ordering, confirm the motor rated current, protection settings and the required short-circuit breaking capacity at the intended system voltage.

Key Product Features

  • SIRIUS 3RV2 Motor Starter Protector — Siemens three-pole motor protection circuit breaker.
  • 1.4–2.0 A Adjustable Overload Release — Thermal protection setting range for the motor circuit.
  • CLASS 10 Protection — Manufacturer-specified overload trip classification.
  • 26 A Magnetic Release — Instantaneous short-circuit trip current.
  • Three-Pole Main Circuit — Designed for three-phase motor circuit protection.
  • Compact S00 Frame — Suitable for compact motor starter assemblies.
  • Screw Terminal Connection — Manufacturer-specified wiring connection design.
  • Standard Switching Capacity — Siemens standard switching-capacity version.
  • Active Siemens Product — Listed under the PM300 product lifecycle classification.

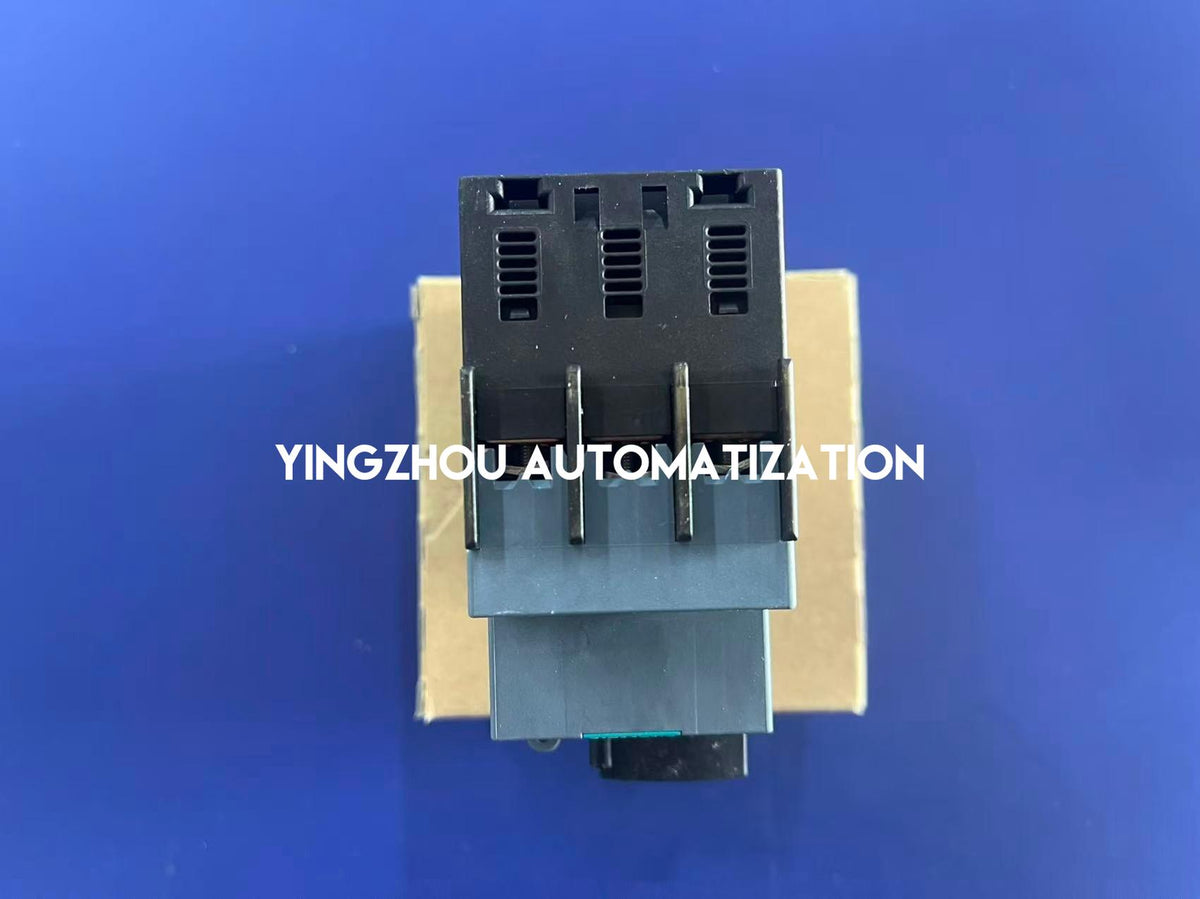

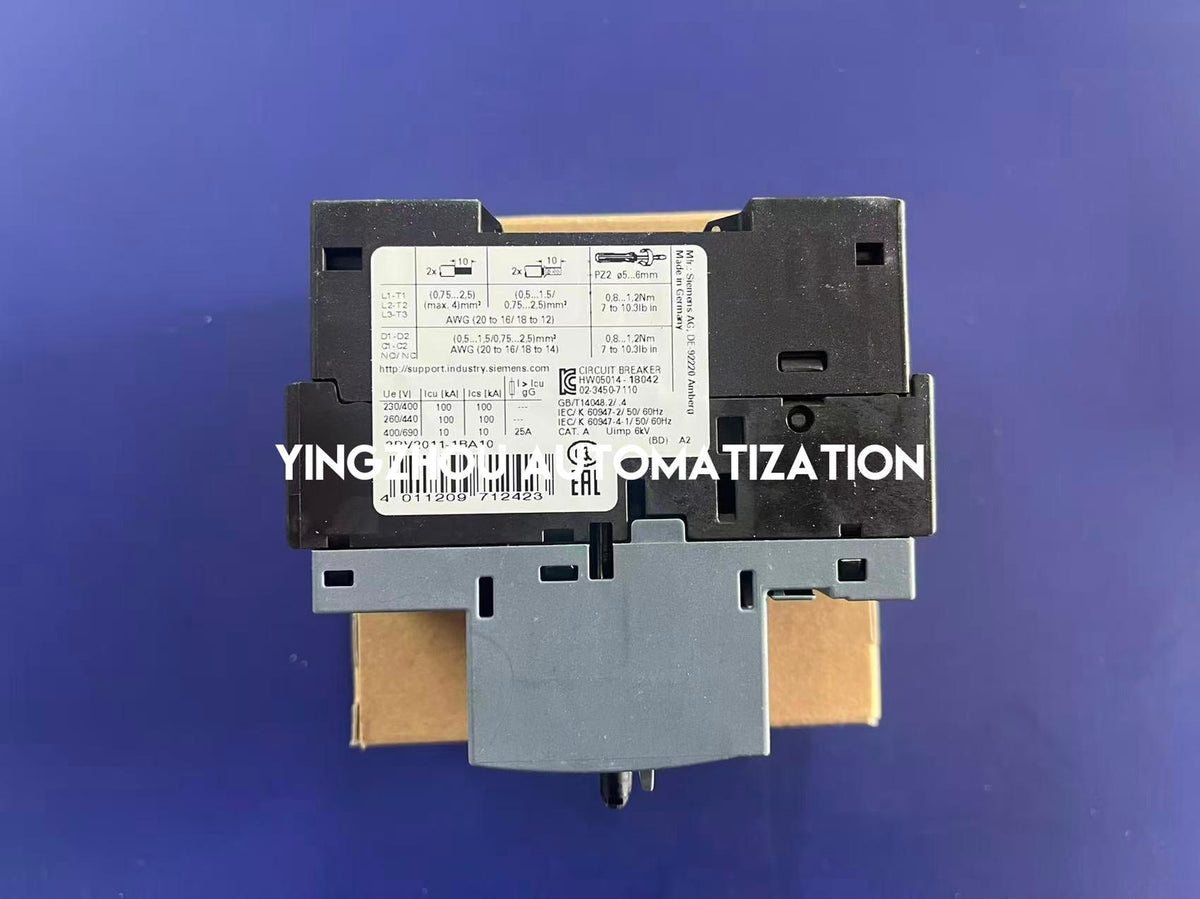

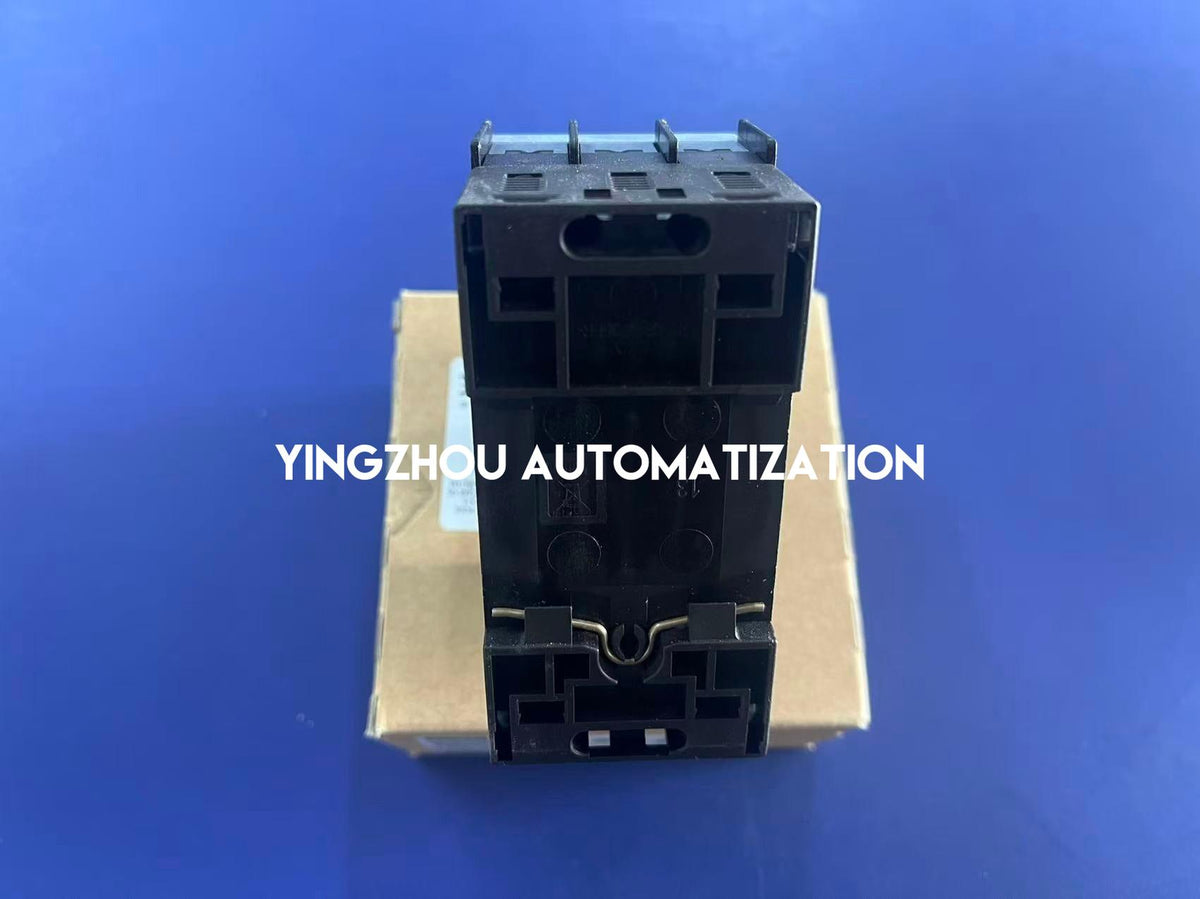

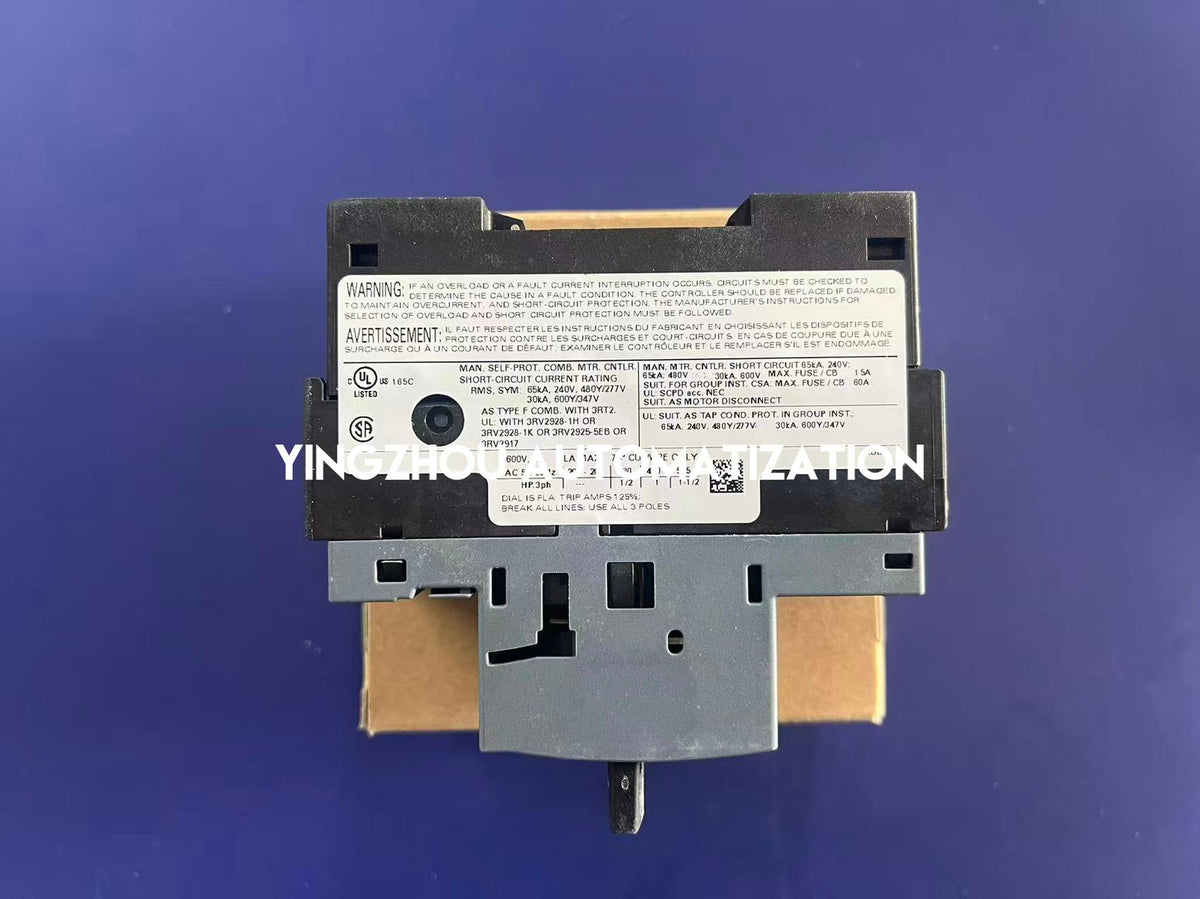

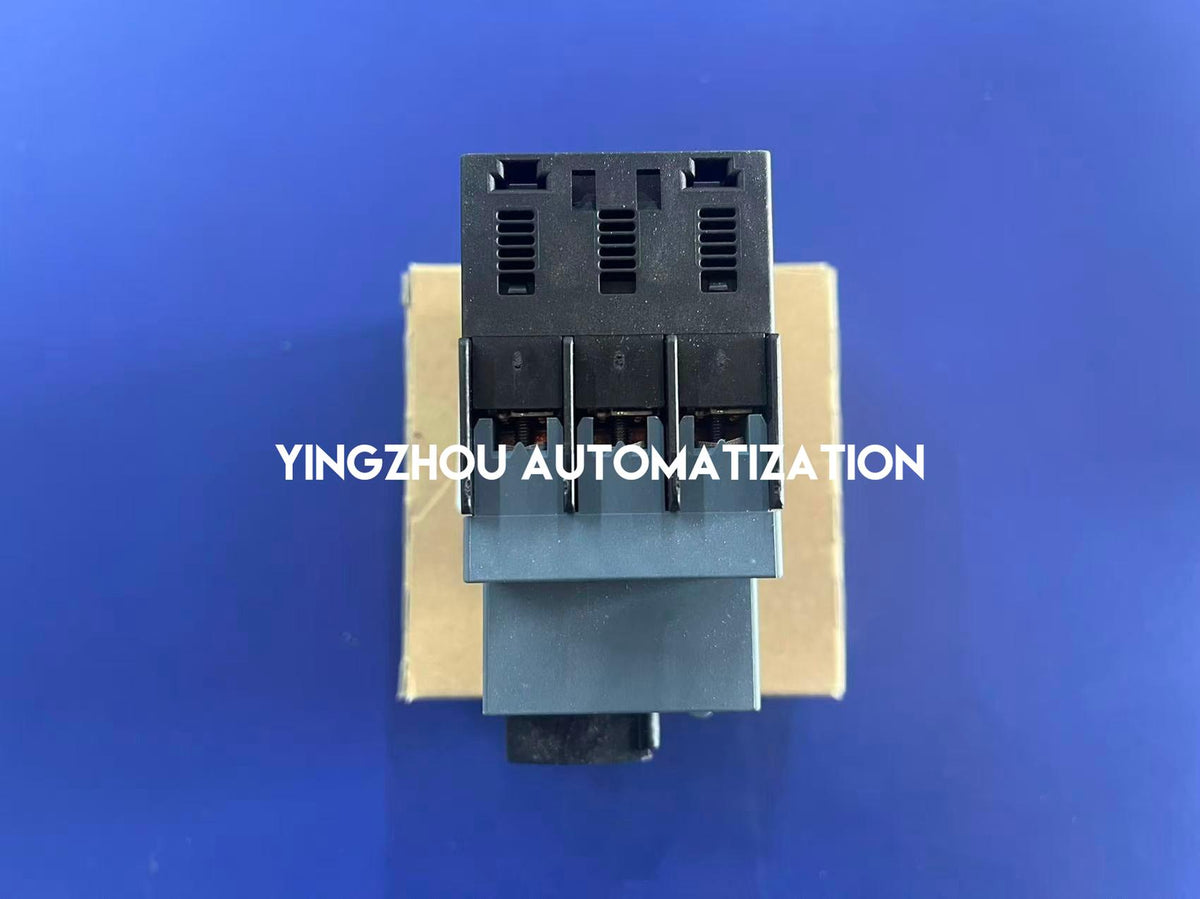

Actual Product Verification

✓ Actual Siemens product and packaging photographs supplied
✓ Product body model: 3RV2011-1BA10

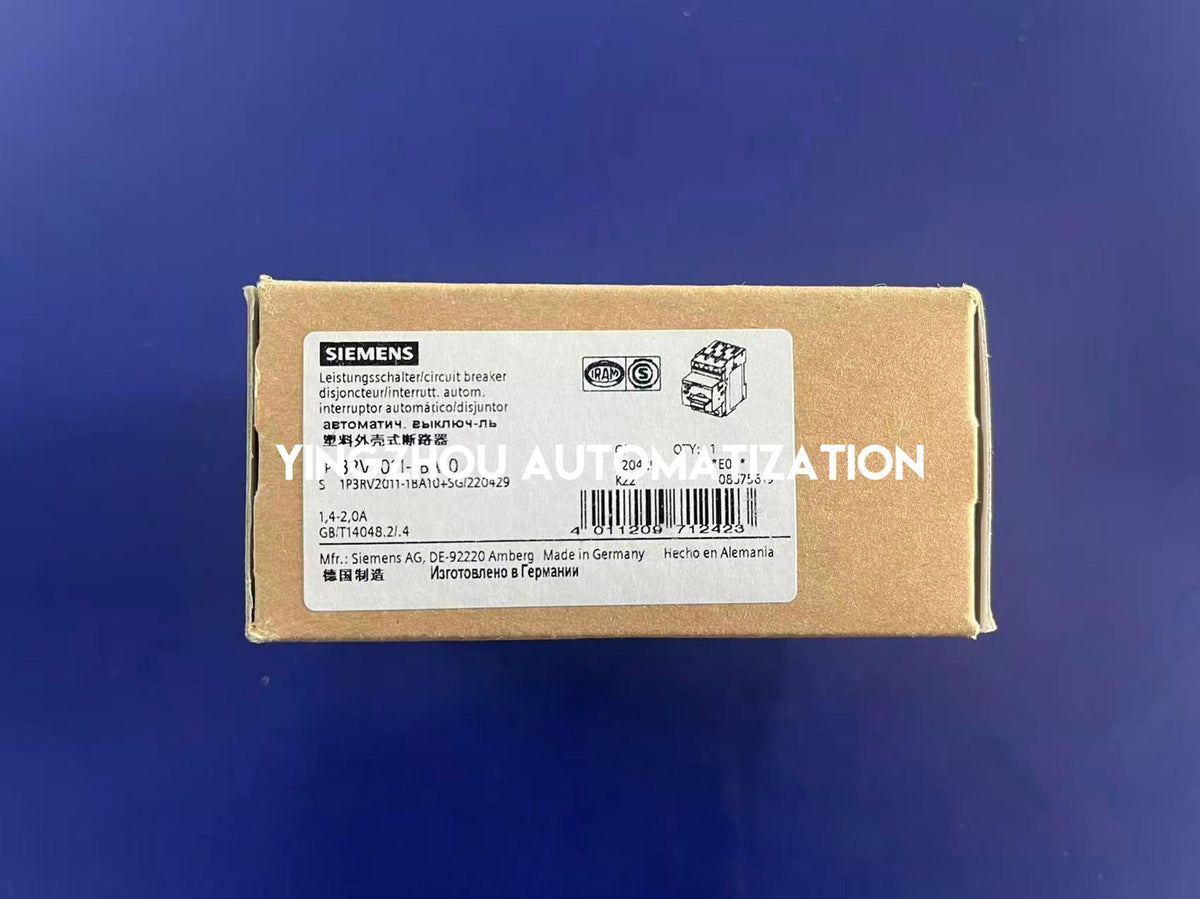

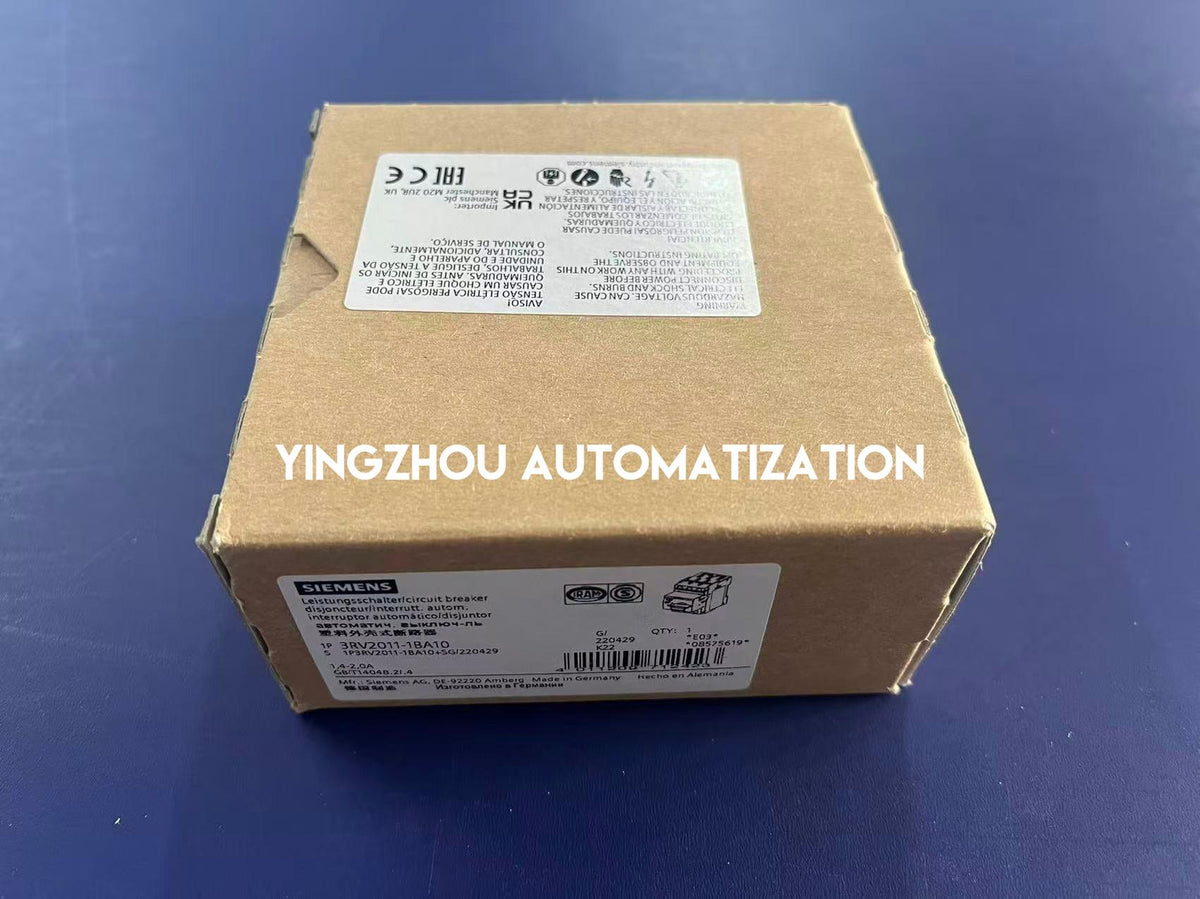

✓ Packaging catalog number: 3RV2011-1BA10
✓ Product and packaging catalog numbers match

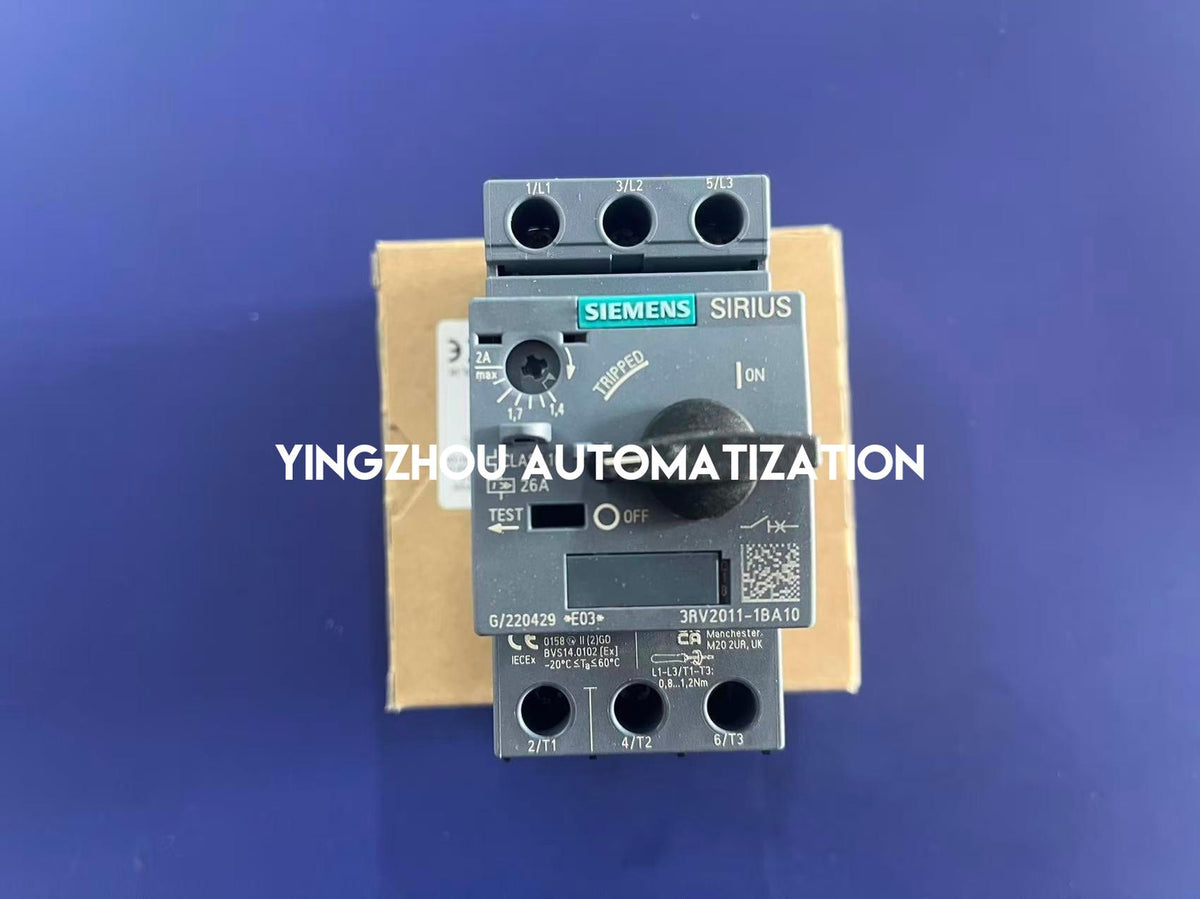

✓ Product front marking shows 1.4–2.0 A adjustable overload protection
✓ Product front marking shows CLASS 10
✓ Product front marking shows 26 A magnetic release
✓ Packaging indicates Made in Germany
✓ Confirm the required current setting and electrical ratings before installation
✓ Photographs provide visual model verification, not independent functional testing or authentication

In Stock & Available to Order

Siemens 3RV2011-1BA10 is marked in stock based on the supplied inventory information. This SIRIUS motor starter protector features 1.4–2.0 A adjustable thermal protection, CLASS 10 characteristics and a 26 A magnetic short-circuit release. Actual product and packaging photographs are available for exact-model confirmation. Please check the motor rated current, operating voltage and required short-circuit protection before placing your order. Available quantity and dispatch arrangements can be confirmed with our sales team.

IN STOCK

Siemens 3RV2011-1BA10

Contact us for exact-model verification, multiple-unit requirements and industrial motor protection sourcing. Please confirm the 1.4–2.0 A current setting, CLASS 10 requirements and operating voltage before ordering.
