Schneider Electric ZBE101 Harmony XB4/XB5 1NO Contact Block
1 NO | Slow-Break | Silver Alloy Contacts | Screw Clamp Terminals
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
ZBE101 |
| Product Range |
Harmony XB4 / Harmony XB5 |
| Device Short Name |
ZBE |
| Product Type |
Single Contact Block |
| Contact Configuration |
1 NO (Normally Open) |
| Contact Operation |
Slow-Break |
| Contacts Usage |
Standard Contacts |
| Positive Opening |
Without |
| Contacts Material |
Silver Alloy (Ag/Ni) |
| Connections / Terminals |
Screw Clamp Terminals |
| Terminal Identification |
(13–14) NO |
| Mounting |
Front Mounting |
| Operating Travel |
2.6mm (NO changing state); 4.3mm total |
| Operating Force |
2.3N (NO changing electrical state) |
| Mechanical Durability |
10,000,000 Cycles |
| Electrical Durability |
1,000,000 Cycles at AC-15, 2A / 230V |
| Rated Operational Current |
3A @ 240V AC-15; 6A @ 120V AC-15 |
| Conventional Thermal Current |
10A |
| Rated Insulation Voltage |
600V, Pollution Degree 3 |
| Rated Impulse Withstand Voltage |
6kV |
| Short-Circuit Protection |
10A gG Cartridge Fuse, IEC 60947-5-1 |
| Tightening Torque |
0.8–1.2N·m |
| IP Degree of Protection |
IP20 (IEC 60529) |
| Ambient Operating Temperature |
−40 to +70°C |
| Ambient Storage Temperature |
−40 to +70°C |
| Net Weight |
0.011kg |
| Manufacturer Pack Multiple |
5 Pieces |
Product Overview
The Schneider Electric ZBE101
is a single normally open (1 NO) contact block
for the Harmony XB4 and XB5
modular push-button and control device ranges.
This contact block features
slow-break operation
and uses silver alloy (Ag/Ni) contacts
for standard control-circuit switching.
It is fitted with
screw clamp terminals
and is designed for front mounting
with compatible Harmony modular control devices.
The module provides one normally open contact
with terminal identification
13–14.
It has an IP20 protection rating,
a conventional thermal current
of 10A,
and specified operational ratings of
3A at 240V AC-15
and 6A at 120V AC-15.
Mechanical durability is specified as
10 million cycles.
ZBE101 is a contact block
sub-assembly, not a complete push-button switch.
A suitable operator head and required
mounting components must be selected
according to the application.
Key Product Features
-
Schneider Harmony XB4/XB5 contact block
for compatible modular push-button devices
-
Single 1 NO contact
with slow-break operation
-
Silver alloy (Ag/Ni) contacts
for standard control-circuit switching
-
Screw clamp terminals
with 0.8–1.2N·m tightening torque
-
10 million mechanical cycles
under manufacturer-specified conditions
-
IP20 module protection
in accordance with IEC 60529

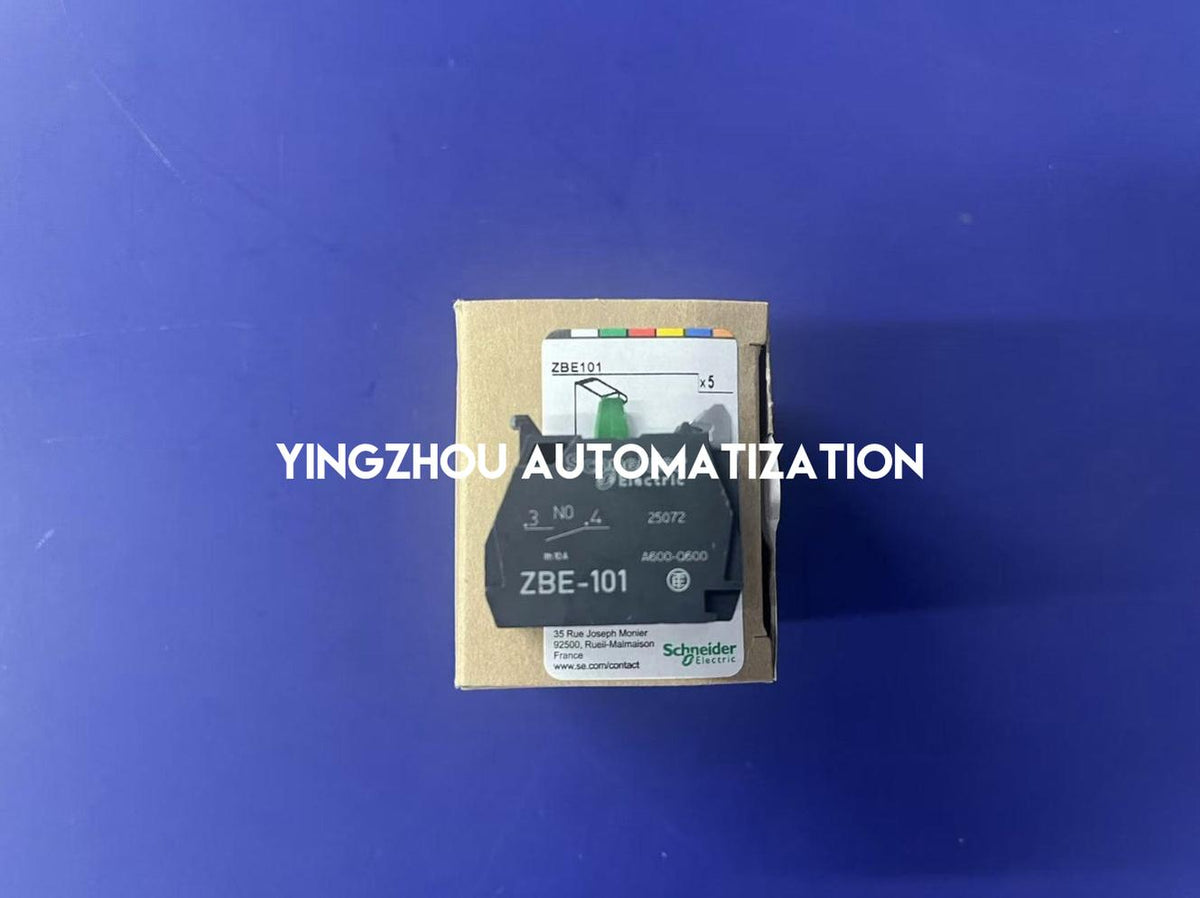

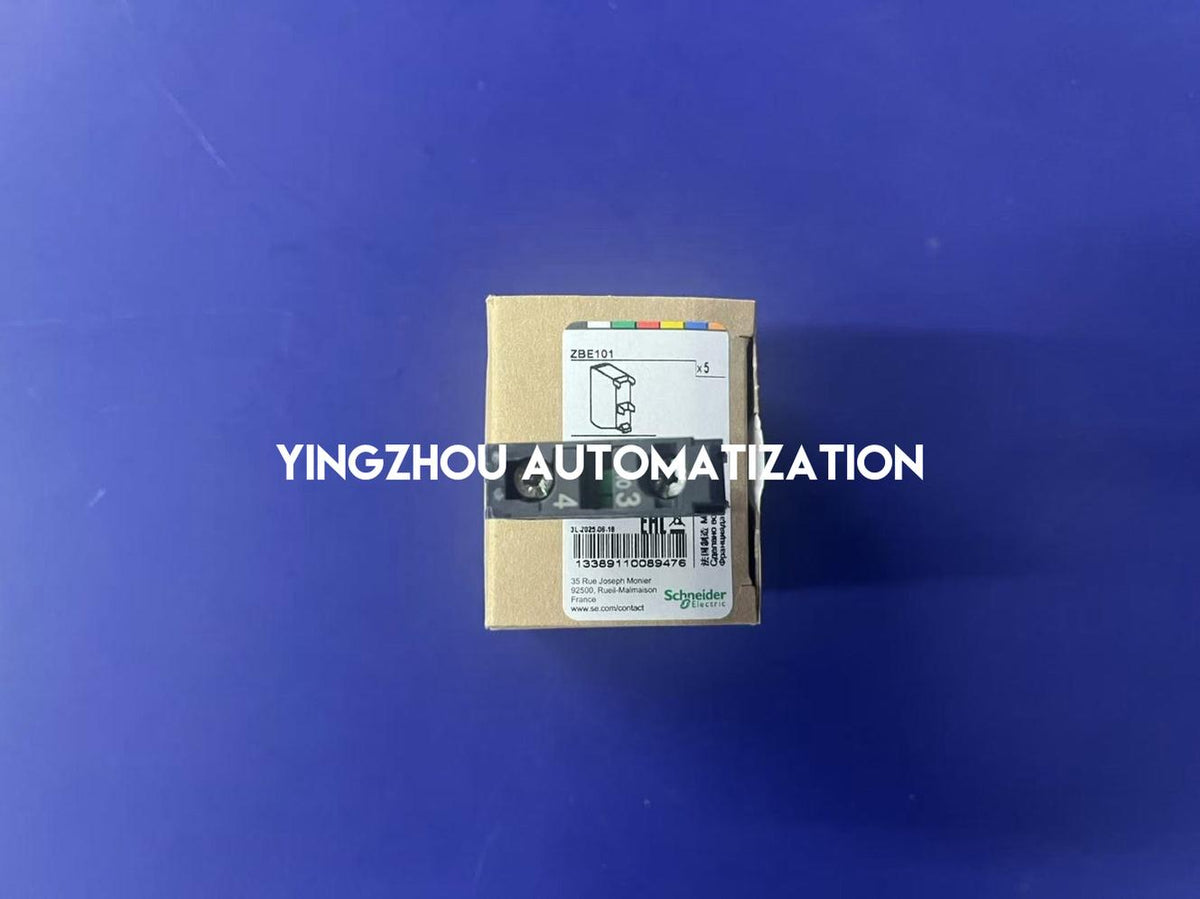

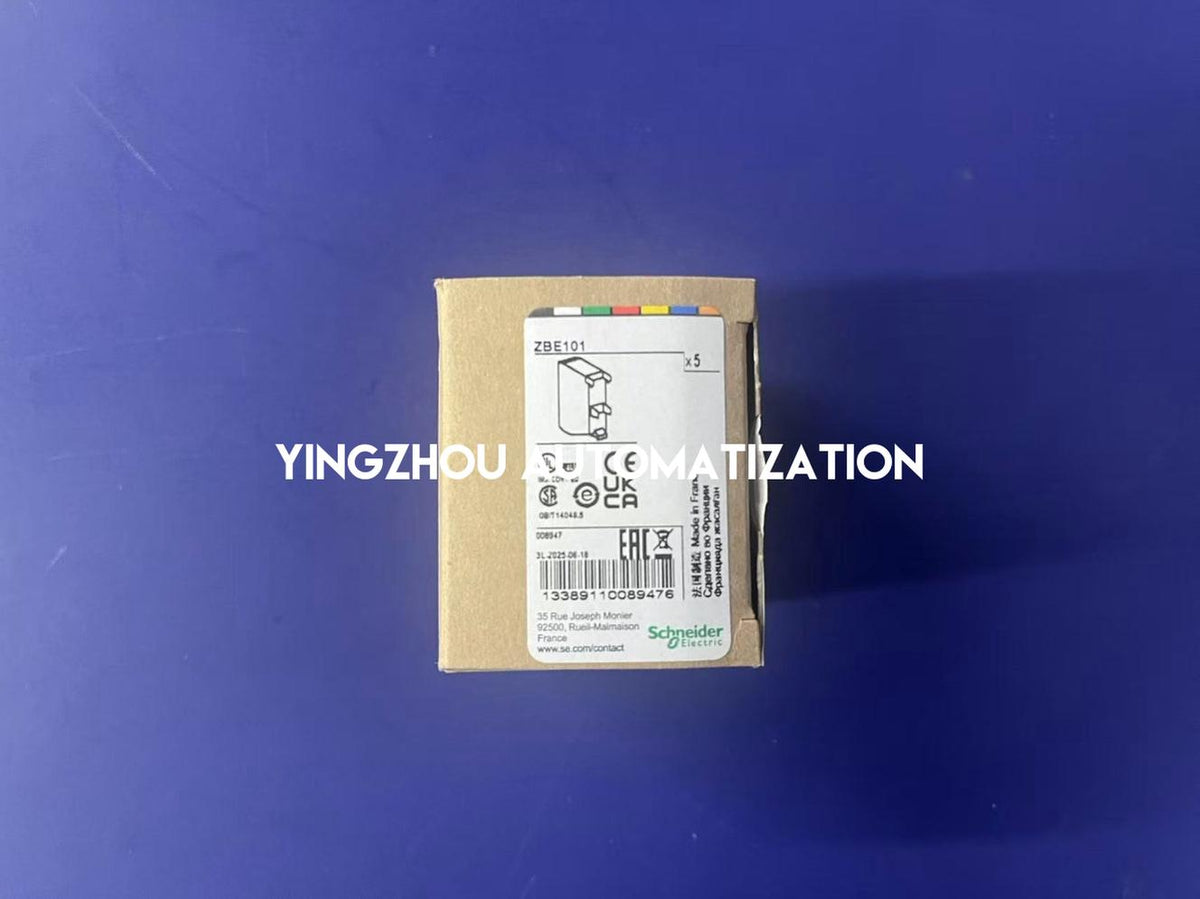

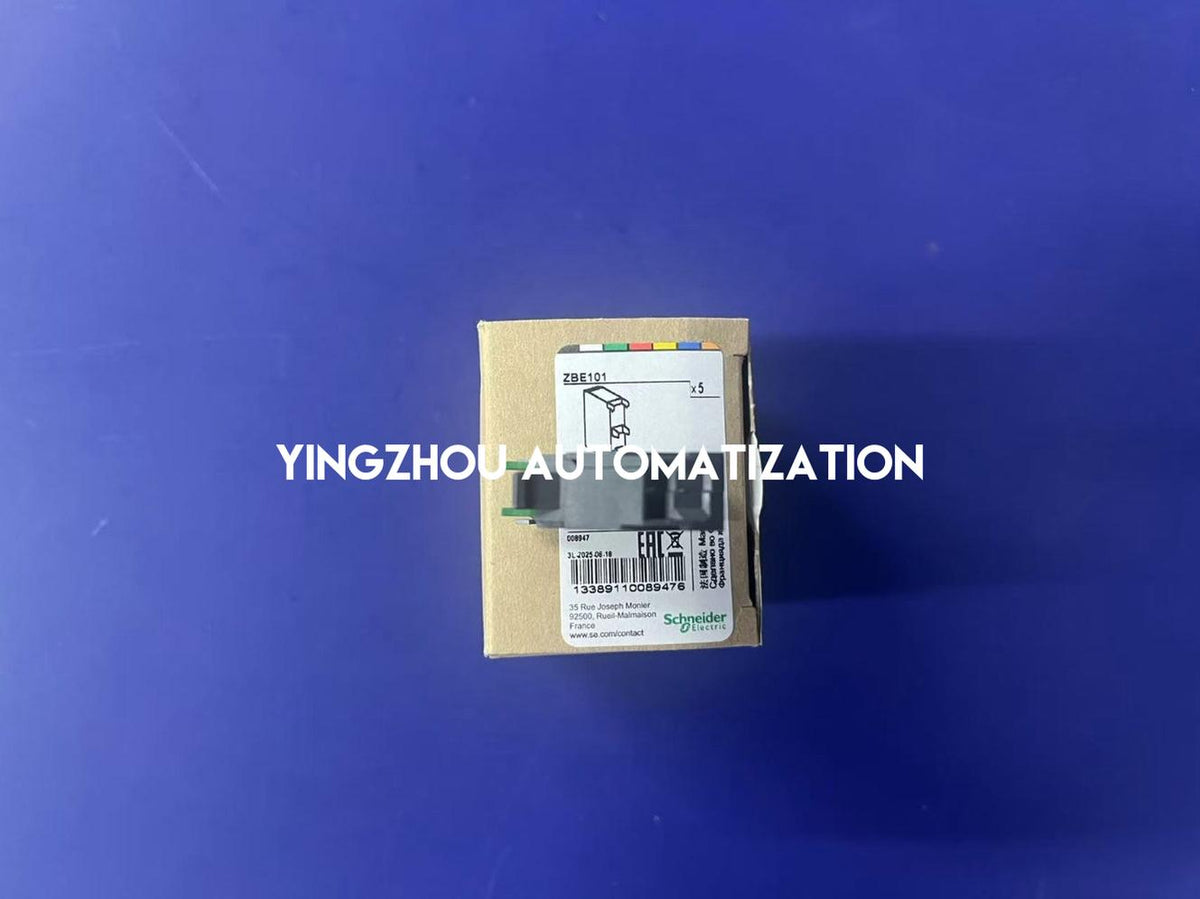

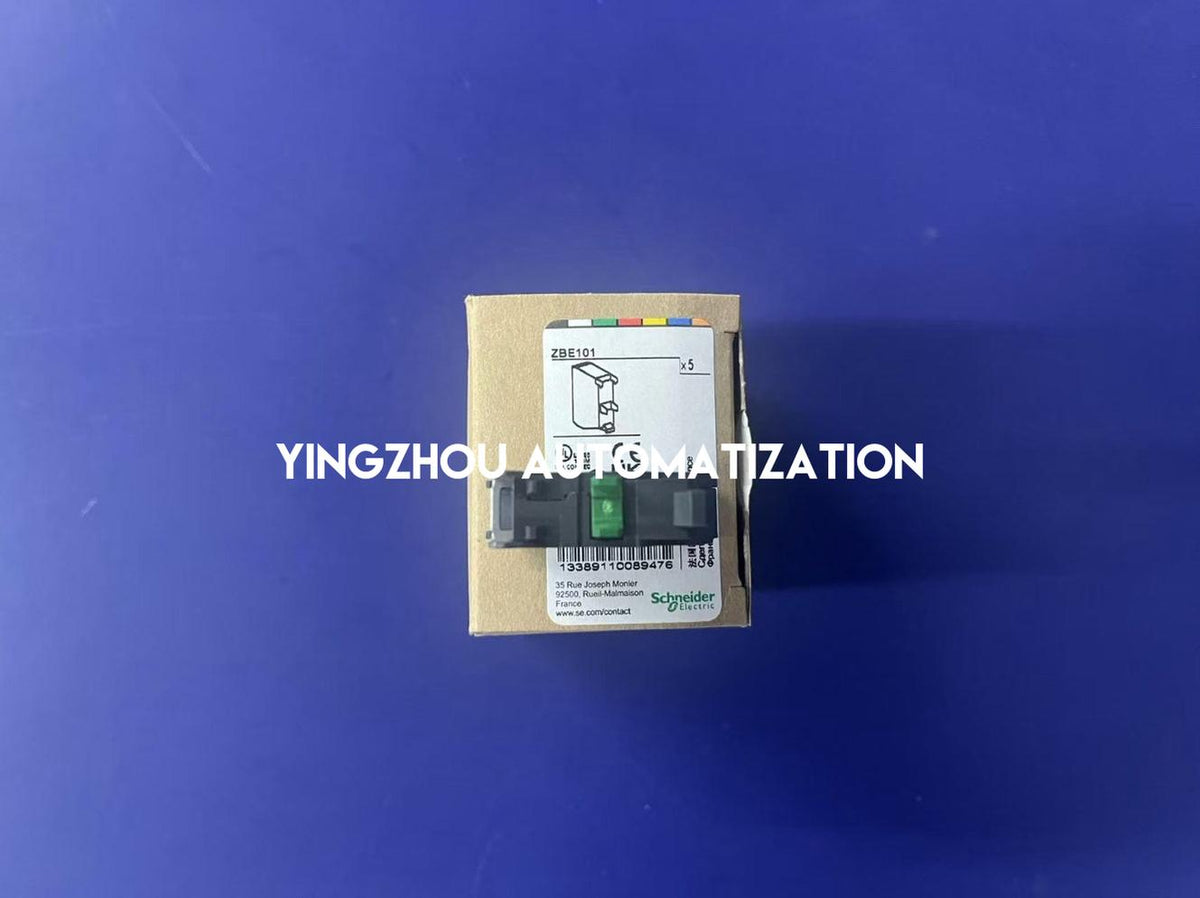

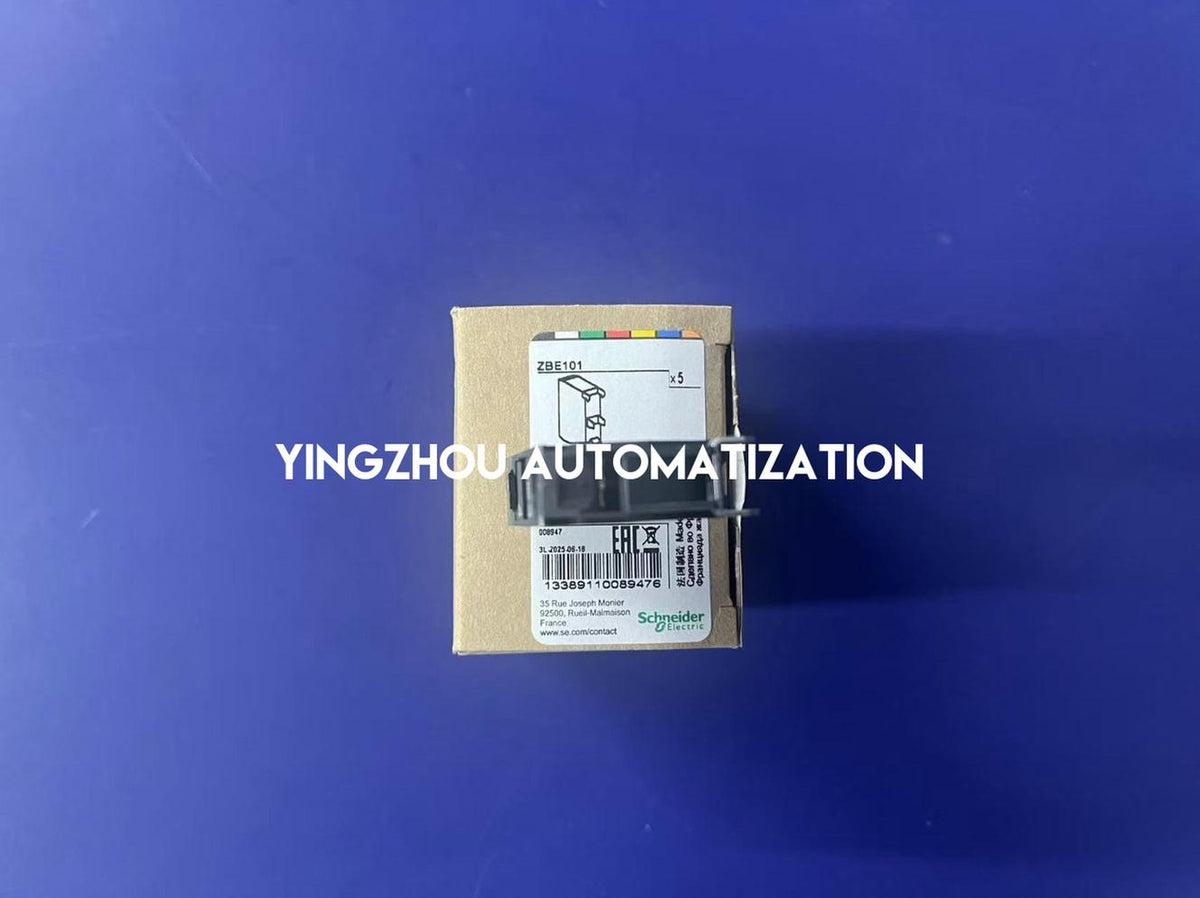

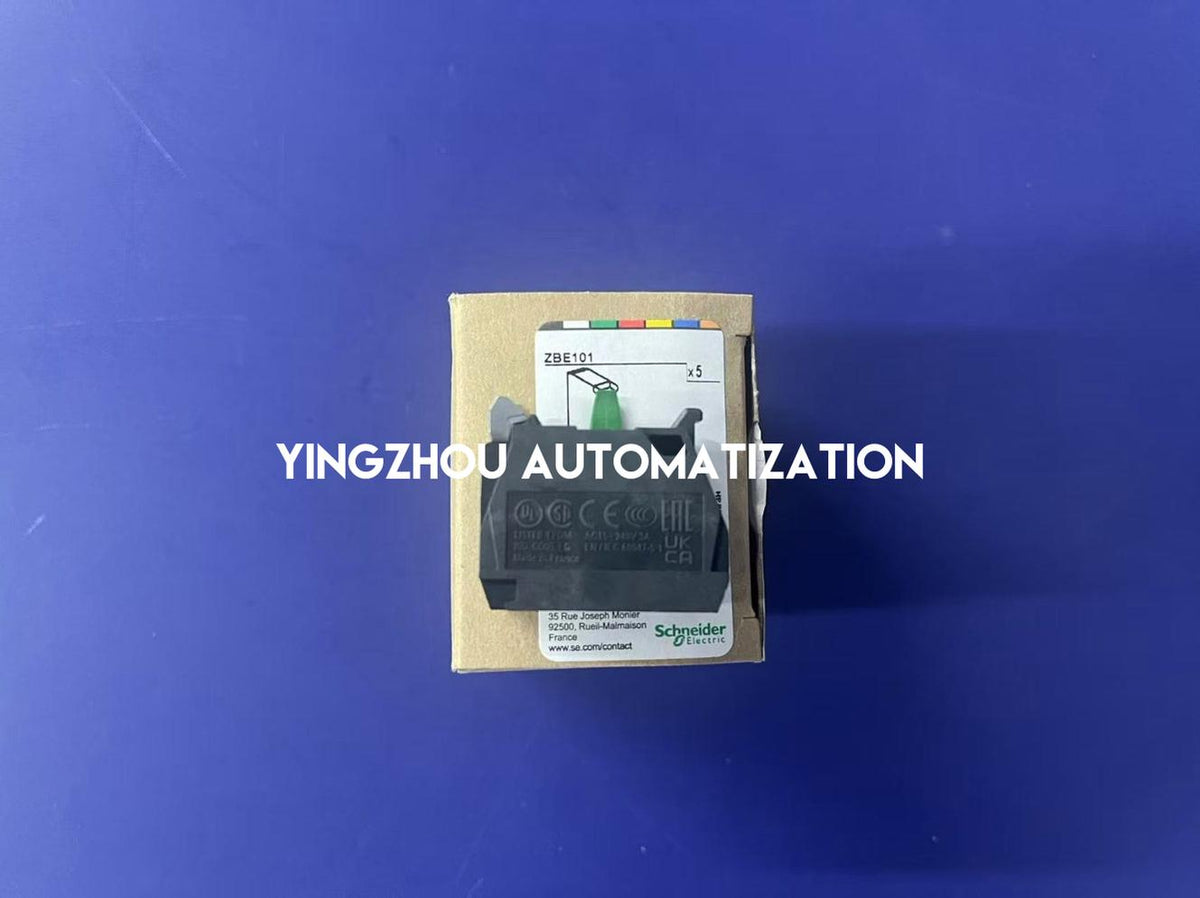

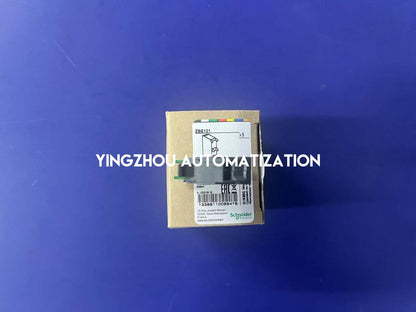

Actual Product Verification
✓
Actual Schneider Electric
product packaging photograph supplied
✓
Exact model ZBE101
visible on the packaging label
✓
Manufacturer packaging marked
x5 pieces per box
✓
Made in France marking and
barcode visible on packaging
✓
Verify exact model, contact configuration,
order quantity and compatible mounting
components before ordering
In Stock & Ready to Order
Schneider Electric ZBE101
is in stock and ready to order.
Actual product packaging photographs
are available for exact-model verification.
This single contact block provides
1 normally open contact,
slow-break operation,
silver alloy contacts
and screw clamp terminals.
It is designed for use with compatible
Harmony XB4 and XB5 modular control devices.
The manufacturer packaging is marked
5 pieces per box;
please confirm the required order
quantity and supply unit before purchase.
Contact our team for quantity requirements,
international shipping and order assistance.
IN STOCK & READY TO ORDER
Schneider Electric ZBE101
Contact us for project pricing, quantity requirements and shipping confirmation.
Request Project Pricing
