Schneider Electric XB4RFB01 Harmony Wireless Batteryless Pushbutton Kit
Harmony XB4R | 22mm Metal | 24V DC Receiver | 3A Relay | Zigbee
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
XB4RFB01 |
| Series |
Harmony XB4R |
| Product Type |
Wireless and Batteryless Pushbutton Package |
| Device Short Name |
XB4R |
| Pushbutton Head Material |
Metal |
| Pushbutton Diameter |
22 mm |
| Pushbutton Power Source |
Self-Powered, Batteryless |
| Receiver Type |
Non-Programmable Receiver |
| Receiver Supply Voltage |
24 V DC |
| Receiver Input Power Marking |
0.85 W at 24 V DC (Product Label) |
| Receiver Output Type |
1 Relay |
| Receiver Output Contact |
1 C/O |
| Receiver Relay Rating |
3 A at 240 V AC, Resistive Load |
| Contact Common Terminal |
11 (COM) |
| Normally Closed Terminal |
12 (NC) |
| Normally Open Terminal |
14 (NO) |
| Transmitter and Receiver Frequency |
2405 MHz (2.405 GHz) |
| Wireless Communication Protocol |
Zigbee / IEEE 802.15.4 |
| Number of Channels |
1 |
| Modulation Technique |
O-QPSK |
| Bandwidth |
5 MHz |
| Antenna Type |
Omnidirectional |
| Antenna Gain |
0 dBi |
| Emission Class |
5M00G7W |
| Receiver Configuration |
Non-Configurable |
| Factory Pairing |
Transmitter and Receiver Factory-Paired |

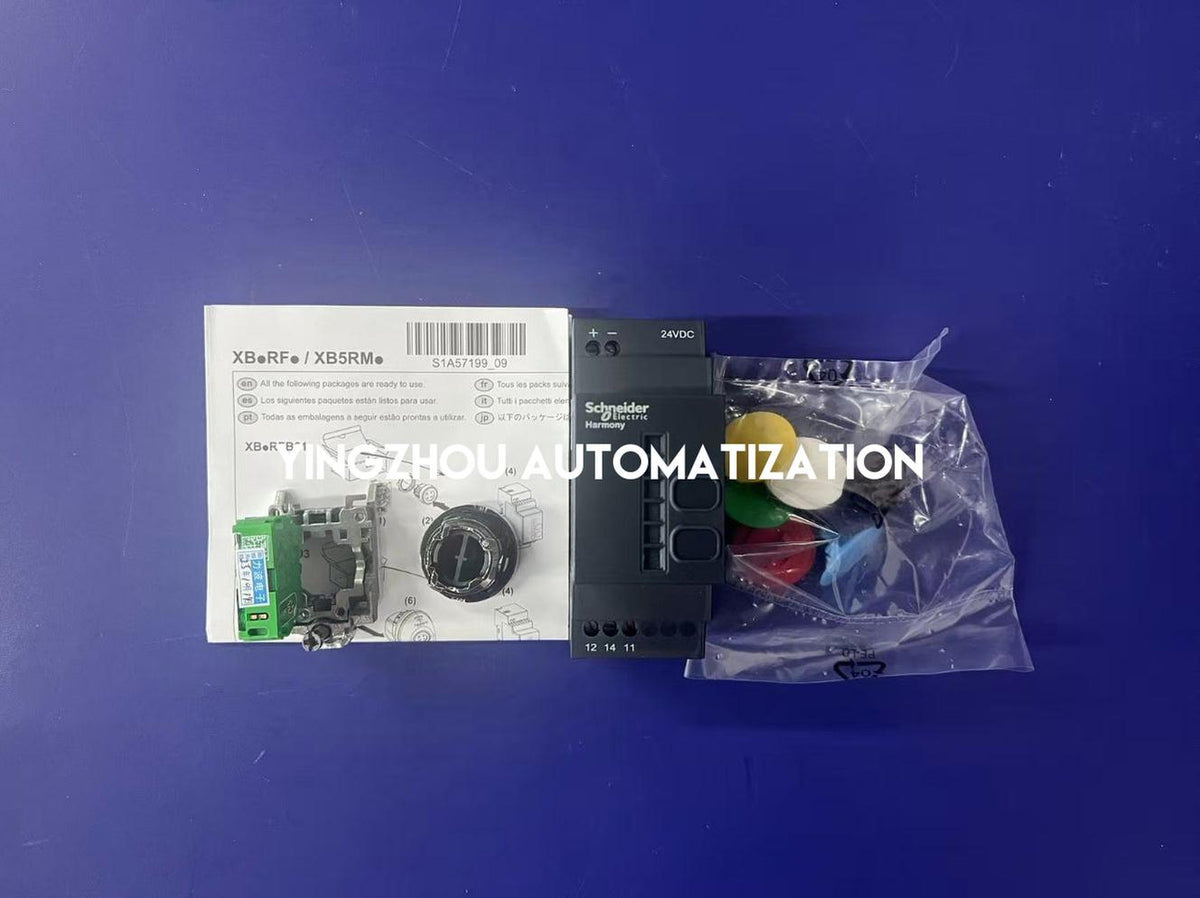

| Kit Composition |
Wireless Pushbutton, Transmitter, Receiver, Fixing Collar and Set of Caps |
| Pushbutton Mounting |
22mm Panel Mounting with Fixing Collar |
| Panel Thickness |
1–6 mm |
| Receiver Wiring Diagram Protection |
125 mA Fast-Blow Fuse |
| Standards |
UL 508; IEC 60947-1; CSA C22.2 No. 14; IEC 60947-5-1 |
| EAN / GTIN |
3606480436024 |
| Manufacturer Package Quantity |
1 Kit |
Product Overview
The Schneider Electric XB4RFB01
is a wireless and batteryless pushbutton package
from the Harmony XB4R range.
The manufacturer-defined kit includes a
22mm metal wireless pushbutton,
a self-powered transmitter, a
24V DC non-programmable receiver,
a fixing collar and a set of pushbutton caps.
The transmitter and receiver are
factory-paired for wireless control.
Communication uses
Zigbee / IEEE 802.15.4
technology at 2405 MHz.
The receiver has one relay output,

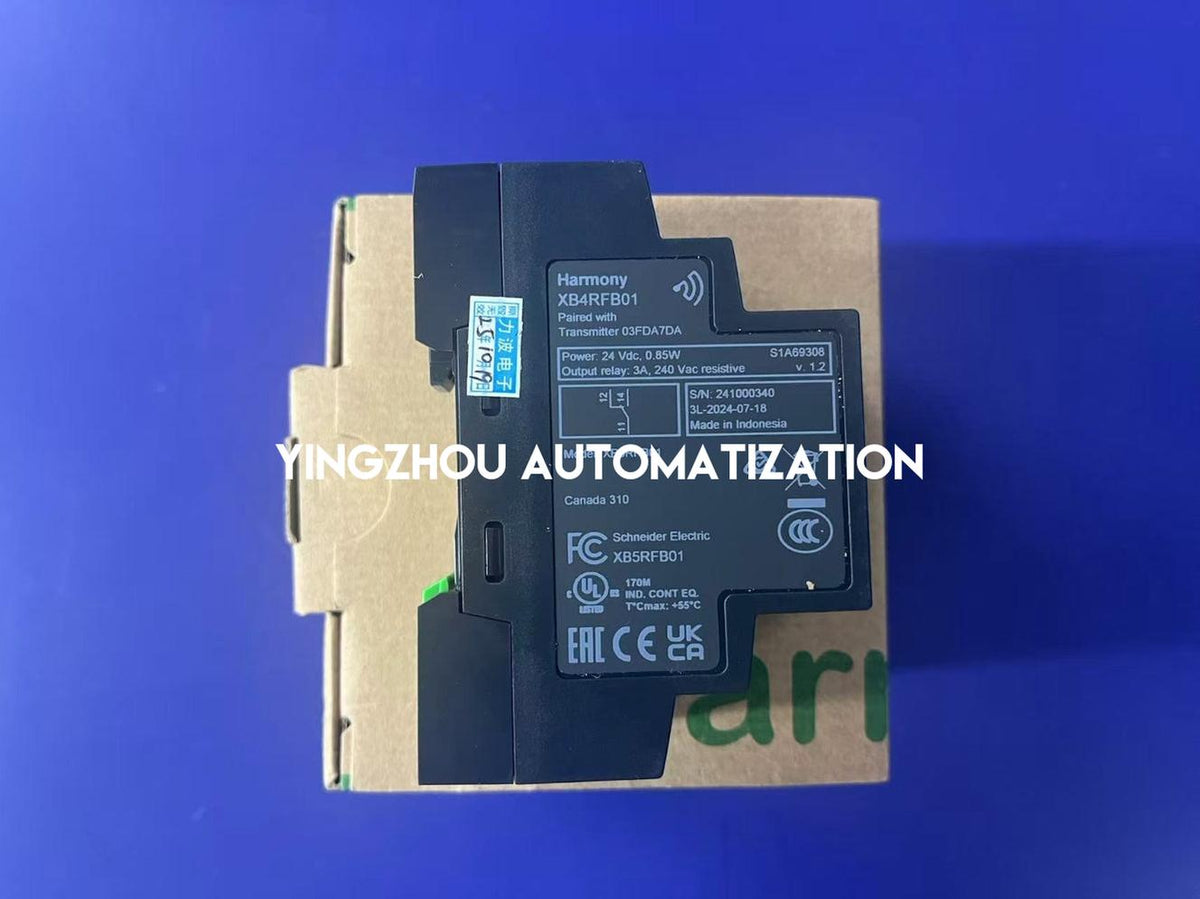

with the photographed nameplate showing
3A at 240V AC for resistive loads.
The wireless pushbutton requires no battery,
while the receiver requires an external
24V DC supply.
Key Product Features
-
Wireless and batteryless pushbutton package from Schneider Harmony XB4R
-
22mm metal operator with self-powered wireless transmitter
-
24V DC receiver with one non-programmable relay output
-
Factory-paired transmitter and receiver for a matched control system
-
Zigbee IEEE 802.15.4 communication at 2405MHz
-
3A at 240V AC receiver relay rating for resistive loads
-
Batteryless pushbutton design for wireless industrial control applications
Actual Product Verification
✓

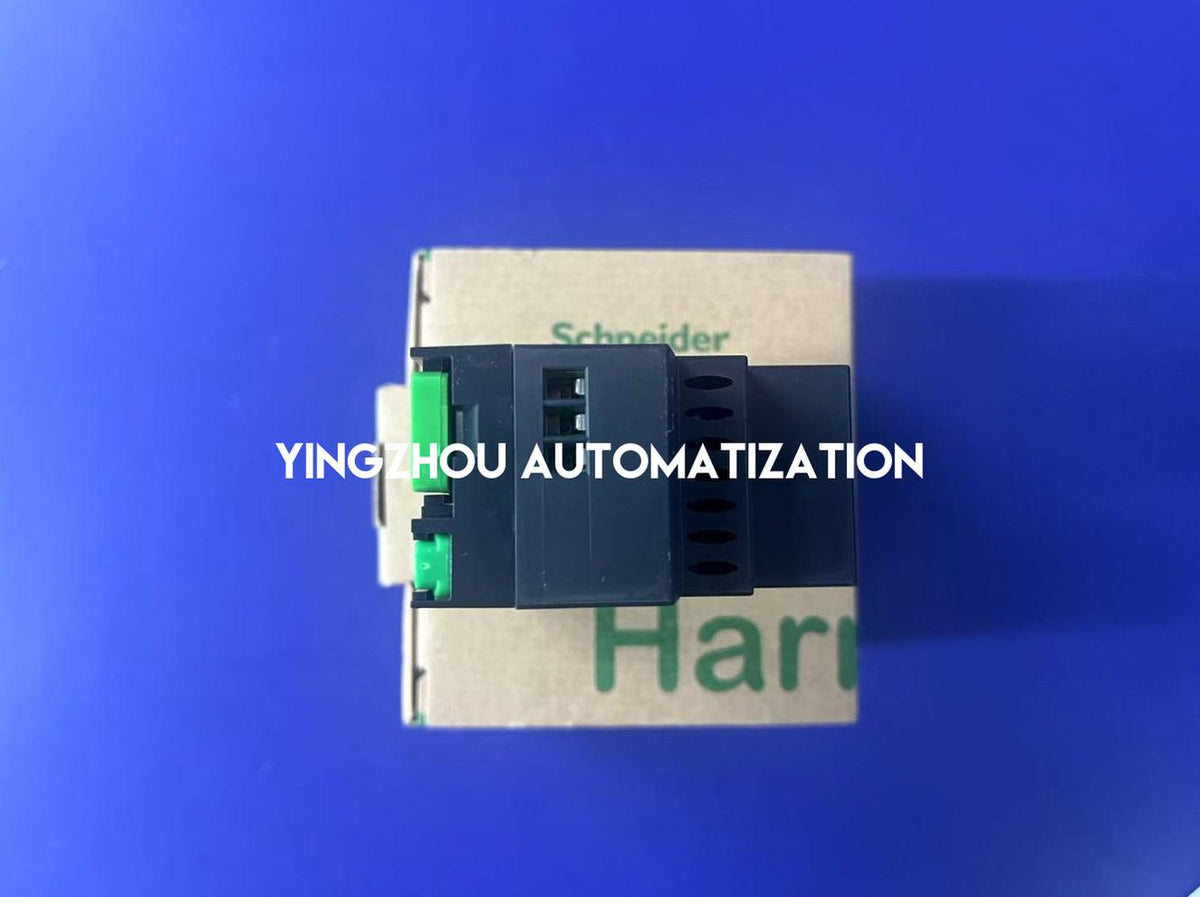

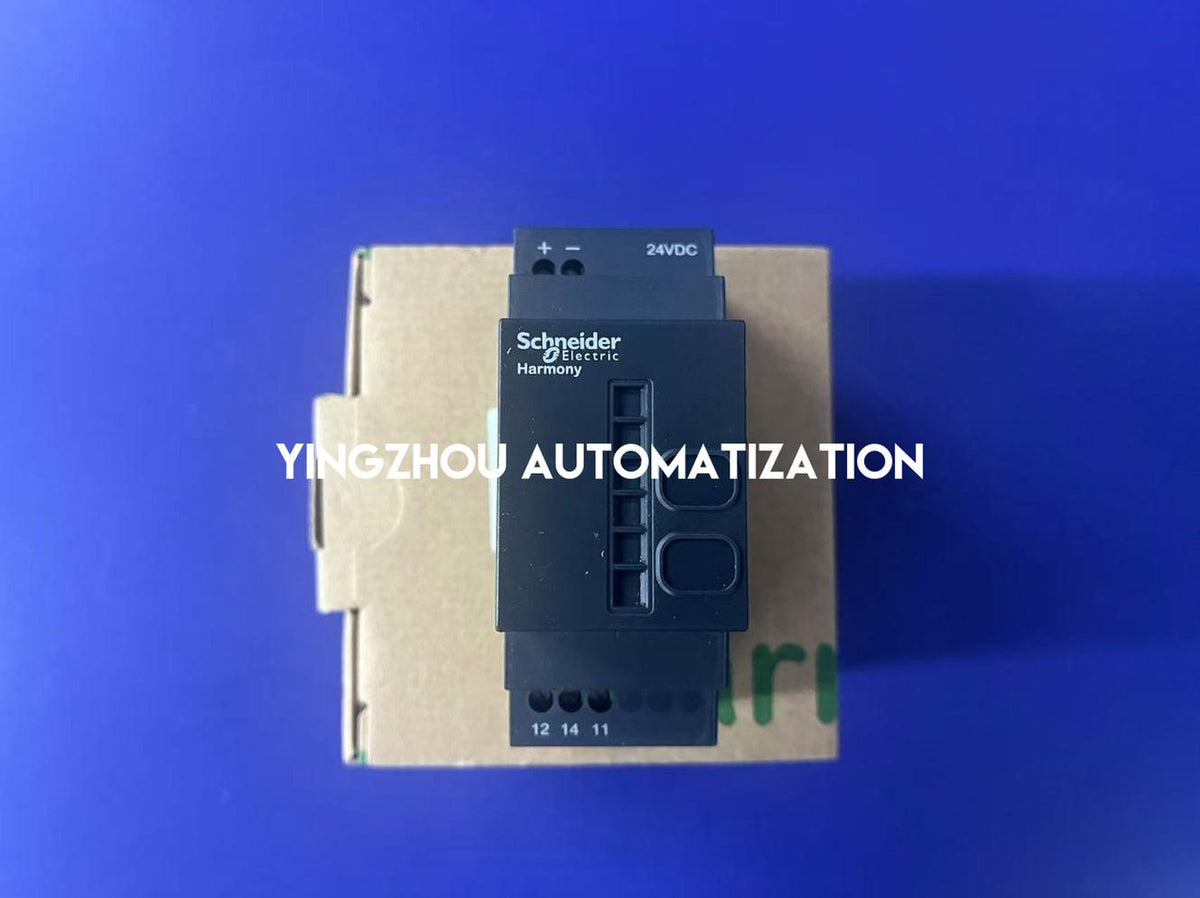

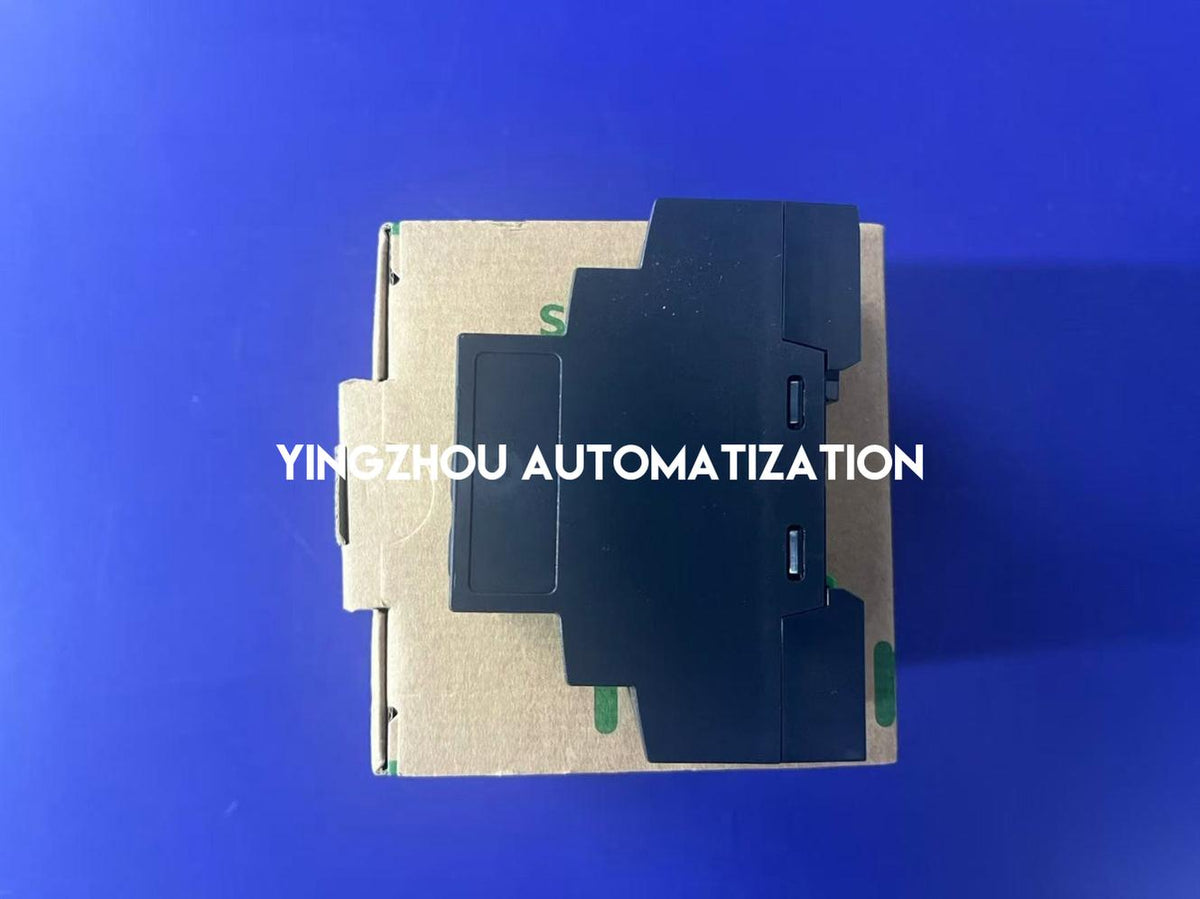

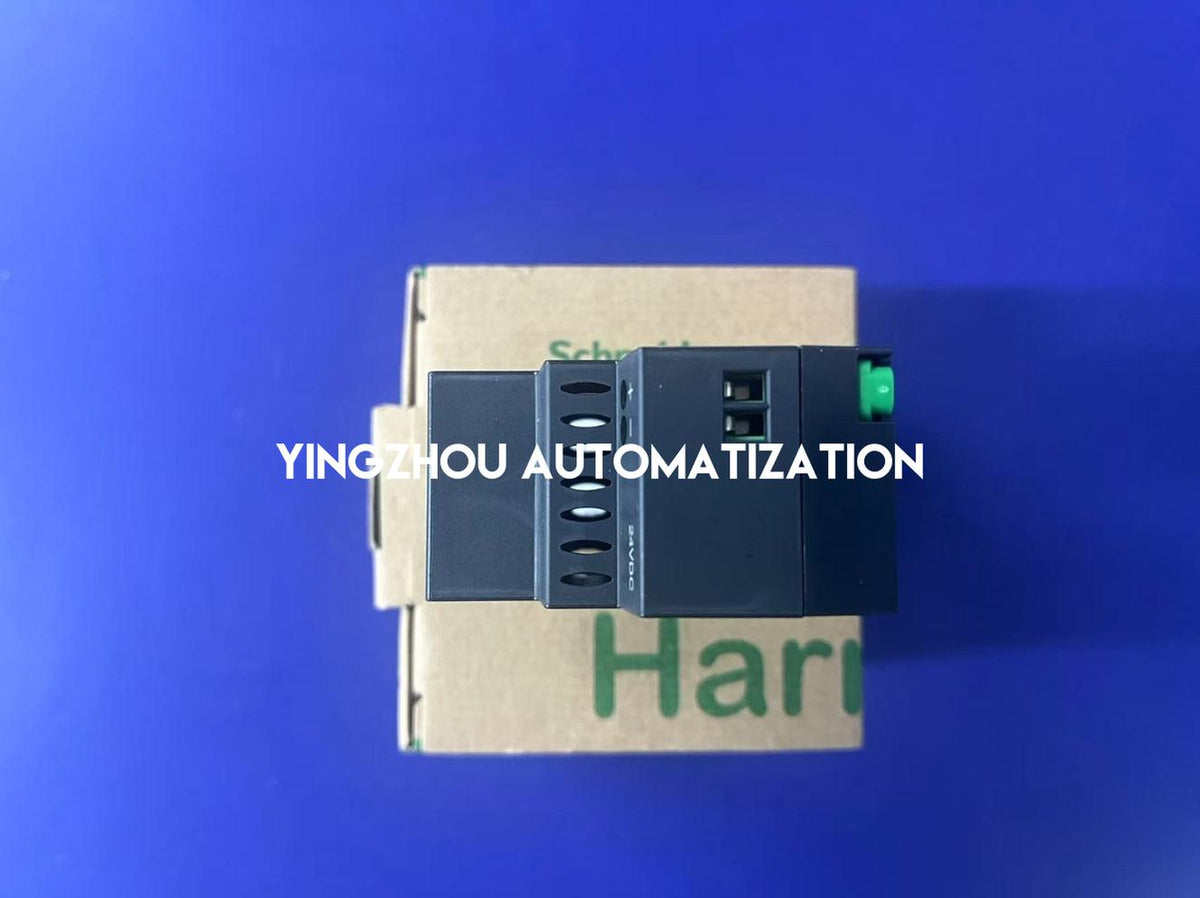

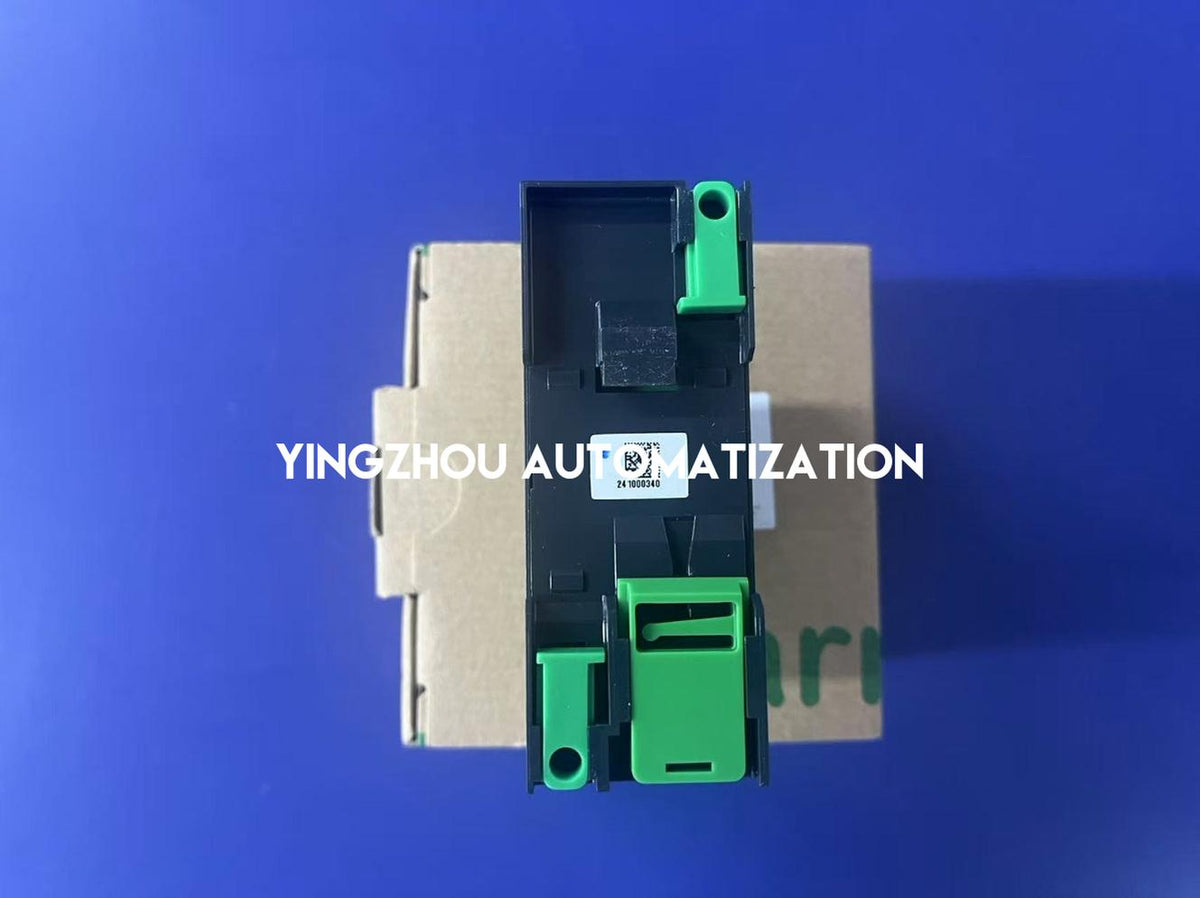

Actual receiver photos
✓

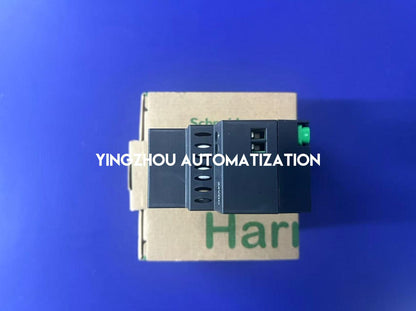

Receiver model/nameplate visible
✓

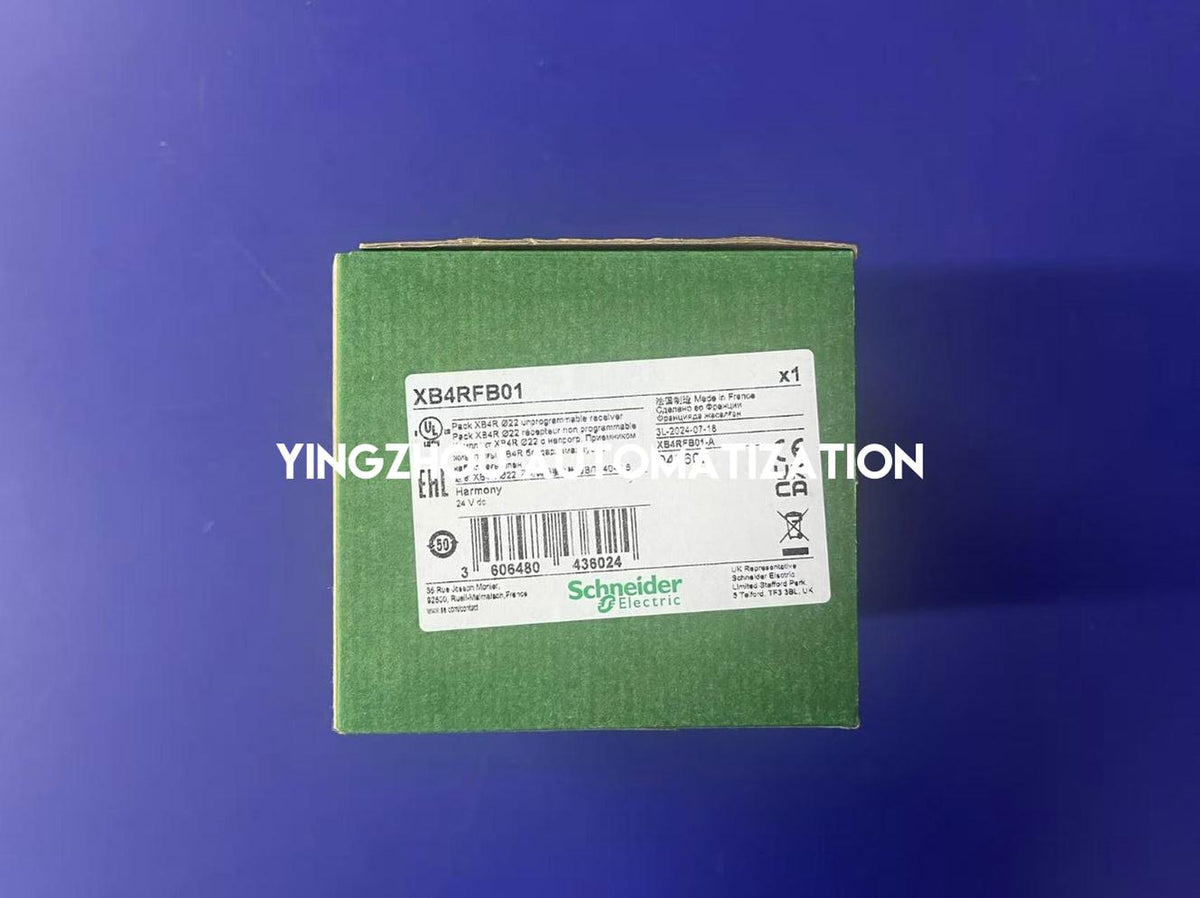

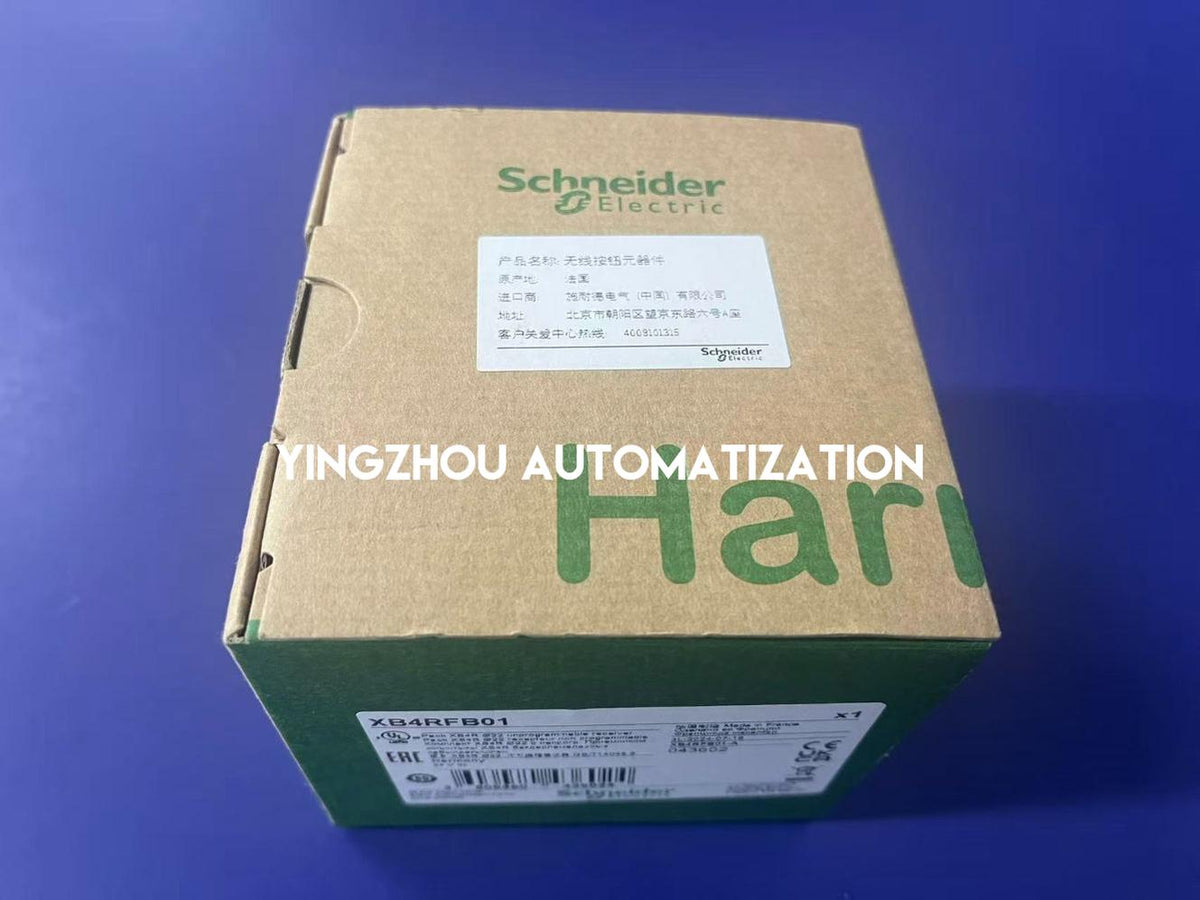

Schneider packaging shown
✓
Verify exact model XB4RFB01,
paired wireless transmitter, receiver
and complete kit contents before ordering
In Stock & Ready to Order
Schneider Electric XB4RFB01
is reported in stock. Actual receiver,
nameplate and Schneider packaging photos
are available for buyer verification.
The manufacturer-defined Harmony XB4R
package combines a
22mm metal wireless batteryless pushbutton
with a 24V DC non-programmable receiver.
The receiver provides one relay output,
with a 3A at 240V AC resistive-load rating
indicated on the photographed nameplate.
Please confirm that the complete
factory-paired transmitter, receiver,
pushbutton and accessories are included,
and verify the required order quantity
before purchasing.
Contact our team for international
shipping arrangements.
IN STOCK
Schneider Electric XB4RFB01
Order online or contact us for project and quantity pricing.
Request Project Pricing
