Schneider Electric RUZSC2M Harmony Relay Socket
RUM 2 C/O Relay Socket | 12A | Screw Terminals | DIN Rail / Panel Mounting
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
RUZSC2M |
| Series |
Harmony Electromechanical Relays |
| Product Type |
Relay Socket |
| Device Short Name |
RUZ |
| Compatible Relay |
RUM Plug-in Relay with 2 C/O Contacts |
| Contact Terminal Arrangement |
Separate |
| Relay Pin Shape |
Cylindrical |
| Conventional Thermal Current |
12 A |
| Rated Operational Voltage |
Below 250 V |
| Rated Impulse Withstand Voltage |
4 kV |
| Terminal Type |
Screw Connectors |
| Mounting Support |
35mm DIN Rail / Panel |
| Fixing Method |
Clip-on / Screw Fixing |
| Width |
36 mm |
| Net Weight |
0.095 kg |
| Terminal Tightening Torque |
Below 1 N·m (M3.5 Screws) |
| Flexible Conductor with Ferrule |
1 × 0.25–2.5 mm² |
| Solid Conductor without Ferrule |
1 × 0.5–2.5 mm² |
| Protection Rating |
IP20 (IEC 60529) |
| Overvoltage Category |
III |
| Pollution Degree |
3 |
| Operating Temperature |
-40°C to +55°C |
| Storage Temperature |
-40°C to +85°C |
| Standard |
IEC 61984 |
| Certifications |
UL / CSA |
| Manufacturer Ordering Multiple |
10 Pieces |
Product Overview
The Schneider Electric RUZSC2M
is a Harmony electromechanical relay socket
designed for compatible RUM plug-in relays
with 2 changeover contacts (2 C/O).
It features a separate contact terminal
arrangement, screw connectors,
and a 12A conventional thermal current
rating.
The socket supports installation on a
35mm DIN rail or by
panel screw fixing,
providing a connection interface for compatible
industrial relay control systems.
Key Product Features
-
RUM 2 C/O compatibility for specified plug-in relays
-
12A conventional free-air thermal current
-
Separate contact terminals for organized wiring
-
Screw connectors for electrical connections
-
35mm DIN rail / panel mounting installation options
-
36mm socket width
-
IP20 protection rating according to IEC 60529
Actual Product Verification
✓

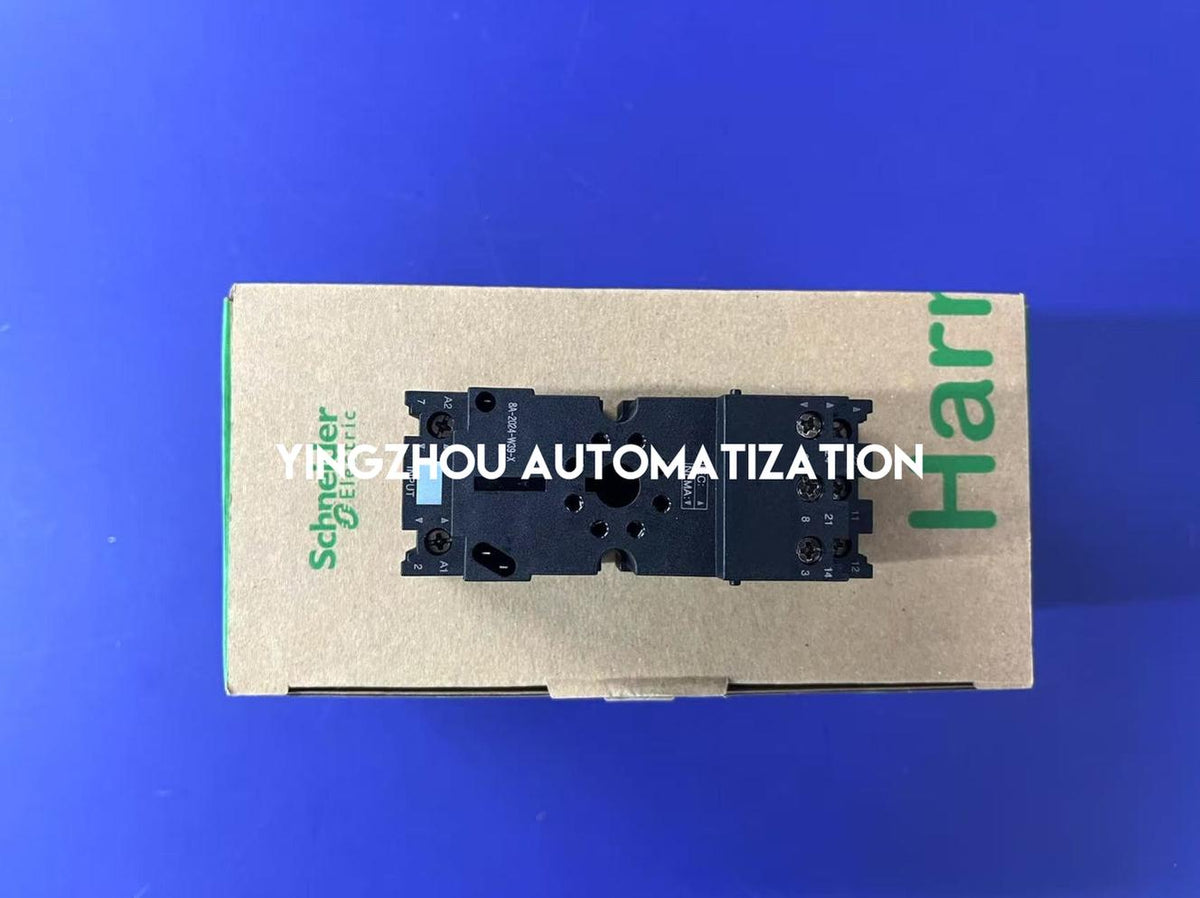

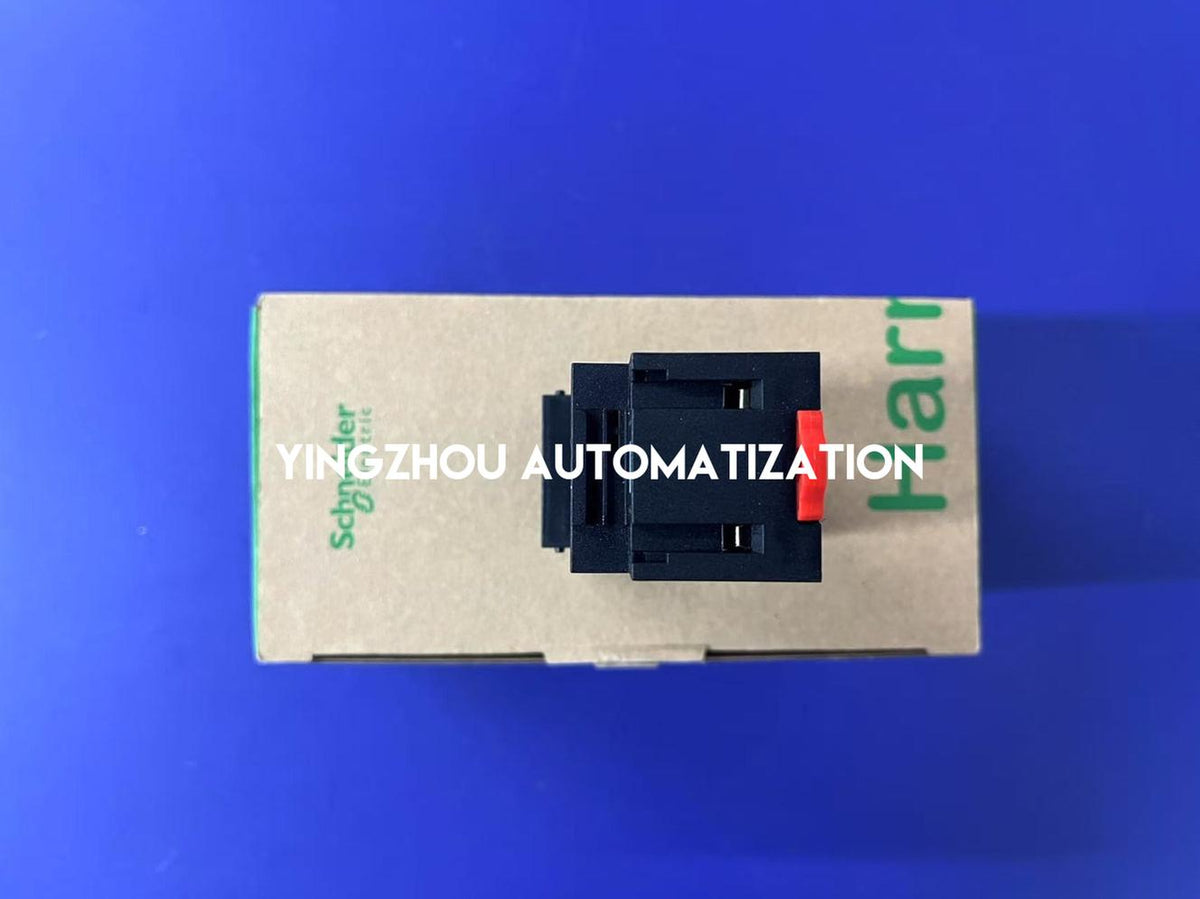

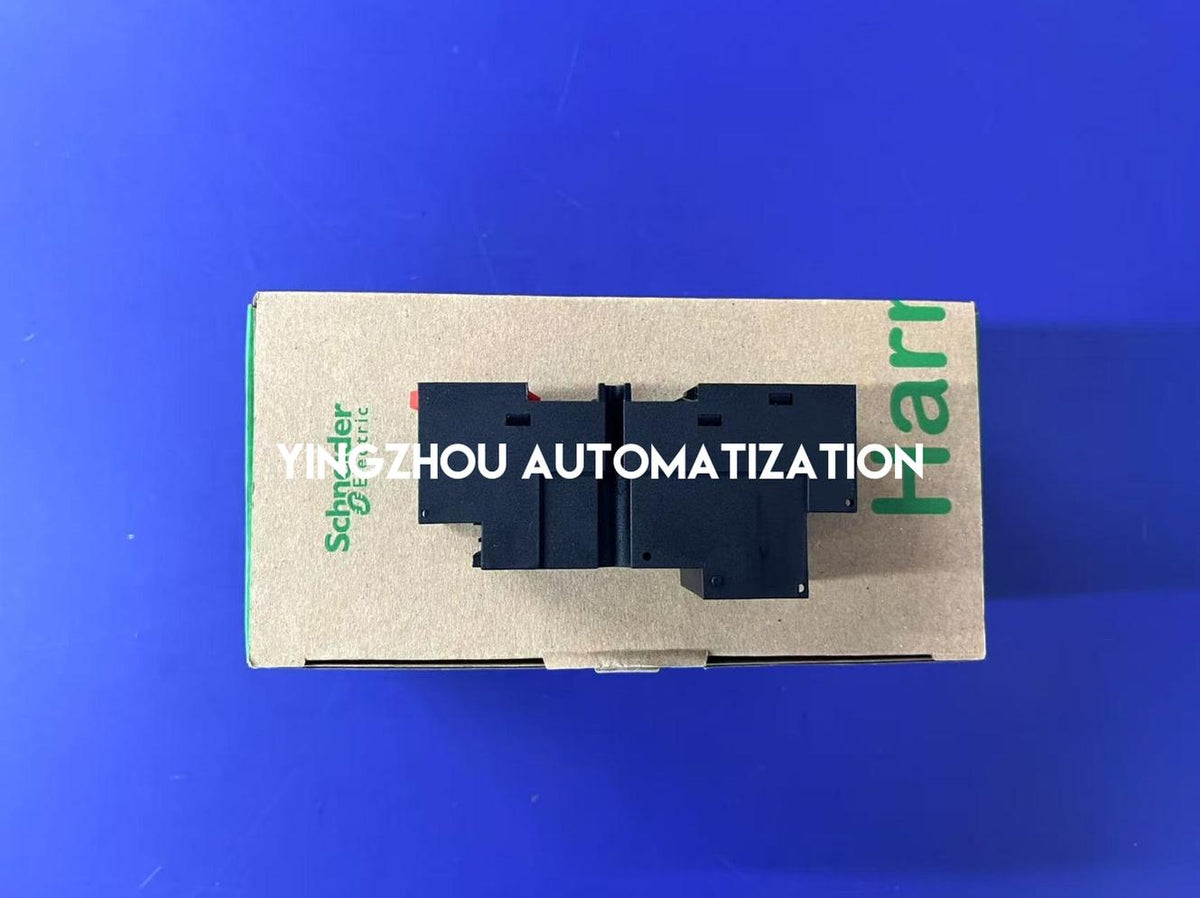

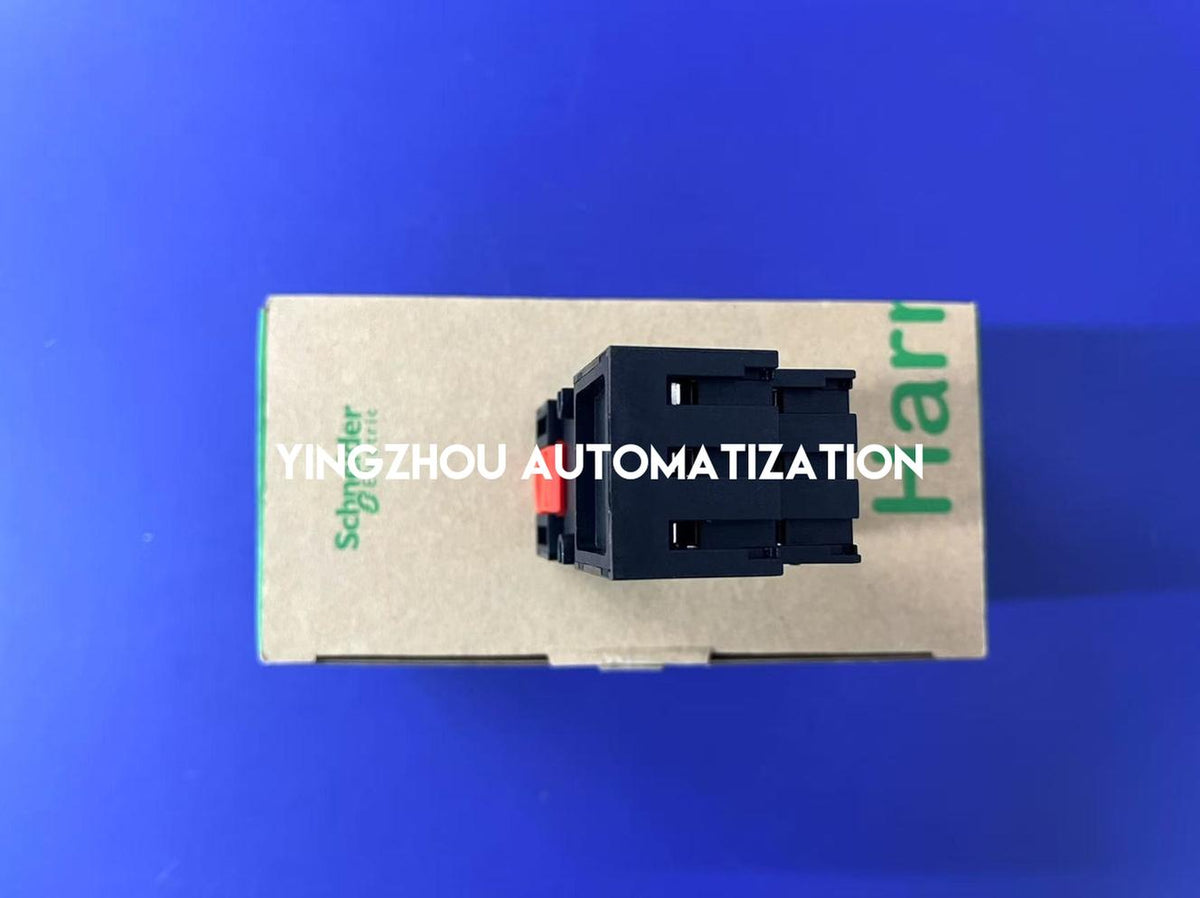

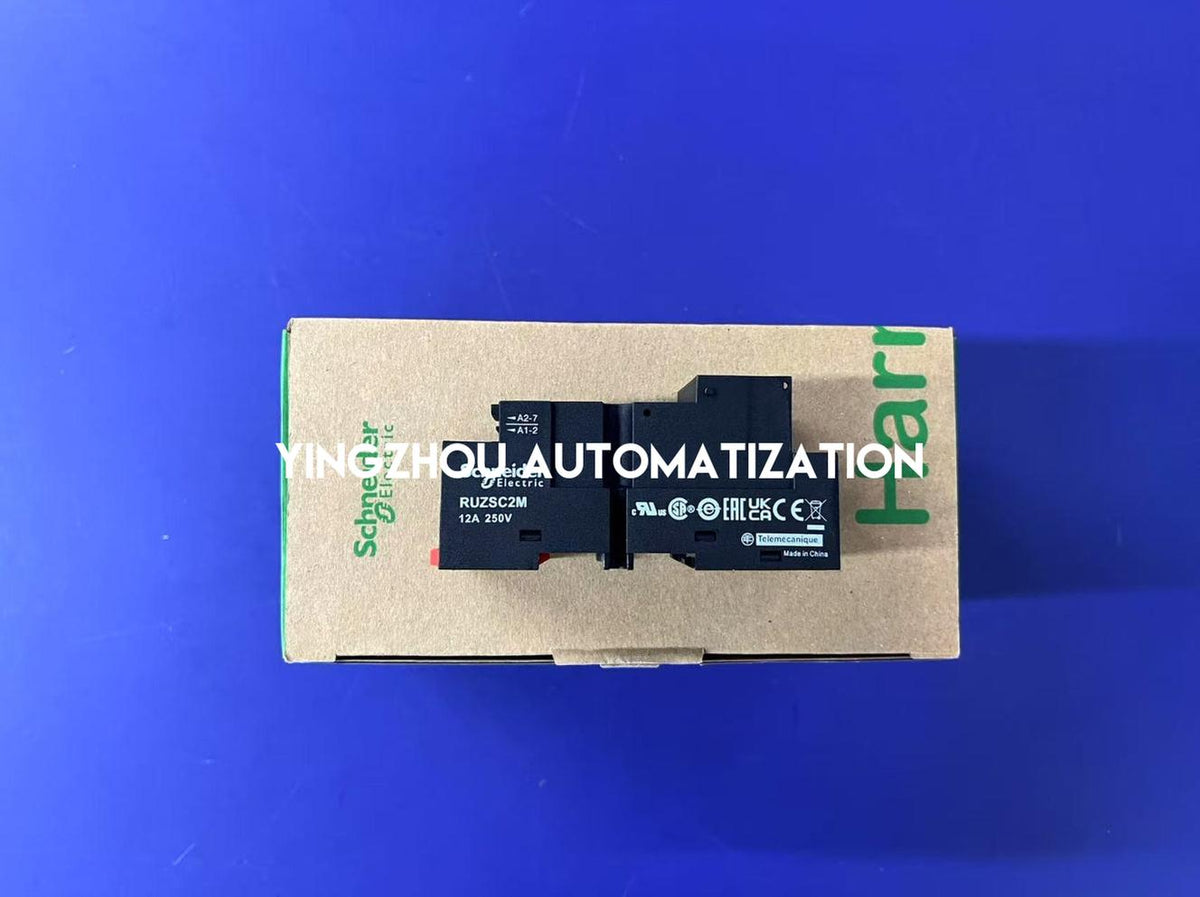

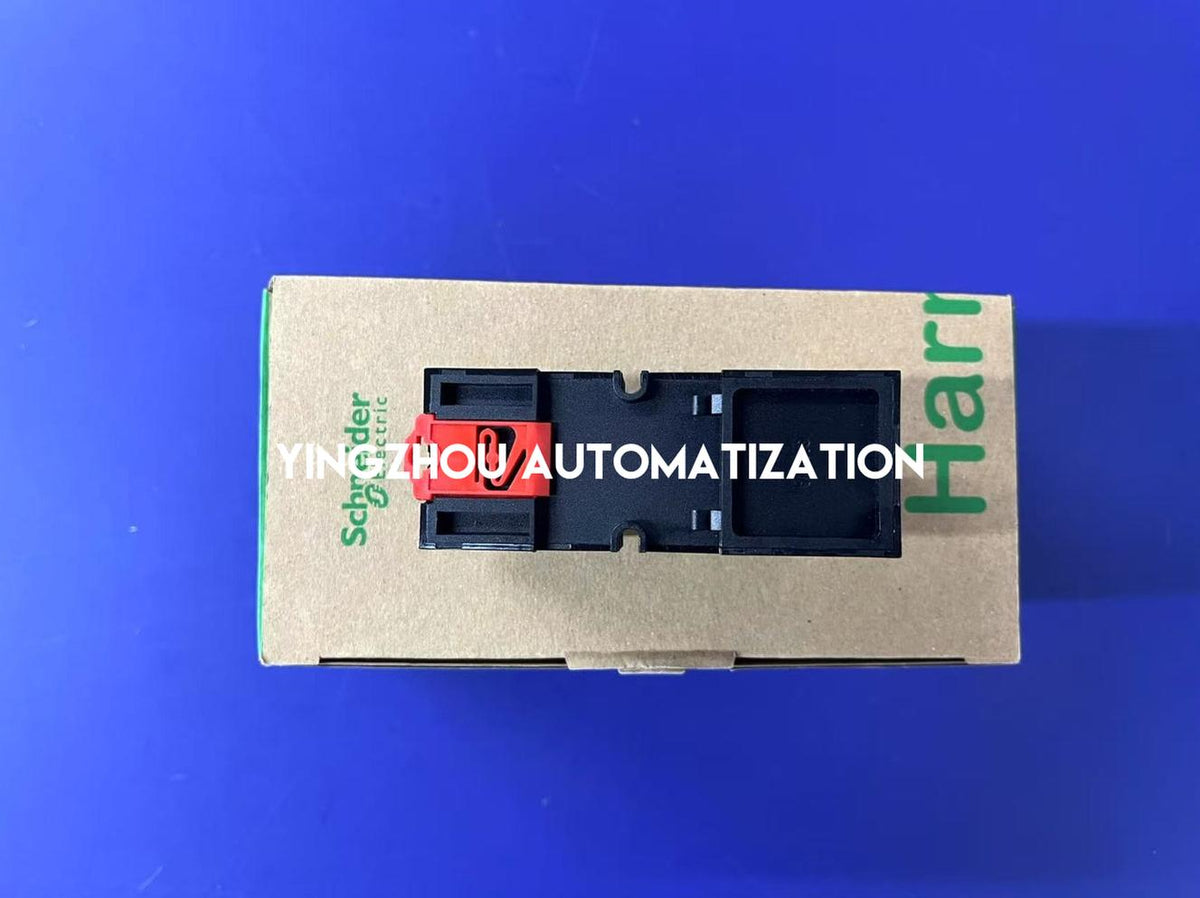

Actual Schneider packaging photo
✓

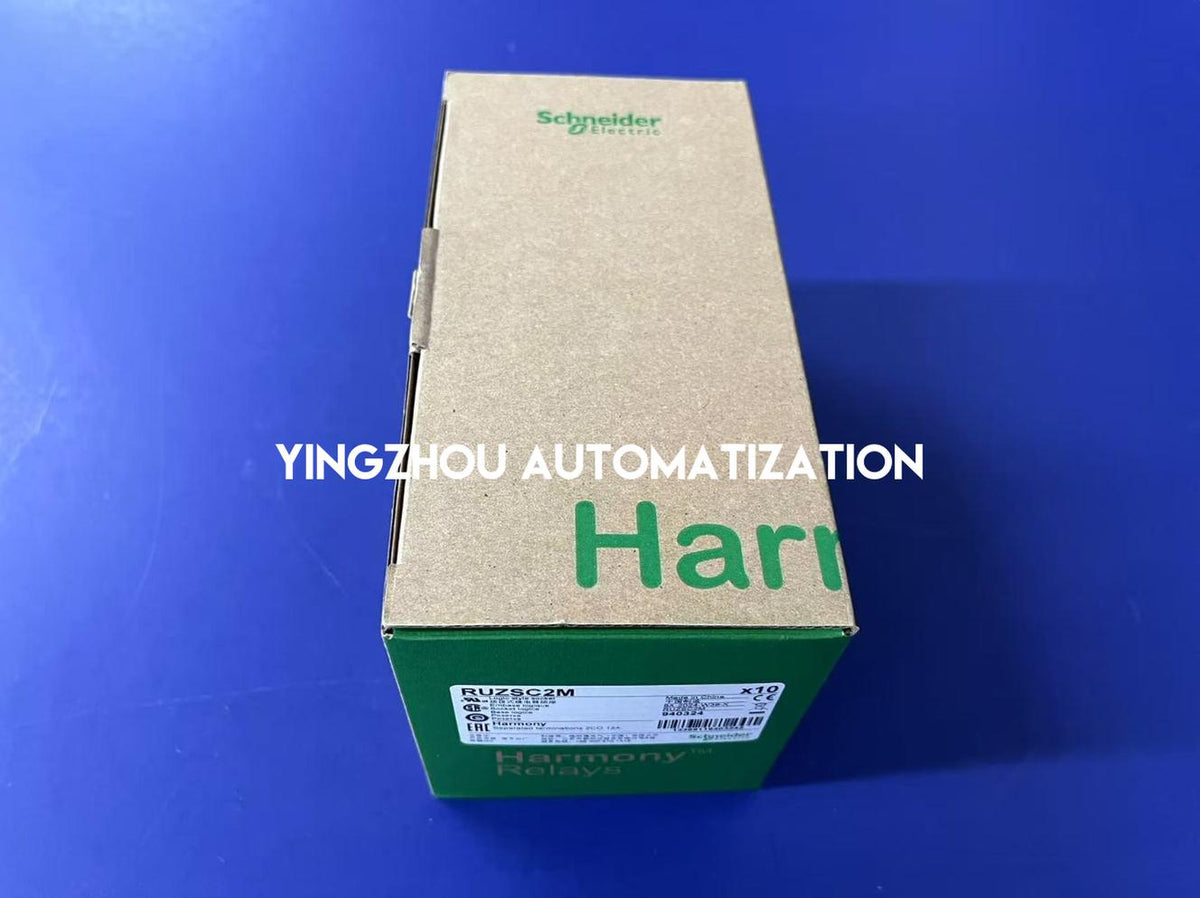

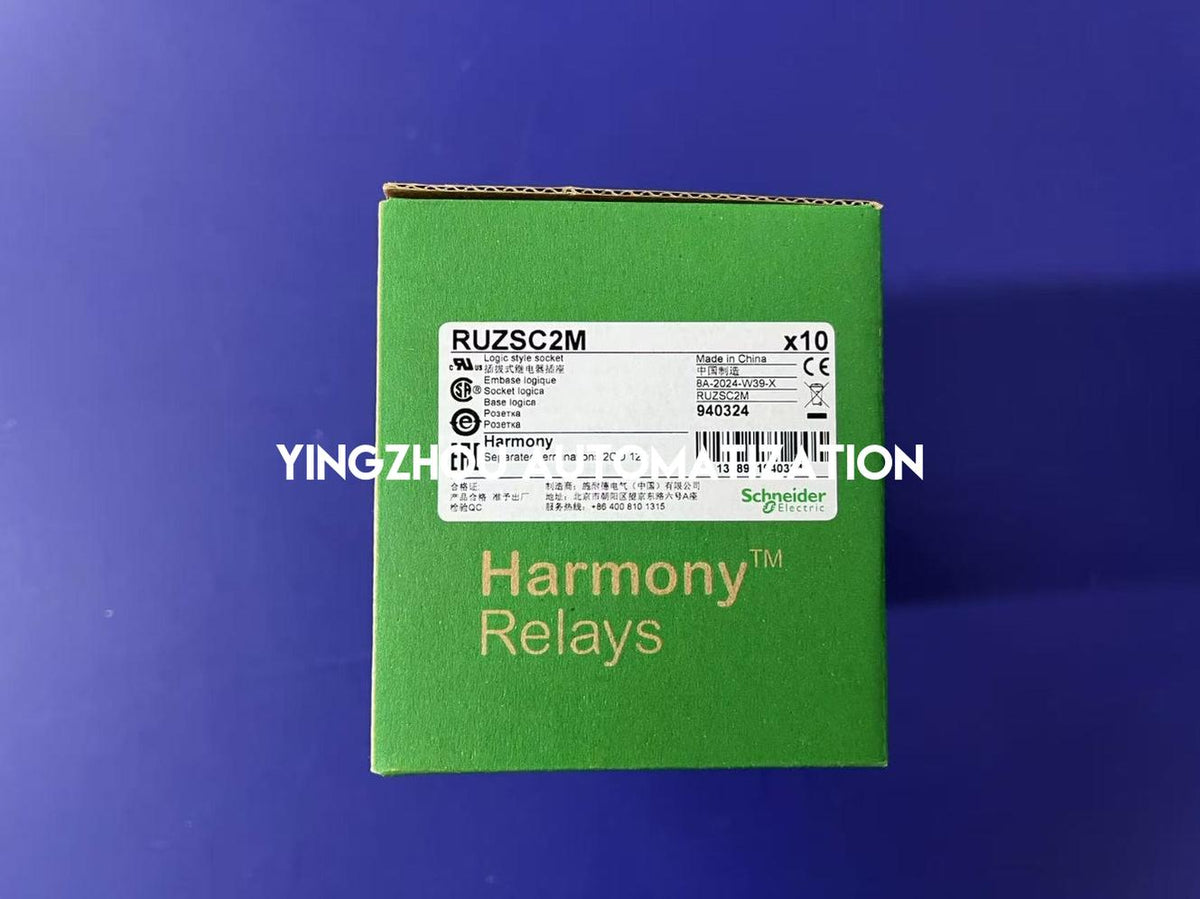

Exact model RUZSC2M visible on packaging
✓

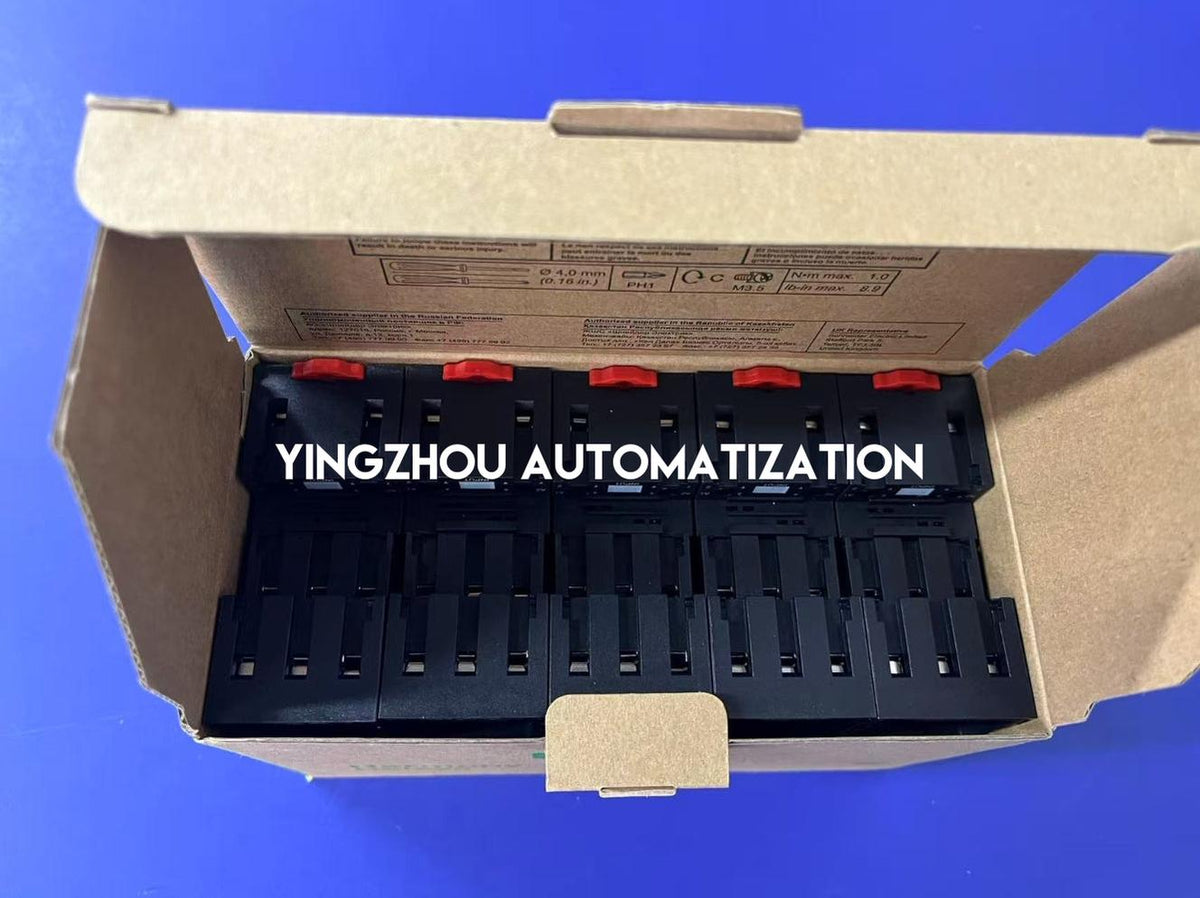

Packaging shown with x10 quantity marking
✓
Verify exact model RUZSC2M,
compatible relay and ordering unit before purchase
In Stock & Ready to Order
Schneider Electric RUZSC2M
is currently in stock. Actual Schneider packaging
with the exact model label is available for
buyer verification.
This relay socket is intended for compatible
RUM 2 C/O plug-in relays.
Please confirm relay compatibility,
required quantity and ordering unit before
purchasing. Contact our team for international
shipping arrangements.
