Schneider Electric RE17RMMU Harmony Multifunction Timer Relay
10 Functions | 0.1s–100h | 1 C/O | 8A | 24V DC / 24–240V AC
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
RE17RMMU |
| Series |
Harmony Timer Relays / RE17R |
| Product Type |
Multifunction Modular Timing Relay |
| Device Short Name |
RE17R |
| Discrete Output Type |
Relay |
| Timing Function |
Multifunction — 10 Functions |
| Timing Function Codes |
A, Ac, At, B, Bw, C, D, Di, H, Ht |
| Supported Timing Modes |
On-Delay / Off-Delay / Interval / Symmetrical Flashing |
| Time Delay Range |
0.1s–100h |
| Timing Range Selection |
7 Selectable Ranges |
| Contact Configuration |
1 C/O (1 Changeover Contact) |
| Contact Type |
SPDT |
| Nominal Output Current |
8 A |
| Maximum Switching Current |
8 A AC/DC |
| Maximum Switching Voltage |
250 V AC |
| Maximum Switching Capacity |
2000 VA |
| AC-15 Contact Rating |
1 A at 250 V AC |
| DC-13 Contact Rating |
1 A at 24 V DC |
| Minimum Switching Current |
10 mA at 5 V DC |
| AC Supply Voltage |
24–240 V AC |
| DC Supply Voltage |
24 V DC |
| AC Supply Frequency |
50/60 Hz |
| Operating Voltage Range |
0.85–1.1 Us |
| AC Consumption Marking |
32 VA (Product Nameplate) |
| Maximum DC Power Consumption |
0.6 W at 24 V DC |
| Control Input |
Y1 (Function Dependent) |
| Supply Terminals |
A1 / A2 |
| Output Terminals |
15 Common / 16 NC / 18 NO |
| Control Type |
Front Selector Switch |
| Connection Type |
Screw Terminals |
| Terminal Tightening Torque |
0.6–1 N·m |
| Time-Delay Repeat Accuracy |
±0.5% (IEC 61812-1) |
| Setting Accuracy |
±10% of Full Scale at 25°C |
| Typical Reset Time |
120 ms on De-energisation |
| Mechanical Durability |
10,000,000 Cycles |
| Electrical Durability |
100,000 Cycles at 8A / 250V AC Resistive Load |
| Mounting Support |
35mm DIN Rail |
| Module Width |
17.5 mm |
| Height |
90 mm |
| Depth |
72 mm |
| Housing Material |
Polycarbonate |
| Housing Protection |
IP40 |
| Front Panel Protection |
IP50 |
| Terminal Protection |
IP20 |
| Operating Temperature |
-20°C to +60°C |
| Storage Temperature |
-30°C to +60°C |
| Net Weight |
0.07 kg |
| Standards |
IEC 61812-1; IEC 60947-5-1 |
| EAN / GTIN |
3606480552755 |
Product Overview
The Schneider Electric RE17RMMU
is a multifunction modular timing relay from
the Harmony Timer Relays range.
Designed for industrial automation and control
applications, it provides
10 selectable timing functions,
including on-delay, off-delay, interval and
symmetrical flashing operation.
The relay features an adjustable
0.1-second to 100-hour timing range,
one changeover output contact (1 C/O),
and an 8A nominal output current
under specified switching conditions.
The device supports either
24V DC or
24–240V AC at 50/60Hz,
with a compact 17.5mm-wide housing
designed for 35mm DIN rail mounting.
Key Product Features
-
10 multifunction timing modes including on-delay, off-delay, interval and flashing
-
0.1s–100h adjustable time delay range
-
1 C/O changeover relay output
-
8A nominal output current under specified load conditions
-
24V DC or 24–240V AC rated supply voltage
-
Control input Y1 for supported timing functions
-
35mm DIN rail mounting with compact 17.5mm module width

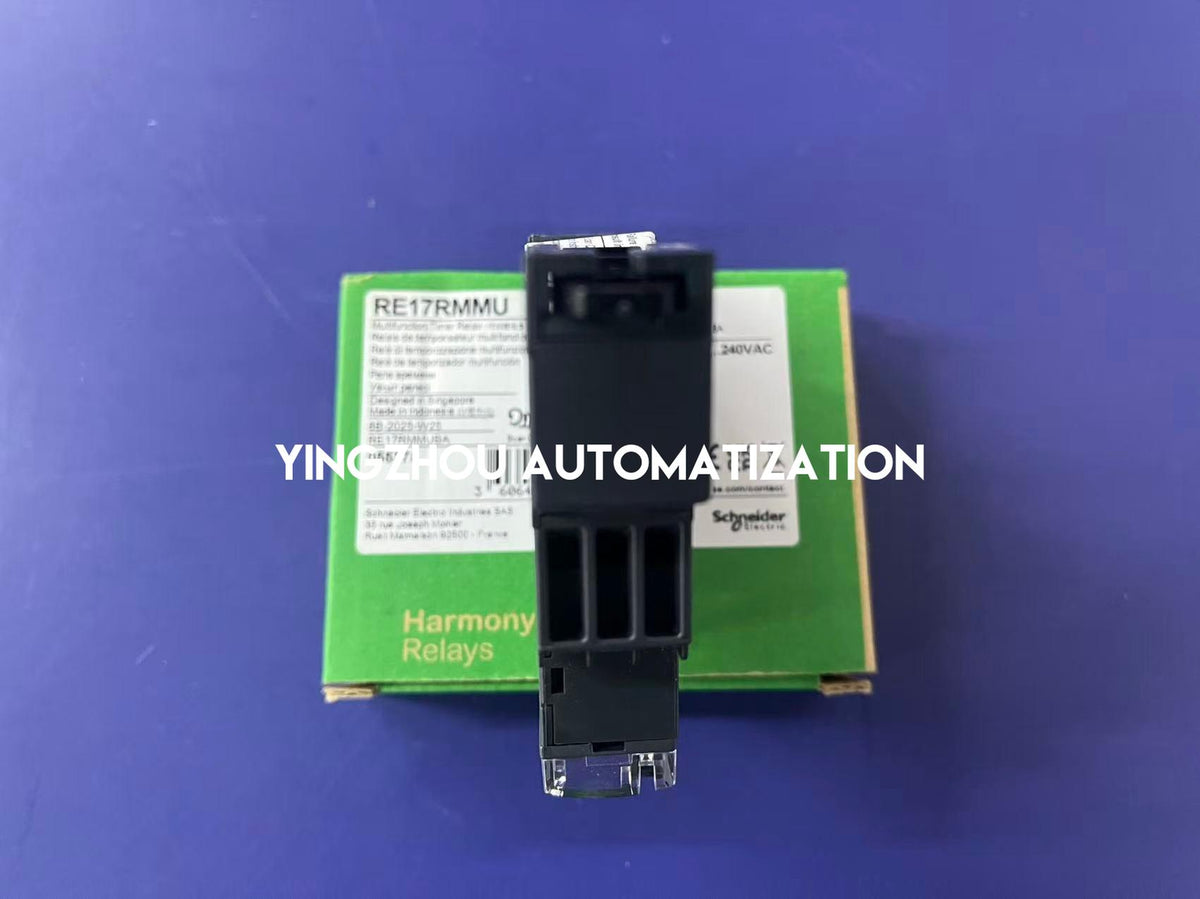

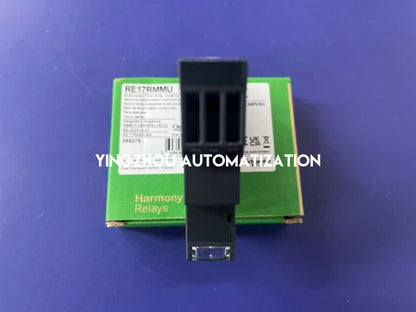

Actual Product Verification
✓

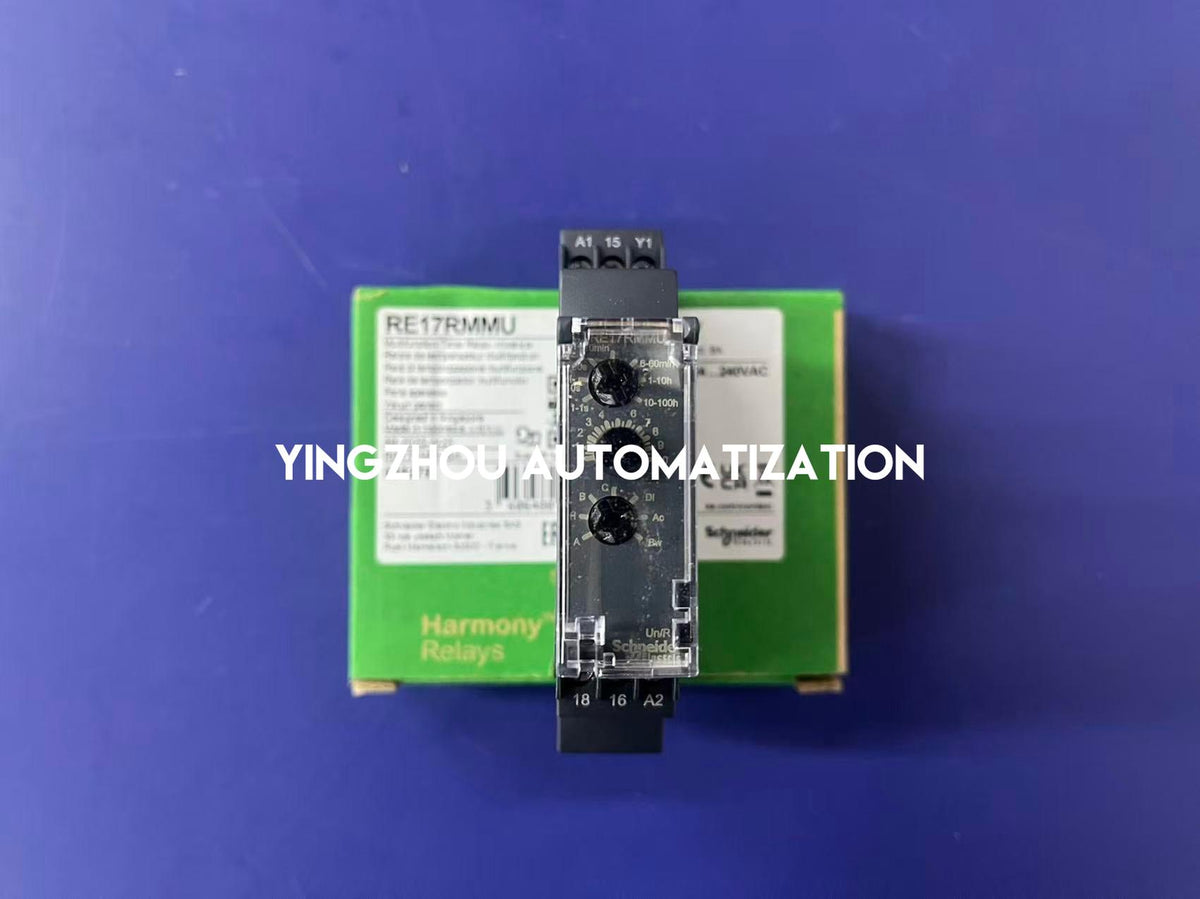

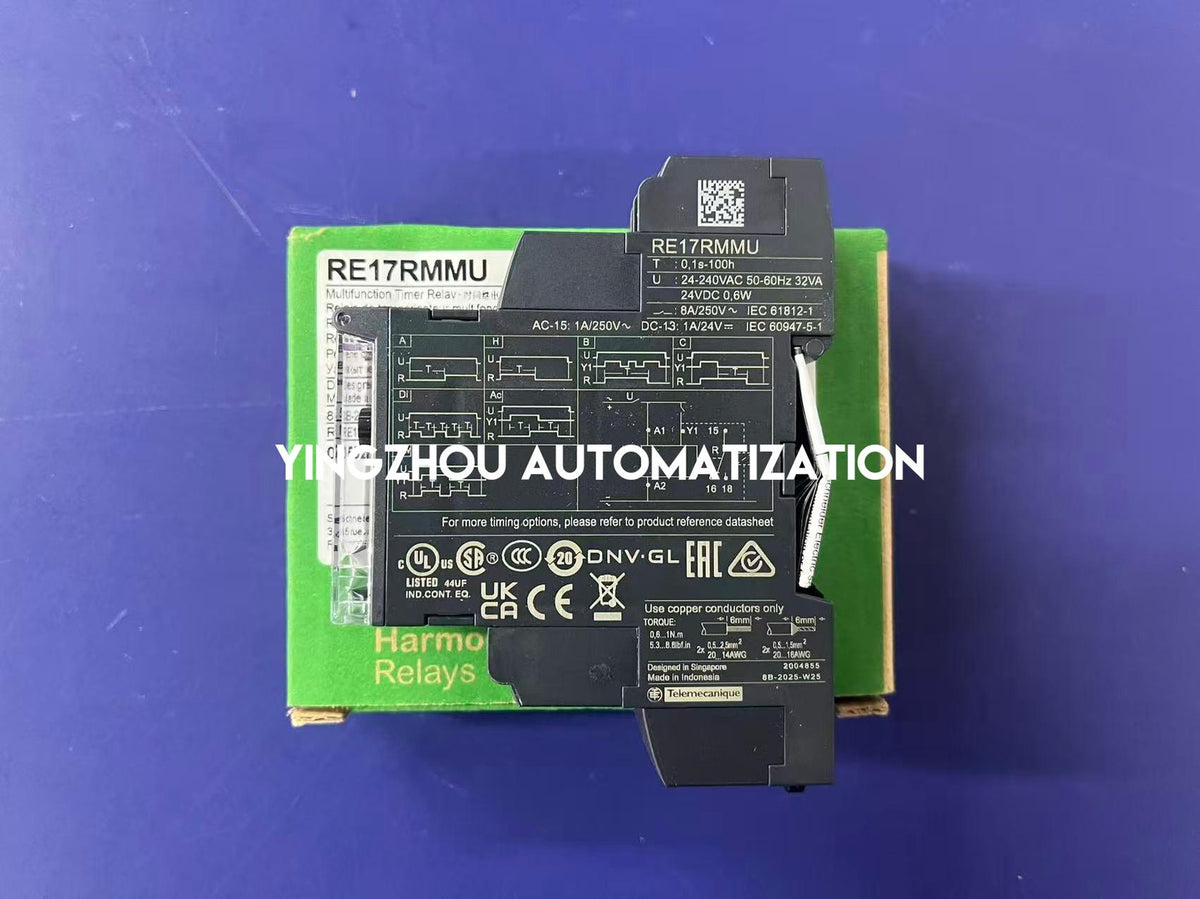

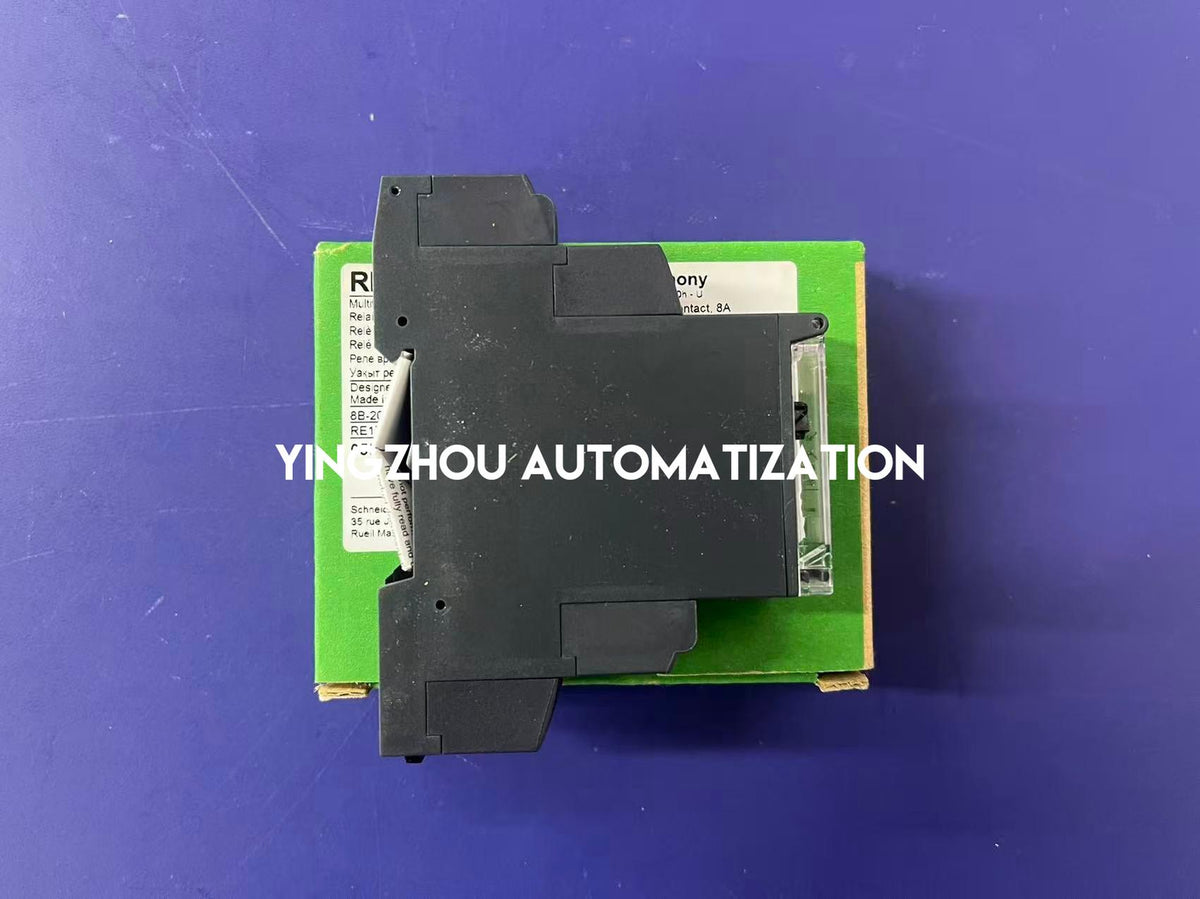

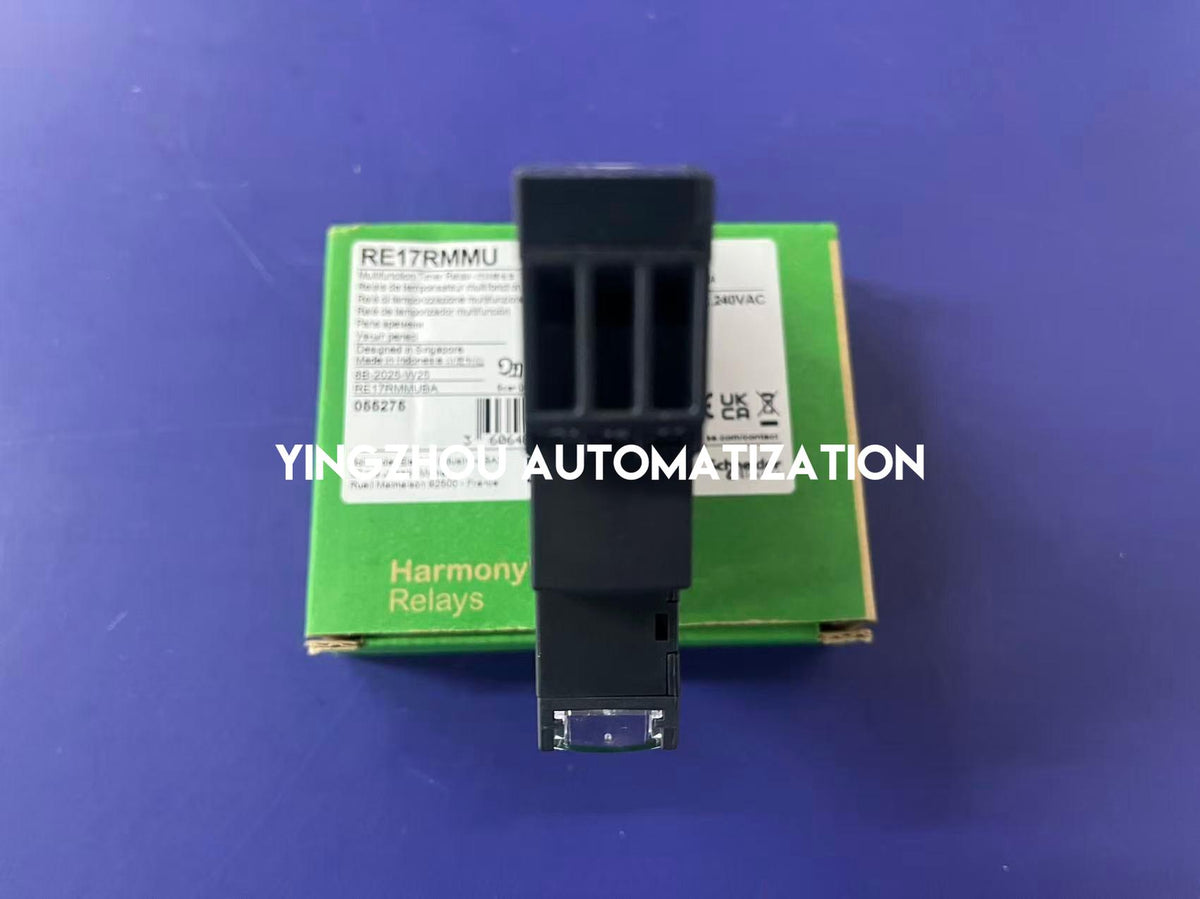

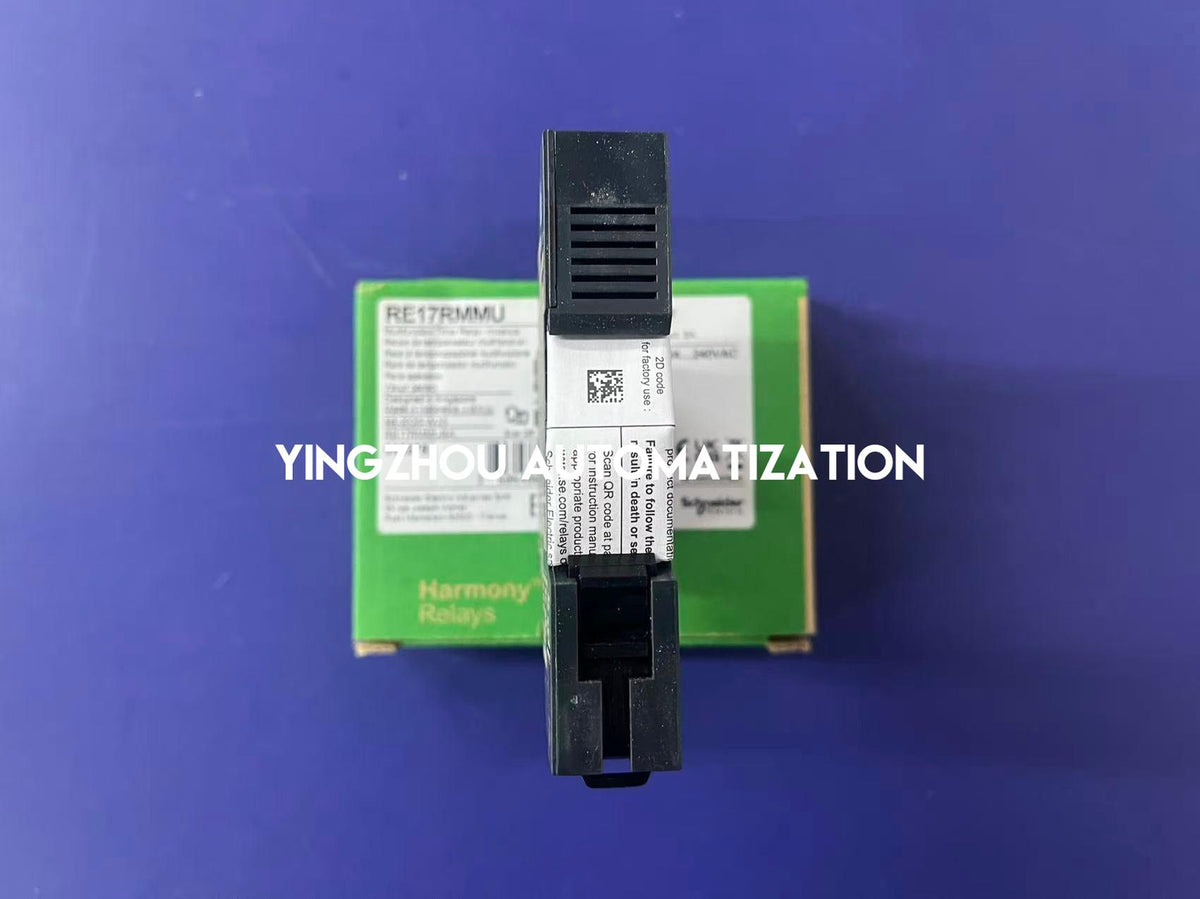

Actual product photos
✓
Model/nameplate visible
✓
Packaging shown
✓
Verify exact model RE17RMMU,
supply voltage and required timing
functions before ordering
In Stock & Ready to Order
Schneider Electric RE17RMMU
is currently in stock. Actual product,
model/nameplate and Schneider packaging photos
are available for buyer verification.
This Harmony multifunction timing relay
provides 10 timing functions,
a 0.1s–100h adjustable timing range,
1 C/O relay output
and supports 24V DC or 24–240V AC
power supply.
Please confirm the exact model, required
timing mode, supply voltage, switching load
and order quantity before purchasing.
Contact our team for international
shipping arrangements.
IN STOCK
Schneider Electric RE17RMMU
Order online or contact us for project and quantity pricing.
Request Project Pricing
