Specification
|
Product Data
|
| Brand |
Schneider Electric |
| Exact Model |
LC1D80P7C |
| Product Range |
TeSys Deca |
| Product Series |
TeSys D / LC1D |
| Product Type |
AC Contactor |
| Device Application |
Motor Control / Electrical Switching |
| Utilisation Categories |
AC-1 / AC-3 / AC-3e / AC-4 |
| Number of Poles |
3P |
| Main Contacts |
3 Normally Open (3 NO) |
| Auxiliary Contacts |
1 NO + 1 NC |
| Rated Operational Current (AC-3) |
80A at ≤440V AC, ≤60°C |
| Rated Operational Current (AC-3e) |
80A at ≤440V AC, ≤60°C |
| Rated Operational Current (AC-1) |
125A at ≤440V AC, ≤60°C |
| Control Coil Voltage |
230V AC, 50/60Hz |
| Motor Power at 220/240V AC |
22kW — AC-3 |
| Motor Power at 380/400V AC |
37kW — AC-3 |
| Motor Power at 415/440V AC |
45kW — AC-3 |
| Rated Operational Voltage |
660V AC — Power Circuit |
| Rated Insulation Voltage |
690V — IEC |
| Impulse Withstand Voltage |
6kV |
| Power Terminal Torque |
12 N·m |
| Control Terminal Torque |
1.2 N·m |
| Mounting Support |
DIN Rail / Plate |
| Dimensions (W × H × D) |
85 × 127 × 130mm |
| Net Weight |
1.59kg |
| Front-Panel Protection |
IP2X — Main Circuit |
| Applicable Standards |
IEC 60947-1 / IEC 60947-4-1 / GB/T 14048.4 |
Product Overview
The Schneider Electric LC1D80P7C
is a three-pole AC contactor from the
TeSys Deca product range,
designed for electrical switching and motor
control applications.
This exact model features a
230V AC 50/60Hz control coil,
80A AC-3 rated operational current
and 3 normally open main contacts.
It is rated for
37kW motor applications at 380/400V AC
under AC-3 utilisation conditions.
The contactor also provides
125A AC-1 rated operational current
under the specified voltage and temperature
conditions.
The integrated auxiliary contact arrangement
consists of 1 NO + 1 NC,
supporting control circuit switching
and status feedback.
The device can be installed using
DIN rail or plate mounting according
to Schneider Electric installation
requirements.
The LC1D80P7C is intended to operate
within an appropriately coordinated
motor starter or electrical control system.
Separate overload and short-circuit
protection must be selected as required.

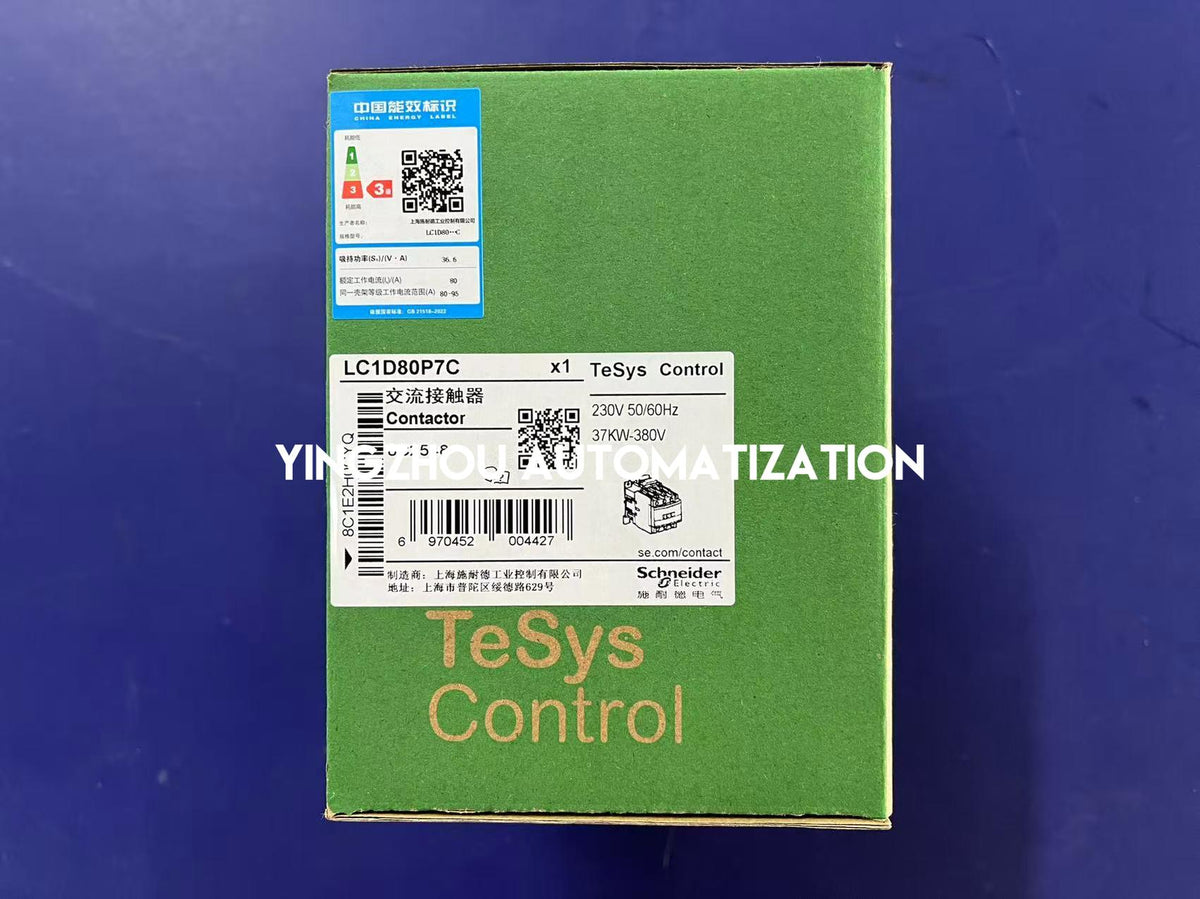

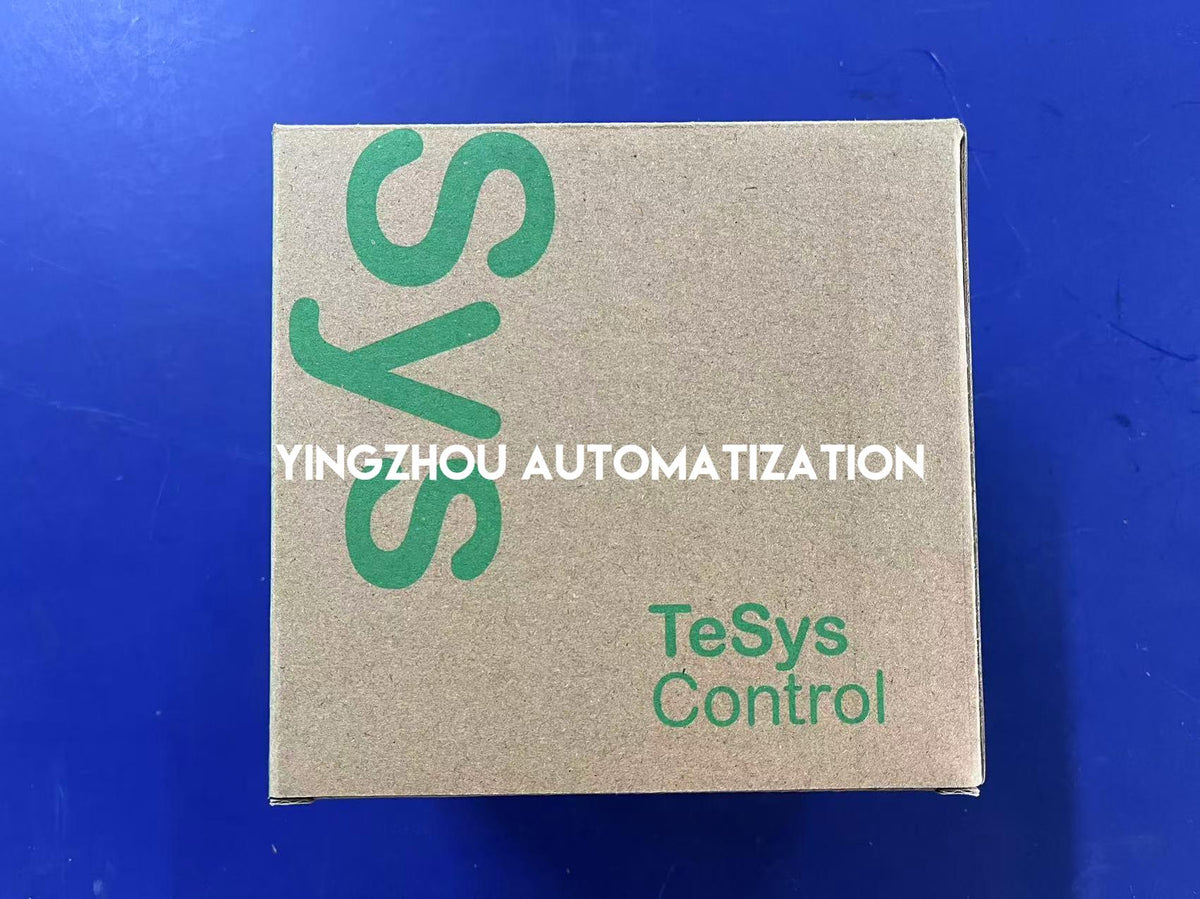

Actual product photographs and
Schneider Electric packaging images
are provided to support visual
identification of the exact model
before ordering.
Key Product Features
-
80A AC-3 Rated Current
— At up to 440V AC under specified conditions
-
230V AC Control Coil
— 50/60Hz control circuit supply
-
37kW Motor Rating
— At 380/400V AC under AC-3 conditions
-
3-Pole Configuration
— Three normally open main contacts
-
Auxiliary Contacts
— 1 NO + 1 NC
-
125A AC-1 Rated Current
— Under specified utilisation conditions
-
TeSys Deca Series
— Schneider Electric motor control contactor range
-
Flexible Mounting
— DIN rail or plate installation

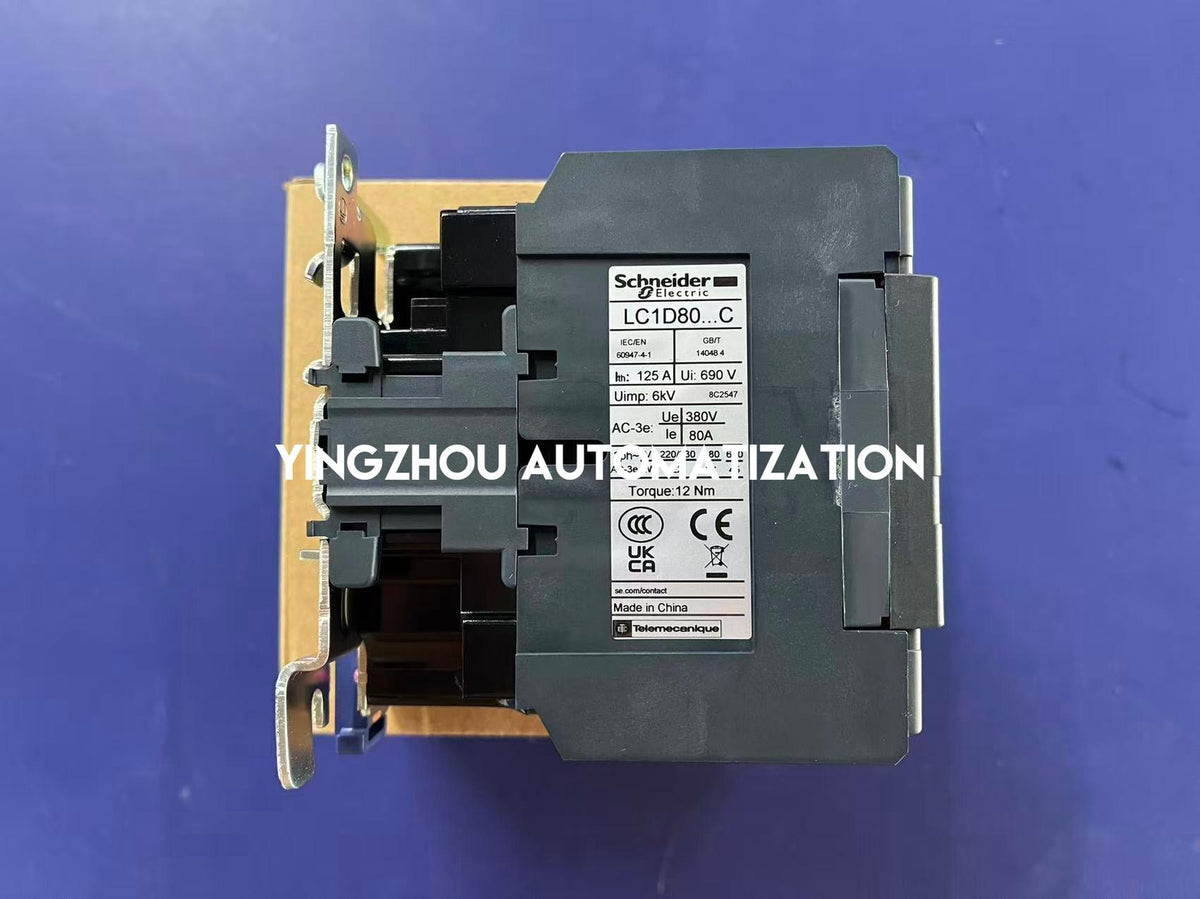

Actual Product Verification
✓
Actual product photos provided
✓
Product identification and rating label photographed
✓
Schneider Electric packaging shown with exact model LC1D80P7C
✓
Verify exact model and 230V AC coil before ordering
In Stock & Ready to Order
Schneider Electric
LC1D80P7C
is currently in stock according
to our inventory information.

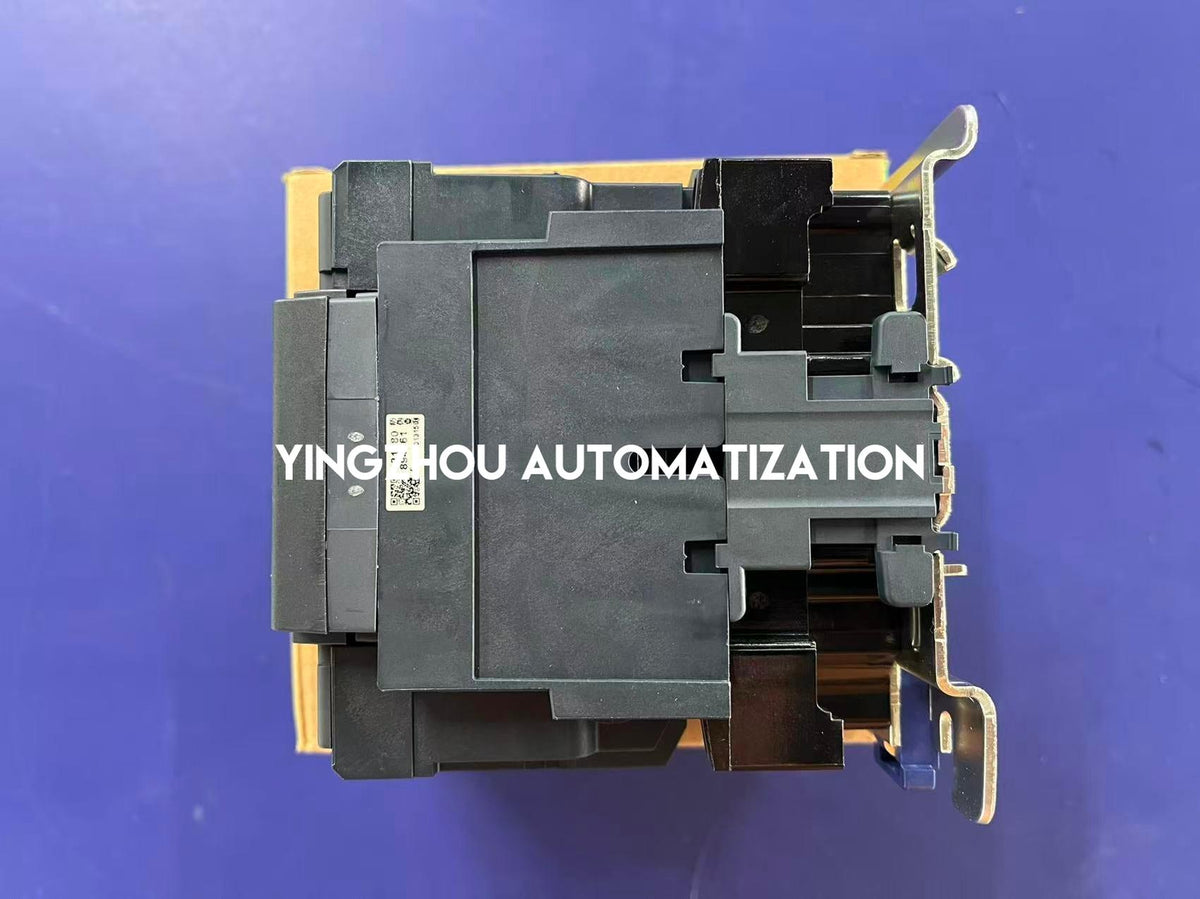

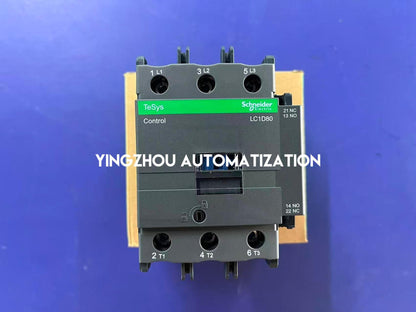

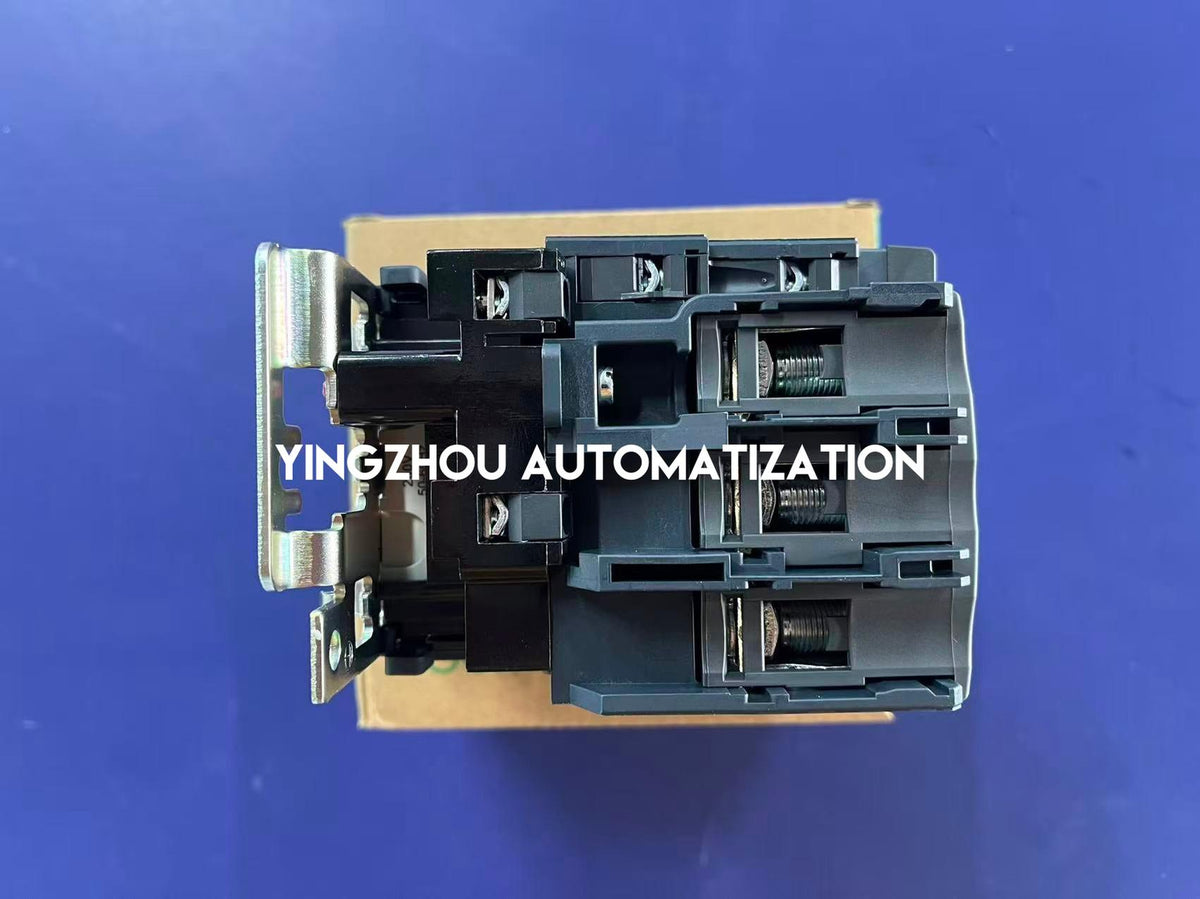

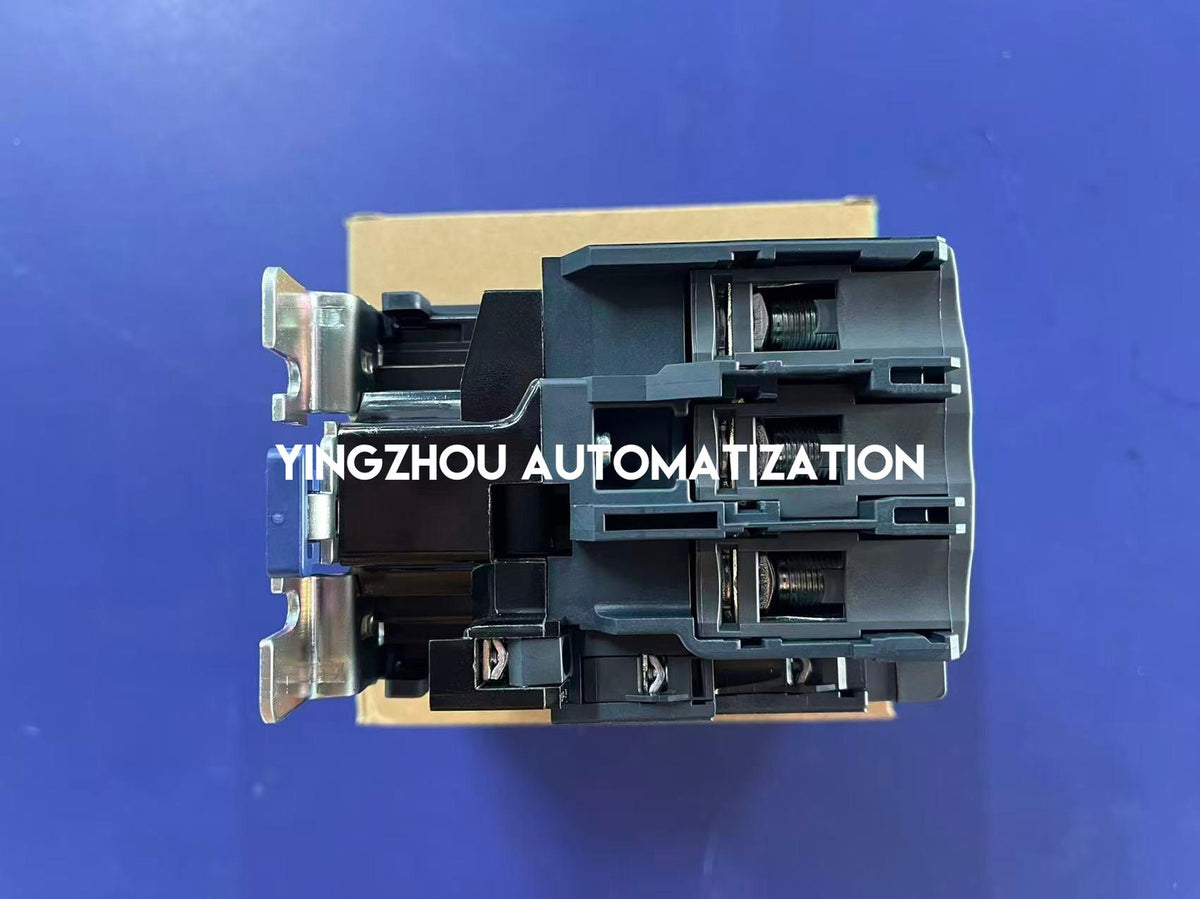

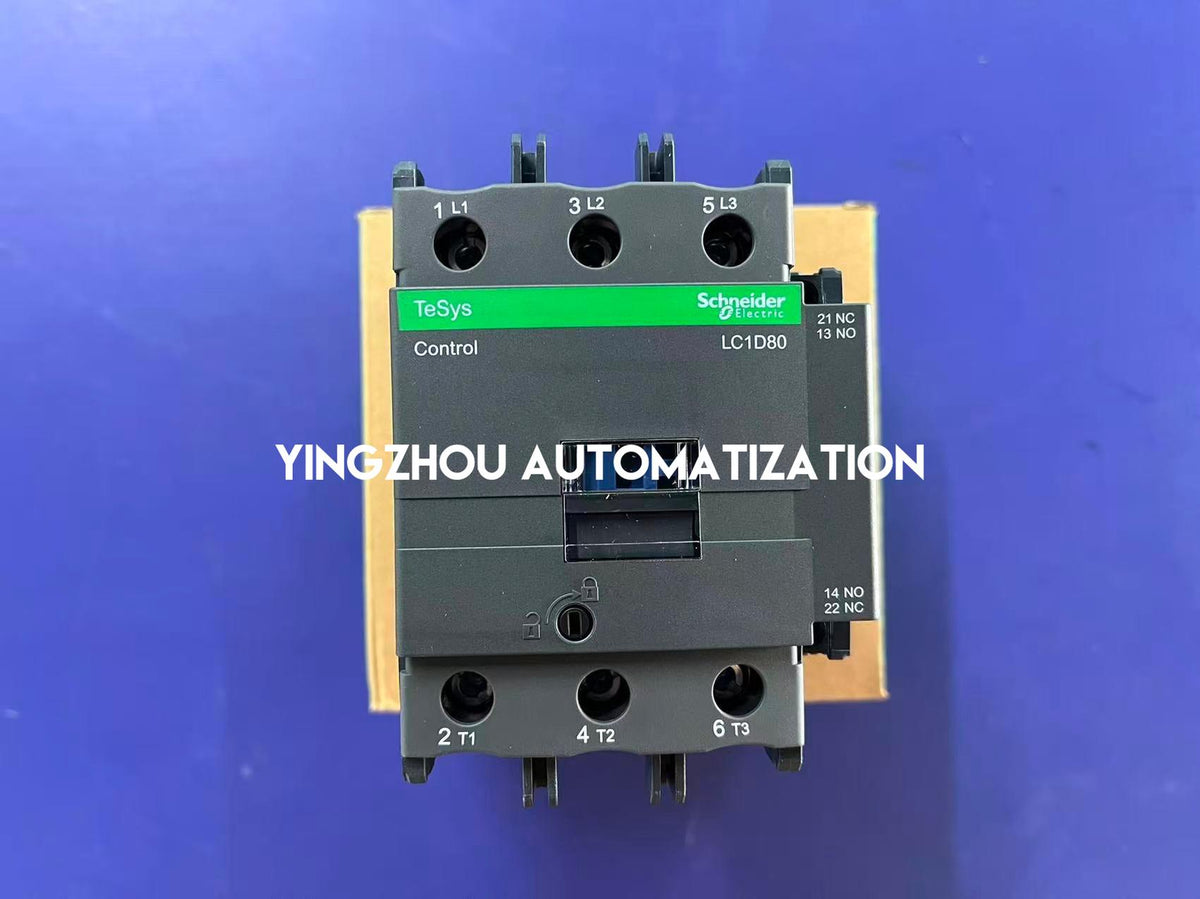

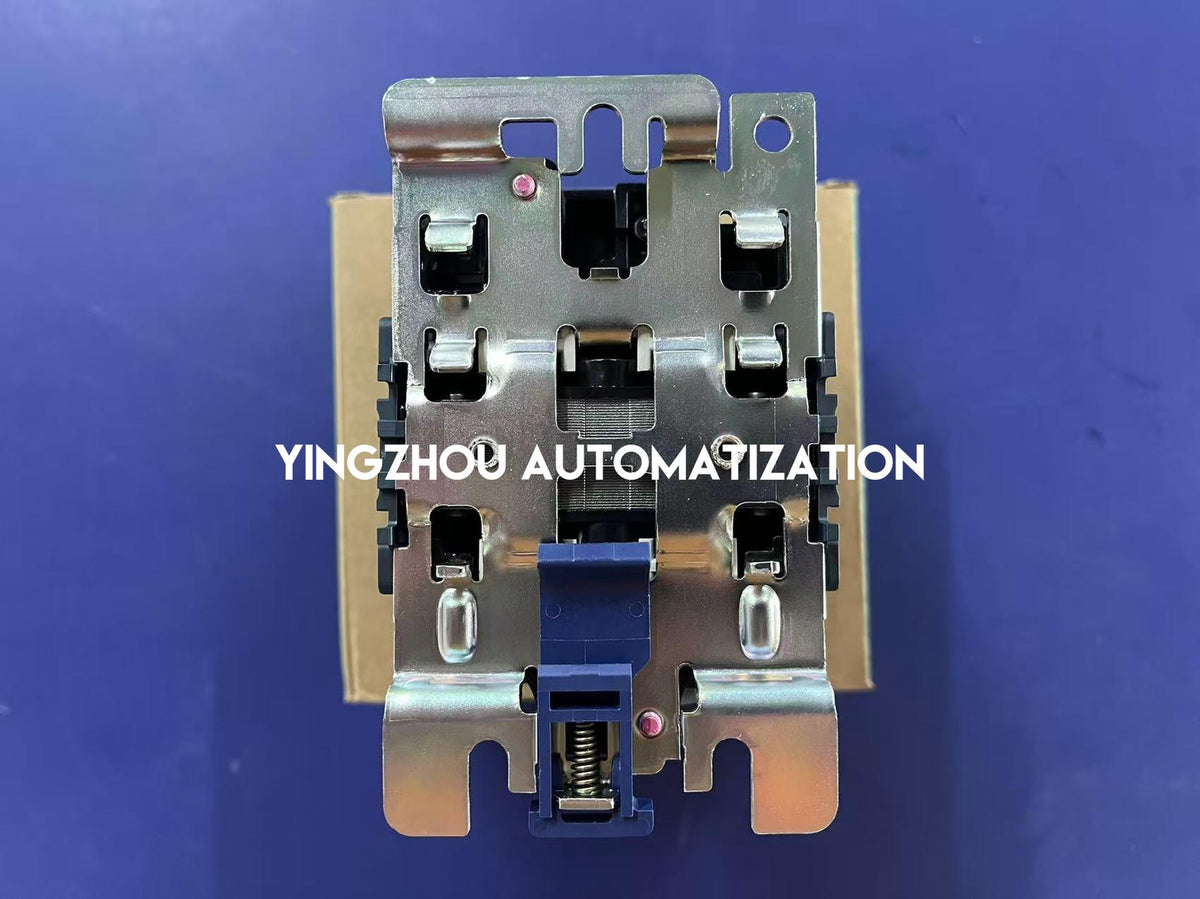

Actual photographs show the
contactor body, rating label

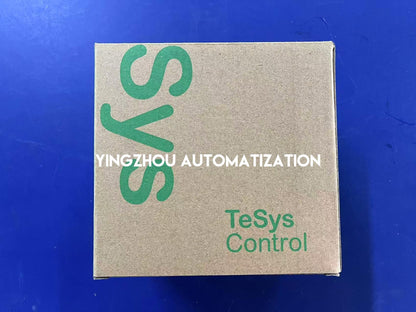

and Schneider Electric packaging,
including the exact model
number on the package.
Please confirm your required
quantity, complete model number,
230V AC 50/60Hz coil supply,
utilisation category and
motor load requirements
before placing an order.
Installation and electrical
protection coordination should
follow Schneider Electric
documentation and applicable
electrical standards.
IN STOCK
Schneider Electric LC1D80P7C
Order online or contact us for project and quantity pricing.
Request Project Pricing
