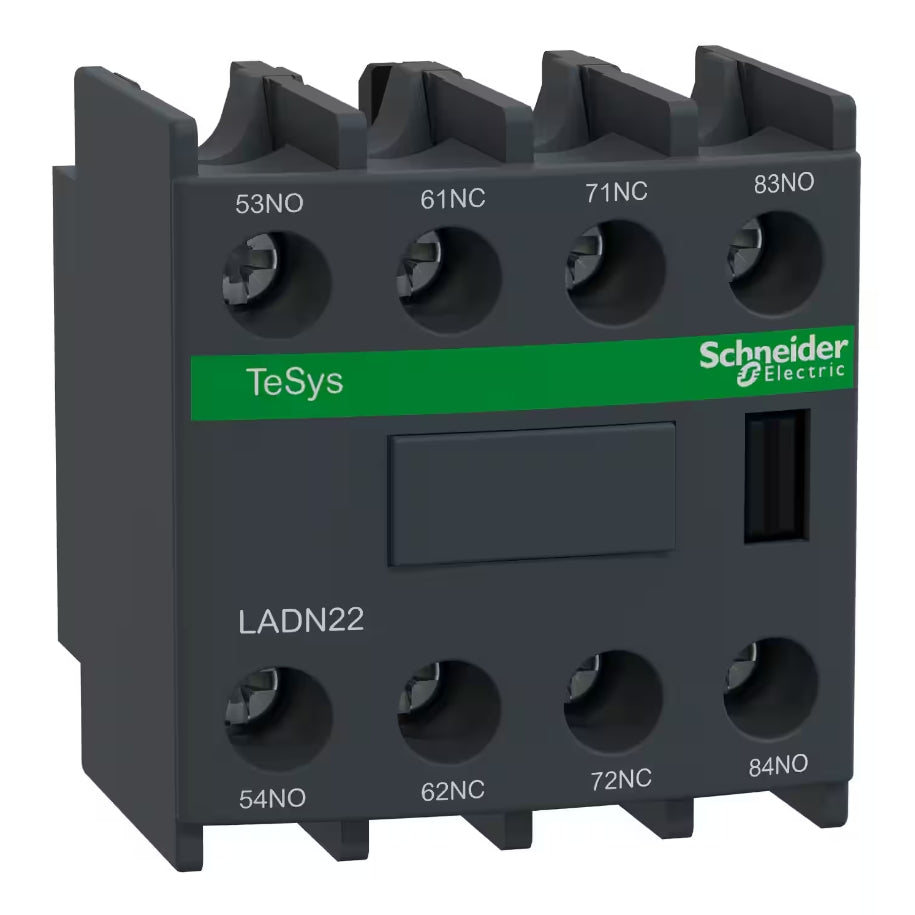

Schneider Electric LADN22 TeSys Deca Auxiliary Contact Block
2NO + 2NC | Instantaneous | Front Mounting | Screw Clamp
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
LADN22 |
| Series |
TeSys D / TeSys Deca |
| Product Type |
Auxiliary Contact Block |
| Device Short Name |
LADN |
| Contact Configuration |
2NO + 2NC |
| Contact Operation |
Instantaneous |
| Mounting Location |
Front |
| Terminal Type |
Screw Clamp Terminals |
| Rated Operational Voltage |
690 V AC, 25–400 Hz |
| Rated Insulation Voltage |
690 V (IEC 60947-5-1) |
| Conventional Thermal Current |
10 A at 60°C |
| Rated Operational Current |
6 A at 120 V AC-15 |
| Rated Operational Current |
1.04 A at 690 V AC-15 |
| Minimum Switching Current |
5 mA |
| Minimum Switching Voltage |
17 V |
| Mechanical Durability |
30 Million Cycles |
| Compatible Product Ranges |
TeSys D / Deca LC1D, CAD; TeSys F LC1F, CR1F |
| Standard |
IEC/EN 60947-5-1 |
Product Overview
The Schneider Electric LADN22 is a
TeSys Deca instantaneous auxiliary contact block
designed to expand the auxiliary switching functions
of compatible industrial contactors and control relays.
It provides 2 normally open and 2 normally
closed contacts with
instantaneous operation.
The module features a front mounting
arrangement and screw clamp terminals
for integration into compatible TeSys control systems.
Key Product Features
-
2NO + 2NC auxiliary contact configuration
-
Instantaneous auxiliary contact operation
-
Front mounting for compatible TeSys devices
-
Screw clamp terminals for wiring connections
-
10A conventional thermal current at 60°C
-
690V rated insulation voltage under IEC 60947-5-1
-
30 million cycles mechanical durability
In Stock & Ready to Order
Schneider Electric LADN22
is currently in stock. This instantaneous auxiliary
contact block features 2NO + 2NC
contacts and front mounting for compatible TeSys
control equipment. Please confirm the exact model,
contact configuration, required quantity and
compatibility before ordering.
