Schneider HMIGXU3512 Easy Harmony GXU 7-Inch HMI Touch Panel
7-Inch WVGA | 65,536 Colors | 1 Ethernet | 2 COM | 24V DC
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
HMIGXU3512 |
| Product Range |
Easy Harmony GXU / Magelis Easy GXU |
| Product Type |
7-inch HMI Touch Panel / Operator Interface |
| Display Size |
7-inch wide |
| Display Technology |
Color TFT LCD |
| Display Resolution |
800 × 480 pixels (WVGA) |
| Display Colors |
65,536 colors |
| Active Display Area |
154.08 × 85.92 mm |
| Touch Panel Type |
Resistive touch panel |
| Touch Panel Service Life |
1 million switch operations / 100,000 slide operations under specified conditions |
| Backlight Life |
20,000 hours or more at 25°C until brightness falls to 50% |
| Brightness Adjustment |
16 levels |
| NAND Flash Memory |
128 MB |
| User Application Memory |
48 MB |
| Main DDR Memory |
128 MB |
| Backup Memory |
128 kB |
| Embedded Real-Time Clock |
Yes; manufacturer advises periodic synchronization |
| Clock Accuracy |
Approximately −60 to +60 seconds/month, condition-dependent |
| Configuration Software |
Vijeo Designer Basic |
| Ethernet Interfaces |
1 × RJ45 Ethernet port |
| Ethernet Speed |
10/100 Mbit/s (IEEE 802.3) |
| Serial COM1 |
1 × D-Sub 9-pin male, RS-232C |
| Serial COM2 |
1 × D-Sub 9-pin male, RS-422/485 |
| Serial Transmission Rate |
2,400–115,200 bps, subject to selected serial protocol |
| USB Host |
1 × USB 2.0 Type-A; maximum supply current 500 mA |
| USB Device / Download |
1 × USB 2.0 Mini-B (application download) |
| Rated Supply Voltage |
24 V DC |
| Input Voltage Limits |
20.4–28.8 V DC |
| Power Consumption |
9.2 W |
| Inrush Current |
Up to 50 A peak, brief duration per manufacturer manual |
| Operating Temperature |
0°C to +50°C |
| Storage Temperature |
−20°C to +60°C |
| Relative Humidity |
Up to 90% non-condensing |
| Cooling Method |
Natural air circulation |
| Front Protection Rating |
IP65 when correctly panel-mounted with appropriate gasket |
| Rear Protection Rating |
IP20 |
| Enclosure Type |
Type 4 indoor use with screw installation fasteners (manufacturer manual) |
| Panel Cut-Out |
190 ± 1 × 135 ± 0.7 mm |
| Supported Panel Thickness |
1–5 mm |
| Panel Mounting |
Panel mount with 4 installation fasteners |
| EAN (Packaging Label) |
3606480778636 |
Product Overview
The Schneider Electric HMIGXU3512 is an Easy Harmony GXU 7-inch industrial HMI touch panel with an 800 × 480 WVGA color TFT screen and 65,536 display colors. It features one 10/100 Mbit/s Ethernet port, COM1 RS-232C and COM2 RS-422/485 serial interfaces, one USB Type-A host and one USB Mini-B download port. The panel runs on 24 V DC (allowable input 20.4–28.8 V DC) with 9.2 W power consumption. It provides 48 MB user application memory, 128 MB DDR memory and 128 kB backup memory, with an embedded real-time clock. Configuration is performed using Vijeo Designer Basic. The manufacturer specifies IP65 protection for the front face when correctly installed, and a 190 × 135 mm nominal panel cut-out. Actual unit and packaging photographs confirm the HMIGXU3512 reference and 24 V DC/9.2 W label. Confirm the exact model, software/project compatibility, port wiring, installation opening and supplied accessories before ordering.
Key Product Features
-
7-inch WVGA TFT display with 800 × 480 resolution and 65,536 colors; 16-level brightness adjustment
-
One 10/100 Mbit/s Ethernet port for Ethernet communications in supported HMI projects, not dual Ethernet
-
Two serial interfaces COM1 RS-232C and COM2 RS-422/485 with 9-pin D-Sub connectors
-
USB host and download ports USB 2.0 Type-A and USB Mini-B for approved HMI functions
-
24 V DC supply with 9.2 W consumption and 20.4–28.8 V DC specified operating input limits
-
Vijeo Designer Basic software with 48 MB user application memory and an embedded real-time clock
-
IP65 front protection when properly mounted with rear IP20 and 190 × 135 mm nominal panel cut-out
Actual Product Verification
✓

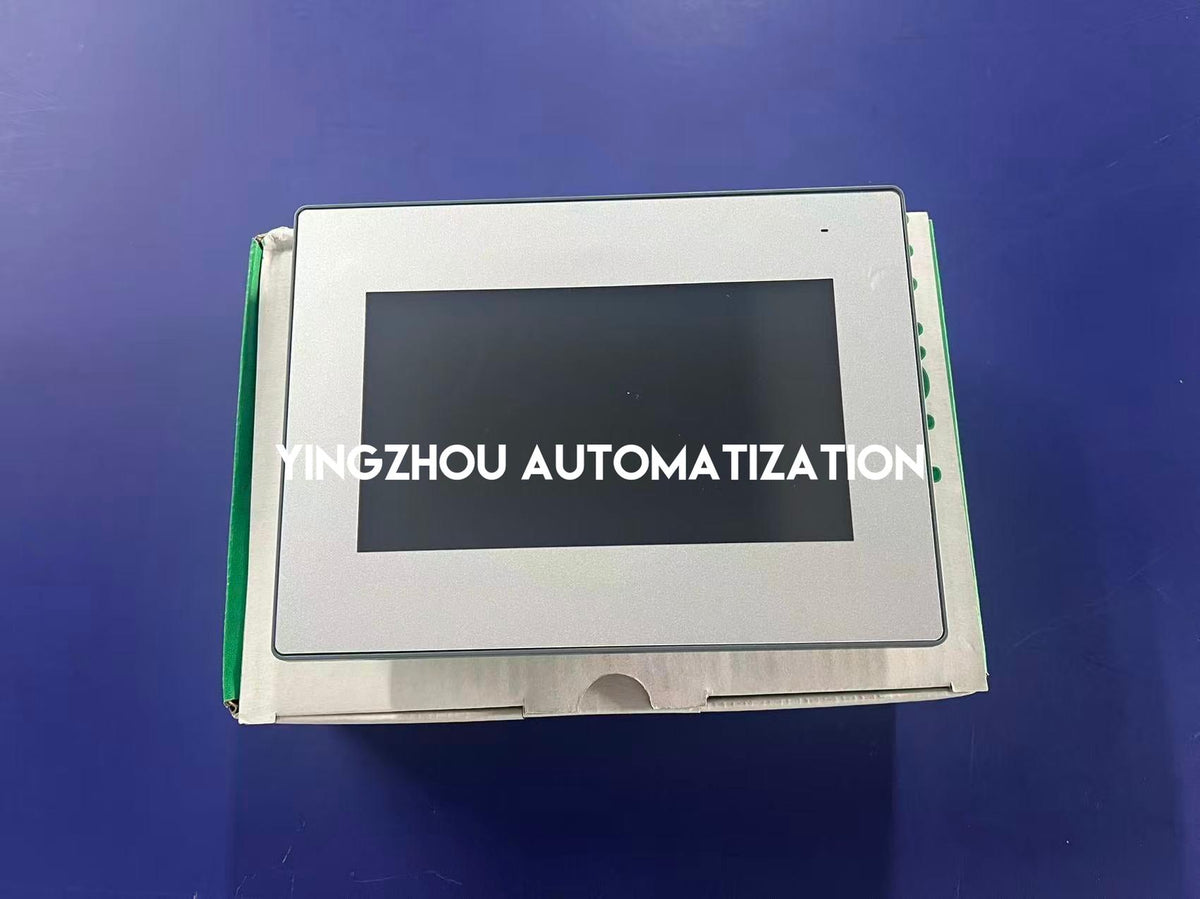

Actual product photos
✓
Model/nameplate visible
✓
Packaging shown
✓
Verify exact model HMIGXU3512 before ordering
In Stock & Ready to Order
Schneider Electric HMIGXU3512 is currently in stock.

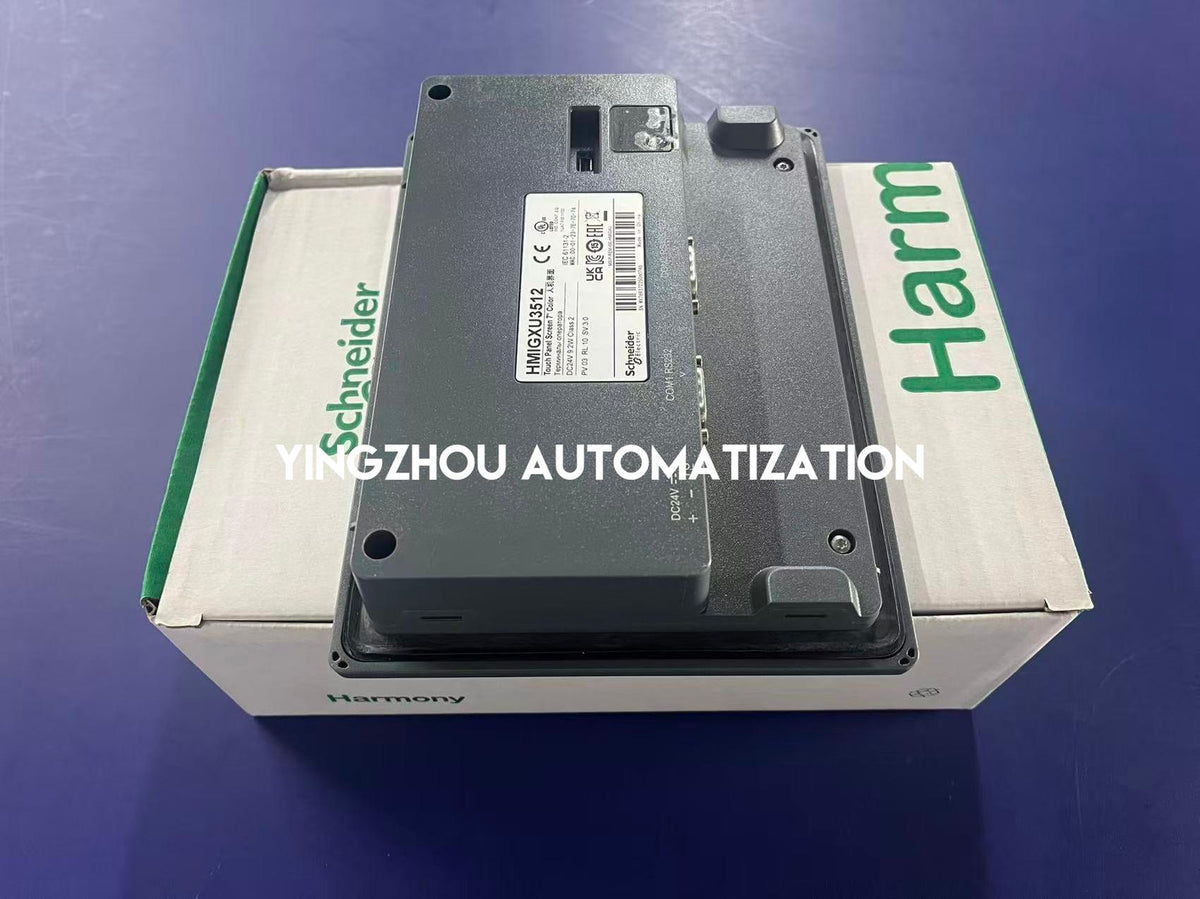

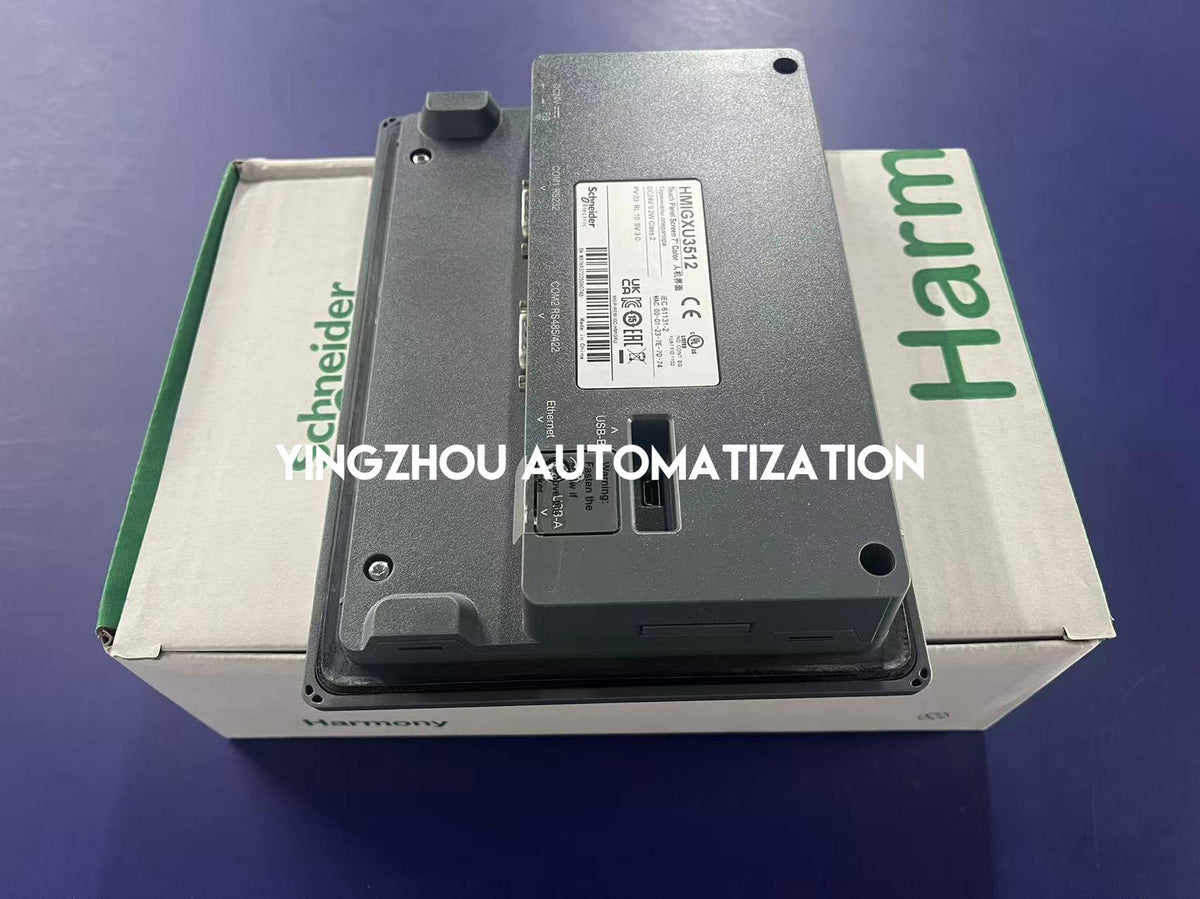

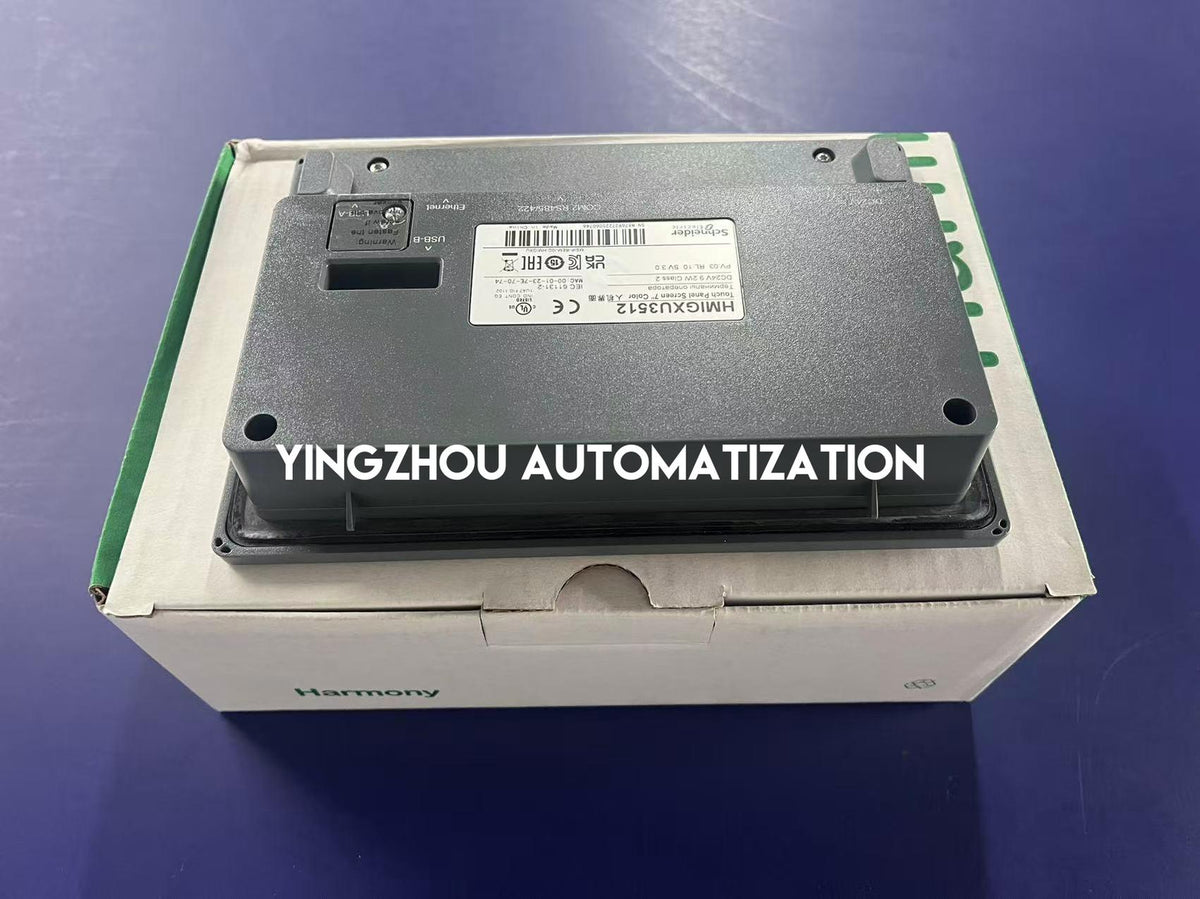

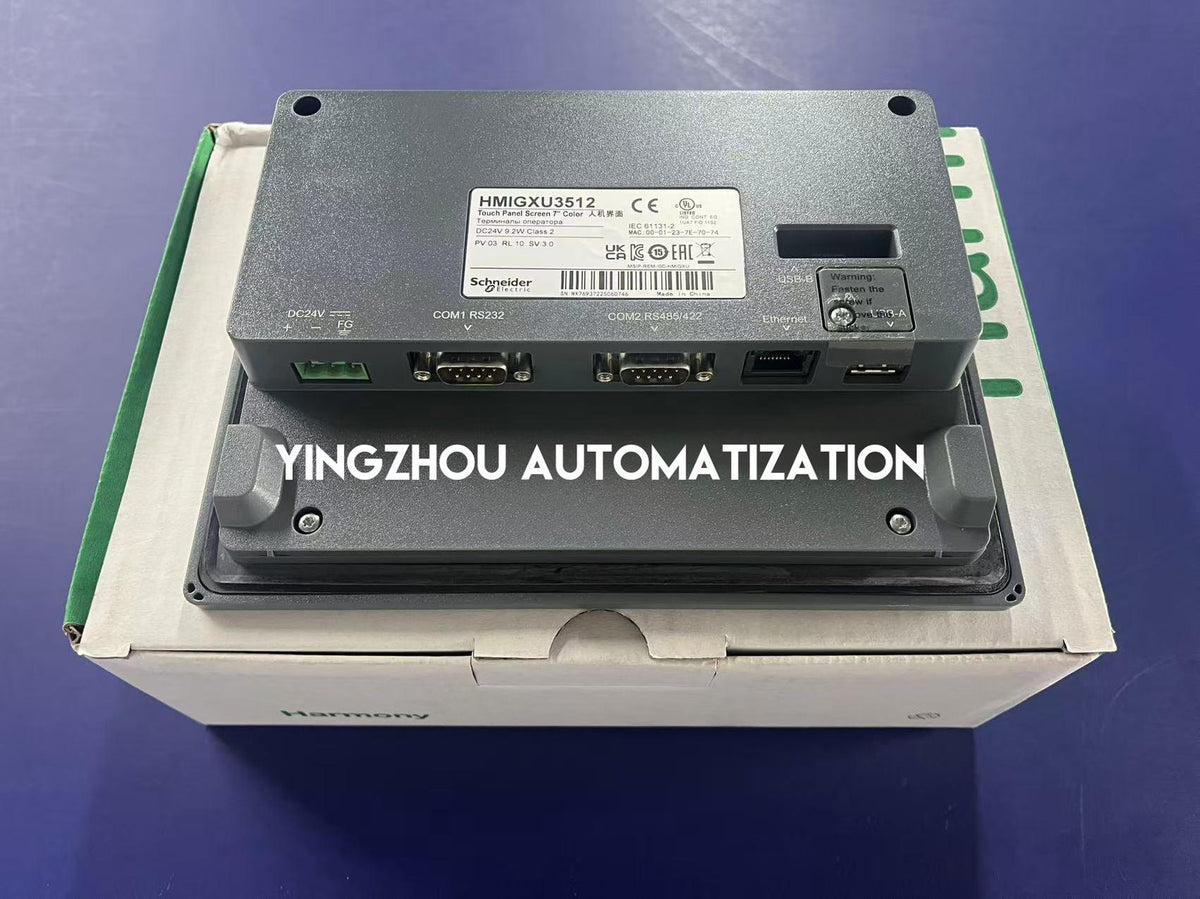

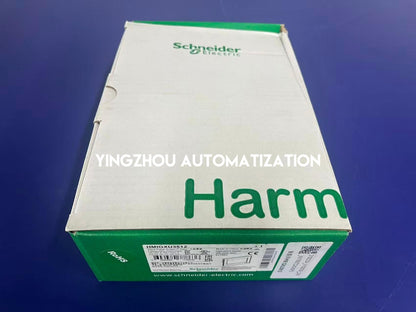

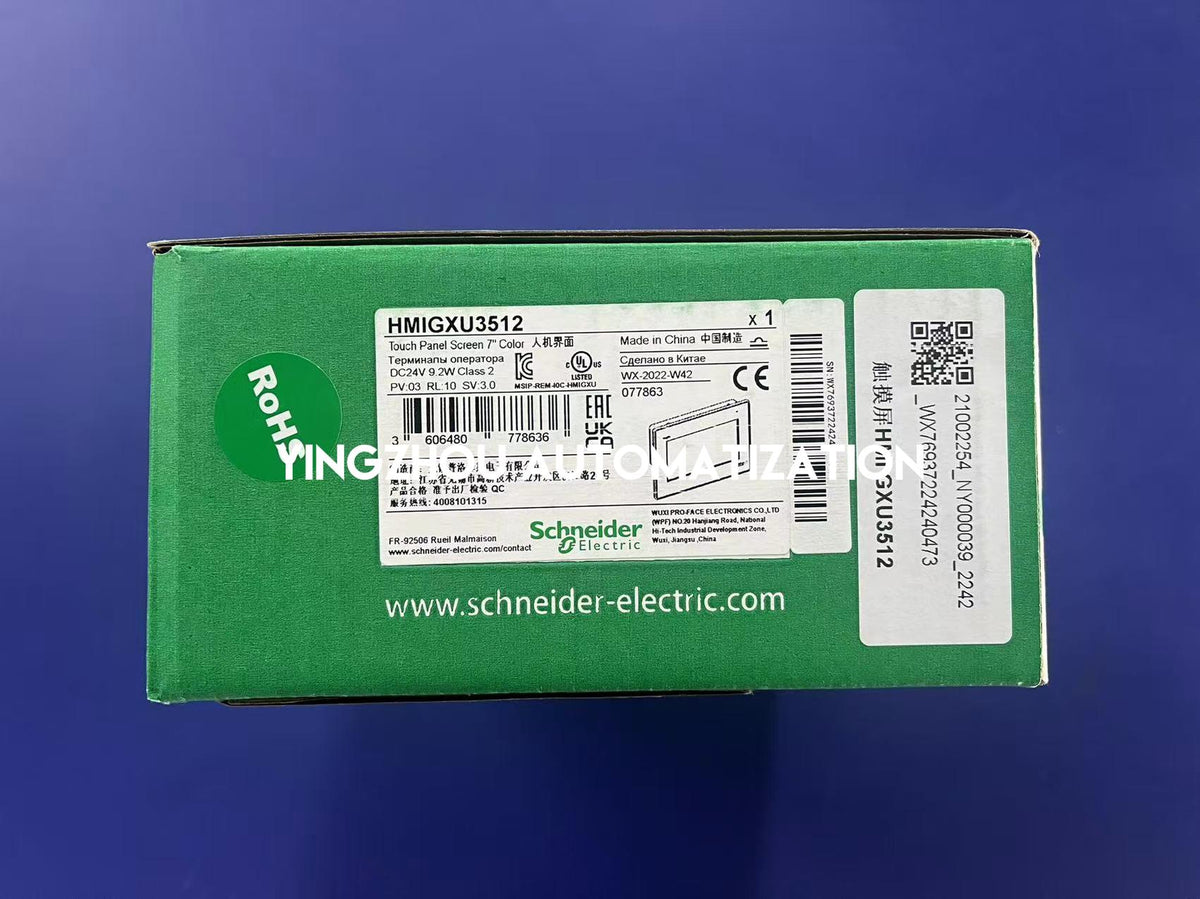

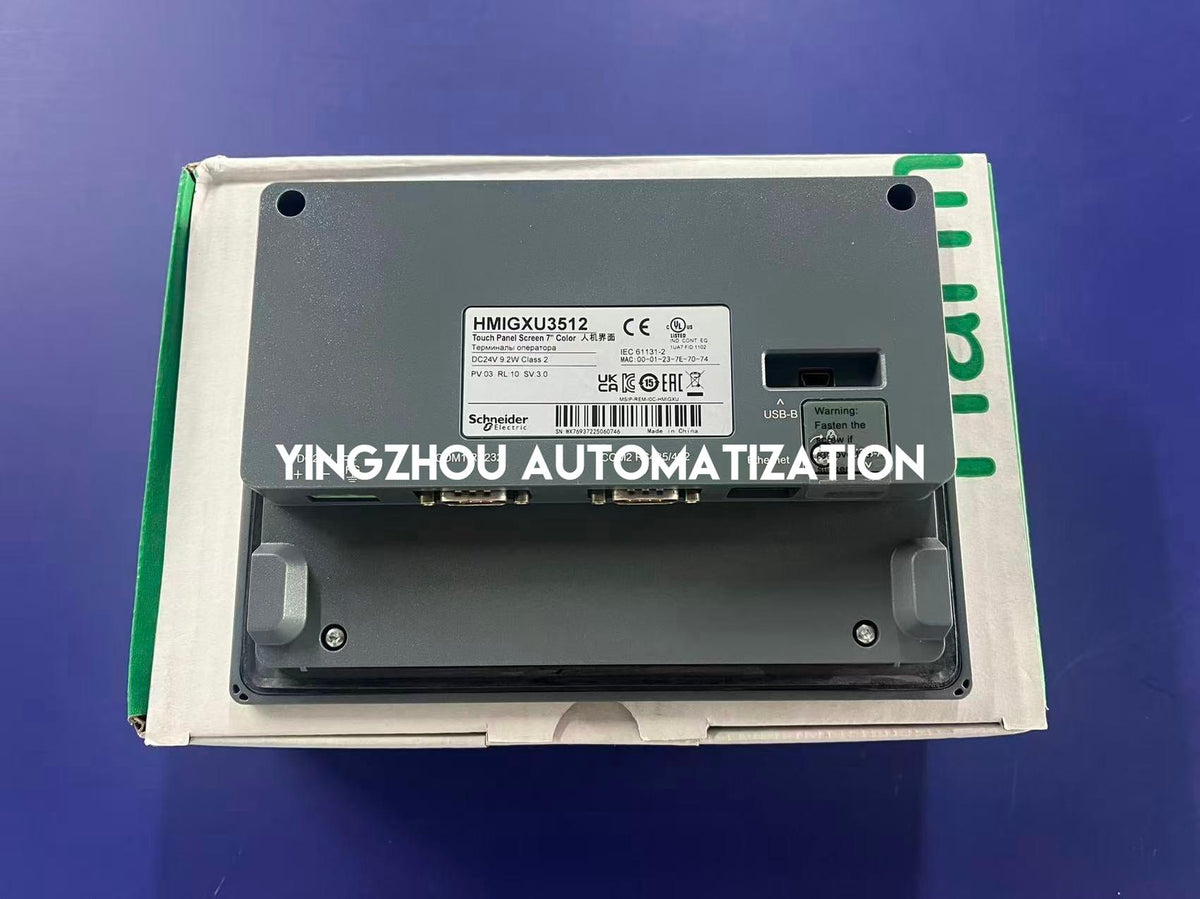

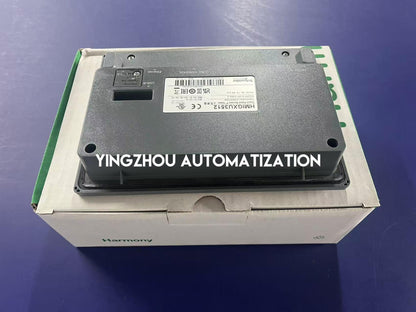

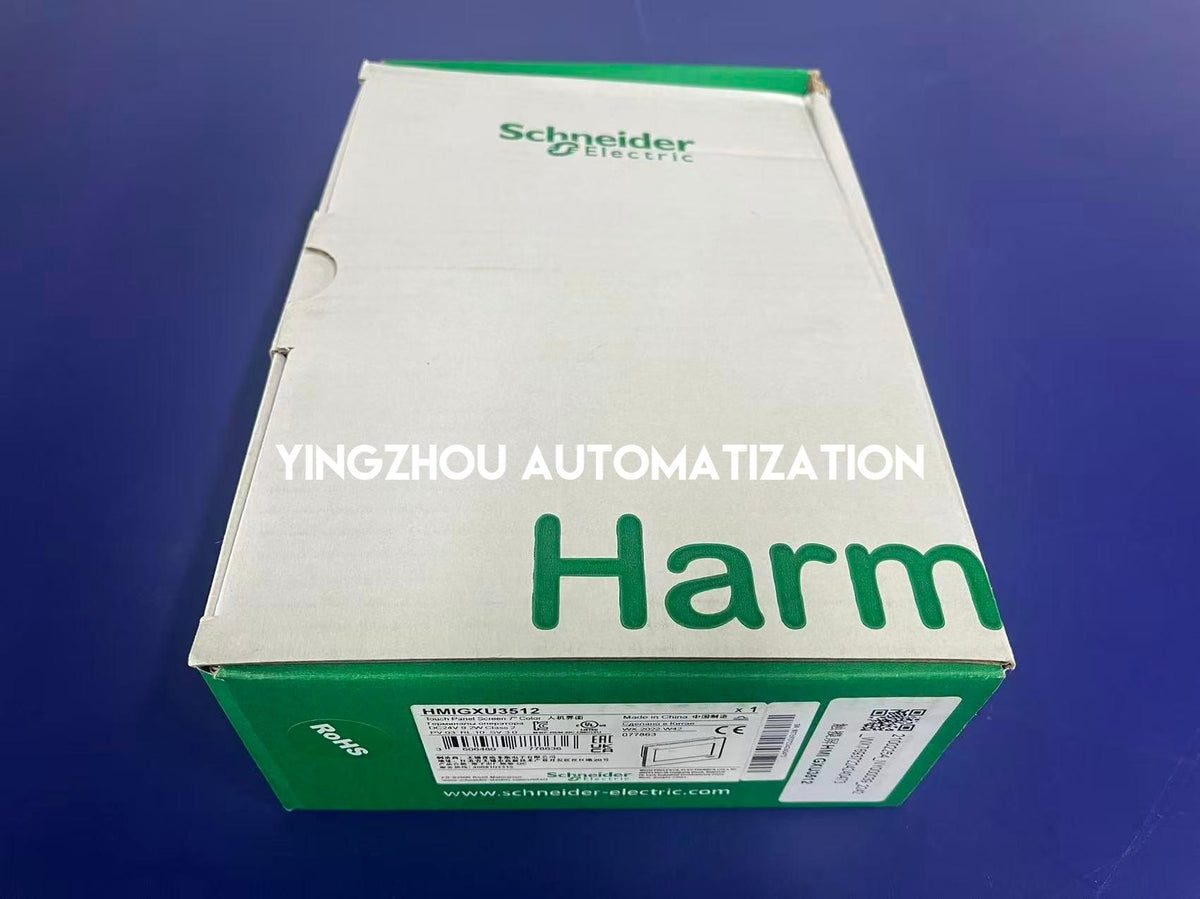

Actual rear-nameplate and packaging-label photographs are provided
for exact-model identification. Confirm the 24 V DC supply, one
Ethernet port, COM1/COM2 wiring, panel cut-out and supplied
mounting accessories before ordering.
