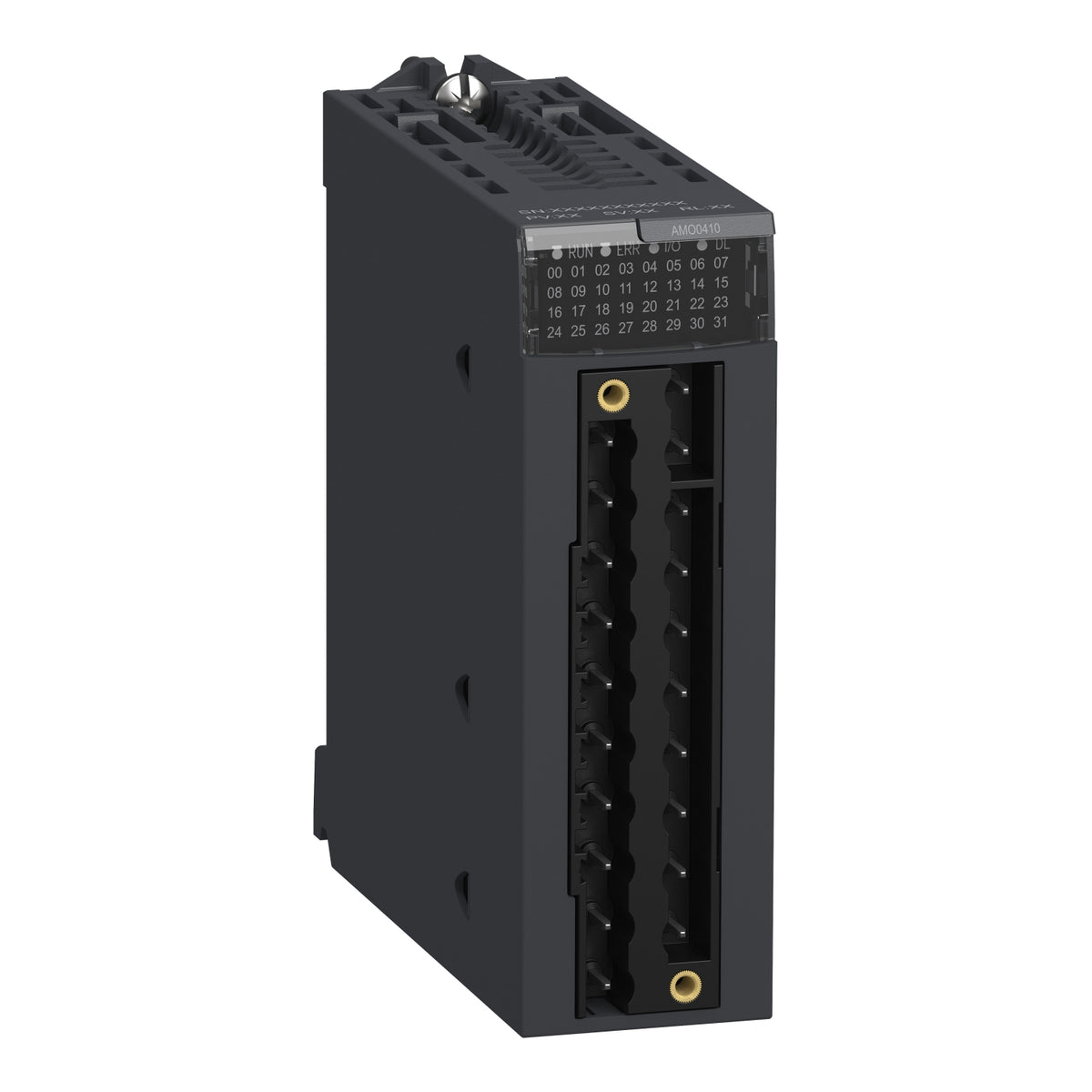

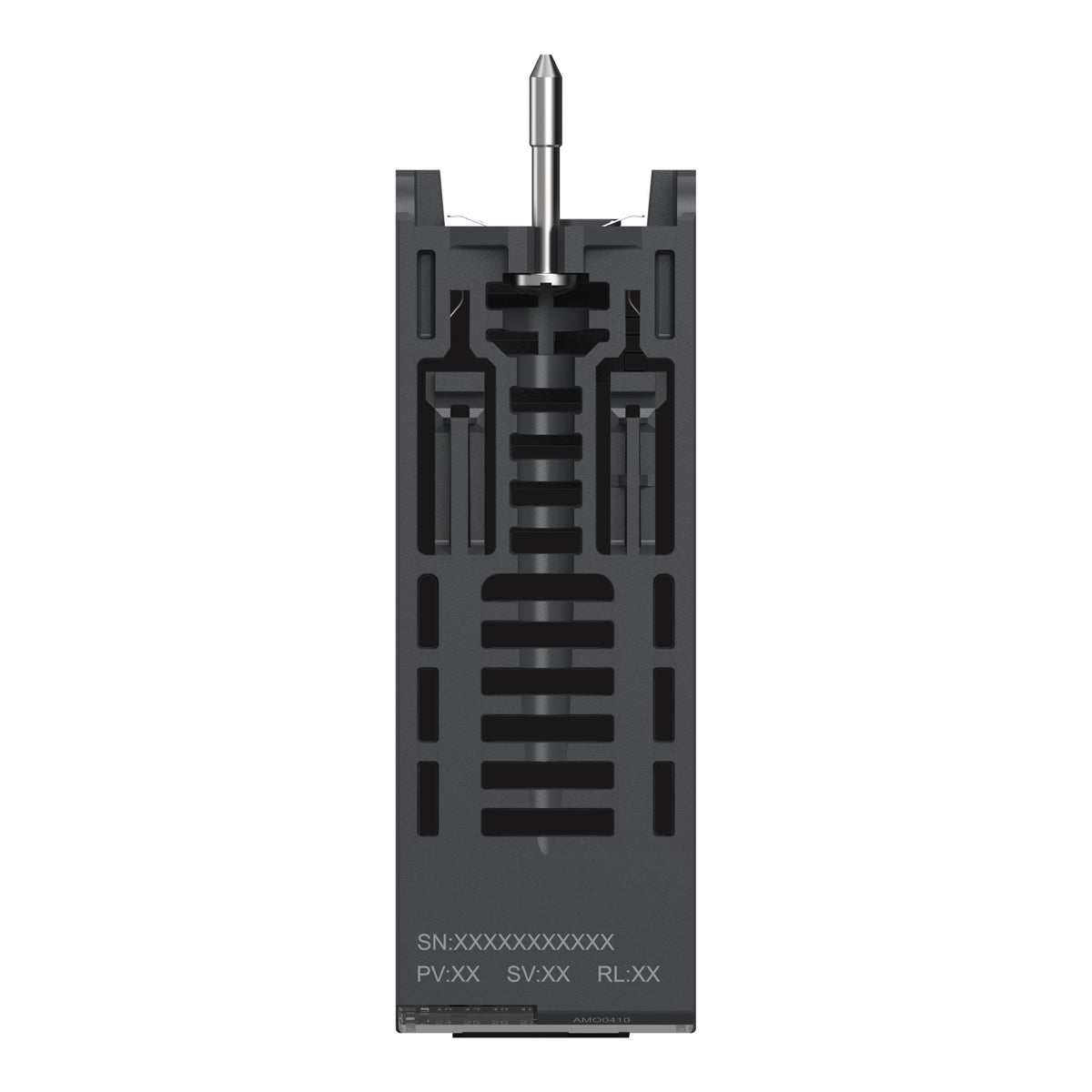

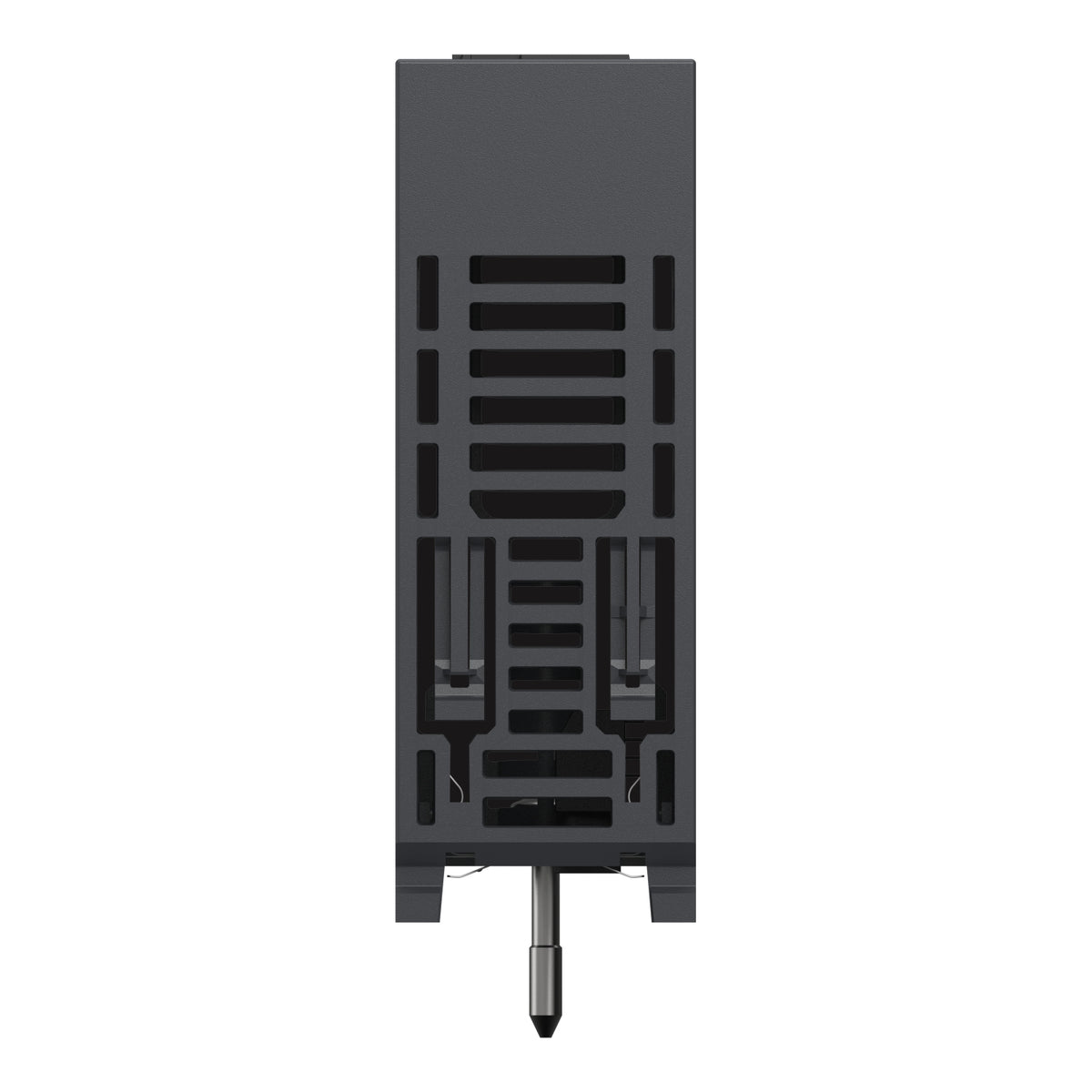

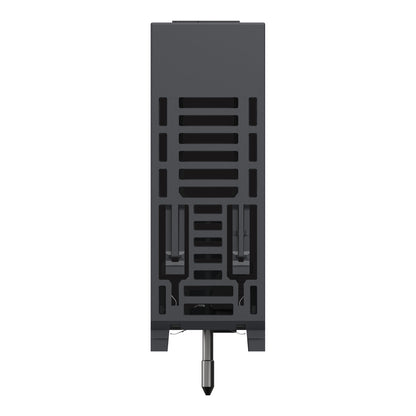

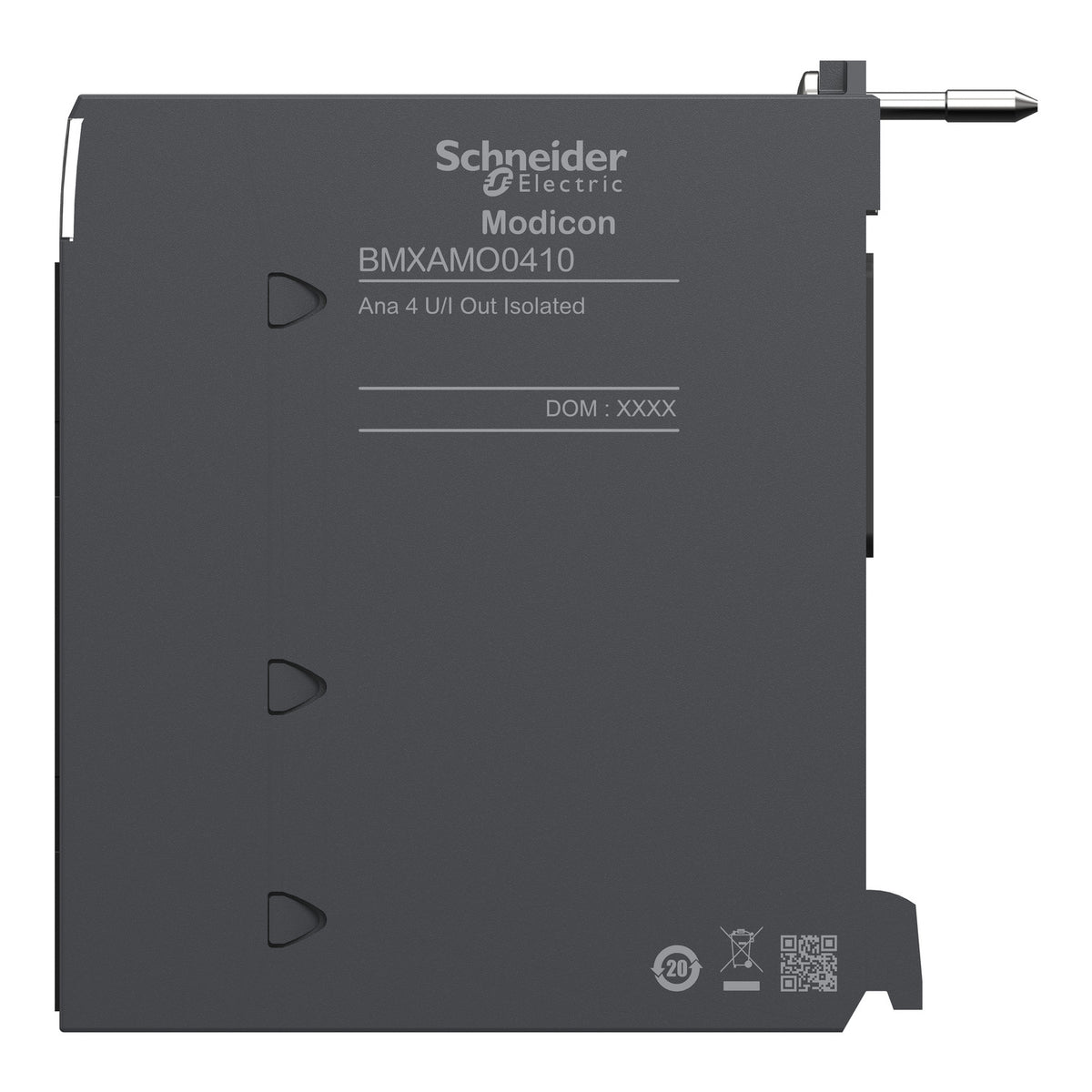

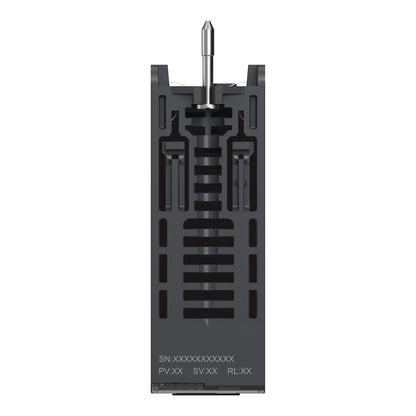

Schneider BMXAMO0410 Modicon X80 Isolated Analog Output Module
4 Isolated Analog Outputs | ±10V / 0–20mA / 4–20mA | 15-Bit + Sign
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
BMXAMO0410 |
| Product Range |
Modicon X80 |
| Product Type |
Isolated Analog Output Module |
| Analog Output Channels |
4 |
| Analog Input Channels |
0 (output-only module) |
| Analog Output Level |
High level |
| Voltage Output Range |
−10 to +10 V DC (±10 V) |
| Current Output Ranges |
0–20 mA / 4–20 mA |
| Analog Output Resolution |
15-bit + sign |
| Channel Isolation |
Isolated output channels |
| Supply Method |
Internal power supply via compatible X80 rack |
| Internal Bus Current Consumption |
150 mA at 3.3 V DC |
| 24 V Rack Supply Current |
140 mA at 24 V DC |
| 3.3 V Rail Power Consumption |
0.45 W typical / 0.51 W maximum |
| 24 V Rail Power Consumption |
3 W typical / 3.6 W maximum |
| Voltage Output Load Impedance |
≥ 1 kΩ for ±10 V |
| Current Output Load Impedance |
≤ 500 Ω |
| Voltage Output Limit |
±10.5 V maximum conversion range |
| Current Output Limit |
Up to 21 mA maximum conversion value |
| Output Fault Detection |
Open circuit on 0–20 mA / 4–20 mA; short circuit on ±10 V |
| Fallback Behavior |
Configurable / predefined |
| Electrical Connection |
1 × 20-way removable terminal block interface |
| Compatible Terminal Block Types |
Cage / screw-clamp / spring-type removable terminal blocks (configuration-dependent) |

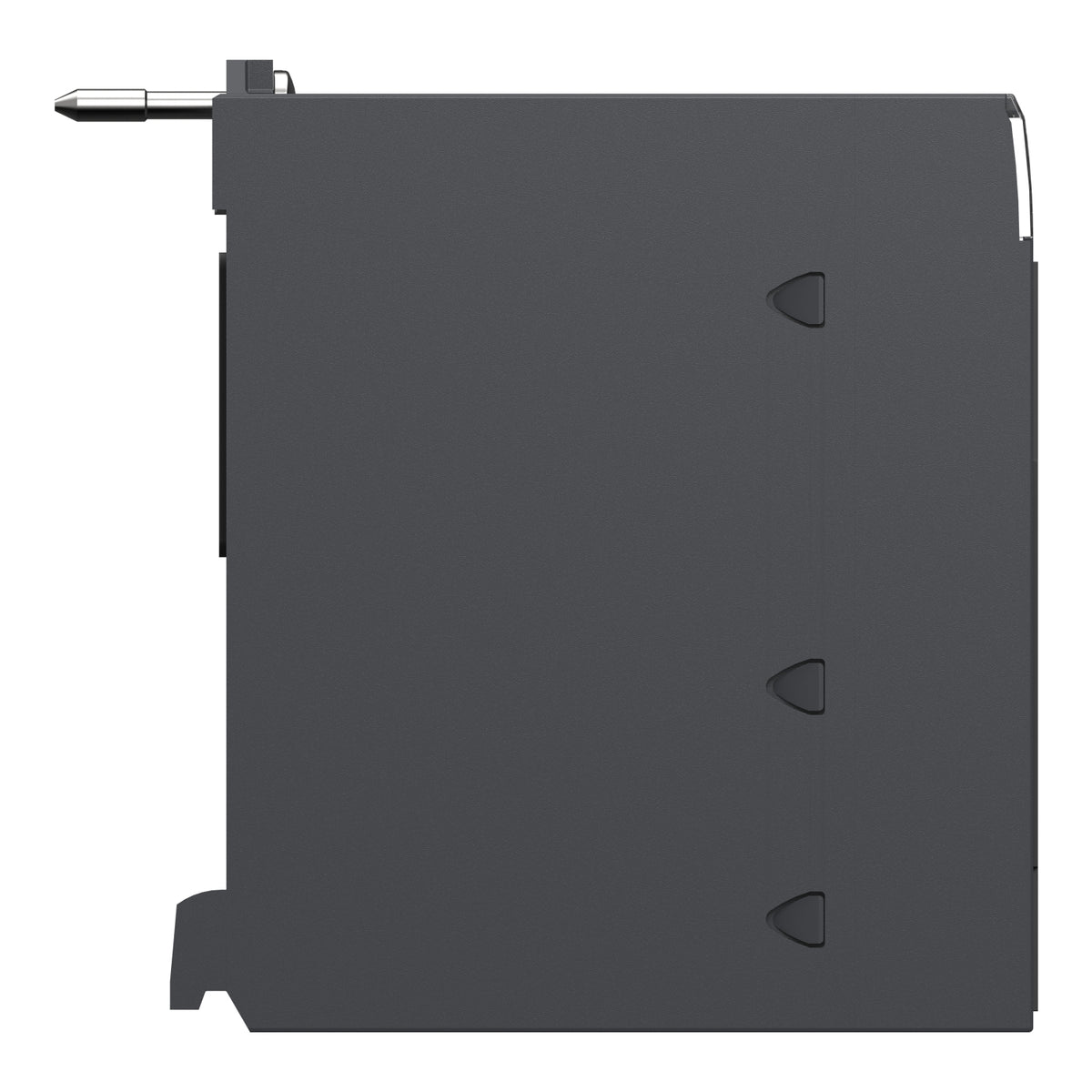

| Mounting |
Installed on compatible Modicon X80 rack; fixed with 2 screws |
| Compatible Architectures |
Supported Modicon M340 / M580 local or remote X80 I/O configurations |
| Isolation Between Channels |
750 V DC |
| Isolation Between Channels and Ground |
1400 V DC |
| Isolation Between Channels and Bus |
1400 V DC |
| Minimum Crosstalk Attenuation |
80 dB |
| Common Mode Rejection |
100 dB |
| Local Indicators |
RUN LED, channel diagnostic LEDs, ERR LED, I/O LED |
| Protection Rating |
IP20 |
| Operating Temperature |
0°C to +60°C |
| Dimensions (W × H × D) |
32 × 100 × 86 mm |
| Net Weight |
0.15 kg |
Product Overview
The Schneider Electric BMXAMO0410 is a
Modicon X80 isolated four-channel analog output module
designed for approved Modicon M340 and M580 X80 I/O configurations.
Its four isolated outputs support configurable −10 to +10 V DC
voltage signals or 0–20 mA / 4–20 mA current signals,
with manufacturer-specified 15-bit + sign resolution.
The module is powered internally by the compatible PLC rack,

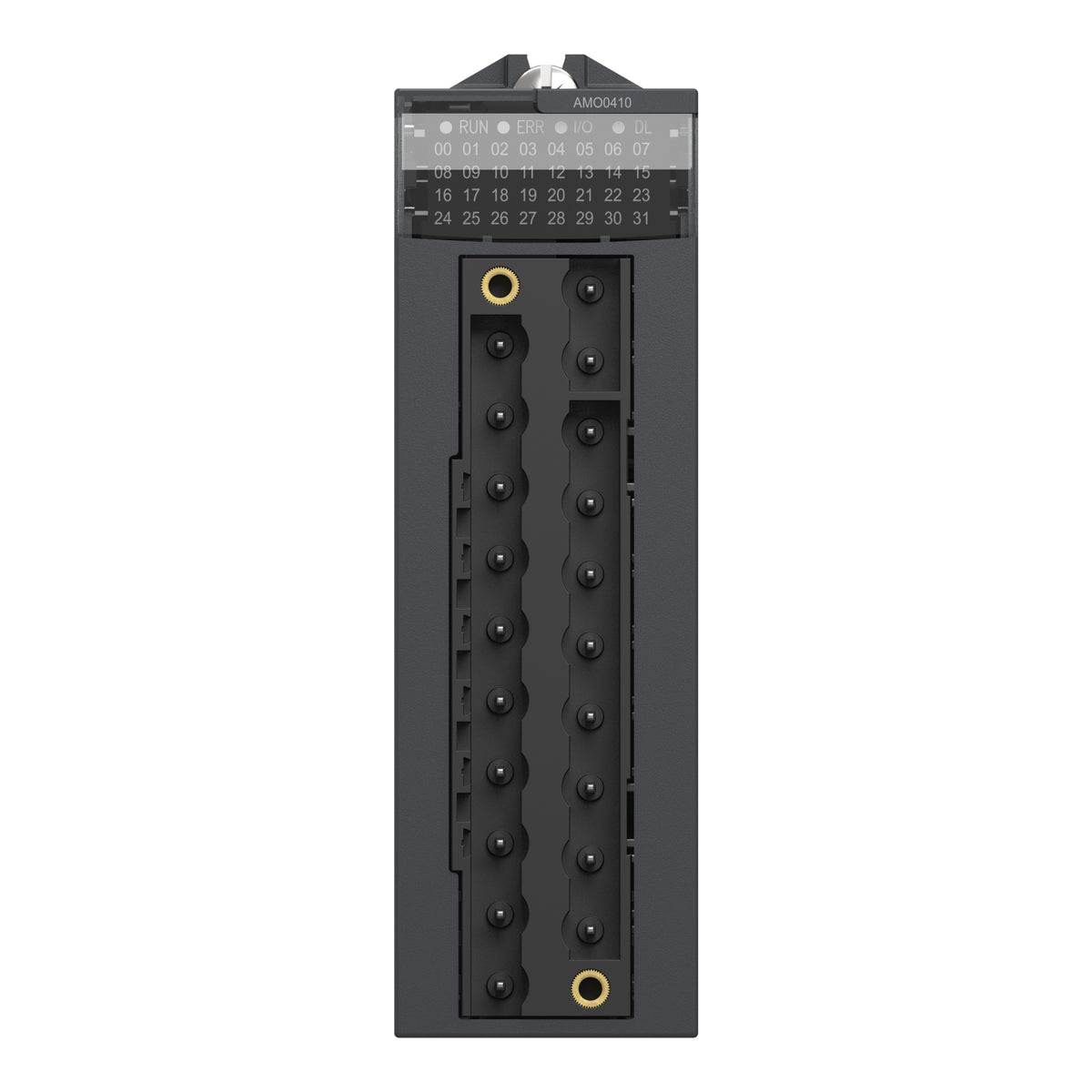

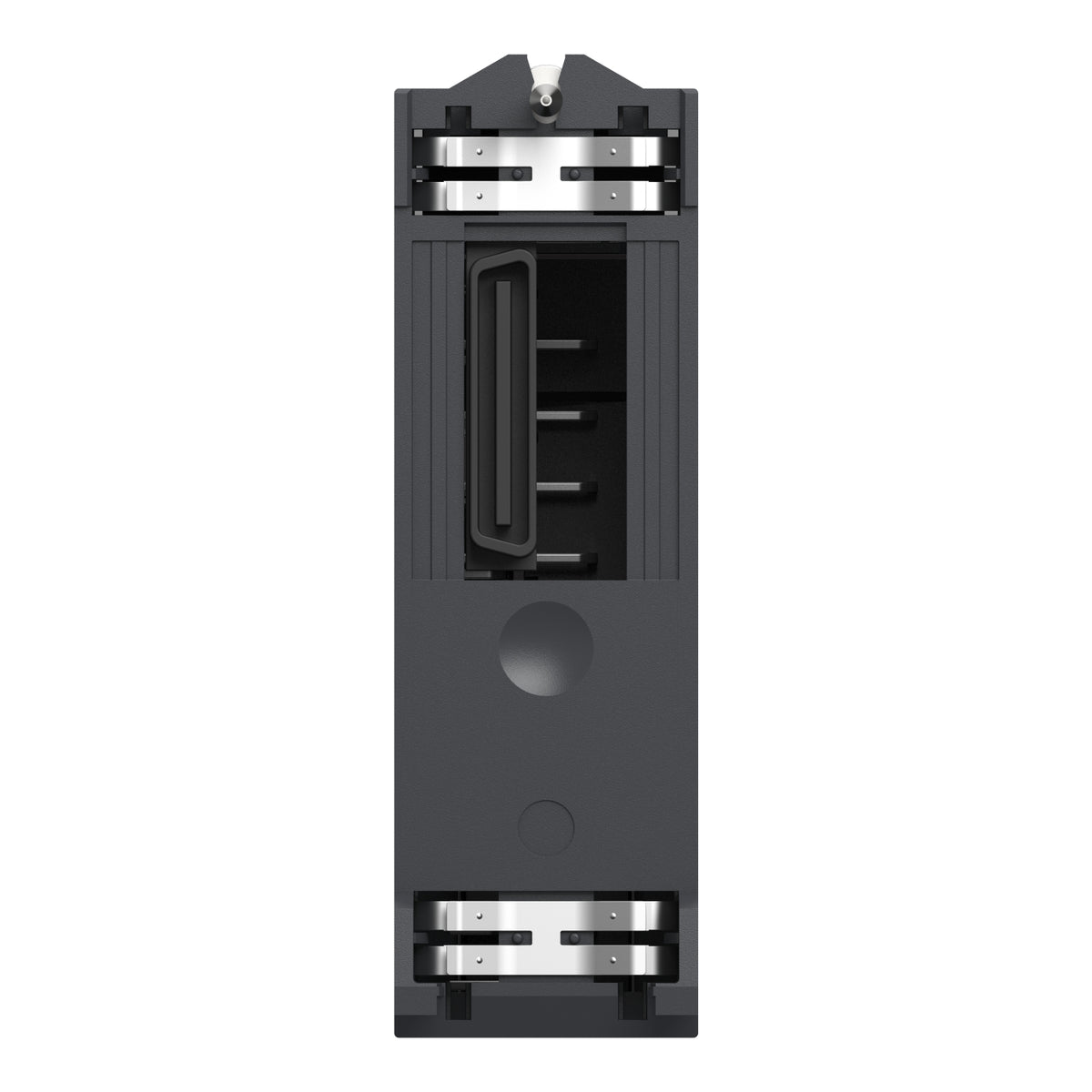

uses a 20-way removable terminal block interface,
and is mounted on the rack with two screws.
It provides four analog outputs and no analog inputs.
Check rack compatibility, terminal-block availability, field-device
input type and load impedance before ordering.
Key Product Features
-
Four isolated analog outputs for approved Modicon X80 rack-based I/O configurations
-
±10 V voltage output with a manufacturer-specified load impedance of at least 1 kΩ
-
0–20 mA / 4–20 mA current output for compatible field devices with current-signal inputs
-
15-bit + sign resolution according to Schneider Electric BMXAMO0410 product specifications
-
Rack-powered module using internal 3.3 V and 24 V rack power rails; no separate TM3-style external module supply
-
20-way terminal block interface with supported removable connection options; confirm terminal block supply
-
Configurable fallback and diagnostics including channel indicators and monitored output faults
In Stock & Ready to Order
Schneider Electric BMXAMO0410 is currently in stock.
Confirm exact model BMXAMO0410, rack compatibility,
field output range and 20-way terminal block requirements before ordering.
