Schneider Electric ATS480D62Y Altivar ATS480 Soft Starter
62A Normal Duty | 208–690V AC | 3-Phase | 30kW at 400V
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
ATS480D62Y |
| Series |
Altivar Soft Starter ATS480 |
| Product Type |
Industrial Soft Starter |
| Product Destination |
Asynchronous Motors |
| Network Phases |
3-Phase |
| Power Supply Voltage |
208–690V AC, -15% / +10% |
| Control Supply Voltage |
110–230V AC, 50/60Hz |
| Rated Current - Normal Duty |
62A at 40°C |
| Rated Current - Heavy Duty |
47A at 40°C |
| Motor Power @ 230V |
15kW Normal / 11kW Heavy, In-Line |
| Motor Power @ 400V |
30kW Normal / 22kW Heavy, In-Line |
| Motor Power @ 440V |
30kW Normal / 22kW Heavy, In-Line |
| Motor Power @ 500V |
37kW Normal / 30kW Heavy, In-Line |
| Motor Power @ 690V |
45kW Normal / 37kW Heavy, In-Line |
| Starting Technology |
Torque Control System (TCS) |
| Motor Protection |
Integrated Motor Overload Protection |
| Communication Protocol |
Modbus Serial (RS-485) |
| Optional Communication |
Modbus TCP, EtherNet/IP, PROFINET, PROFIBUS DP, CANopen via Optional Modules |
| Bypass Function |
External Bypass Control Supported |
| Protection Rating |
IP20 |
| Dimensions (W × H × D) |
190 × 290 × 247 mm |
| Net Weight |
8.3 kg |
| Operating Temperature |
-15°C to +40°C Without Derating |
| Standard |
IEC 60947-4-2 |
Product Overview
The Schneider Electric ATS480D62Y is an
industrial soft starter from the
Altivar Soft Starter ATS480 series,
designed for three-phase asynchronous motors.
It provides a 62A normal-duty rating
and a 47A heavy-duty rating at 40°C,
with a 208–690V AC main power supply.
At 400V, the ATS480D62Y supports
30kW normal-duty or
22kW heavy-duty motor applications
with in-line connection.
Its torque-control technology, integrated motor
protection and built-in Modbus serial communication
support controlled industrial motor starting and stopping.
Key Product Features
-
62A normal-duty rated current at 40°C
-
47A heavy-duty rated current at 40°C
-
208–690V AC three-phase power supply
-
30kW at 400V normal-duty motor rating, in-line
-
110–230V AC control power supply
-
Torque Control System for motor starting and stopping
-
Built-in Modbus Serial communication
- Integrated Motor Overload Protection
-
External Bypass Control supported
Actual Product Verification
✓

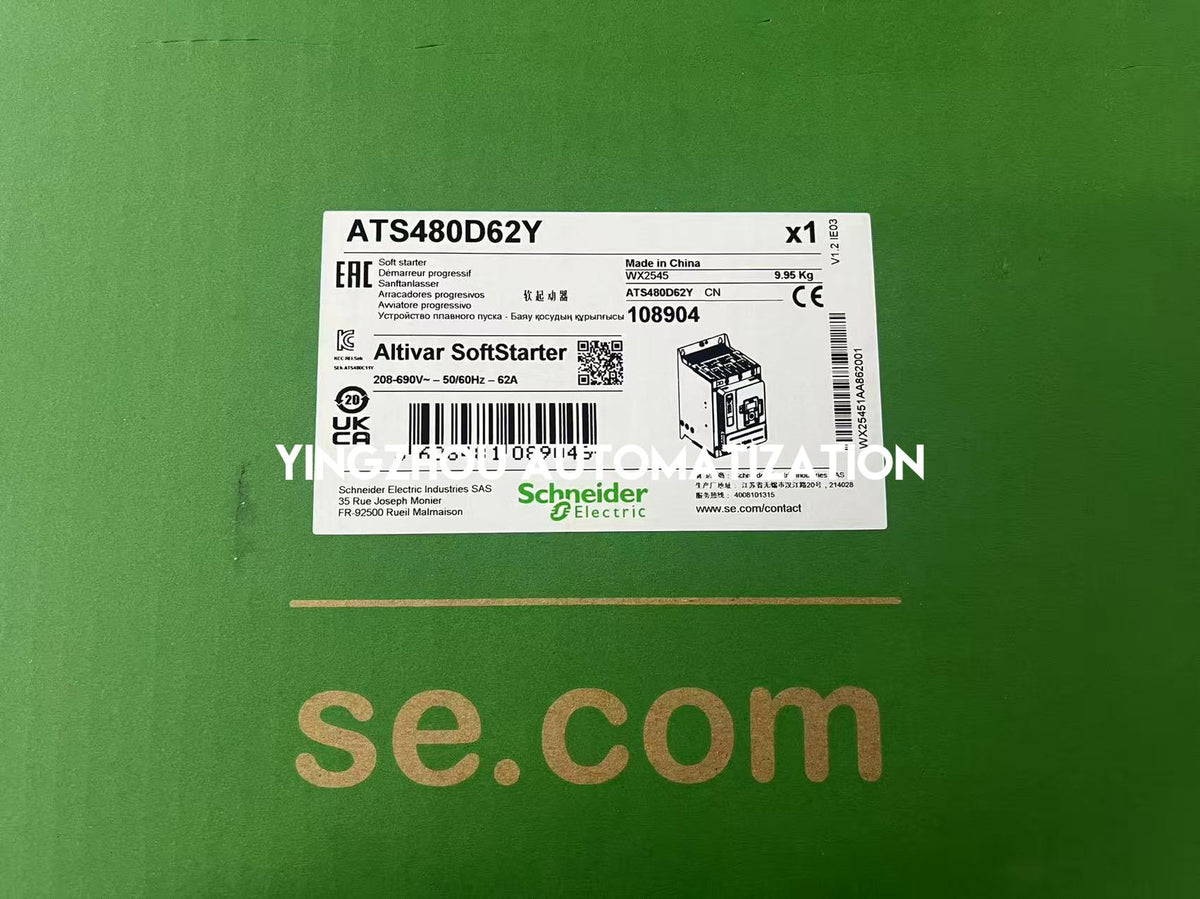

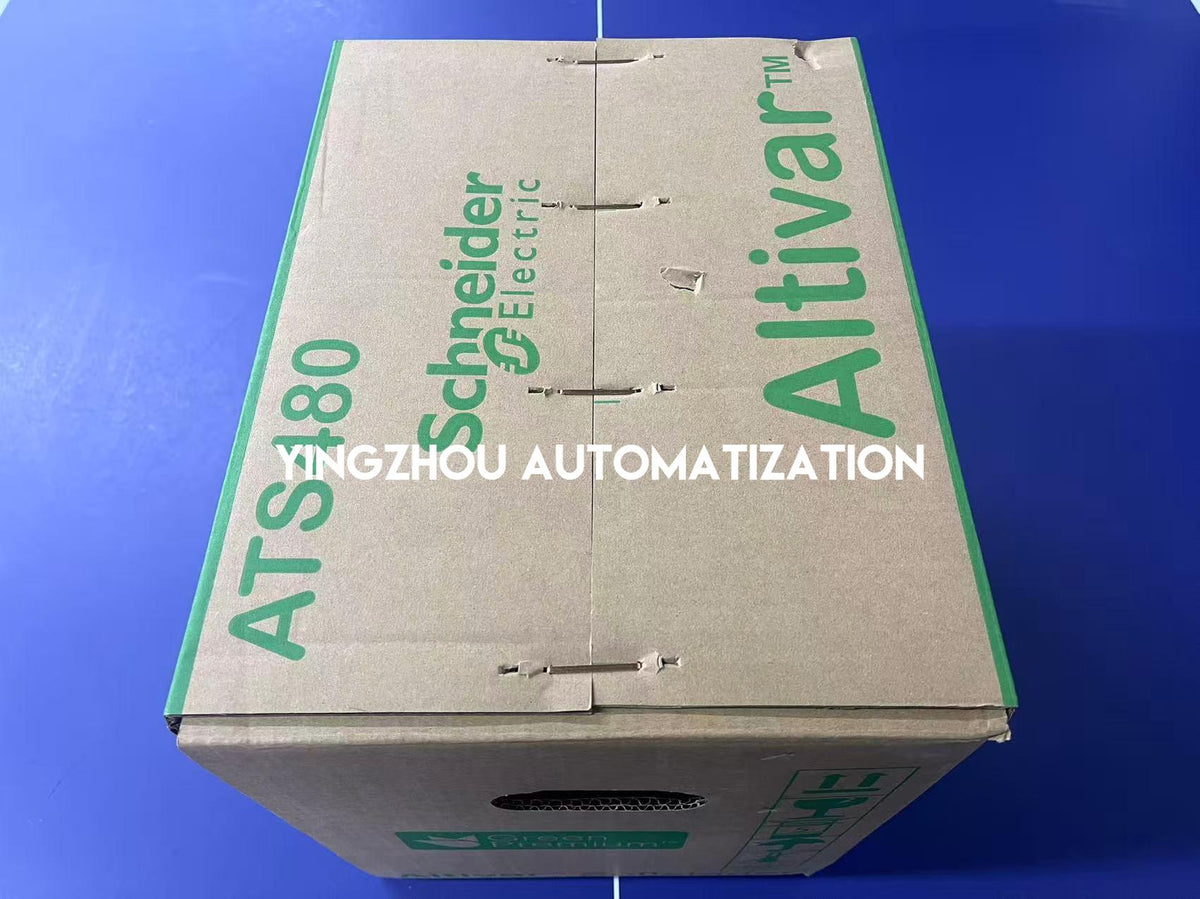

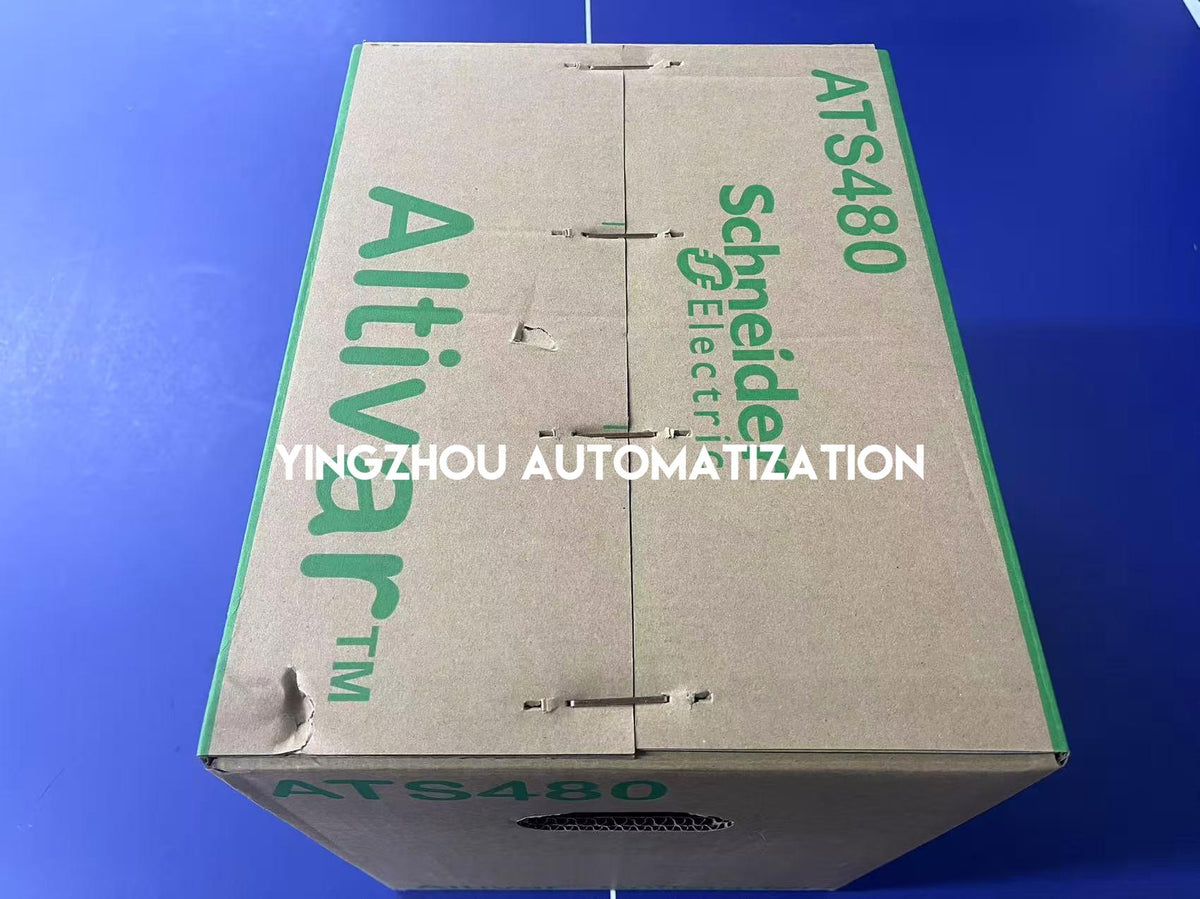

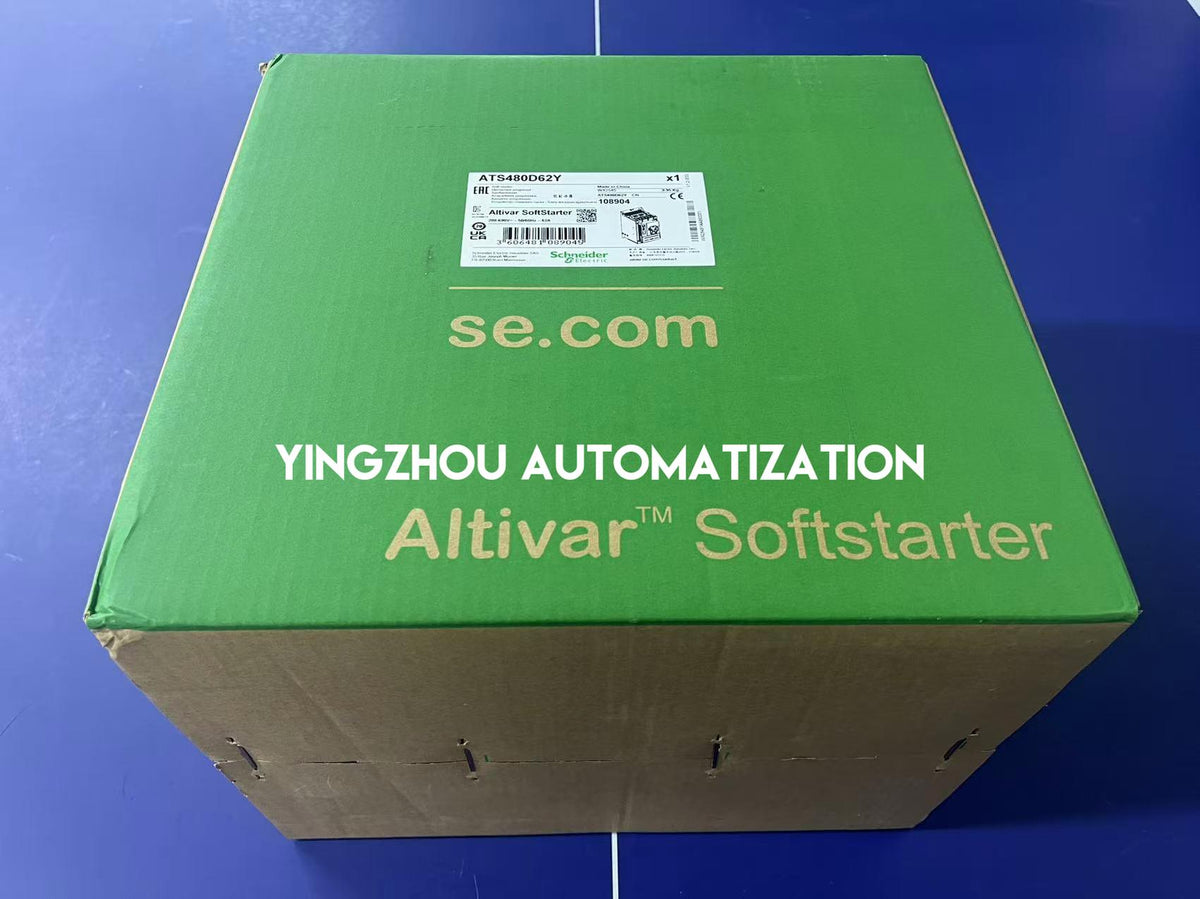

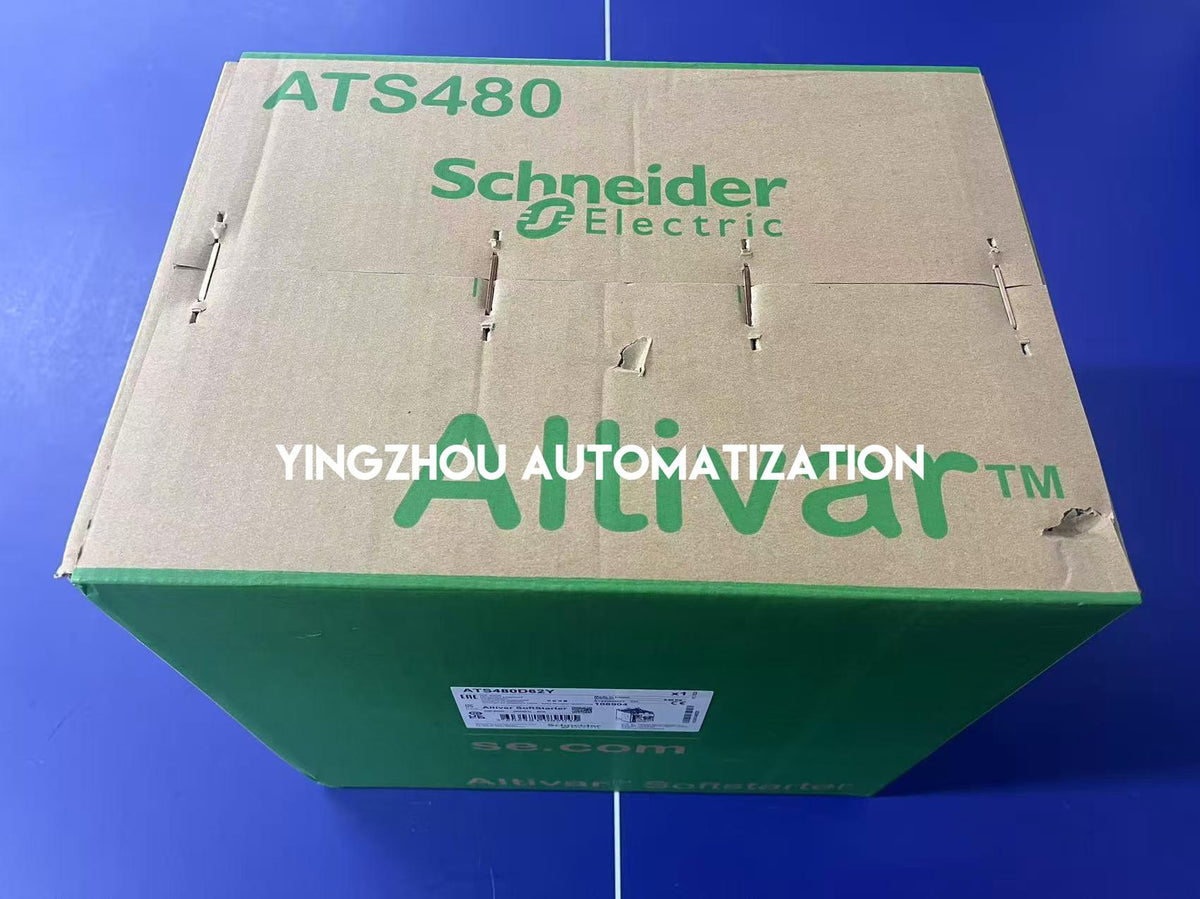

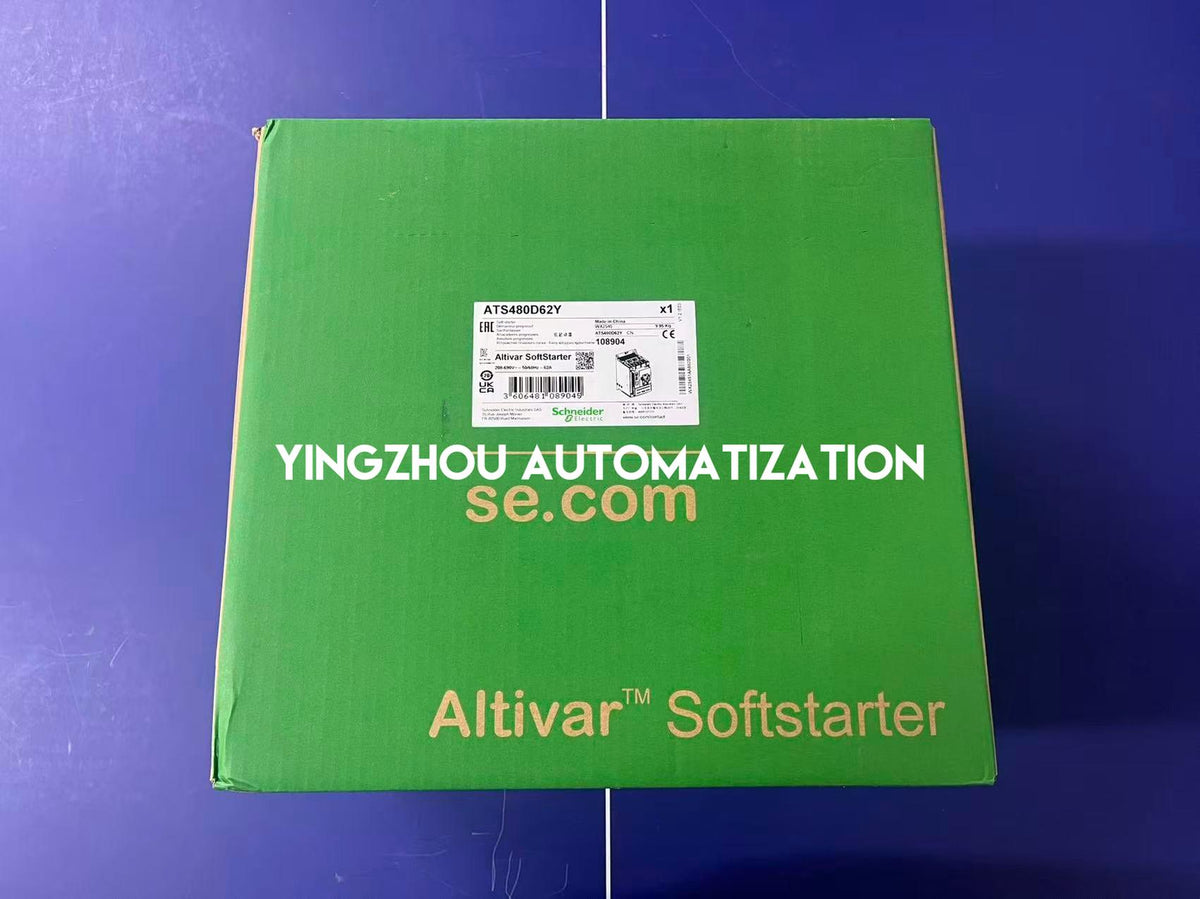

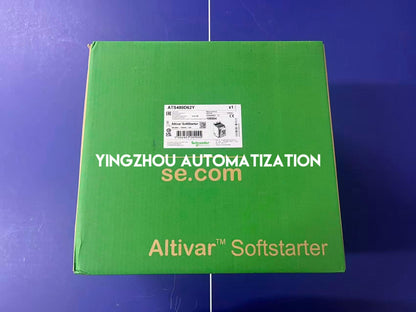

Actual packaging photo
✓
Packaging model label visible
✓
ATS480D62Y and electrical ratings shown
✓
Verify exact unit model/nameplate before ordering
In Stock & Ready to Order
Schneider Electric ATS480D62Y is
currently in stock according to our inventory
information.
An actual packaging photograph showing the
exact model and electrical ratings is provided.
Please confirm the required quantity, exact
model configuration and shipping details
before ordering.
