Schneider Electric ATS480D32Y Altivar ATS480 Soft Starter
32A Normal Duty | 208–690V AC | 3-Phase | 15kW at 400V
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
ATS480D32Y |
| Series |
Altivar Soft Starter ATS480 |
| Product Type |
Industrial Soft Starter |
| Product Destination |
Asynchronous Motors |
| Network Phases |
3-Phase |
| Power Supply Voltage |
208–690V AC, -15% / +10% |
| Control Supply Voltage |
110–230V AC, 50/60Hz |
| Rated Current - Normal Duty |
32A at 40°C |
| Rated Current - Heavy Duty |
22A at 40°C |
| Motor Power @ 230V |
7.5kW Normal / 5.5kW Heavy, In-Line |
| Motor Power @ 400V |
15kW Normal / 11kW Heavy, In-Line |
| Motor Power @ 500V |
18.5kW Normal / 11kW Heavy, In-Line |
| Motor Power @ 690V |
22kW Normal / 18.5kW Heavy, In-Line |
| Starting Technology |
Torque Control System (TCS) |
| Motor Protection |
Integrated Motor Overload Protection |
| Motor Thermal Protection |
Class 10E |
| Communication Protocol |
Modbus Serial (RS-485) |
| Optional Communication |
Modbus TCP, EtherNet/IP, PROFINET, PROFIBUS DP, CANopen via Optional Modules |
| Bypass Function |
External Bypass Control Supported |
| Protection Rating |
IP20 |
| Dimensions (W × H × D) |
160 × 275 × 203 mm |
| Net Weight |
4.9 kg |
| Standard |
IEC 60947-4-2 |
Product Overview
The Schneider Electric ATS480D32Y is an
industrial soft starter from the
Altivar Soft Starter ATS480 series,
designed for three-phase asynchronous motors.
It provides a 32A normal-duty rating
and a 22A heavy-duty rating at 40°C,
with a 208–690V AC main power supply.
At 400V, the ATS480D32Y supports
15kW normal-duty or
11kW heavy-duty motor applications
with in-line connection.
Its torque-control technology, integrated motor
protection and built-in Modbus serial communication
support controlled industrial motor starting and stopping.
Key Product Features
-
32A normal-duty rated current at 40°C
-
22A heavy-duty rated current at 40°C
-
208–690V AC three-phase power supply
-
15kW at 400V normal-duty motor rating, in-line
-
110–230V AC control power supply
-
Torque Control System for motor starting and stopping
-
Built-in Modbus Serial communication
- Integrated Motor Overload Protection
-
External Bypass Control supported
Actual Product Verification
✓

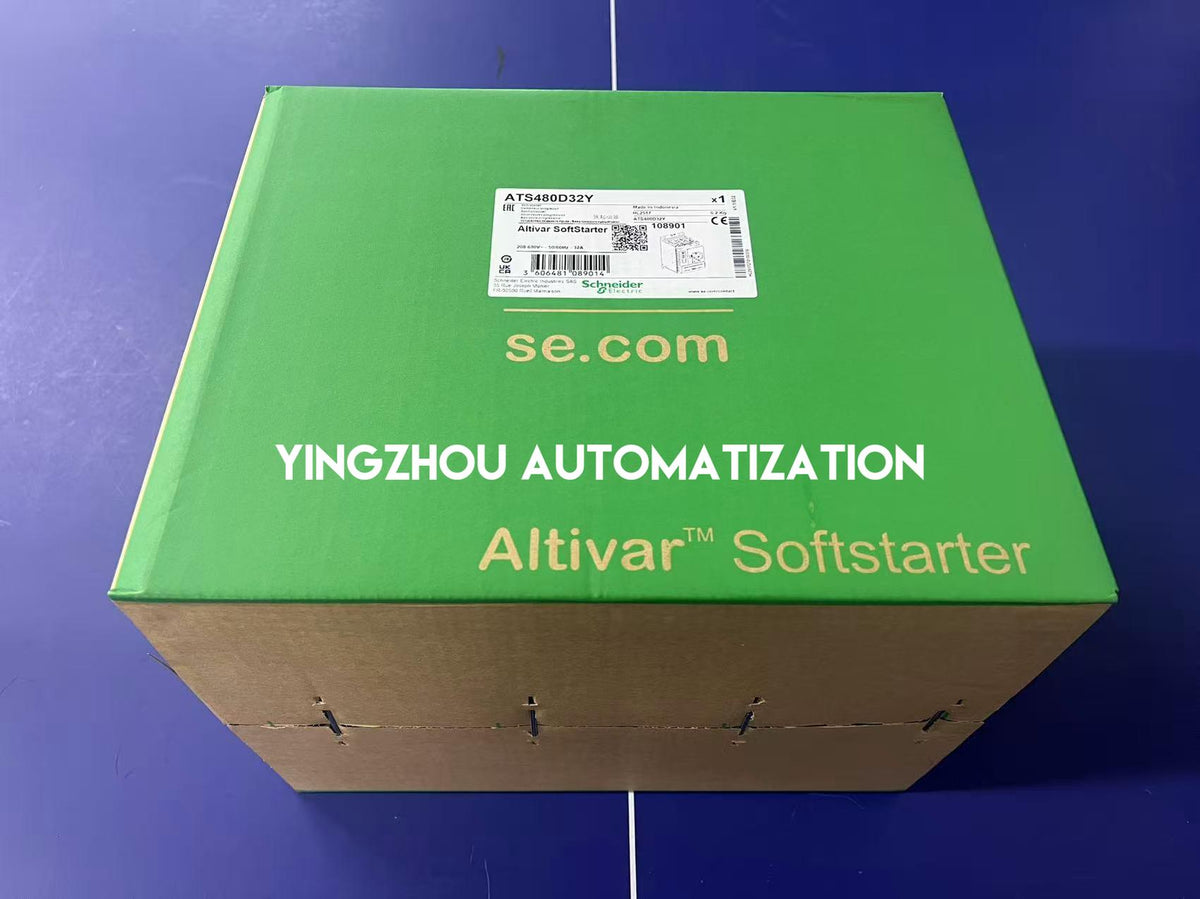

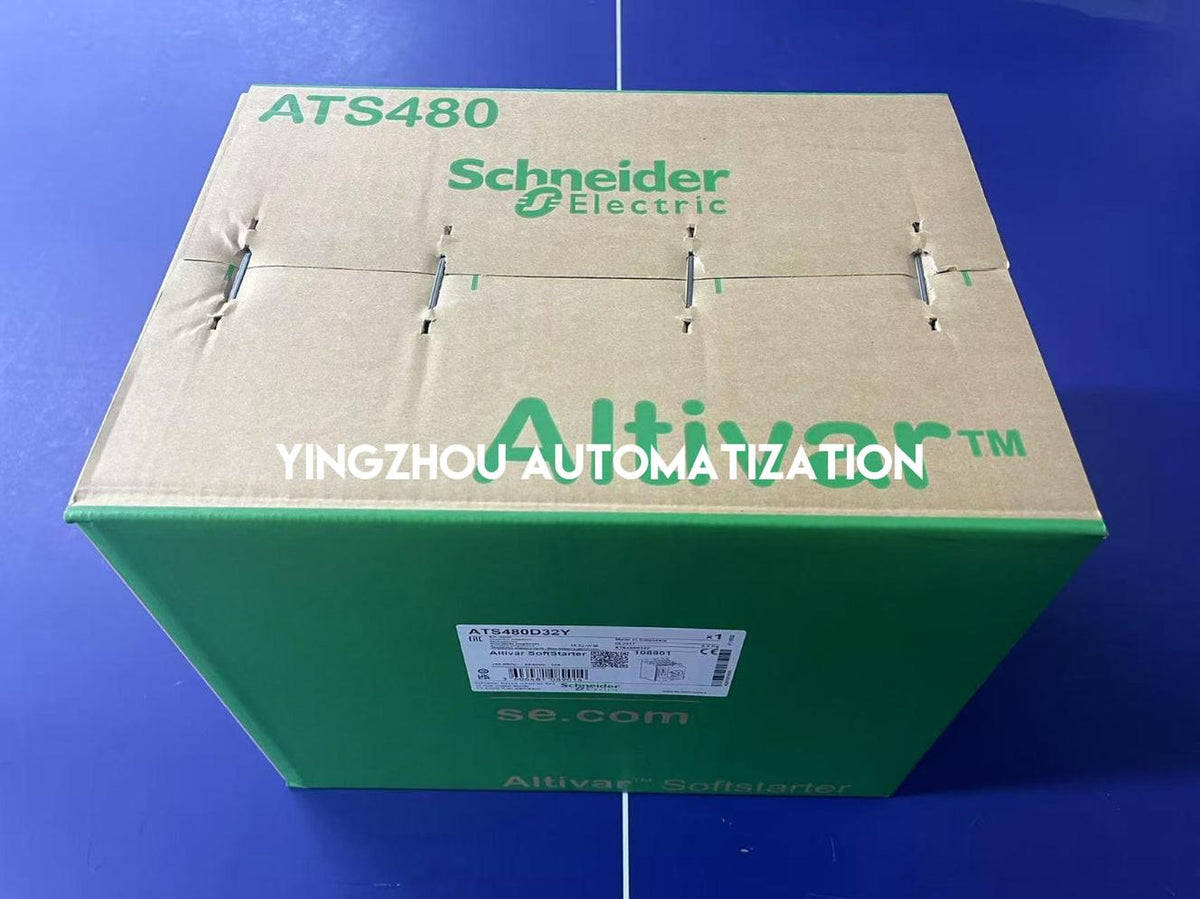

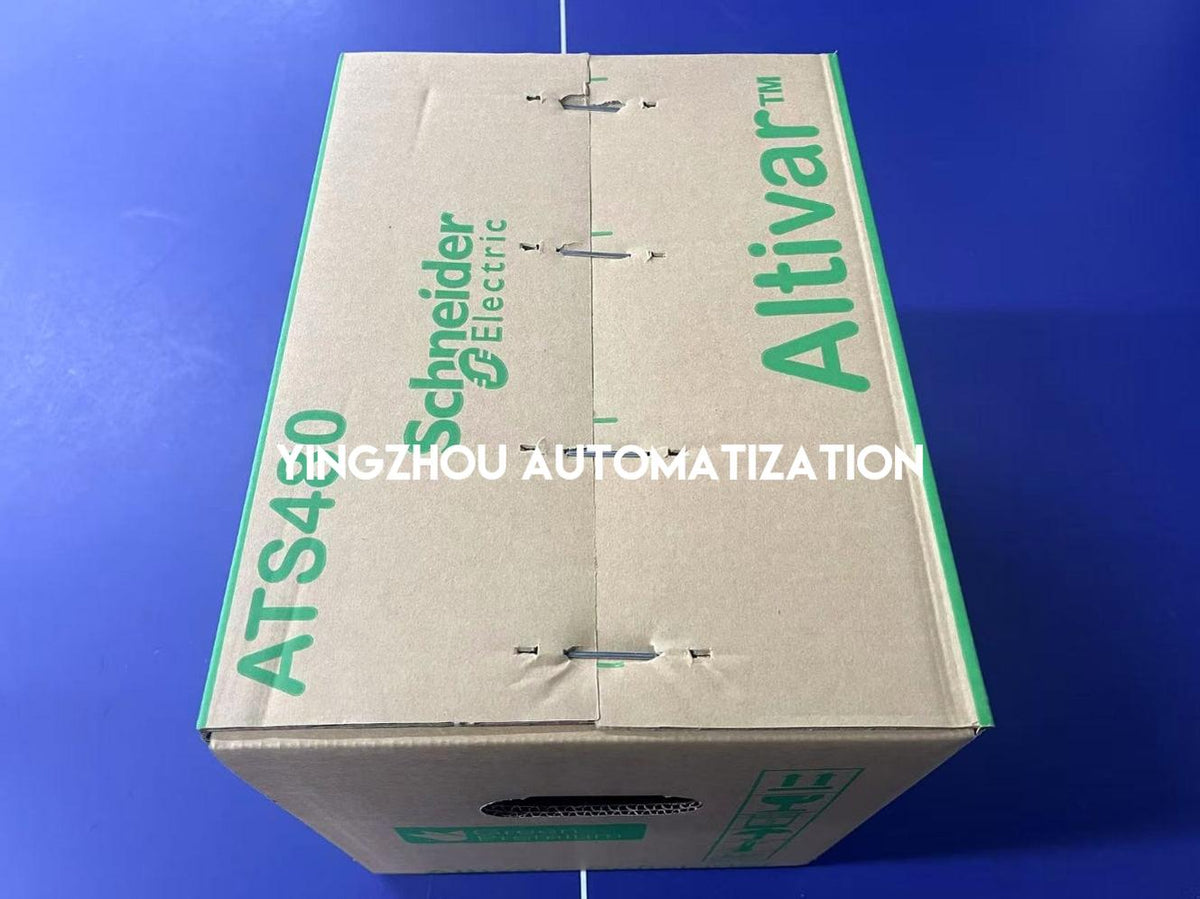

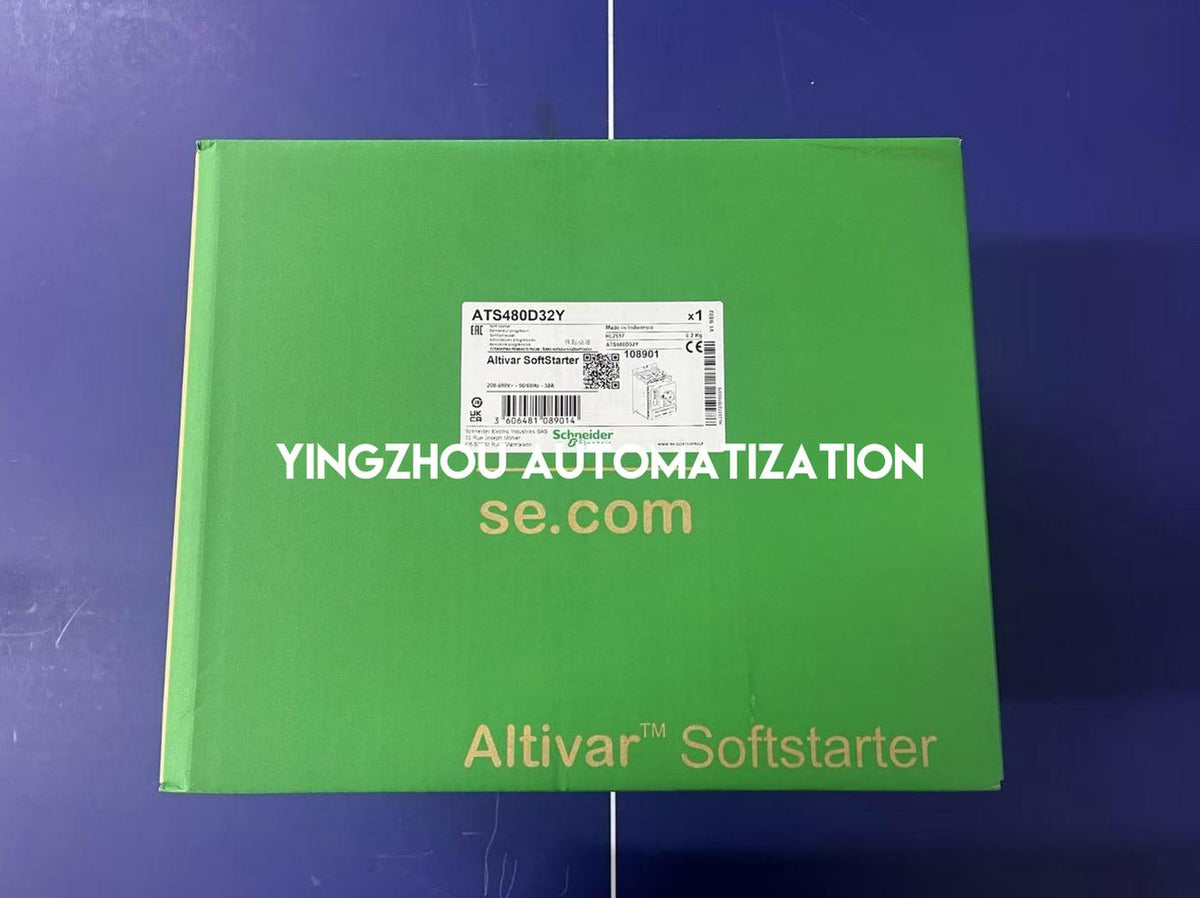

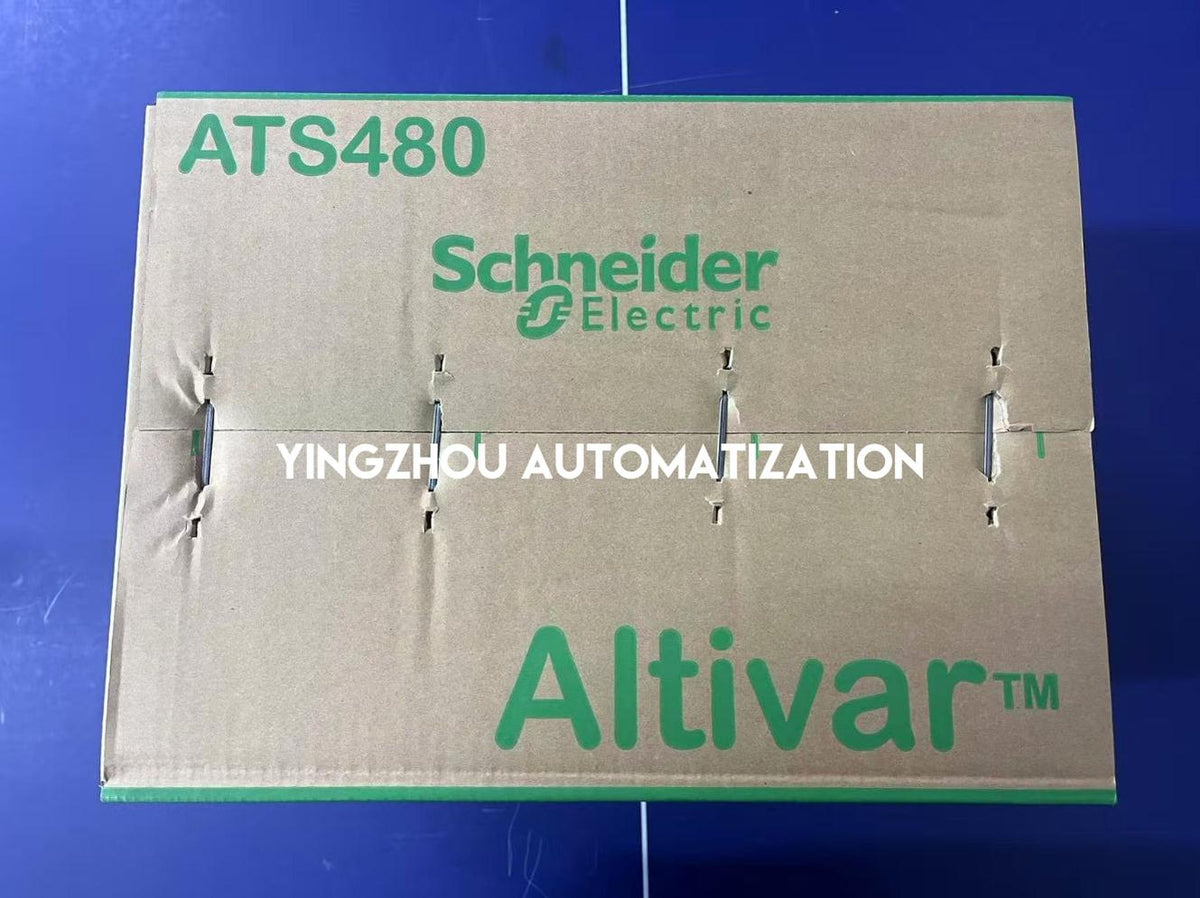

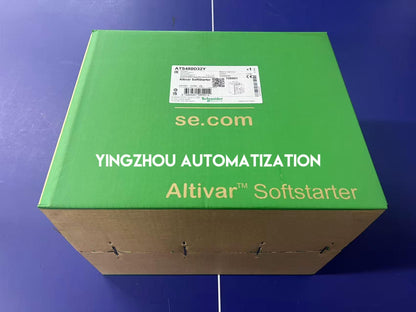

Actual packaging photo
✓

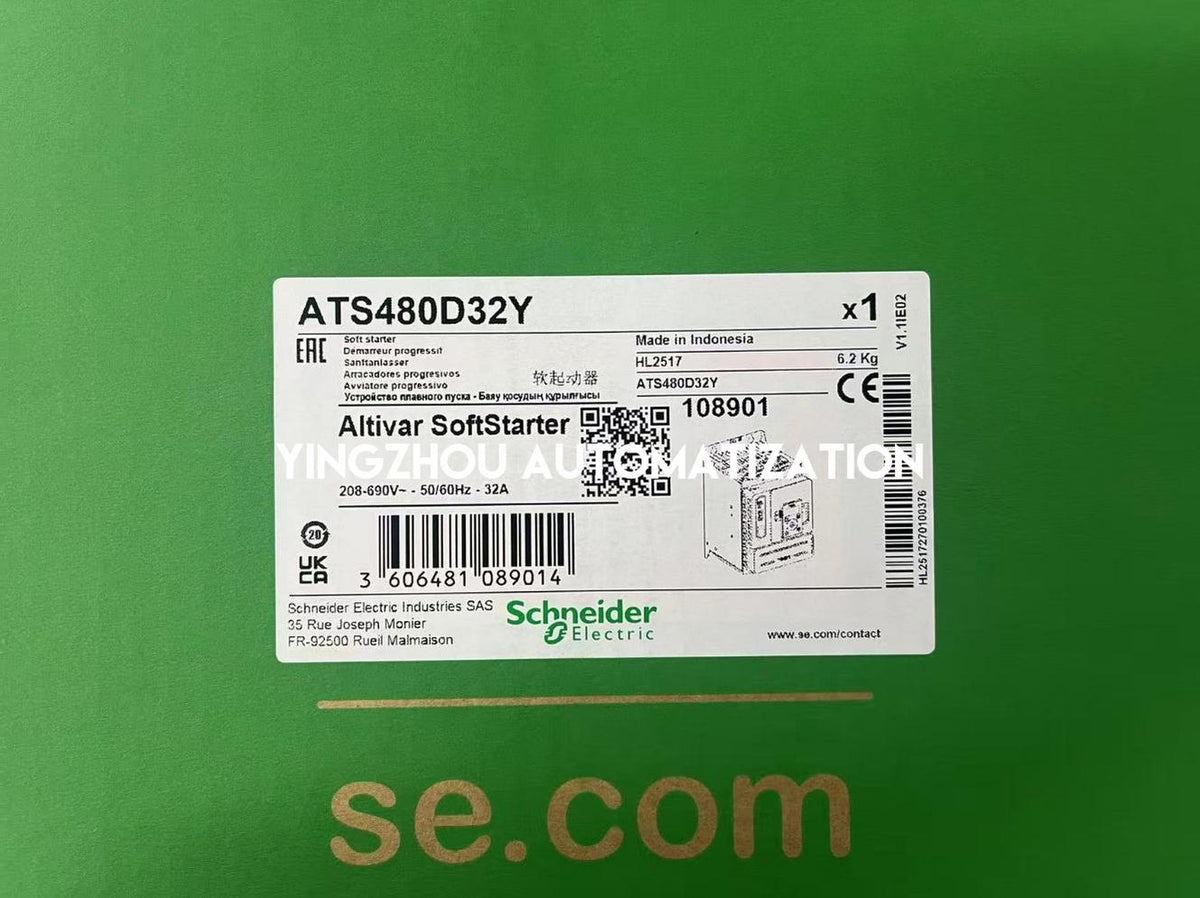

Packaging model label visible
✓
ATS480D32Y and electrical ratings shown
✓
Verify exact unit model/nameplate before ordering
In Stock & Ready to Order
Schneider Electric ATS480D32Y is
currently in stock according to our inventory
information.
An actual packaging photograph showing the
exact model and electrical ratings is provided.
Please confirm the required quantity, exact
model configuration and shipping details
before ordering.
