| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
A9F19210 |
| Series |
Acti9 iC65N |
| Product Type |
Miniature Circuit Breaker (MCB) |
| Application |
Electrical Distribution Protection |
| Number of Poles |
2P |
| Protected Poles |
2 |
| Rated Current |
10A at 30°C |
| Tripping Curve |
D-Curve |
| Trip Unit |
Thermal-Magnetic |
| Magnetic Trip Threshold |
10–14 × In |
| Rated Operational Voltage |
400V AC, 50/60Hz |
| Rated Breaking Capacity (Icn) |
6kA at 400V AC, IEC 60898-1 |
| Ultimate Breaking Capacity (Icu) |
10kA at 380–415V AC, IEC 60947-2 |
| Ultimate Breaking Capacity at 440V |
6kA Icu, IEC 60947-2 |
| Insulation Voltage |
500V AC |
| Impulse Withstand Voltage |
6kV |
| Current Limiting Class |
Class 3, IEC 60898-1 |
| Isolation Function |
Suitable, IEC 60947-2 |
| Mounting |
DIN Rail |
| Dimensions |
36 × 94 × 78.5 mm (W × H × D) |
| Weight |
203g |
| Mechanical Endurance |
20,000 Operations |
| Electrical Endurance |
10,000 Operations |
| Protection Rating |
IP20 |
| Operating Temperature |
−35°C to +70°C |
| Applicable Standards |
GB 10963.1 / IEC 60898-1 / IEC 60947-2 (rating-specific) |
Product Overview
The Schneider Electric A9F19210 is an
Acti9 iC65N miniature circuit breaker
designed for electrical distribution circuit protection.
This model features a
2-pole configuration,
10A rated current and
D-curve thermal-magnetic tripping.
It provides a rated short-circuit breaking capacity
of 6kA Icn at 400V AC
according to IEC 60898-1.
Under IEC 60947-2,
the product is rated for
10kA Icu at 380–415V AC.
These breaking-capacity values refer to
different standards and must be evaluated
in their respective operating conditions.
The device includes
two protected poles,
a thermal-magnetic trip unit,
contact position indication and
DIN rail mounting.
The D-curve magnetic trip threshold is
specified at 10–14 times
rated current.

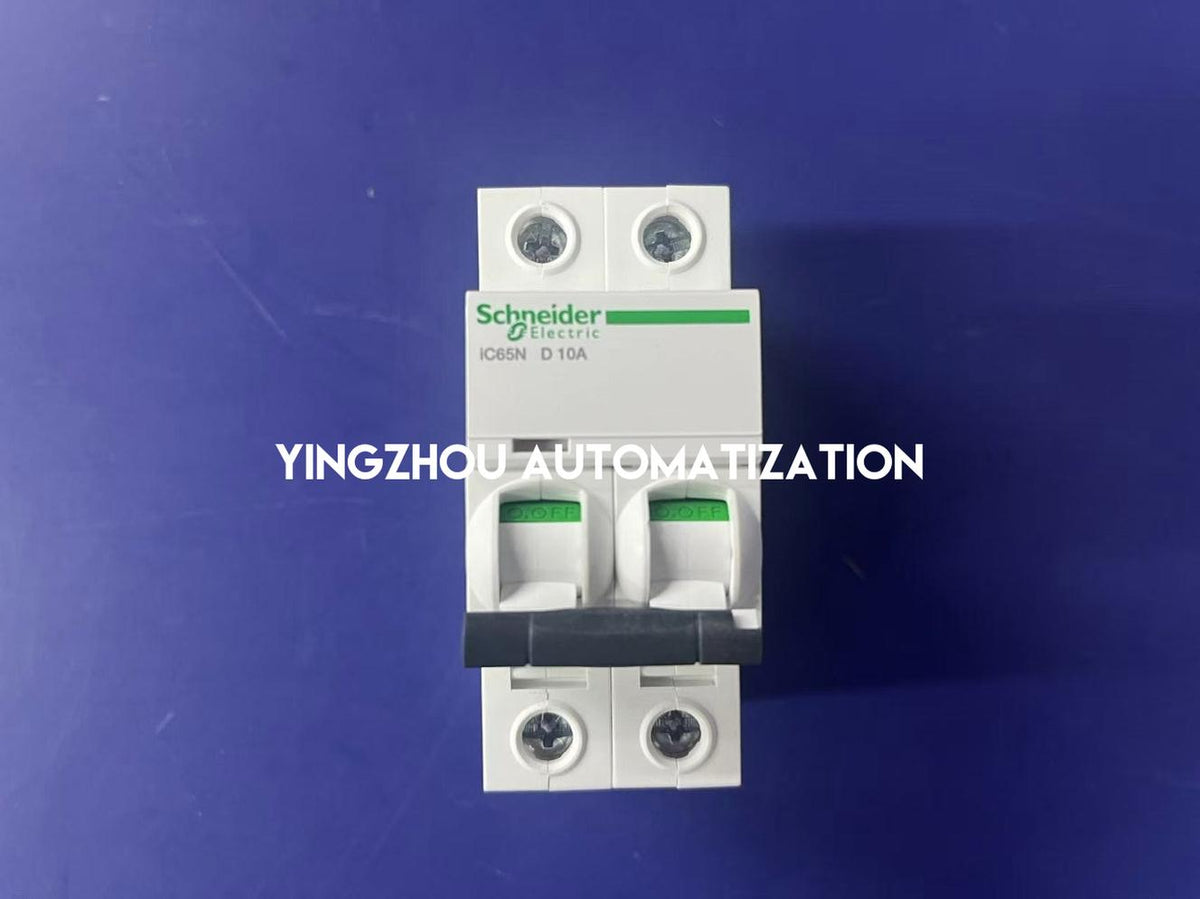

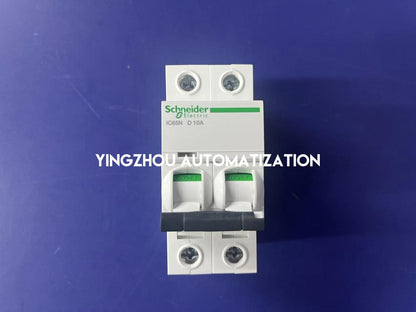

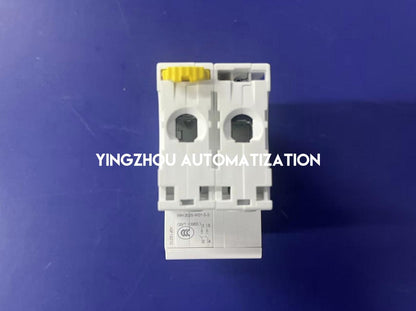

Actual front and rear product photographs
are provided for buyer verification.
The visible front marking shows
iC65N D10A.
Please confirm the exact order reference
A9F19210,
pole configuration, tripping curve,
rated current and required short-circuit
protection rating before ordering.
Key Product Features
-
2-Pole Circuit Protection
with two protected poles
-
10A Rated Current
at a reference temperature of 30°C
-
D-Curve Tripping
with thermal-magnetic protection
-
6kA Icn at 400V AC
according to IEC 60898-1
-
10kA Icu at 380–415V AC
according to IEC 60947-2
-
DIN Rail Installation
with a modular 36mm width
-
Contact Position Indication
and isolation suitability according to
the manufacturer's product specification

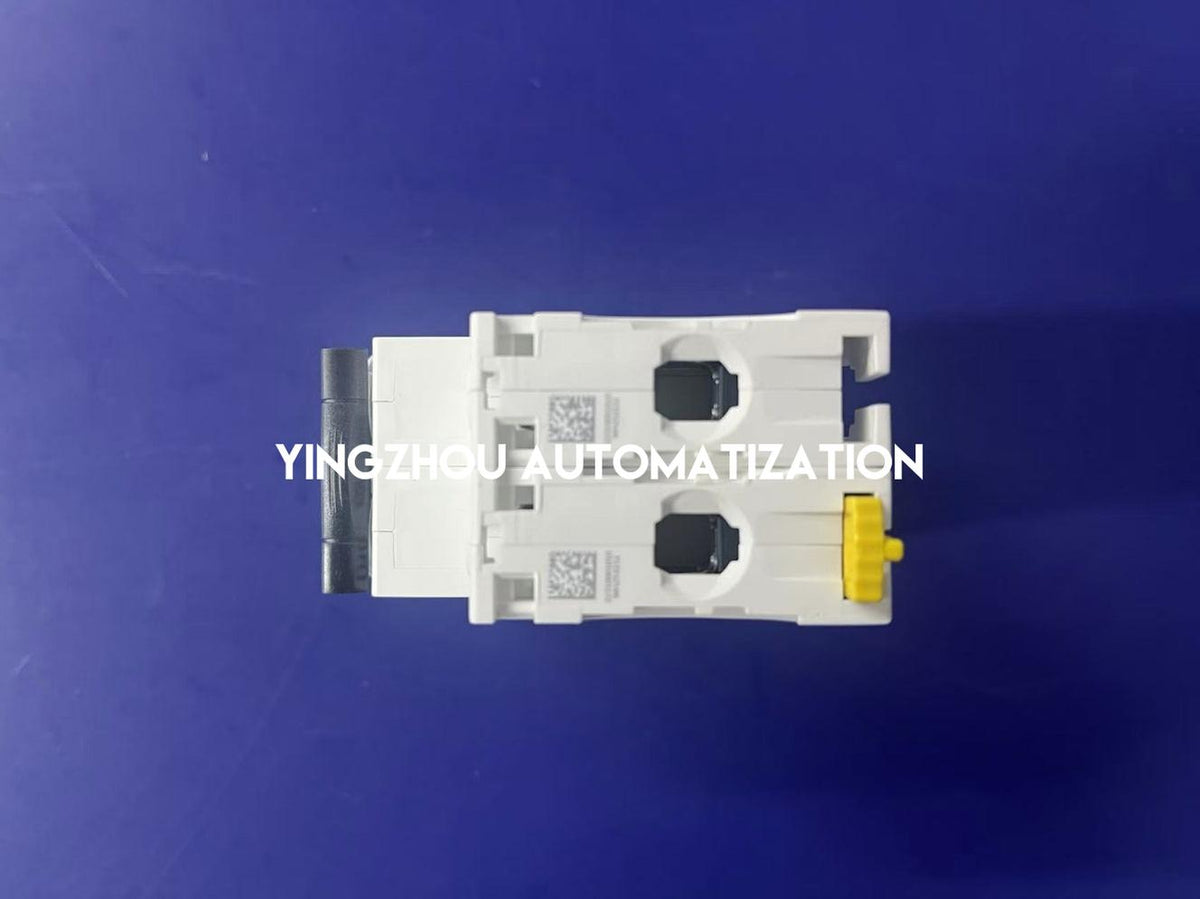

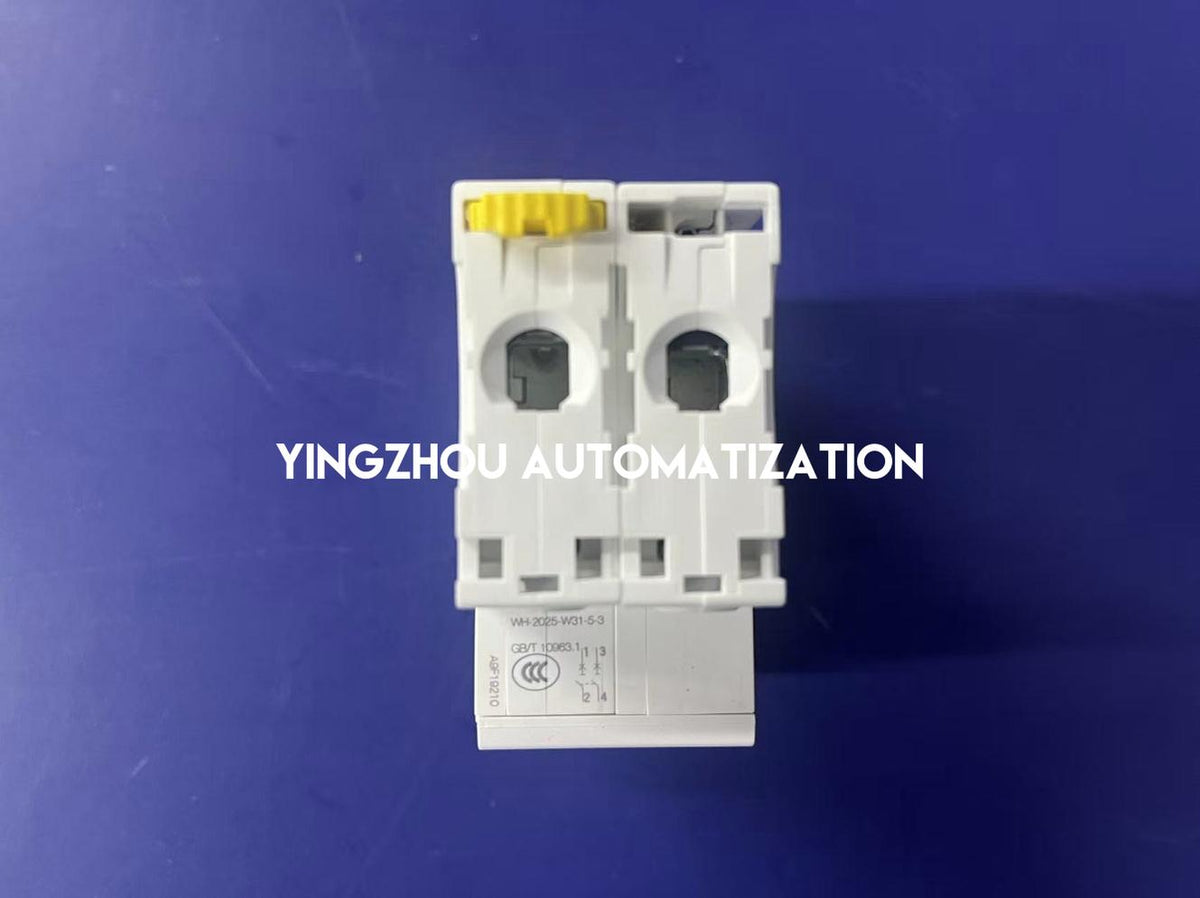

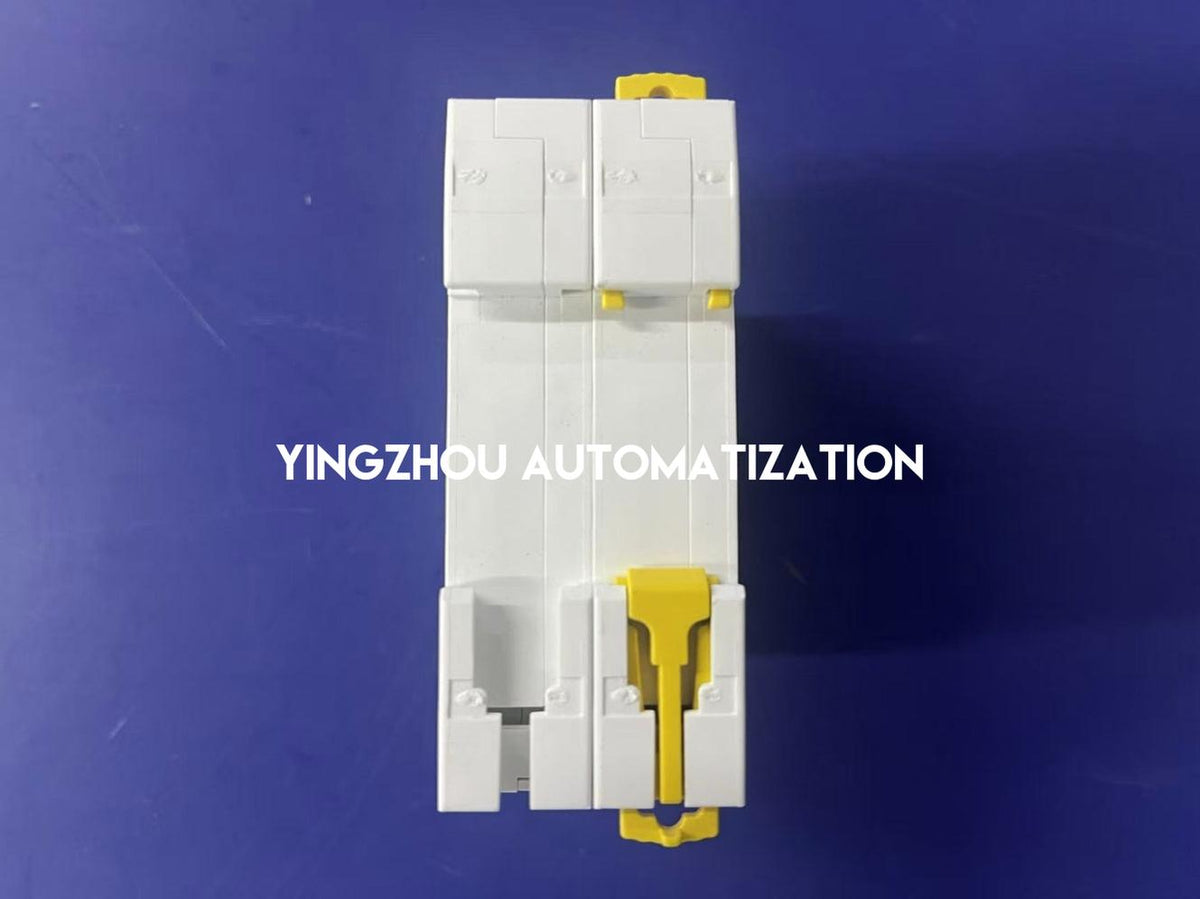

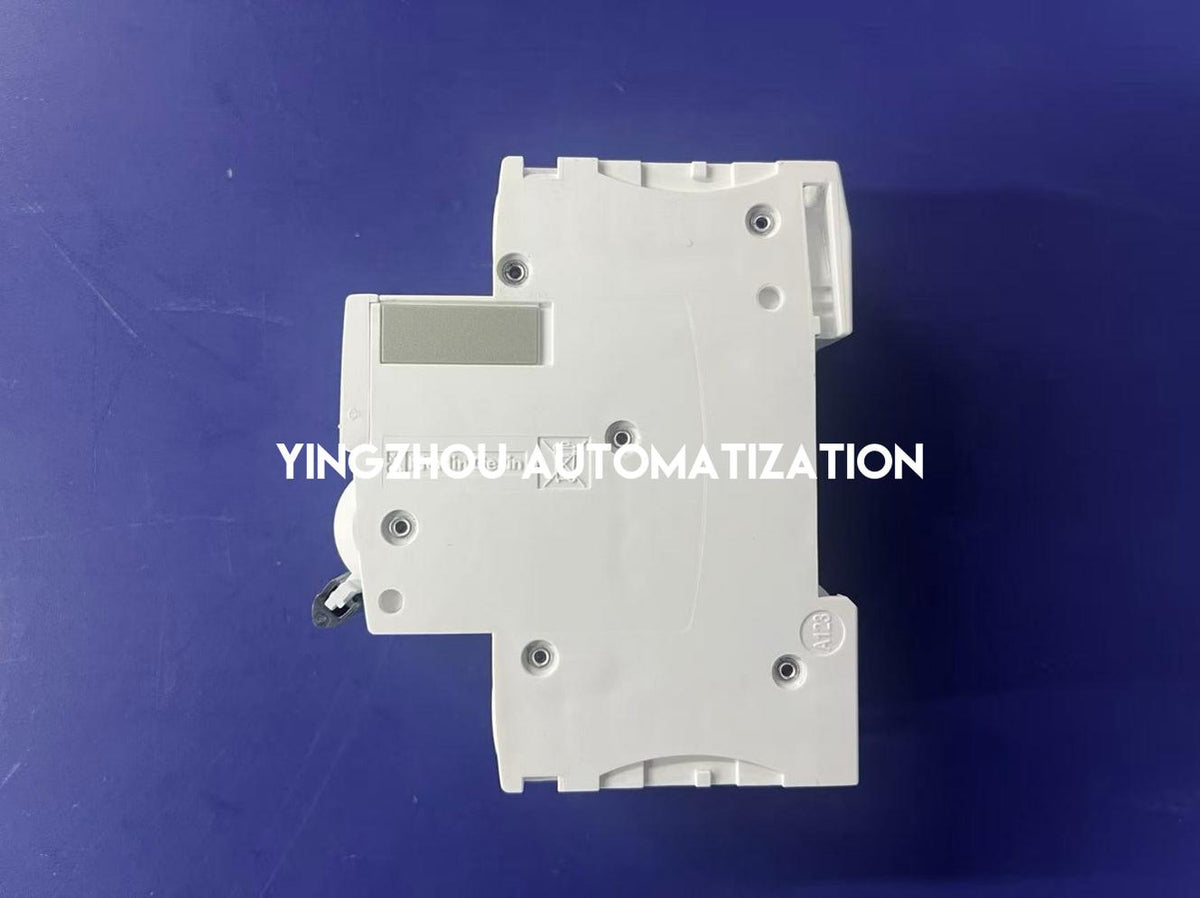

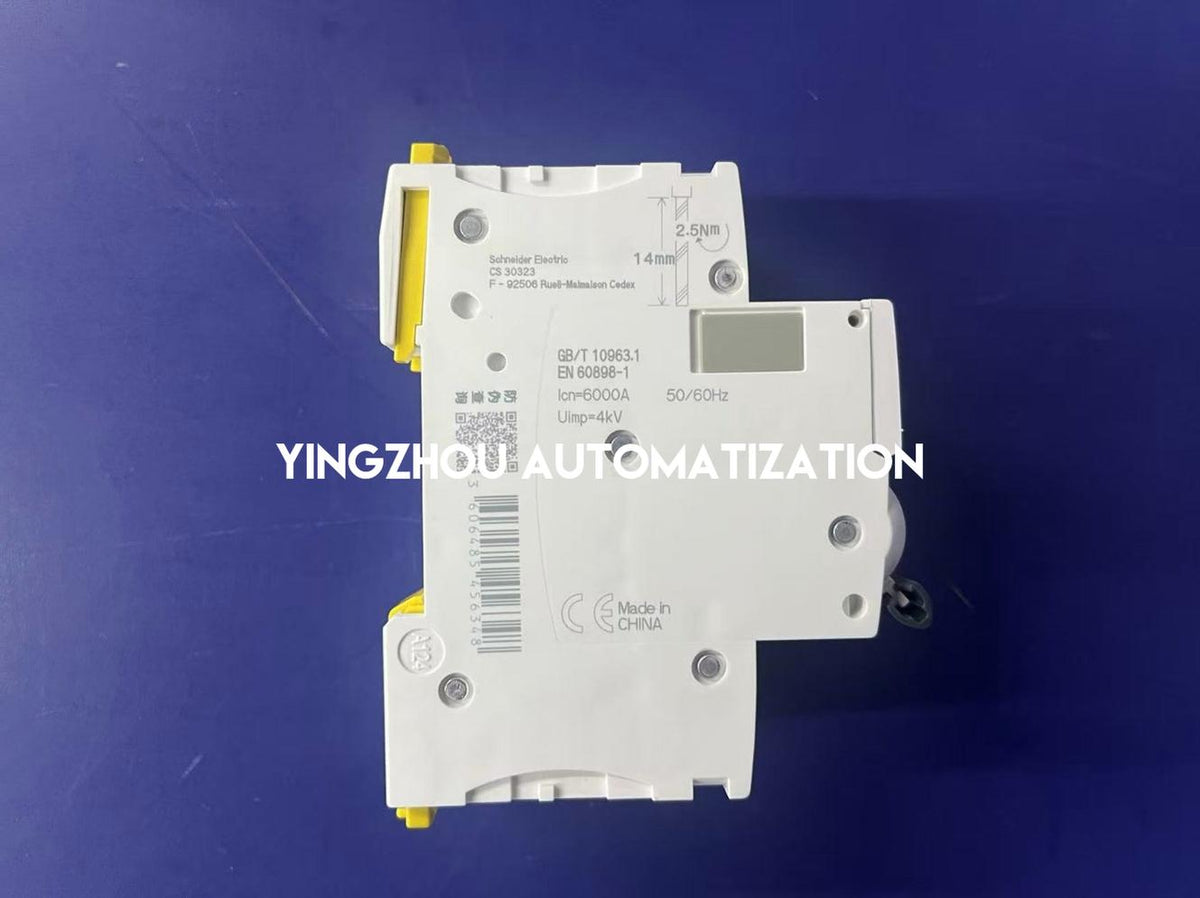

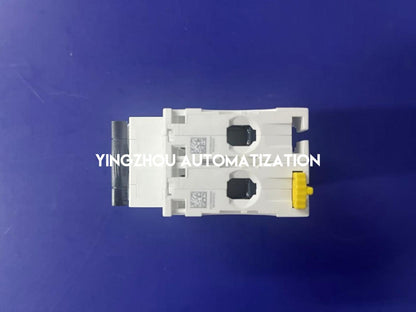

Actual Product Verification
✓
Actual product photos
✓
Product front and rear appearance shown
✓
iC65N D10A marking visible in actual photos
✓
Verify exact model A9F19210 before ordering
