| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
A9F19206 |
| Series |
Acti9 iC65N |
| Product Type |
Miniature Circuit Breaker (MCB) |
| Application |
Low-Voltage Electrical Distribution Protection |
| Number of Poles |
2P |
| Protected Poles |
2 |
| Rated Current |
6A at 30°C |
| Tripping Curve |
D-Curve |
| Trip Unit |
Thermal-Magnetic |
| Magnetic Trip Range |
10–14 × In |
| Network Type |
AC, 50/60Hz |
| Rated Voltage for Icn |
400V AC |
| Rated Breaking Capacity (Icn) |
6kA at 400V AC, IEC 60898-1 |
| Ultimate Breaking Capacity (Icu) |
10kA at 380–415V AC, IEC 60947-2 |
| Ultimate Breaking Capacity at 440V |
6kA Icu, IEC 60947-2 |
| Service Breaking Capacity (Ics) |
75% Icu, manufacturer's 6–63A group |
| Insulation Voltage |
500V AC |
| Impulse Withstand Voltage |
6kV |
| Current Limiting Class |
Class 3 |
| Mounting |
35mm DIN Rail |
| Dimensions |
36 × 94 × 78.5mm (W × H × D) |
| Mechanical Endurance |
20,000 Cycles |
| Electrical Endurance |
10,000 Cycles |
| Protection Rating |
IP20 |
| Relevant Standards |
GB/T 10963.1 / IEC 60898-1 / IEC 60947-2 (rating-specific) |
Product Overview
The Schneider Electric A9F19206 is an
Acti9 iC65N miniature circuit breaker
for low-voltage electrical distribution protection.
This exact model features a
2-pole configuration,
6A rated current and
D-curve thermal-magnetic tripping.
Its rated short-circuit breaking capacity is
6kA Icn at 400V AC
according to IEC 60898-1.
Under IEC 60947-2,
the Schneider Electric Acti9 iC65N catalog
specifies 10kA Icu at 380–415V AC
for the 6–63A rating group.
These Icn and Icu values relate to different
standards and must not be treated as
interchangeable ratings.
The breaker provides
thermal-magnetic overcurrent protection
with a D-curve magnetic trip range of
10–14 times rated current.
Its 36mm-wide modular construction
supports installation on a
35mm DIN rail.

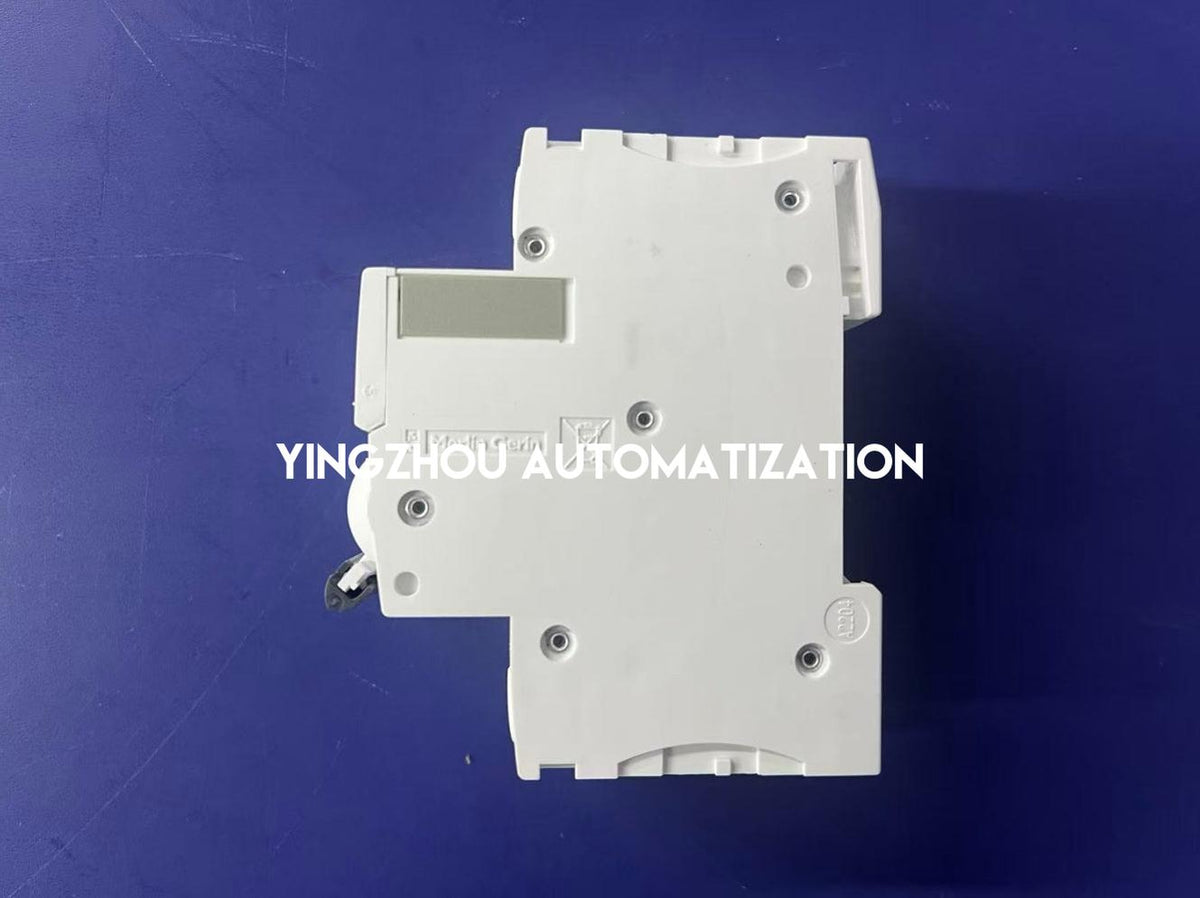

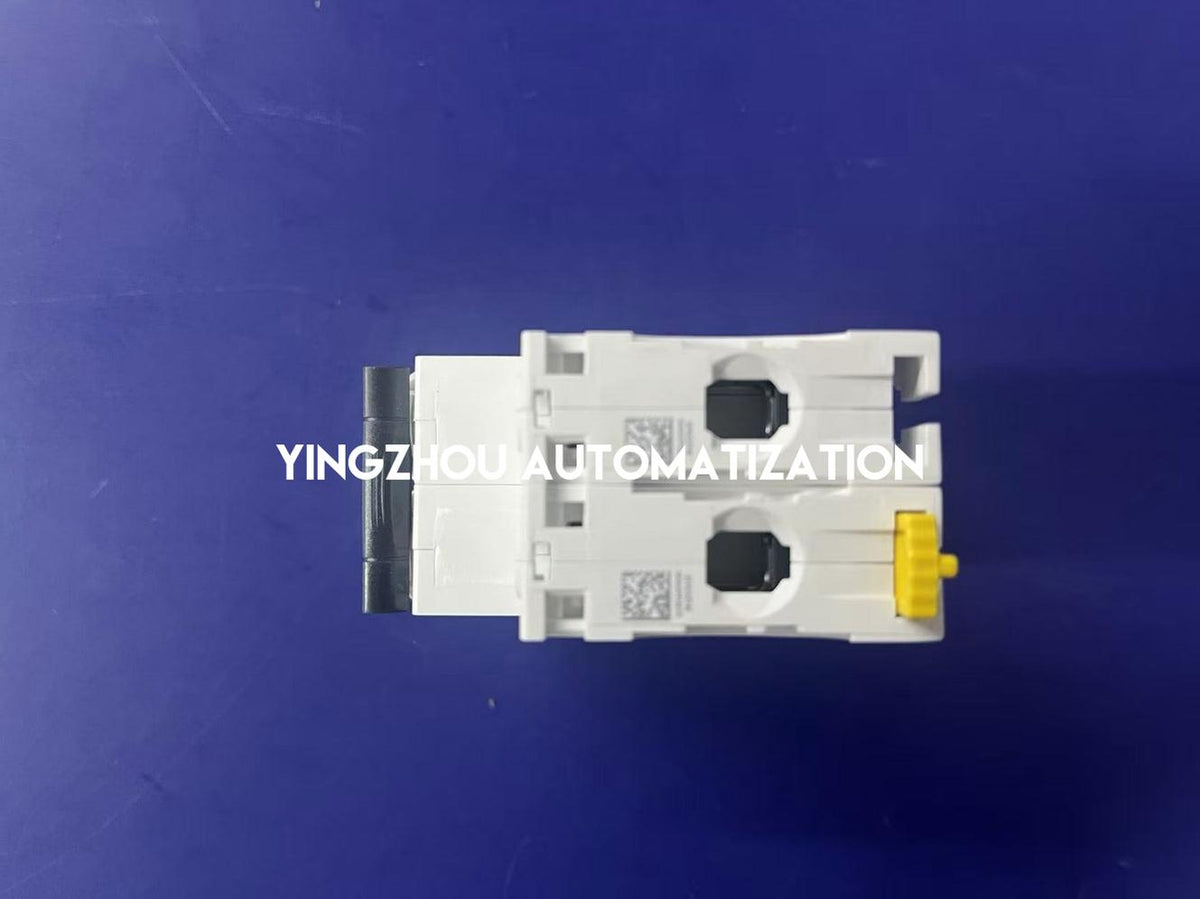

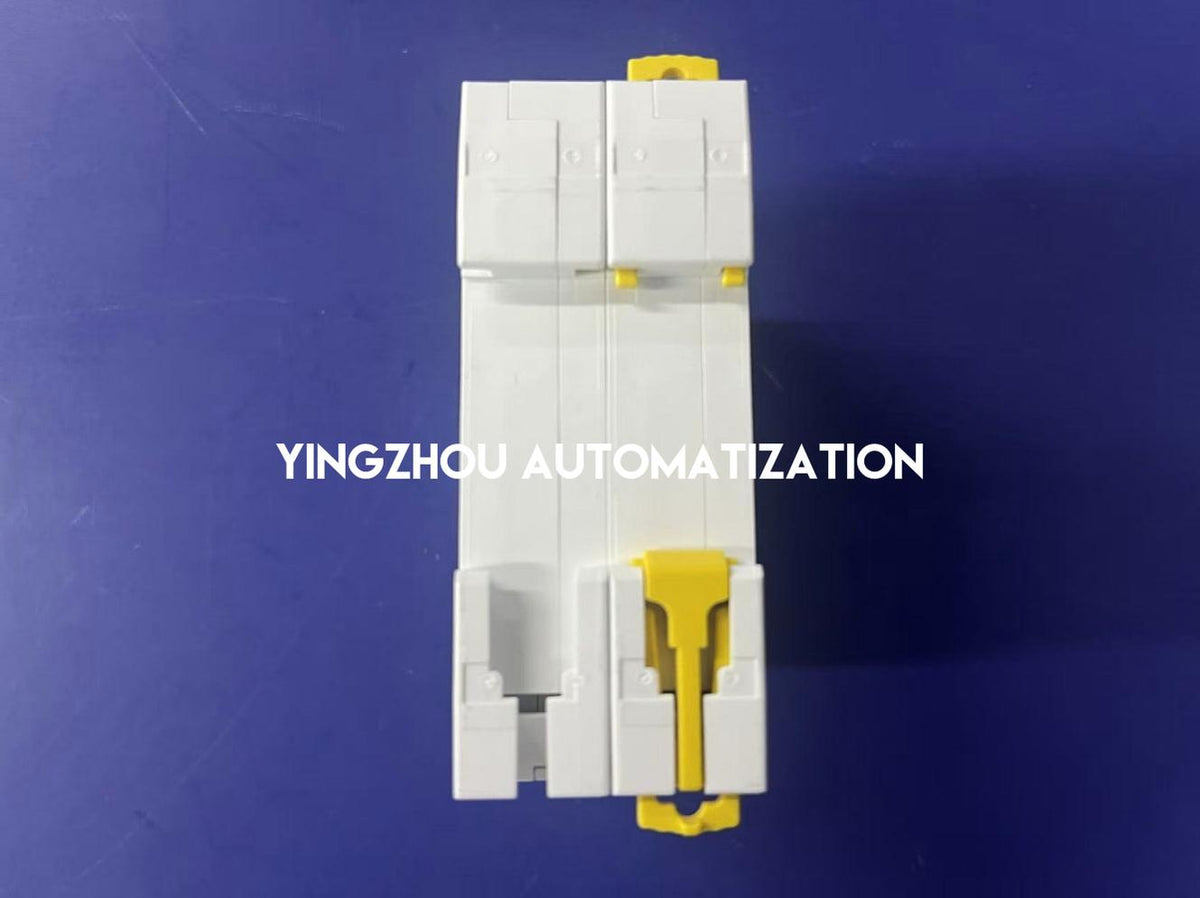

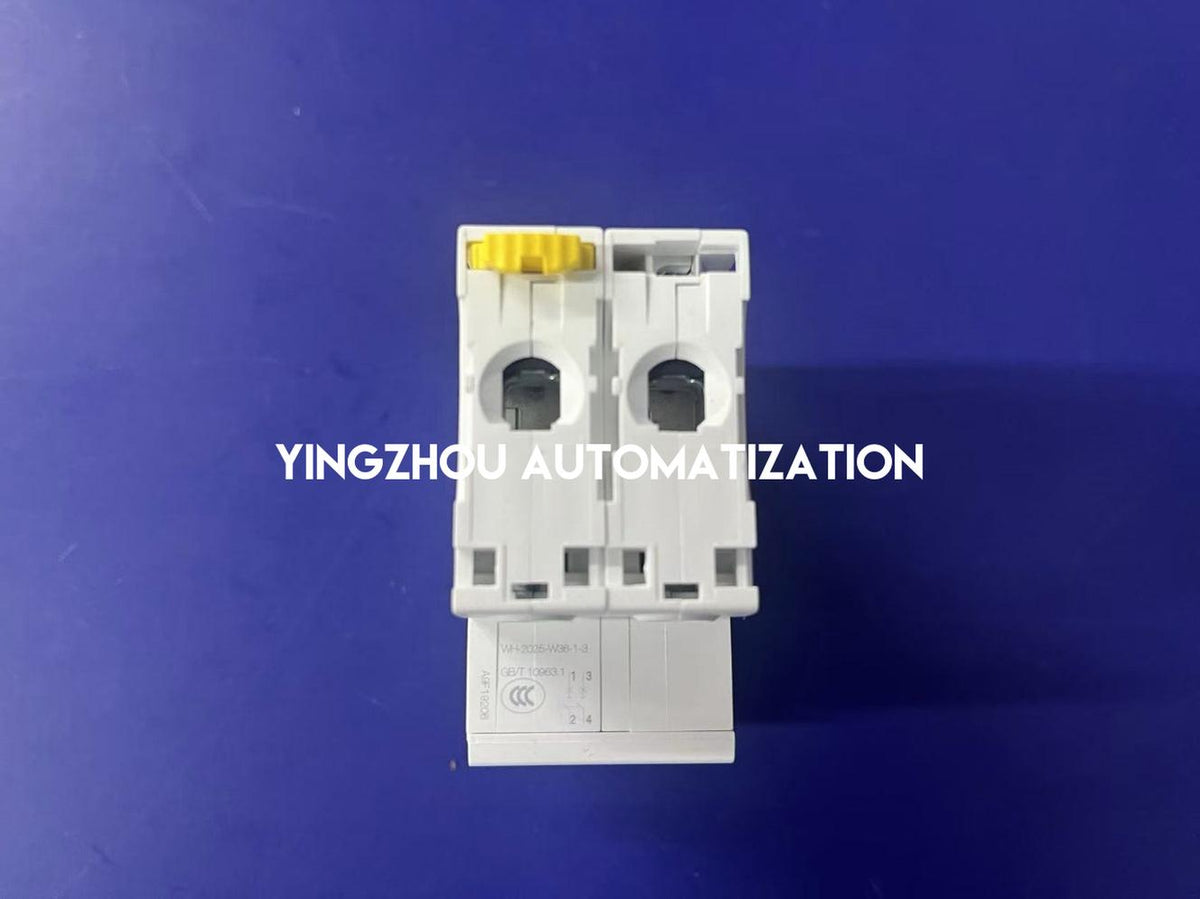

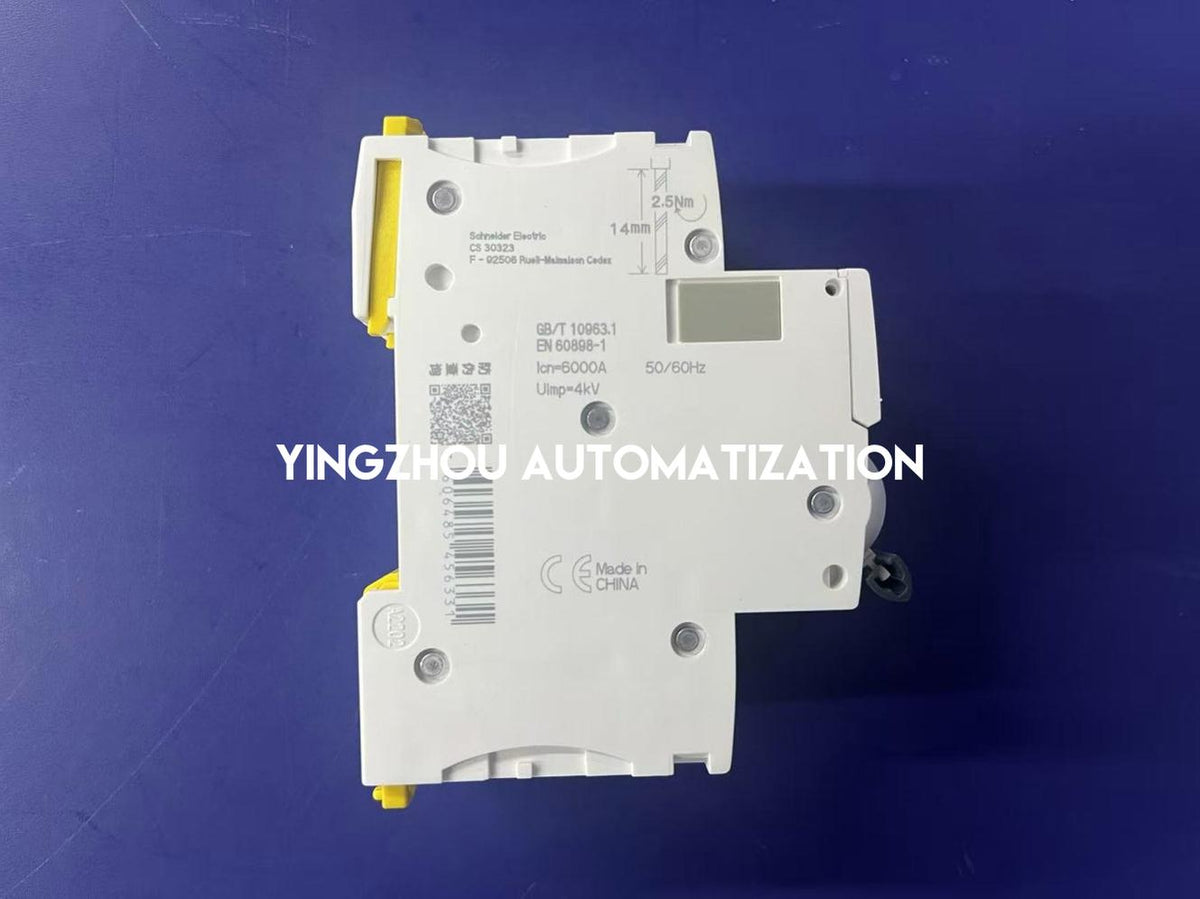

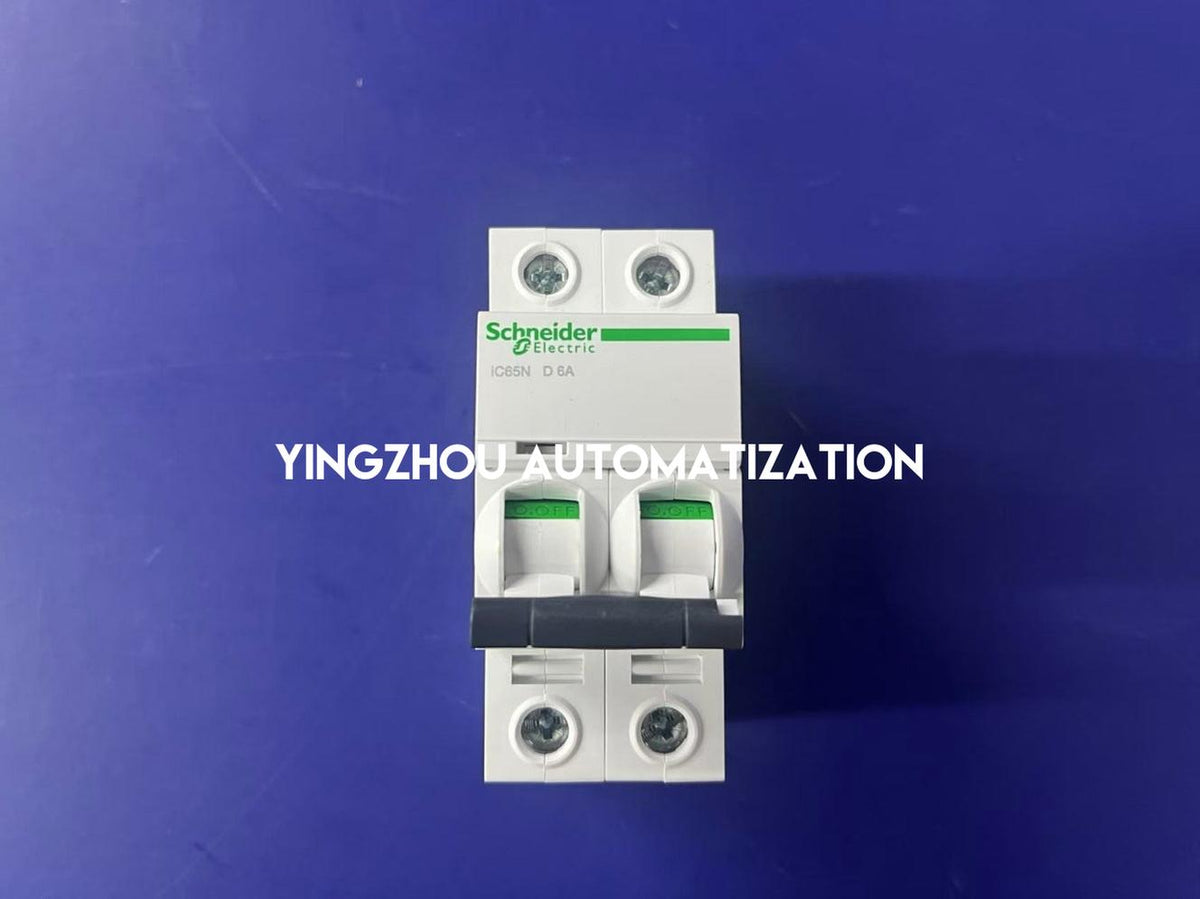

Actual product photos show the
