Schneider Electric 3DM2-WRDUWZ EOCR-3DM2 Motor Protection Relay
EOCR Digital | 0.5–60A Published Range | 100–240V AC/DC | Window Type
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
3DM2-WRDUWZ |
| Series |
EOCR-3DM2 |
| Product Type |
Digital Motor Protection Relay |
| Device Application |
Motor Protection |
| Detection Type |
Window Type |
| Published Current Range |
0.5–60A (Global Datasheet) |
| UL Current Marking |
0.5–60A (Actual Nameplate) |
| CCC Current Marking |
0.5–80A (Actual Nameplate) |
| Definite-Time Trip Setting |
0.5–60A (Published Datasheet) |
| Inverse / Thermal Trip Setting |
0.5–32A (Published Datasheet) |
| Rated Supply Voltage |
100–240V AC/DC |
| AC Supply Frequency |
50/60Hz |
| Protection Functions |
Overload, Underload, Locked Rotor, Phase Loss, Phase Unbalance, Phase Reversal |
| Overload Output Contacts (OL) |
1NC + 1NO |
| Alarm Output Contacts (AL) |
1NO |
| Auxiliary Contact Rating |
3A / 250V AC (Resistive, Nameplate) |
| Rated Operational Voltage (Ue) |
690V AC — IEC Power Circuit |
| Rated Impulse Withstand (Uimp) |
6kV — IEC Power Circuit |
| Reset Method |
Manual / Automatic / Power Interruption |
| Display |
Bar Graph / 7-Segment LED |
| Power Consumption |
3W |
| Mounting |
35mm DIN Rail / Panel |
| Protection Rating |
IP20 — Published Datasheet |
| Operating Temperature |
-20°C to +60°C |
| Dimensions (H × W × D) |
74.5 × 70 × 83.8 mm |
| Net Weight |
0.315 kg |
| Applicable Standard |
IEC 60947-4-1 |
| Country of Manufacture |
South Korea (Actual Nameplate) |
| Packaging Quantity |
x1 (Box Label) |
Product Overview
The Schneider Electric 3DM2-WRDUWZ
is a digital motor protection relay from the
EOCR-3DM2 series, designed for
industrial motor monitoring and protection.
It features a window-type current
detection configuration and a
100–240V AC/DC rated supply voltage.
The manufacturer's global product documentation
identifies a 0.5–60A current range.
The actual product nameplate additionally shows
UL 0.5–60A and CCC 0.5–80A
current markings, which should be interpreted
according to the applicable standards and
protection settings.
The relay supports motor protection functions
including overload, underload, locked-rotor,
phase-loss, phase-unbalance and
phase-reversal protection.
It provides 1NC + 1NO overload contacts
and a separate 1NO alarm contact
for integration into compatible motor-control systems.
Key Product Features
-
EOCR-3DM2 digital motor protection relay
-
0.5–60A globally published current range
-
100–240V AC/DC rated supply voltage
-
Window-type current detection configuration
-
Motor protection against overload, underload and phase-related faults
-
OL: 1NC + 1NO overload output contacts
-
AL: 1NO alarm output contact
-
Bar graph / 7-segment LED display
-
DIN rail / panel mounting options

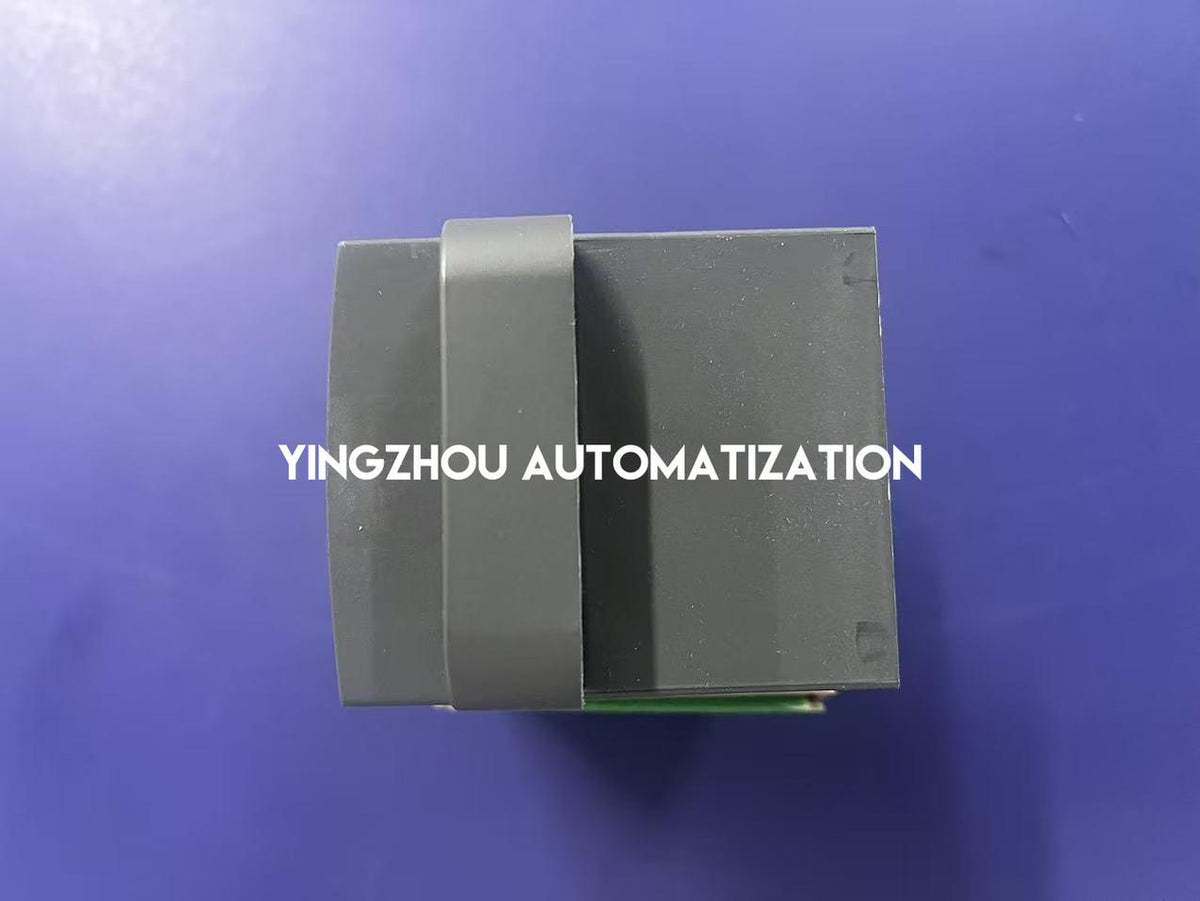

Actual Product Verification
✓

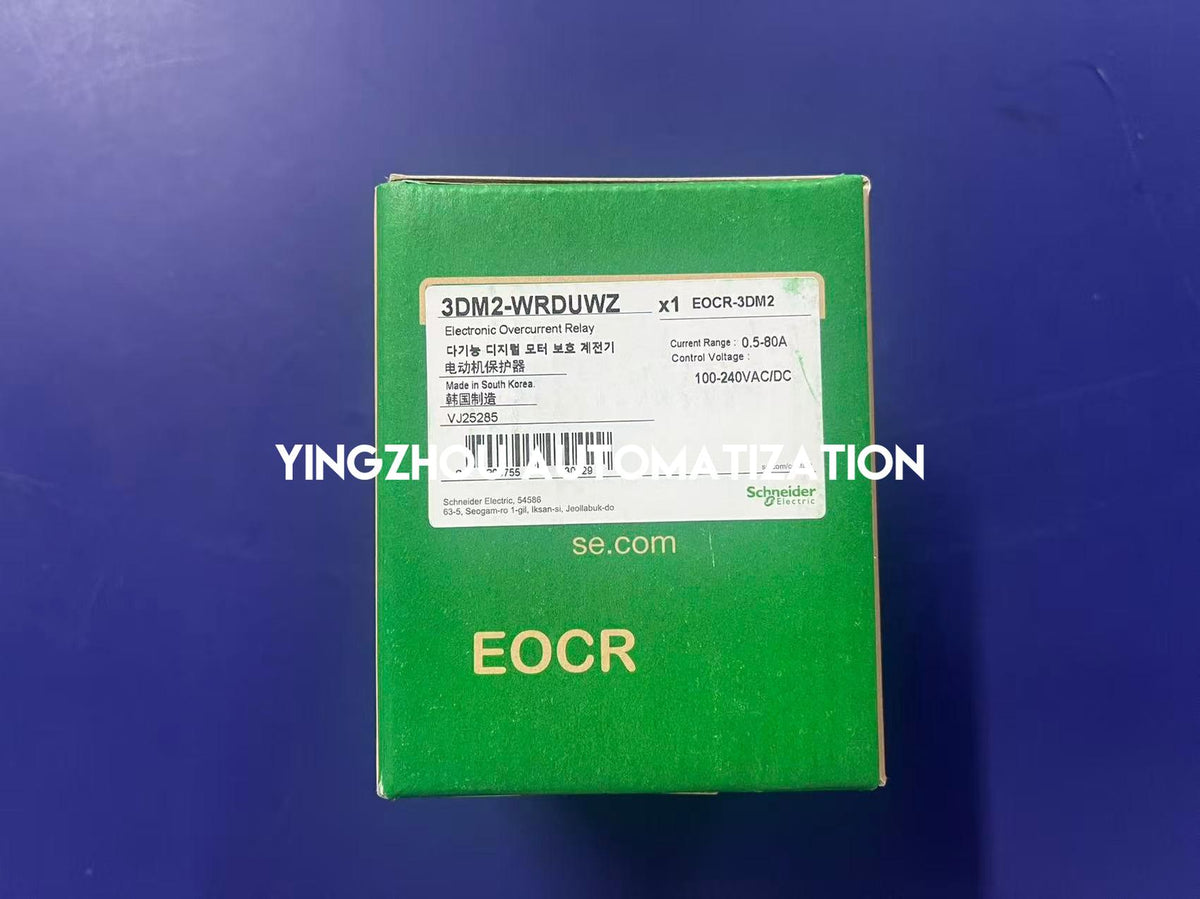

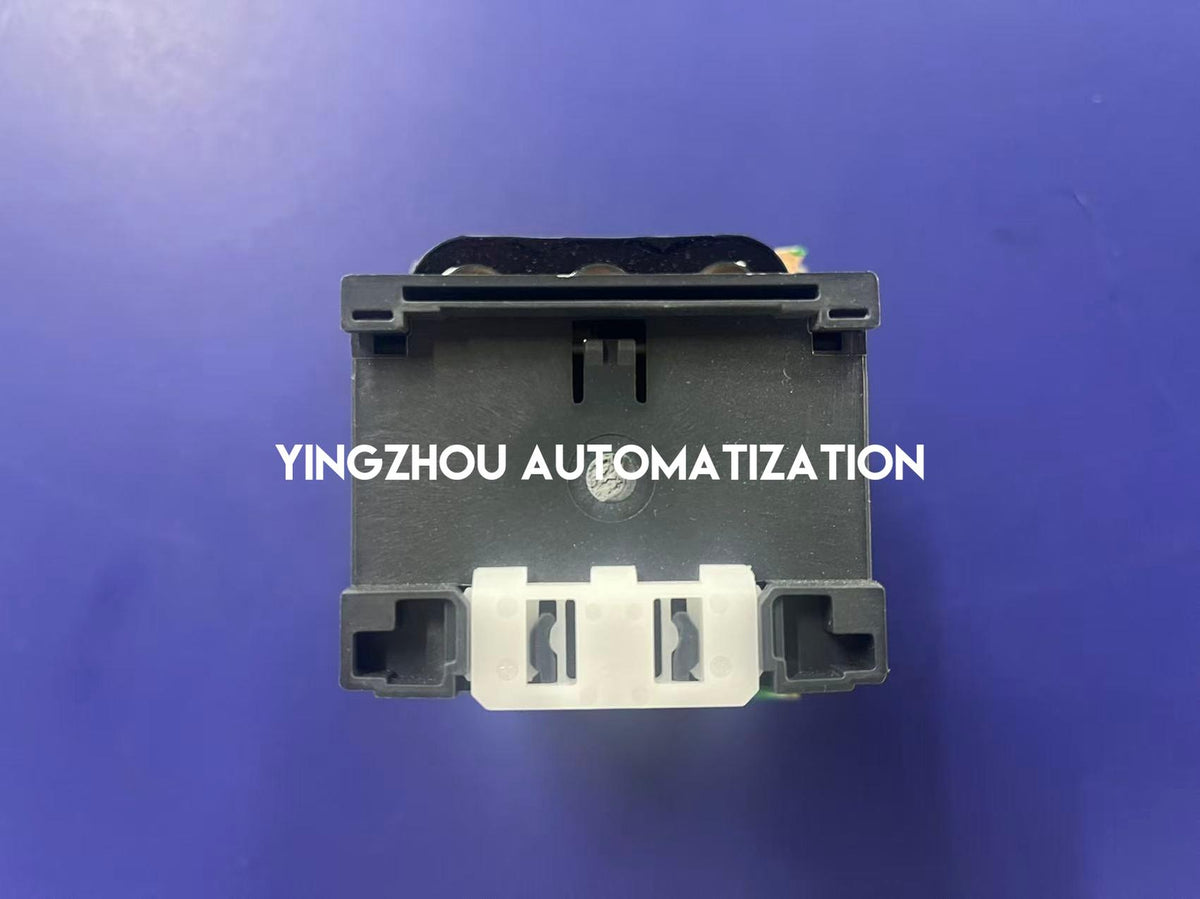

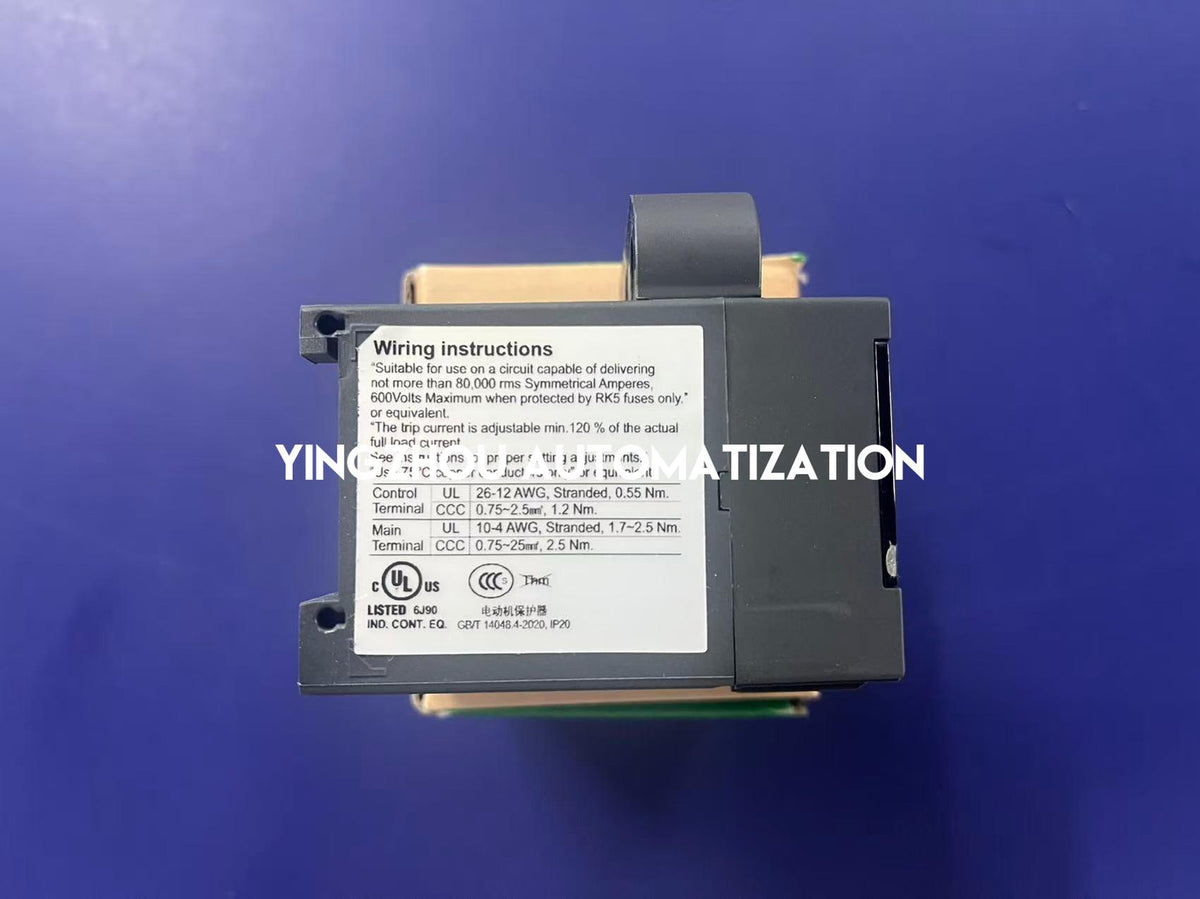

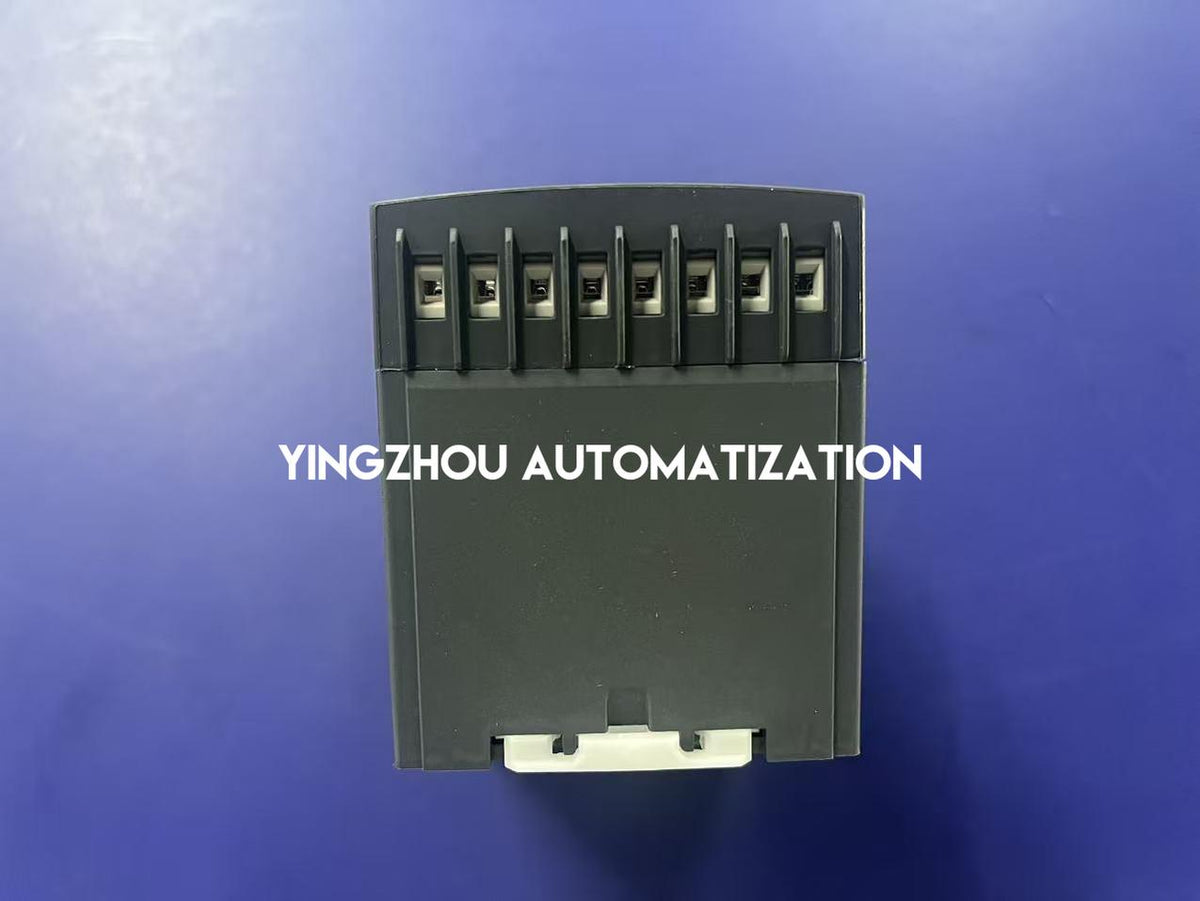

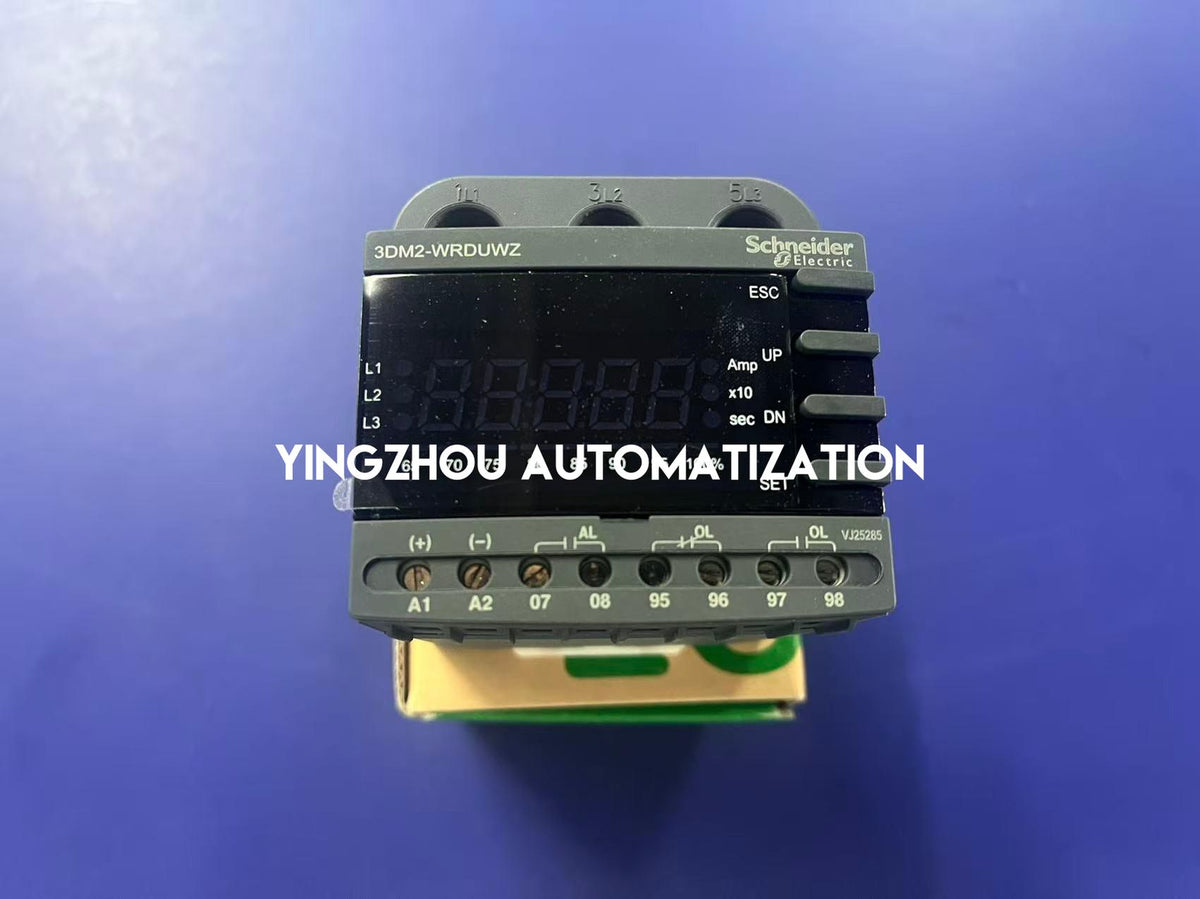

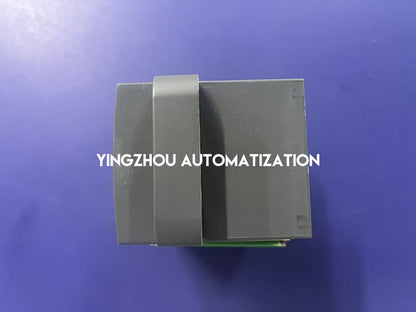

Actual product photos
✓

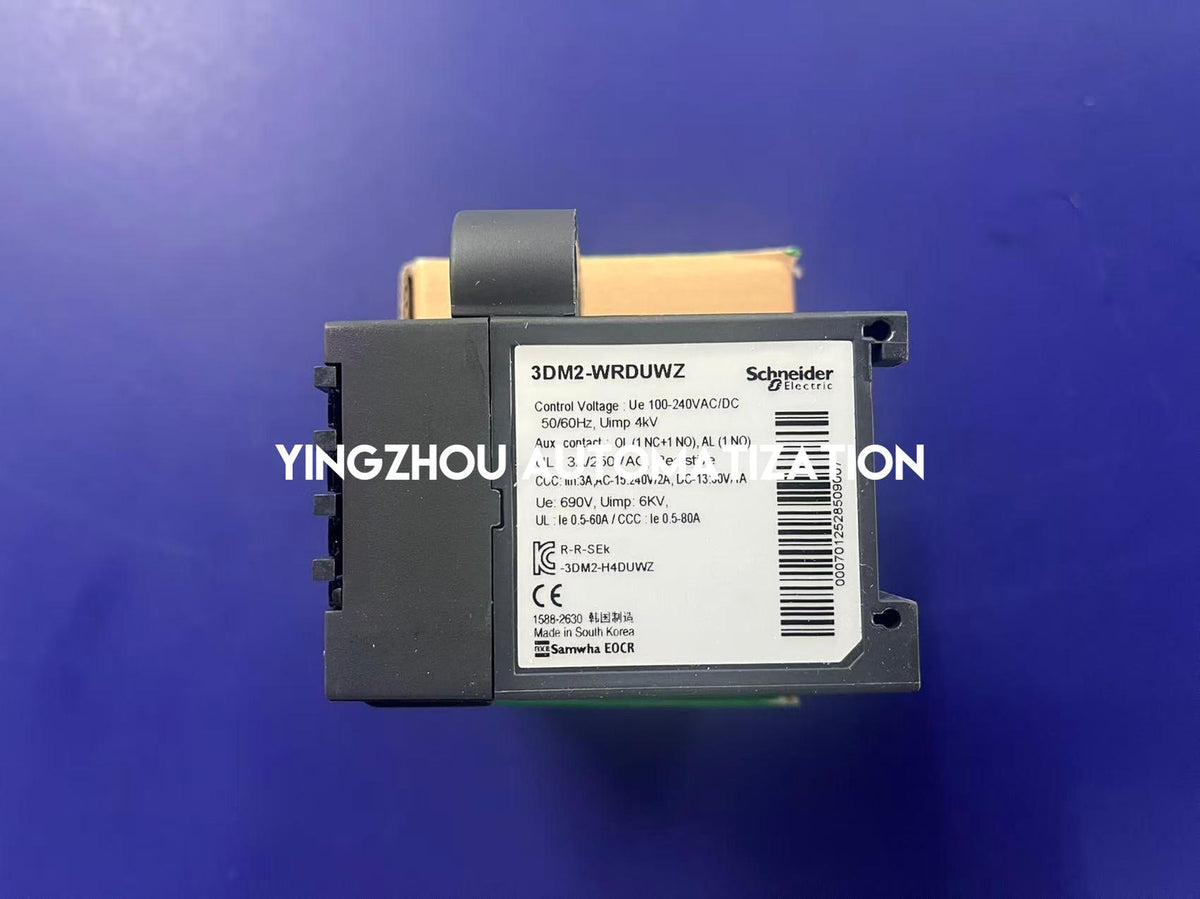

Exact model and electrical nameplate visible
✓

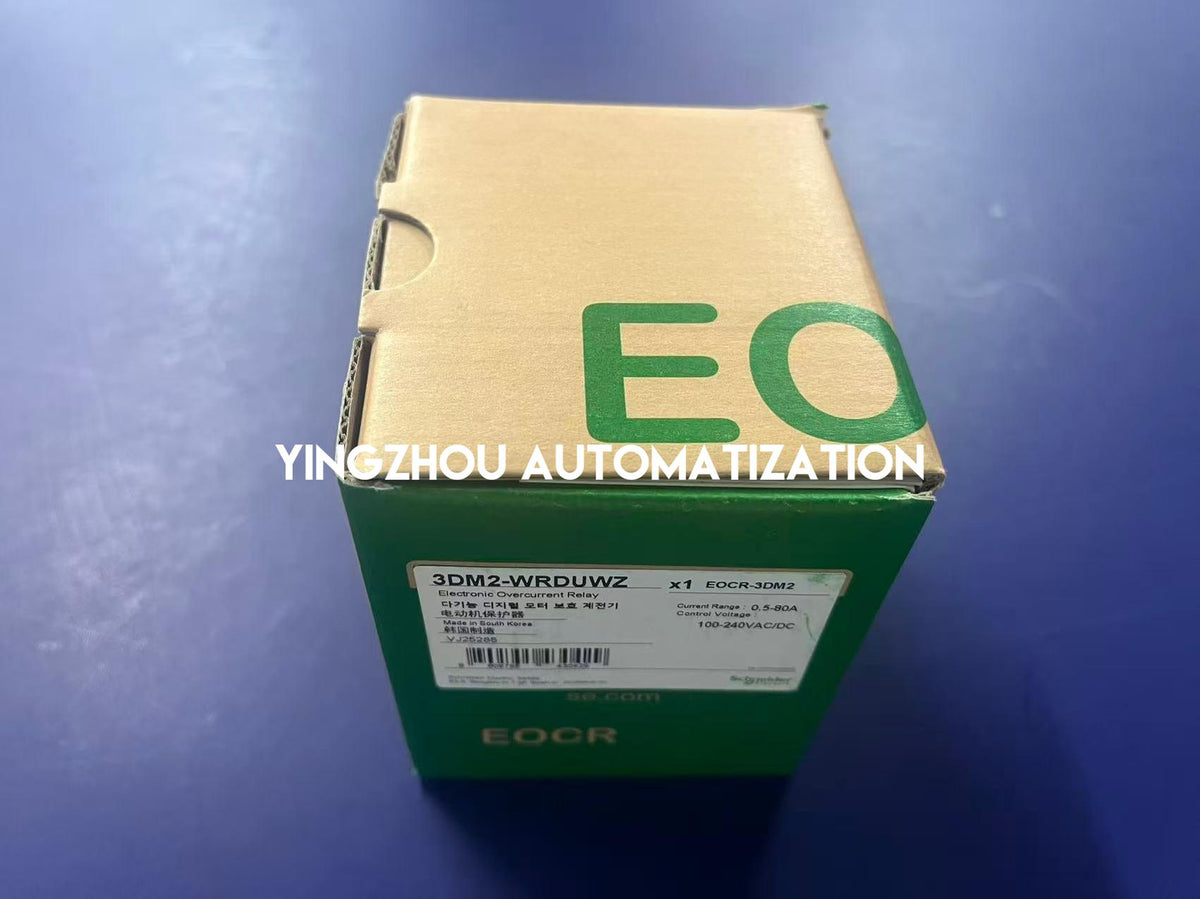

Packaging shown with exact model label
✓
Verify exact model 3DM2-WRDUWZ before ordering
In Stock & Ready to Order
Schneider Electric 3DM2-WRDUWZ
is currently in stock according to our
inventory information.
Actual product, electrical nameplate and
packaging photographs are provided
for buyer verification.
Please confirm the required quantity,
exact model, 100–240V AC/DC supply,
current range under the applicable standard
and protection configuration before ordering.
IN STOCK
Schneider Electric 3DM2-WRDUWZ
Order online or contact us for project and quantity pricing.
Request Project Pricing
