Omron GRT1-DA2C SmartSlice 2-Channel Analog Output Module

Name: Omron GRT1-DA2C SmartSlice 2-Channel Analog Output Module
Brand: OMRON
SKU: GRT1-DA2C
Price: 399.99 USD
Availability: InStock

Omron GRT1-DA2C SmartSlice 2-Channel Analog Output Module

$399.99 USD

Sale Sold out

Model Number GRT1-DA2C

Product variants

Quantity

YingZhou Industrial Automation | Product Information

Omron GRT1-DA2C SmartSlice Analog Output Module

2 Analog Outputs | 0-20mA / 4-20mA | 24V DC | 1/6000 Resolution

✓ IN STOCK & AVAILABLE TO ORDER | Actual Product Photos | Exact Model Verified on Product and Packaging

Specification	Verified Product Data
Manufacturer	OMRON Corporation
Exact Model	GRT1-DA2C
Product Family	SmartSlice GRT1 Series
Product Designation	Analog Output Unit
Product Type	Distributed Analog Current Output Module
Analog Output Channels	2
Analog Input Channels	0
Output Signal Technology	D/A Current Output
Current Output Range 1	0-20mA
Current Output Range 2	4-20mA
Output Range Selection	DIP Switch / Configuration Tool
External Load Resistance	350 Ohms Maximum
Output Resolution	1/6000 Full Scale
Overall Accuracy at 25°C	±0.4% Full Scale
Overall Accuracy at -10 to +55°C	±0.8% Full Scale
Conversion Time	2ms / 2 Points
Nominal Full Scale Digital Data	0-6000
D/A Extended Conversion Range	±5% Full Scale
Unit Power Supply Voltage	24V DC
Permissible Supply Voltage	20.4-26.4V DC
Separate I/O Power Supply	Not Required
Isolation Between Output and Communication	Photocoupler Isolation
Isolation Between Output Channels	Not Isolated
Output 0 Terminal Markings	I0+ / I0-
Output 1 Terminal Markings	I1+ / I1-
Reserved Terminals	RSV - Do Not Wire
Terminal Connection	Screwless Clamp Terminal Block
Mounting	35mm DIN Rail SmartSlice Assembly
Ambient Operating Temperature	-10 to +55°C
Ambient Operating Humidity	25-85% RH, Non-Condensing
Product Version	Ver. 1.0 - Actual Product
Lot Number	10715K - Actual Product
Packaging Quantity	1 Piece - Actual Carton
Country of Origin	Made in Japan

Product Overview

The Omron GRT1-DA2C is a SmartSlice GRT1 Series analog current output unit designed for compatible modular distributed I/O systems. The module provides two analog output channels, supporting selectable 0-20mA and 4-20mA current output ranges. The unit has a manufacturer-specified 1/6000 full-scale resolution and 2ms conversion time for two output points. Overall accuracy is specified as ±0.4% full scale at 25°C and ±0.8% full scale across the rated temperature range. The external output load resistance must not exceed 350 ohms. The module operates from a 24V DC SmartSlice unit power supply and uses screwless clamp terminals for signal wiring. Its output circuits are isolated from the communication circuitry through a photocoupler, but the two analog output channels are not individually isolated from each other. The GRT1-DA2C is a current-output module and must not be confused with the GRT1-DA2V voltage-output model or the GRT1-AD2 analog input model. Actual module and packaging photographs confirm the exact model GRT1-DA2C, version 1.0, lot number 10715K, and Made in Japan origin. Electrical current output operation has not been independently verified from the supplied photographs.

Key Product Features

OMRON SmartSlice GRT1 Series — Modular analog output unit for compatible distributed I/O systems.
2 Analog Current Outputs — Two channels identified as outputs 0 and 1.
0-20mA / 4-20mA Signal Ranges — Selectable current output ranges for supported control equipment.
1/6000 Resolution — Manufacturer-specified D/A conversion resolution.
2ms Conversion Time — Conversion time specified for two output channels.
24V DC Unit Supply — Permissible unit supply voltage range of 20.4-26.4V DC.
350 Ohms Maximum Load — Output circuit load resistance limit specified by OMRON.
Screwless Clamp Terminals — Terminal arrangement for analog current output wiring.

Actual Product Verification

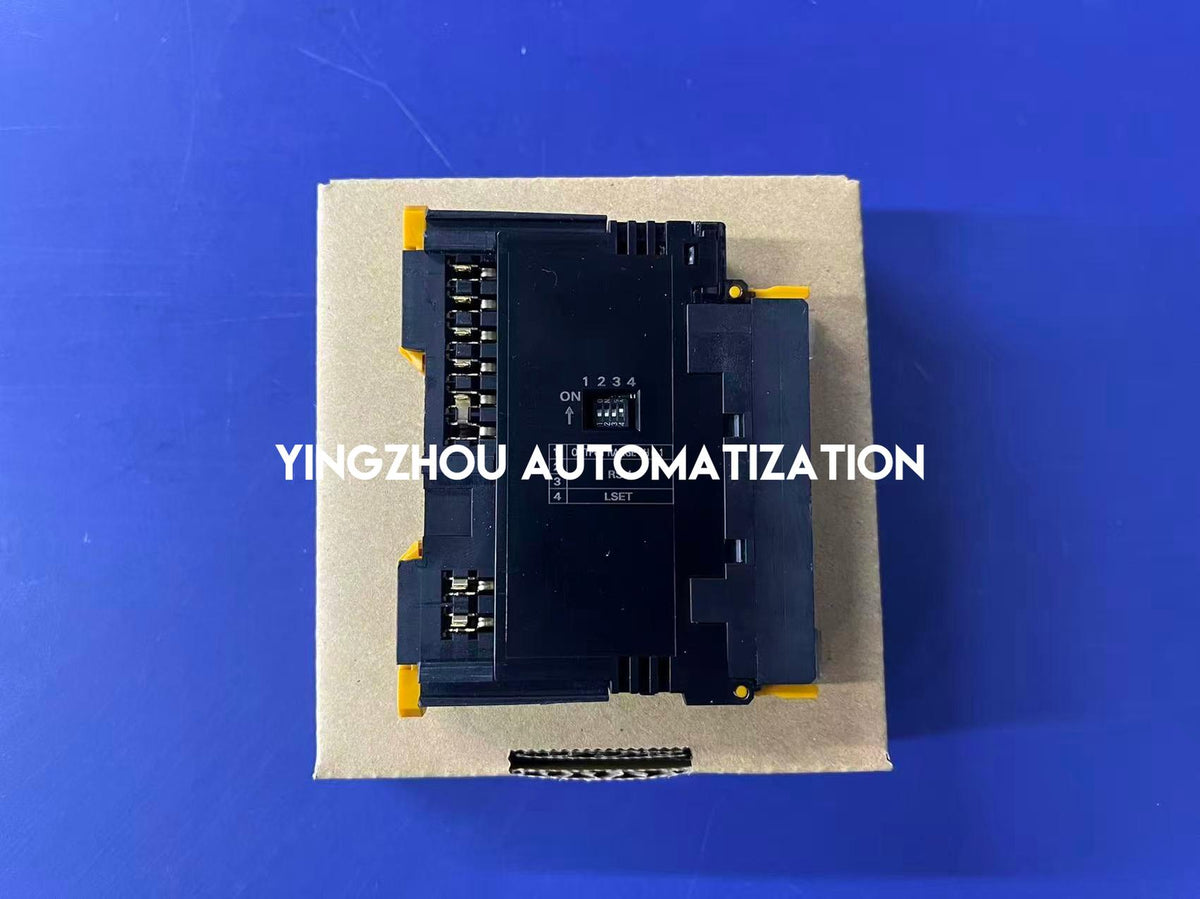

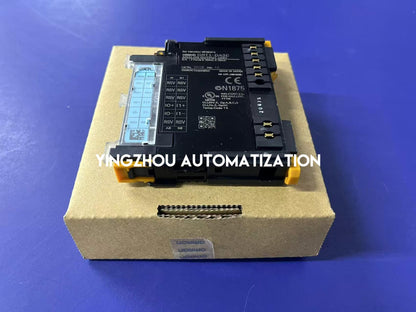

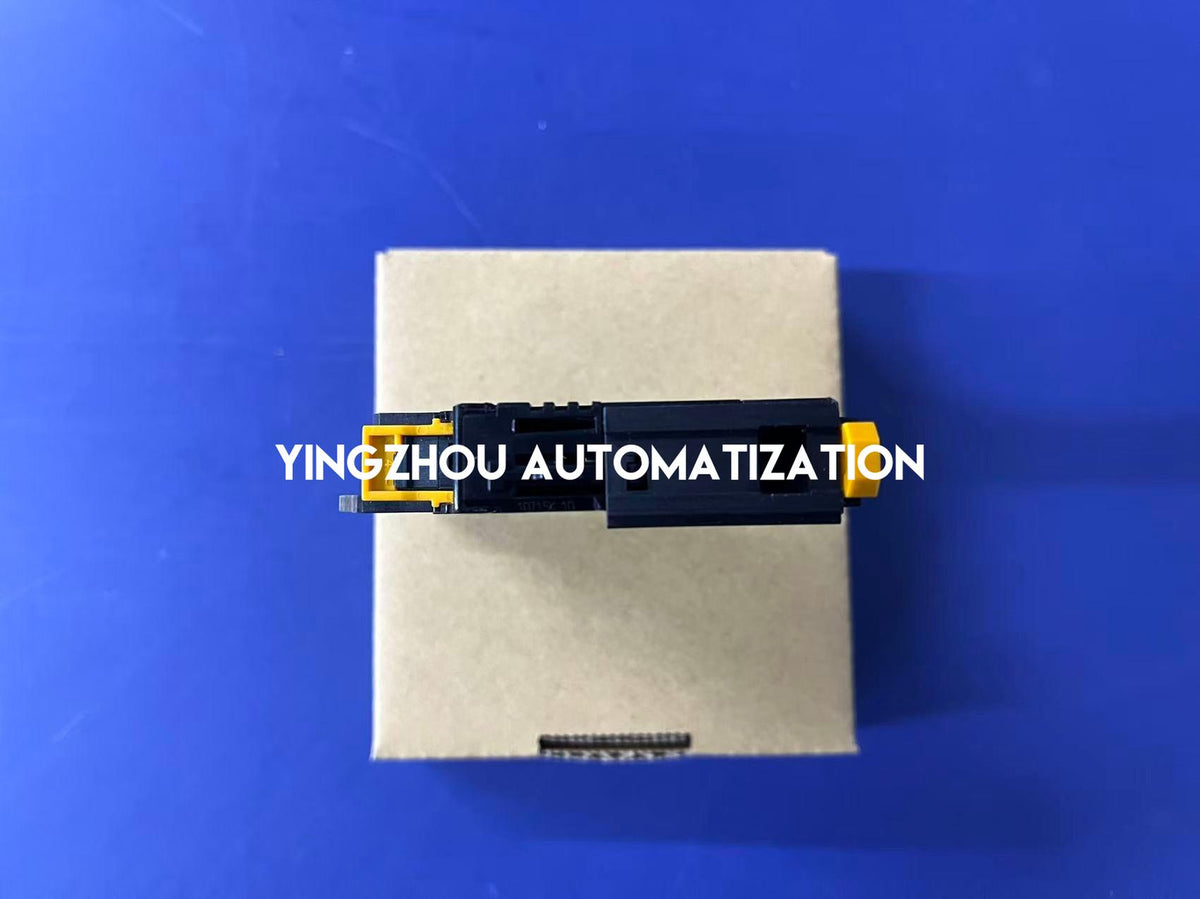

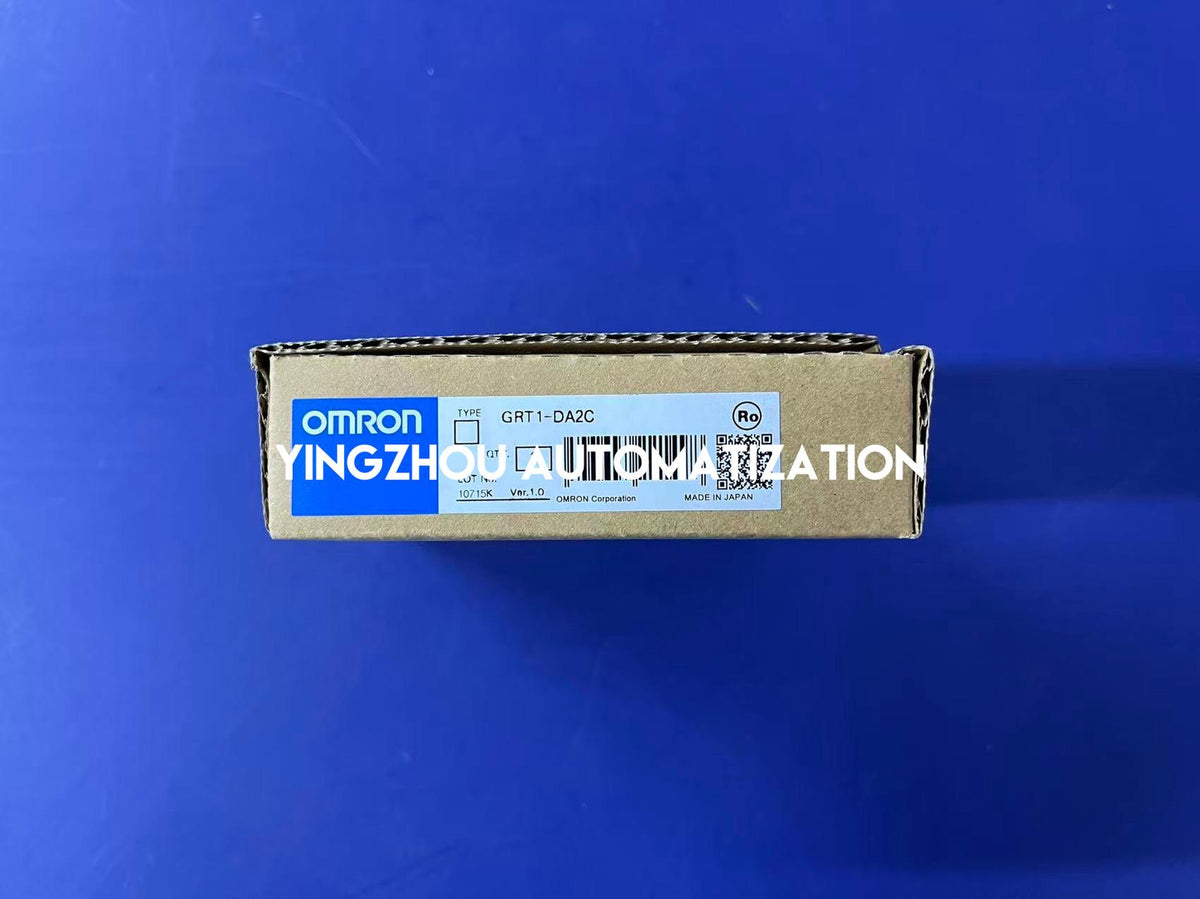

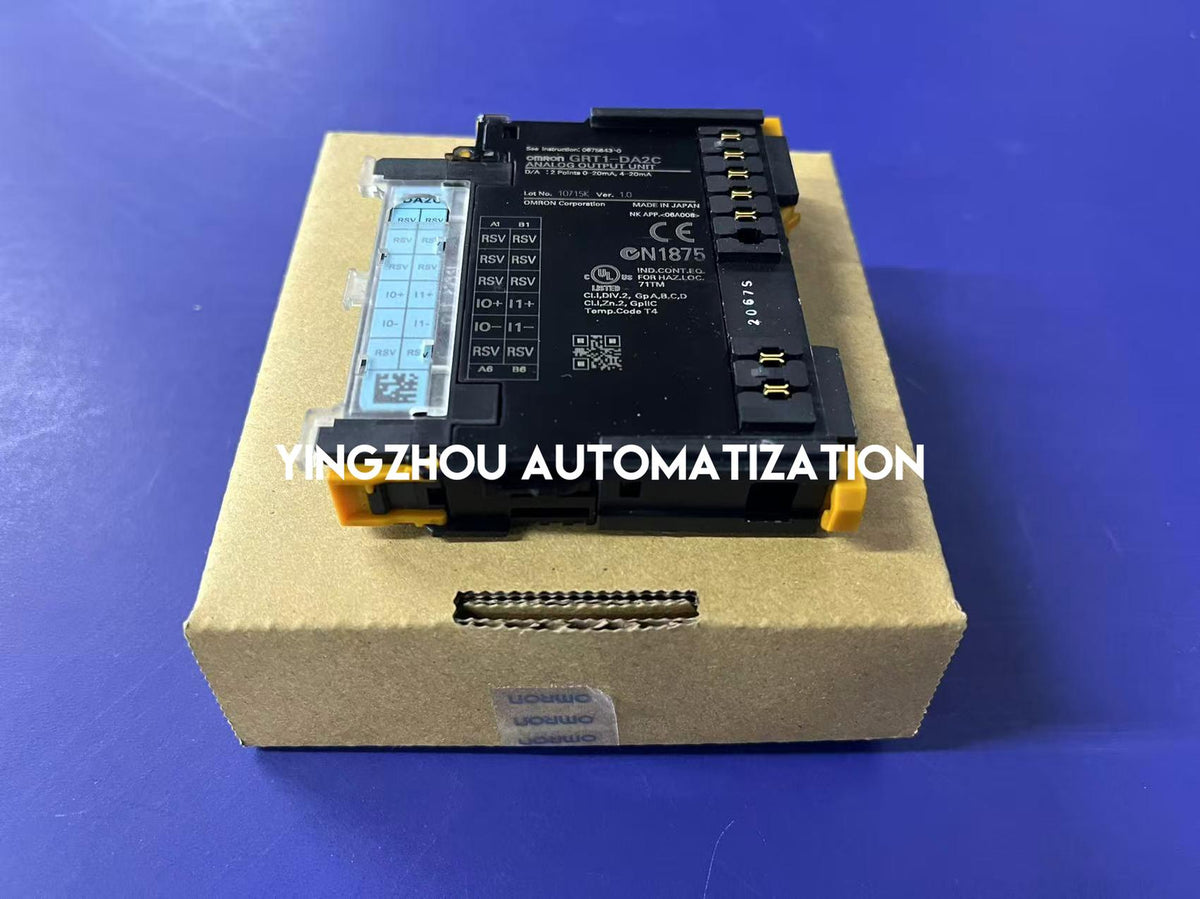

✓ Actual OMRON module and original carton photographs supplied

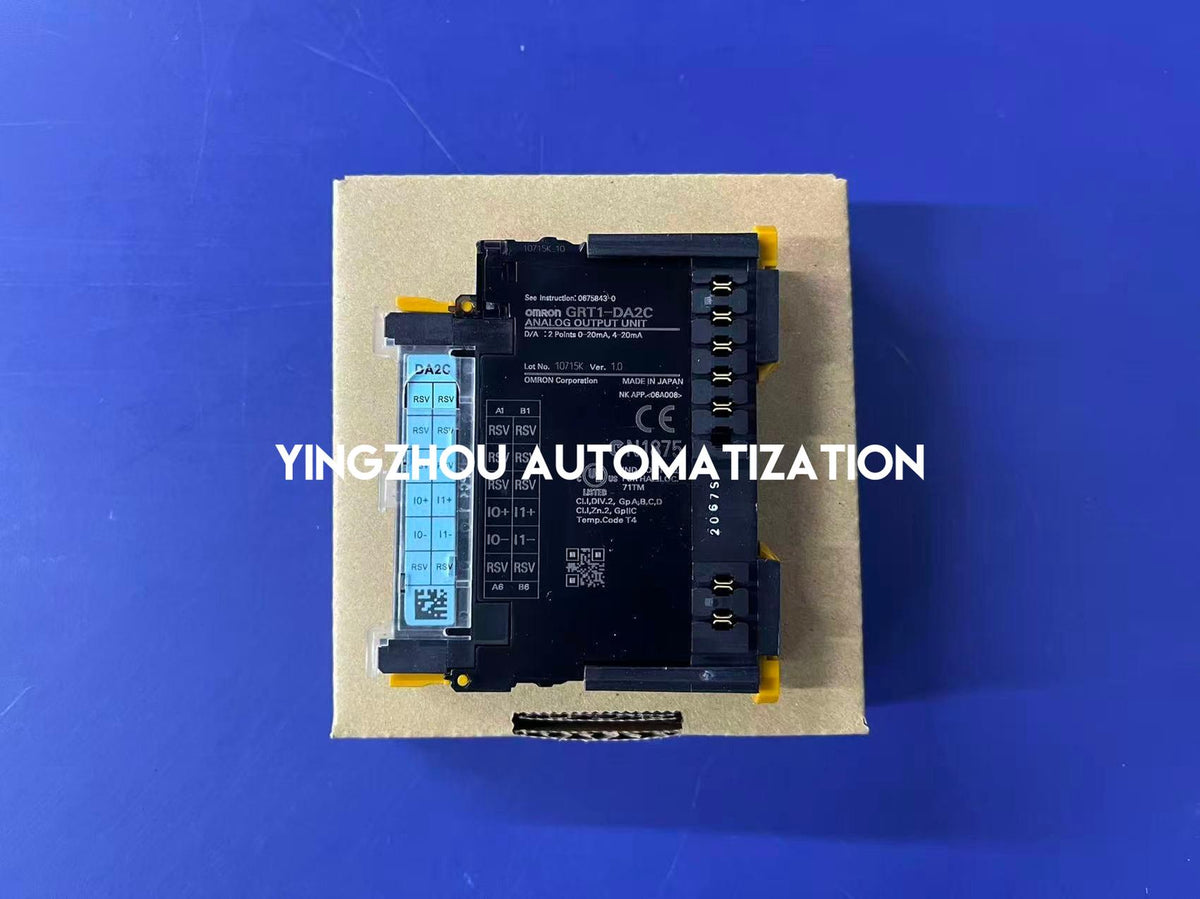

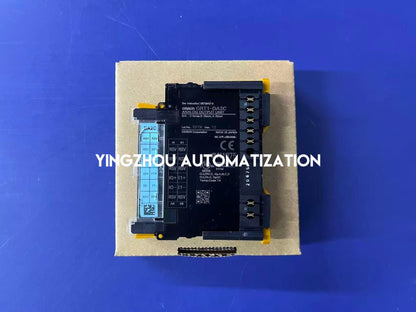

✓ Product nameplate model: GRT1-DA2C

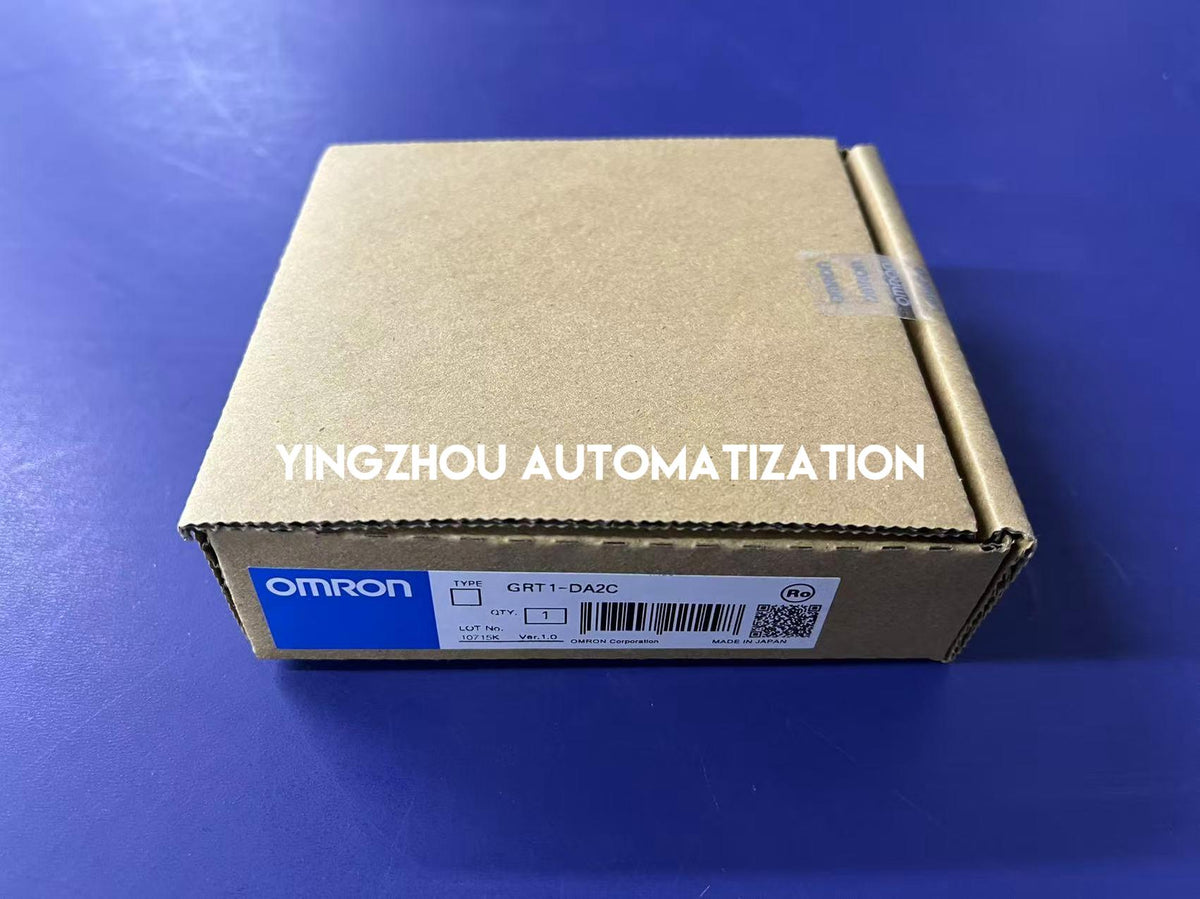

✓ Original packaging model: GRT1-DA2C

✓ Nameplate product designation: ANALOG OUTPUT UNIT

✓ Nameplate output description: 2 Points, 0-20mA / 4-20mA

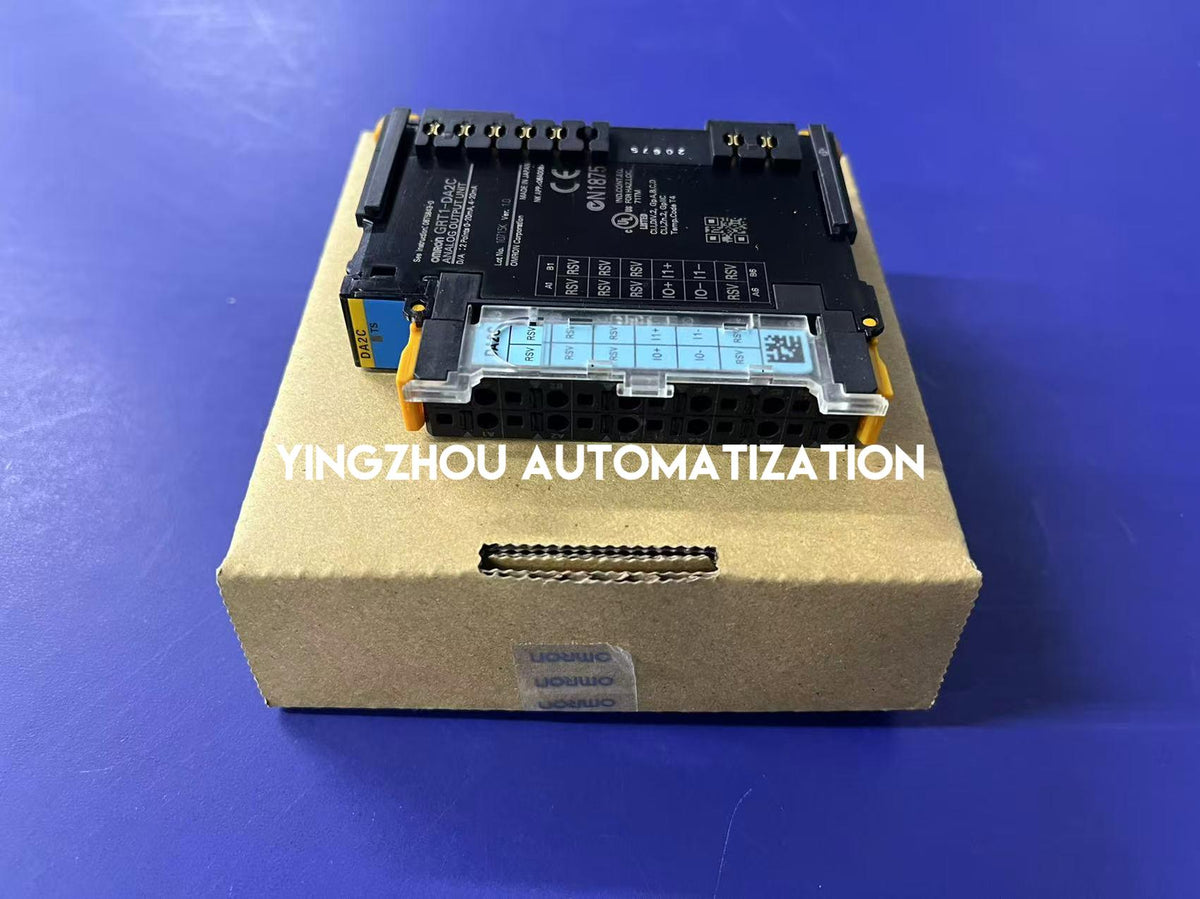

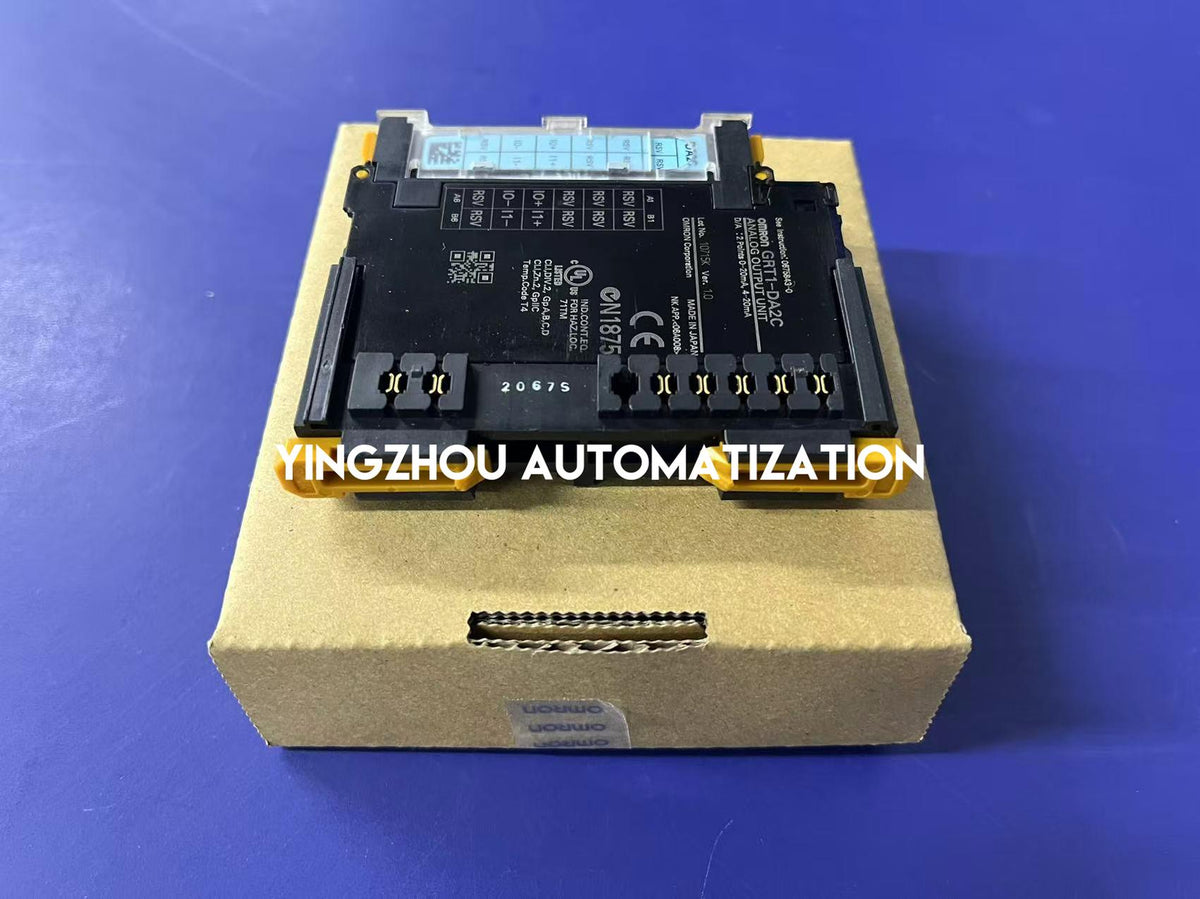

✓ Terminal markings: I0+, I0-, I1+, I1-, RSV

✓ Product version: Ver. 1.0

✓ Product and packaging lot number: 10715K

✓ Carton quantity: 1 Piece

✓ Country of origin: Made in Japan

✓ Actual module and carton catalog numbers match

✓ Electrical analog output current testing not independently verified

✓ Confirm SmartSlice configuration, current output range and load resistance before ordering

In Stock & Available to Order

Omron GRT1-DA2C is marked in stock based on the supplied inventory information. Actual module and original carton photographs show the matching GRT1-DA2C catalog number and analog current output designation. This two-channel SmartSlice analog output unit is offered for compatible distributed I/O system maintenance, replacement and industrial automation sourcing. Please confirm the required quantity, 0-20mA or 4-20mA signal range, 24V DC unit power, 350-ohm maximum load resistance and SmartSlice communication configuration before ordering. The GRT1-DA2C should not be confused with the GRT1-DA2V voltage output unit or the GRT1-AD2 analog input unit. The reserved RSV terminals must not be wired. Final module condition, accessories and electrical output testing requirements should be confirmed before shipment.

IN STOCK

Omron GRT1-DA2C

Contact us for exact-model verification, multiple units and industrial SmartSlice I/O sourcing. Please confirm your controller system, analog output signal range, connected load and installation requirements before ordering.

Request Bulk Pricing
