Omron CP2E-N30DR-A PLC CPU 30 I/O Relay Dual Ethernet 100–240V AC
Omron CP2E-N30DR-A PLC CPU 30 I/O Relay Dual Ethernet 100–240V AC
Couldn't load pickup availability
Omron CP2E-N30DR-A SYSMAC PLC CPU Controller
| Specification | Verified Product Data |
|---|---|
| Manufacturer | OMRON Corporation |
| Exact Model | CP2E-N30DR-A |
| Product Family | SYSMAC CP2E Series |
| CPU Classification | CP2E-N Network Type |
| Product Type | Programmable Logic Controller CPU |
| Rated Power Supply | 100-240V AC |
| Supply Frequency | 50/60Hz |
| Operating Voltage Range | 85-264V AC |
| Max. Power at 100V AC | 50VA |
| Max. Power at 240V AC | 70VA |
| Built-in I/O Points | 30 |
| Digital Inputs | 18 |
| Digital Input Voltage | 24V DC |
| Digital Outputs | 12 |
| Output Technology | Electromechanical Relay |
| Program Capacity | 10K Steps |
| Function Block Capacity | 10K Steps |
| Data Memory | 16K Words |
| Programming Language | Ladder Diagram |
| Function Block Languages | Ladder Diagram / Structured Text |
| LD Instruction Execution Time | 0.23 Microseconds |
| Ethernet Ports | 2 Built-in Ports |
| Ethernet Standard | 10BASE-T / 100BASE-TX |
| Ethernet Switch | Integrated Layer 2 Switch |
| Ethernet Applications | FINS / Socket / SNTP / DNS Client |
| Serial Communication | Via Compatible Optional Communication Boards |
| Option Board Slots | 2 |
| Expansion I/O Units | Up to 3 Compatible CP1W Expansion Units |
| Maximum Total I/O | 150 Points |
| High-Speed Counter | Up to 100kHz, Depending on Mode |
| High-Speed Pulse Train Output | Not Supported by Relay Output Model |
| Auxiliary Power Output | 24V DC, 300mA for Compatible Input Devices |
| 5V DC Internal Current Consumption | 0.41A |
| 24V DC Internal Current Consumption | 0.07A |
| Backup Battery | Optional CP2W-BAT02 |
| Operating Temperature | -20 to +60°C |
| Operating Humidity | 10-90% RH |
| Dimensions (H x D x W) | 90 x 80 x 130mm, Excluding Cables |
| Weight | 580g Maximum |
| Actual Product Version | Ver. 1.0 |
| Actual Lot Number | 24325M |
| Packaging Quantity | 1 Piece |
| Country of Origin | Made in China |
Product Overview
The Omron CP2E-N30DR-A is a SYSMAC CP2E-N network-type programmable logic controller designed for industrial machine control, automation equipment and networked PLC applications. The controller provides 30 built-in I/O points, consisting of 18 DC digital inputs and 12 relay outputs. It operates with a 100-240V AC, 50/60Hz power supply and supports an operating supply range of 85-264V AC. The CP2E-N CPU provides 10K steps of program capacity and 16K words of data memory. It supports ladder diagram programming and function blocks using ladder diagrams or structured text. For network communication, the controller incorporates two built-in 10/100BASE-TX Ethernet ports with Layer 2 switching functionality. Manufacturer-specified communication applications include FINS and socket communication. The controller supports compatible optional serial communication boards and can connect up to three CP1W expansion units, providing a maximum of 150 I/O points when configured with suitable expansion modules. A 24V DC, 300mA auxiliary power output is available for compatible input devices. The CP2E-N30DR-A has relay-type outputs, which must not be confused with high-speed transistor pulse outputs. The controller measures approximately 90 x 80 x 130mm, excluding cables. Actual product front, rear and original carton photographs confirm the exact model CP2E-N30DR-A, version 1.0, lot number 24325M and Made in China marking. Powered PLC operation, relay switching, communication performance and the presence of any customer-specific program have not been independently verified.
Key Product Features
- OMRON SYSMAC CP2E-N PLC — Network-type CPU controller for industrial automation applications.
- 30 Built-in I/O Points — 18 DC digital inputs and 12 relay outputs.
- 100-240V AC Power Supply — Wide-range AC-powered industrial PLC controller.
- Dual Ethernet Interfaces — Two 10/100BASE-TX ports with integrated Layer 2 switching.
- 10K-Step Program Capacity — 16K words of data memory for PLC control applications.
- Expandable to 150 I/O Points — Supports up to three compatible CP1W expansion units.
- 24V DC Auxiliary Supply — Provides up to 300mA for suitable input devices.
- Compact Industrial Design — 90 x 80 x 130mm body with a manufacturer-rated -20°C to +60°C operating range.

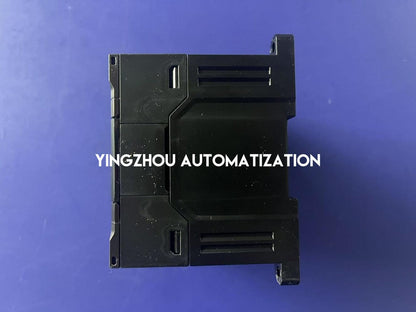

Actual Product Verification
In Stock & Available to Order

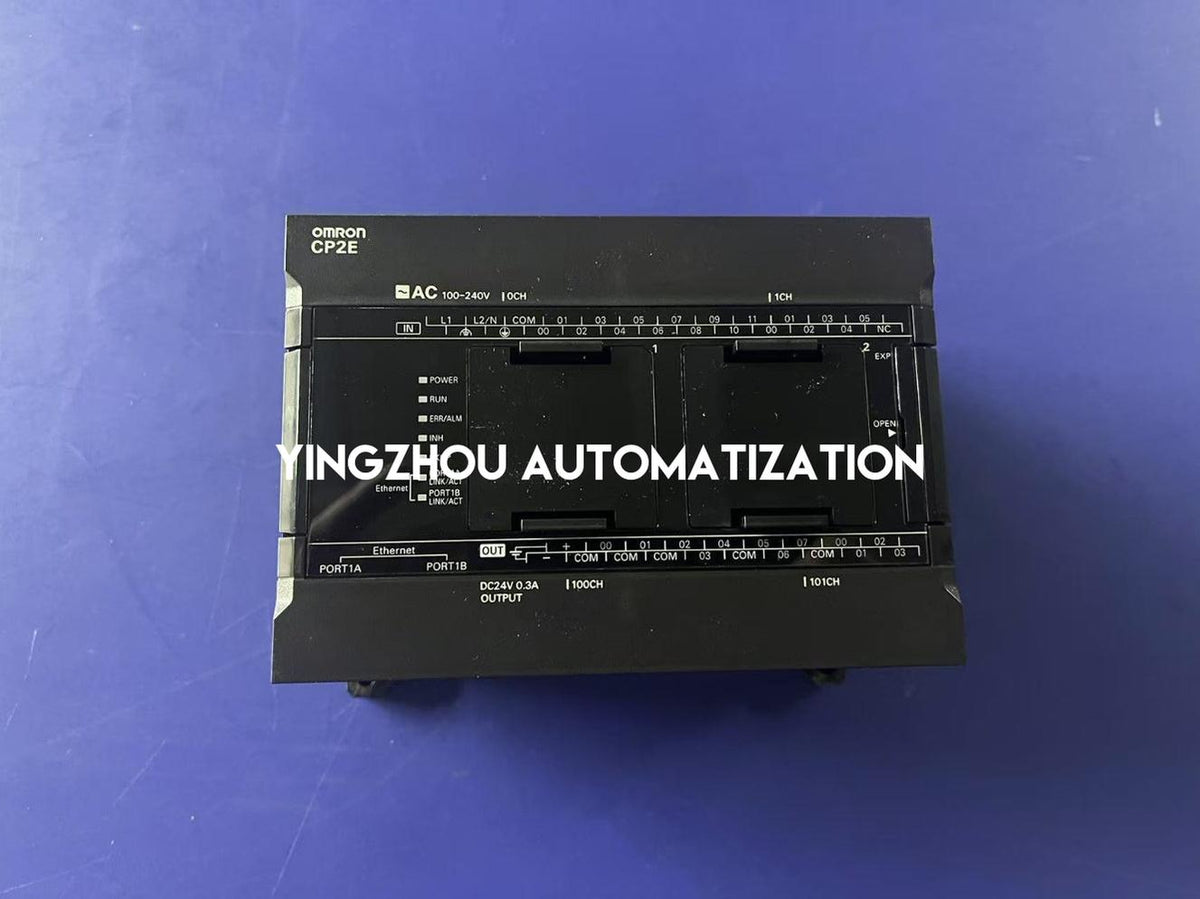

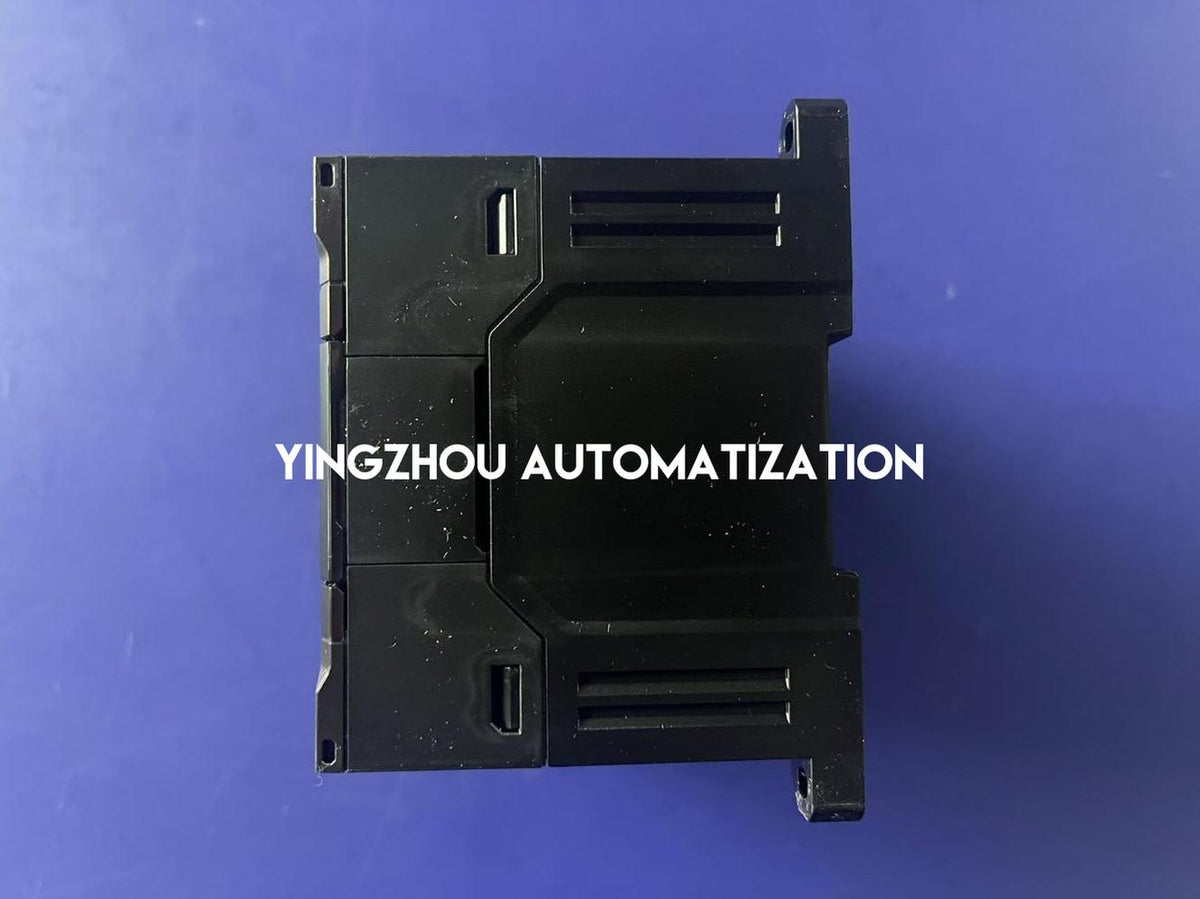

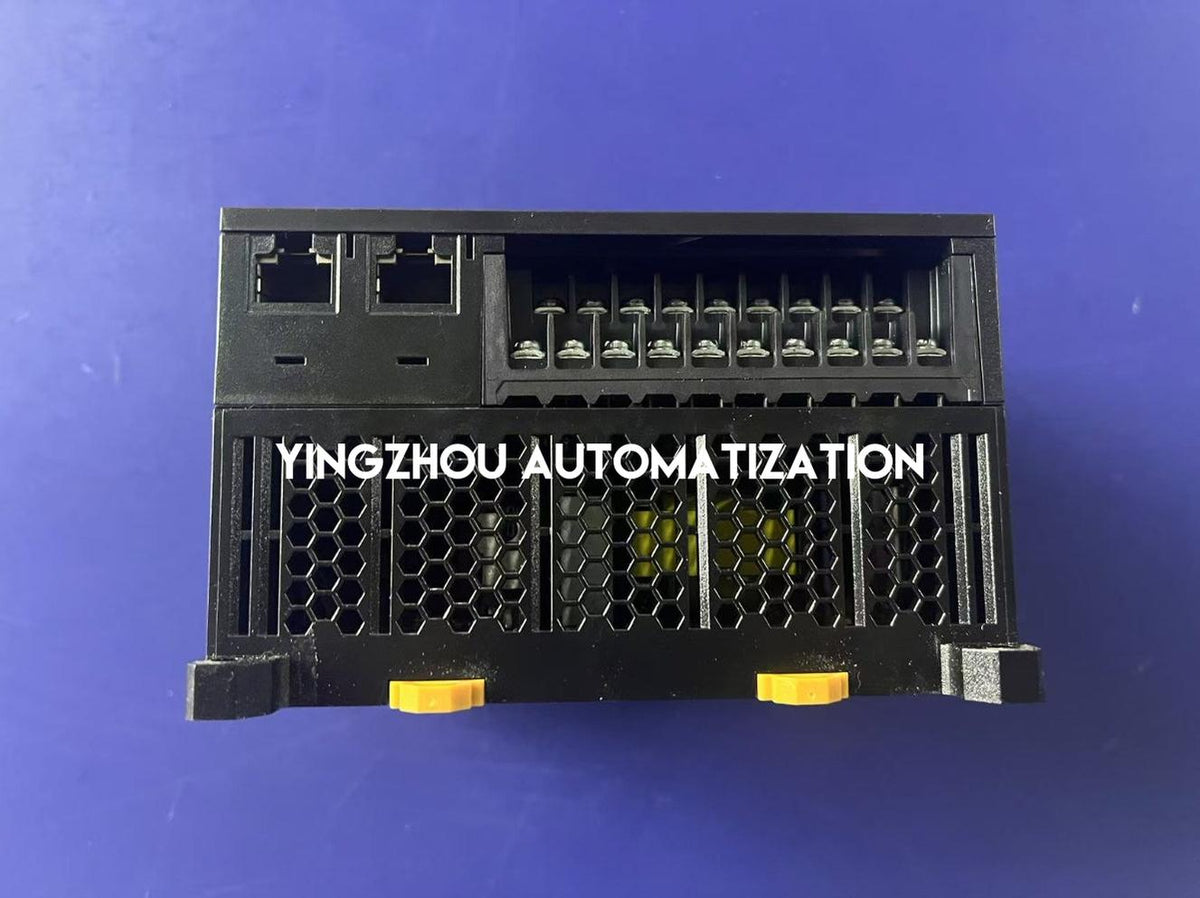

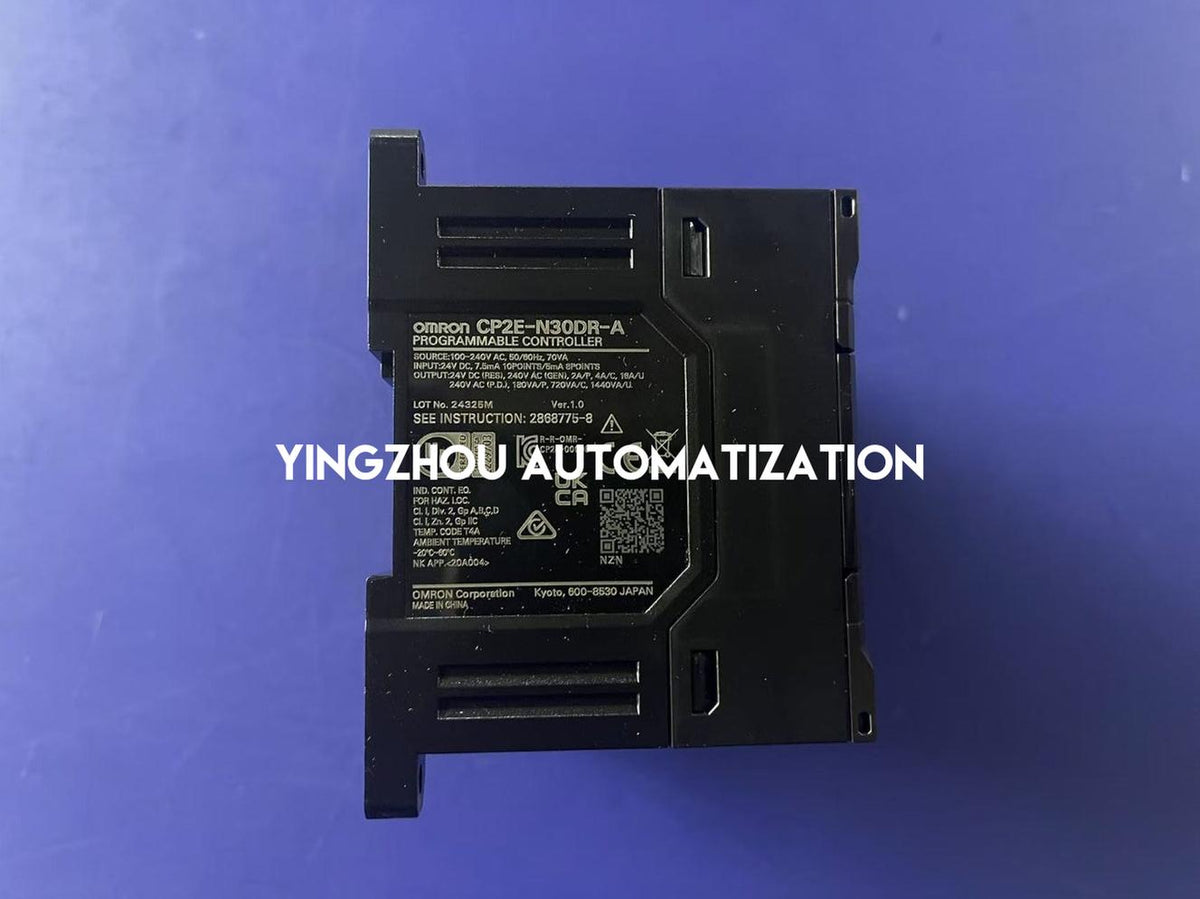

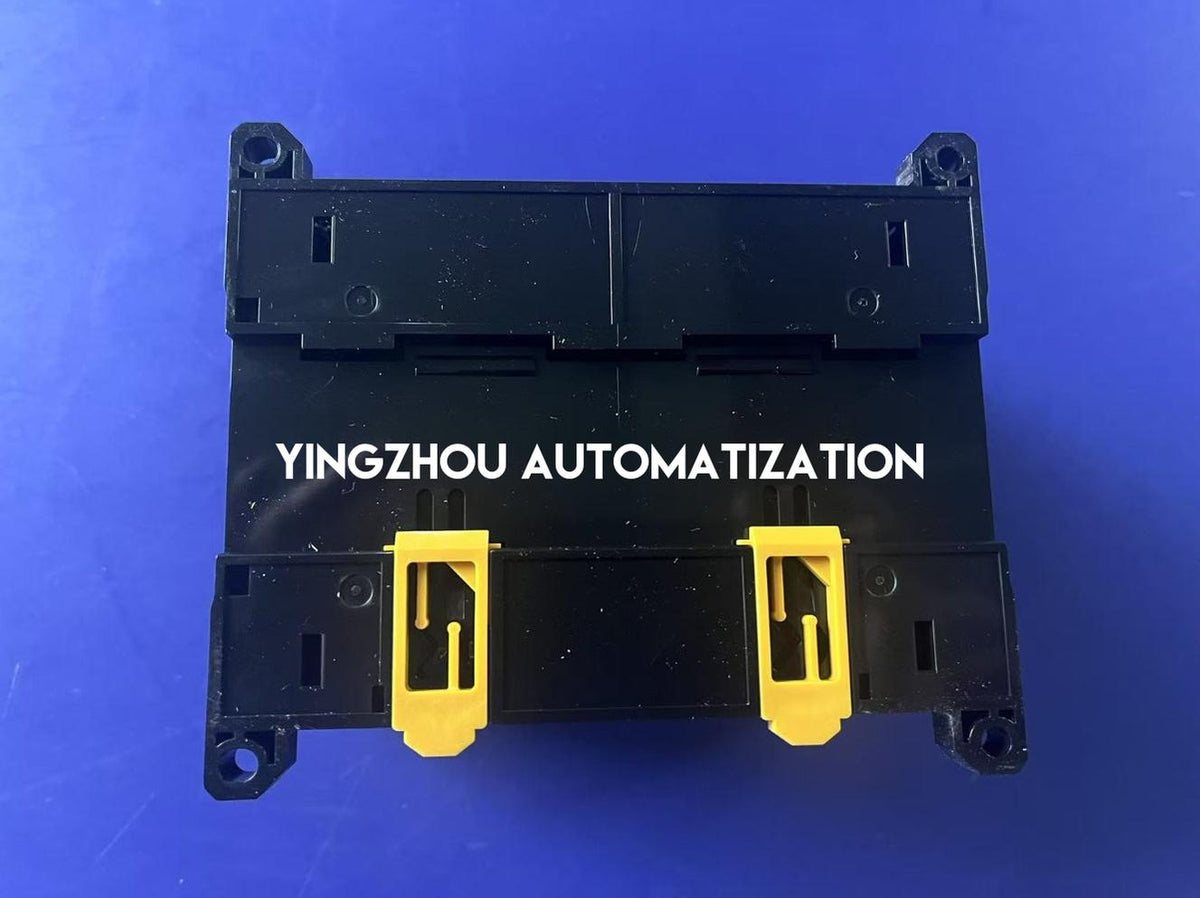

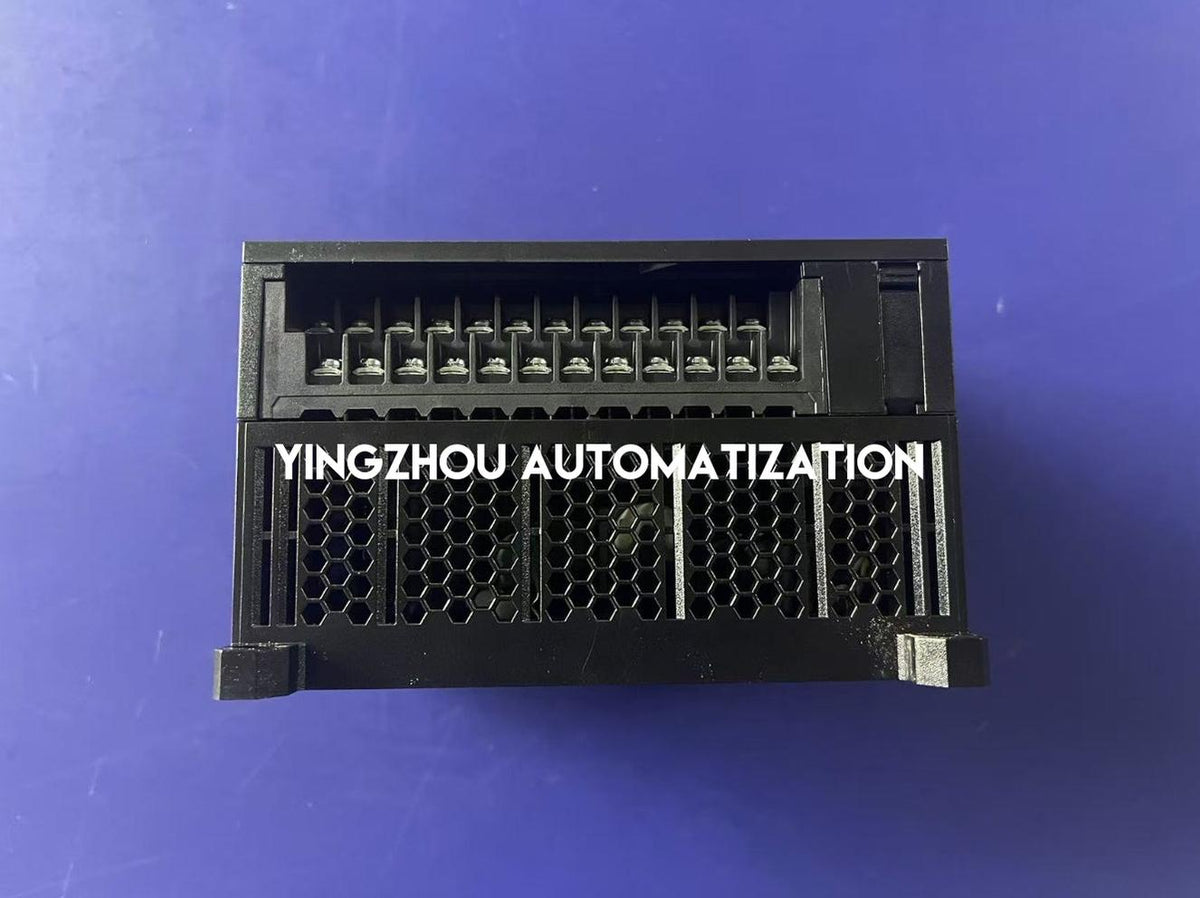

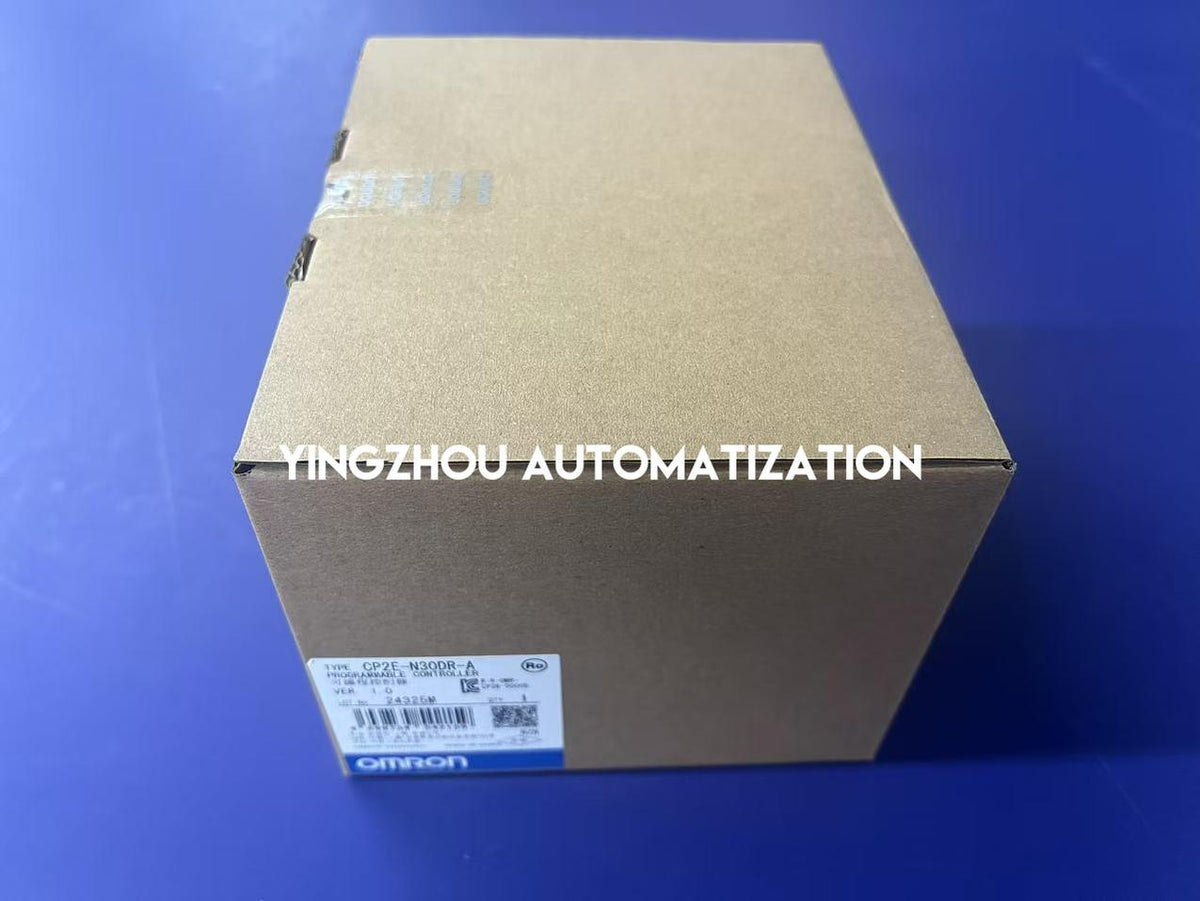

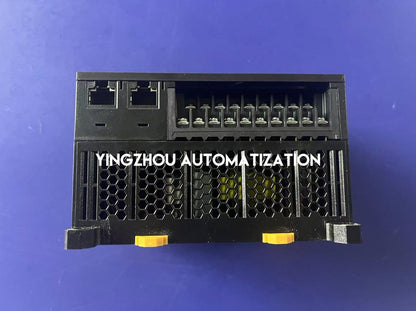

Omron CP2E-N30DR-A is marked in stock based on the supplied inventory information. Actual product and carton photographs identify the exact CP2E-N network-type PLC model. This 30-point AC-powered PLC with 18 DC inputs, 12 relay outputs and dual Ethernet interfaces is offered for industrial machine control, automation maintenance and replacement controller sourcing. Please confirm the required quantity, 100-240V AC supply, relay output configuration, connected I/O devices and Ethernet communication requirements before ordering. The model must not be confused with the 24V DC-powered CP2E-N30DR-D version, the transistor-output CP2E-N30DT-A version or the 60-point CP2E-N60DR-A CPU. Programs, network settings and customer-specific machine configurations are not guaranteed to be present. Please confirm any required functional testing, accessories and shipment arrangements before dispatch.
Omron CP2E-N30DR-A
Contact us for exact-model verification, quantity quotations and industrial PLC sourcing. Please confirm your power supply, relay output requirements, existing PLC program and Ethernet communication configuration before ordering.
