Omron CP1W-TS002 4-Channel K/J Thermocouple Input Module

Omron CP1W-TS002 4-Channel K/J Thermocouple Input Module

$185.99 USD
$185.99 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

Omron CP1W-TS002 Temperature Sensor Input Module

SYSMAC CP1W | 4 Thermocouple Inputs | K / J Type | 250ms Conversion
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Model Verified on Product and Packaging
Specification Verified Product Data
Manufacturer OMRON Corporation
Exact Model CP1W-TS002
Product Family SYSMAC CP1W Series
Product Type PLC Temperature Sensor Input Unit
Module Classification Temperature Sensor Expansion Unit
Temperature Input Channels 4
Supported Sensor Types K-Type / J-Type Thermocouples
Sensor Type Selection Same Thermocouple Type for All Four Inputs
K-Type Range 1 -200 to +1300°C
K-Type Range 2 0.0 to +500.0°C
J-Type Range 1 -100 to +850°C
J-Type Range 2 0.0 to +400.0°C
Temperature Range Setting Rotary Switch
Temperature Format Selection DIP Switch
Input Conversion Time 250ms for 4 Points
Temperature Data Format 16-Bit Binary (4-Digit Hexadecimal)
Allocated Input Words 4
Standard Conversion Accuracy Greater of ±0.5% of Converted Value or ±2°C, Plus ±1 Digit
K-Type Accuracy at -100°C or Below ±4°C ±1 Digit
Input Isolation Photocoupler Isolation Between Temperature Input Signals
Internal 5V DC Consumption 40mA Maximum
Internal 24V DC Consumption 59mA Maximum
Input Terminal Groups LOOP0 / LOOP1 / LOOP2 / LOOP3
Expansion Connection CP1W Expansion Interface
Expansion Cable Integrated Connecting Cable
Compatible PLC Architecture Supported OMRON CP-Series CPU Configurations
Input Function Thermocouple Temperature Measurement
Pt100 / JPt100 Input Not Supported by CP1W-TS002
Analog Current Output Not Provided
Lot Number - Actual Unit 20Z24M
Packaging Quantity 1 Piece - Actual Carton
Country of Origin Made in China
Manufacturer Lifecycle Current Status Not Independently Reconfirmed

Product Overview

The Omron CP1W-TS002 is a SYSMAC CP1W Series temperature sensor expansion unit designed for compatible OMRON programmable controller systems. The module provides four thermocouple input channels for industrial temperature measurement. It supports K-type and J-type thermocouples, with the same thermocouple type required for all four inputs. For K-type measurement, selectable temperature ranges include -200 to +1300°C and 0.0 to +500.0°C. For J-type thermocouples, selectable ranges include -100 to +850°C and 0.0 to +400.0°C. The module converts the temperature readings into 16-bit binary data and allocates four input words in the PLC system. Its conversion time is 250ms for four temperature input points. The module also incorporates photocoupler isolation between temperature input signals and uses an integrated expansion connecting cable for installation in supported CP-Series PLC configurations. A rotary switch is used to select the temperature measurement range, while DIP switch settings provide temperature unit and format configuration. The CP1W-TS002 is specifically designed for thermocouple temperature input; it is not a Pt100 resistance thermometer module or an analog current output module. Actual product and original carton photographs show the exact model CP1W-TS002, lot number 20Z24M, and Made in China marking. Electrical temperature measurement operation has not been independently tested.

Key Product Features

  • OMRON SYSMAC CP1W Expansion Unit — Temperature measurement module for compatible CP-Series PLC systems.
  • Four Thermocouple Inputs — Supports four temperature measurement channels.
  • K-Type Thermocouple Support — Selectable measurement range up to -200 to +1300°C.
  • J-Type Thermocouple Support — Selectable measurement range up to -100 to +850°C.
  • 250ms Conversion Time — Manufacturer-specified conversion time for four input points.
  • 16-Bit Temperature Data — Converted temperature data allocated to four PLC input words.
  • Photocoupler Isolation — Isolation between thermocouple input signals.
  • Integrated CP1W Expansion Cable — Module connection for supported programmable controller configurations.

Actual Product Verification

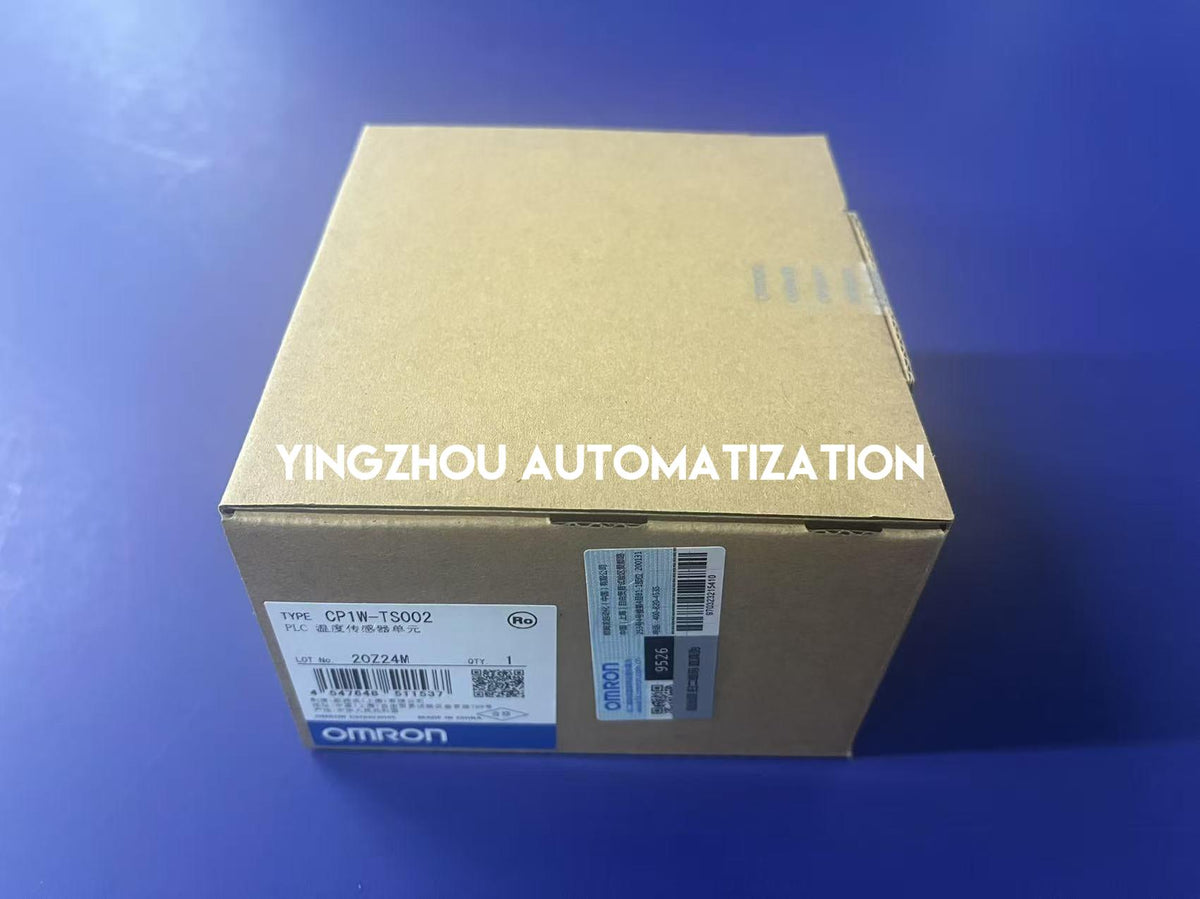

✓ Actual OMRON module and original carton photographs supplied

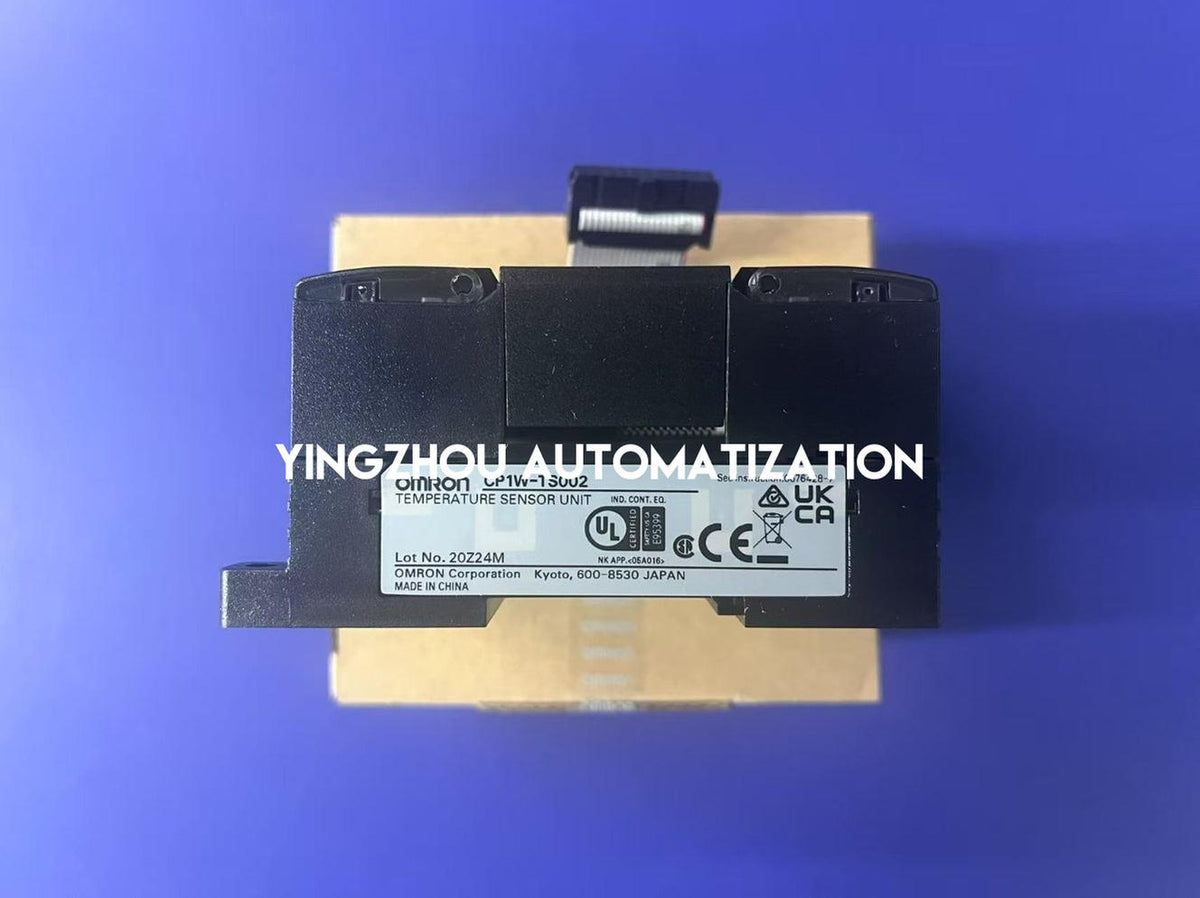

✓ Physical module nameplate: CP1W-TS002
✓ Original carton model: CP1W-TS002
✓ Product designation: TEMPERATURE SENSOR UNIT
✓ Front housing marking: TS002

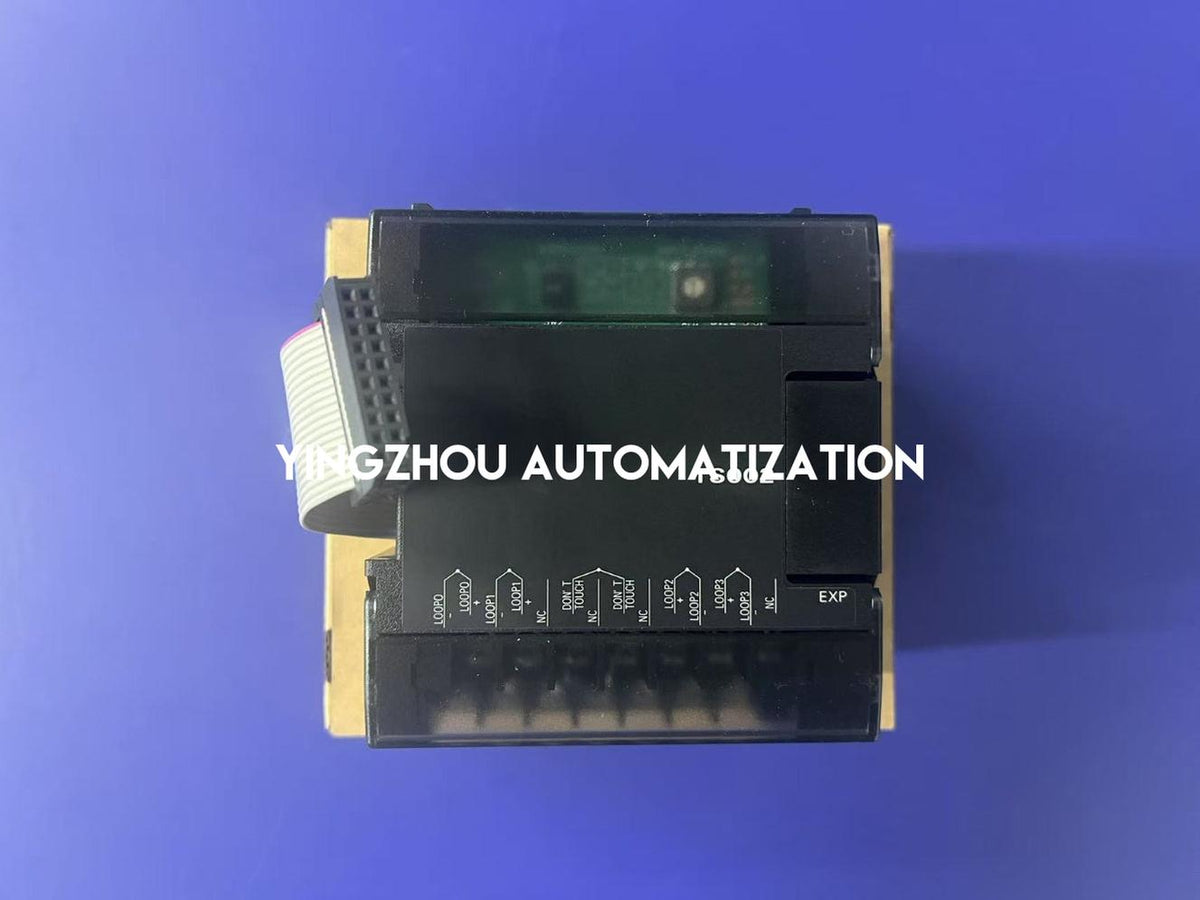

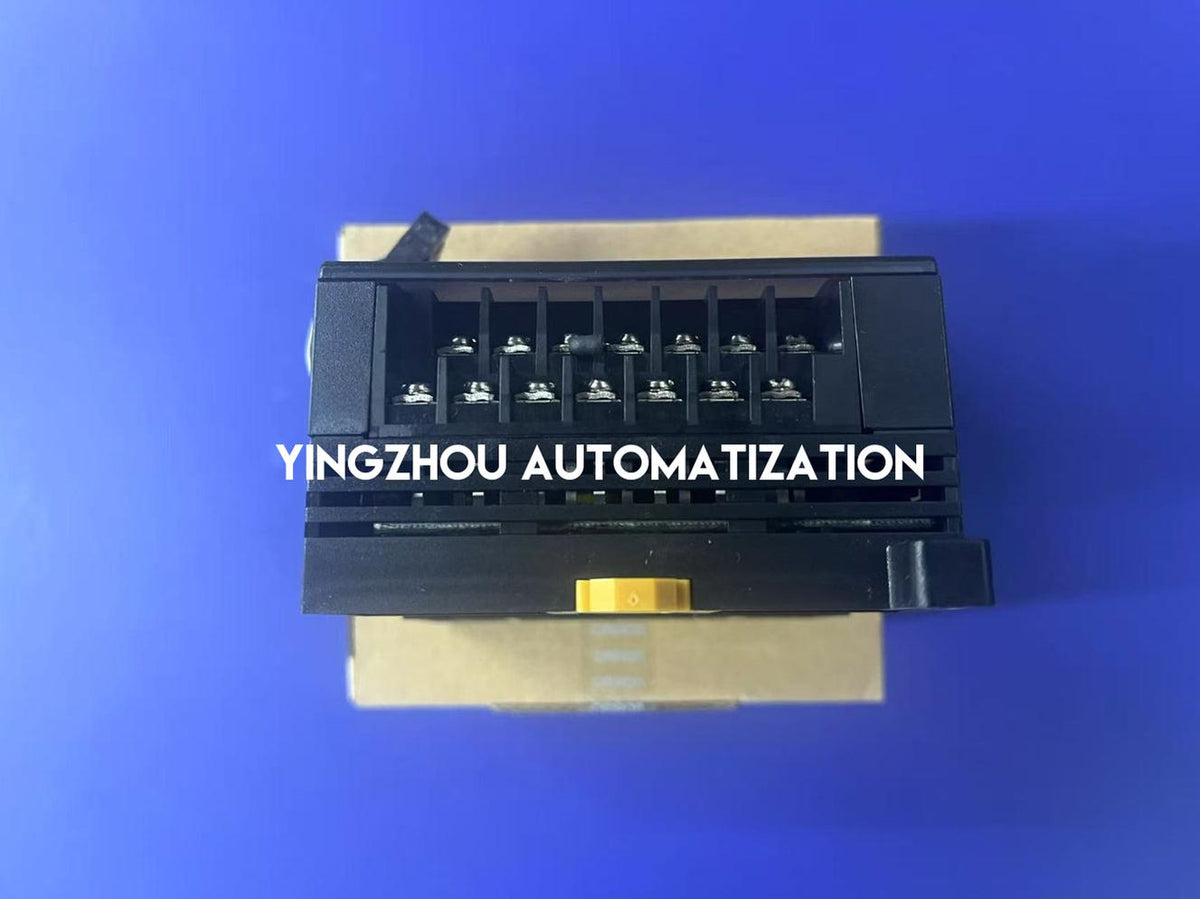

✓ Four input terminal groups: LOOP0 / LOOP1 / LOOP2 / LOOP3

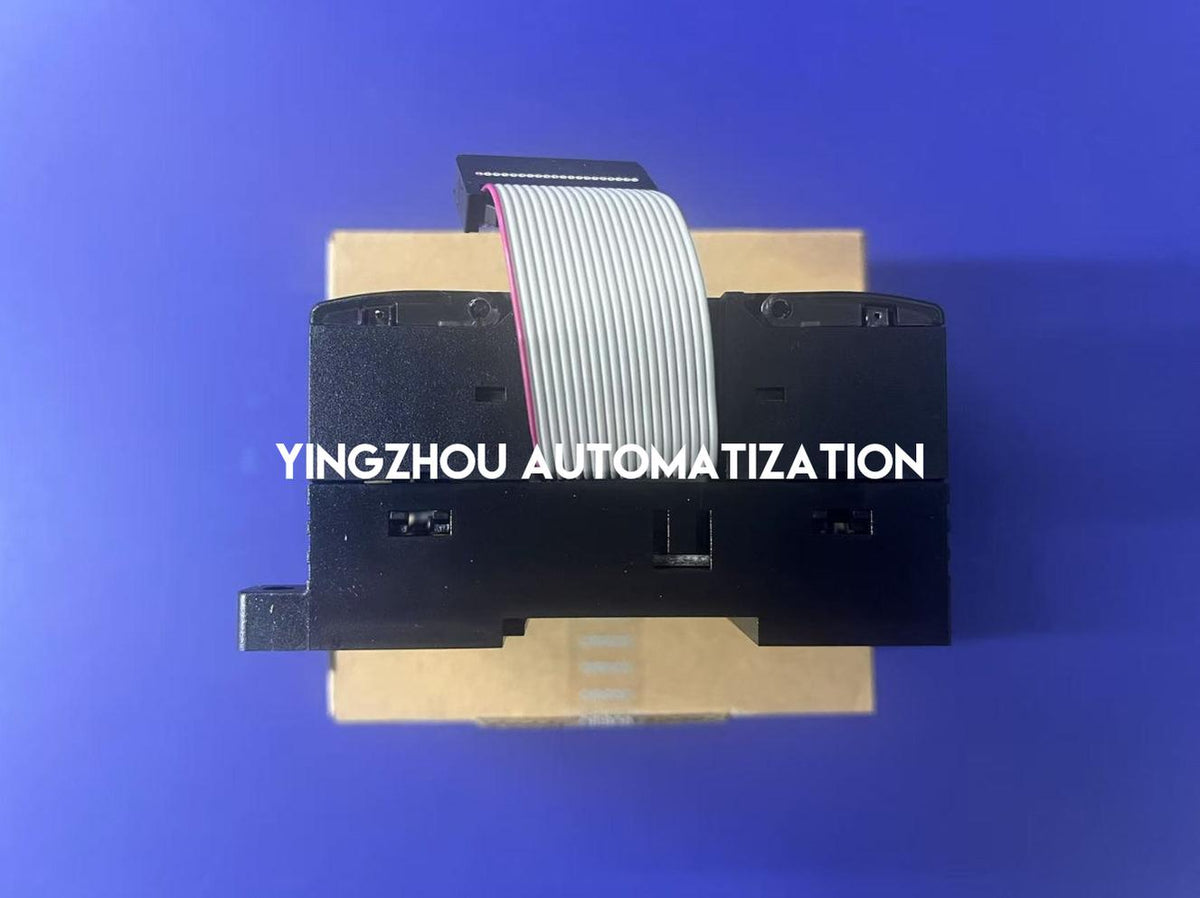

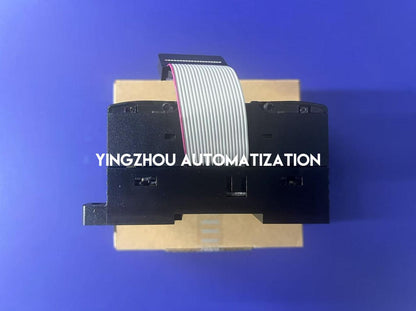

✓ Integrated expansion connection cable visible
✓ CP1W expansion connector visible
✓ Product lot number: 20Z24M
✓ Packaging quantity: 1 Piece
✓ Country of origin: Made in China
✓ Actual product and carton catalog numbers match
✓ Powered temperature measurement performance not independently verified
✓ Confirm thermocouple type, measurement range and PLC compatibility before ordering

In Stock & Available to Order

Omron CP1W-TS002 is marked in stock based on the supplied inventory information. Actual module and packaging photographs confirm the exact catalog number and temperature sensor input unit identification. This four-channel K/J thermocouple input expansion module is offered for compatible PLC system maintenance, temperature monitoring expansion and industrial automation spare parts sourcing. Please confirm the required quantity, K-type or J-type thermocouple selection, temperature range, PLC CPU model and available expansion connection before ordering. All four channels must use the same selected thermocouple type. The CP1W-TS002 must not be confused with the CP1W-TS102 platinum resistance thermometer module or the two-channel CP1W-TS001. Final sensor wiring, product condition and temperature measurement testing requirements should be confirmed before shipment.

IN STOCK

Omron CP1W-TS002

Contact us for exact-model verification, multiple units and industrial PLC temperature sensor module sourcing. Please confirm your PLC model, thermocouple type, temperature range and expansion requirements before ordering.

Request Bulk Pricing
