Omron CP1W-8ER 8-Point Relay Output Expansion Unit

Omron CP1W-8ER 8-Point Relay Output Expansion Unit

$57.99 USD
$57.99 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

Omron CP1W-8ER 8-Point Relay Output Expansion Unit

8 Relay Outputs | 2A at 250V AC / 24V DC | CP Series PLC Expansion
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Model Verified on Product and Packaging
Specification Verified Product Data
Manufacturer OMRON Corporation
Exact Model CP1W-8ER
Product Family CP1W Series
Product Designation 8-Point Relay Output Unit
Product Type PLC Expansion Output Unit
Digital Input Channels 0
Digital Output Channels 8
Output Technology Electromechanical Relay
Output Contact Type Normally Open (NO)
Output Channel Identification 00-07
Maximum AC Switching Capacity 2A at 250V AC (Resistive Load)
Maximum DC Switching Capacity 2A at 24V DC
Maximum Current per Common 4A
Minimum Switching Capacity 10mA at 5V DC
Maximum ON Response Time 15 ms
Maximum OFF Response Time 15 ms
Mechanical Relay Life 20 Million Operations - Specified Conditions
Electrical Life - Resistive Load 150,000 Operations at 24V DC
Electrical Life - Inductive Load 100,000 Operations at 240V AC, cosφ 0.4
Internal 5V DC Consumption 26mA
Internal 24V DC Consumption 44mA
Expansion Connection CP1W Expansion Interface
Supported PLC Families Selected CP1E, CP1H, CP1L and CP2E CPUs
Universal CP Series Compatibility Not Guaranteed - Verify Exact CPU
Dimensions (W x H x D) 66 x 90 x 50 mm
Manufacturer Listed Weight 250 g
Lot Number - Actual Unit 26225M
Packaging Quantity 1 Piece
Country of Origin Made in China

Product Overview

The Omron CP1W-8ER is an 8-point relay output expansion unit designed to increase the output capacity of compatible OMRON CP Series programmable controllers. It features eight normally open relay outputs identified as channels 00 through 07, with no digital input channels. Each output has a manufacturer-specified maximum switching capacity of 2A at 250V AC for resistive loads or 2A at 24V DC, subject to a combined limit of 4A per common group. The relay contacts offer maximum ON and OFF response times of 15 milliseconds and a specified mechanical life of up to 20 million operations under defined conditions. This expansion unit connects through the CP1W expansion interface and is listed for selected CP1E, CP1H, CP1L and CP2E PLC configurations. Exact CPU compatibility must be verified because some compact CPU models do not support expansion I/O units. The product should not be confused with the CP1W-8ET or CP1W-8ET1 transistor output models. Actual product and packaging photographs confirm the exact model CP1W-8ER, lot number 26225M and country of origin Made in China. Functional switching tests have not been documented in the supplied photographs.

Key Product Features

  • OMRON CP1W Expansion Unit — PLC output expansion for compatible CP Series controllers.
  • 8 Relay Output Points — Eight normally open relay outputs with channel indicators 00-07.
  • 2A Contact Switching — Maximum 2A at 250V AC or 24V DC under specified load conditions.
  • 4A Common Group Limit — Total output current must remain within the rated common-group capacity.
  • 15ms Switching Response — Maximum ON and OFF response delays specified by OMRON.
  • Long Relay Mechanical Life — Up to 20 million mechanical operations under specified conditions.
  • Compact 66mm Width — Space-efficient expansion output unit for supported control systems.
  • Selected CP Series Compatibility — Supports compatible CP1E, CP1H, CP1L and CP2E CPU configurations.

Actual Product Verification

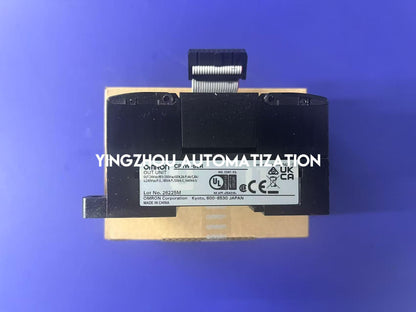

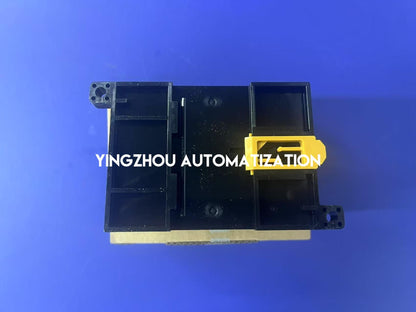

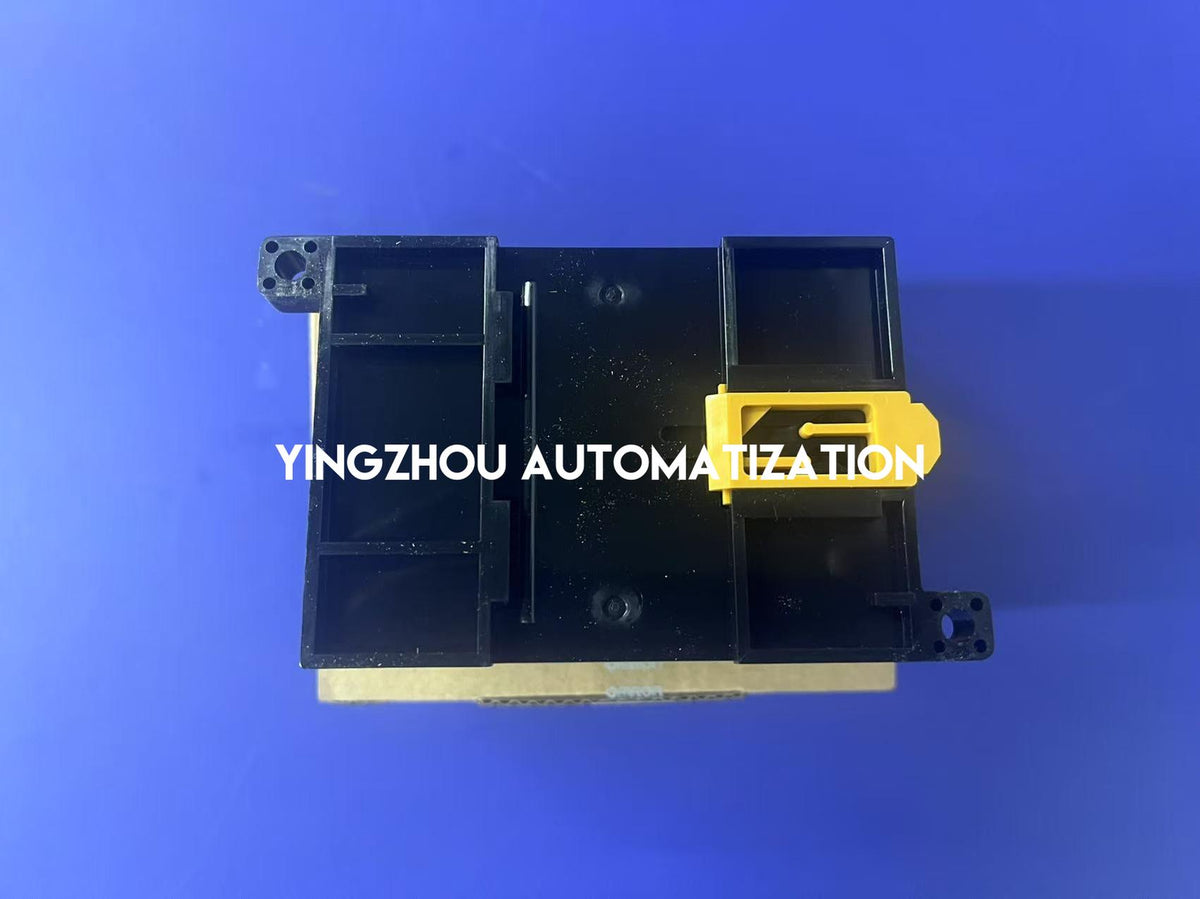

✓ Actual OMRON expansion unit front and rear photographs supplied

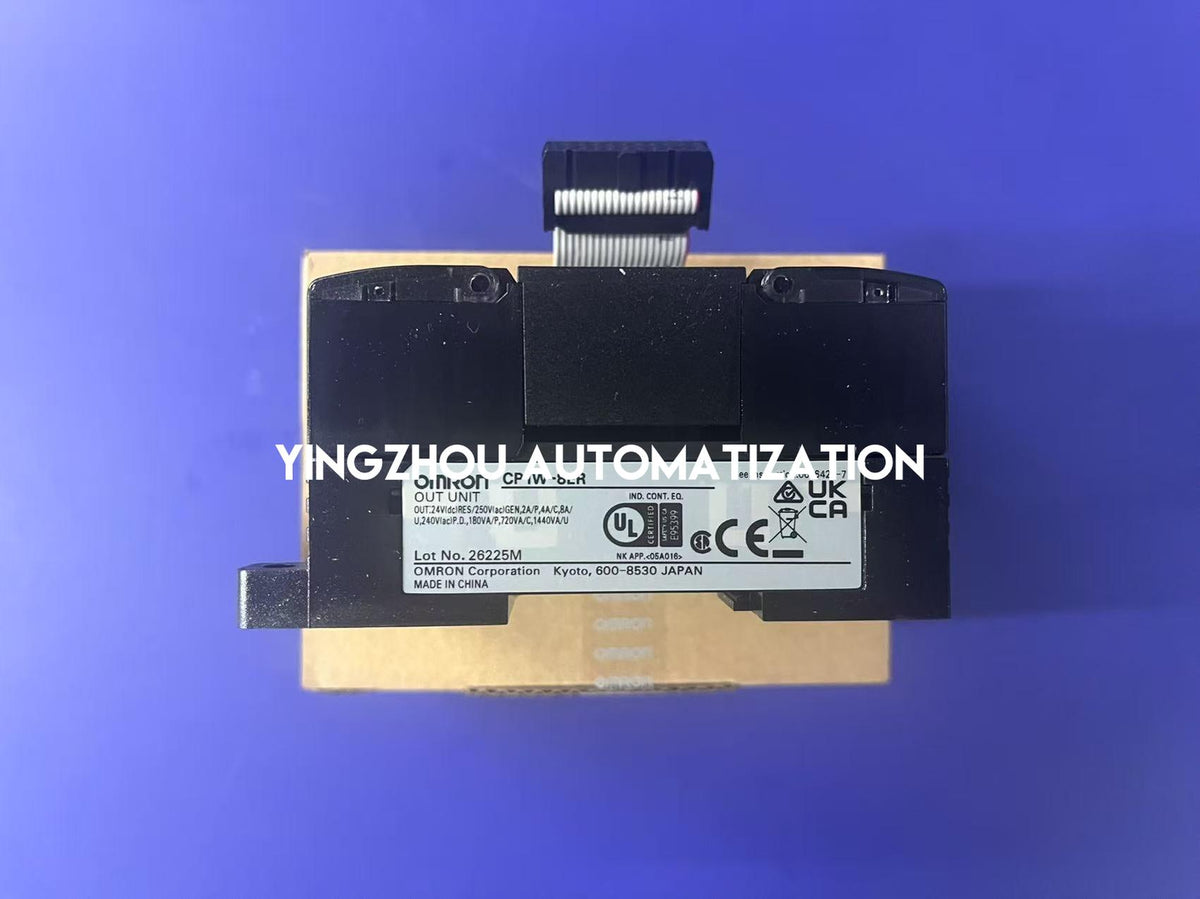

✓ Product nameplate model: CP1W-8ER
✓ Original carton model: CP1W-8ER
✓ Product nameplate designation: OUT UNIT

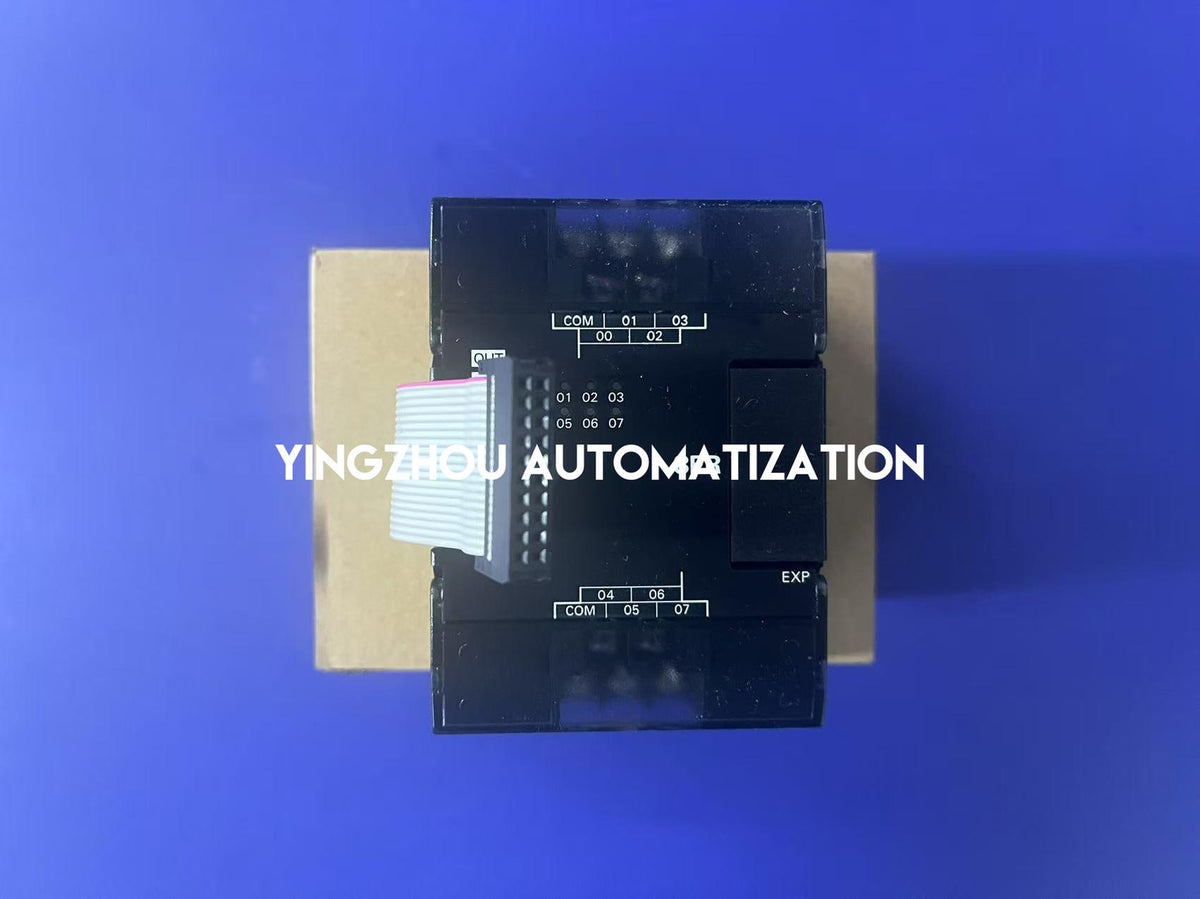

✓ Eight relay output indicators marked 00 through 07

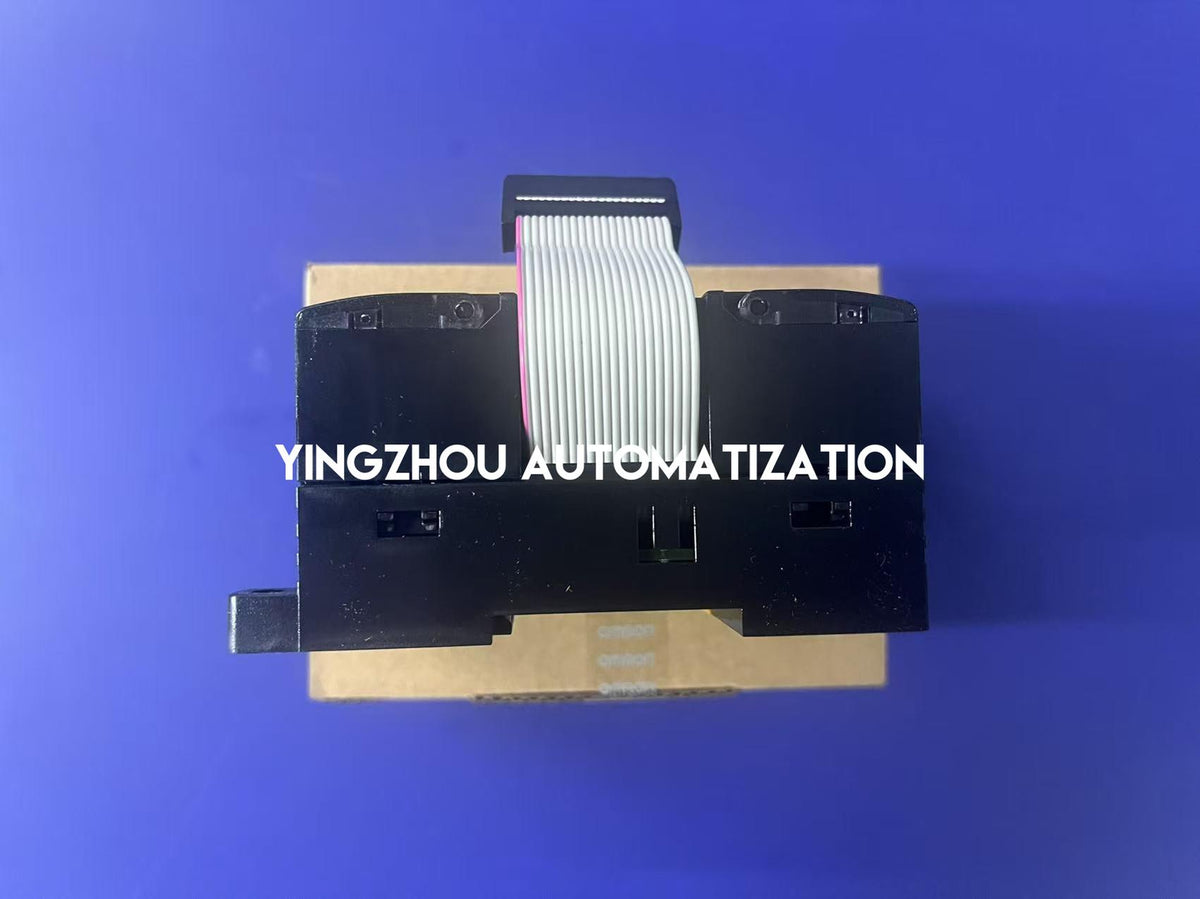

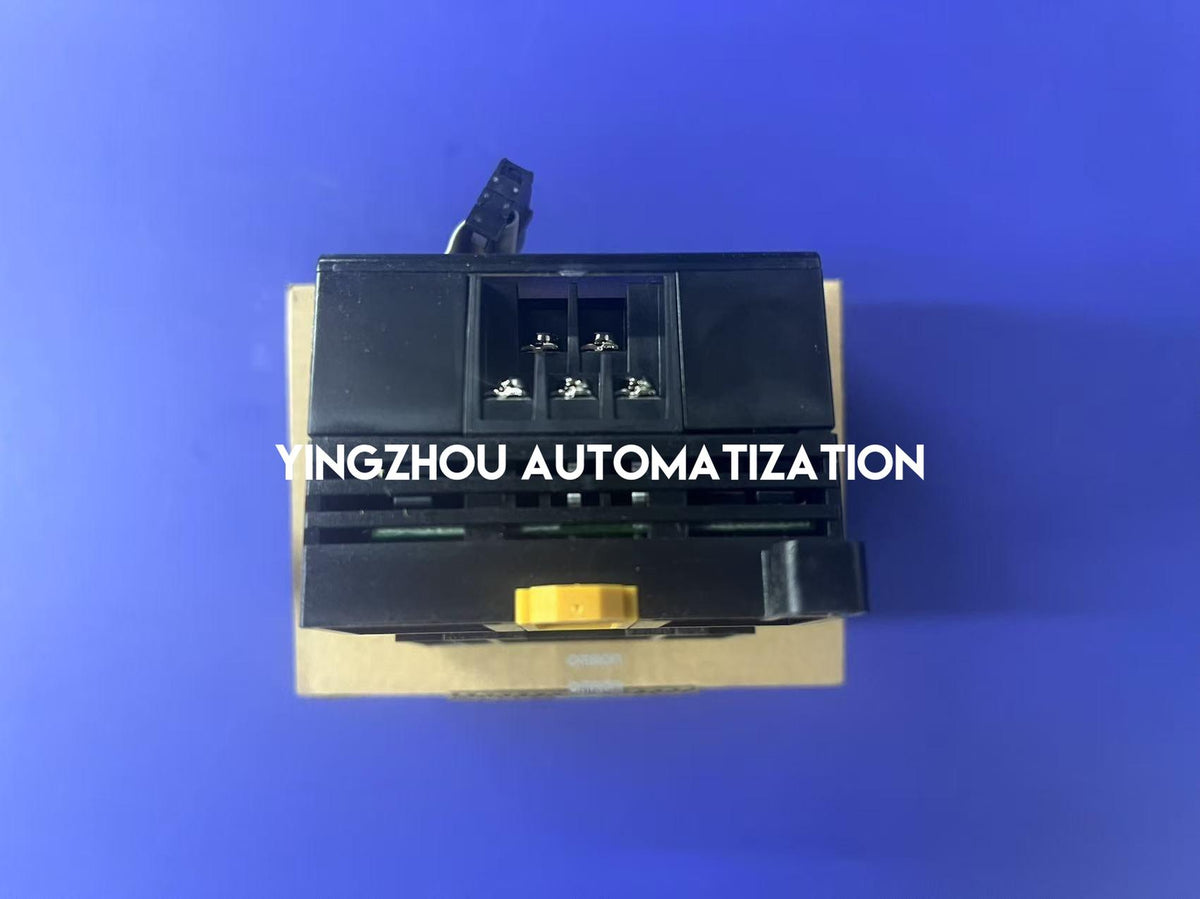

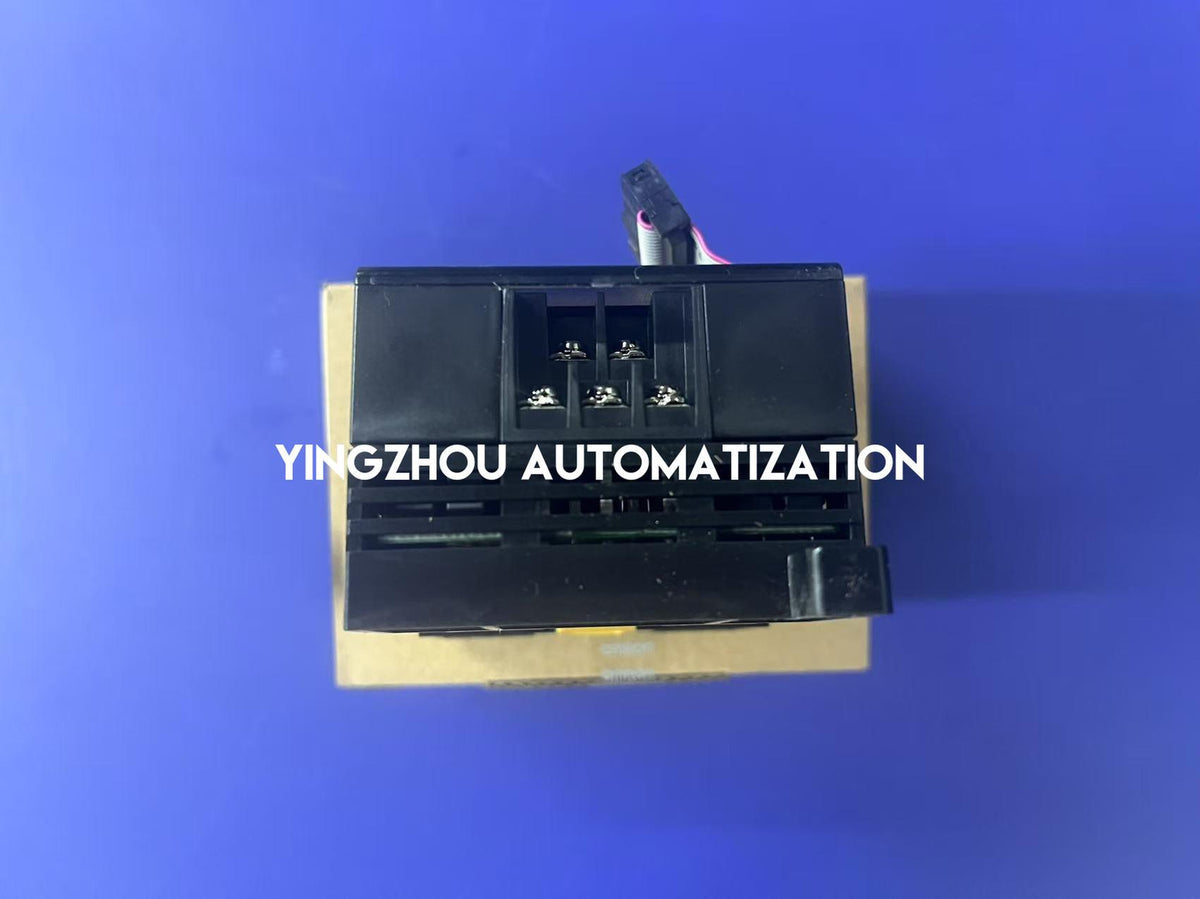

✓ Expansion connector and ribbon cable visible
✓ Nameplate switching ratings identify 250V AC / 24V DC
✓ Lot number: 26225M
✓ Manufacturing origin: Made in China
✓ Product and packaging catalog numbers match
✓ Relay operation and electrical load testing not independently verified
✓ Confirm PLC CPU compatibility and switching load before ordering

In Stock & Available to Order

Omron CP1W-8ER is marked in stock based on the supplied inventory information. Actual product and carton photographs show the matching CP1W-8ER catalog number and relay output configuration. This expansion output unit is available for compatible PLC maintenance, machine control panel upgrades and industrial automation procurement. Please confirm the quantity, eight relay outputs, 2A maximum switching capacity, 4A per common limit and the exact OMRON CPU model before ordering. Do not assume compatibility with every CP Series CPU or substitute transistor models CP1W-8ET and CP1W-8ET1 without checking the control circuit. Final module condition, included components and shipping arrangements should be confirmed before dispatch.

IN STOCK

Omron CP1W-8ER

Contact us for exact-model confirmation, multiple units and PLC expansion sourcing. Please provide your CP Series CPU model, relay output requirements, load voltage and current ratings before ordering.
