Omron CJ1W-PA202 CJ Series PLC Power Supply 100–240V AC 14W

Omron CJ1W-PA202 CJ Series PLC Power Supply 100–240V AC 14W

$88.99 USD
$88.99 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

Omron CJ1W-PA202 CJ Series PLC Power Supply Unit

100-240V AC Input | 14W Total Output | 5V DC 2.8A | 24V DC 0.4A
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Model Verified on Product and Packaging
Specification Verified Product Data
Manufacturer OMRON Corporation
Exact Model CJ1W-PA202
Product Family SYSMAC CJ Series
Product Designation CJ Series Power Supply Unit
Product Type PLC AC Power Supply Module
Rated Input Voltage 100-240V AC
Rated Frequency 50/60Hz
Permissible Input Voltage Range 85-264V AC
Permissible Frequency Range 47-63Hz
Maximum Input Apparent Power 50VA
Internal 5V DC Output Capacity 2.8A Maximum
Internal 24V DC Output Capacity 0.4A Maximum
Maximum Combined Output Power 14W
24V DC Service Power Output Not Provided
RUN Output Not Provided
Maintenance Forecast Monitor Not Provided
Inrush Current at 100-120V AC 20A Maximum / 8ms
Inrush Current at 200-240V AC 40A Maximum / 8ms
Operating Temperature 0 to +55 Degrees Celsius
Ambient Operating Humidity 10-90% RH, Non-Condensing
Temperature Code T4A
Mounting Orientation Vertical
AC Input Terminals L1 and L2/N
Protective Ground Terminals Provided - See Manufacturer Wiring Instructions
NC Terminal Markings 2
Supported PLC Family Compatible SYSMAC CJ Series Systems
NJ Series Compatibility Not Supported
Product Lot Number 251027YK - Actual Product
Packaging Quantity 1 Piece - Actual Carton
Country of Origin Made in Japan - Actual Nameplate
Manufacturer Lifecycle Current Status Not Independently Reconfirmed

Product Overview

The Omron CJ1W-PA202 is a SYSMAC CJ Series AC power supply unit designed to provide internal power for compatible OMRON programmable controller systems. The module accepts a rated input of 100-240V AC at 50/60Hz, with an allowable input voltage range of 85-264V AC. It has a manufacturer-specified maximum input apparent power of 50VA and a 14W maximum combined internal output capacity. The unit supplies up to 2.8A at 5V DC for internal PLC logic power requirements and up to 0.4A at 24V DC for supported internal relay-driving requirements. These current ratings and the 14W total power limit must all be satisfied when calculating the complete PLC rack power requirements. The CJ1W-PA202 does not provide a separate 24V DC service output, RUN output contact or maintenance forecast monitor. Its input terminals are marked L1 and L2/N, with additional grounding and NC terminal markings. The module is intended for supported CJ Series systems and is not compatible with the OMRON NJ Series. Actual product and original carton photographs confirm the matching catalog number CJ1W-PA202, lot number 251027YK, and manufacturing origin Made in Japan. Electrical power-on testing and output performance have not been independently verified.

Key Product Features

  • OMRON SYSMAC CJ Power Supply — Internal PLC power supply unit for supported CJ Series controller systems.
  • 100-240V AC Input — Wide-range AC input with 50/60Hz rated frequency.
  • 14W Combined Output Capacity — Manufacturer-specified maximum internal output power.
  • 5V DC / 2.8A Output — Internal power capacity for compatible PLC CPU and module logic requirements.
  • 24V DC / 0.4A Output — Internal power capacity for supported relay-driving requirements.
  • 50VA Maximum Input Rating — Specified maximum AC input apparent power.
  • AC Input and Ground Terminals — Front terminals for the power input and grounding connections.
  • Compact CJ Series Design — Intended for compatible CJ PLC rack power supply installation.

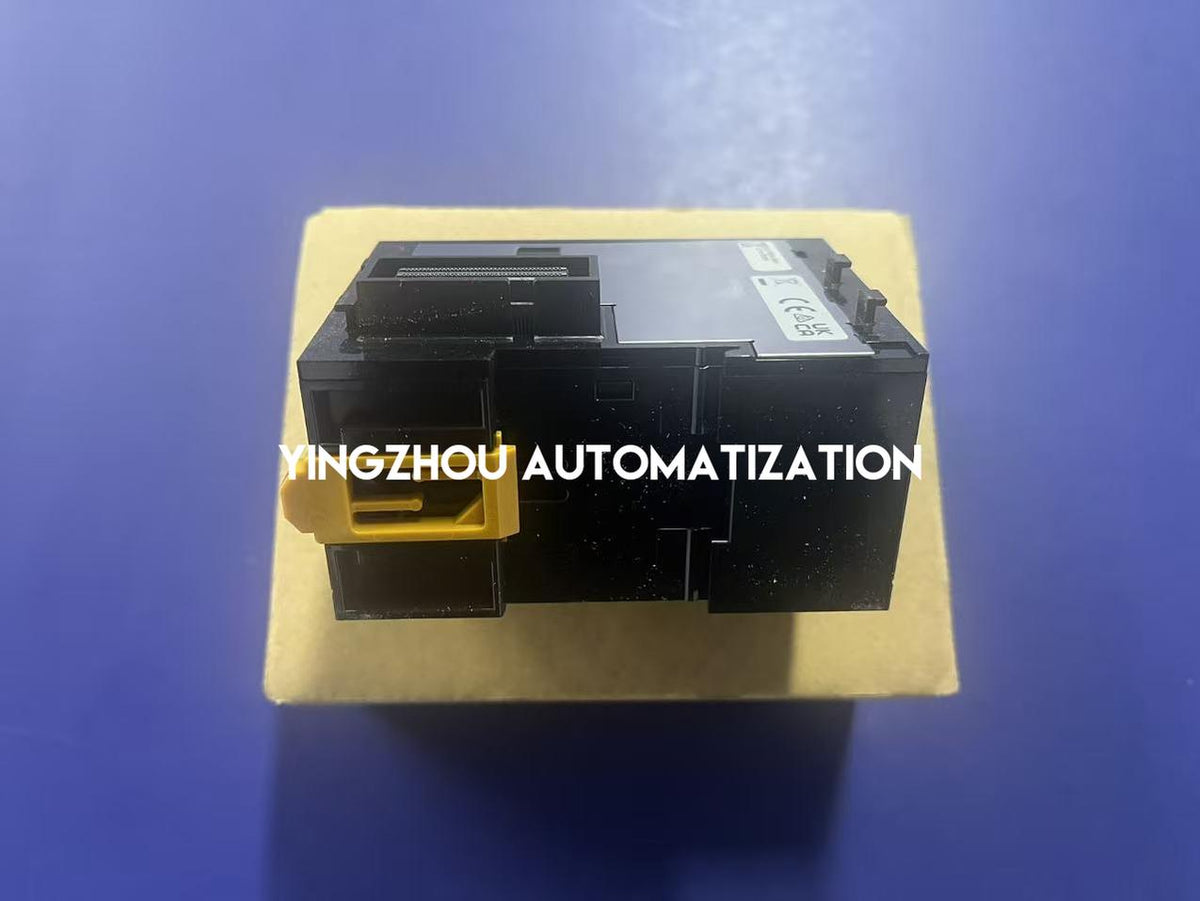

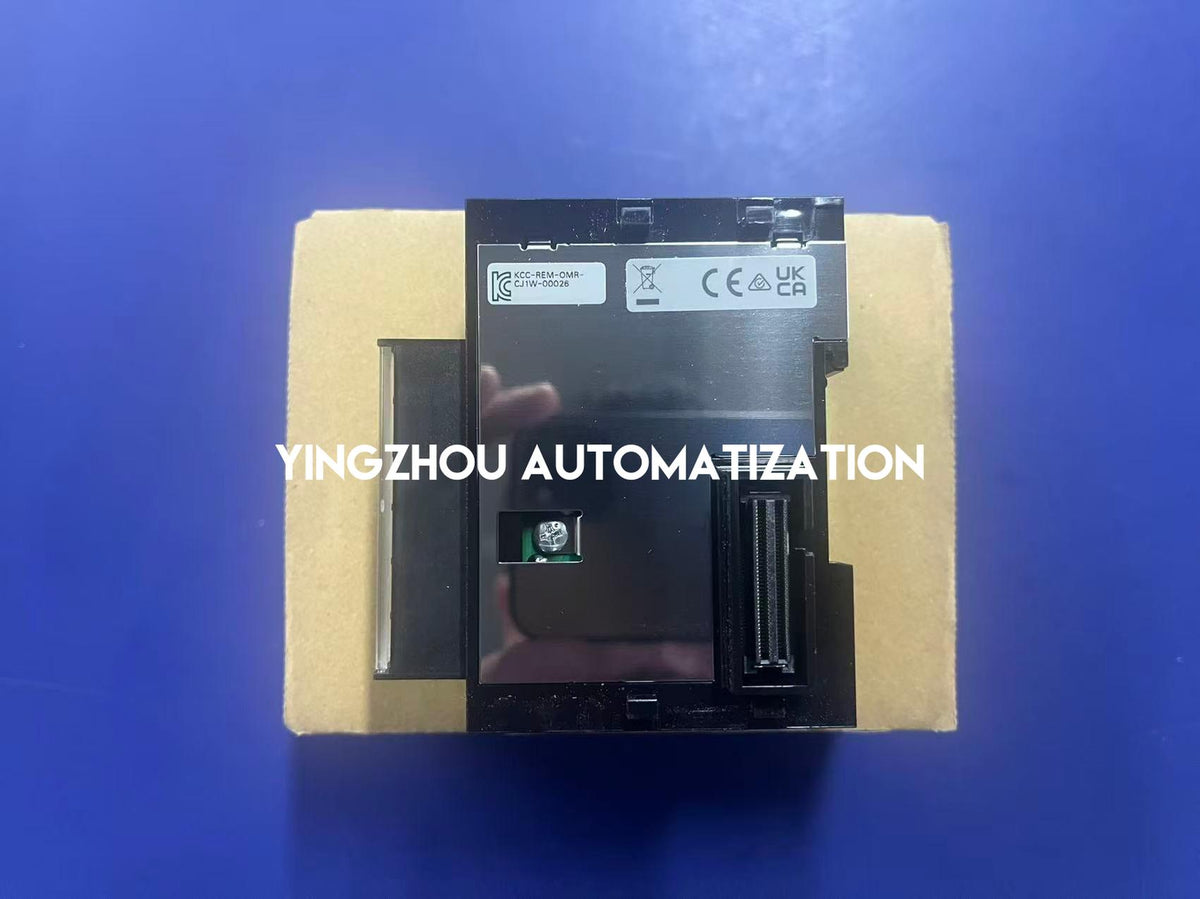

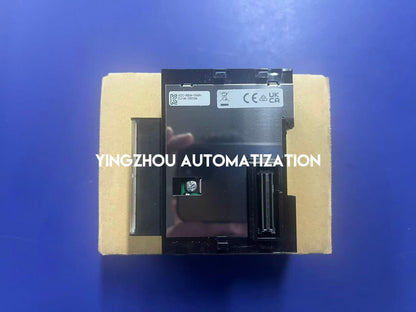

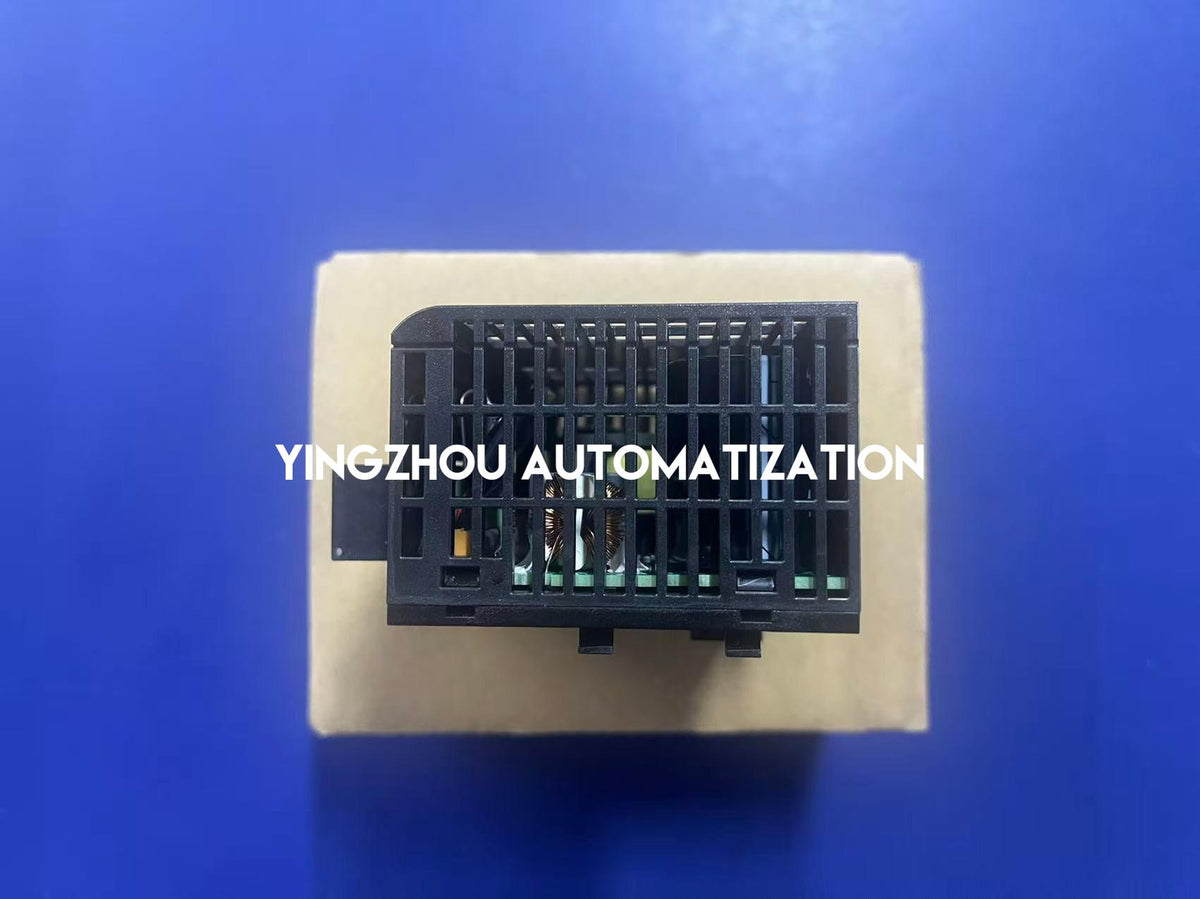

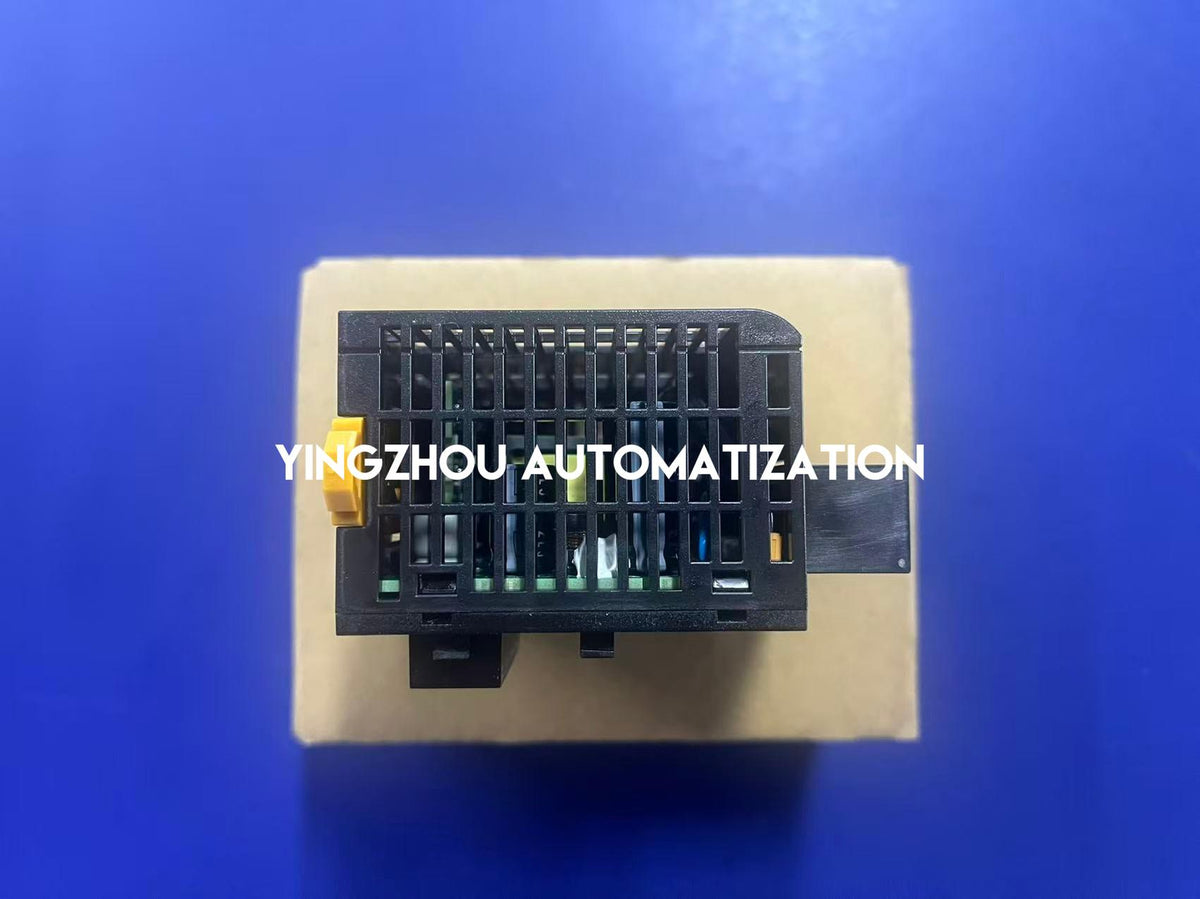

Actual Product Verification

✓ Actual OMRON power supply and carton photographs supplied

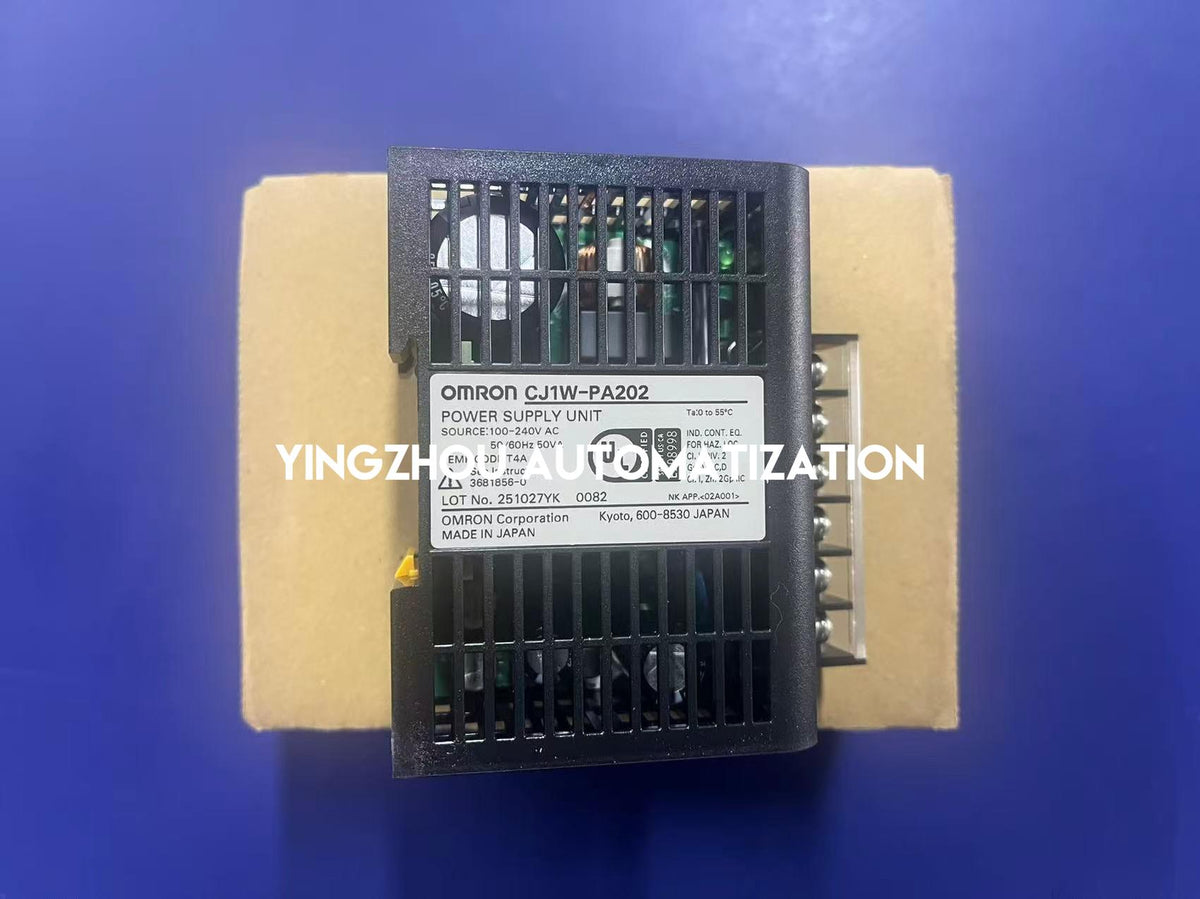

✓ Product nameplate model: CJ1W-PA202

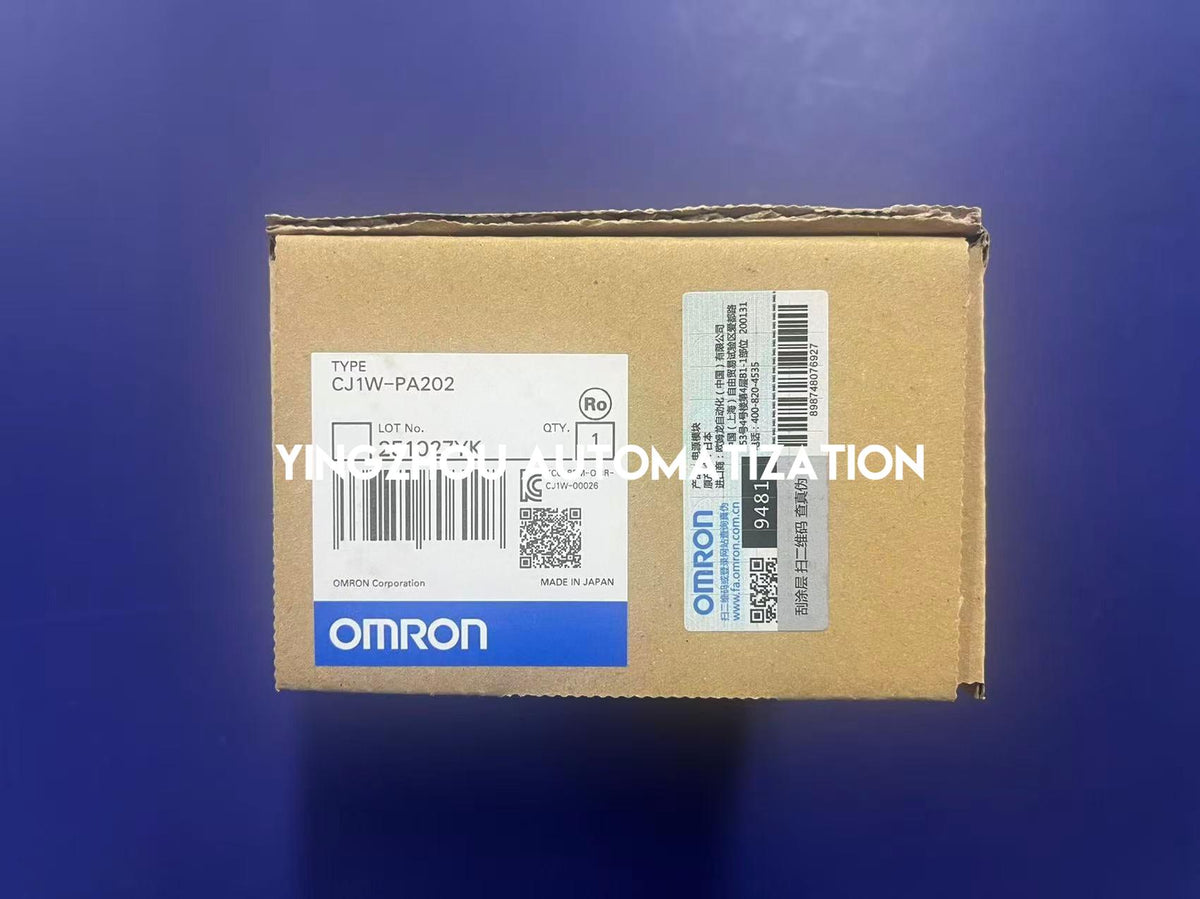

✓ Original carton model: CJ1W-PA202
✓ Product designation: POWER SUPPLY UNIT
✓ Rated input voltage: 100-240V AC
✓ Rated frequency: 50/60Hz
✓ Maximum AC input apparent power: 50VA

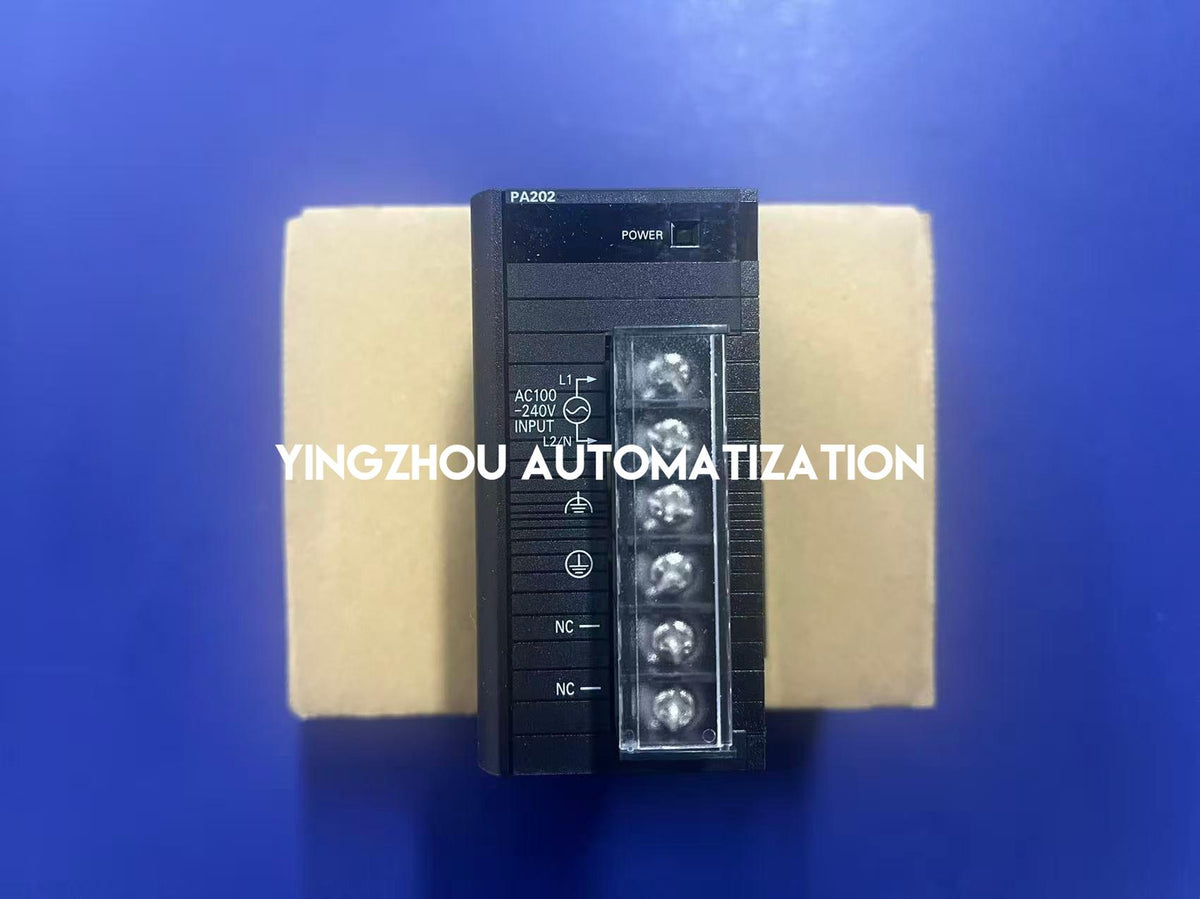

✓ Front terminal markings: L1, L2/N, Ground and NC
✓ Temperature code: T4A
✓ Product lot number: 251027YK
✓ Country of origin: Made in Japan
✓ Exact product and original carton model numbers match
✓ Powered operation and 5V/24V output testing not independently verified
✓ Confirm CJ PLC system power budget, input voltage and installation requirements before ordering

In Stock & Available to Order

Omron CJ1W-PA202 is marked in stock based on the supplied inventory information. Actual product and packaging photographs confirm the matching catalog number and AC power supply identification. This 100-240V AC input, 14W internal output power module is offered for supported CJ Series PLC maintenance, replacement and industrial automation sourcing. Please confirm the required quantity, AC input requirements, 5V DC 2.8A maximum, 24V DC 0.4A maximum and 14W combined output capacity before ordering. The CJ1W-PA202 should not be confused with the higher-capacity CJ1W-PA205R or CJ1W-PA205C models or the DC-input CJ1W-PD series. The module does not include a separate 24V DC service power output. Final hardware condition, electrical testing and shipping requirements should be confirmed before dispatch.

IN STOCK

Omron CJ1W-PA202

Contact us for exact-model verification, multiple units and industrial PLC power supply sourcing. Please confirm your CJ Series CPU model, AC input requirements and total rack power consumption before ordering.

Request Bulk Pricing
