Omron CJ1W-OD212 16-Point PNP Transistor Output Module

Omron CJ1W-OD212 16-Point PNP Transistor Output Module

$88.99 USD
$88.99 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

Omron CJ1W-OD212 16-Point PNP Transistor Output Module

SYSMAC CJ | 16 Outputs | PNP Sourcing | 24V DC | 0.5A/Point
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Model Verified on Product Nameplate
Specification Verified Product Data
Manufacturer OMRON Corporation
Exact Model CJ1W-OD212
Product Family SYSMAC CJ Series
Module Classification CJ Basic I/O Unit
Product Type PLC Digital Output Module
Digital Input Channels 0
Digital Output Channels 16
Output Technology PNP Transistor
Output Circuit Configuration Sourcing
Rated Load Voltage 24V DC
Operating Load Voltage Range 20.4-26.4V DC
Maximum Load Current per Point 0.5A
Maximum Load Current per Unit 5.0A
Output Common Configuration 16 Points / Common, 1 Circuit
Maximum ON Response Time 0.5ms
Maximum OFF Response Time 1.0ms
Output Short-Circuit Protection Supported
Short-Circuit Detection Current 0.7-2.5A
Short-Circuit Recovery Automatic Restart After Error Clearance
Internal 5V DC Consumption 100mA Maximum
External Power Supply Voltage 20.4-26.4V DC
External Supply Current 40mA Minimum
I/O Memory Allocation 1 Word
Connection Type Removable Screw Terminal Block
PLC I/O System CJ Series I/O Bus
Product Width 31mm
Product Height 90mm
Product Depth 89mm
Catalog Weight 64g - European Product Listing
Country of Origin Made in China - Actual Nameplate
Manufacturer Lifecycle Current Status Not Independently Reconfirmed

Product Overview

The Omron CJ1W-OD212 is a SYSMAC CJ Series 16-point digital transistor output module designed for compatible OMRON programmable controller systems. As a CJ Basic I/O Unit, it provides 16 PNP sourcing transistor outputs for controlling suitable 24V DC industrial loads. The module operates with a rated load voltage of 24V DC and a permissible load voltage range of 20.4-26.4V DC. Its manufacturer-specified maximum load current is 0.5A per output point and 5.0A per unit. The output circuits include short-circuit protection with automatic restart after the fault condition has been cleared. Maximum output response times are 0.5ms ON and 1.0ms OFF. The unit uses a removable screw terminal block, allocates one I/O word in the PLC system and is designed for the CJ Series I/O architecture. Actual product photography shows an OMRON nameplate identifying CJ1W-OD212 as an OUTPUT UNIT and indicating its 24V DC output rating. Buyers must distinguish this PNP sourcing model from the CJ1W-OD211 NPN sinking output model. Electrical switching performance and short-circuit protection have not been functionally tested in the supplied evidence.

Key Product Features

  • OMRON SYSMAC CJ Output Unit — Digital output expansion module for compatible CJ Series PLC systems.
  • 16 Transistor Output Channels — Provides sixteen digital outputs with no digital input channels.
  • PNP Sourcing Configuration — Positive-switching transistor outputs for suitable industrial load circuits.
  • 24V DC Load Operation — Permissible load voltage range of 20.4-26.4V DC.
  • 0.5A per Point — Maximum individual output current with a 5.0A total unit limit.
  • Short-Circuit Protection — Integrated output protection with automatic recovery after error clearance.
  • Fast Switching Response — Maximum response times of 0.5ms ON and 1.0ms OFF.
  • Removable Terminal Block — Screw terminal connection for installation and maintenance.

Actual Product Verification

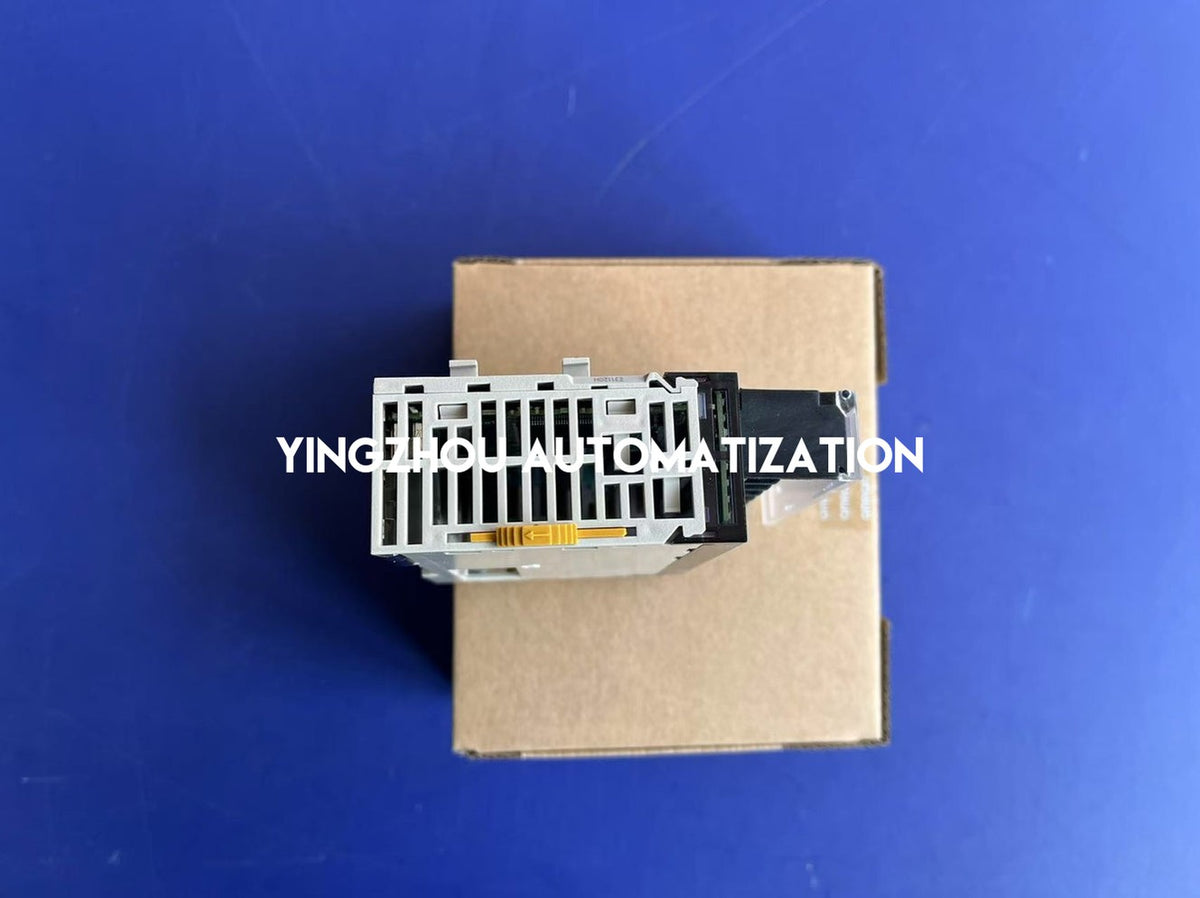

✓ Actual OMRON module photograph supplied

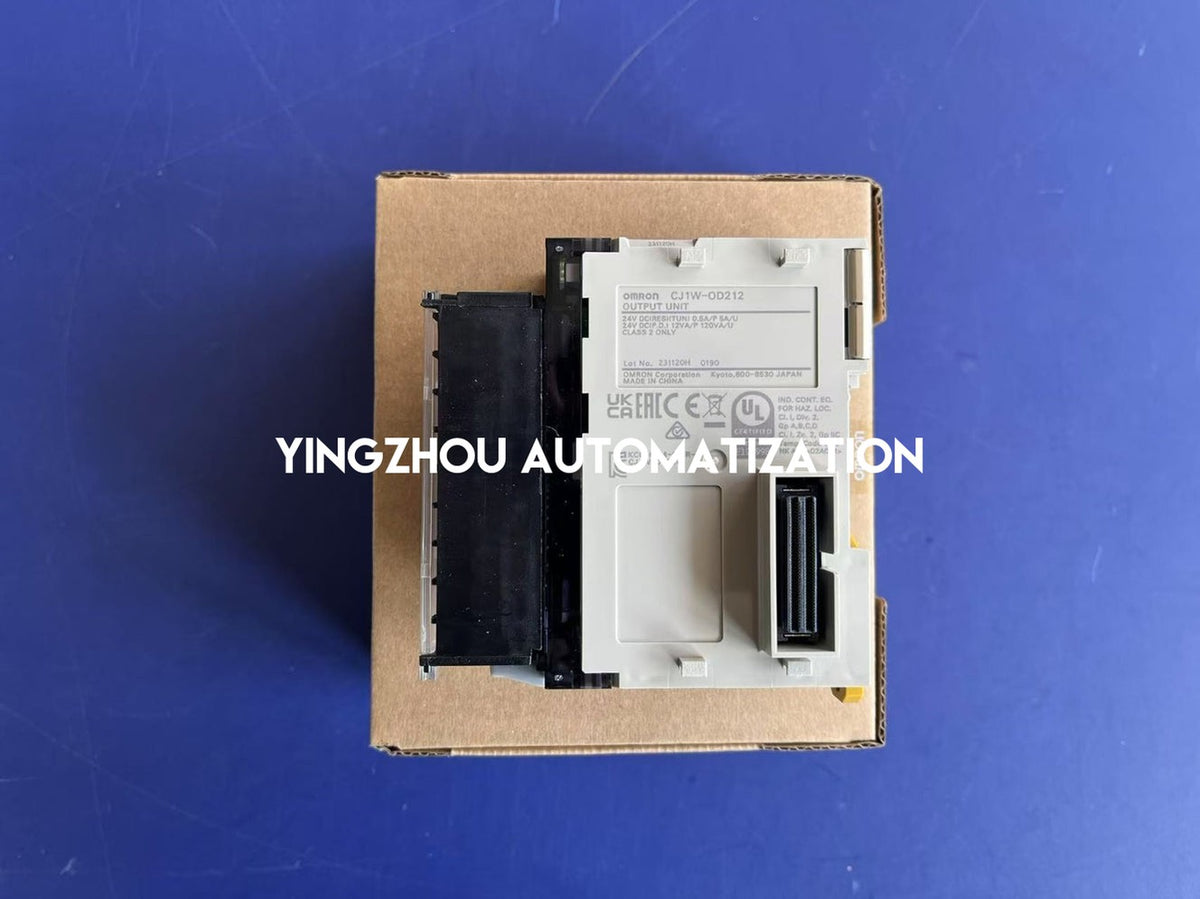

✓ Physical product nameplate: CJ1W-OD212
✓ Nameplate identifies the module as an OUTPUT UNIT
✓ Rated output voltage: 24V DC
✓ Output current rating: 0.5A per Point

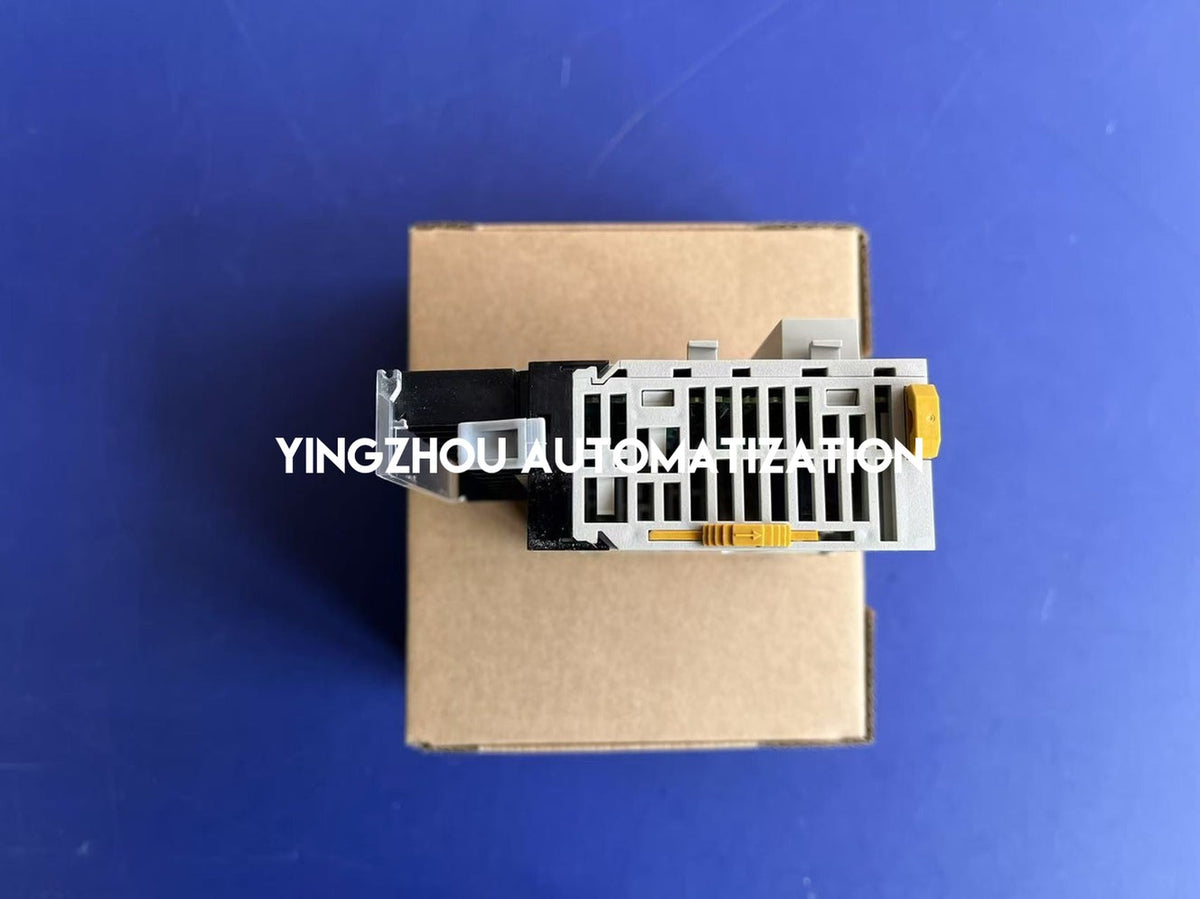

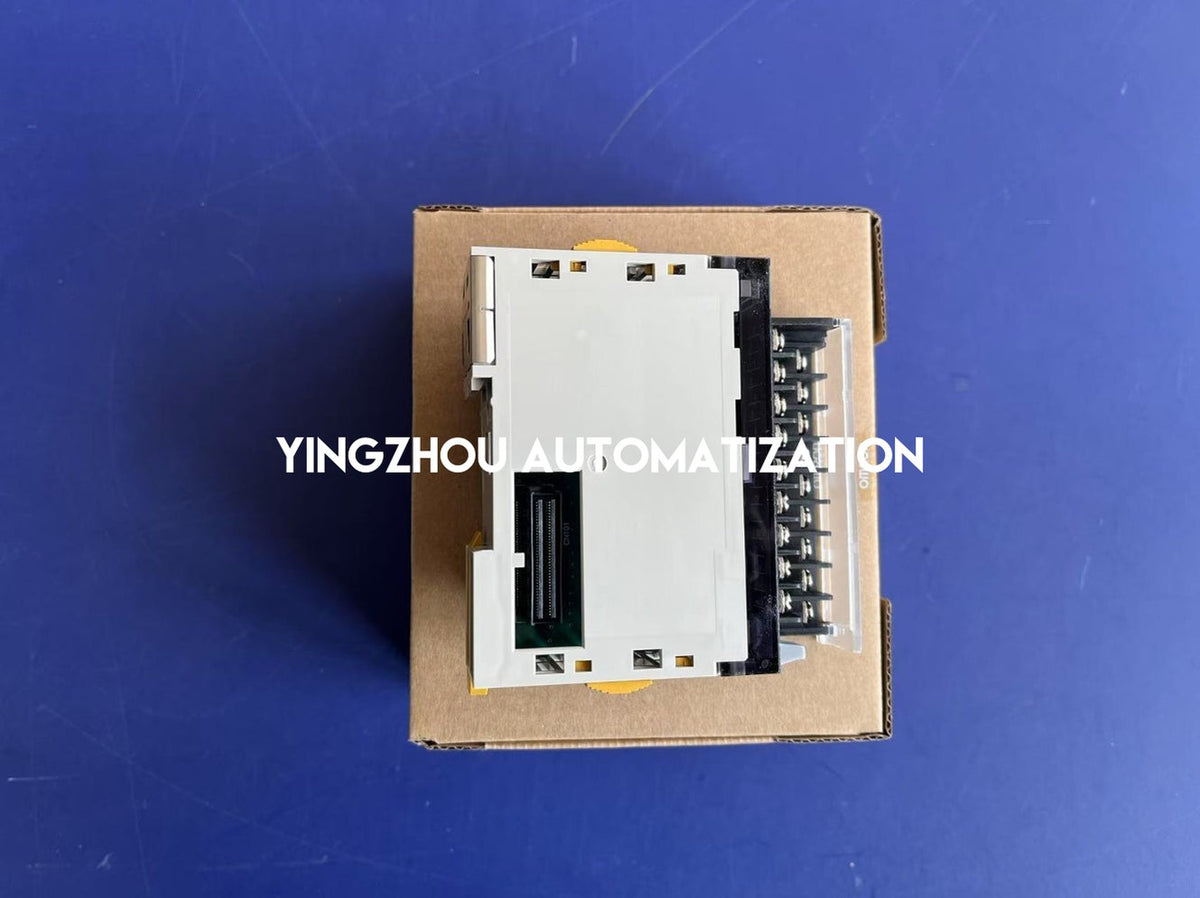

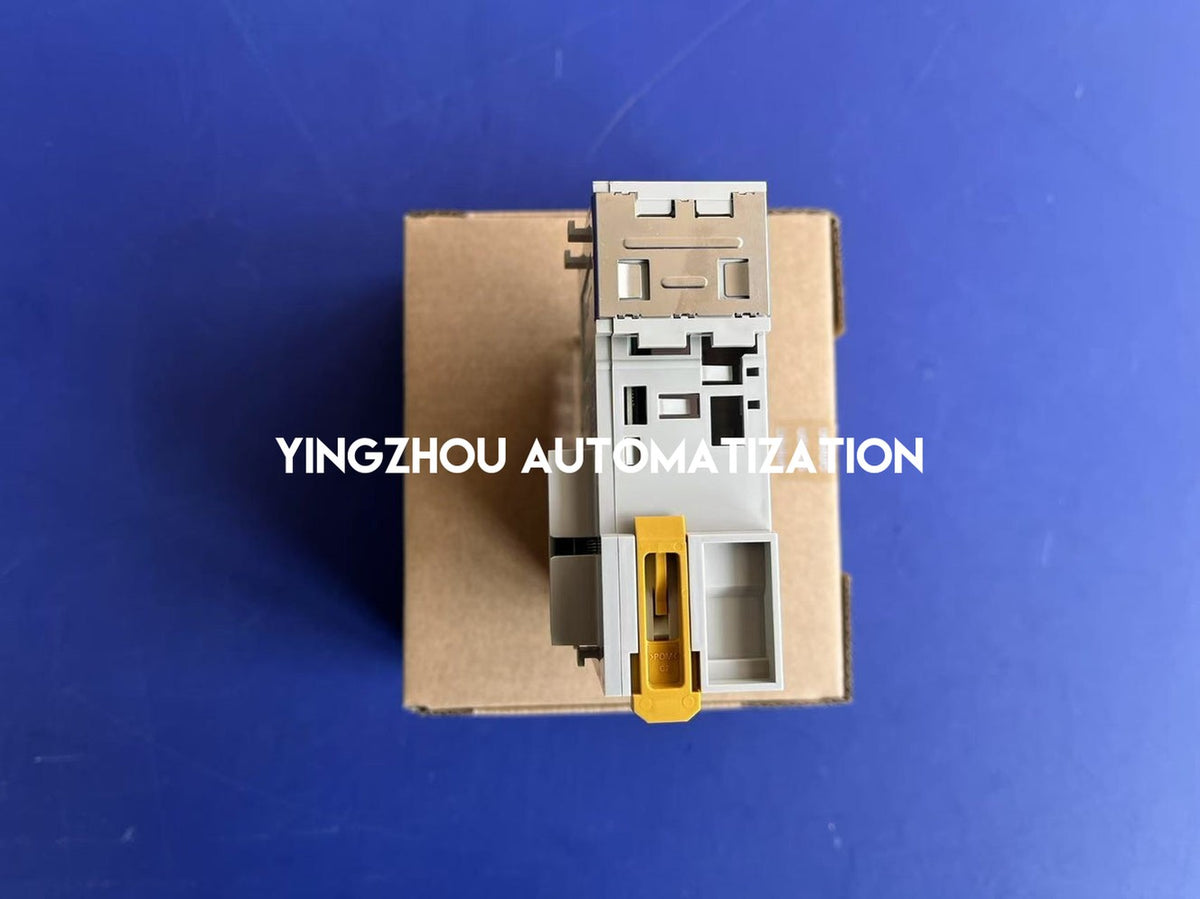

✓ Actual housing and module connector visible
✓ Country of origin marked: Made in China
✓ Physical module model matches the requested catalog number

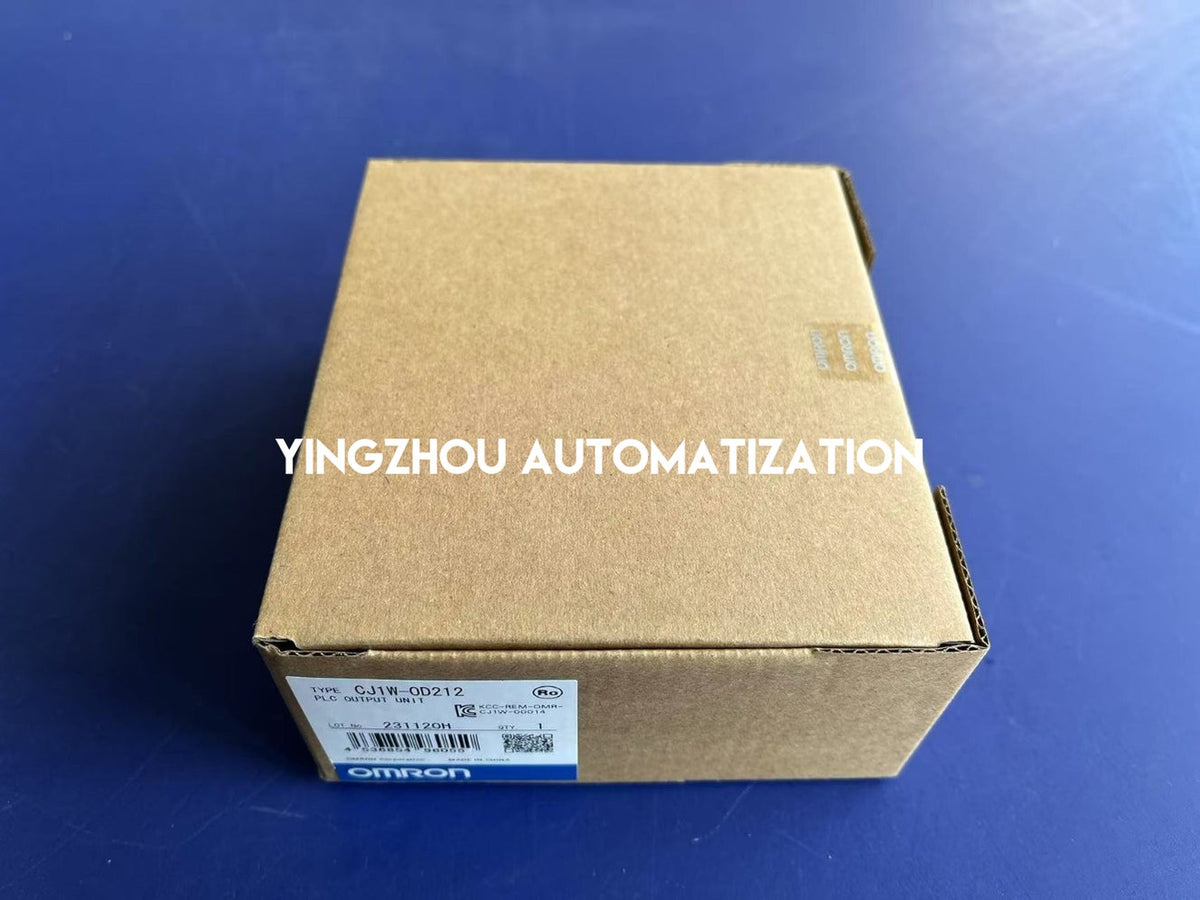

✓ Original carton model label not independently verified
✓ Electrical switching operation not independently tested
✓ Confirm 24V DC external load supply, PNP output wiring and terminal block contents before ordering

In Stock & Available to Order

Omron CJ1W-OD212 is marked in stock based on the supplied inventory information. Actual product photography confirms the exact catalog number and digital output unit identification. This 16-point PNP sourcing transistor output module is offered for industrial PLC maintenance, CJ Series control system expansion and exact-model replacement procurement. Please confirm the required quantity, 24V DC output supply, PNP sourcing configuration, 0.5A per-channel rating and 5.0A total unit current limit before ordering. The CJ1W-OD212 must not be confused with the NPN sinking CJ1W-OD211 variant or relay output modules. Final PLC compatibility, terminal accessories and electrical testing requirements should be confirmed before shipment.

IN STOCK

Omron CJ1W-OD212

Contact us for exact-model verification, multiple units and industrial PLC module sourcing. Please confirm your CJ Series PLC model, PNP sourcing requirements, 24V DC load supply and output current specifications before ordering.
