FESTO VMPA1-M1H-KS-PI 556838 2×3/2-Way Normally Closed Solenoid Valve 24V DC 230 L/min

FESTO VMPA1-M1H-KS-PI 556838 2×3/2-Way Normally Closed Solenoid Valve 24V DC 230 L/min

$58.99 USD
$58.99 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

FESTO VMPA1-M1H-KS-PI 556838 Solenoid Valve

2x3/2-Way Normally Closed | 24V DC | 230 l/min | IP65
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Model and Part Number Verified
Specification Verified Product Data
Manufacturer FESTO
Catalog Number VMPA1-M1H-KS-PI
Part Number 556838
Product Family VMPA1
Product Type Pneumatic Solenoid Valve
Valve Function 2x3/2-way, Normally Closed, Monostable
Type of Actuation Electrical
Valve Size 10 mm
Standard Nominal Flow Rate 230 l/min
Standard Nominal Flow with QS-6 230 l/min
Operating Voltage 24V DC
Operating Pressure -0.9 to 8 bar
Structural Design Piston Gate Valve
Reset Method Mechanical Spring
Type of Piloting Pilot-actuated
Pilot Pressure 3-8 bar
Sealing Principle Soft
Flow Direction Reversible
Valve Lap Overlap
Suitability for Vacuum Yes
Manual Override Detenting / Non-detenting
Signal Status Display Yes
Switching Time - ON 14 ms
Switching Time - OFF 16 ms
Max. Positive Test Pulse at Signal 0 400 microseconds
Max. Negative Test Pulse at Signal 1 200 microseconds
Permissible Voltage Fluctuation +/-25%
Degree of Protection IP65 to IEC 60529
Mounting Position Any
Mounting Type With Through-hole
Max. Valve Mounting Torque 0.25 Nm
Operating Medium Compressed Air per ISO 8573-1:2010 [7:4:4]
Lubricated Operation Possible; Continued Lubrication Required Thereafter
Ambient Temperature -5°C to +50°C
Medium Temperature -5°C to +50°C
Storage Temperature -20°C to +40°C
Relative Humidity Maximum 90% at 40°C
Corrosion Resistance Class CRC 1 - Low Corrosion Stress
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Product Weight 56 g
Housing Material Die-cast Aluminium
Seal Material NBR
Materials Compliance RoHS-compliant
Approval cULus Recognized (OL)
Packaging Quantity 1 Piece - Actual Packaging Label
Country of Origin Made in China - Actual Packaging Label

Product Overview

The FESTO VMPA1-M1H-KS-PI, manufacturer part number 556838, is a 2x3/2-way normally closed monostable pneumatic solenoid valve from the FESTO VMPA1 series. It combines two normally closed directional valve functions with 24V DC electrical actuation and mechanical spring return. The manufacturer specifies a 10 mm valve size, 230 l/min standard nominal flow rate and an operating pressure range of -0.9 to 8 bar. The valve is pilot-actuated with a specified 3 to 8 bar pilot pressure. It features a reversible flow direction, a positive overlap configuration and suitability for vacuum under the manufacturer's operating conditions. Switching times are specified as 14 ms ON and 16 ms OFF, with an operating voltage tolerance of +/-25%. The valve has an IP65 protection rating to IEC 60529, subject to correct installation. Its housing is manufactured from die-cast aluminium with NBR seals, and its specified product weight is 56 g. The supplied actual photographs show a FESTO valve body marked 556838 and original packaging labeled VMPA1-M1H-KS-PI, material number 556838. Please confirm electrical connection, valve terminal compatibility and supplied installation accessories before ordering.

Key Product Features

  • FESTO VMPA1 Solenoid Valve — Manufacturer model VMPA1-M1H-KS-PI, part number 556838.
  • Dual 3/2-way Normally Closed Function — Two normally closed monostable directional valve functions.
  • 24V DC Electrical Actuation — Manufacturer-rated voltage with +/-25% permissible fluctuation.
  • 230 l/min Nominal Flow — Standardized manufacturer flow rating according to DIN 1343.
  • -0.9 to 8 bar Operating Pressure — Pilot-operated valve with a specified 3-8 bar pilot pressure.
  • Mechanical Spring Return — Manufacturer-specified monostable resetting mechanism.
  • IP65 Protection and Fast Switching — Manufacturer-rated IP65 with 14 ms ON and 16 ms OFF switching times.

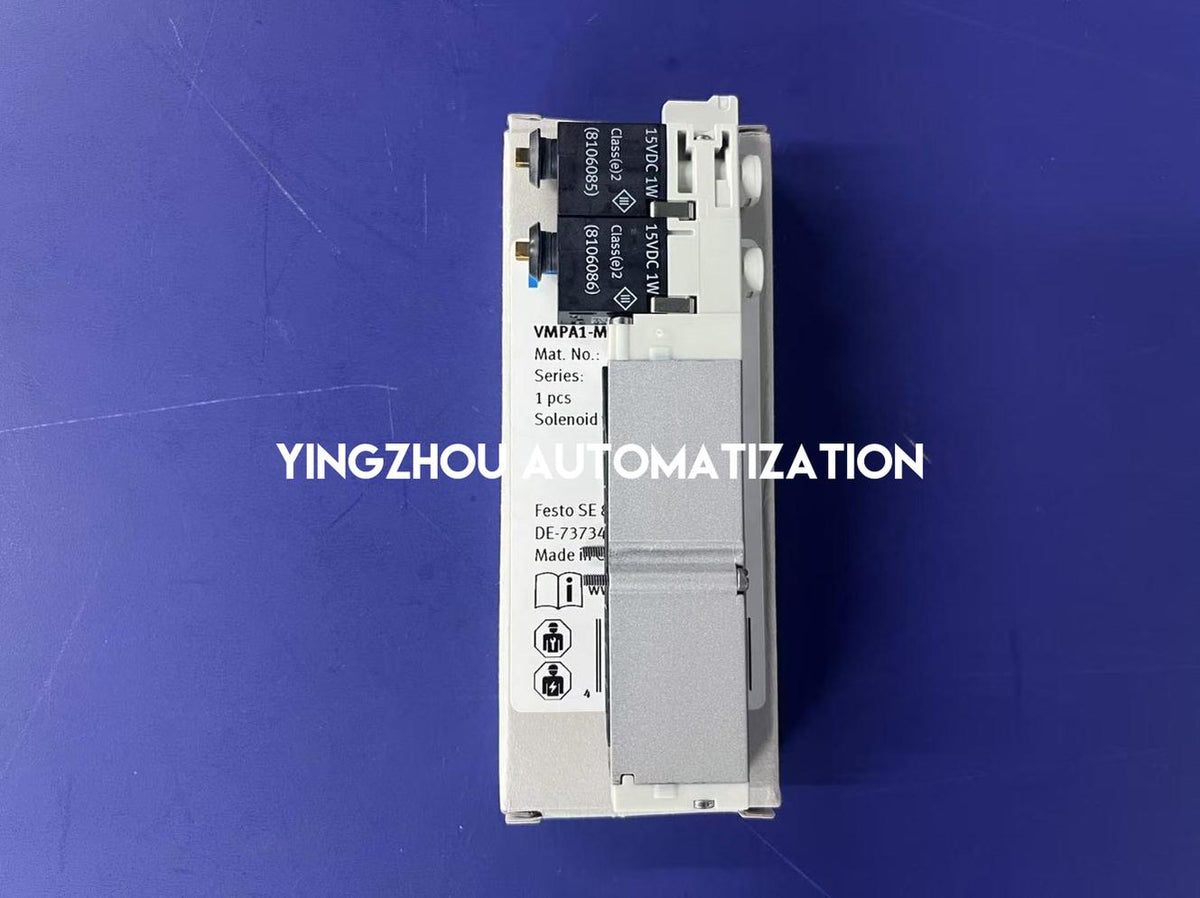

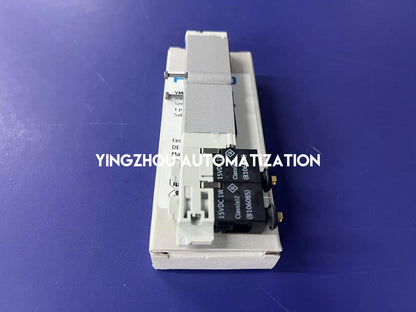

Actual Product Verification

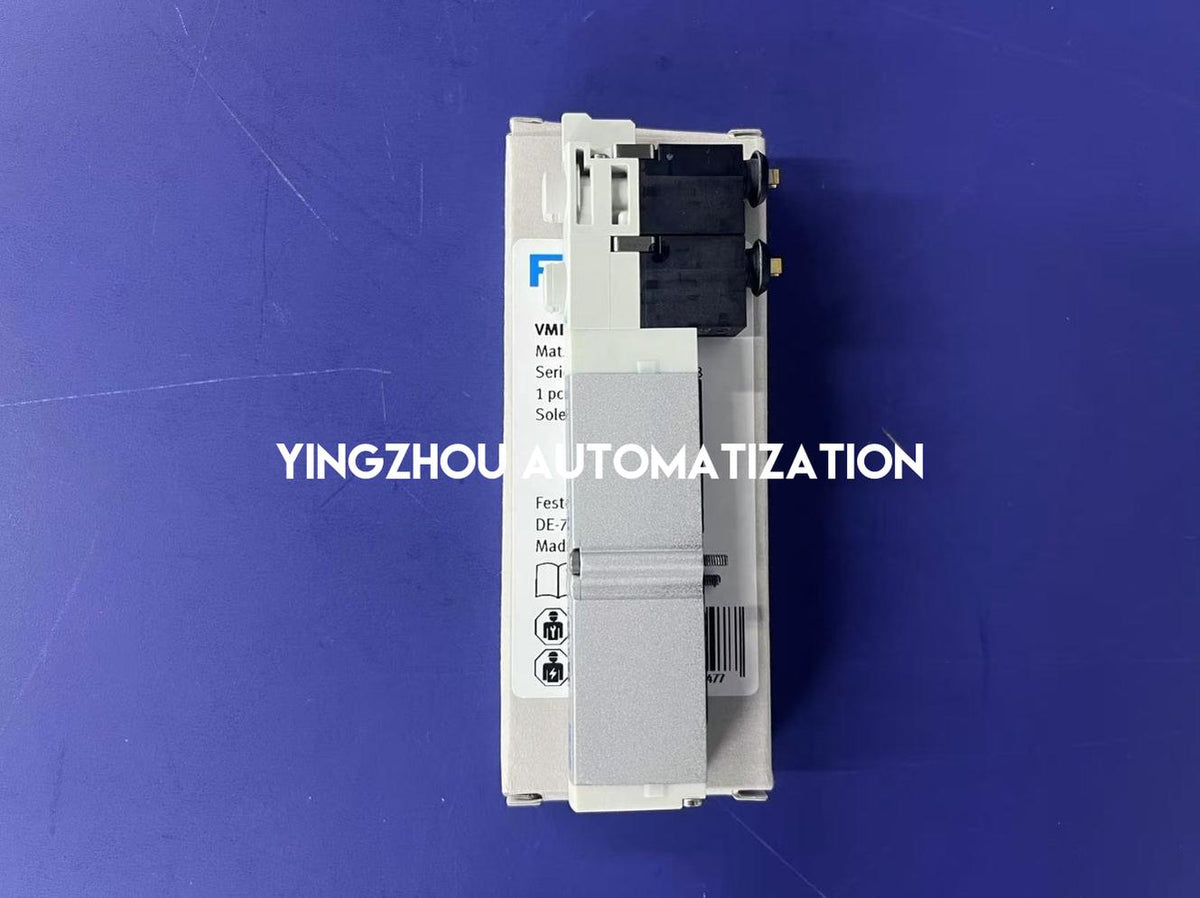

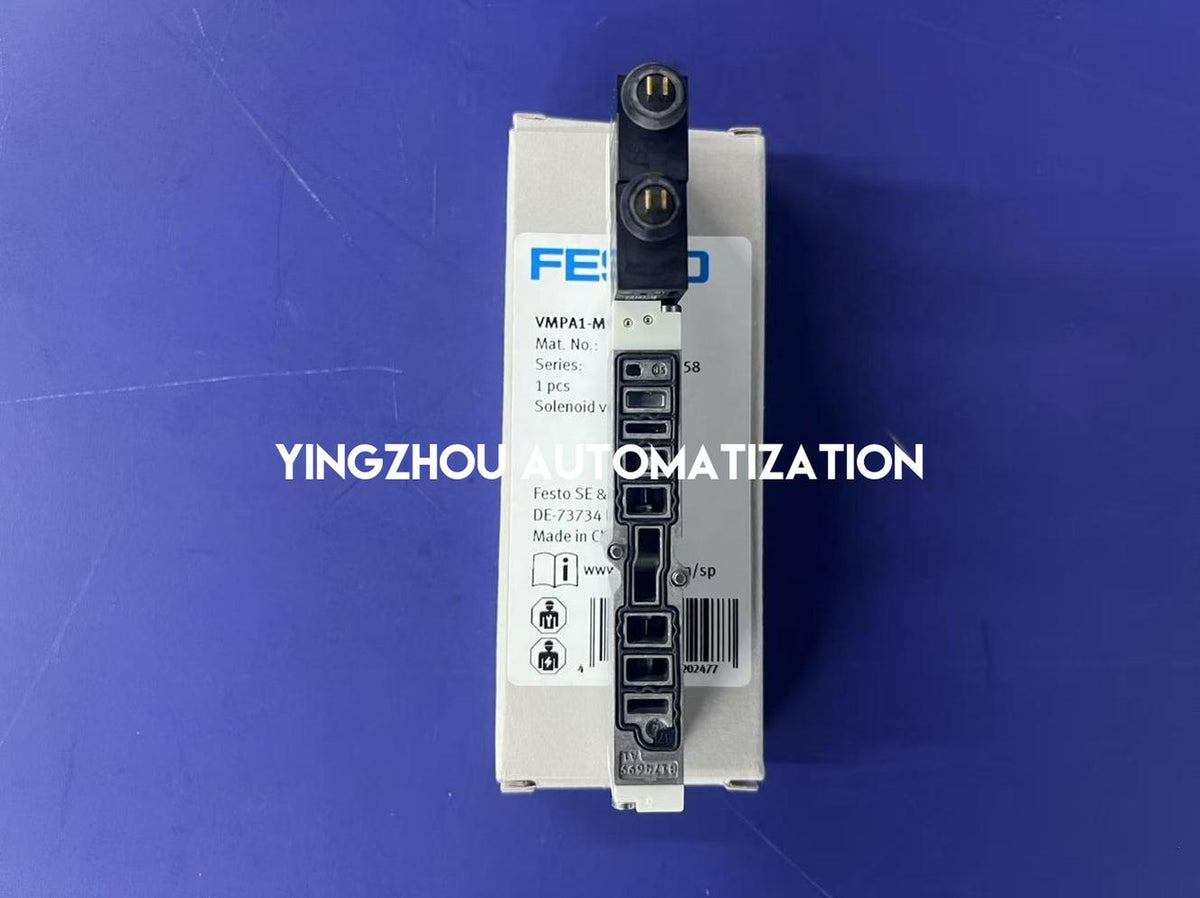

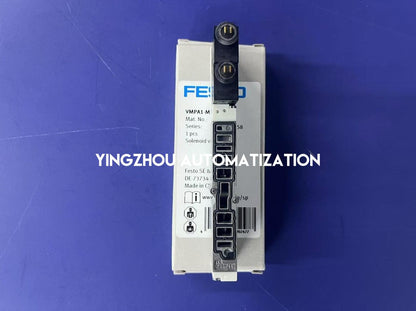

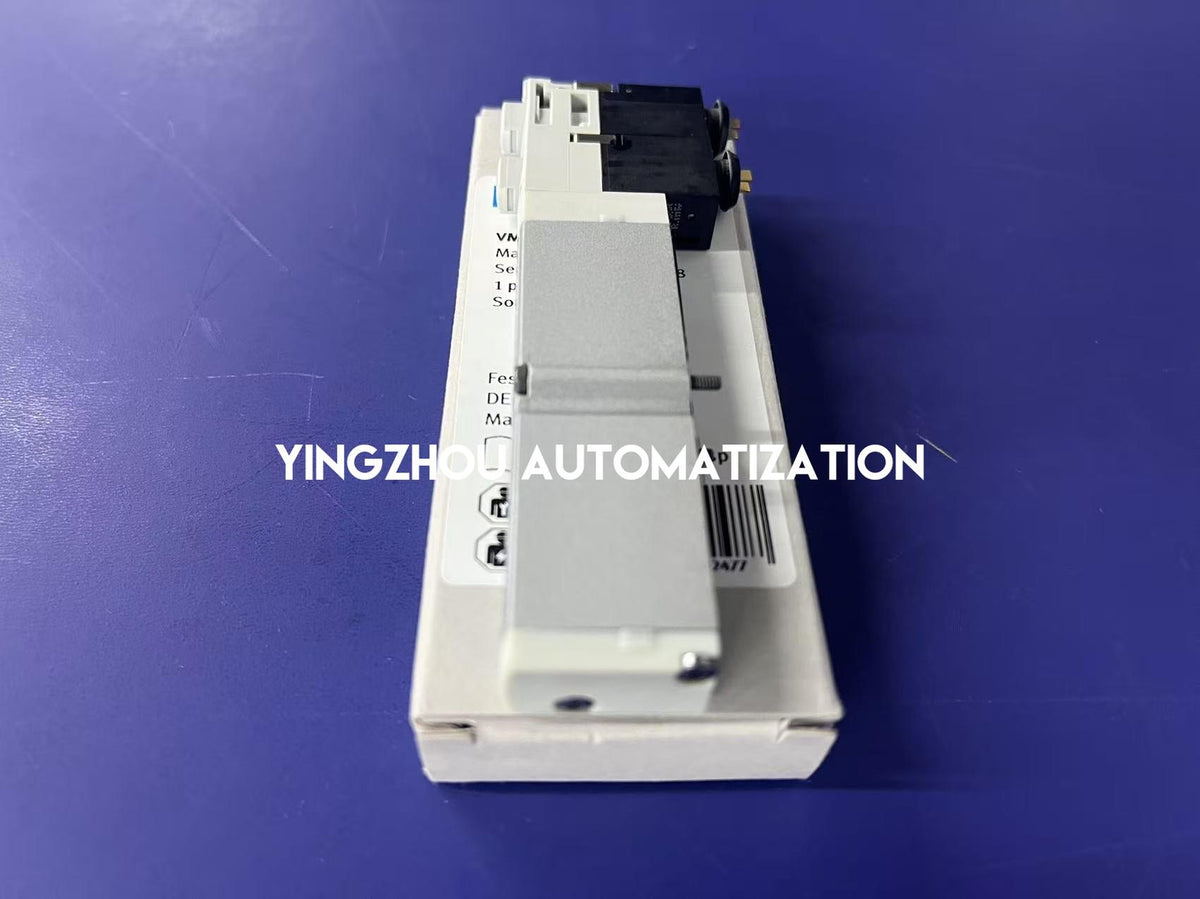

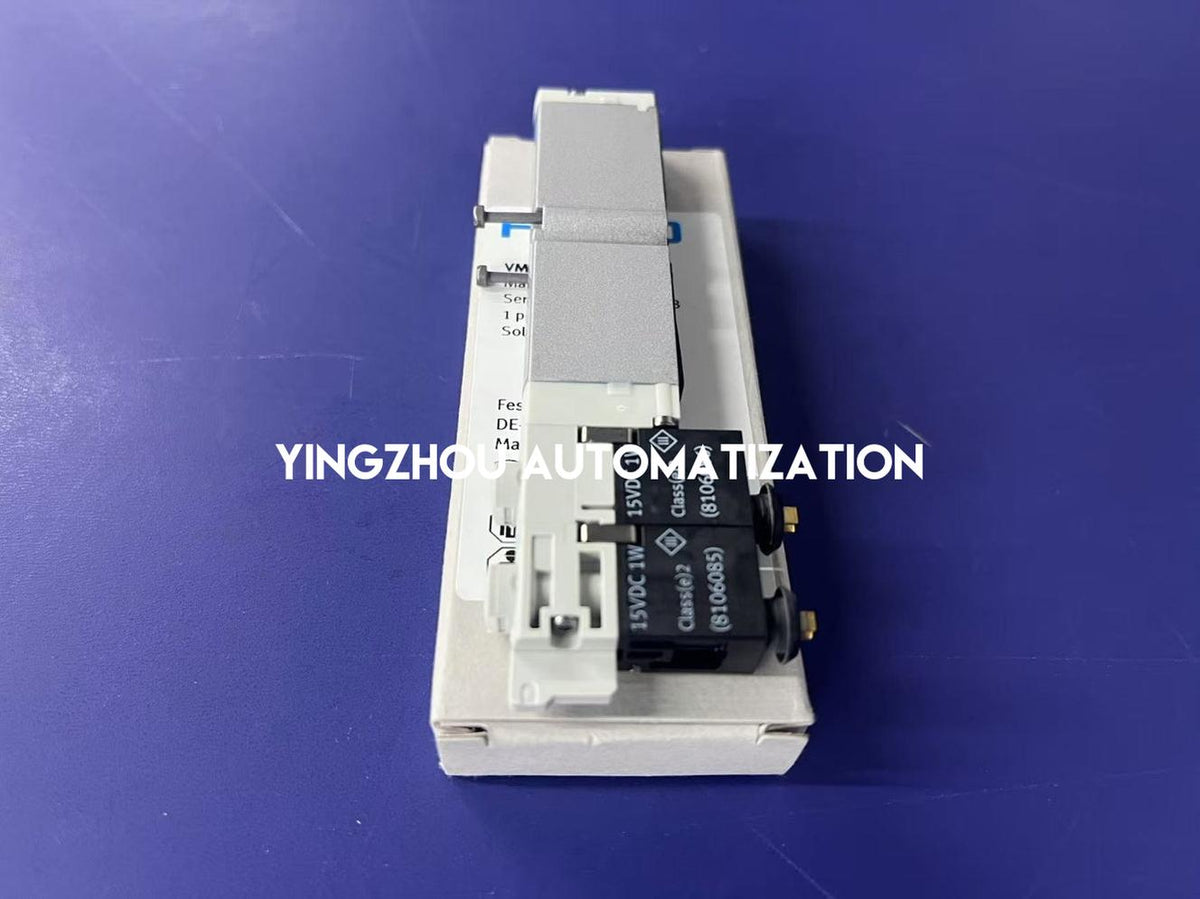

✓ Actual valve body photograph supplied

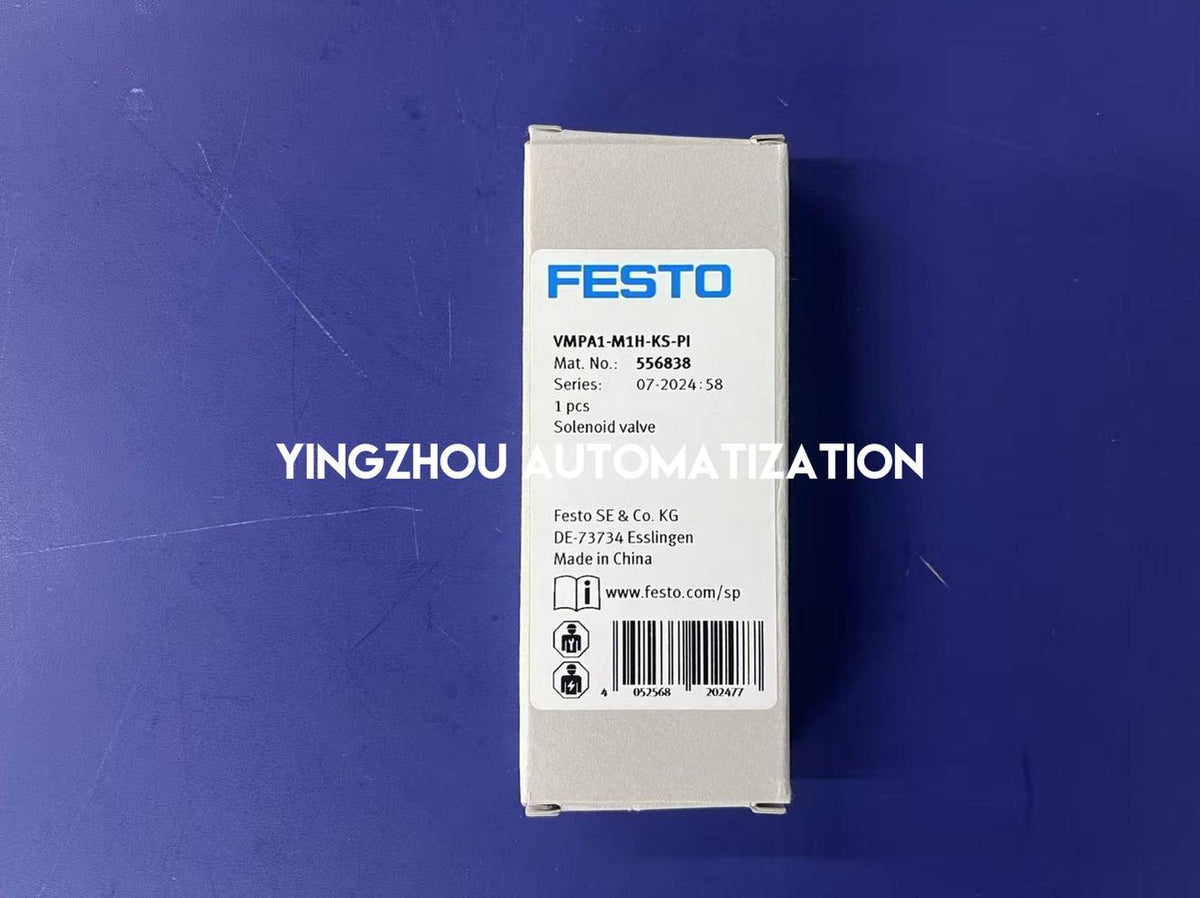

✓ Actual manufacturer packaging photograph supplied
✓ Packaging manufacturer: FESTO
✓ Packaging catalog number: VMPA1-M1H-KS-PI
✓ Packaging material number: 556838

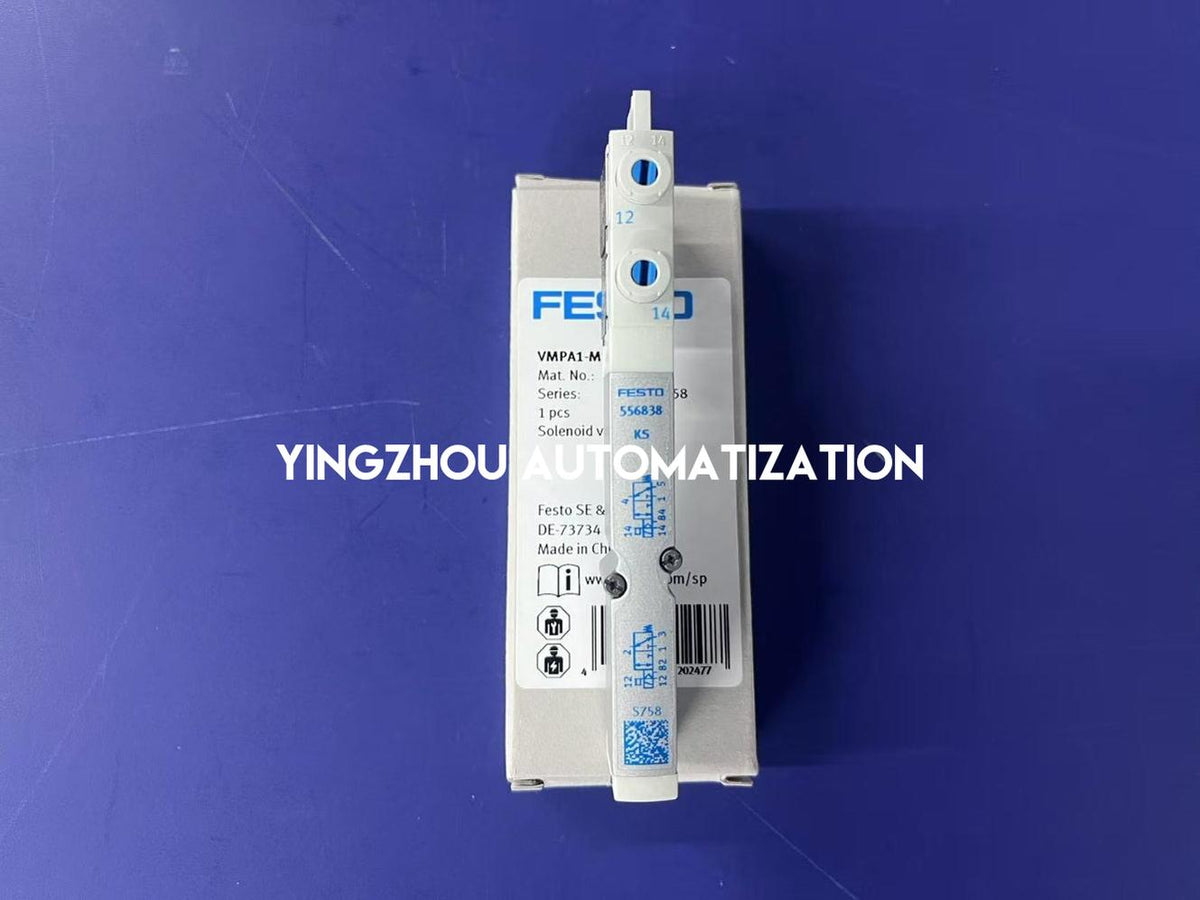

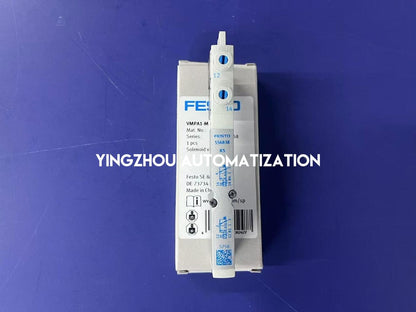

✓ Valve body material number: 556838
✓ Visible valve body marking: KS
✓ Visible pneumatic port markings: 12 / 14
✓ Packaging series marking: 07-2024:58
✓ Packaging description: Solenoid Valve
✓ Packaging quantity: 1 Piece
✓ Packaging country-of-origin marking: Made in China

In Stock & Available to Order

FESTO VMPA1-M1H-KS-PI 556838 is marked in stock based on the supplied inventory information. This dual 3/2-way normally closed pneumatic solenoid valve is available for industrial automation procurement, pneumatic equipment maintenance and exact-model replacement requirements. Actual product and packaging photographs confirm the matching manufacturer part number, with one piece indicated on the original packaging. Please verify the required quantity, 24V DC supply, dual normally closed valve function, pilot pressure, compatible MPA valve terminal and any required electrical and mounting accessories before completing an order.

IN STOCK

FESTO VMPA1-M1H-KS-PI 556838

Contact us for exact-model verification, multiple units and project sourcing. Please confirm the dual 3/2-way normally closed configuration, 24V DC operating voltage, pneumatic pilot requirements and valve terminal compatibility before ordering.
