FESTO QS-1/4-10-50 130679 Straight Push-in Fitting R1/4 Male Thread 10mm Tube OD

FESTO QS-1/4-10-50 130679 Straight Push-in Fitting R1/4 Male Thread 10mm Tube OD

$1.09 USD
$1.09 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

FESTO QS-1/4-10-50 130679 Push-in Fitting

R1/4 Male Thread | 10mm Tube OD | Straight Connector
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Packaging Model Verified
Specification Verified Product Data
Manufacturer FESTO
Catalog Number QS-1/4-10-50
Part Number 130679
Product Family QS
Product Type Straight Push-in Fitting
Size Standard
Nominal Size 8.5 mm
Tubing Insertion Depth 20.7 mm
Seal on Screwed Plug Coating
Mounting Position Any
Design Straight
Manufacturer Pack Size 50 Pieces
Connection Principle Push-pull
Operating Pressure, Full Temperature Range -0.095 to 0.6 MPa / -0.95 to 6 bar
Temperature-dependent Operating Pressure -0.095 to 1.4 MPa / -0.95 to 14 bar
Water Operating Limit Maximum 6 bar at Maximum 50°C
Operating Medium Compressed Air to ISO 8573-1:2010 [7:-:-]
Additional Operating Medium Liquid, Ice-free Water
Lubricated Operation Possible
Corrosion Resistance Class CRC 1 - Low Corrosion Stress
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Cleanroom Suitability Class 4 per ISO 14644-1, Measured per ISO 14644-14
Ambient Temperature -10°C to +80°C
Product Weight 19 g
Mounting Type External Hexagon SW17
Pneumatic Connection, Port 1 Male Thread R1/4
Pneumatic Connection, Port 2 For Tubing Outside Diameter 10 mm
Release Ring Color Blue
Housing Material Nickel-plated Brass
Release Ring Material POM
Tubing Seal Material NBR
Tubing Clamping Component High-alloy Stainless Steel
Materials Compliance RoHS-compliant
Manufacturer GTIN 4052568024000
Packaging Series 07-2024 - Actual Label
Country of Origin Made in Japan - Actual Packaging Label

Product Overview

The FESTO QS-1/4-10-50, manufacturer part number 130679, is a straight pneumatic push-in fitting designed to connect pneumatic tubing to compatible threaded ports. The fitting has an R1/4 male thread on one end and a push-in connection for tubing with a 10 mm outside diameter on the other. This model features an 8.5 mm nominal size, a 20.7 mm tubing insertion depth and a push-pull connection principle. Its manufacturer-specified pack size is 50 pieces; actual selling quantity should be confirmed separately. FESTO specifies an operating pressure range of -0.95 to 6 bar across the complete temperature range, while the temperature-dependent pressure range extends to -0.95 to 14 bar under the applicable conditions. The fitting is suitable for compressed air meeting ISO 8573-1:2010 [7:-:-] and liquid, ice-free water within the specified limits. For water applications, the maximum operating pressure is 6 bar at a maximum temperature of 50°C. The ambient temperature range is -10°C to +80°C. The housing is made of nickel-plated brass, with POM release rings, NBR tubing seals and high-alloy stainless-steel tubing clamping components. The product weight is 19 g per fitting. The supplied actual photograph shows multiple FESTO straight push-in fittings in manufacturer packaging marked QS-1/4-10-50, material number 130679, with Made in Japan on the packaging label. Please confirm the R1/4 thread, tubing outside diameter, applicable operating pressure and required order quantity before purchasing.

Key Product Features

  • FESTO QS Straight Push-in Fitting — Manufacturer model QS-1/4-10-50, part number 130679.
  • R1/4 Male Thread — Straight threaded fitting for compatible pneumatic ports.
  • 10mm Tubing Compatibility — Push-in connection for pneumatic tubing with 10mm outside diameter.
  • 8.5mm Nominal Size — Manufacturer-specified nominal passage and 20.7mm insertion depth.
  • Push-pull Connection Principle — Convenient tube insertion and release with a blue release ring.
  • -0.95 to 6 Bar Full-temperature Pressure Range — Higher pressures apply only under temperature-dependent conditions.
  • Nickel-plated Brass Housing — POM release ring, NBR tubing seal and stainless-steel tubing clamping components.

Actual Product Verification

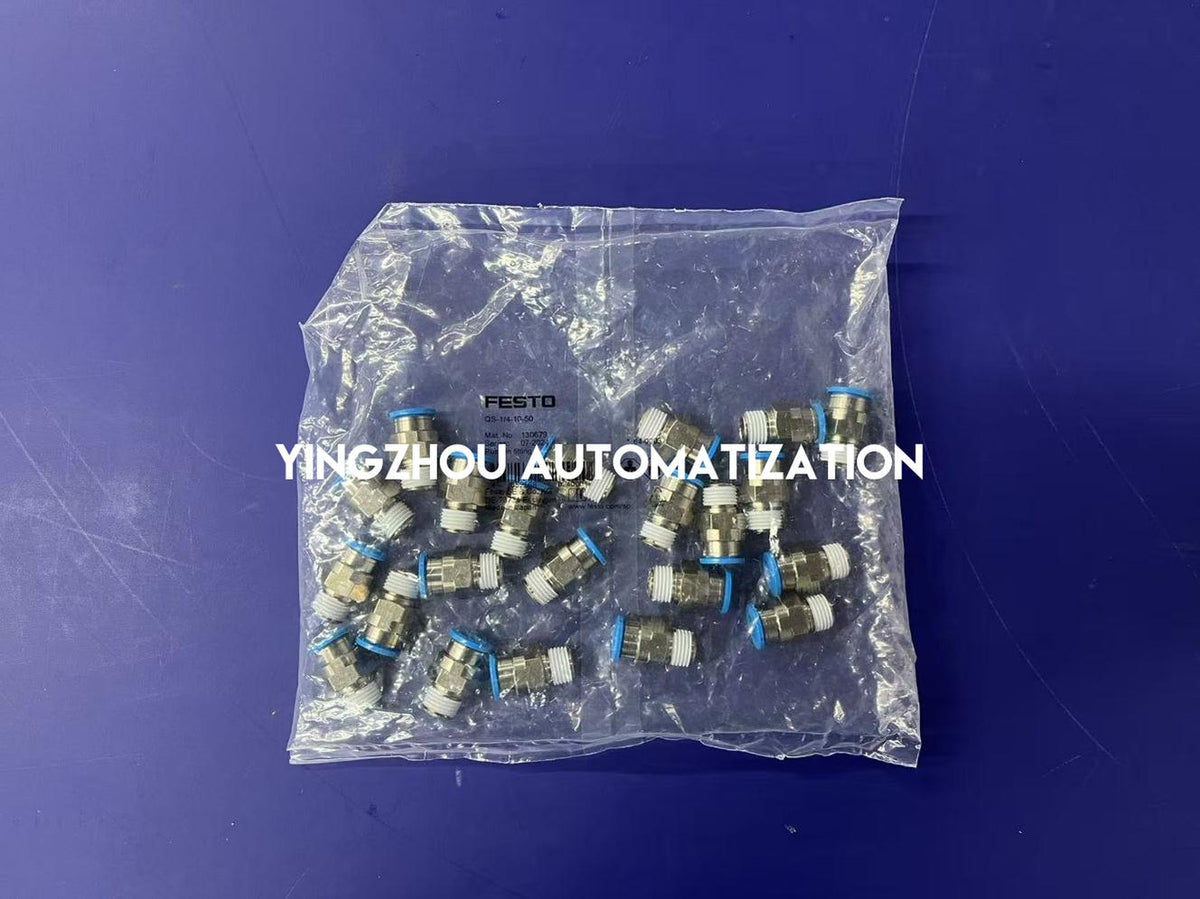

✓ Actual FESTO push-in fittings photograph supplied
✓ Actual manufacturer packaging photograph supplied
✓ Packaging manufacturer: FESTO
✓ Packaging catalog number: QS-1/4-10-50
✓ Packaging material number: 130679
✓ Packaging series marking: 07-2024
✓ Packaging description: Push-in Fitting
✓ Packaging origin marking: Made in Japan
✓ Multiple straight metallic fittings visible through packaging
✓ Blue push-in release rings and threaded ends visible
✓ Complete packaging model and part number match the requested product
✓ Manufacturer pack size: 50 Pieces
✓ Individual fitting body model marking not independently readable
✓ Pneumatic pressure and leakage testing not performed
✓ Actual seller unit of sale to be confirmed before purchase

In Stock & Available to Order

FESTO QS-1/4-10-50 130679 is marked in stock based on the supplied inventory information. This straight pneumatic push-in fitting is offered for compressed-air tubing connections, pneumatic maintenance and exact-model replacement sourcing. The supplied actual photograph confirms the FESTO packaging model and manufacturer part number. Before ordering, please verify the R1/4 male thread, 10 mm tubing outside diameter, required pressure and temperature conditions, and purchasing quantity. The manufacturer specifies a pack size of 50 pieces, while the seller unit of sale should be confirmed separately. Please contact us regarding the quantity and supply arrangement required for your order.

IN STOCK

FESTO QS-1/4-10-50 130679

Contact us for exact-model verification, bulk quantities and project sourcing. Please confirm R1/4 male thread, 10mm tubing outside diameter, operating conditions and required quantity before ordering.
