FESTO PUN-H-6X1-BL 197384 Blue Polyurethane Pneumatic Tubing 6mm OD 4mm ID

FESTO PUN-H-6X1-BL 197384 Blue Polyurethane Pneumatic Tubing 6mm OD 4mm ID

$0.39 USD
$0.39 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

FESTO PUN-H-6X1-BL 197384 Pneumatic Tubing

6mm OD | 4mm ID | Blue TPE-U (PU) | 50m Reel Packaging
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photos  |  Packaging Model Verified
Specification Verified Product Data
Manufacturer FESTO
Catalog Number PUN-H-6X1-BL
Part Number 197384
Product Family PUN-H
Product Type Plastic Pneumatic Tubing
Outside Diameter 6 mm
Inside Diameter 4 mm
Nominal Wall Thickness 1 mm - Model Coding
Tubing Material TPE-U (PU)
Material Type Ether-based Polyurethane
Color Blue
Flow-relevant Bending Radius 26 mm
Minimum Bending Radius 10 mm
Tubing Characteristics Suitable for Energy Chains
Operating Pressure - Entire Temperature Range -0.95 to 6 bar
Temperature-dependent Operating Pressure -0.95 to 10 bar, Subject to Temperature
Water Pressure Note Maximum 3 bar at 0-60°C, Subject to Manufacturer Pressure-Temperature Diagram
Operating Medium Compressed Air per ISO 8573-1:2010 [7:-:-]
Additional Operating Medium Water, Liquid and Ice-free
Ambient Temperature -35°C to +60°C
Product Weight per Meter 0.0183 kg/m
Approximate 50m Tubing Weight 0.915 kg, Excluding Packaging - Calculated
Pneumatic Connection Push-in Fittings for 6mm OD Tubing
Alternative Connection Barbed Fitting for 4mm ID with Union Nut
Shore Hardness D 52 +/-3
Material Fire Test UL94 HB
Certification TÜV
Certificate Issuing Authority B 013277 0527 00
LABS (PWIS) Conformity VDMA24364-B2-L
Li-ion Battery Production Suitability F1a - Reduced Cu/Zn/Ni Requirements
Cleanroom Suitability No Meaningful ISO 14644-1 Evaluation for Statically Installed Element
Food Industry Suitability Refer to Manufacturer Supplementary Material Information
Materials Compliance RoHS-compliant
Manufacturer GTIN 4052568045135
Packaging Length Shown 50 m - Actual Packaging Label
Country of Origin Made in China - Actual Packaging Label

Product Overview

The FESTO PUN-H-6X1-BL, manufacturer part number 197384, is a blue polyurethane pneumatic tubing product from the FESTO PUN-H range. The manufacturer specifies a 6 mm outside diameter and a 4 mm inside diameter, with a nominal 1 mm wall thickness indicated by the catalog model. The tubing is manufactured from ether-based TPE-U (PU) material and is suitable for flexible pneumatic connections, including applications involving energy chains. It features a minimum bending radius of 10 mm and a flow-relevant bending radius of 26 mm. Operating pressure is specified at -0.95 to 6 bar across the entire temperature range, with temperature-dependent pressure ratings up to 10 bar under the manufacturer's stated conditions. The specified ambient temperature range is -35°C to +60°C. The tubing is intended for compressed air and may also be used with liquid, ice-free water under the applicable pressure and temperature requirements. Its specified weight is 0.0183 kg per meter. The supplied actual packaging photograph shows a FESTO carton labeled PUN-H-6X1-BL, material number 197384, with a 50 m packaging length indication. The tubing inside the carton has not been directly inspected in the supplied photograph. Please confirm the required order length, sales unit and fitting compatibility before purchasing.

Key Product Features

  • FESTO PUN-H Pneumatic Tubing — Manufacturer catalog model PUN-H-6X1-BL, part number 197384.
  • 6mm Outside and 4mm Inside Diameter — Manufacturer-specified tubing dimensions.
  • Ether-based Polyurethane Material — Flexible blue TPE-U (PU) tubing construction.
  • 10mm Minimum Bending Radius — Flow-relevant bending radius of 26mm.
  • Pressure and Temperature Performance — Up to 6 bar across the full specified temperature range, with temperature-dependent ratings up to 10 bar.
  • -35°C to +60°C Ambient Range — Manufacturer-specified ambient temperature limits.
  • Suitable for Energy Chains — Manufacturer-confirmed tubing characteristic for flexible pneumatic routing.

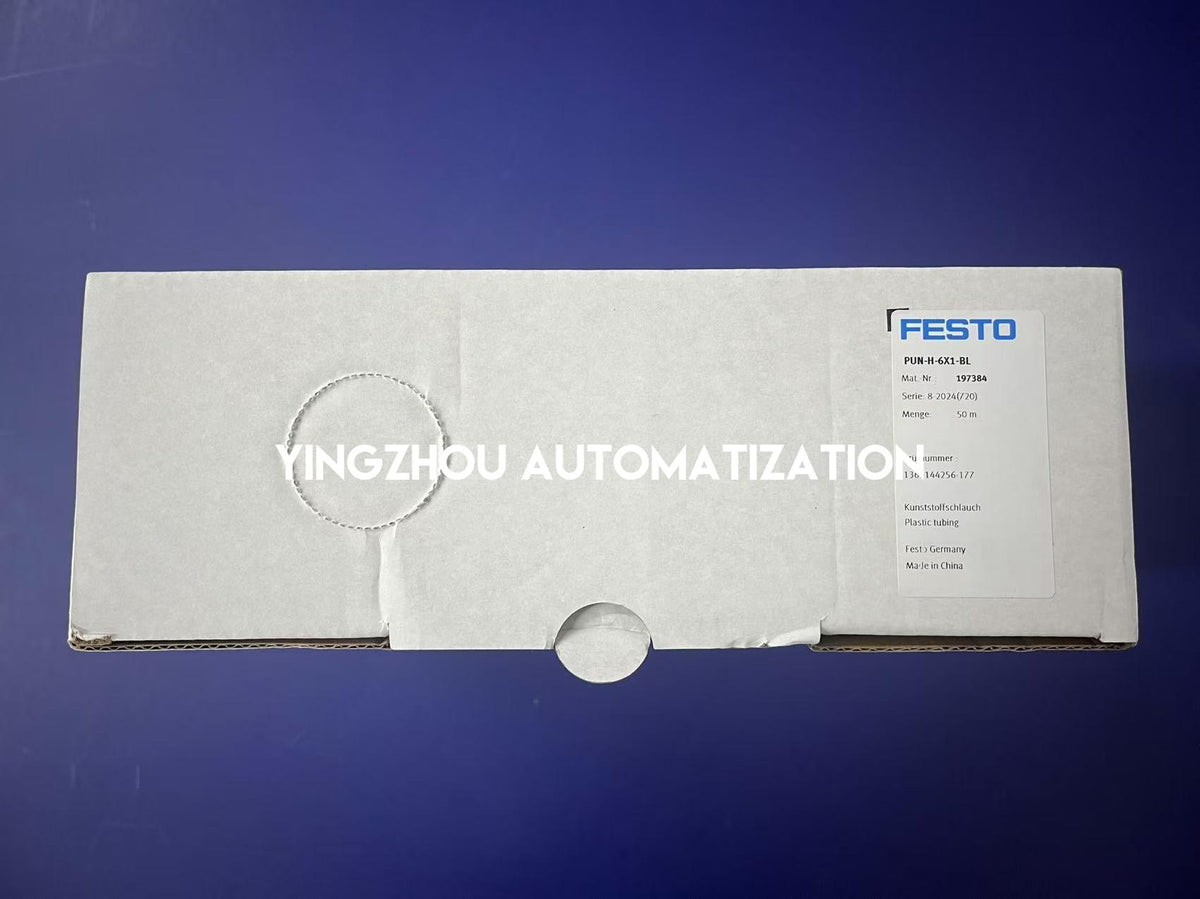

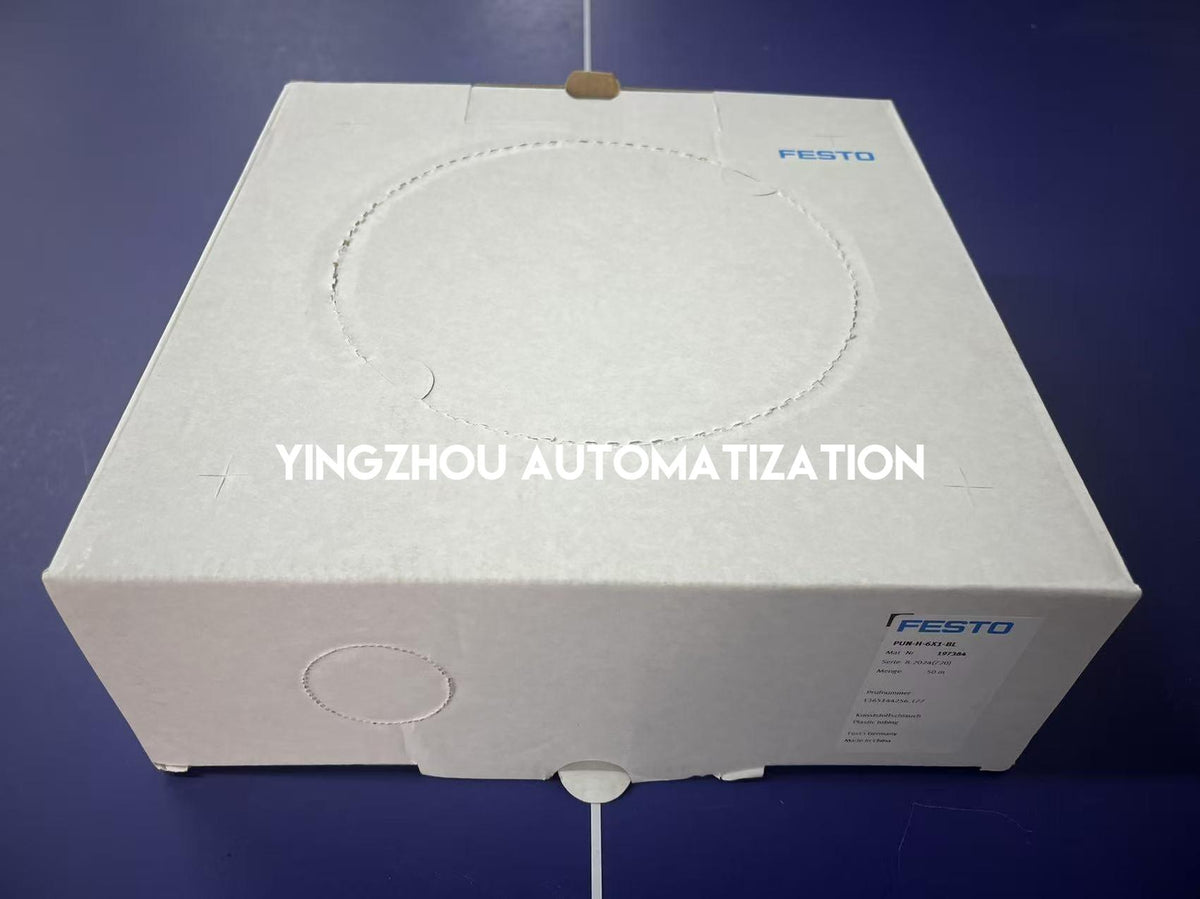

Actual Product Verification

✓ Actual manufacturer packaging photograph supplied
✓ Packaging manufacturer: FESTO
✓ Packaging catalog number: PUN-H-6X1-BL
✓ Packaging material number: 197384
✓ Packaging series marking: 8-2024(720)
✓ Packaging product description: Plastic Tubing
✓ Packaging length marking: 50 m
✓ Manufacturer-specified tubing color: Blue
✓ Packaging country-of-origin marking: Made in China
✓ Packaging model and material number match the requested product
✓ Actual tubing body and remaining reel length are not independently verified

In Stock & Available to Order

FESTO PUN-H-6X1-BL 197384 is marked in stock based on the supplied inventory information. This blue polyurethane pneumatic tubing is offered for industrial compressed-air connections, pneumatic equipment maintenance and automation sourcing. The actual packaging photograph shows a FESTO carton marked with the complete catalog model, manufacturer part number and 50 m packaging length. Please confirm the required order length, whether the product is sold by the meter or as a complete reel, the 6 mm outside diameter, compatible pneumatic fittings and operating pressure requirements before completing an order. Cut-length availability and actual tubing condition remain subject to confirmation.

IN STOCK

FESTO PUN-H-6X1-BL 197384

Contact us for exact-model verification, order quantities and project sourcing. Please confirm the required tubing length, 6mm outside diameter, compatible pneumatic fittings and whether a complete 50m reel or cut length is needed before ordering.

Request Bulk Pricing
