FESTO DFM-12-80-P-A-GF 170830 Double Acting Guided Drive 12mm Bore 80mm Stroke Plain Bearing

FESTO DFM-12-80-P-A-GF 170830 Double Acting Guided Drive 12mm Bore 80mm Stroke Plain Bearing

$71.99 USD
$71.99 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

FESTO DFM-12-80-P-A-GF 170830 Guided Drive

Double-acting | 12mm Bore | 80mm Stroke | Plain-bearing Guide
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photos  |  Exact Model Verified
Specification Verified Product Data
Manufacturer FESTO
Catalog Number DFM-12-80-P-A-GF
Part Number 170830
Product Family DFM
Product Type Pneumatic Guided Drive
Piston Diameter 12 mm
Stroke 80 mm
Operating Mode, Drive Unit Yoke
Mode of Operation Double-acting
Guide Type Plain-bearing Guide
Structural Design Guide
Cushioning Elastic Cushioning Rings / Pads at Both Ends
Position Detection Via Proximity Switch
Proximity Switch Included Not Confirmed
Operating Pressure 0.2-1 MPa / 2-10 bar
Maximum Speed 0.8 m/s
Mounting Position Any
Pneumatic Connection M5
Operating Medium Compressed Air per ISO 8573-1:2010 [7:4:4]
Lubricated Operation Possible; Continued Lubrication Required Thereafter
Ambient Temperature -20°C to +80°C
Corrosion Resistance Class CRC 1 - Low Corrosion Stress
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Cleanroom Suitability Class 6 per ISO 14644-1, Measured According to ISO 14644-14
Impact Energy at End Positions 0.07 Nm - Manufacturer Datasheet
Load Centre-of-Gravity Distance xs 25 mm
Maximum Force Fy 240 N
Maximum Static Force Fy 240 N
Maximum Force Fz 240 N
Maximum Static Force Fz 240 N
Maximum Moment Mx 4.92 Nm
Maximum Static Moment Mx 4.92 Nm
Maximum Moment My 3.74 Nm
Maximum Static Moment My 3.74 Nm
Maximum Moment Mz 3.74 Nm
Maximum Static Moment Mz 3.74 Nm
Maximum Permissible Torque Load Mx at Specified Stroke 0.55 Nm
Maximum Effective Load at Defined xs 22 N
Theoretical Advance Force at 6 bar 68 N
Theoretical Return Force at 6 bar 51 N
Moving Mass 289 g
Product Weight 688 g
Cover Material Wrought Aluminium Alloy
Housing Material Wrought Aluminium Alloy
Piston Rod Material High-alloy Stainless Steel
Seal Material NBR
Materials Compliance RoHS-compliant
Manufacturer GTIN 4052568013127
Packaging Series 09-2024:58 - Actual Label
Country of Origin Made in China - Actual Packaging Label

Product Overview

The FESTO DFM-12-80-P-A-GF, manufacturer part number 170830, is a double-acting pneumatic guided drive from the FESTO DFM series. It features a 12 mm piston diameter, an 80 mm stroke and a plain-bearing guide with a guided yoke plate for linear movement. The manufacturer specifies an operating pressure range of 2 to 10 bar, a maximum speed of 0.8 m/s and an M5 pneumatic connection. Elastic cushioning rings or pads are provided at both ends for end-position operation. Position detection is supported via compatible proximity switches, which are not confirmed as included. At 6 bar, the manufacturer specifies a 68 N theoretical advance force and a 51 N theoretical return force. The specified maximum effective load is 22 N under the manufacturer's defined stroke and 25 mm load centre-of-gravity distance conditions. The ambient temperature range is -20°C to +80°C, with CRC 1 corrosion resistance classification. The cover and housing use wrought aluminium alloy, with high-alloy stainless-steel piston rods and NBR seals. The specified product weight is 688 g, while the moving mass is 289 g. The supplied actual photograph shows the protected FESTO guided drive with a matching manufacturer label identifying DFM-12-80-P-A-GF and material number 170830. Please confirm load conditions, mounting requirements, sensors and accessories before ordering.

Key Product Features

  • FESTO DFM Guided Drive — Manufacturer model DFM-12-80-P-A-GF, part number 170830.
  • 12mm Bore and 80mm Stroke — Manufacturer-confirmed guided drive dimensions.
  • Double-acting Pneumatic Operation — Powered advancing and retracting linear movements.
  • Plain-bearing Guide — GF configuration with a guided yoke for linear movement.
  • 2-10 Bar Operating Pressure — Manufacturer-rated pneumatic drive with M5 air connection.
  • Elastic Cushioning at Both Ends — Elastic rings or pads for end-position cushioning.
  • 68N Theoretical Advance Force — Rated at 6 bar, with 51N theoretical return force.

Actual Product Verification

✓ Actual protective packaging photograph supplied

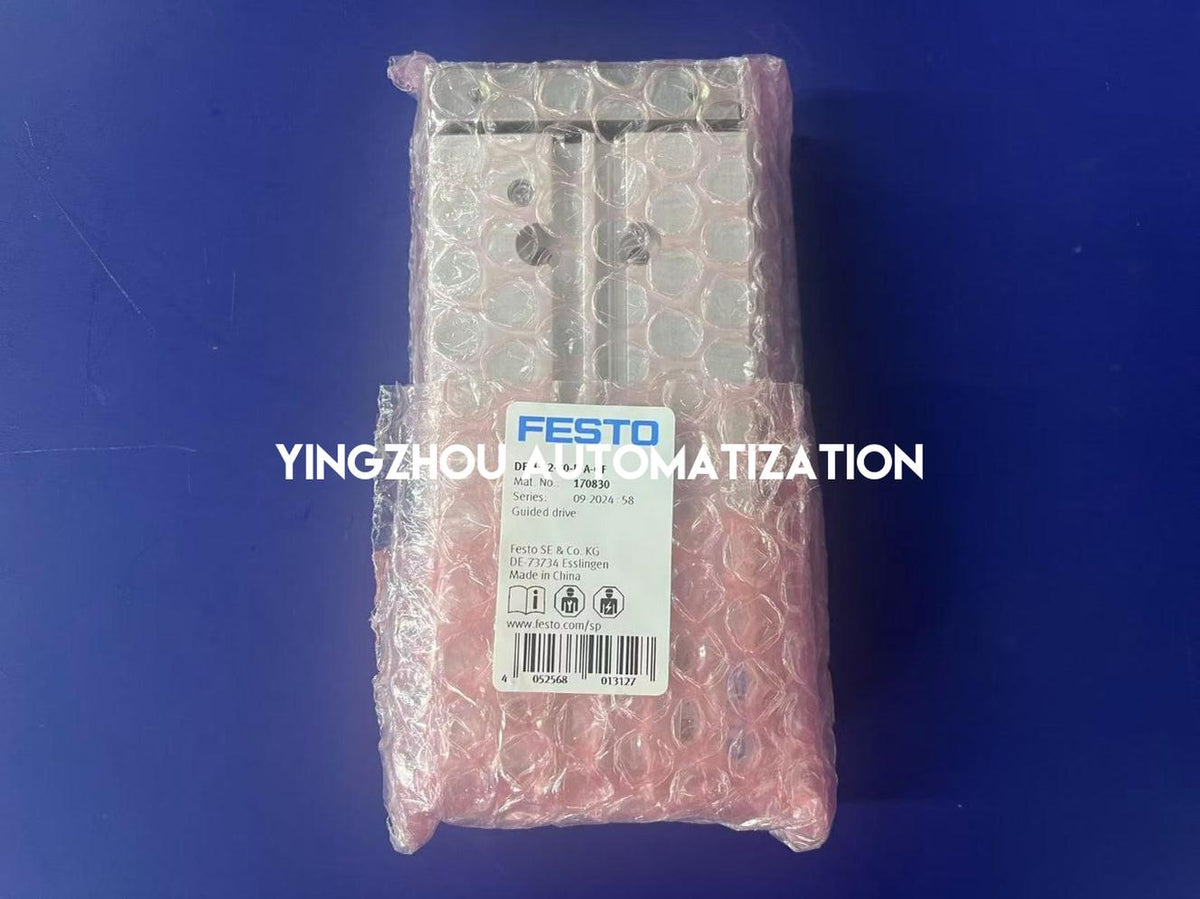

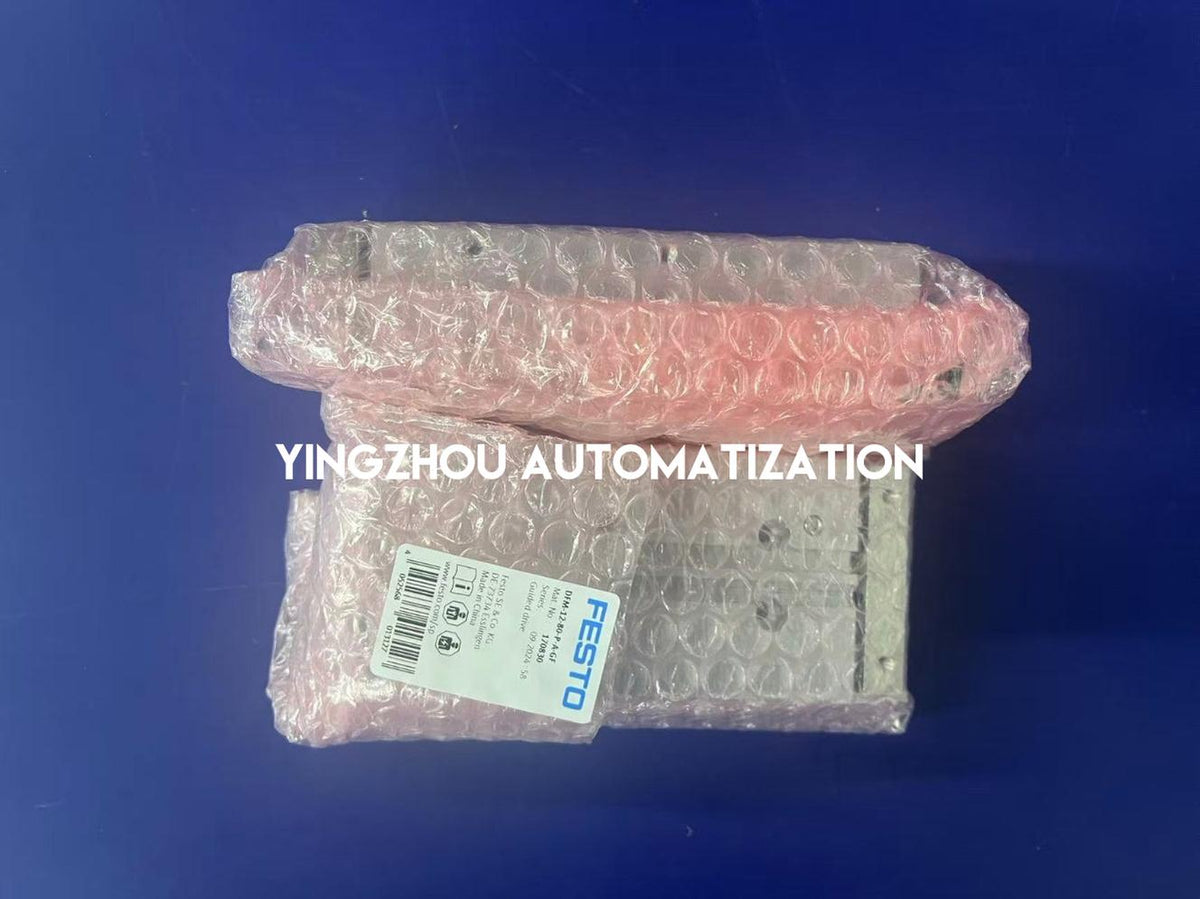

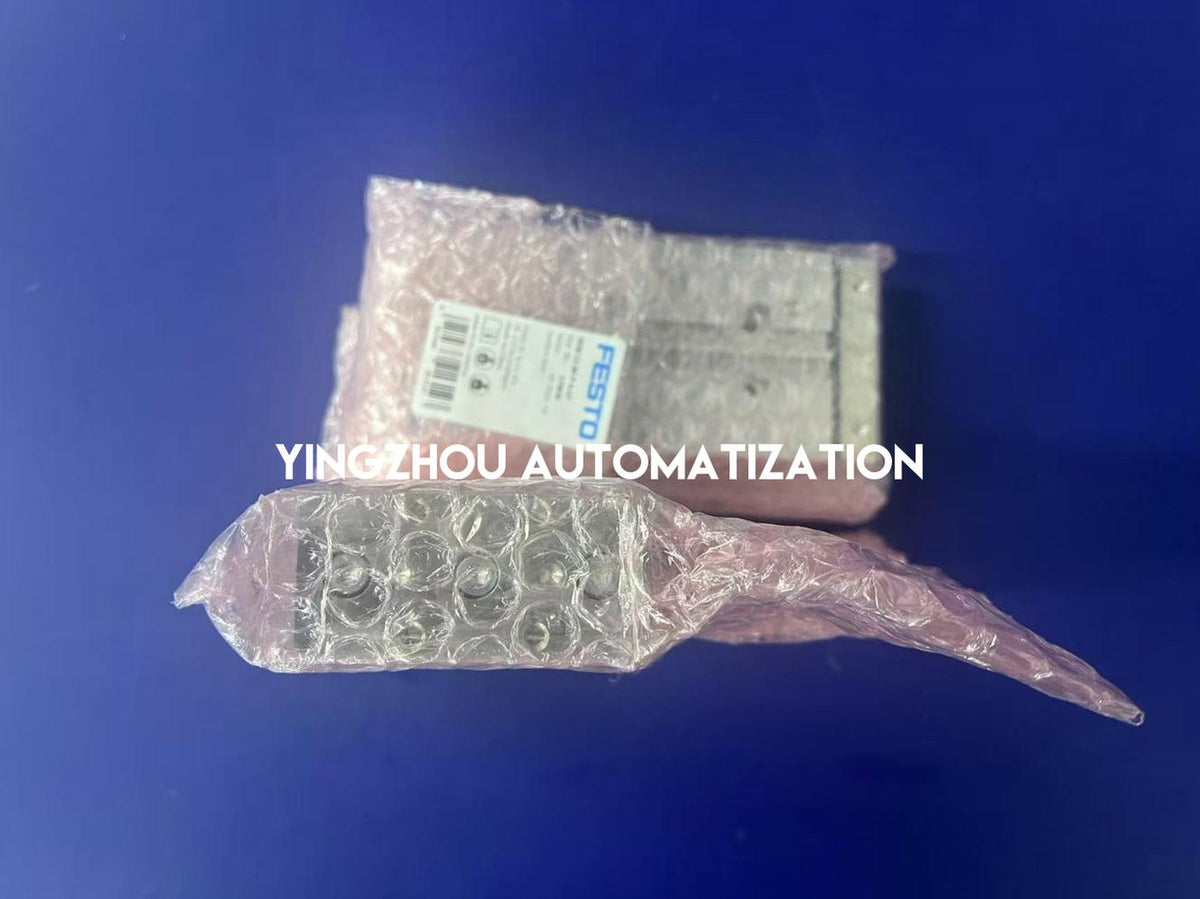

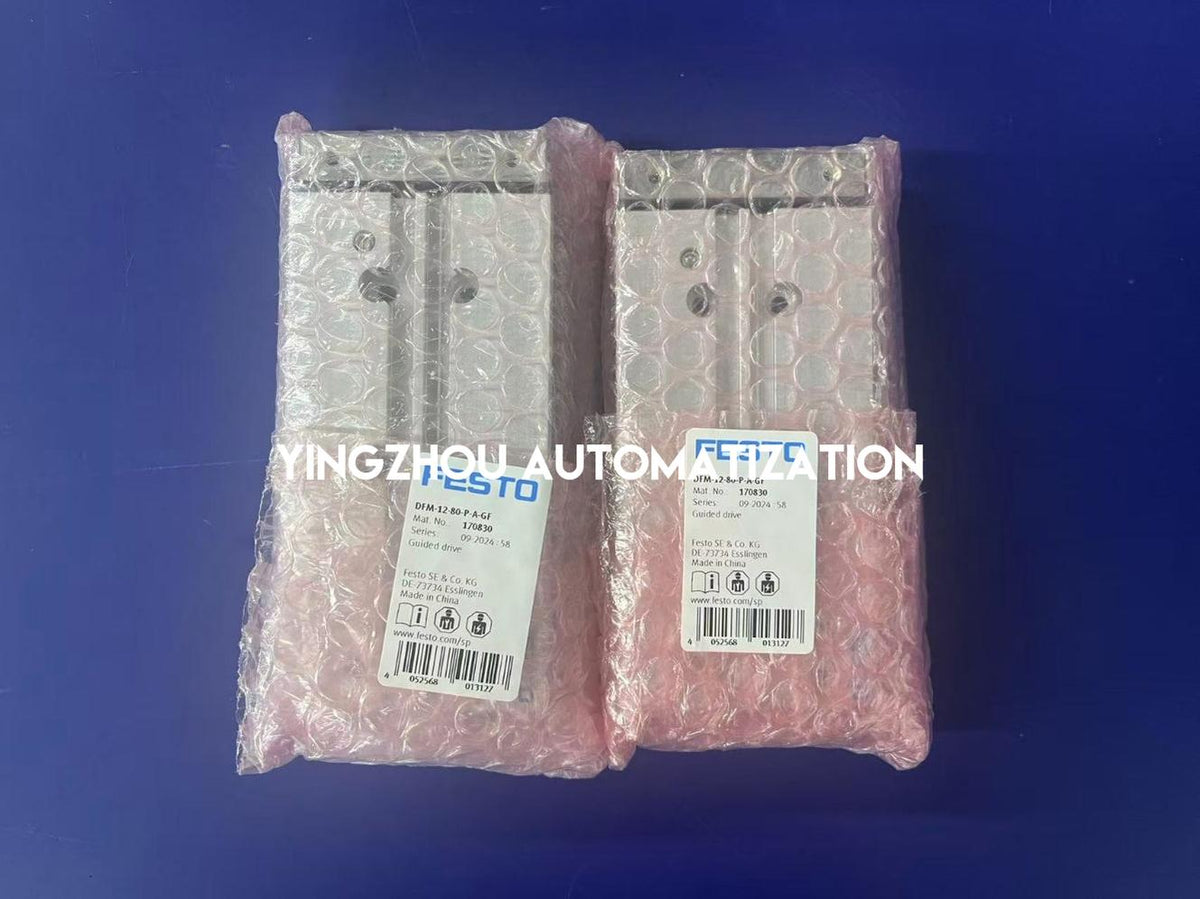

✓ FESTO manufacturer label visible
✓ Packaging catalog number: DFM-12-80-P-A-GF
✓ Packaging material number: 170830
✓ Packaging series marking: 09-2024:58
✓ Packaging description: Guided Drive
✓ Packaging origin marking: Made in China

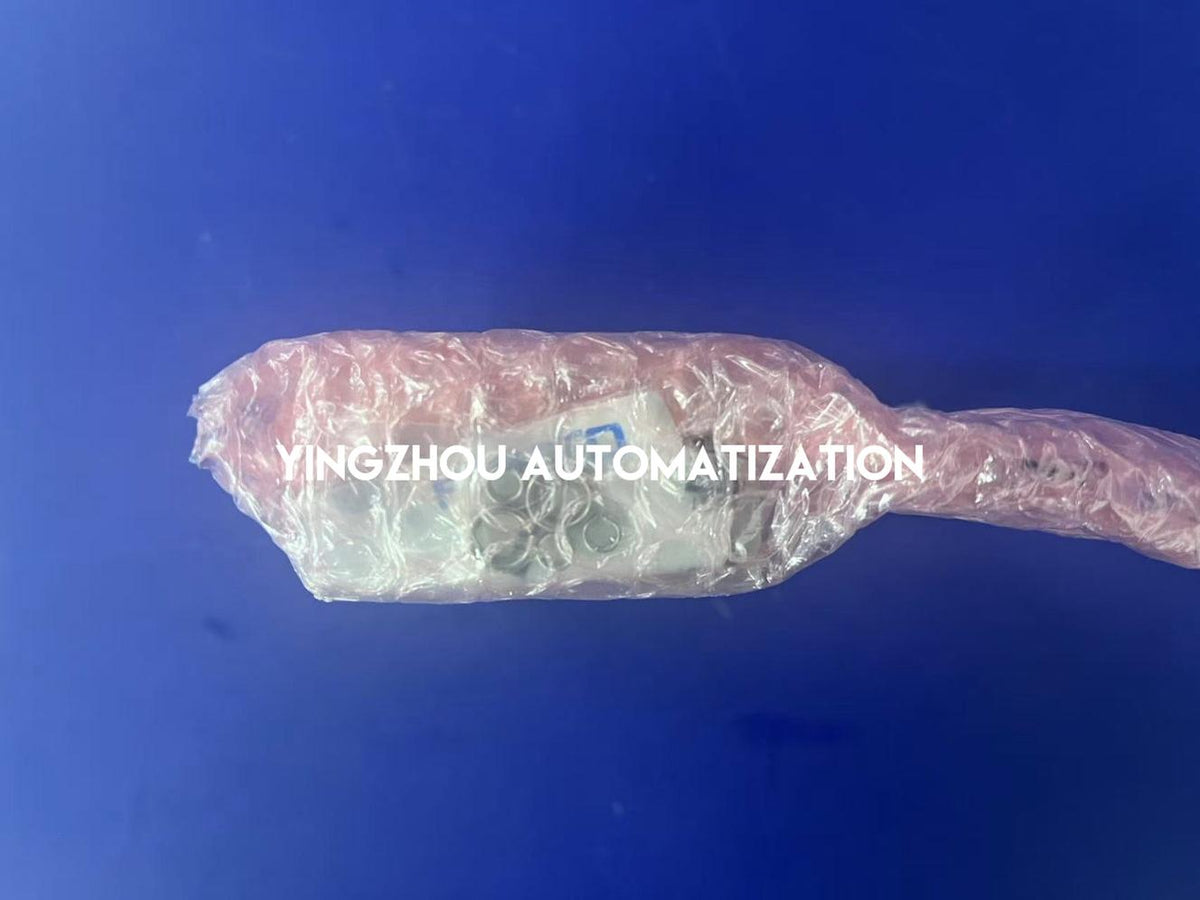

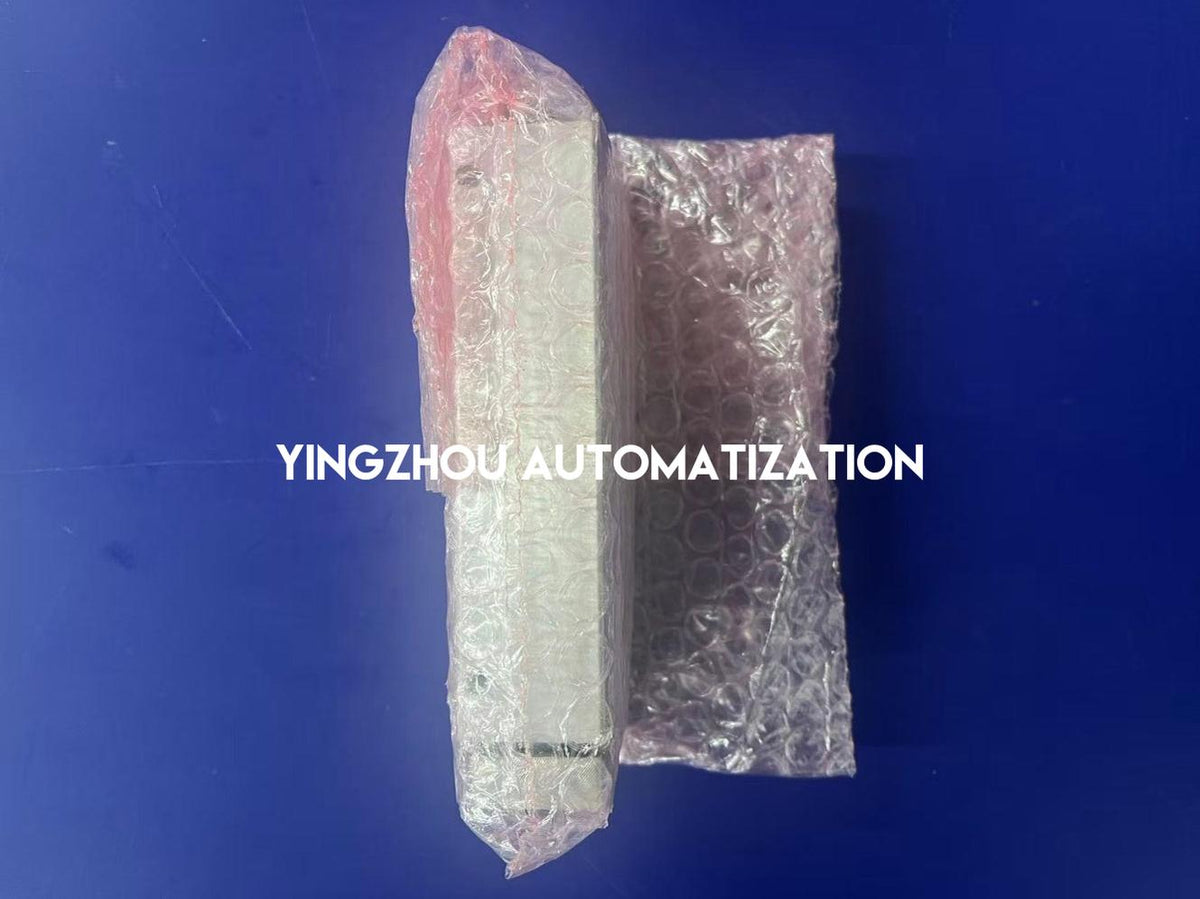

✓ Guided drive partially visible through protective bubble wrapping
✓ Full catalog model and material number match the requested product
✓ Exposed product body nameplate not independently inspected
✓ Functional testing and accessory completeness not confirmed

In Stock & Available to Order

FESTO DFM-12-80-P-A-GF 170830 is marked in stock based on the supplied inventory information. This double-acting pneumatic guided drive is offered for industrial automation procurement, pneumatic equipment maintenance and exact-model replacement requirements. The supplied photograph confirms the FESTO protective packaging label, complete model and manufacturer material number. Please verify the 12 mm piston diameter, 80 mm stroke, GF plain-bearing guide, M5 pneumatic connection, 2-10 bar operating pressure and required load conditions before completing an order. Proximity switches and separate mounting accessories are not confirmed as included.

IN STOCK

FESTO DFM-12-80-P-A-GF 170830

Contact us for exact-model verification, multiple units and project sourcing. Please confirm the double-acting configuration, 12mm bore, 80mm stroke, GF plain-bearing guide, M5 pneumatic connection and installation requirements before ordering.

Request Bulk Pricing
