Delta ECMA-C20604RS ECMA Series AC Servo Motor
400W | 220V Class | 3000 RPM | 17-bit Incremental Encoder | Low Inertia
Product Overview
The Delta ECMA-C20604RS is a
400W low-inertia AC servo motor from
Delta's ECMA Series. It provides
3000 RPM rated speed,
1.27 N-m rated torque, and
3.82 N-m maximum torque.
The motor features a 17-bit incremental encoder
for high-resolution position feedback and an
RS shaft configuration with oil seal,
keyway with fixed screw hole, and no integrated holding brake.
Key Product Features
-
400W low-inertia AC servo motor
-
220V-class servo system configuration
-
3000 RPM rated speed and 5000 RPM maximum speed
-
1.27 N-m rated torque and 3.82 N-m maximum torque
-
17-bit incremental encoder for position feedback
-
Without brake and with oil seal
-
60 mm frame with 14 mm standard keyway shaft
Actual Product Verification
✓

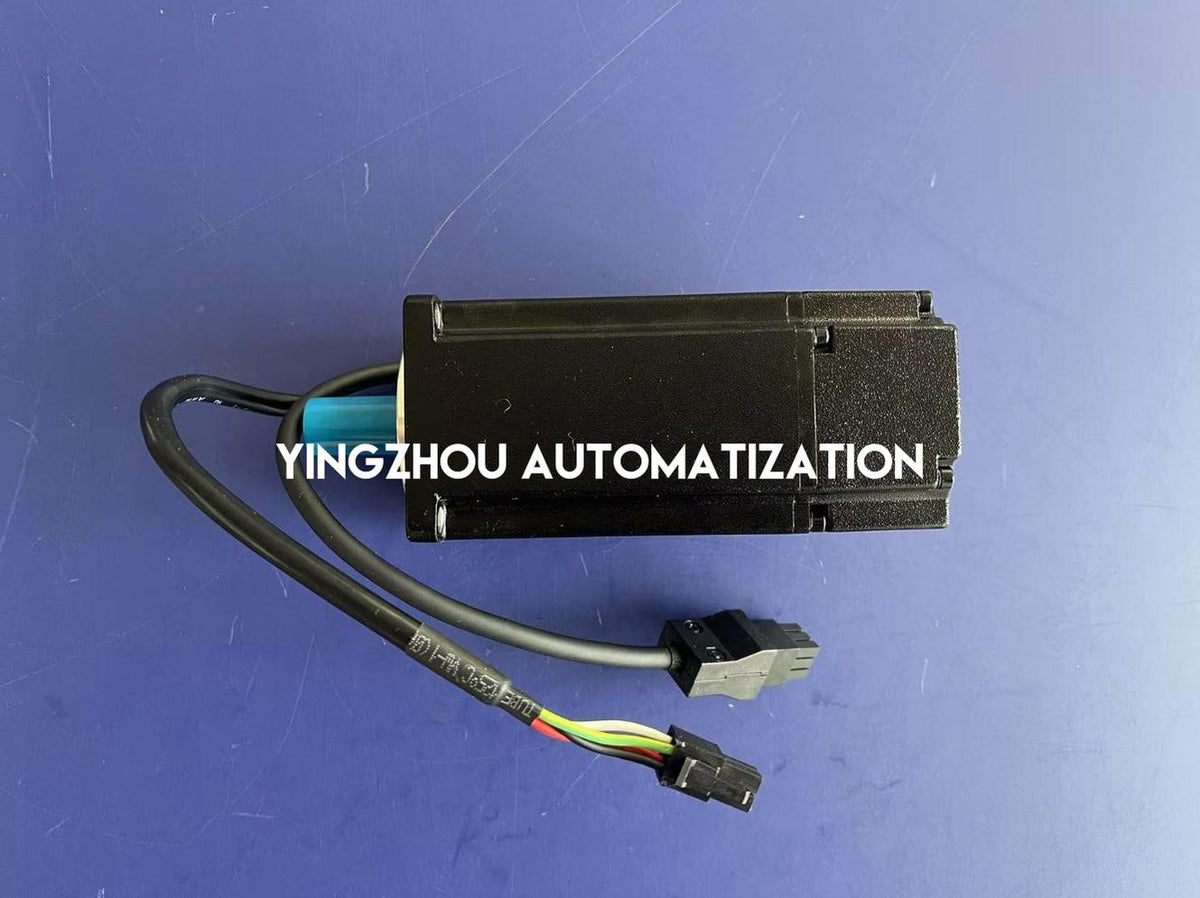

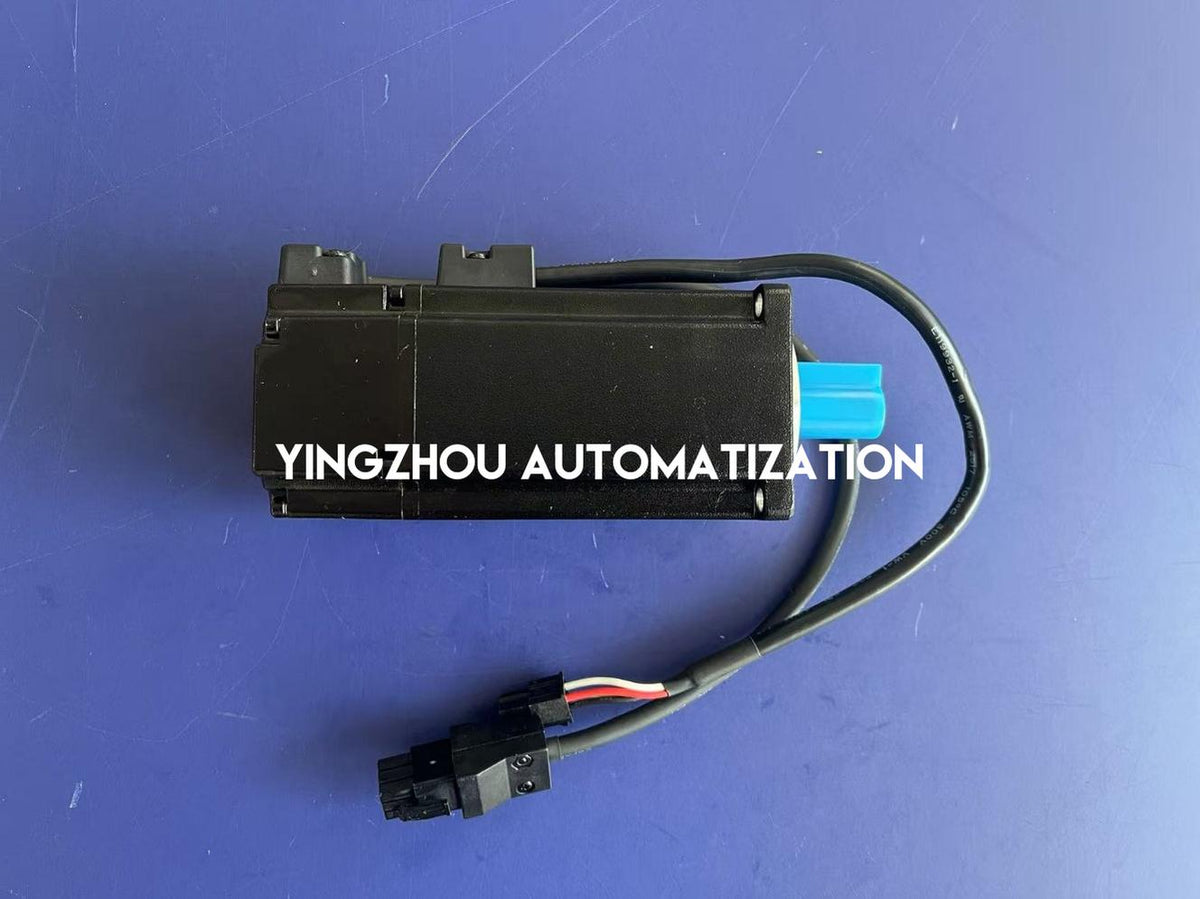

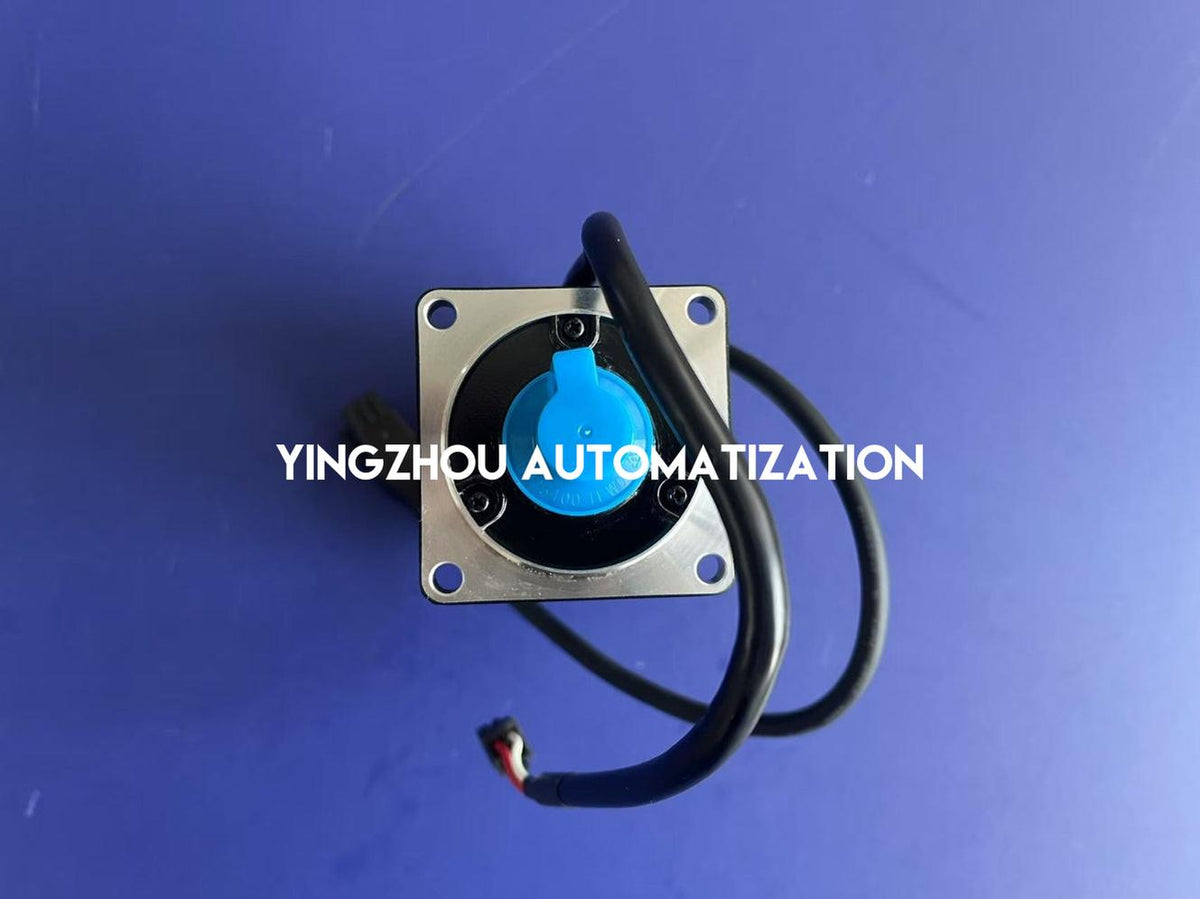

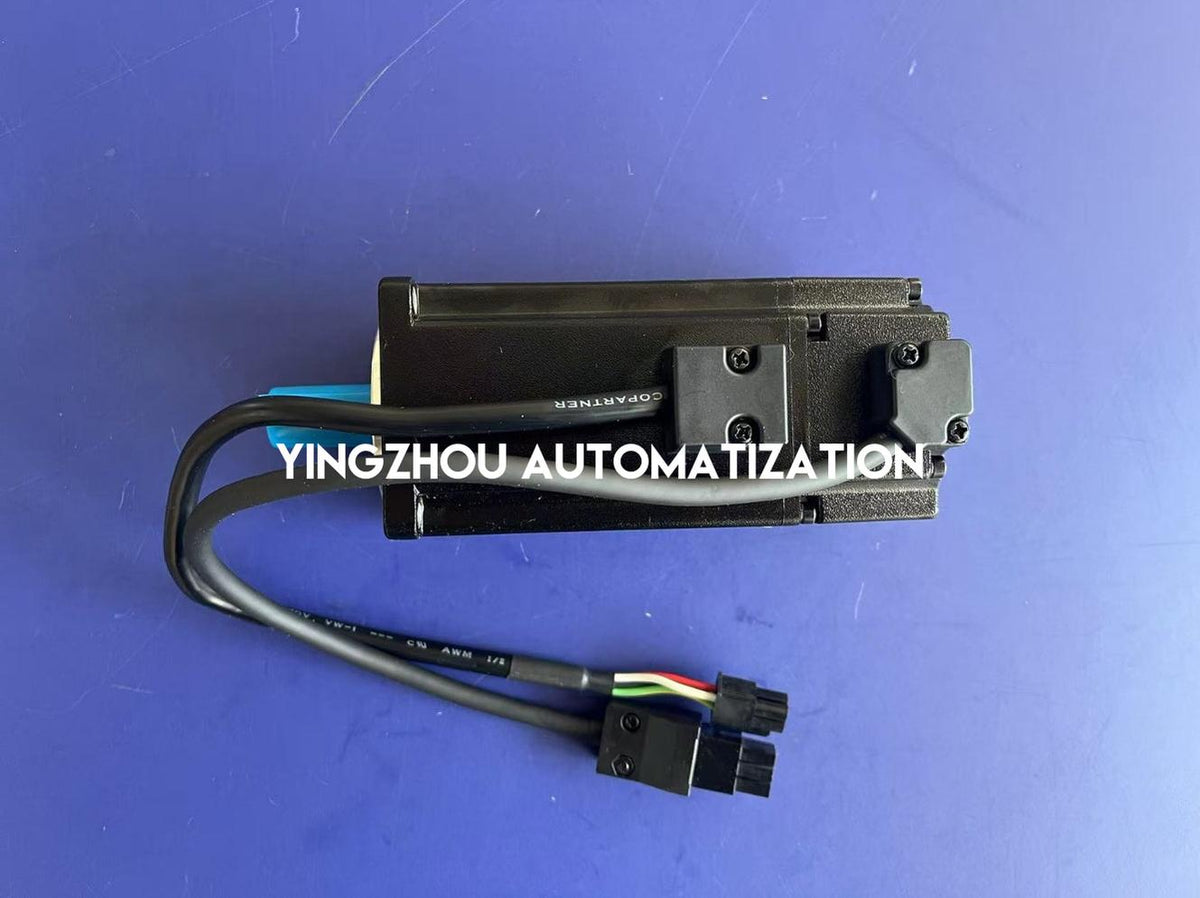

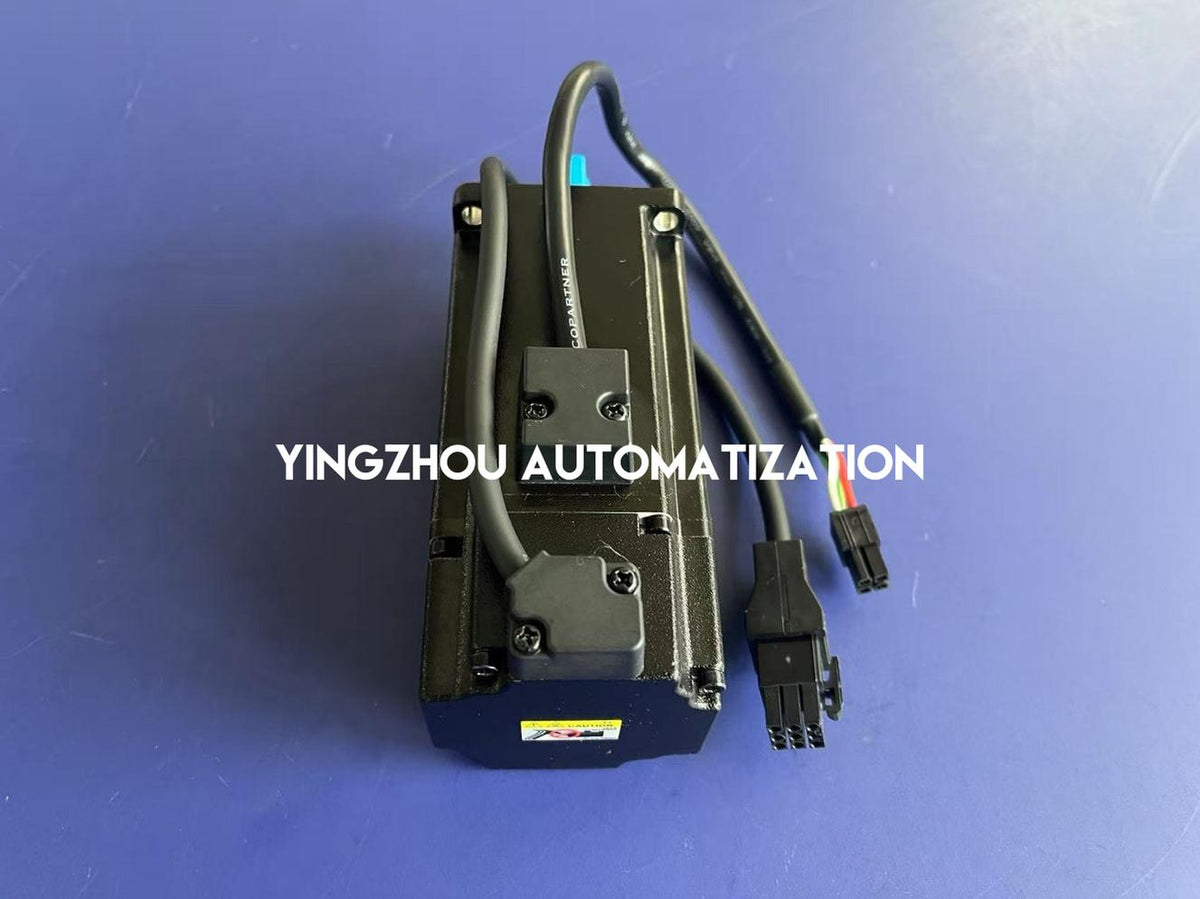

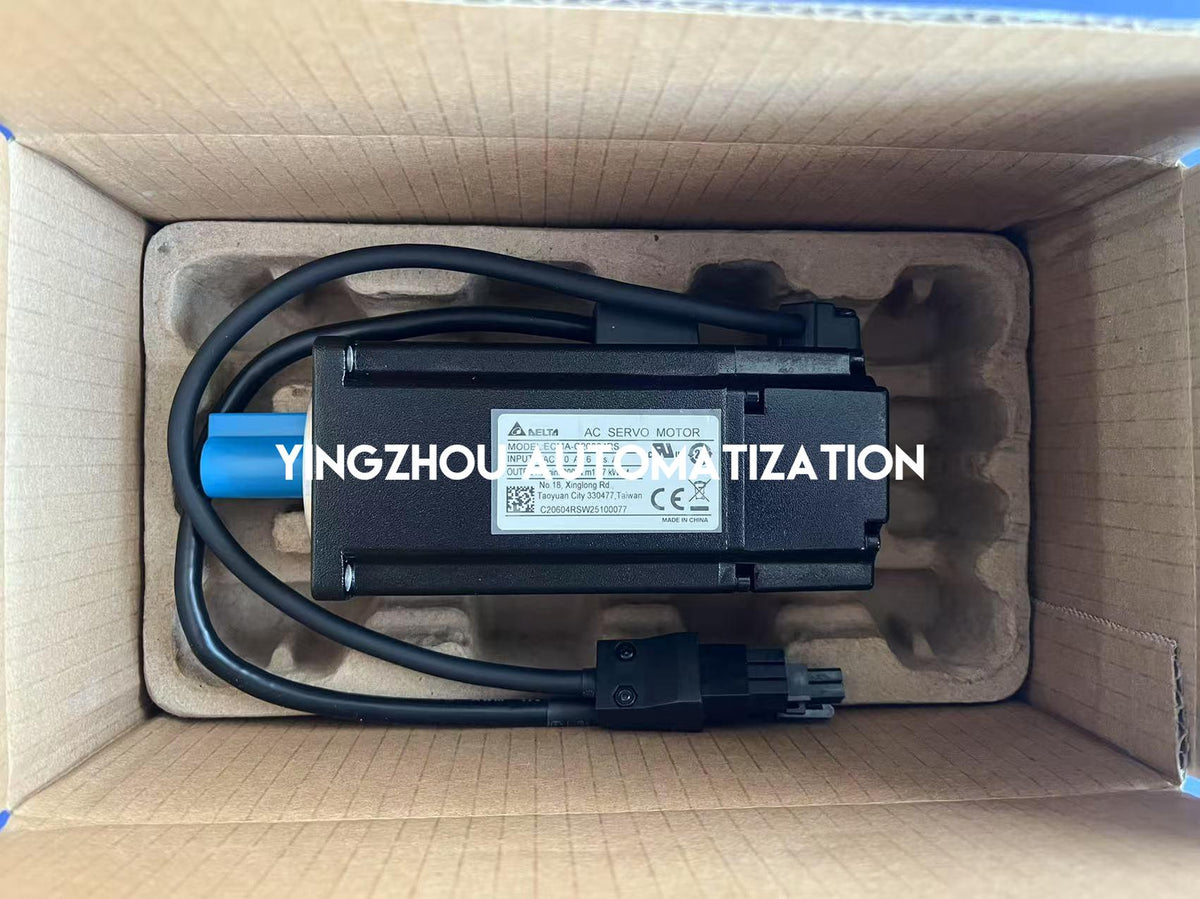

Actual product photos
✓

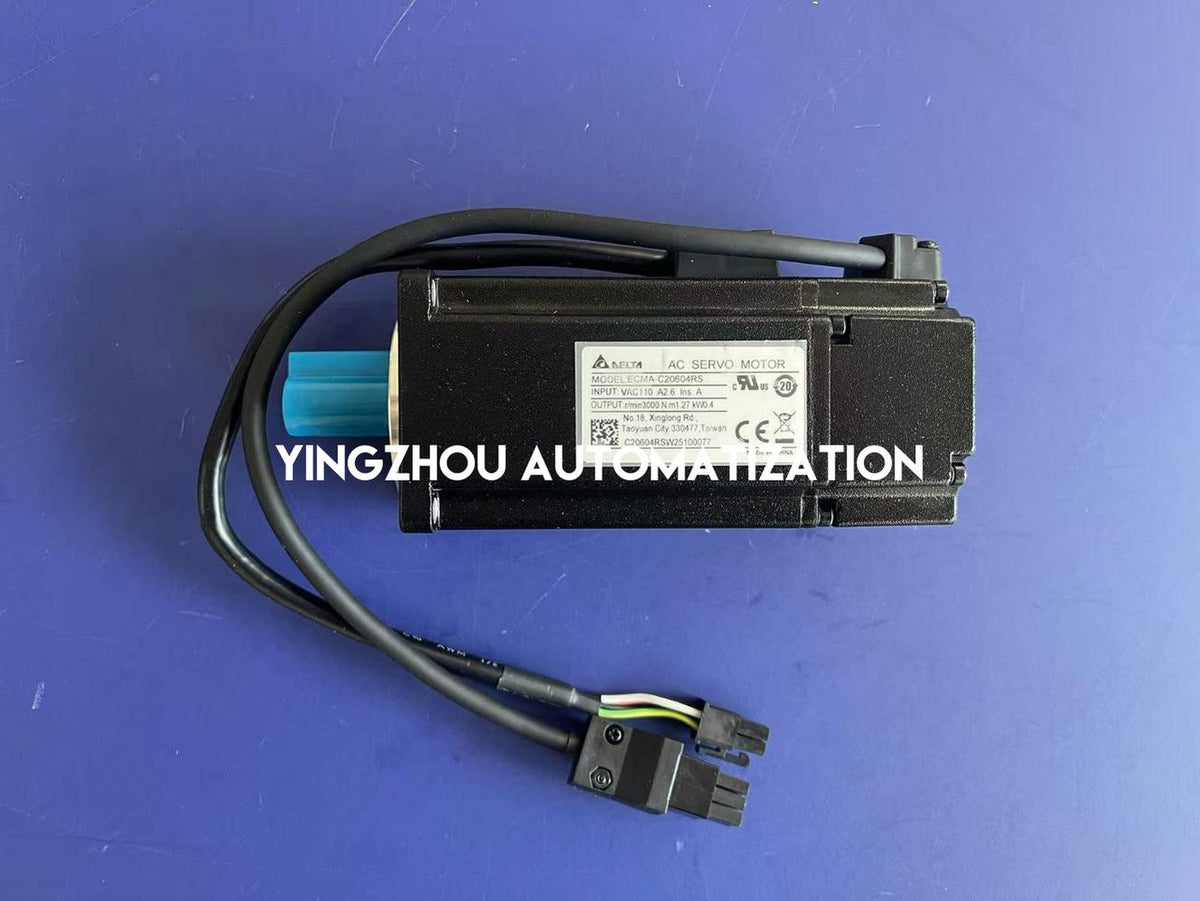

Model/nameplate visible
✓
Actual motor appearance shown for buyer verification
✓
Verify exact model ECMA-C20604RS before ordering
In Stock & Ready to Order
Delta ECMA-C20604RS is currently in stock.
Actual motor photographs and a visible model/nameplate
are available for pre-purchase model verification.
