Delta ECM-B3M-C20807SS1 ECM-B3M Series AC Servo Motor
750W | 220V Class | 3000rpm Rated | 24-bit Incremental Encoder | With Holding Brake
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
ECM-B3M-C20807SS1 |
| Motor Series |
ECM-B3M Series |
| Servo System Family |
ASDA-B3 |
| Product Type |
AC Servo Motor |
| Inertia Type |
Medium Inertia |
| Voltage Class |
220 V |
| Motor Nameplate Input |
110 VAC, 4.27 A (Actual Nameplate) |
| Rated Power |
0.75 kW (750 W) |
| Rated Speed |
3000 rpm |
| Maximum Speed (Catalog) |
6000 rpm |
| Rated Torque |
2.4 Nm |
| Maximum Torque |
8.4 Nm |
| Rated Current |
4.27 Arms |
| Maximum Instantaneous Current |
15.8 Arms |
| Encoder Type |
24-bit Incremental Encoder |
| Motor Frame Size |
80 mm |
| Shaft Diameter |
19 mm |
| Mounting Hole PCD |
90 mm |
| Mounting Hole Diameter |
6.6 mm |
| Motor Body Length (With Brake) |
144.8 mm (LL Dimension) |
| Shaft Configuration |
Keyway with Fixing Screw Hole |
| Shaft / Connector Configuration |
Standard |
| Motor Brake |
With Holding Brake |
| Brake Working Voltage |
24 VDC +/- 10% |
| Brake Holding Torque |
2.5 Nm Minimum |
| Brake Power Consumption |
8 W at 20 degrees C |
| Brake Release Time |
20 ms Maximum |
| Brake Engagement Time |
60 ms Maximum |
| Oil Seal |
Equipped |
| Rotor Inertia (With Brake) |
1.13 x 10^-4 kg.m2 |
| Weight (With Brake) |
3.15 kg |
| Rated Power Rate (With Brake) |
50.97 kW/s |
| Mechanical Time Constant (With Brake) |
0.57 ms |
| Maximum Radial Load |
392 N |
| Maximum Axial Load |
147 N |
| Torque Constant |
0.56 Nm/A |
| Voltage Constant |
20.17 mV/rpm |
| Armature Resistance |
0.55 ohm |
| Armature Inductance |
2.81 mH |
| Electrical Time Constant |
5.11 ms |
| Insulation Class |
Class A (UL), Class B (CE) |
| Insulation Resistance |
Greater than 100 Mohm at 500 VDC |
| Insulation Strength |
1.8 kVAC for 1 Second |
| Vibration Grade |
V15 |
| Vibration Resistance |
2.5 G |
| Protection Rating |
IP67 under Specified Waterproof Sealing Conditions |
| Operating Temperature |
-20 to 60 degrees C (Derating Above 40 degrees C) |
| Storage Temperature |
-20 to 80 degrees C |
| Operating / Storage Humidity |
20 to 90% RH, Non-condensing |
Product Overview
The Delta ECM-B3M-C20807SS1 is a
750 W AC servo motor from Delta's
ECM-B3M Series for compatible
ASDA-B3 servo systems.
This medium-inertia motor belongs to the
220V class and provides
3000 rpm rated speed with
2.4 Nm rated torque.
It features a 24-bit incremental encoder,
an 80 mm motor frame, and a
19 mm keyed shaft with integrated holding
brake and oil seal.
Key Product Features
-
750 W (0.75 kW) rated motor output
-
Medium-inertia ECM-B3M motor design
-
3000 rpm rated rotational speed
-
2.4 Nm rated torque
-
24-bit incremental encoder
for position feedback
-
Integrated holding brake
with 2.5 Nm minimum holding torque
-
80 mm frame
with standard 19 mm shaft diameter
-
Keyed shaft with oil seal
and integrated holding brake
Actual Product Verification
✓

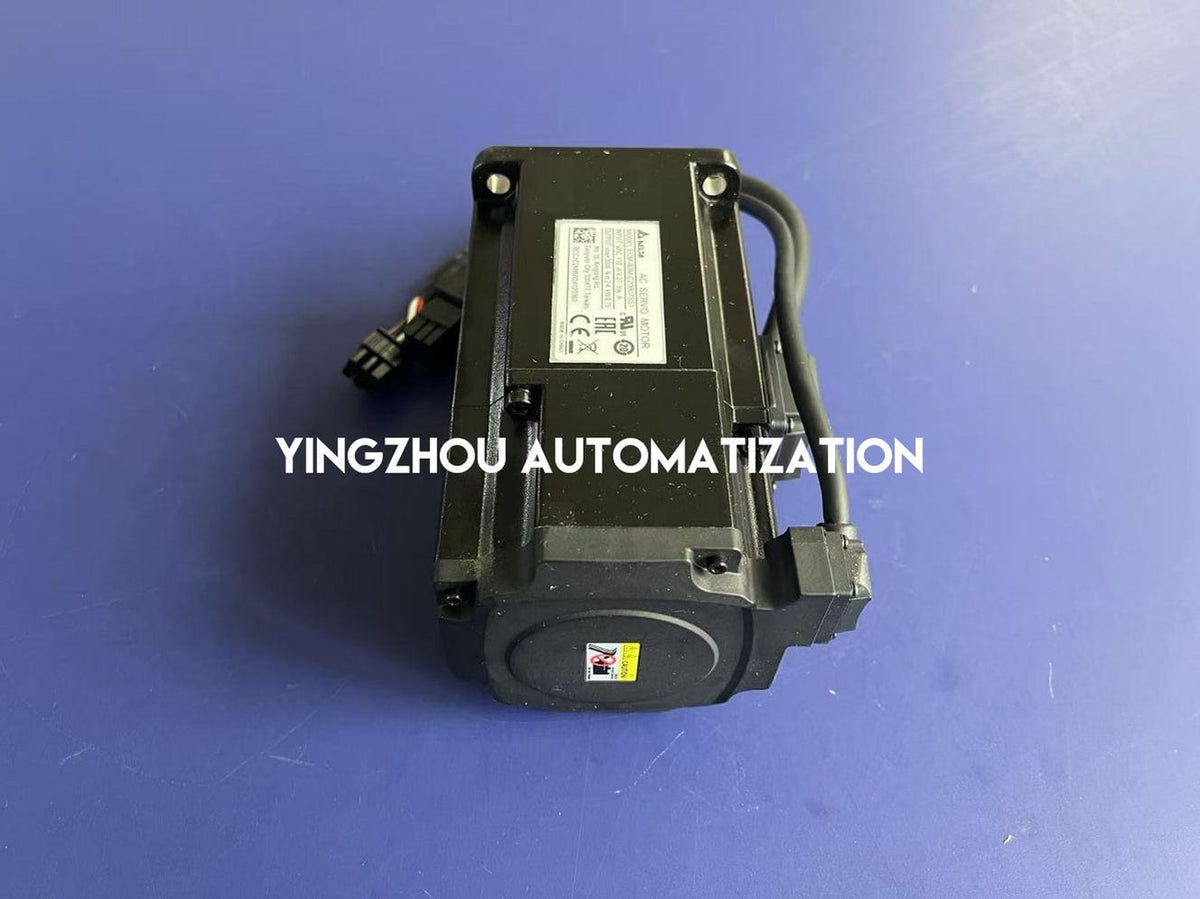

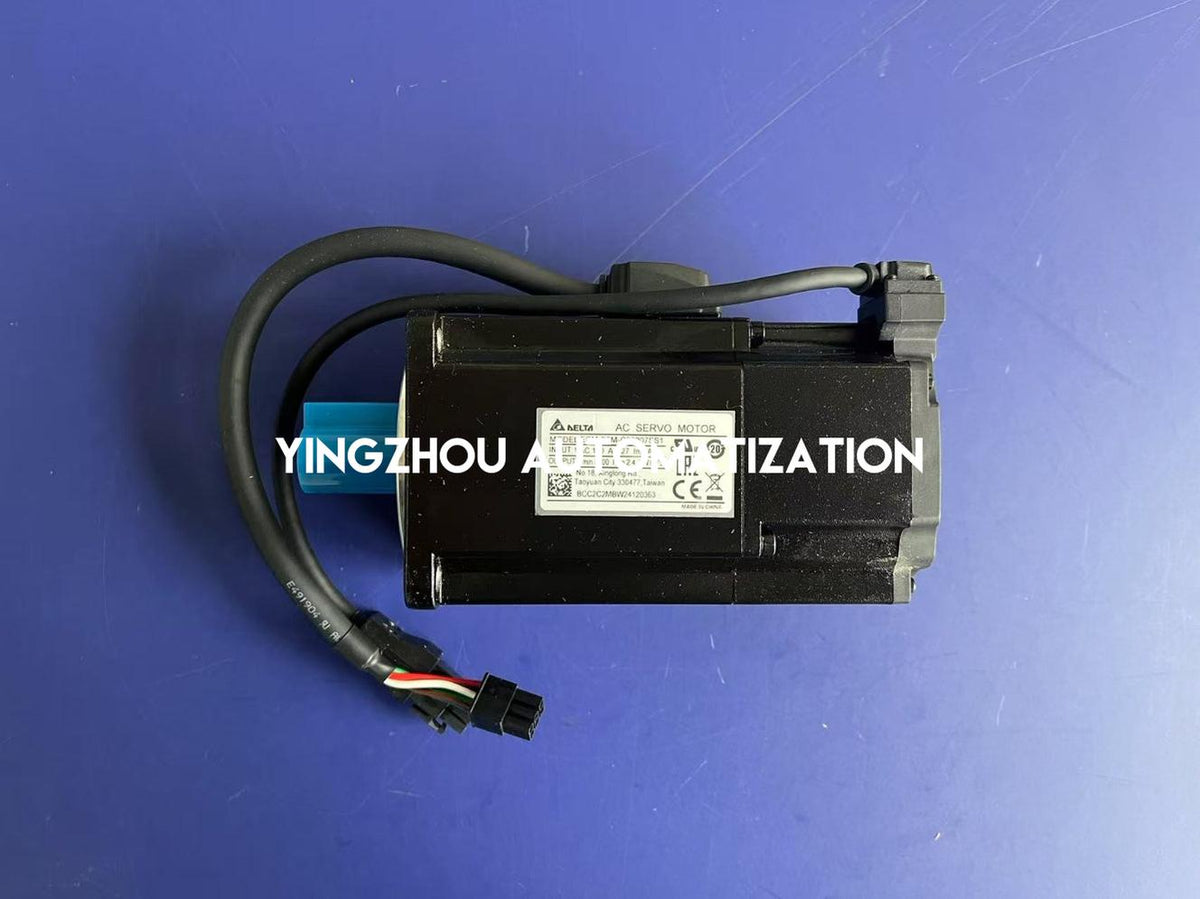

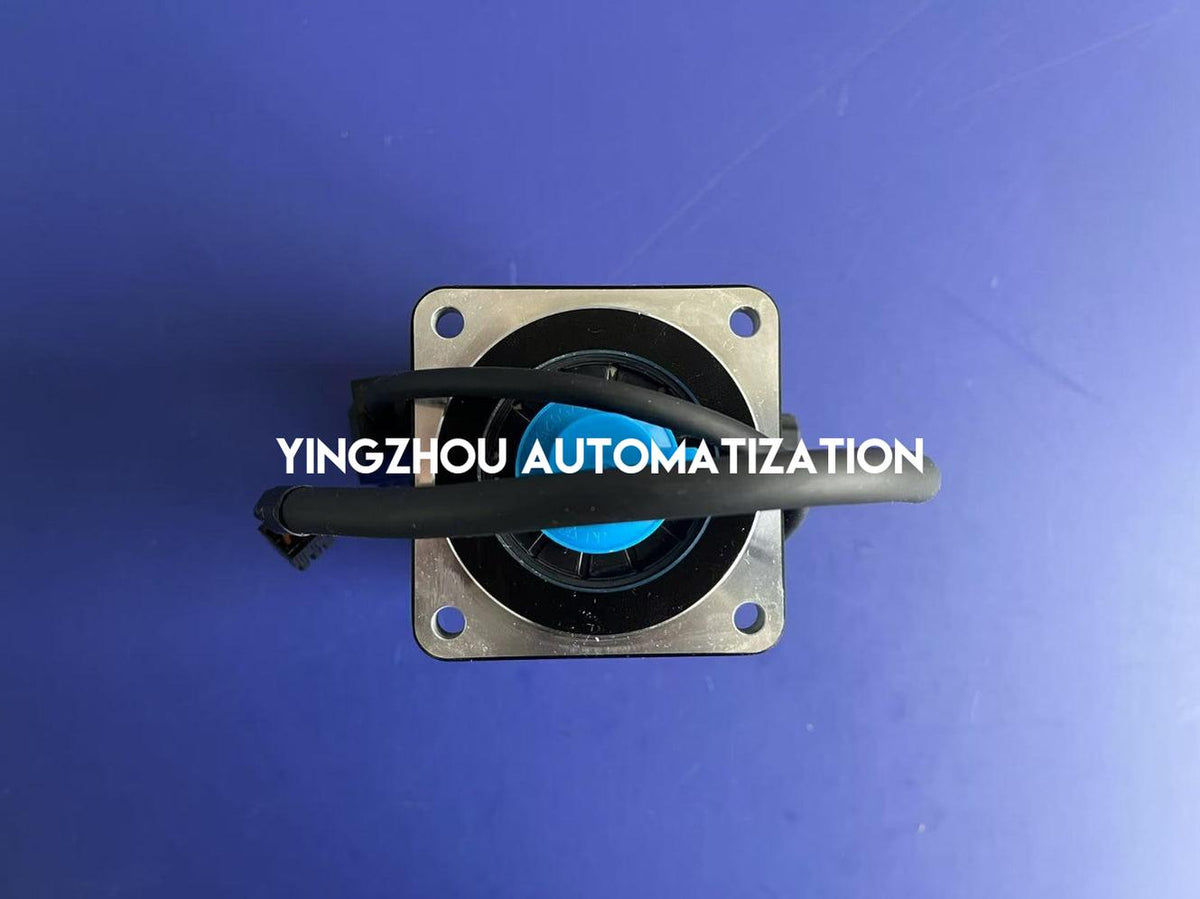

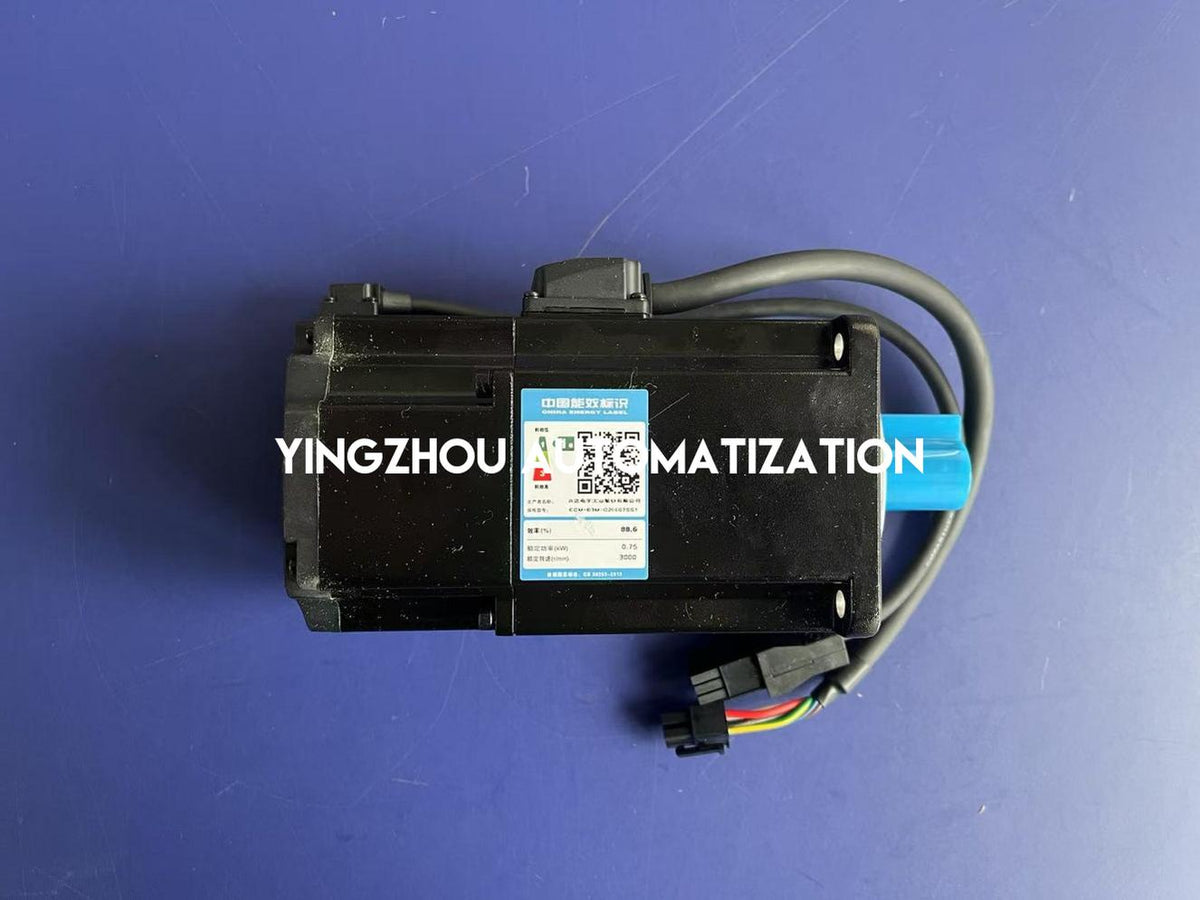

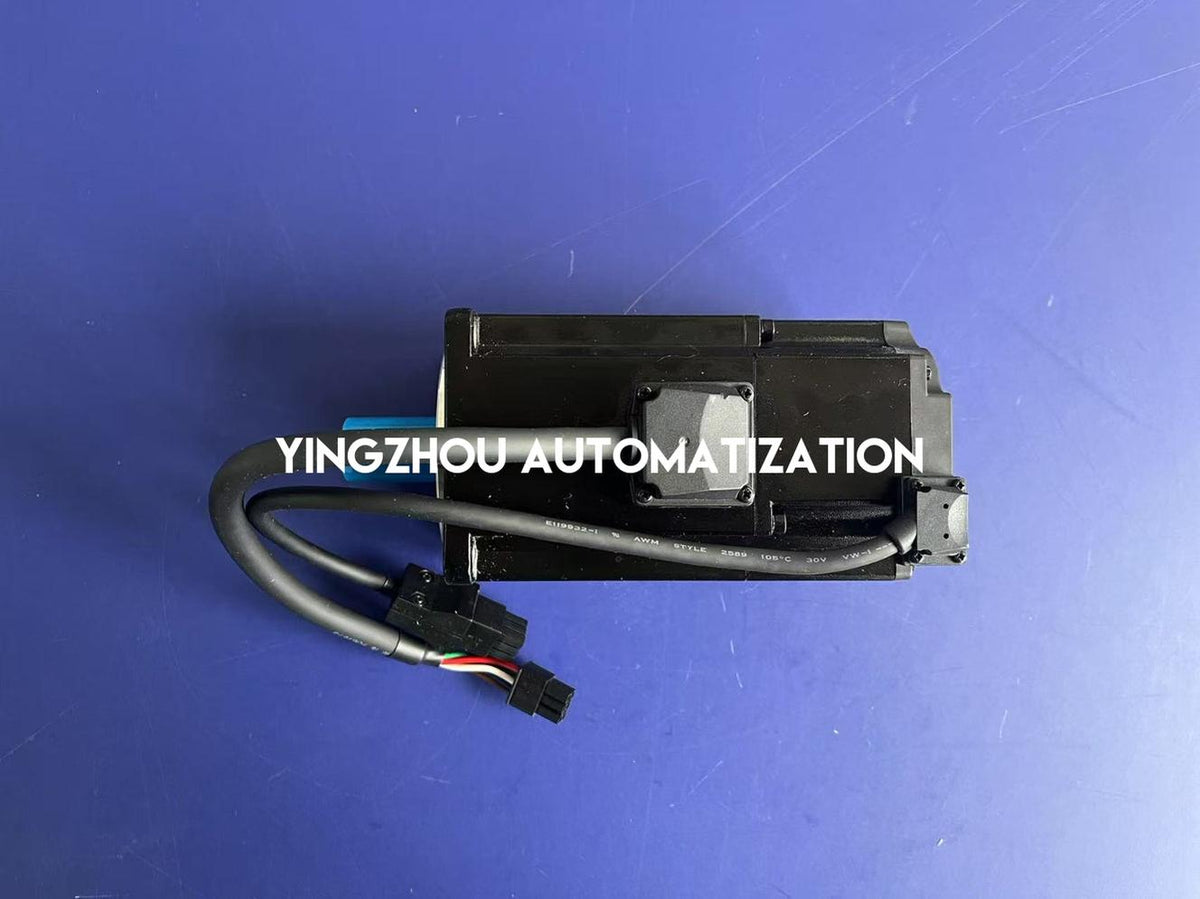

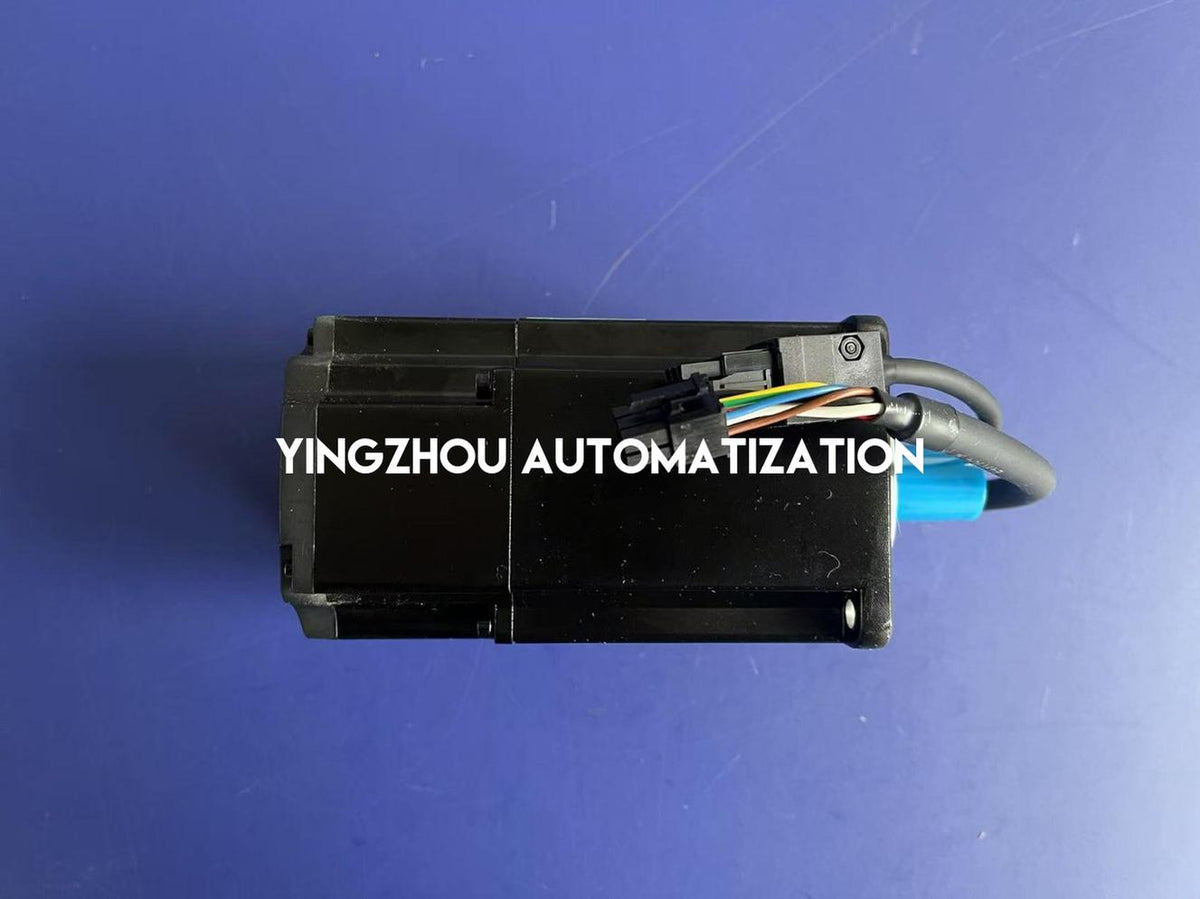

Actual product photo
✓
Exact model/nameplate visible
✓
Motor body, shaft protection and cable connectors shown
✓
Verify exact model ECM-B3M-C20807SS1 before ordering
In Stock & Ready to Order
Delta ECM-B3M-C20807SS1
is currently in stock.
An actual product photo showing the motor
nameplate is provided for buyer verification.
The integrated holding brake is designed to
maintain shaft position at standstill.
Order online or contact us for project
and quantity-based purchasing assistance.
IN STOCK
Delta ECM-B3M-C20807SS1
Order online or contact us for project and quantity pricing.
Request Project Pricing
