Delta DTK9696C02 DTK Series PID Temperature Controller
96 × 96mm | 4–20mA Output | 2 Alarms | 100–240VAC
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
DTK9696C02 |
| Series |
DTK Series |
| Product Type |
Digital PID Temperature Controller |
| Panel Size |
96 × 96mm (1/4 DIN) |
| Control Output |
4–20mA DC Current |
| Maximum Output Load |
600 Ohms |
| Communication |
None (No RS-485) |
| Alarm Outputs |
2 Relay Alarm Outputs |
| Alarm Contact Rating |
250VAC, 3A Resistive Load |
| Input Voltage |
AC 100–240V |
| Input Frequency |
50/60Hz |
| Power Consumption |
5VA Max. |
| Display |
LCD — Red PV / Green SV |
| Control Modes |
PID / Manual / ON-OFF |
| Thermocouple Inputs |
K, J, T, E, N, R, S, B, L, U, TXK |
| RTD Inputs |
Pt100 / JPt100 / Cu50 / Ni120 |
| Sampling Time |
0.1 Second |
| Operating Temperature |
0°C to +50°C |
| Operating Humidity |
35%–80% RH, Non-Condensing |
| Front Panel Protection |
IP66 |
Product Overview
The Delta DTK9696C02 is a
DTK Series digital PID temperature controller
with a 96 × 96mm panel format.
It provides a 4–20mA DC current control output,
two relay alarm outputs, and supports multiple temperature
sensor types. The controller operates on
100–240V AC and provides PID, manual,
and On-Off temperature control modes.
Key Product Features
-
4–20mA DC Current Output for proportional control applications
-
Dual Relay Alarms with configurable alarm modes
-
PID Auto-Tuning for temperature regulation
-
Fast 100ms Sampling for supported temperature sensors
-
Multi-Sensor Support for thermocouples and RTDs
-

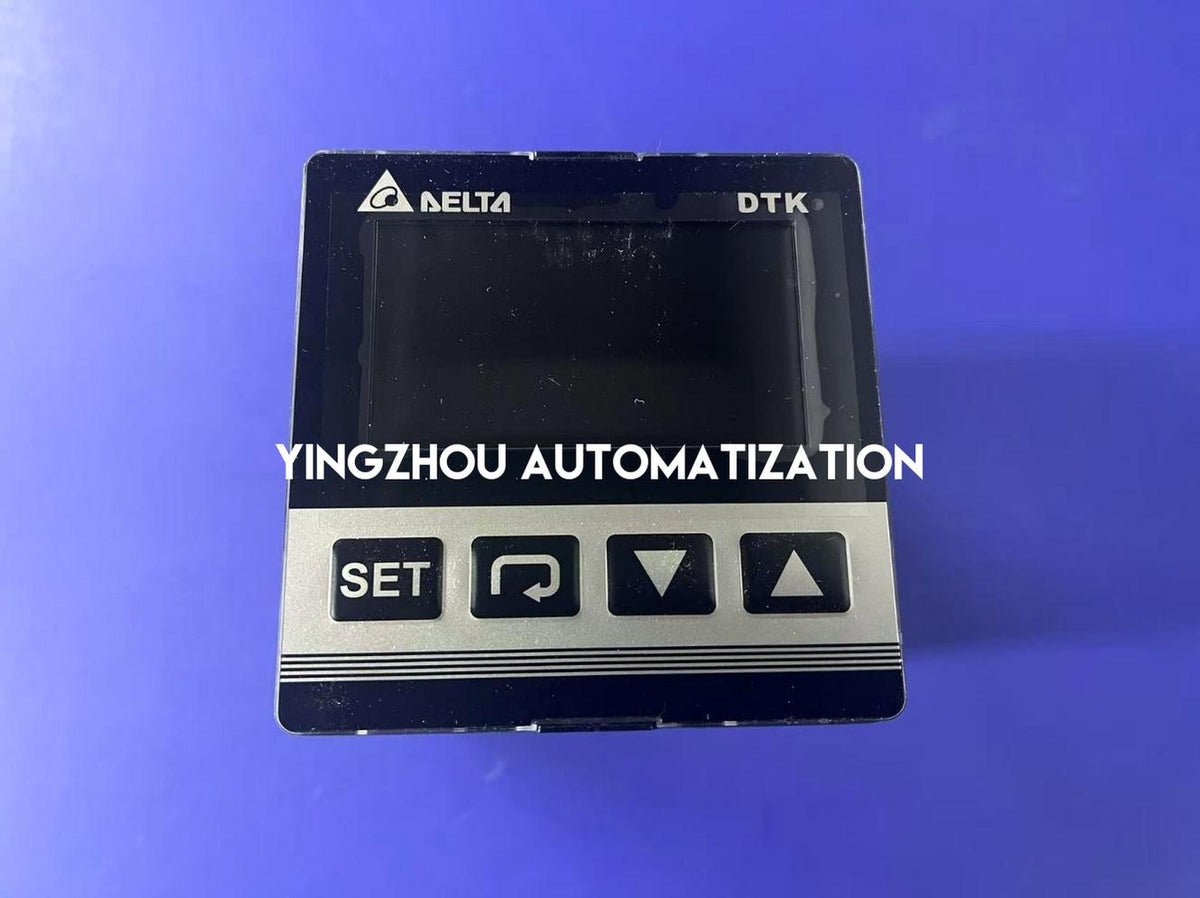

LCD Display showing process and set values
-
96 × 96mm Panel Format with IP66 front panel protection
Actual Product Verification
✓

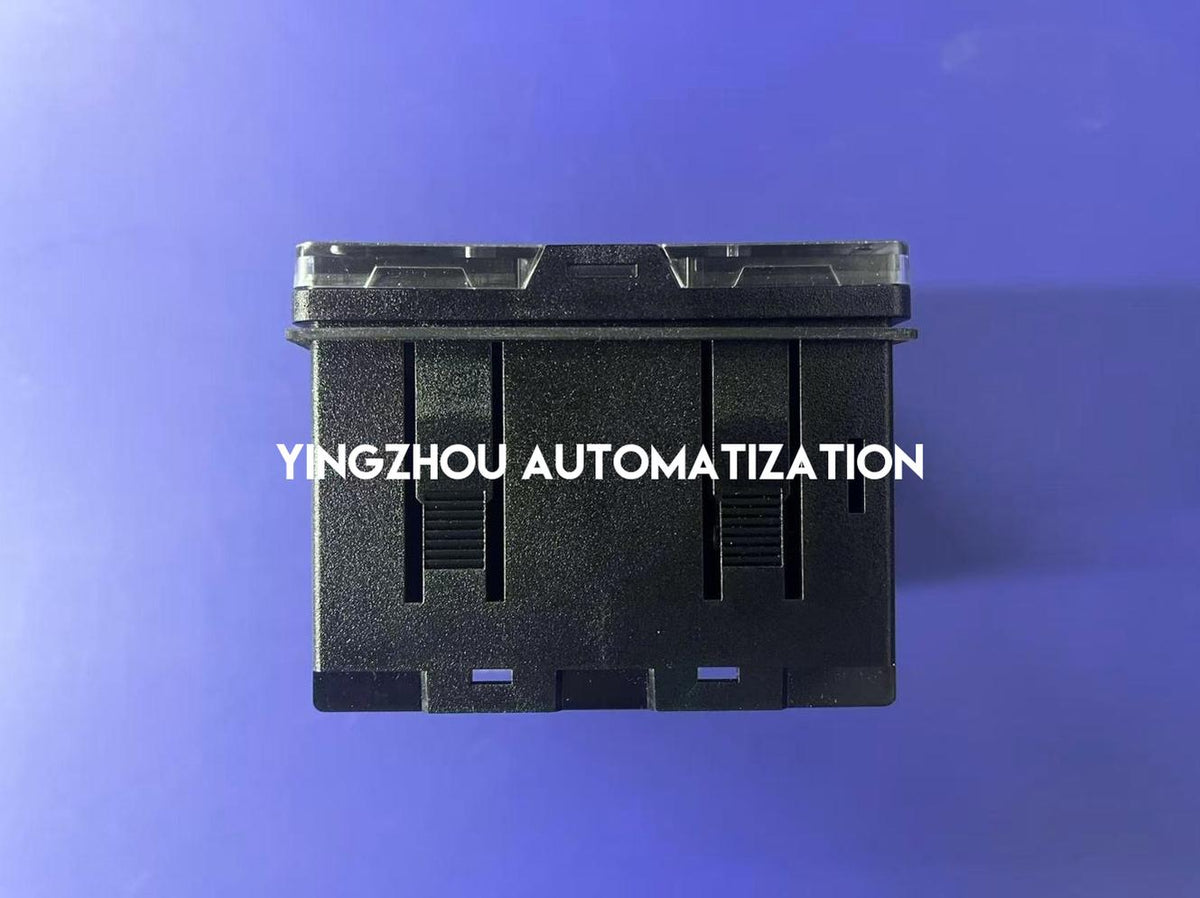

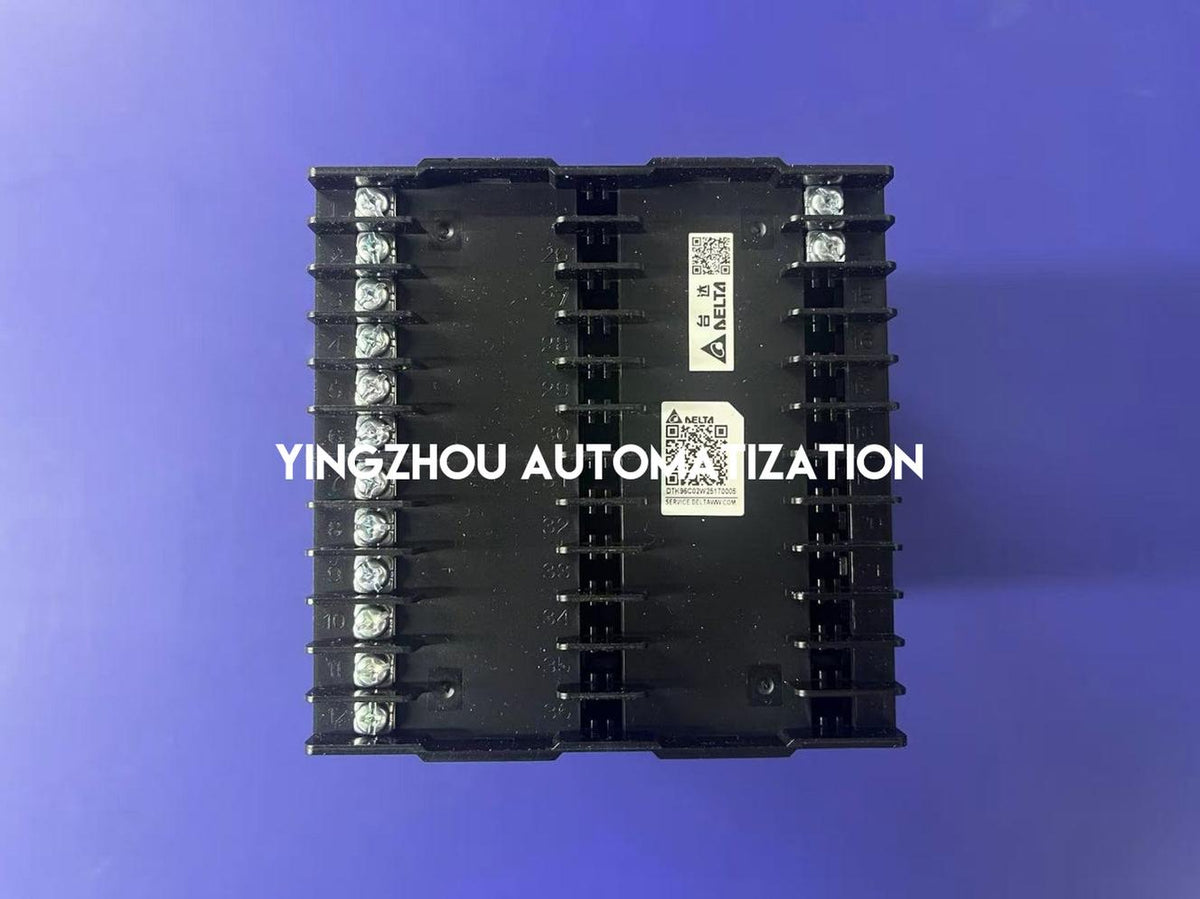

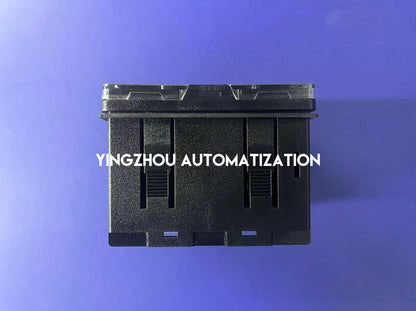

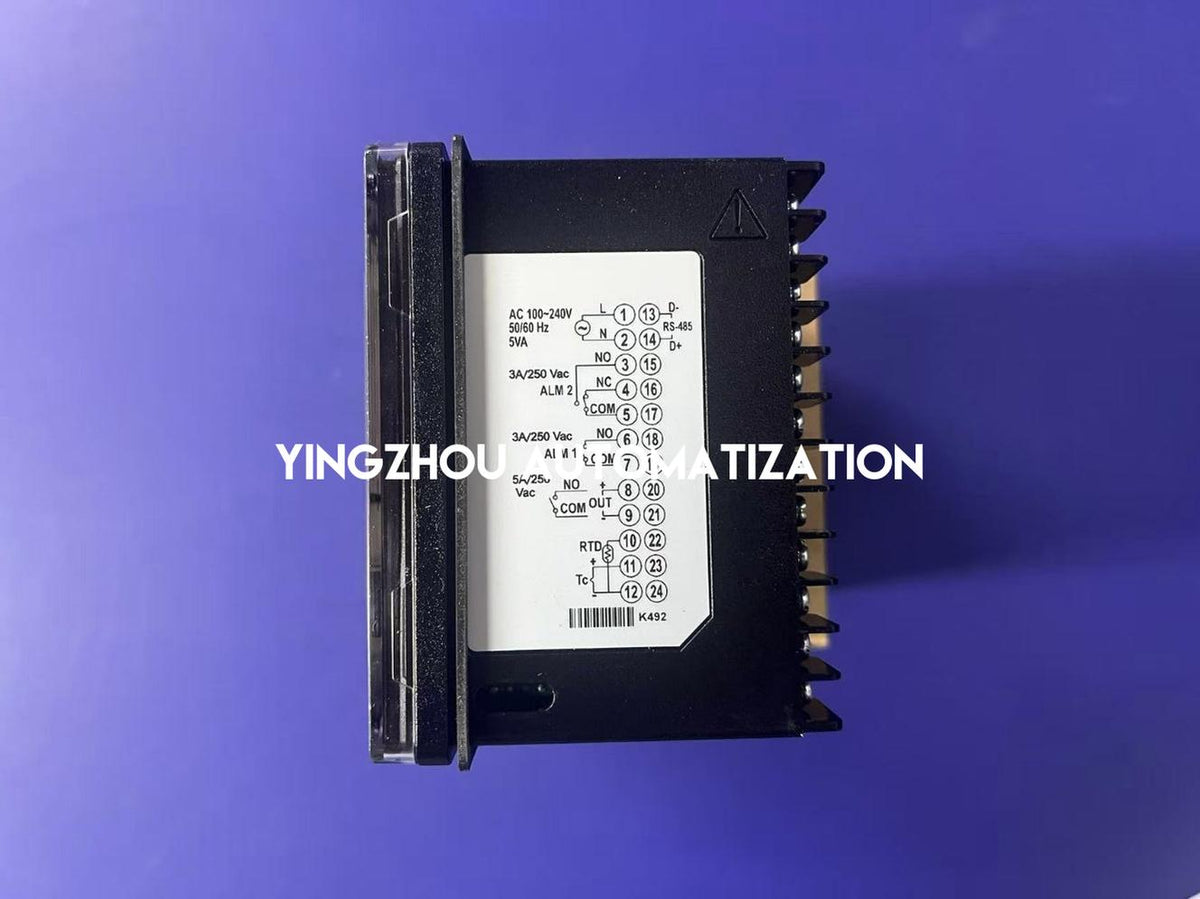

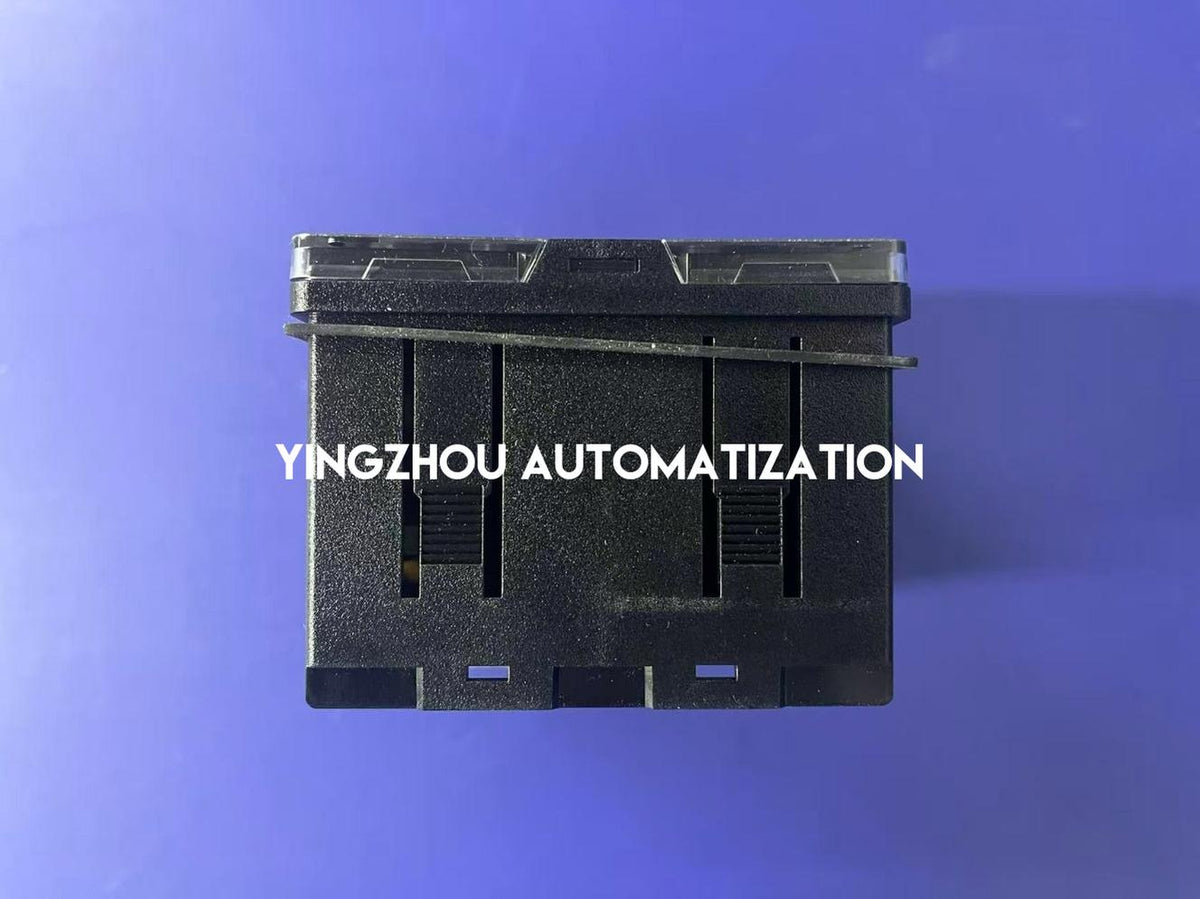

Actual product photos
✓

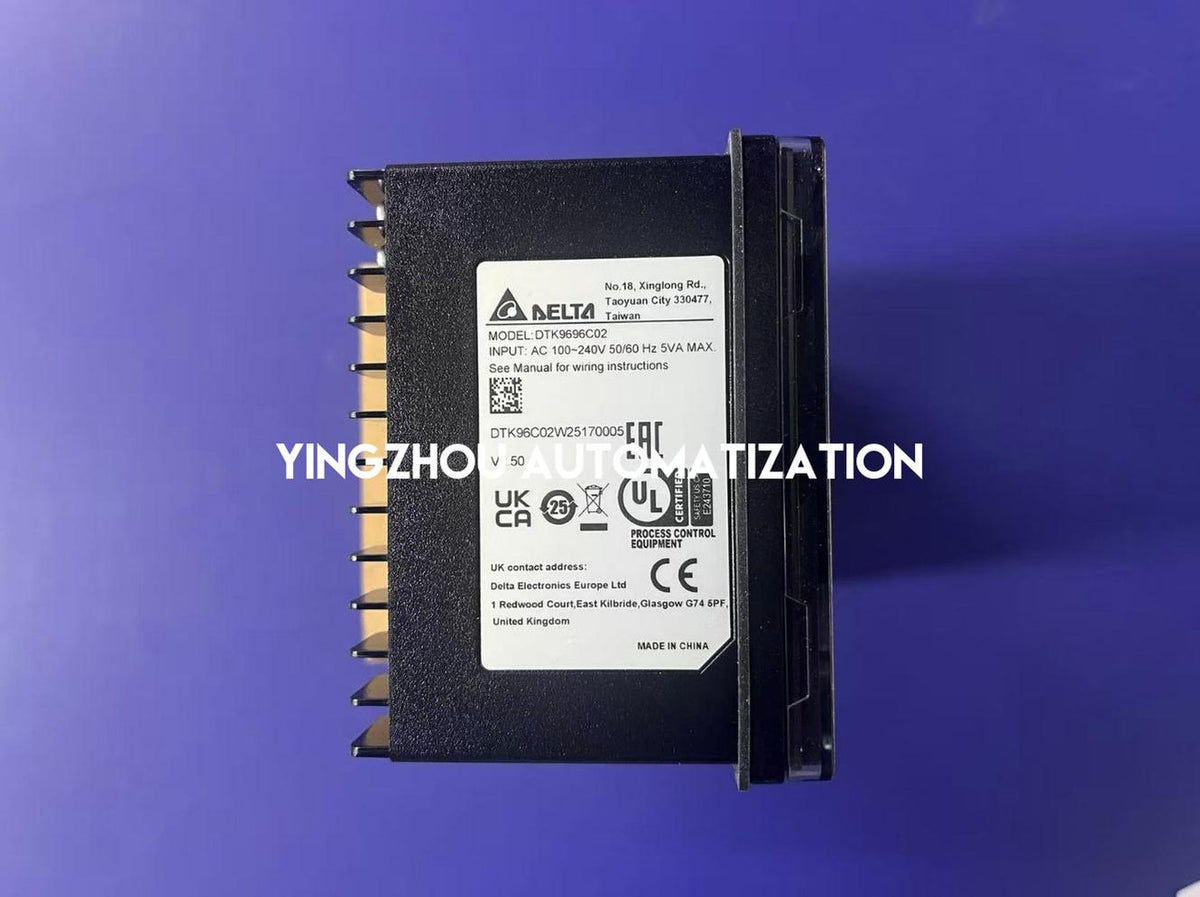

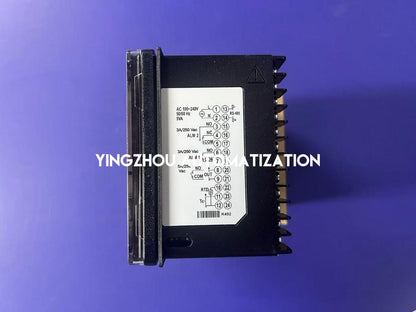

Model/nameplate visible
✓

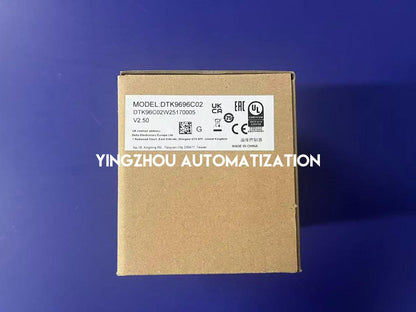

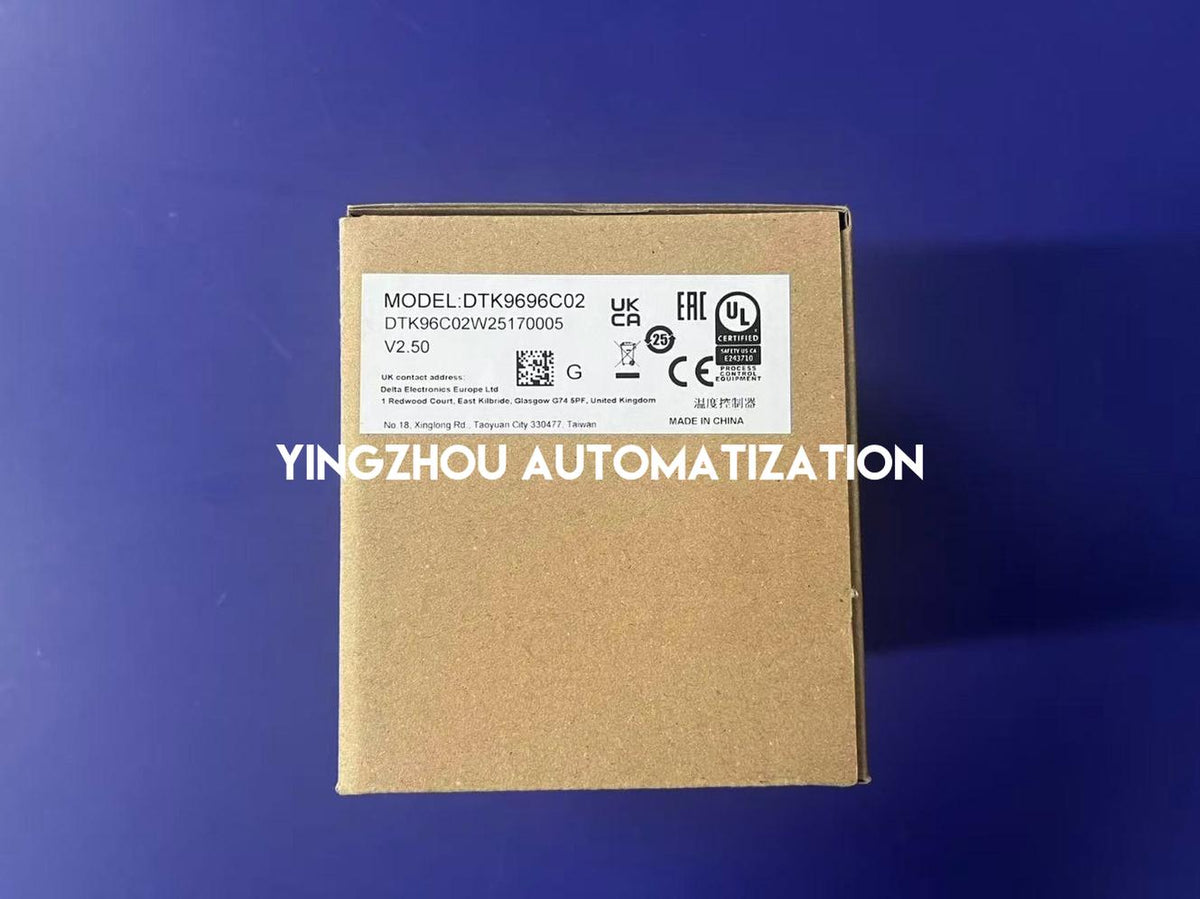

Packaging shown
✓
Product and packaging labels match model DTK9696C02
✓
Verify exact model before ordering
In Stock & Ready to Order
Delta DTK9696C02 is currently
in stock. Actual product photos,
the exact model nameplate, and matching packaging
label are available for verification.
Contact us for project pricing, quantity requirements,
and shipping arrangements.
