Delta ASD-B3-5543-M ASDA-B3 CANopen AC Servo Drive
5.5 kW | 400 V Class | 3-Phase 380-440 VAC | CANopen DS301 / DS402
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
ASD-B3-5543-M |
| Series |
ASDA-B3 |
| Product Type |
Single-Axis AC Servo Drive |
| Rated Motor Capacity |
5.5 kW / 5500 W |
| Voltage Class |
400 V Class |
| Main Circuit Input Phase |
Three-Phase |
| Main Circuit Input Voltage |
380-440 VAC |
| Input Frequency |
50/60 Hz |
| Rated Input Current |
14.5 A |
| Continuous Output Current |
15.34 A |
| Maximum Instantaneous Output Current |
49.29 A |
| Communication |
CANopen (DS301 / DS402) |
| Communication Interface |
CAN |
| Communication Protocol |
CANopen |
| Communication Connector |
CN3 |
| RS-485 Modbus |
Not Supported on B3-M |
| Control Modes |
Position / Speed / Torque |
| Internal Positioning |
PR Mode |
| External Pulse Train Input |
Not Supported on B3-M |
| Analog Voltage Control |
Supported |
| Encoder Feedback |
Compatible Incremental / Absolute ECM-B3 Motor Feedback |
| Encoder Resolution |
24-bit with Supported Motors |
| Main Circuit Control |
SVPWM |
| Speed Loop Bandwidth |
Up to 3.1 kHz |
| Built-In Regenerative Resistor |
35 Ohm, 100 W |
| Cooling Method |
Fan Cooling |
| Enclosure Protection |
IP20 |
Product Overview
The Delta ASD-B3-5543-M is a
5.5 kW single-axis AC servo drive from
Delta's ASDA-B3 Series.
This 400 V class drive uses a
three-phase 380-440 VAC main circuit input
and supports CANopen DS301 / DS402 communication
through the CN3 interface.
It provides position, speed and torque control with
compatible Delta ECM-B3 servo motors for industrial
motion control applications.
Key Product Features
-
5.5 kW Rated Capacity for supported industrial servo motor systems
-
400 V Class Input with three-phase 380-440 VAC power supply
-
CANopen DS301 / DS402 Communication through the CN3 interface
-
Position, Speed and Torque Control for networked motion applications
-
Internal PR Positioning without external pulse-train input
-
High-Resolution Feedback with compatible 24-bit encoder servo motors
-
Built-In Regenerative Resistor with fan cooling for the 5.5 kW configuration
Actual Product Verification
✓

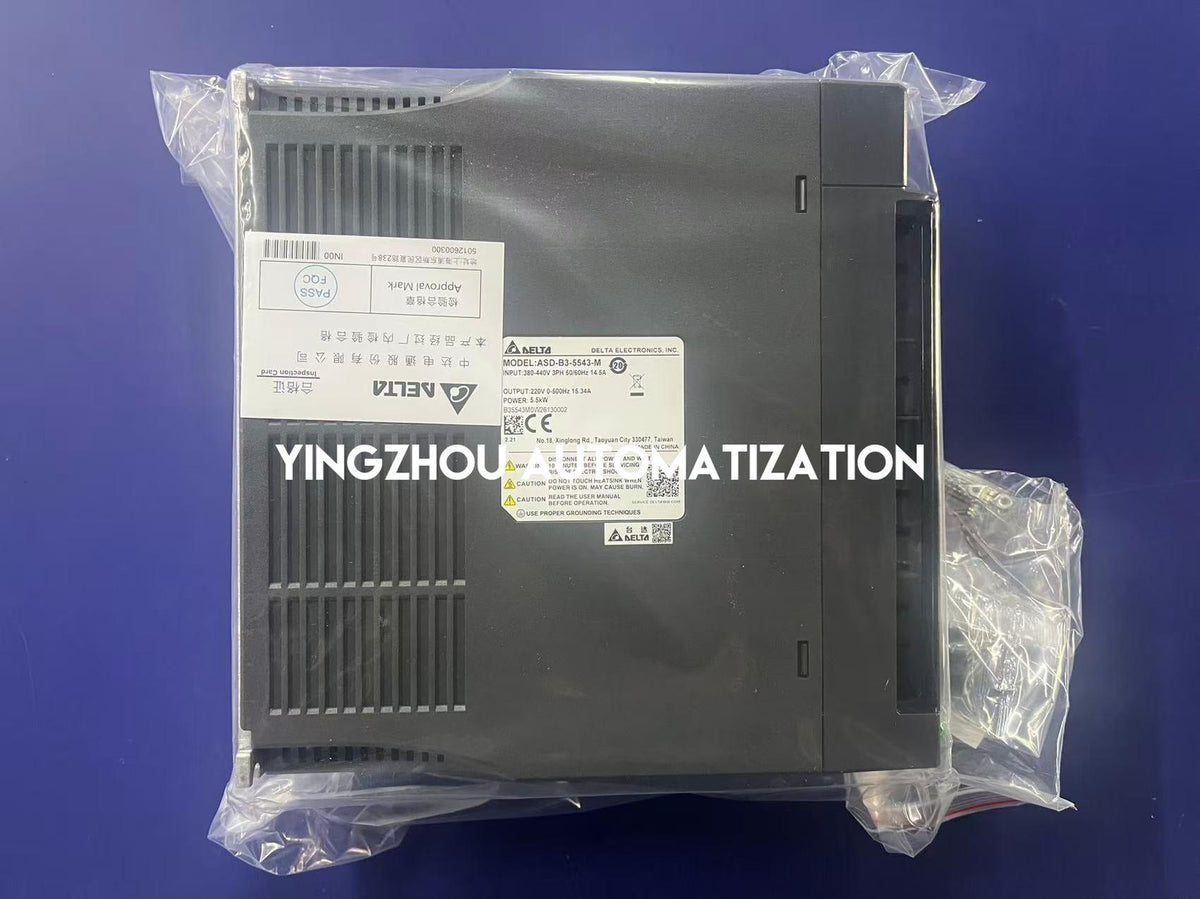

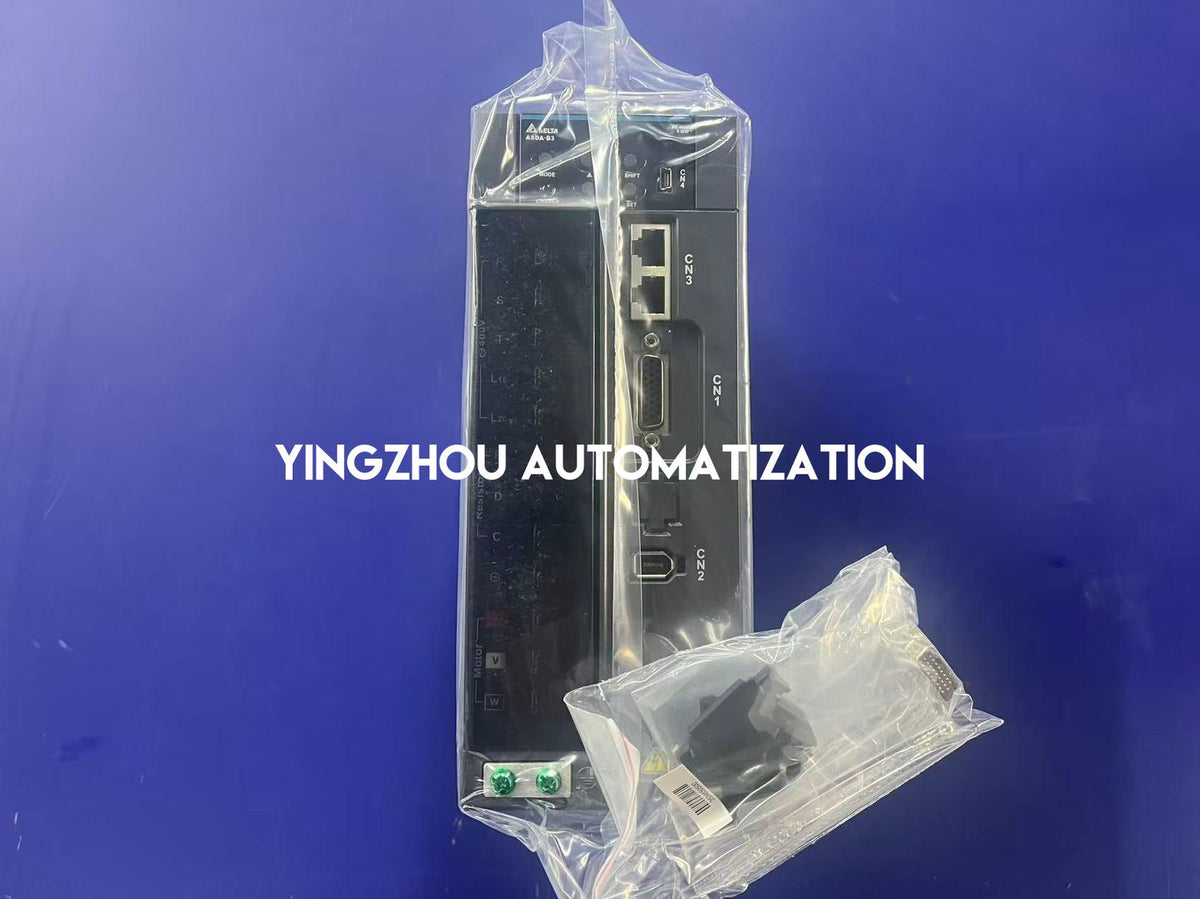

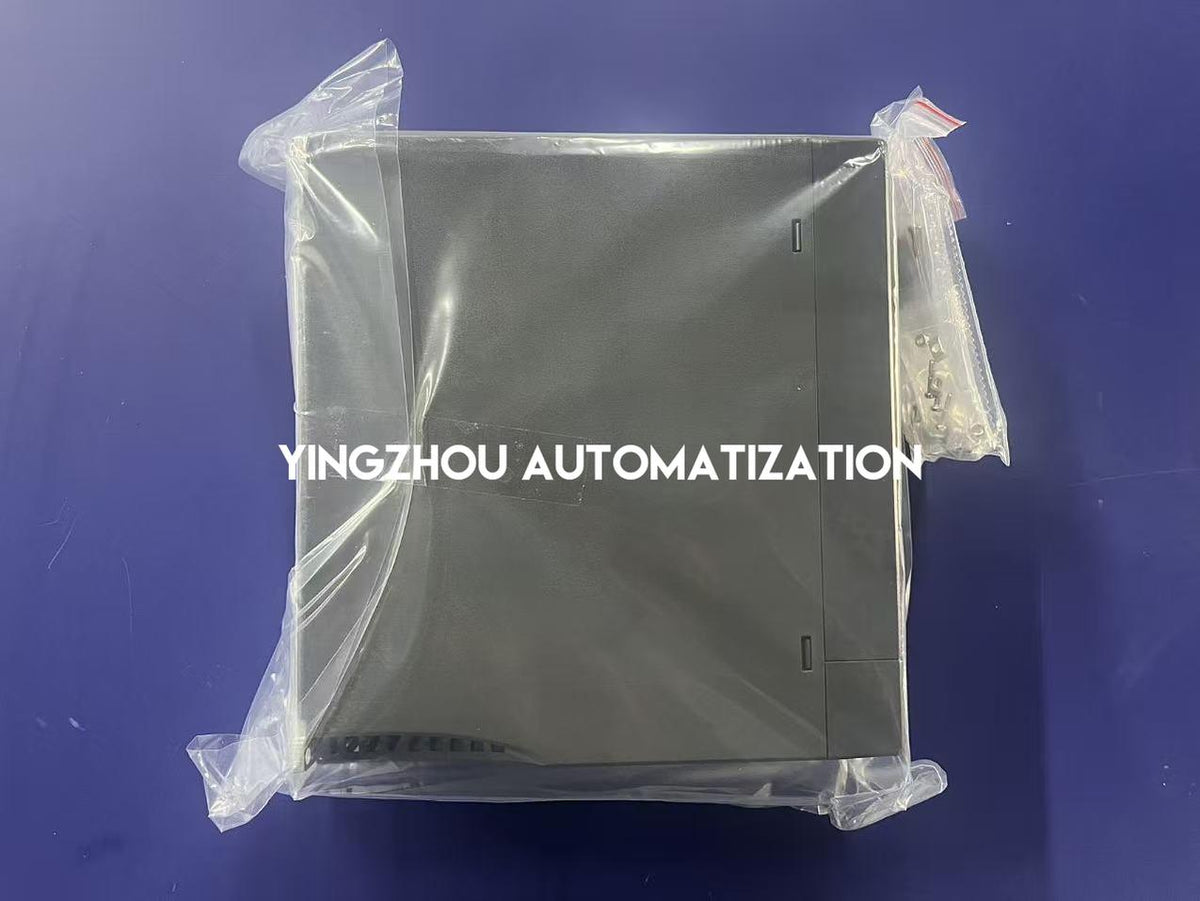

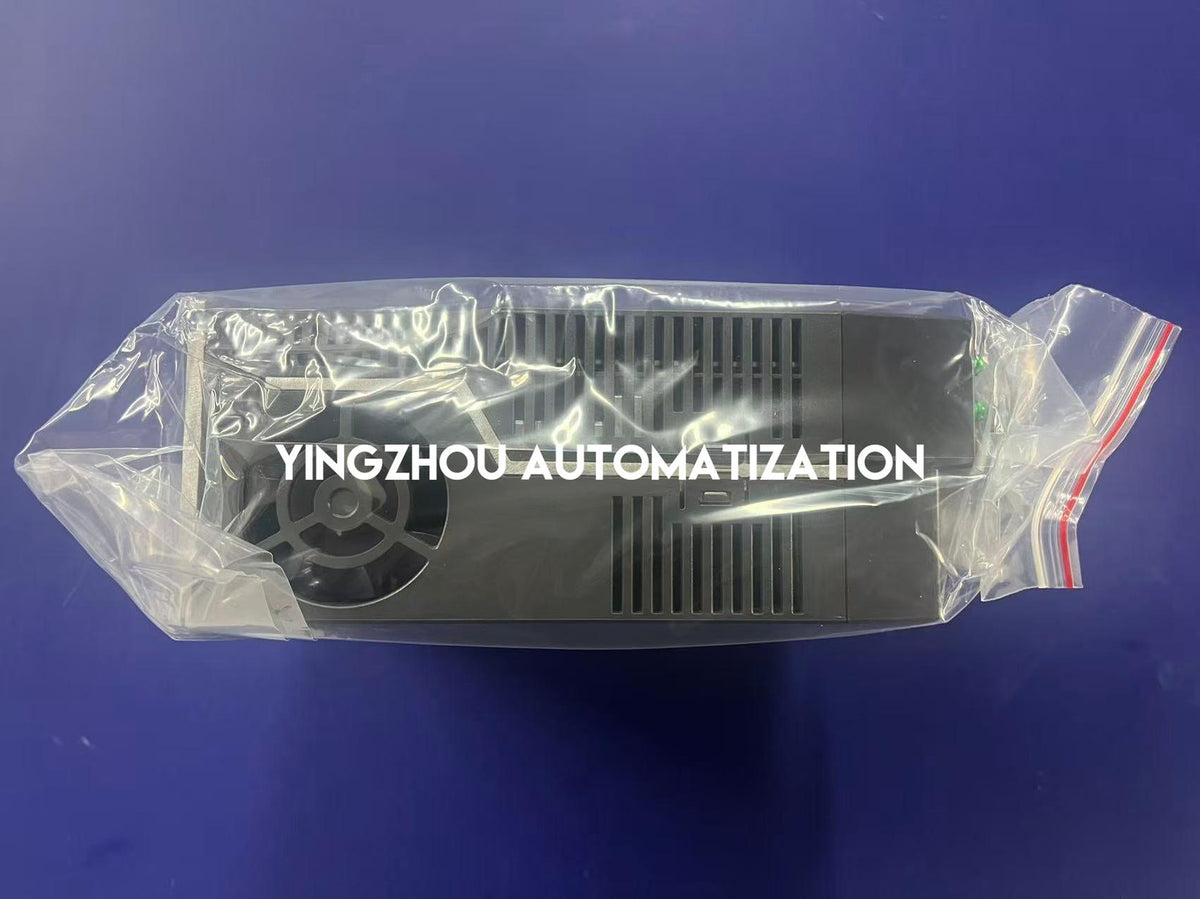

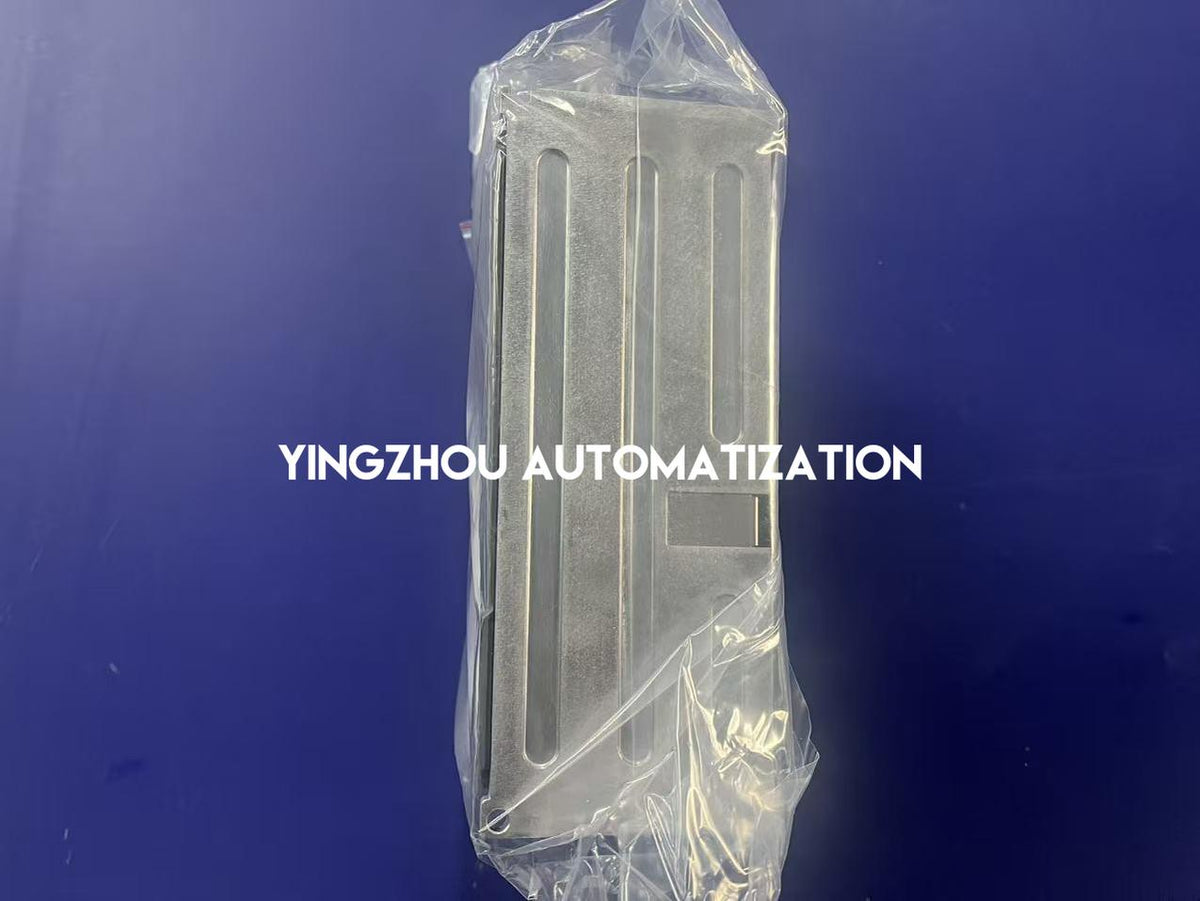

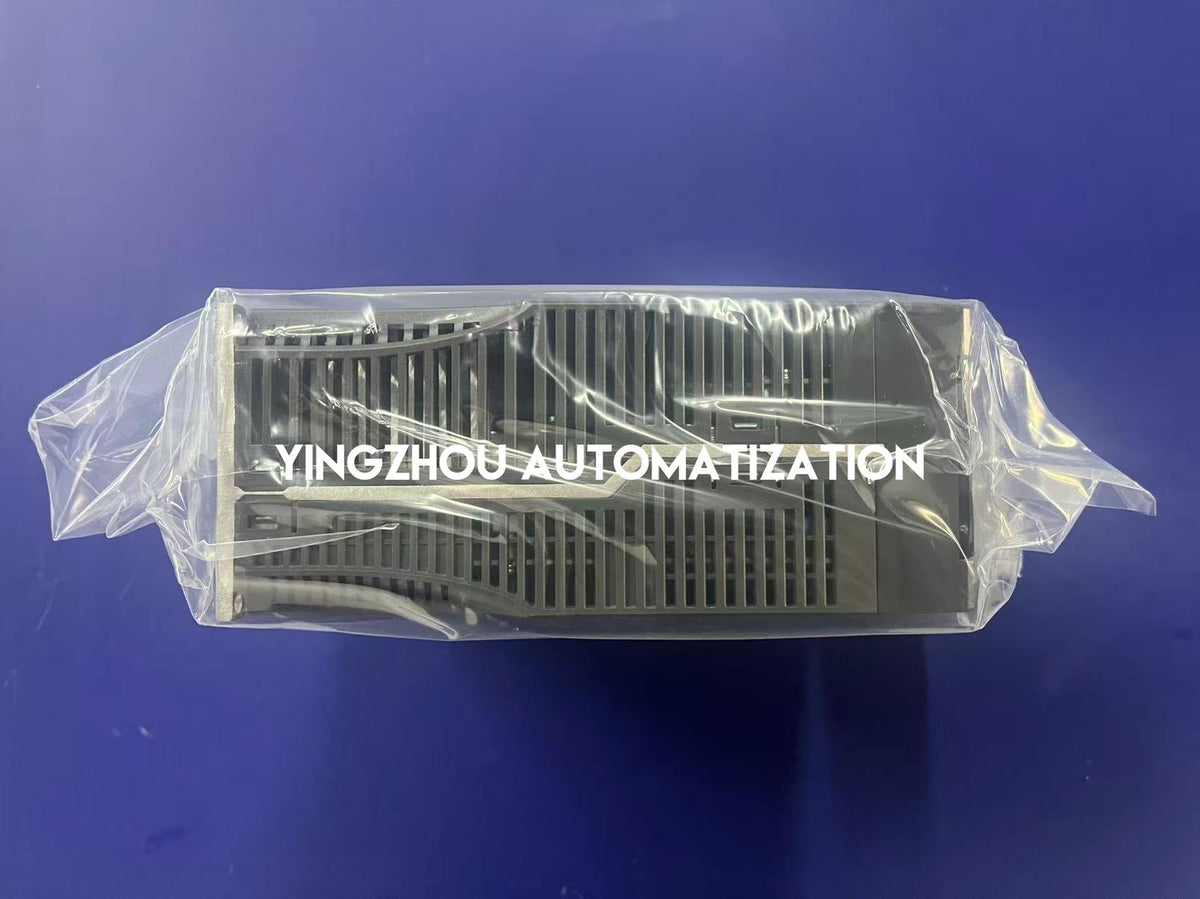

Actual product photos
✓

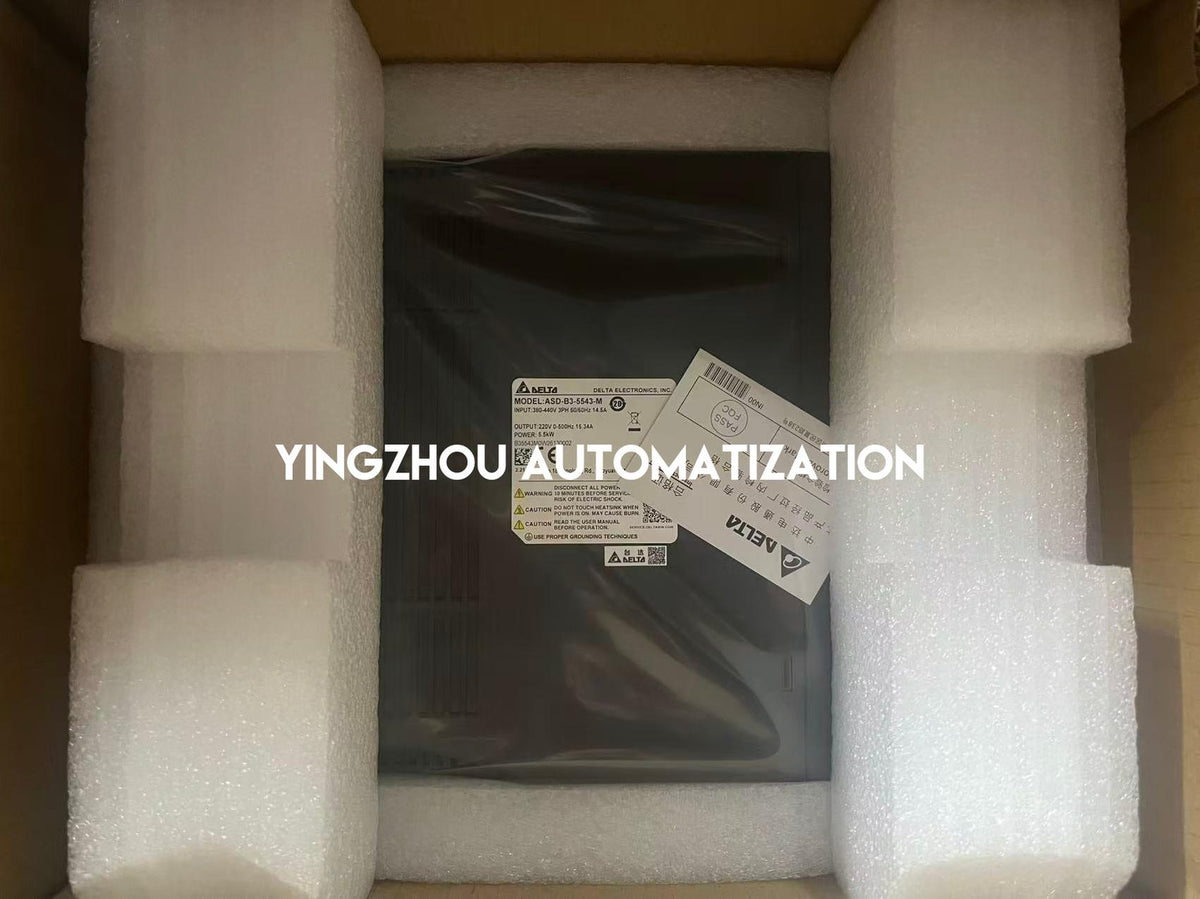

Model/nameplate visible
✓
Packaging shown
✓
Device and carton labels show model ASD-B3-5543-M
✓
Verify exact model before ordering
In Stock & Ready to Order
Delta ASD-B3-5543-M is currently
in stock. Actual product photos,
the exact model nameplate and matching carton model label
are available for verification.
Contact us for project pricing, quantity requirements
and shipping arrangements.
IN STOCK
Delta ASD-B3-5543-M
Add to Cart / Buy Now on this product page,
or contact us for project and quantity pricing.
Request Project Pricing
