Delta ASD-B3-0721-L ASDA-B3 AC Servo Drive
750 W | 220 V Class | 1/3-Phase 200-230 VAC | RS-485 Modbus
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
ASD-B3-0721-L |
| Series |
ASDA-B3 |
| Product Type |
Single-Axis AC Servo Drive |
| Rated Motor Capacity |
750 W / 0.75 kW |
| Voltage Class |
220 V Class |
| Main Circuit Input Phase |
Single-Phase / Three-Phase |
| Main Circuit Input Voltage |
200-230 VAC |
| Input Frequency |
50/60 Hz |
| Rated Input Current, Three-Phase |
3.52 A |
| Rated Input Current, Single-Phase |
6.47 A |
| Continuous Output Current |
5.1 A |
| Maximum Instantaneous Output Current |
14.14 A |
| Communication |
RS-485 Modbus |
| Communication Interface |
RS-485 |
| Communication Protocol |
Modbus ASCII / RTU |
| Communication Connector |
CN3 |
| PC Communication |
Mini USB (CN4) |
| CANopen Communication |
Not Supported on B3-L |
| EtherCAT Communication |
Not Supported on B3-L |
| DMCNET Communication |
Not Supported on B3-L |
| External Pulse Train Input |
Supported |
| Pulse Command Types |
Pulse + Direction / A-B Phase / CW-CCW |
| Pulse + Direction Input Frequency |
Up to 4 Mpps |
| A-B Phase Input Frequency |
Up to 2 Mpps |
| Open Collector Pulse Input |
Up to 200 Kpps |
| Internal Positioning |
PR Mode Supported |
| Control Modes |
Position / Speed / Torque |
| Analog Voltage Control |
Supported |
| Analog Command Input Range |
-10 to +10 VDC |
| Digital Inputs |
9 |
| Digital Outputs |
6 |
| Encoder Pulse Output |
A / B / Z |
| Drive Resolution |
24-bit |
| Main Circuit Control |
SVPWM |
| Speed Loop Bandwidth |
Up to 3.1 kHz |
| Tuning Methods |
Automatic / Manual |
| Built-In Regenerative Resistor |
100 Ohm, 40 W |
| Minimum External Regenerative Resistance |
60 Ohm |
| Operating Temperature |
0 to +55 degrees C |
| Storage Temperature |
-20 to +65 degrees C |
| Operating Humidity |
0-90% RH, Non-Condensing |
| Enclosure Protection |
IP20 |
| Hardware Safe Torque Off |
Not Provided on B3-L |
Product Overview
The Delta ASD-B3-0721-L is a
750 W single-axis AC servo drive
from Delta's ASDA-B3 Series.
This 220 V class drive supports
single-phase or three-phase 200-230 VAC
main circuit power input and provides
RS-485 Modbus communication
through the CN3 serial communication interface.
The B3-L configuration supports external pulse train
commands, internal PR positioning, analog voltage control,
and position, speed and torque control for industrial
motion systems using compatible Delta servo motors.
Key Product Features
-
750 W Rated Servo Capacity for compatible industrial servo motor systems
-
220 V Class Power Input with single-phase or three-phase 200-230 VAC supply
-
RS-485 Modbus Communication through the CN3 serial interface
-
External Pulse Train Control for compatible PLC and motion controller position commands
-
Internal PR Positioning for programmable position commands
-
Position, Speed and Torque Control with supported analog voltage commands
-
9 Digital Inputs and 6 Digital Outputs for servo control integration
-
High-Speed Pulse Input supporting Pulse + Direction commands up to 4 Mpps
-
24-bit Drive Resolution for supported high-resolution motion systems
-
Built-In Regenerative Resistor rated at 100 Ohm and 40 W
Actual Product Verification
✓

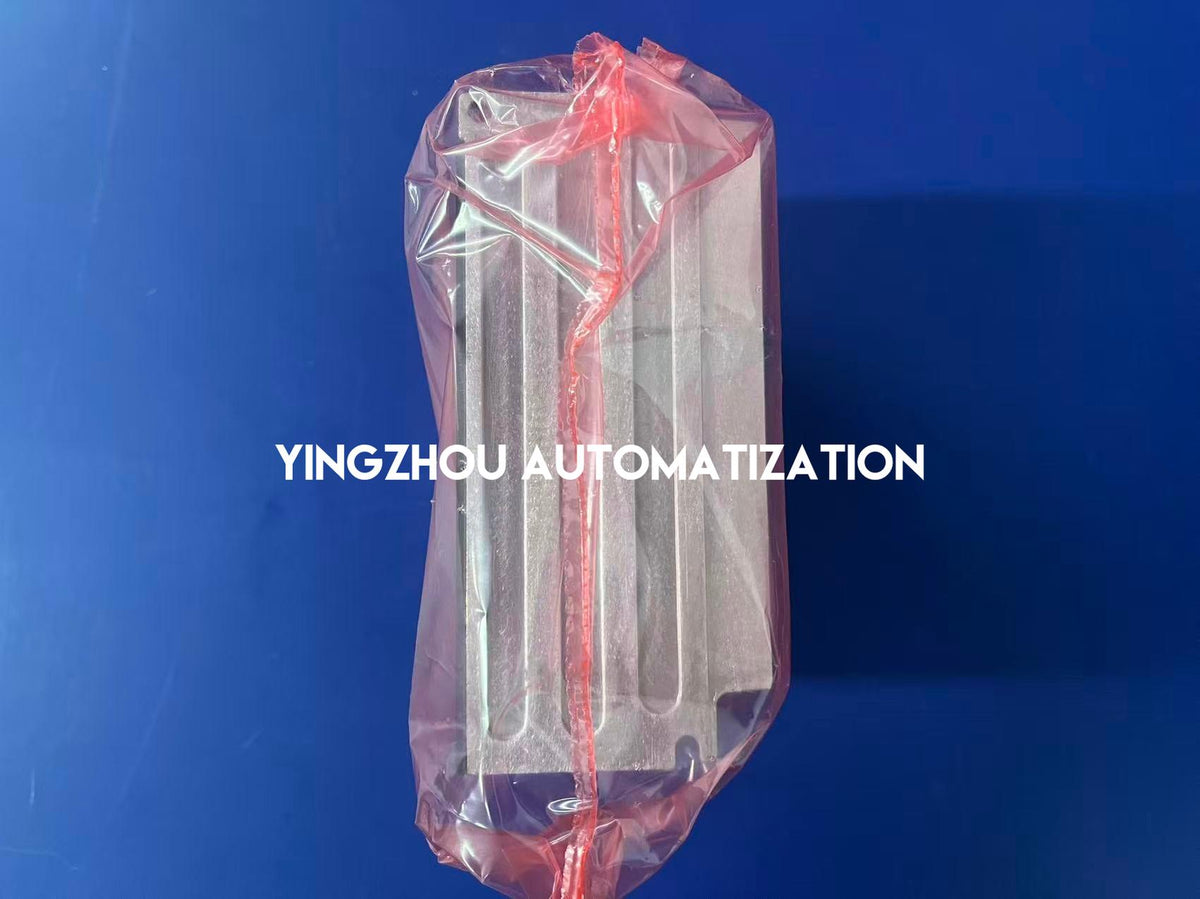

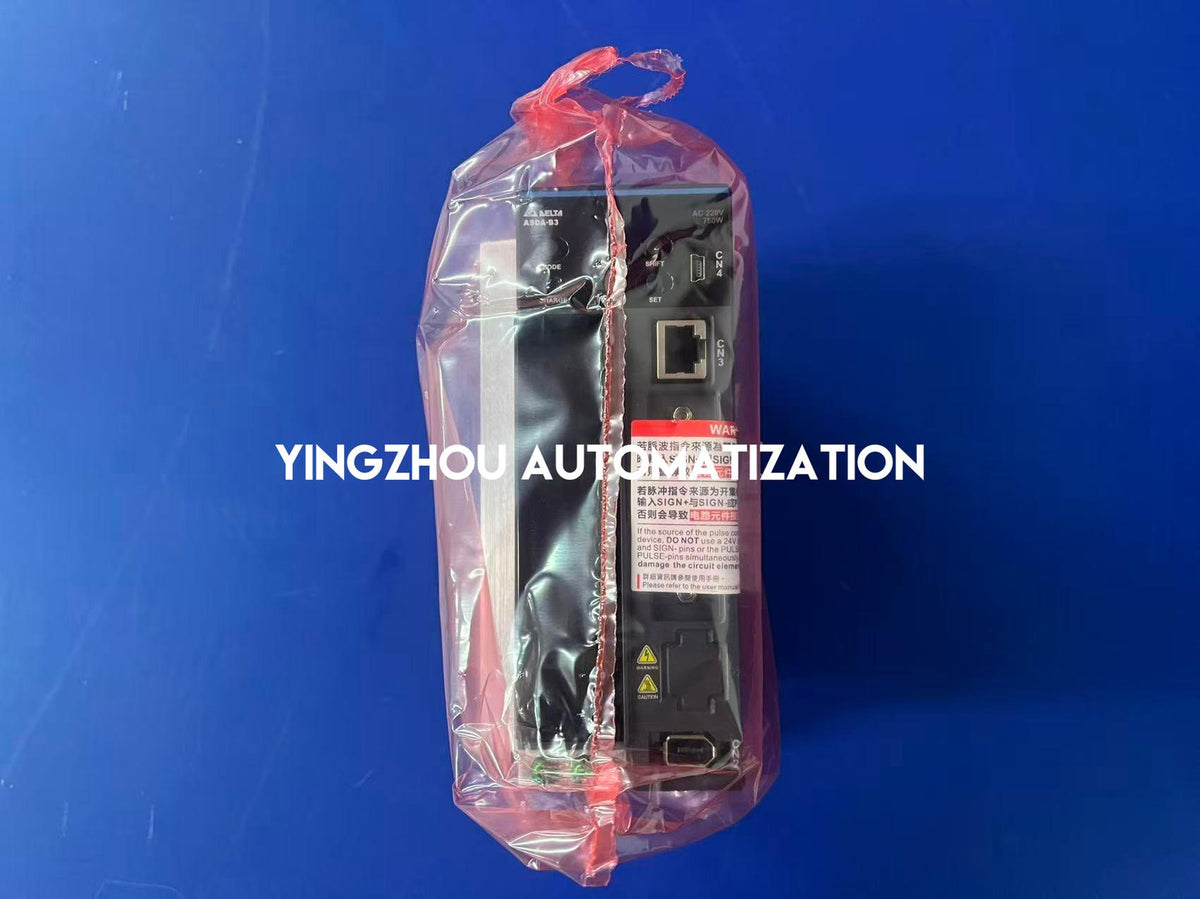

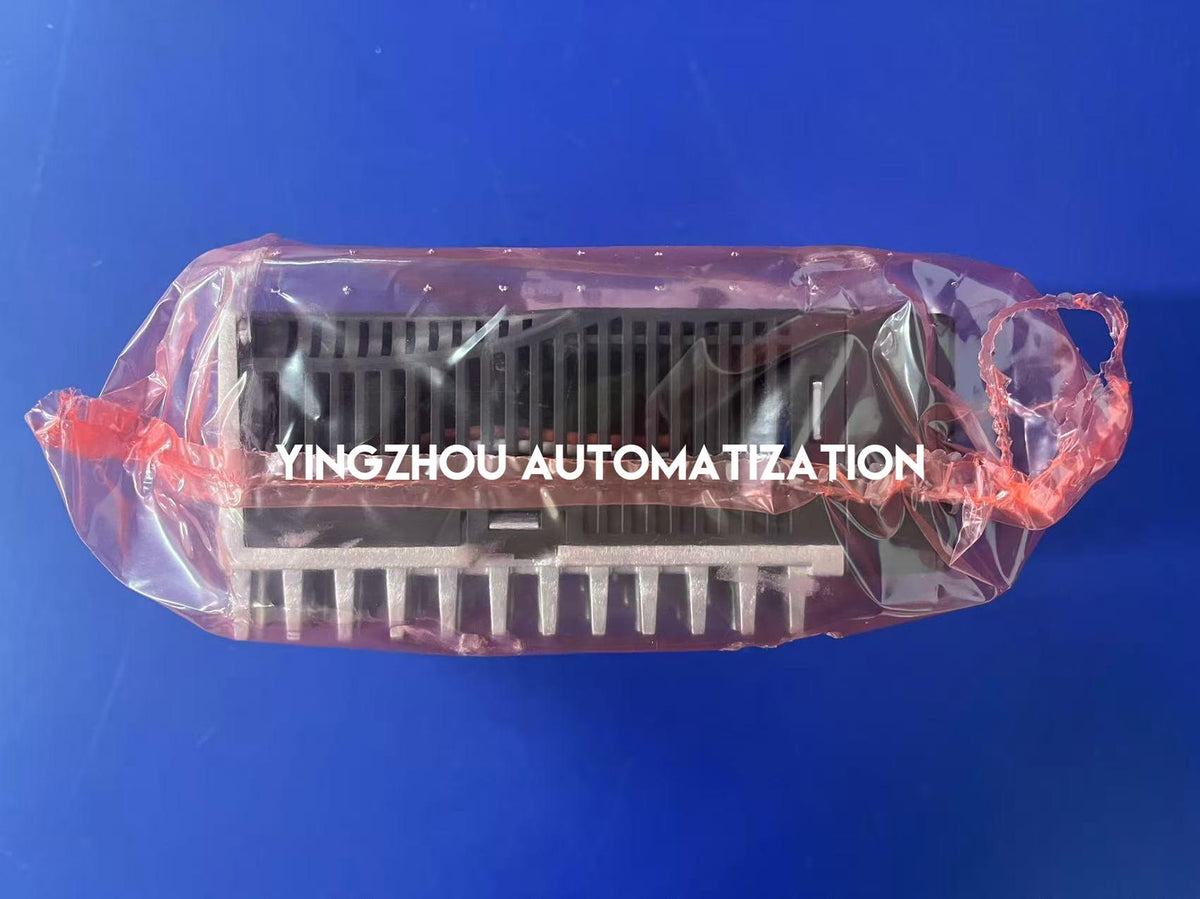

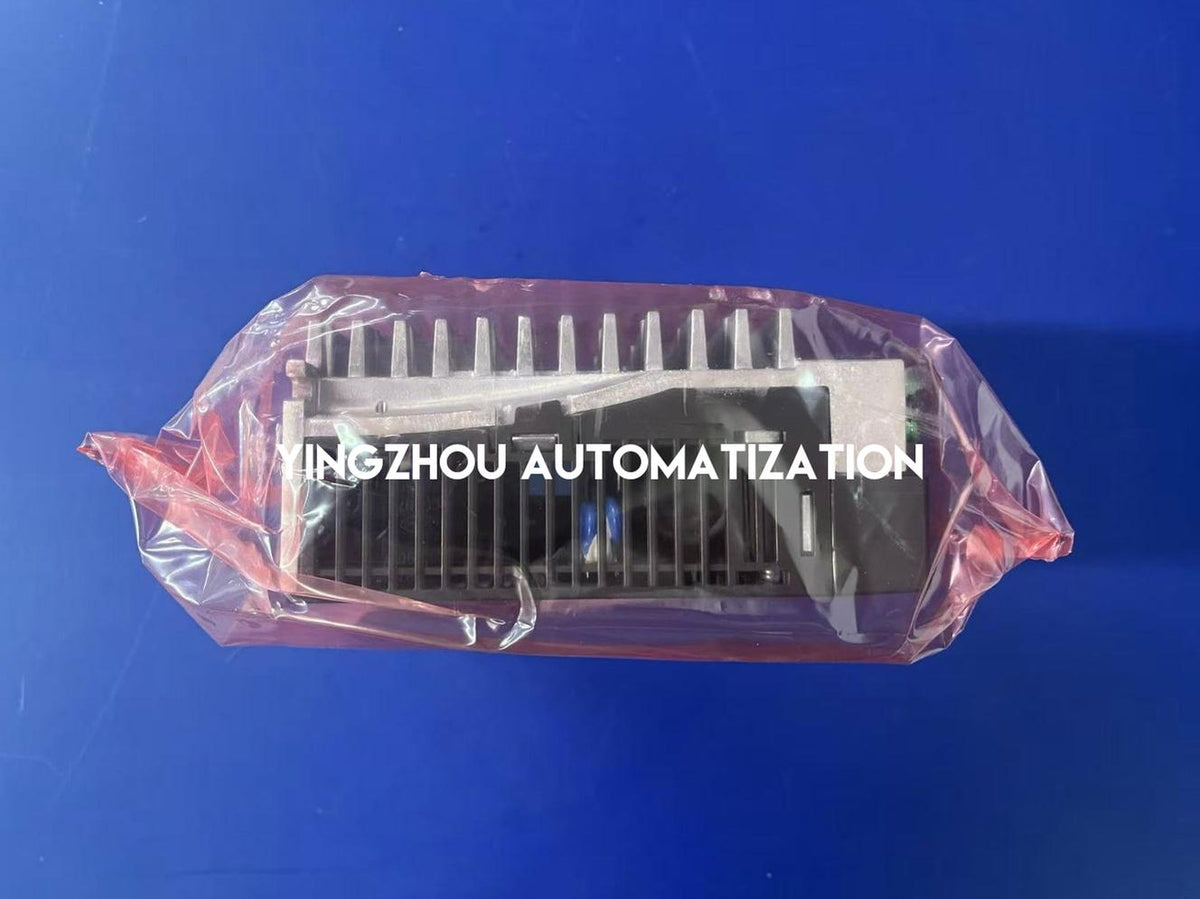

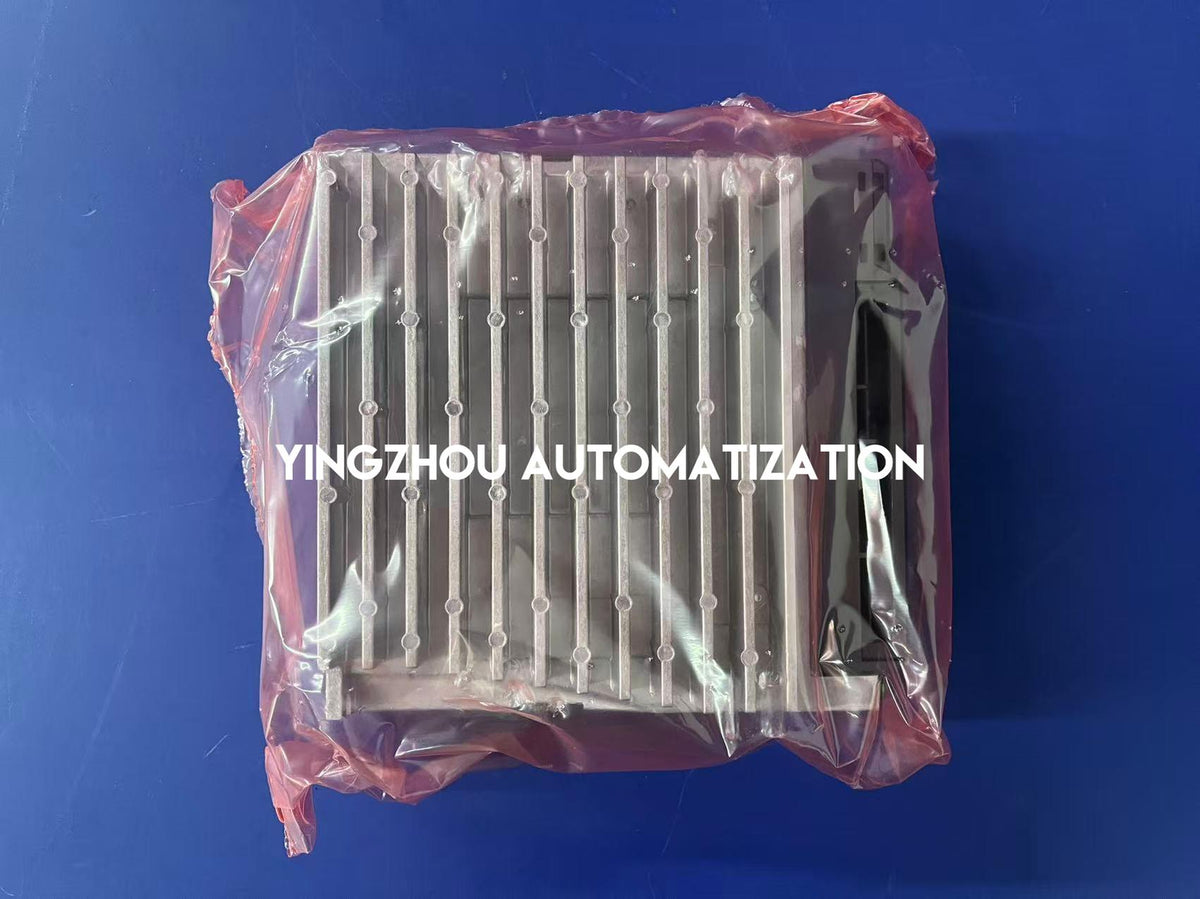

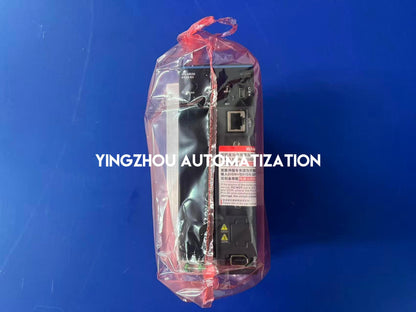

Actual product photos
✓
Model/nameplate visible
✓

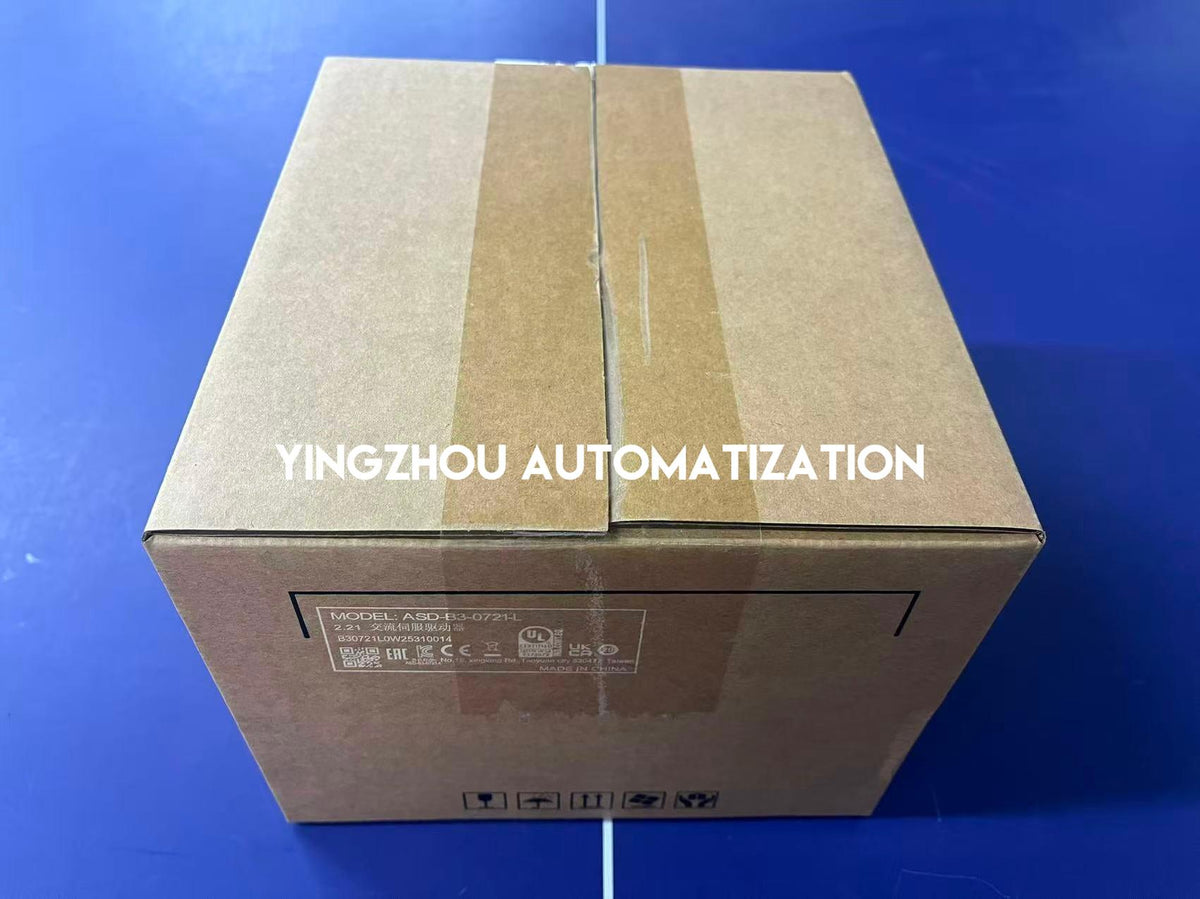

Packaging shown
✓

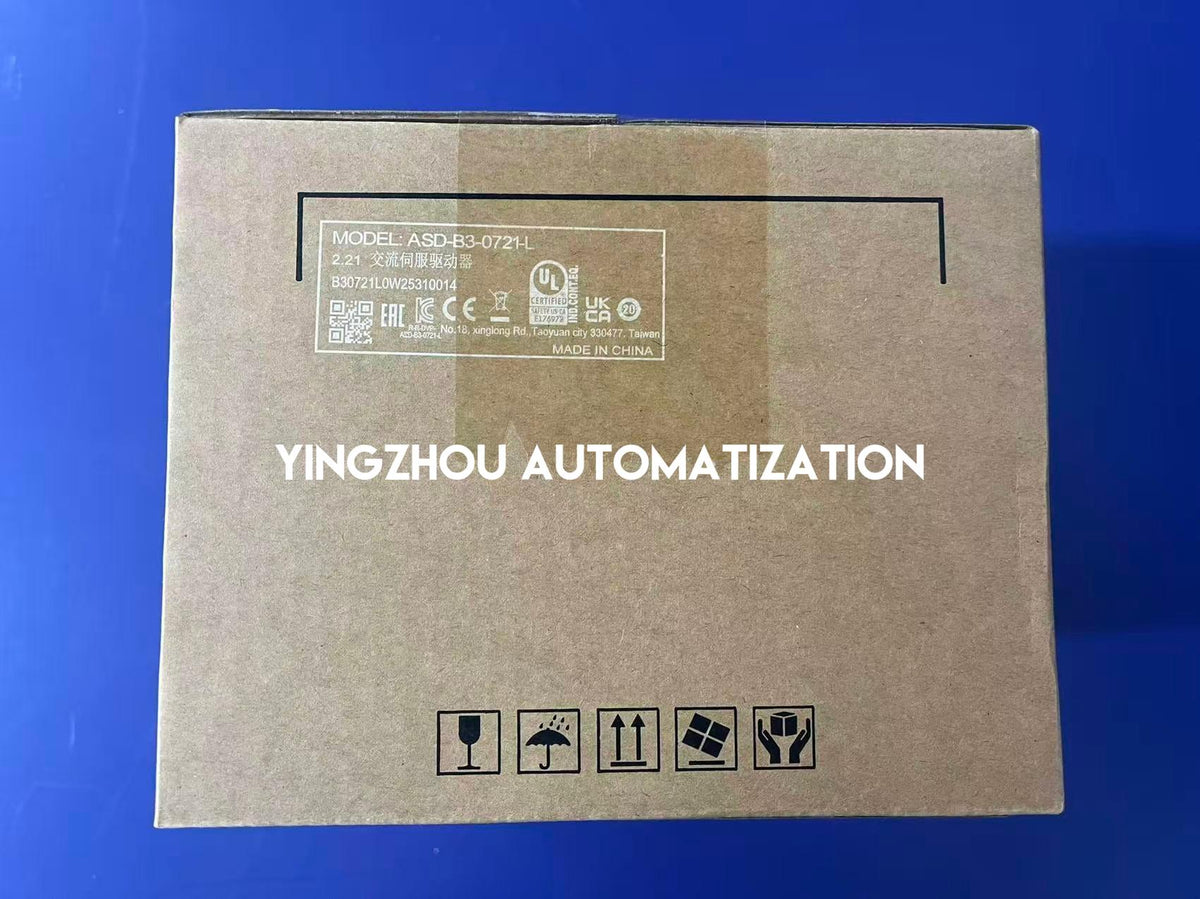

Device and carton labels match model ASD-B3-0721-L
✓

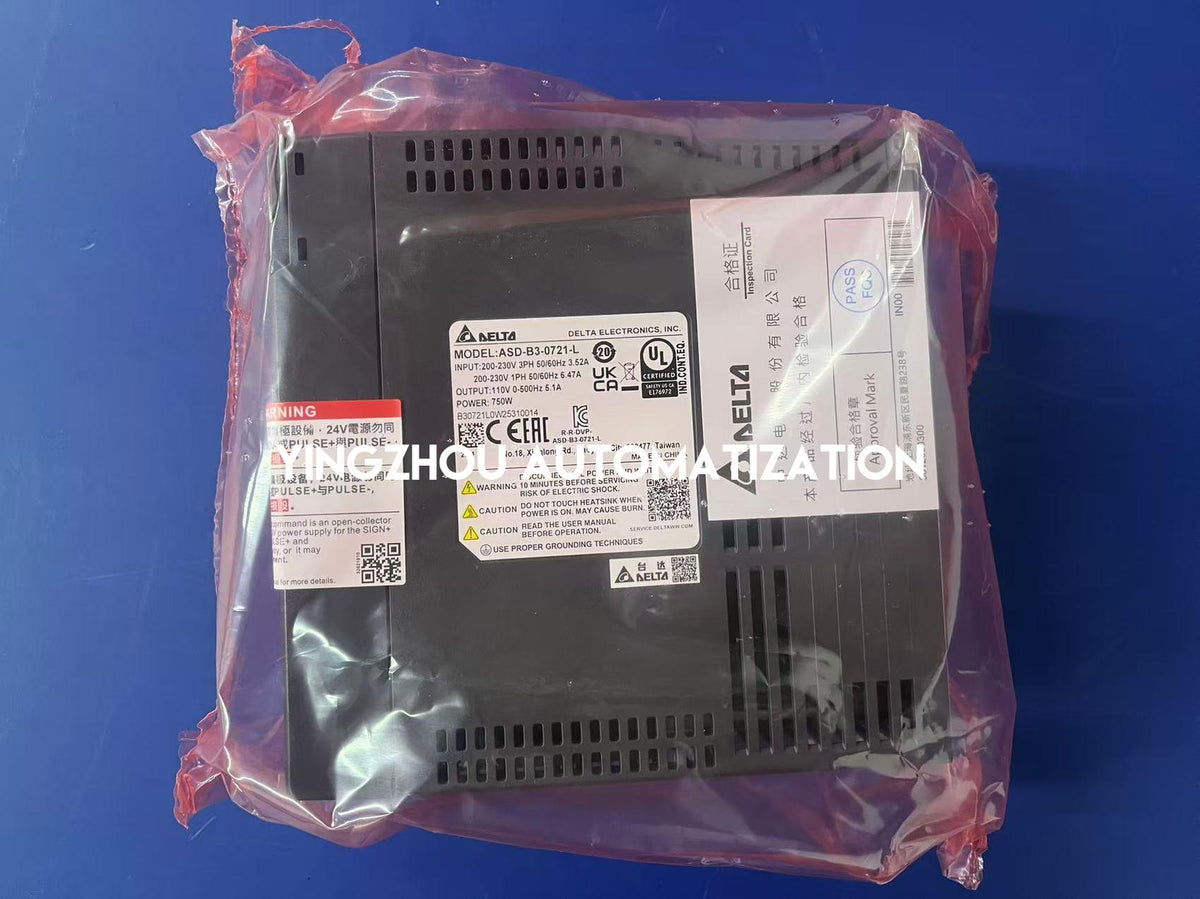

Actual device nameplate confirms 750 W, 3.52 A three-phase input, 6.47 A single-phase input and 5.1 A output
✓
Verify exact model before ordering
In Stock & Ready to Order
Delta ASD-B3-0721-L is currently
in stock.
Actual product photos, the exact model nameplate
and matching carton label are available for verification.
Contact us for project pricing, quantity requirements
and shipping arrangements.
