Delta ASD-A3-0721-L ASDA-A3 AC Servo Drive
750 W | 220 V Class | 1/3-Phase 200-230 VAC | RS-485 Modbus
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
ASD-A3-0721-L |
| Series |
ASDA-A3 |
| Product Type |
Single-Axis AC Servo Drive |
| Rated Motor Capacity |
750 W / 0.75 kW |
| Voltage Class |
220 V Class |
| Main Circuit Input Phase |
Single-Phase / Three-Phase |
| Main Circuit Input Voltage |
200-230 VAC |
| Input Frequency |
50/60 Hz |
| Rated Input Current, Three-Phase |
3.8 A |
| Rated Input Current, Single-Phase |
7.12 A |
| Continuous Output Current |
5.1 A |
| Maximum Instantaneous Output Current |
21.21 A |
| Communication |
RS-485 Modbus |
| Communication Interface |
RS-485 |
| Communication Connector |
CN3, Single Port |
| PC Communication |
Mini USB (CN4) |
| CANopen Communication |
Not Supported on A3-L |
| EtherCAT Communication |
Not Supported on A3-L |
| DMCNET Communication |
Not Supported on A3-L |
| External Pulse Train Input |
Supported |
| Pulse Input Types |
Pulse + Direction / A-B Phase / CW-CCW |
| Maximum Pulse Input Frequency |
Up to 4 Mpps |
| Open Collector Pulse Input |
Up to 200 Kpps |
| Internal Positioning |
PR Mode |
| Control Modes |
Position / Speed / Torque |
| Analog Voltage Commands |
Supported |
| Digital Inputs |
10 |
| Digital Outputs |
6 |
| Full-Closed-Loop Control |
Supported |
| Motor Feedback |
Compatible Incremental / Absolute Encoders |
| Encoder Resolution |
Up to 24-bit with Compatible Motors |
| Electronic Cam |
Not Provided on A3-L |
| Safe Torque Off |
Not Provided on A3-L |
| Speed Loop Bandwidth |
Up to 3.1 kHz |
| Main Circuit Control |
SVPWM |
| Tuning Methods |
Automatic / Manual |
| Regenerative Resistor |
Built-In |
| Cooling Method |
Fan Cooling |
| Operating Temperature |
0 to +55 degrees C |
| Enclosure Protection |
IP20 |
Product Overview
The Delta ASD-A3-0721-L is a
750 W single-axis AC servo drive
from Delta's ASDA-A3 Series.
This 220 V class drive supports
single-phase or three-phase 200-230 VAC
main circuit input and provides
RS-485 Modbus communication
through the CN3 interface.
The A3-L configuration supports external pulse train
commands, internal PR positioning, analog commands
and full-closed-loop control for industrial motion
applications using compatible Delta servo motors.
Key Product Features
-
750 W Rated Servo Capacity for compatible industrial servo motor systems
-
220 V Class Power Input with single-phase or three-phase 200-230 VAC supply
-
RS-485 Modbus Communication through the CN3 interface
-
External Pulse Train Control for supported position control applications
-
Internal PR Positioning for programmable position commands
-
Position, Speed and Torque Control with analog command support
-
10 Digital Inputs and 6 Digital Outputs for industrial control signals
-
Full-Closed-Loop Control with supported external feedback systems
-
Built-In Regenerative Resistor and Fan Cooling for the 750 W drive configuration
Actual Product Verification
✓

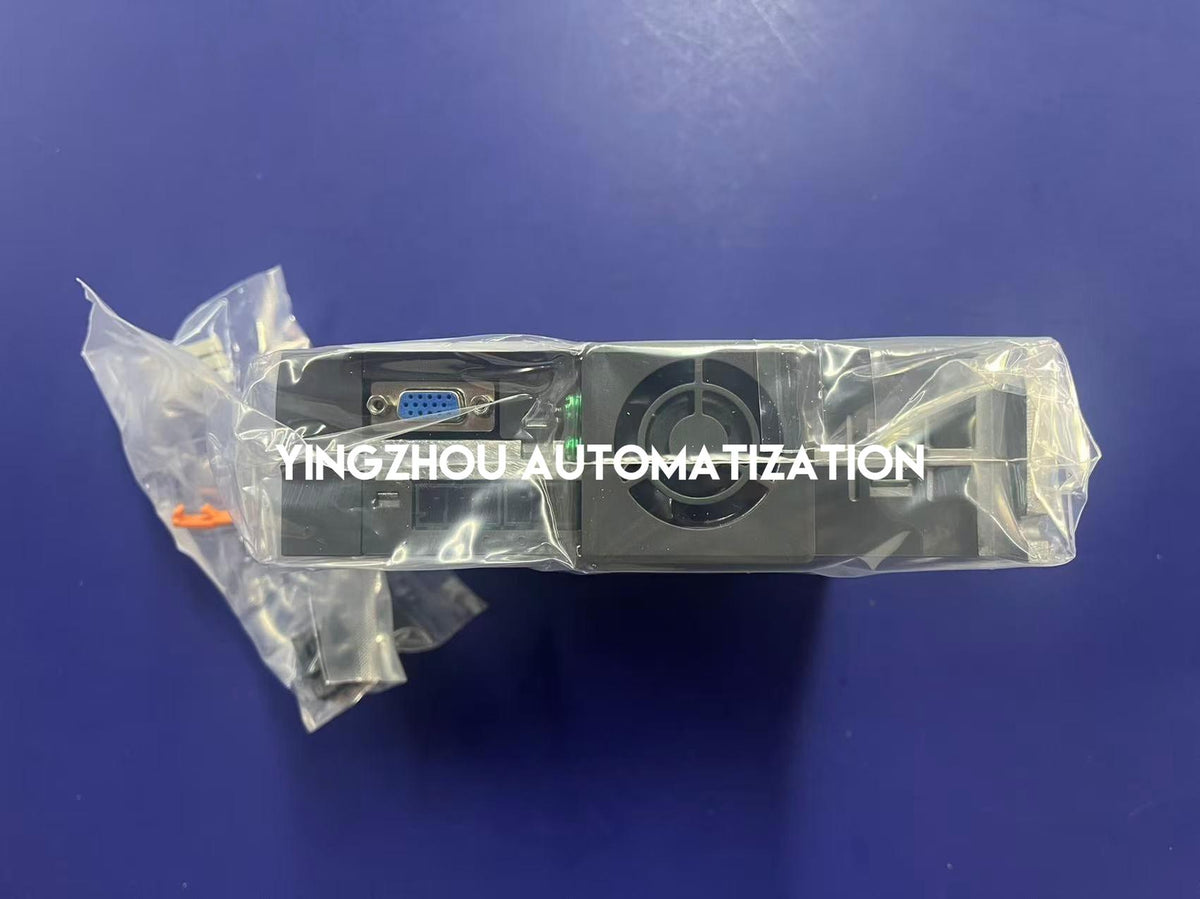

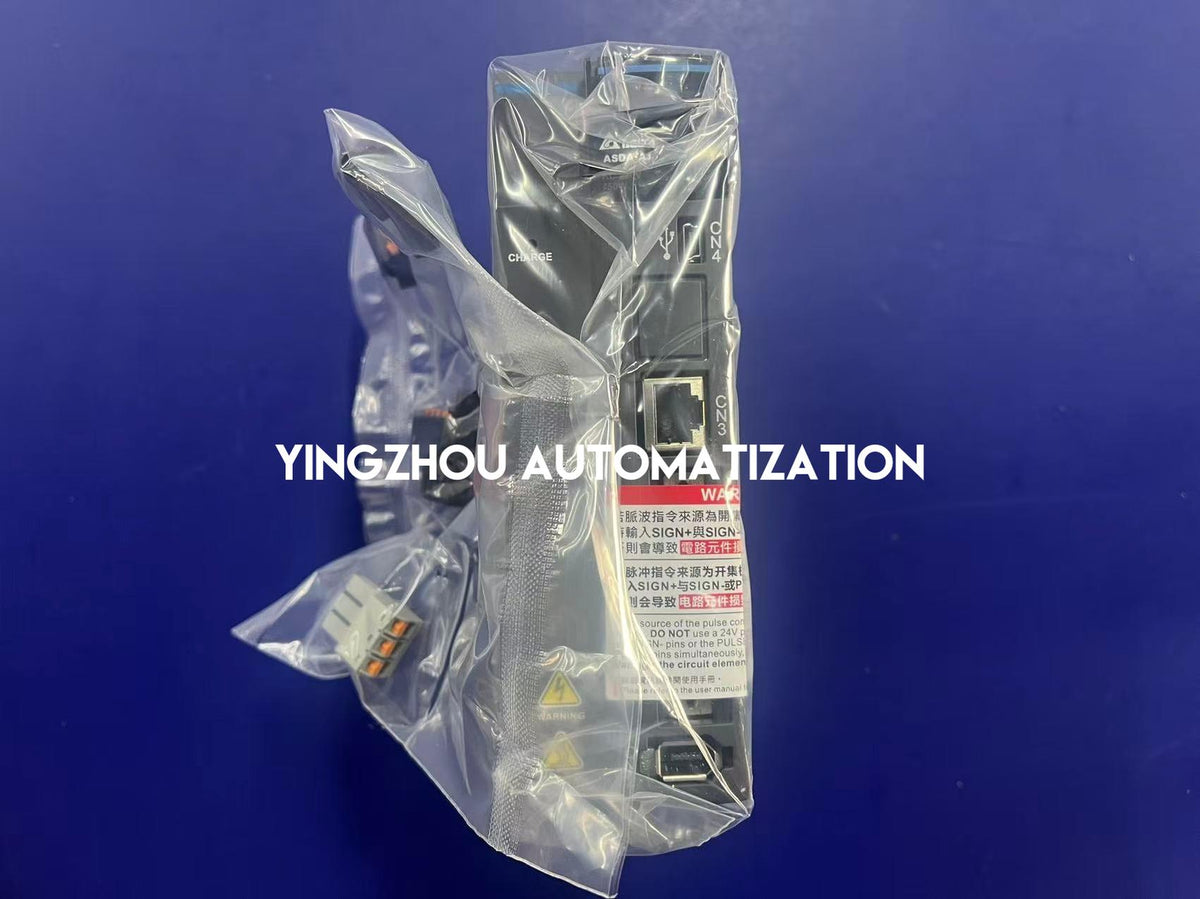

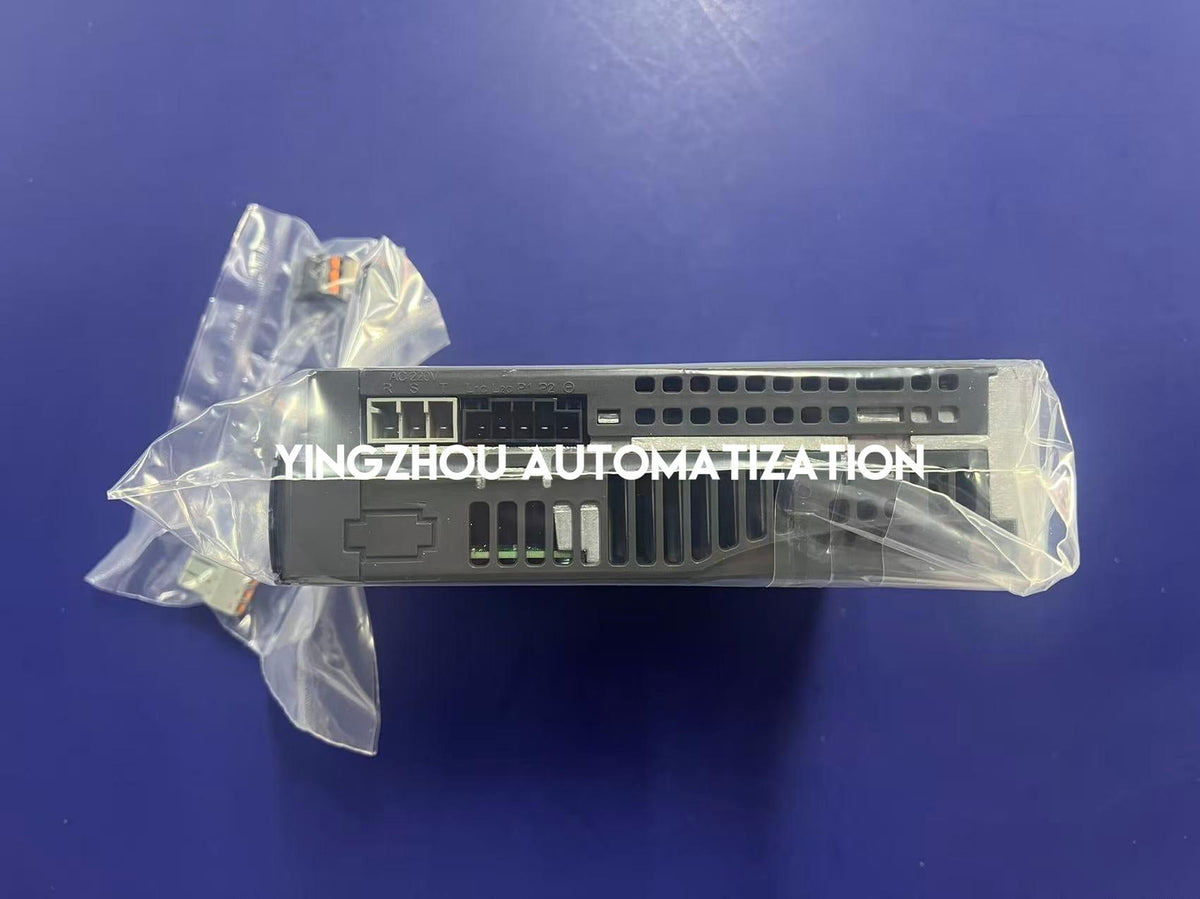

Actual product photos
✓

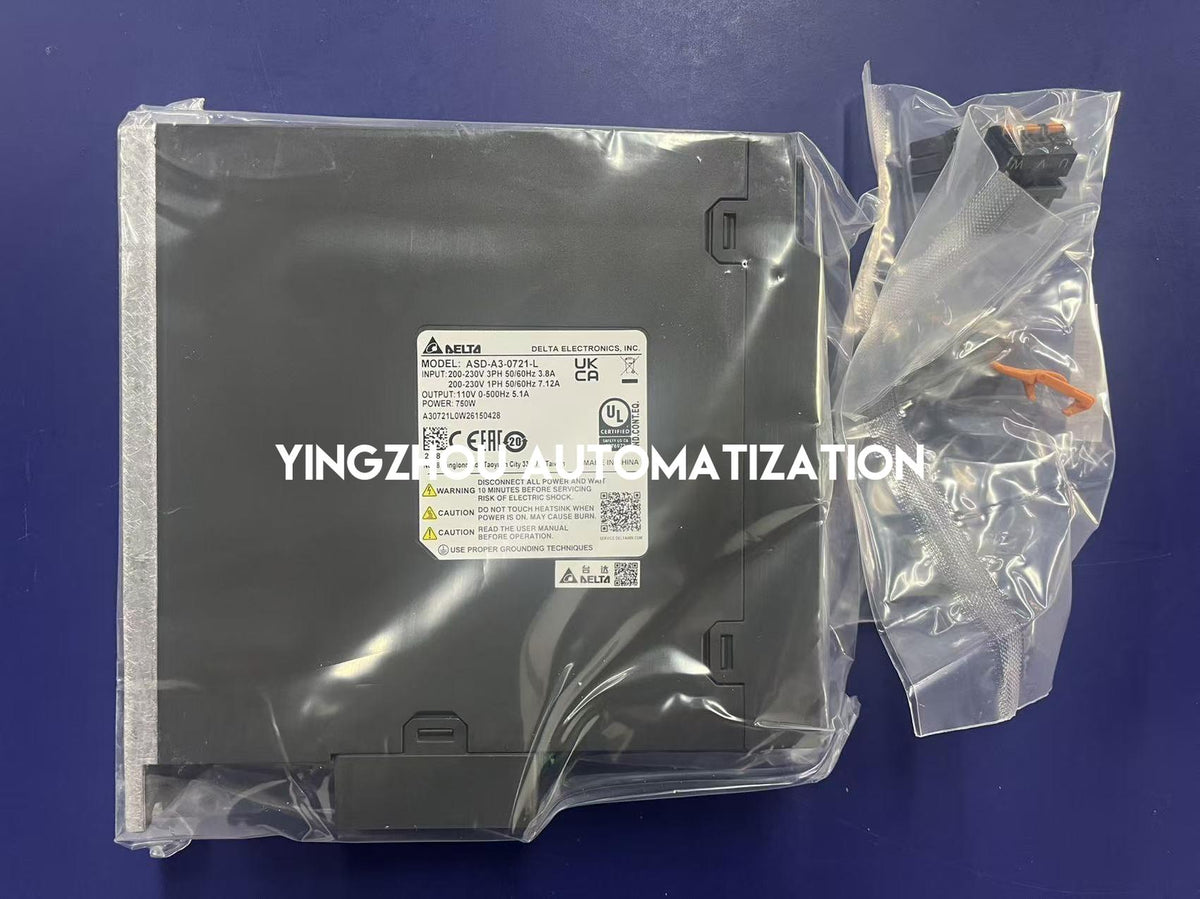

Model/nameplate visible
✓

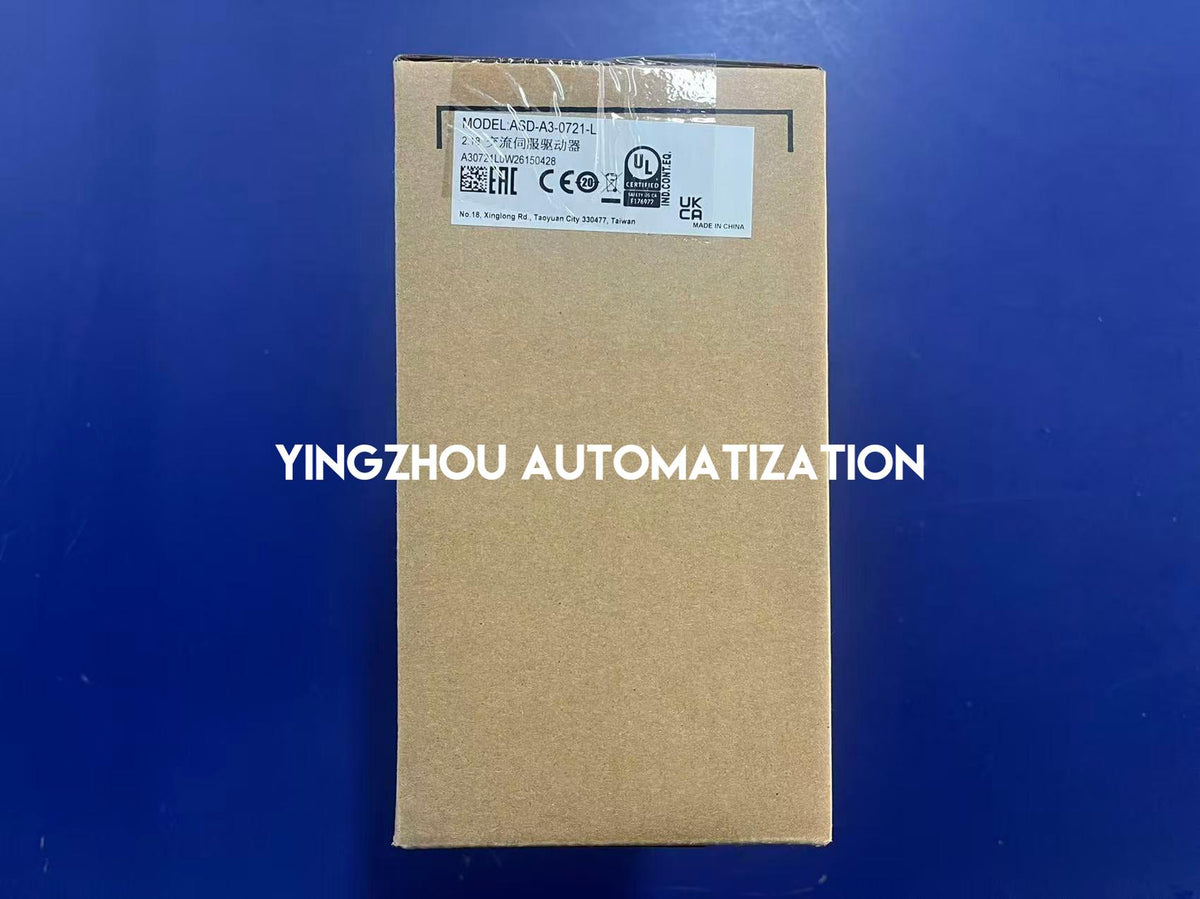

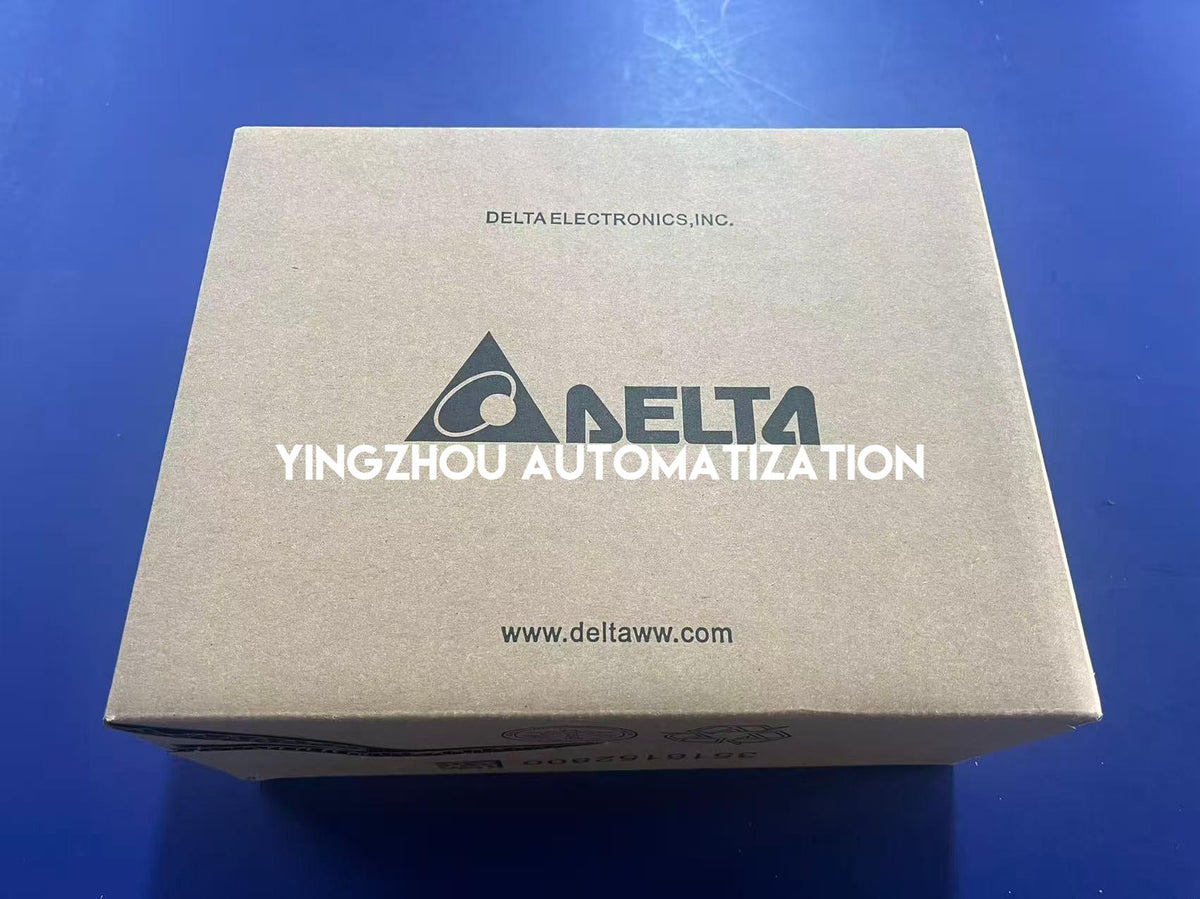

Packaging shown
✓

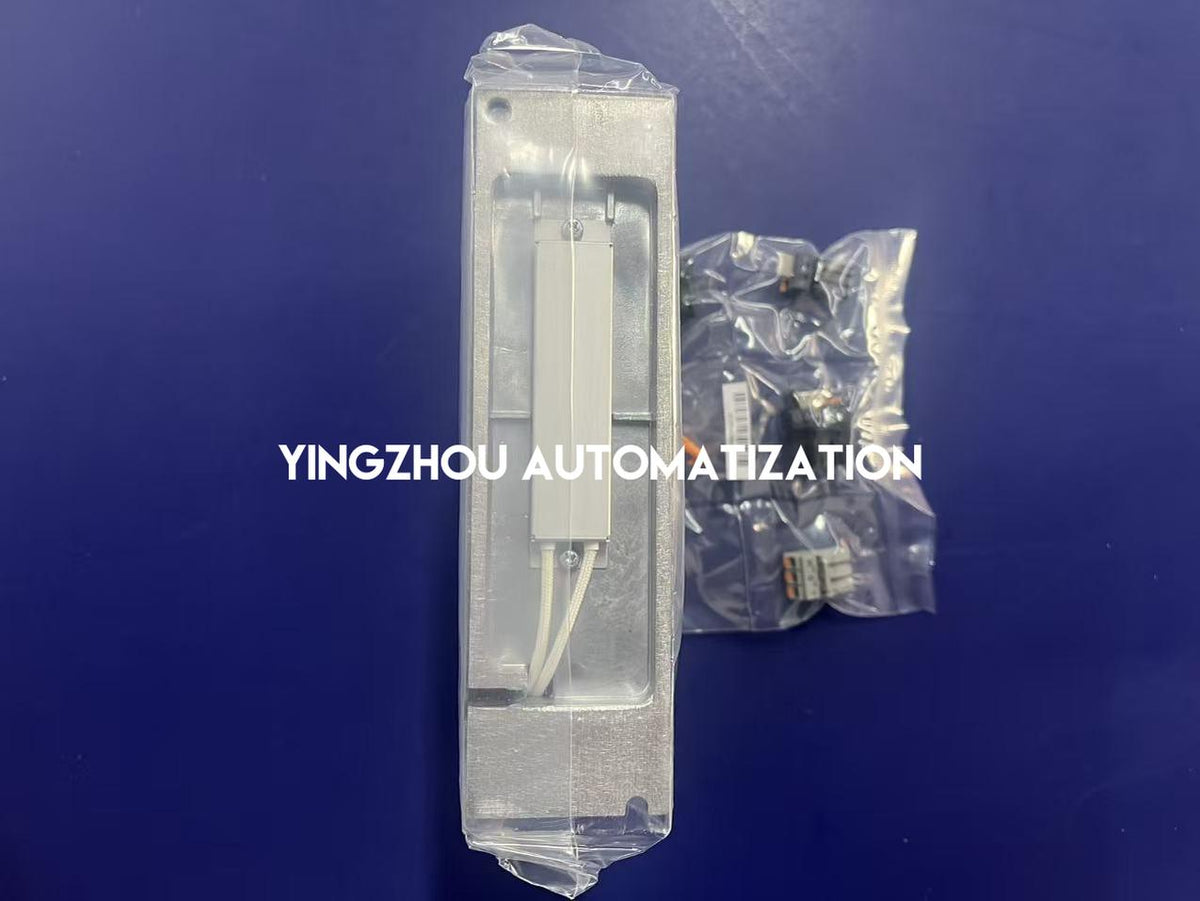

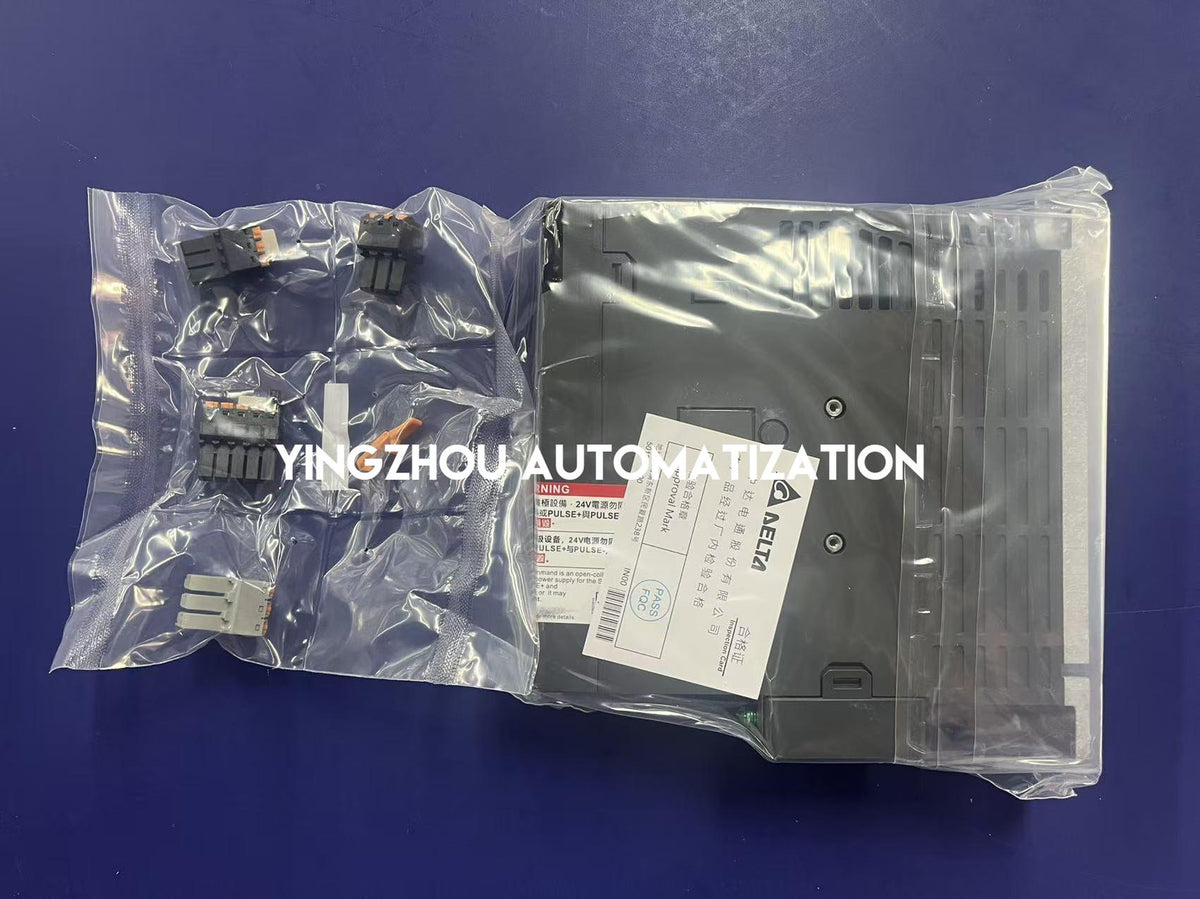

Separately bagged connector accessories visible
✓
Device and carton labels match model ASD-A3-0721-L
✓
Verify exact model before ordering
In Stock & Ready to Order
Delta ASD-A3-0721-L is currently
in stock. Actual product photos,
the exact model nameplate and matching carton label
are available for verification.
Contact us for project pricing, quantity requirements
and shipping arrangements.
