Delta ASD-A3-0421-M ASDA-A3 AC Servo Drive
400 W | 220 V Class | 1/3-Phase 200-230 VAC | CANopen + RS-485 Modbus
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
ASD-A3-0421-M |
| Series |
ASDA-A3 |
| Product Type |
Single-Axis AC Servo Drive |
| Rated Motor Capacity |
400 W / 0.4 kW |
| Voltage Class |
220 V Class |
| Main Circuit Input Phase |
Single-Phase / Three-Phase |
| Main Circuit Input Voltage |
200-230 VAC |
| Input Frequency |
50/60 Hz |
| Rated Input Current, Three-Phase |
1.95 A |
| Rated Input Current, Single-Phase |
3.49 A |
| Continuous Output Current |
2.6 A |
| Maximum Instantaneous Output Current |
10.61 A |
| Communication |
CANopen + RS-485 Modbus |
| CANopen Interface |
CAN |
| Serial Communication Interface |
RS-485 |
| Communication Connector |
CN3 |
| PC Communication |
Mini USB (CN4) |
| EtherCAT Communication |
Not Supported on A3-M |
| DMCNET Communication |
Not Supported on A3-M |
| External Pulse Train Input |
Supported |
| Maximum Pulse Input Frequency |
Up to 4 Mpps (Pulse + Direction) |
| Internal Positioning |
PR Mode |
| Control Modes |
Position / Speed / Torque |
| Analog Voltage Control |
Supported |
| Electronic Cam |
E-CAM Supported |
| Full-Closed-Loop Control |
Supported |
| Safe Torque Off |
STO Supported |
| Digital Inputs |
10 |
| Digital Outputs |
4 |
| Encoder Feedback |
Compatible Incremental / Absolute Motor Encoders |
| Encoder Resolution |
24-bit with Compatible Motors |
| Speed Loop Bandwidth |
Up to 3.1 kHz |
| Main Circuit Control |
SVPWM |
| Tuning Methods |
Automatic / Manual |
| Regenerative Resistor |
Built-In |
| Cooling Method |
Natural Cooling |
| Operating Temperature |
0 to +55 degrees C |
| Enclosure Protection |
IP20 |
Product Overview
The Delta ASD-A3-0421-M is a
400 W single-axis AC servo drive
from Delta's ASDA-A3 Series.
This 220 V class drive supports
single-phase or three-phase 200-230 VAC
main circuit power input and provides
CANopen and RS-485 Modbus communication
through the CN3 interface.
The A3-M configuration supports external pulse train
commands, internal PR positioning, electronic cam
functions and full-closed-loop control for industrial
motion systems using compatible Delta servo motors.
Key Product Features
-
400 W Rated Servo Capacity for compatible industrial servo motor systems
-
220 V Class Power Input with single-phase or three-phase 200-230 VAC supply
-
CANopen Communication for supported networked servo motion control
-
RS-485 Modbus Communication through the CN3 interface
-
External Pulse Train Control and internal PR positioning functions
-
Position, Speed and Torque Control with analog command support
-
Electronic Cam and Full-Closed-Loop Control for supported motion applications
-
Safe Torque Off function for integration into a properly designed safety system
-
High-Resolution Encoder Support and built-in regenerative resistor

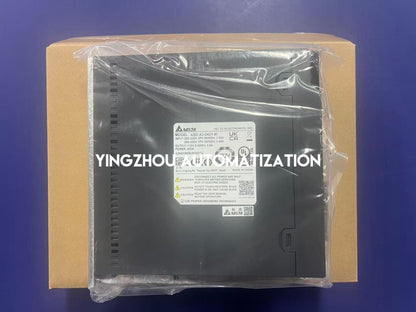

Actual Product Verification
✓

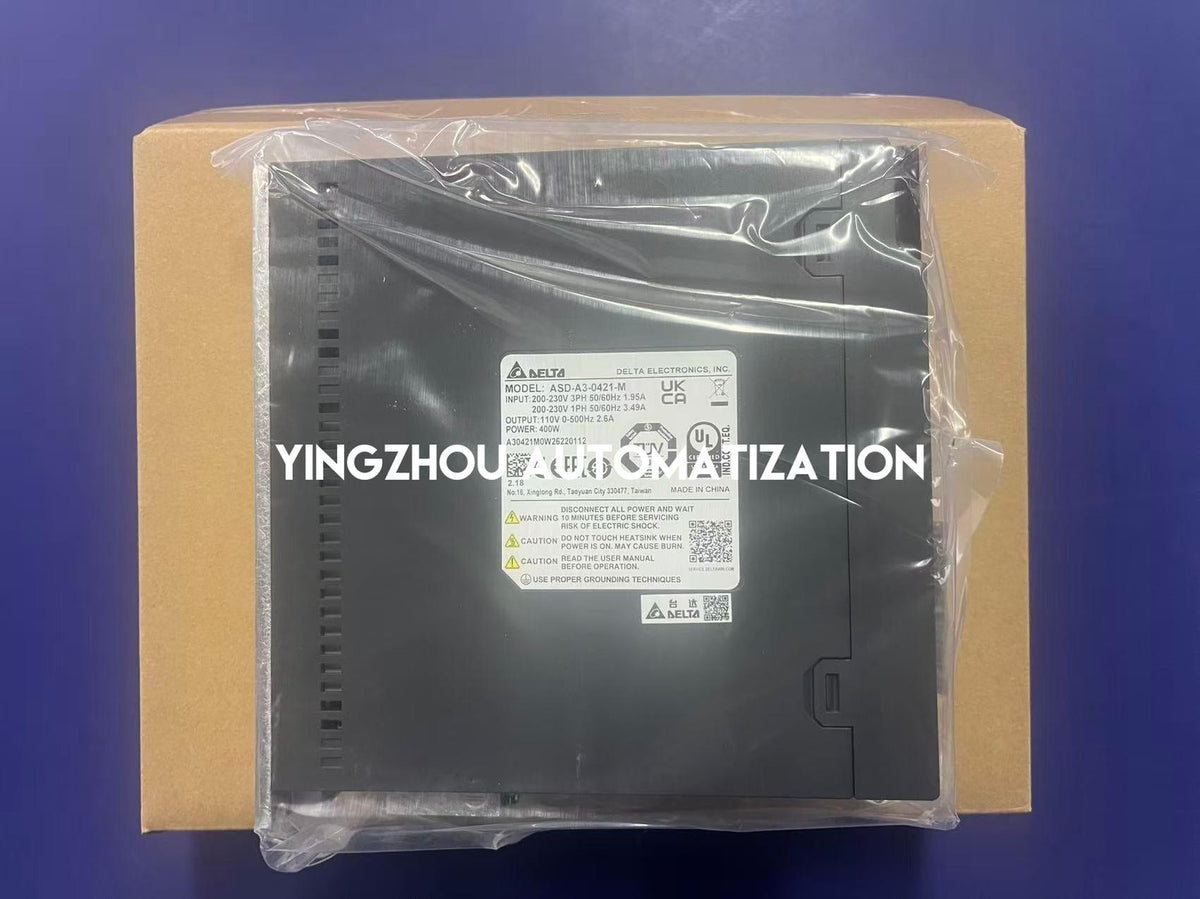

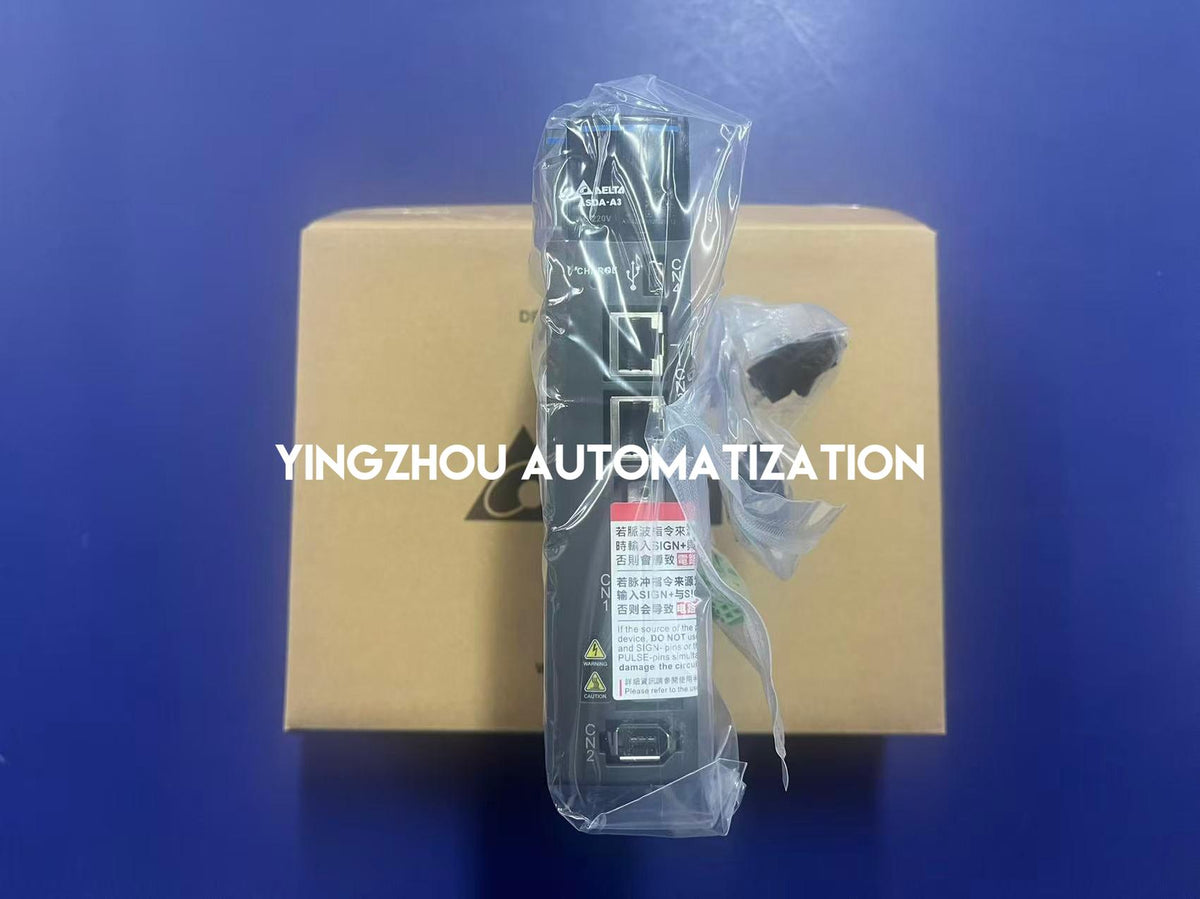

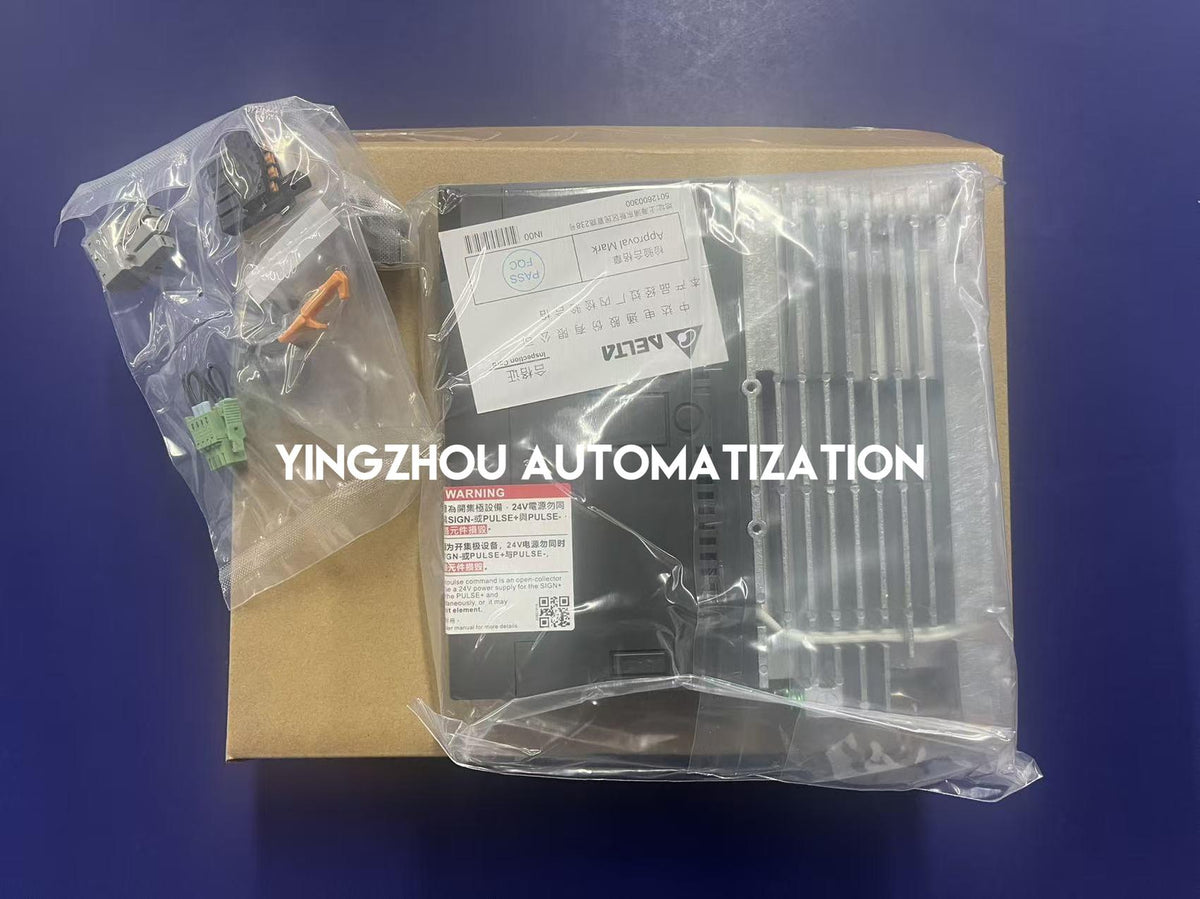

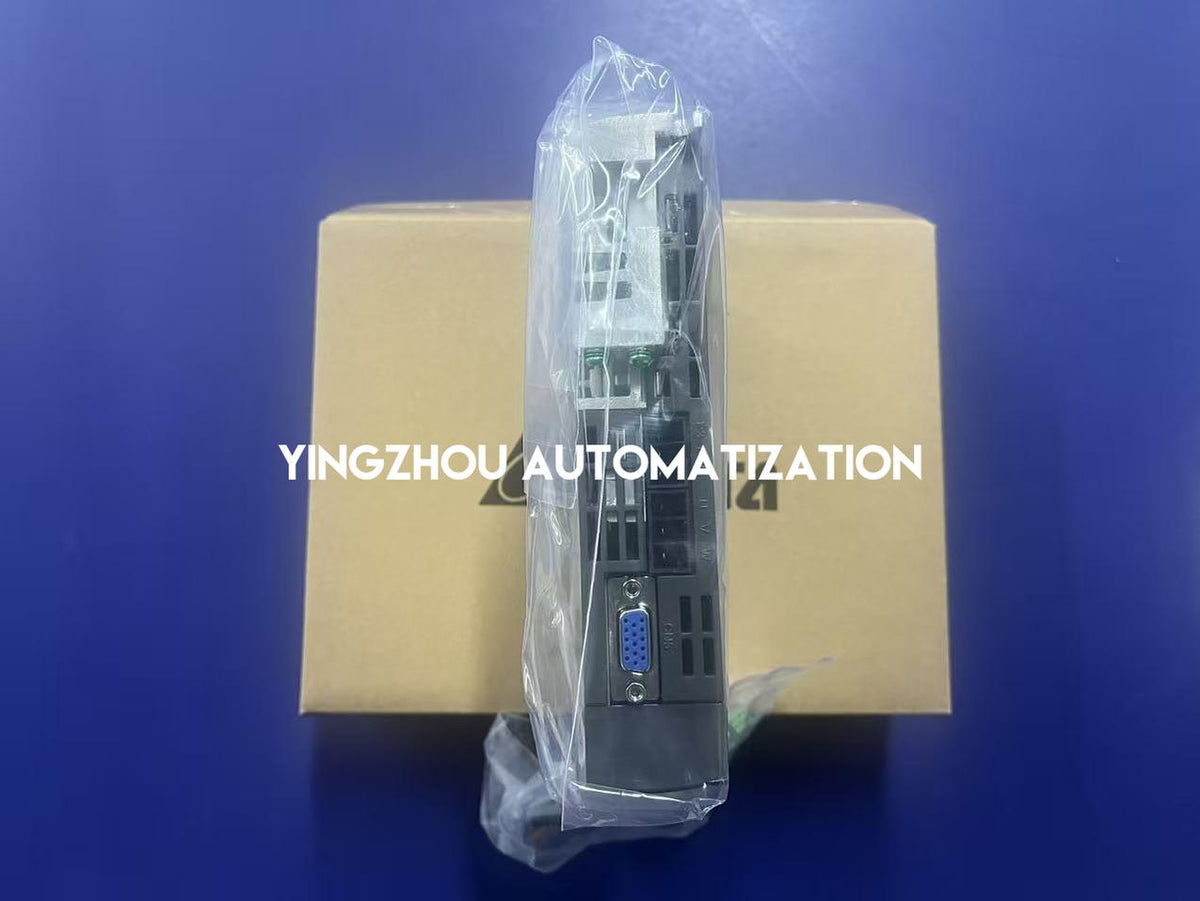

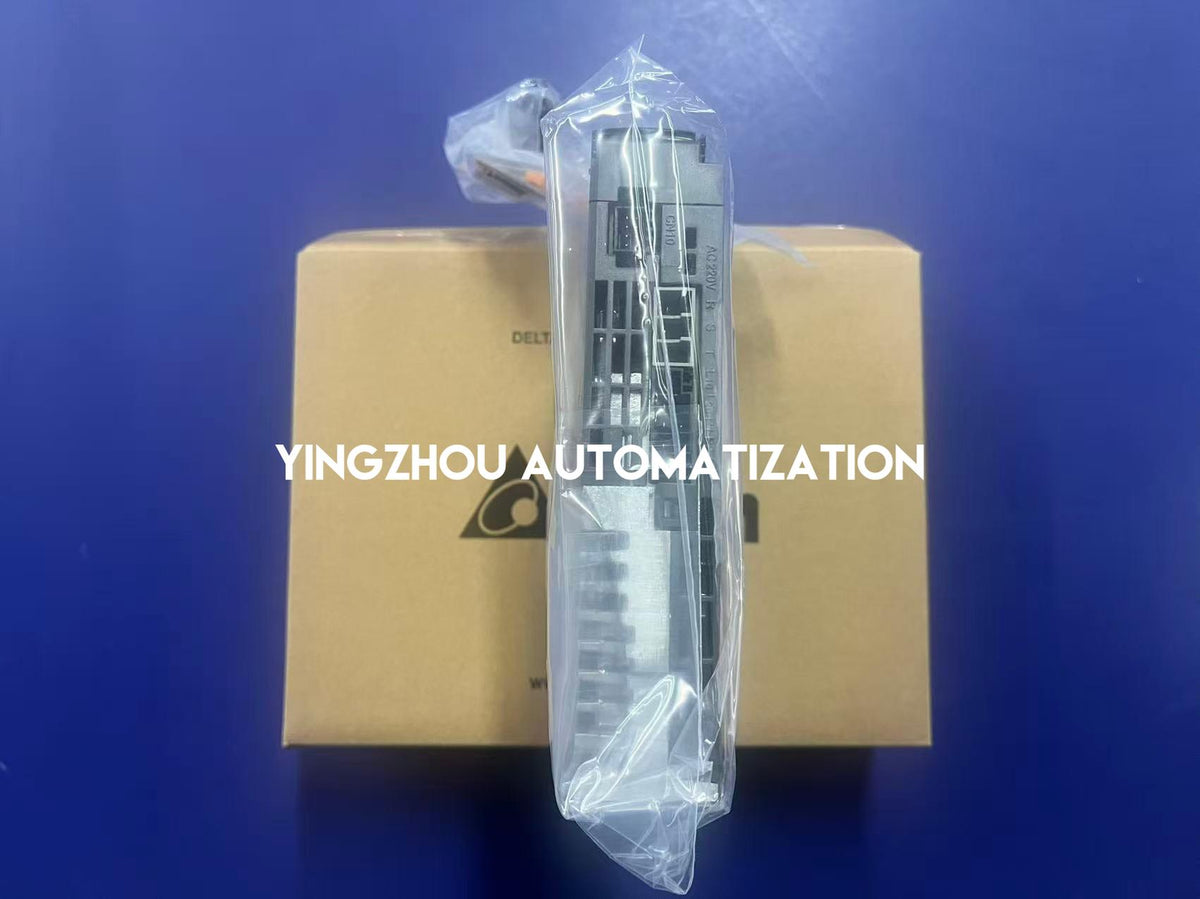

Actual product photos
✓
Model/nameplate visible
✓

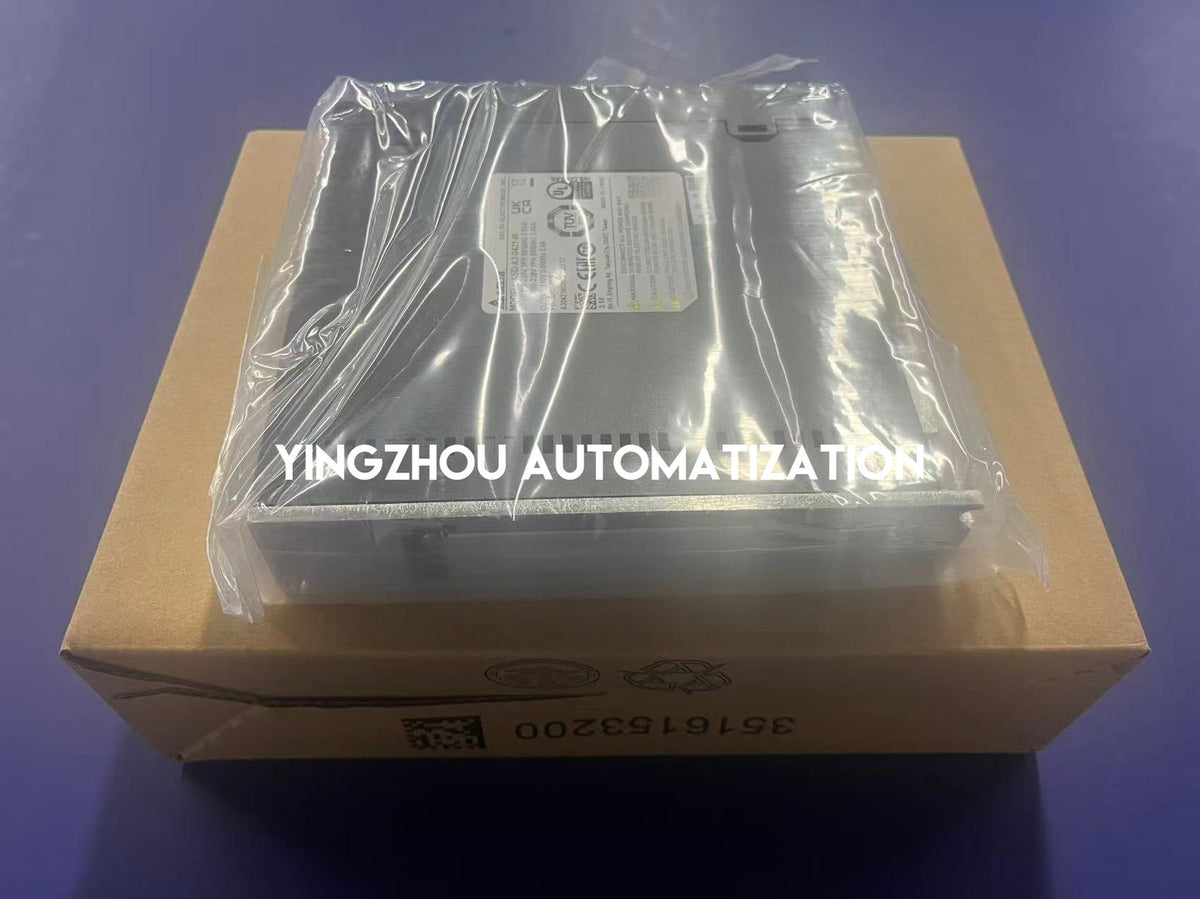

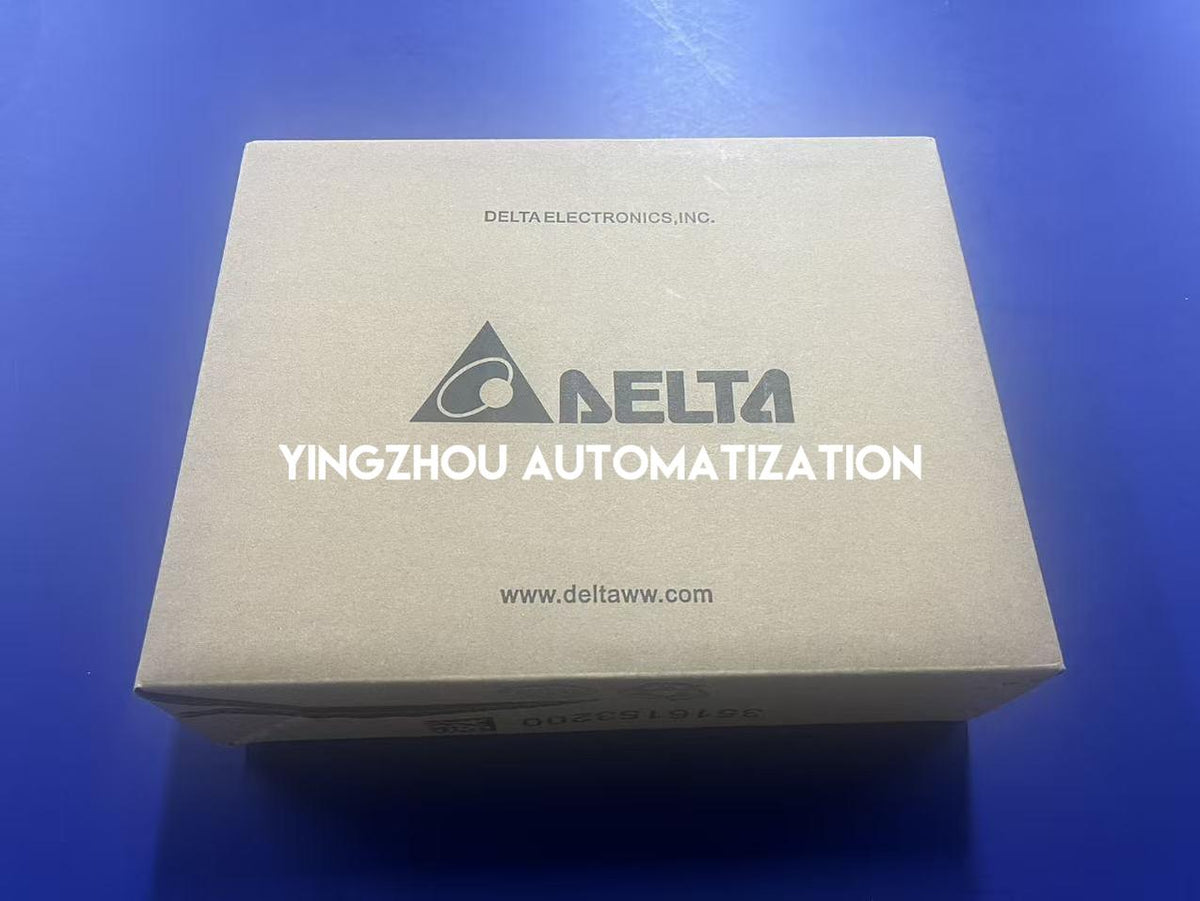

Packaging shown
✓

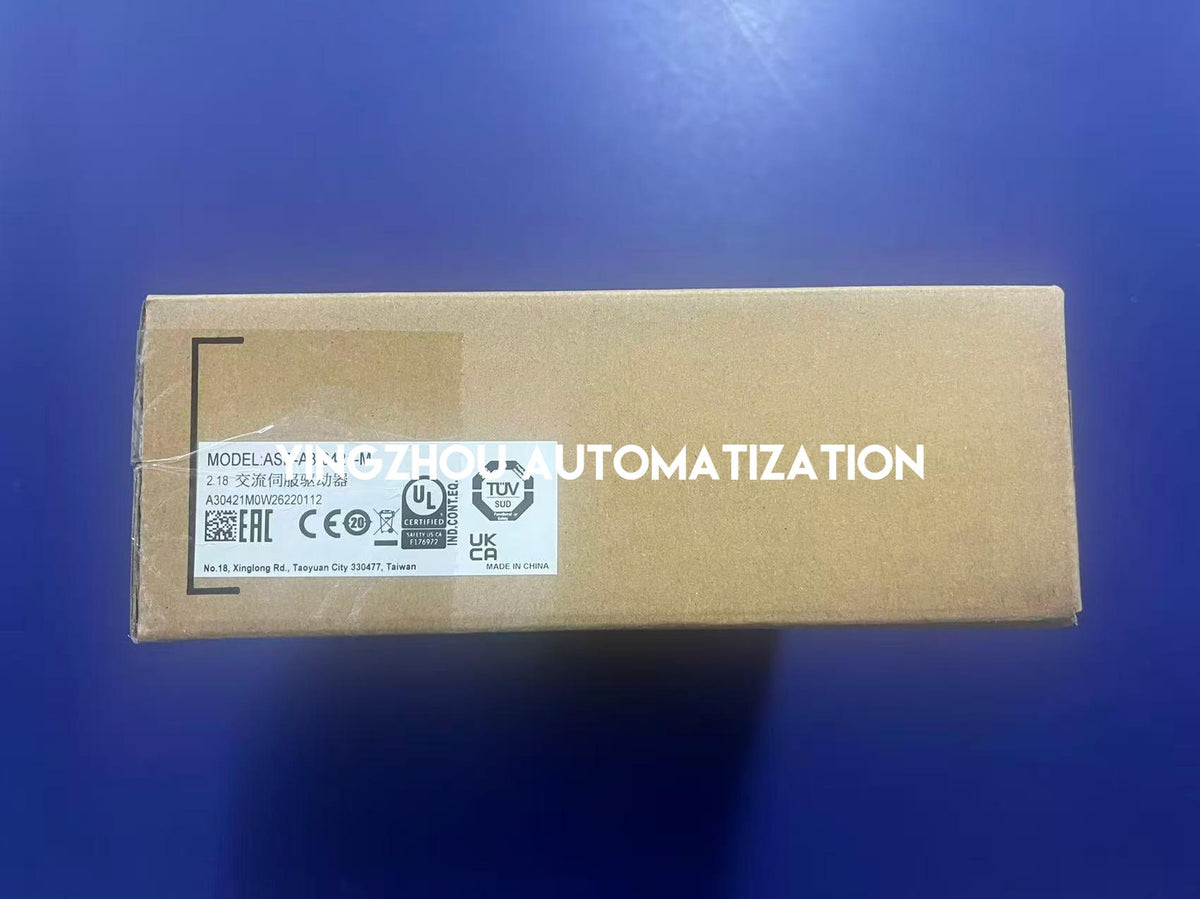

Device and carton labels match model ASD-A3-0421-M
✓
Verify exact model before ordering
