Delta ASD-A2-1521-M ASDA-A2 AC Servo Drive
1.5 kW | 220 V Class | 1/3-Phase 200-230 VAC | CANopen + RS-232 / RS-485 Modbus
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
ASD-A2-1521-M |
| Series |
ASDA-A2 |
| Product Type |
Single-Axis AC Servo Drive |
| Rated Motor Capacity |
1.5 kW / 1500 W |
| Voltage Class |
220 V Class |
| Main Circuit Input Phase |
Single-Phase / Three-Phase |
| Main Circuit Input Voltage |
200-230 VAC |
| Input Frequency |
50/60 Hz |
| Rated Input Current, Three-Phase |
5.9 A |
| Rated Input Current, Single-Phase |
10.3 A |
| Continuous Output Current |
8.3 A |
| Communication |
CANopen + RS-232 / RS-485 Modbus |
| CANopen Communication |
Supported |
| CANopen Connector |
CN6 |
| CANopen Profiles |
DS301 / DS402 |
| Serial Communication Interface |
RS-232 / RS-485 |
| Serial Communication Protocol |
Modbus |
| Serial Communication Connector |
CN3 |
| PC Communication |
USB (CN4) |
| EtherCAT Communication |
Not Supported on A2-M |
| DMCNET Communication |
Not Supported on A2-M |
| External Pulse Train Input |
Supported |
| Pulse Input Type |
Line Driver / Open Collector |
| Maximum Pulse Input Frequency |
Up to 4 Mpps (Line Driver) |
| Open Collector Pulse Input |
Up to 200 Kpps |
| Internal Positioning |
PR Mode Supported |
| Control Modes |
Position / Speed / Torque |
| Analog Voltage Control |
Supported |
| Electronic Cam |
E-CAM Supported |
| Full-Closed-Loop Feedback |
CN5 Interface |
| Built-In Digital Inputs |
8 |
| Digital Outputs |
5 |
| Extension Digital Input CN7 |
Not Provided on A2-M |
| Compatible Encoder Feedback |
20-bit Incremental / 17-bit Absolute |
| Main Circuit Control |
SVPWM |
| Tuning Methods |
Automatic / Manual |
| Built-In Regenerative Resistor |
40 Ohm, 60 W |
| Minimum Allowable Regenerative Resistance |
20 Ohm |
Product Overview
The Delta ASD-A2-1521-M is a
1.5 kW single-axis AC servo drive
from Delta's ASDA-A2 Series.
This 220 V class drive supports
single-phase or three-phase 200-230 VAC
main circuit power input and provides
CANopen communication through CN6,
together with RS-232 / RS-485 Modbus
through the CN3 serial communication interface.
The A2-M configuration supports external pulse train
commands, internal PR positioning, E-CAM functions
and full-closed-loop feedback for supported industrial
motion control systems using compatible Delta servo motors.
Key Product Features
-
1.5 kW Rated Servo Capacity for compatible industrial servo motor systems
-
220 V Class Power Input with single-phase or three-phase 200-230 VAC supply
-
CANopen Communication through the CN6 industrial network interface
-
RS-232 / RS-485 Modbus Communication through the CN3 serial interface
-
External Pulse Train Control for compatible PLC and motion controller position commands
-
Internal PR Positioning for programmable motion sequences
-
Electronic Cam Function for supported synchronized motion applications
-
Position, Speed and Torque Control with analog command support
-
Full-Closed-Loop Feedback through the CN5 external feedback interface
-
Built-In Regenerative Resistor rated at 40 Ohm and 60 W
Actual Product Verification
✓
Actual product photos
✓
Model/nameplate visible
✓

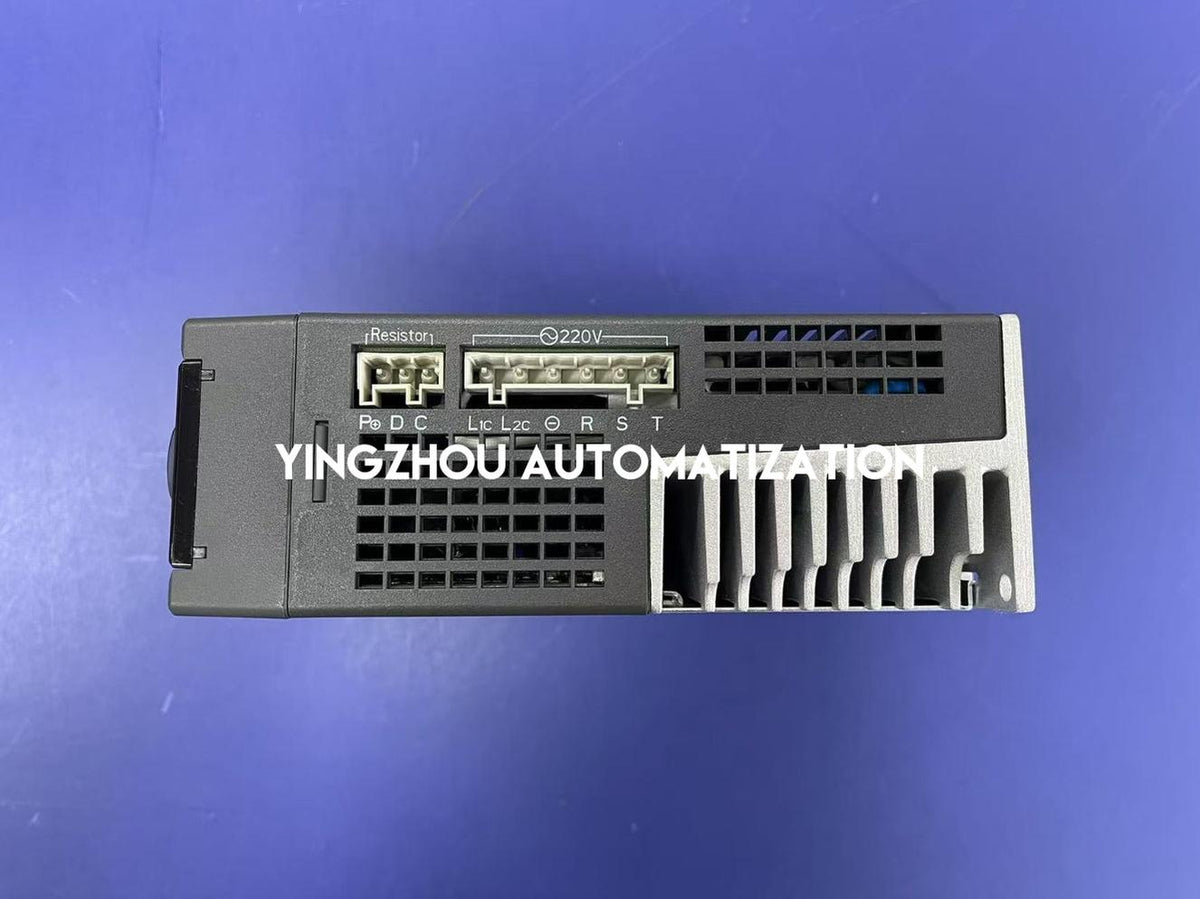

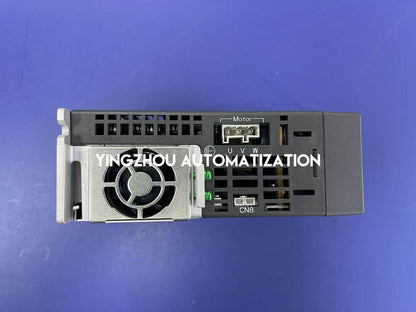

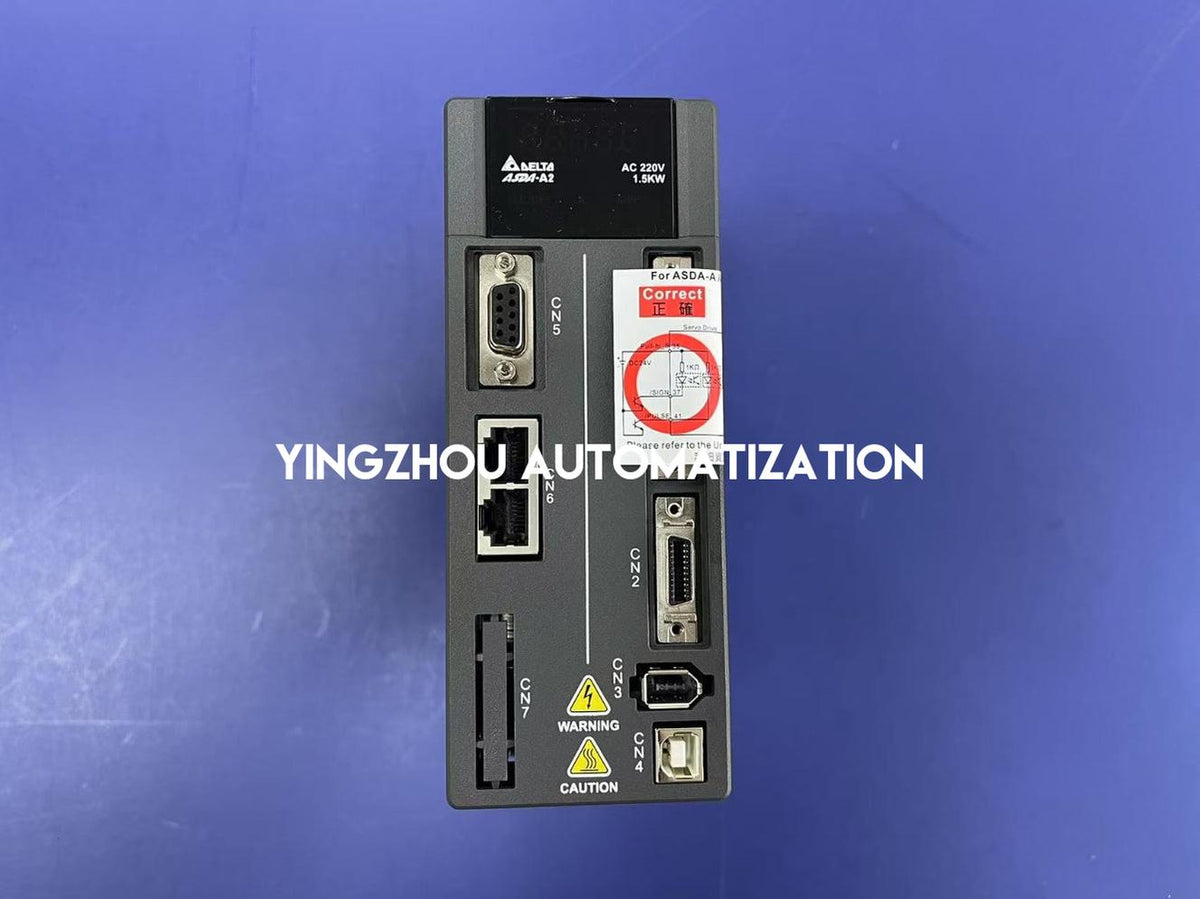

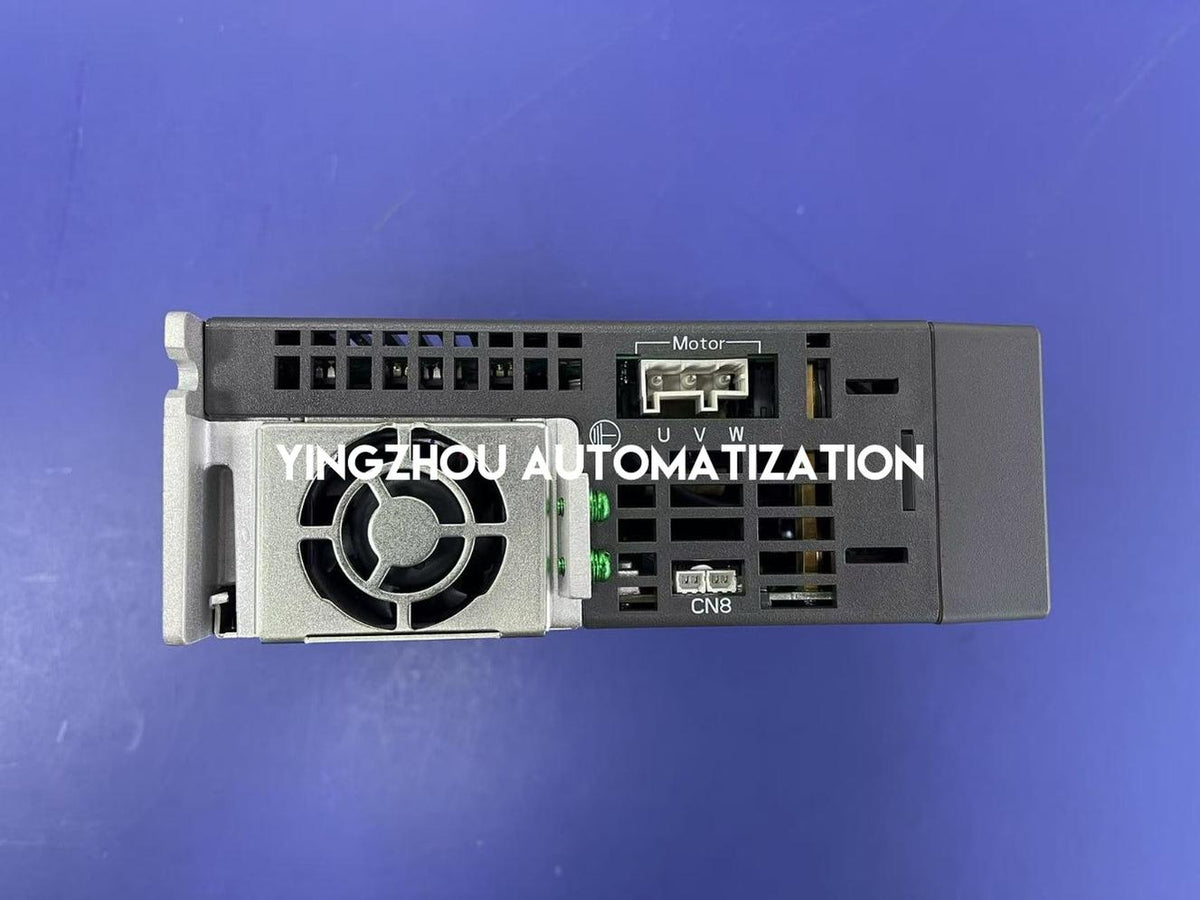

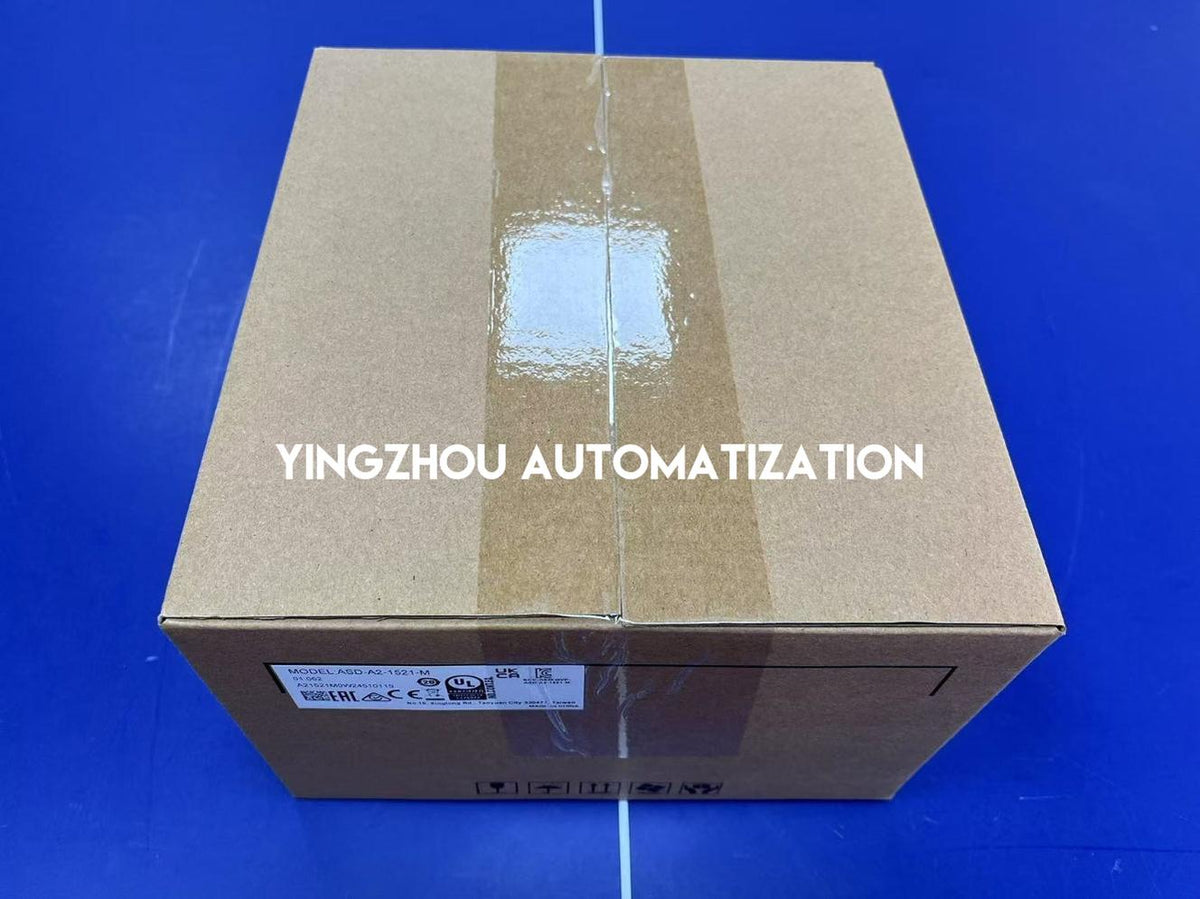

Packaging shown
✓

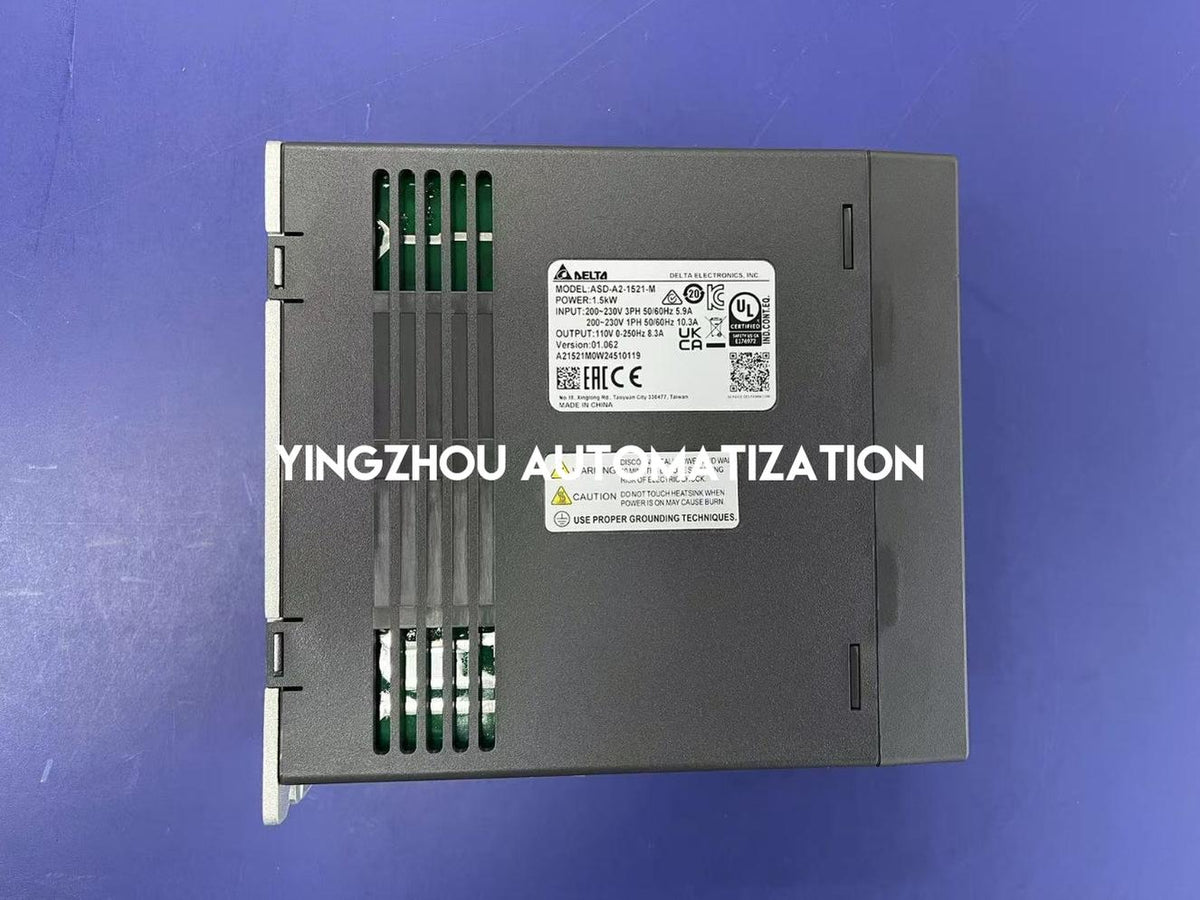

Device and carton labels match model ASD-A2-1521-M
✓
Actual device nameplate confirms 1.5 kW, 5.9 A three-phase input, 10.3 A single-phase input and 8.3 A output
✓
Verify exact model before ordering
In Stock & Ready to Order
Delta ASD-A2-1521-M is currently
in stock.
Actual product photos, the exact model nameplate
and matching carton label are available for verification.
Contact us for project pricing, quantity requirements
and shipping arrangements.
