Delta ASD-A2-1021-U ASDA-A2 AC Servo Drive
1 kW | 220 V Class | 1/3-Phase 200-230 VAC | RS-232 / RS-485 Modbus
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
ASD-A2-1021-U |
| Series |
ASDA-A2 |
| Product Type |
Single-Axis AC Servo Drive |
| Rated Motor Capacity |
1 kW / 1000 W |
| Voltage Class |
220 V Class |
| Main Circuit Input Phase |
Single-Phase / Three-Phase |
| Main Circuit Input Voltage |
200-230 VAC |
| Input Frequency |
50/60 Hz |
| Rated Input Current, Three-Phase |
4.68 A |
| Rated Input Current, Single-Phase |
8.88 A (Official Catalog) |
| Continuous Output Current |
7.3 A |
| Communication |
RS-232 / RS-485 (Modbus ASCII / RTU) |
| Communication Interface |
Selectable RS-232 or RS-485 |
| Communication Protocol |
Modbus ASCII / RTU |
| Communication Connector |
CN3 |
| PC Communication |
USB (CN4) |
| CANopen Communication |
Not Provided on A2-U |
| Extension Digital Input Connector |
CN7 |
| Additional Digital Inputs |
Up to 6 via CN7 |
| Maximum Digital Inputs |
14 |
| Digital Outputs |
5 Programmable Outputs |
| External Pulse Train Input |
Supported |
| High-Speed Pulse Input |
Up to 4 Mpps (Line Driver) |
| Internal Positioning |
PR Mode |
| Control Modes |
Position / Speed / Torque |
| Analog Speed / Torque Command |
Supported |
| Encoder Feedback |
20-bit Incremental / 17-bit Absolute |
| Full-Closed-Loop Feedback |
CN5 Interface |
| Main Circuit Control |
SVPWM |
| Tuning Method |
Automatic / Manual |
| Speed Frequency Response |
Up to 1 kHz |
| Built-In Regenerative Resistor |
40 Ohm, 60 W |
| Cooling Method |
Fan Cooling |
| Operating Temperature |
0°C to +55°C |
| Enclosure Protection |
IP20 |
Product Overview
The Delta ASD-A2-1021-U is a
1 kW single-axis AC servo drive from
Delta's ASDA-A2 Series.
This 220 V class drive supports
single-phase or three-phase 200-230 VAC
main circuit input and
RS-232 / RS-485 Modbus communication
through the CN3 interface.
The A2-U configuration provides extended digital inputs
through CN7, external pulse position control and internal
PR positioning for industrial motion systems using
compatible Delta ECMA servo motors.
Key Product Features
-
1 kW Rated Servo Capacity for compatible industrial servo motor systems
-
220 V Class Input with single-phase or three-phase 200-230 VAC supply
-
RS-232 / RS-485 Modbus Communication through the CN3 interface
-
Extended Digital Inputs with up to 14 digital inputs using the CN7 extension
-
External Pulse Position Control and internal PR positioning functions
-
Position, Speed and Torque Control for supported motion applications
-
High-Resolution Encoder Support for compatible 20-bit incremental and 17-bit absolute encoders
-
Full-Closed-Loop Feedback with built-in regeneration and fan cooling
Actual Product Verification
✓

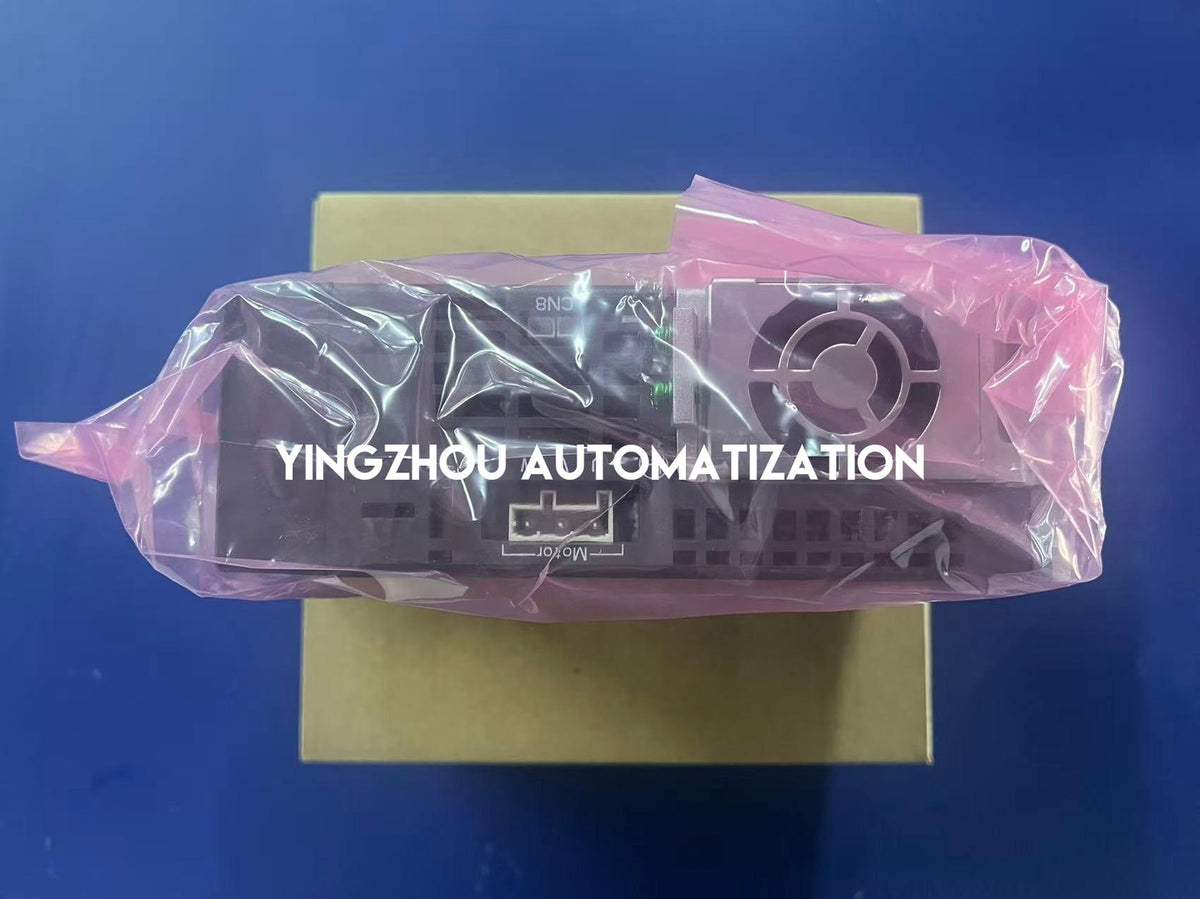

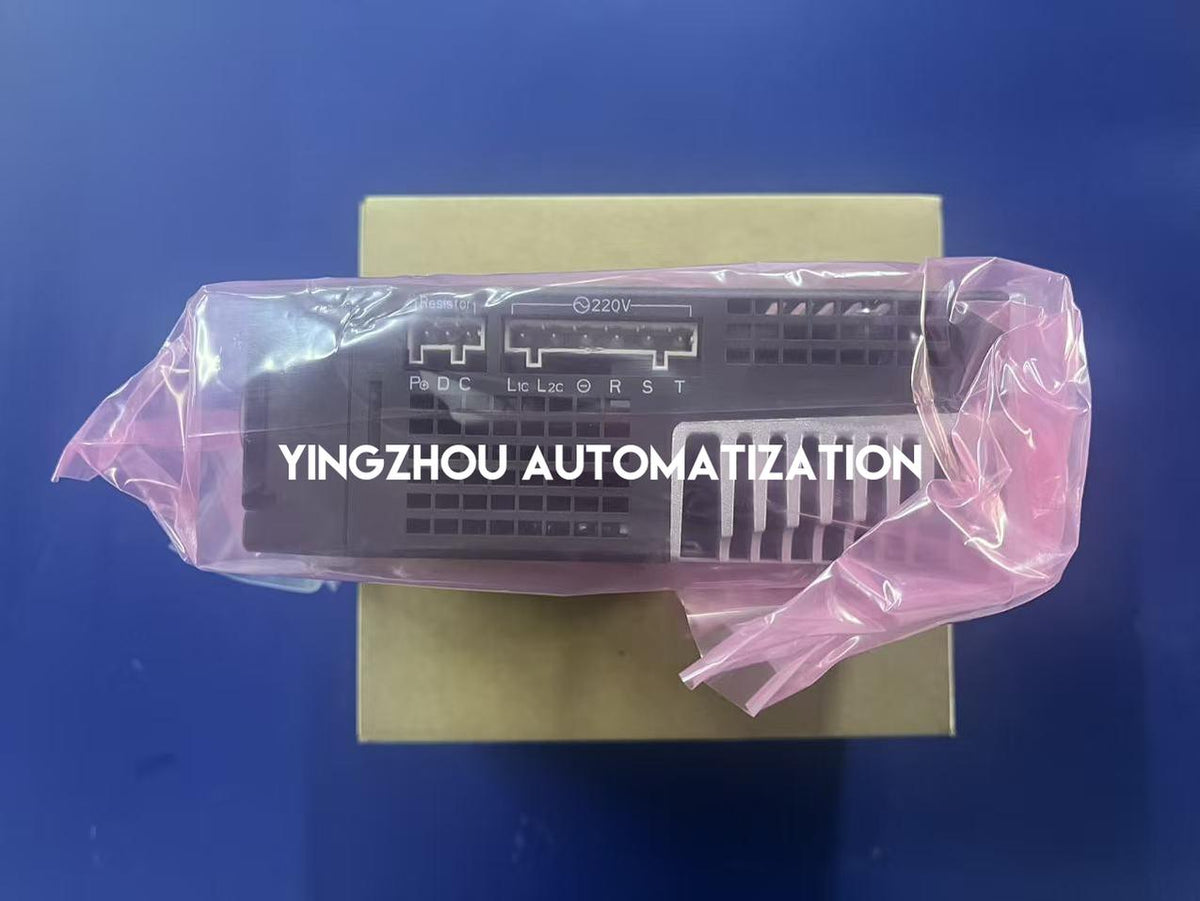

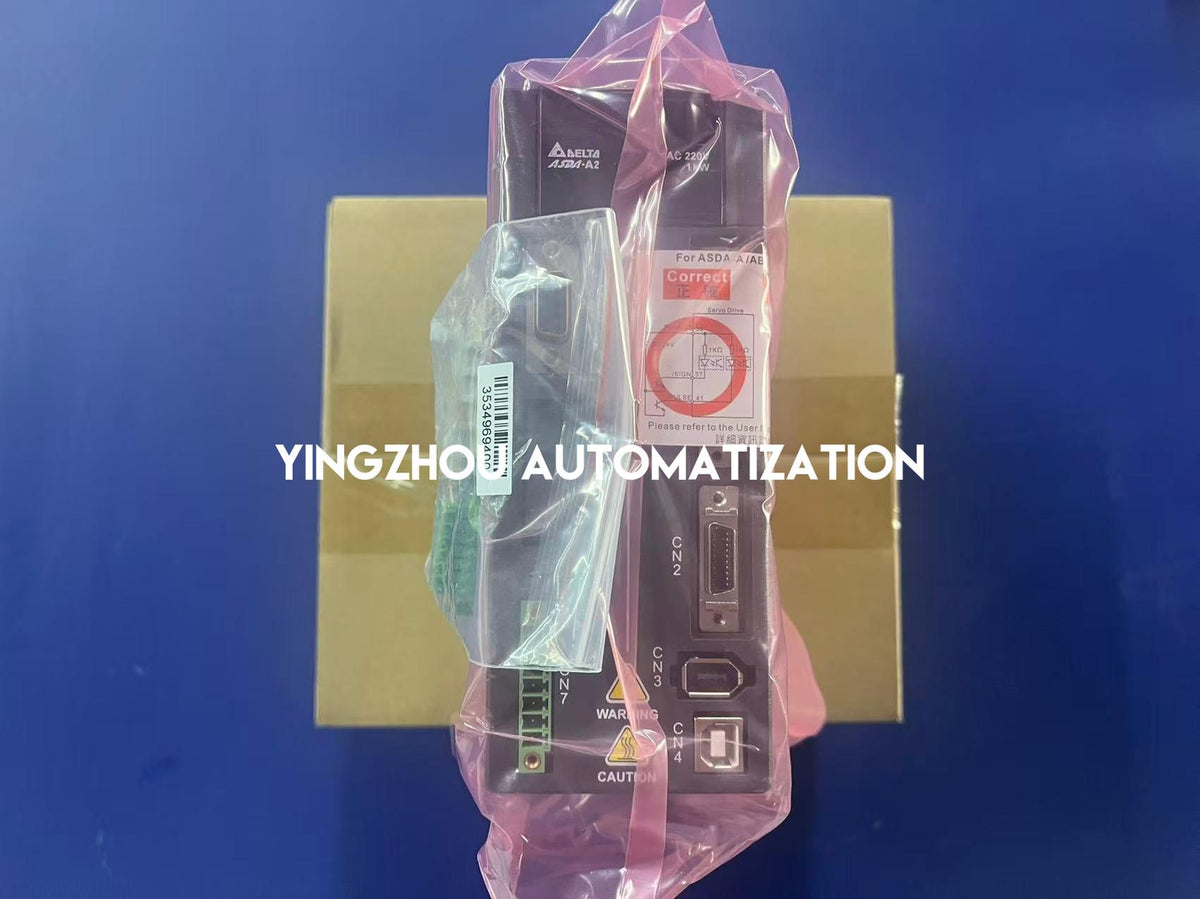

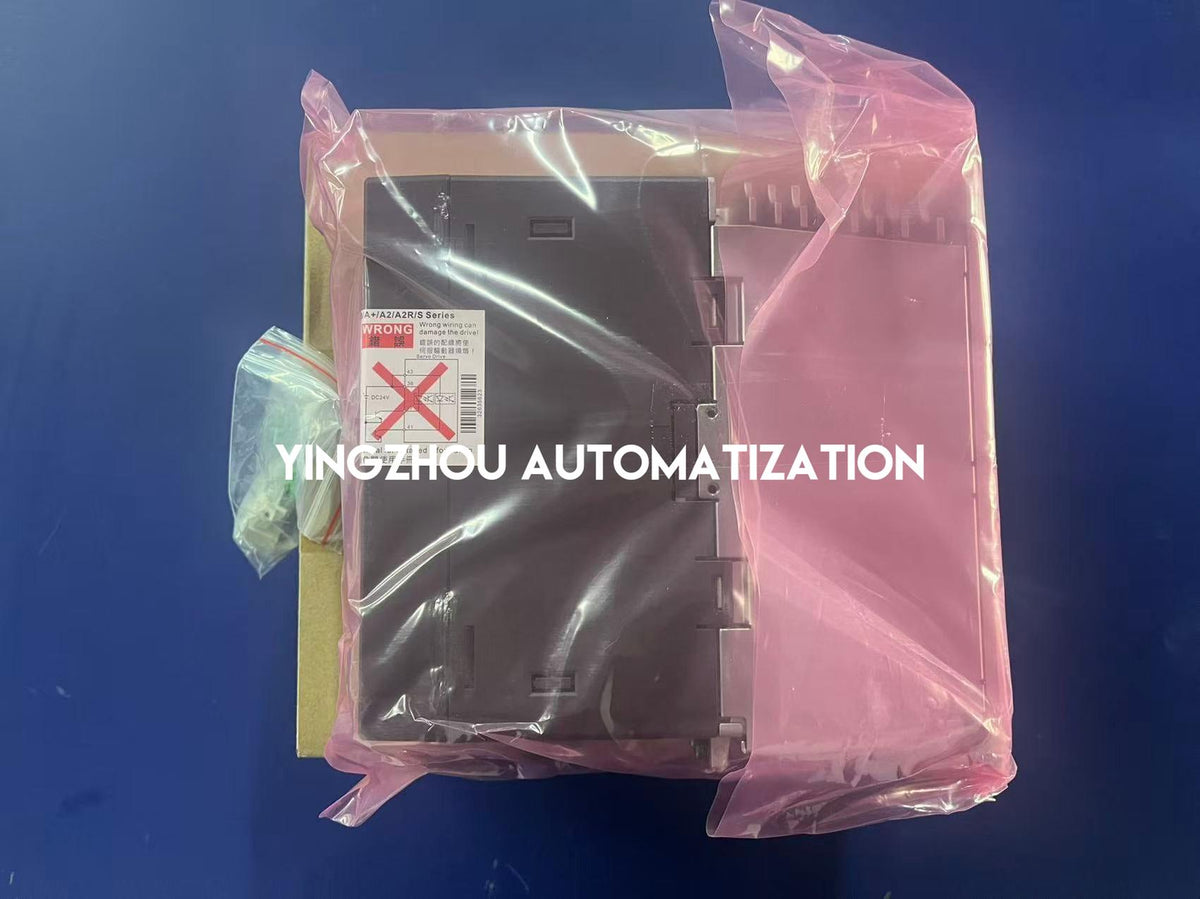

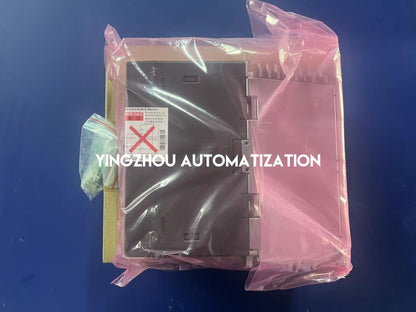

Actual product photos
✓

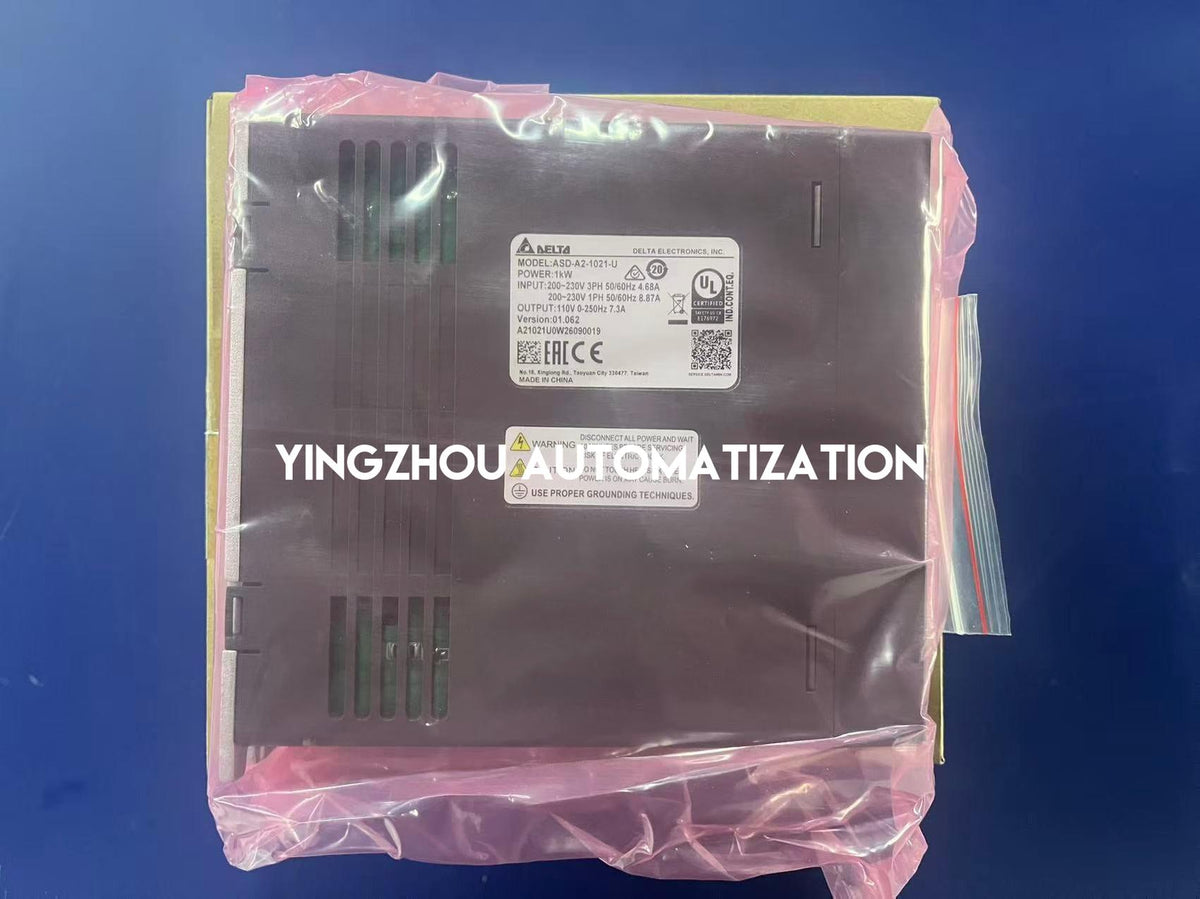

Model/nameplate visible
✓

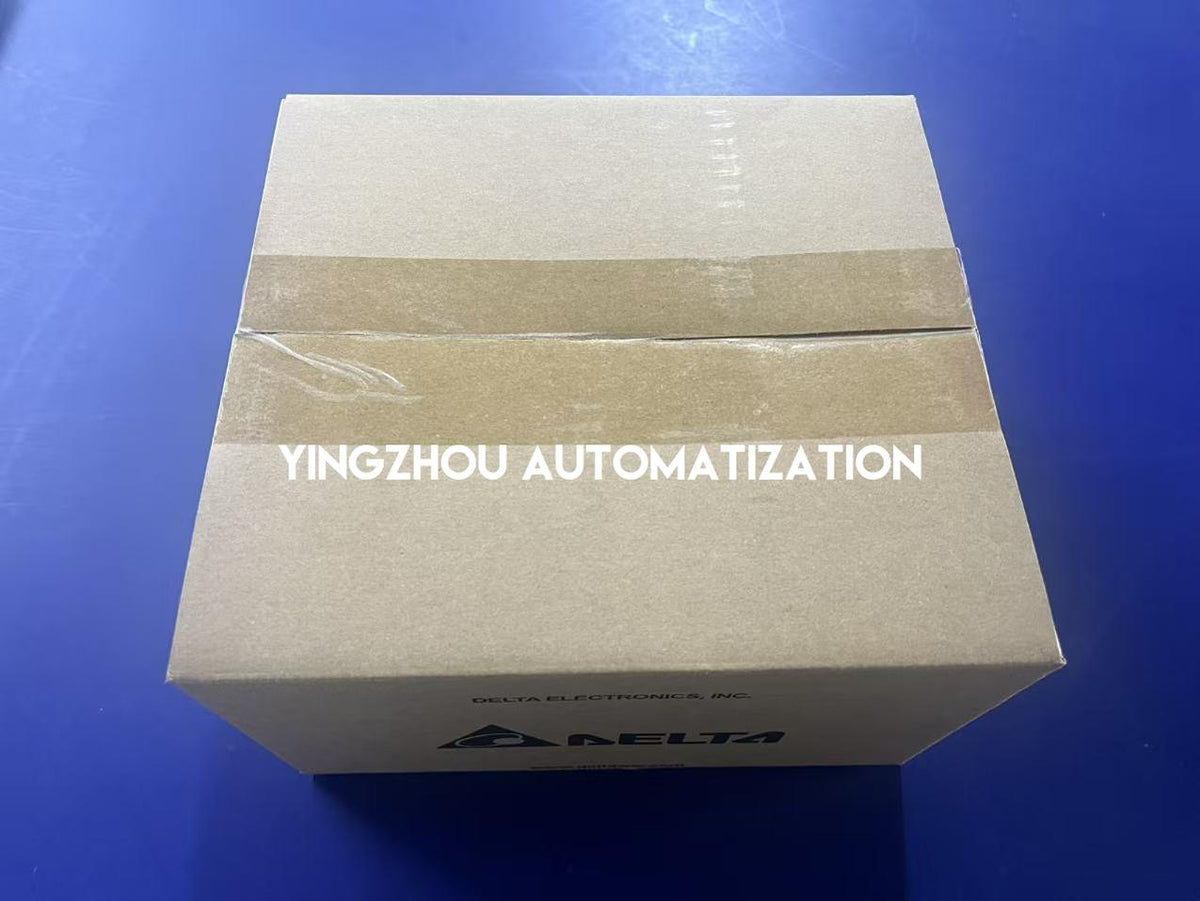

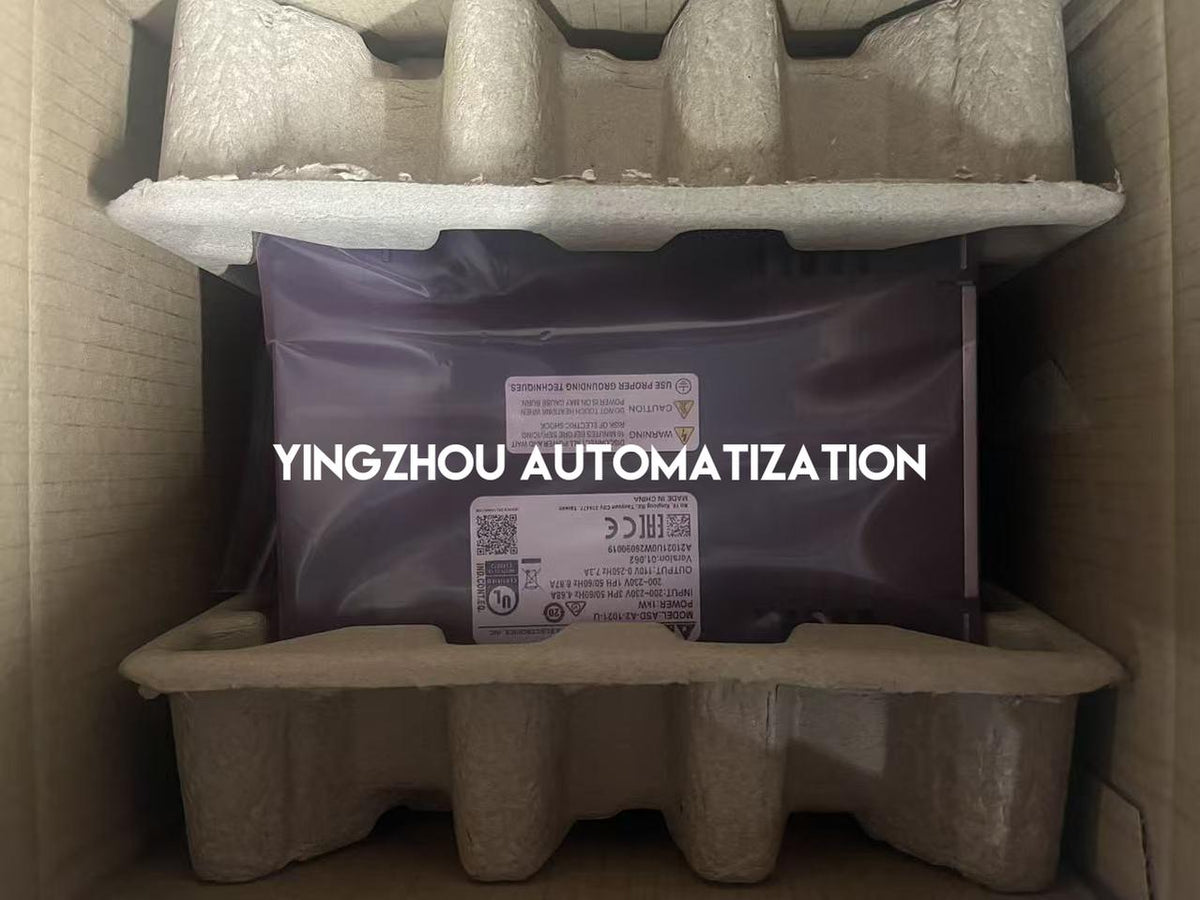

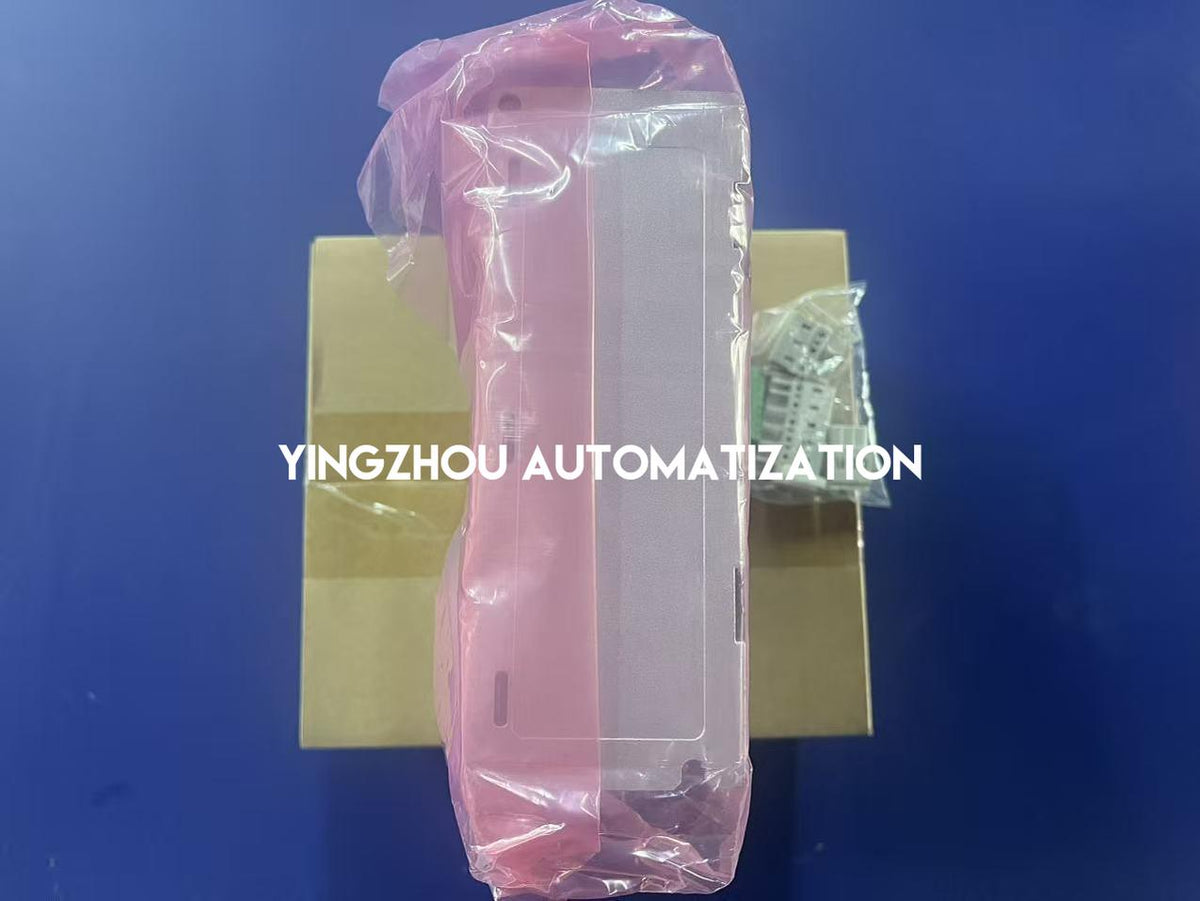

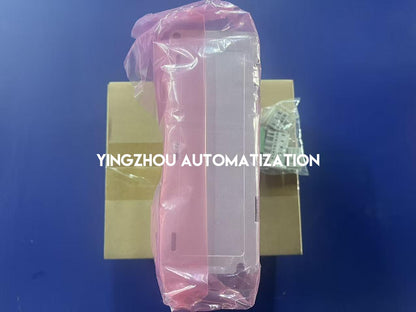

Packaging shown
✓

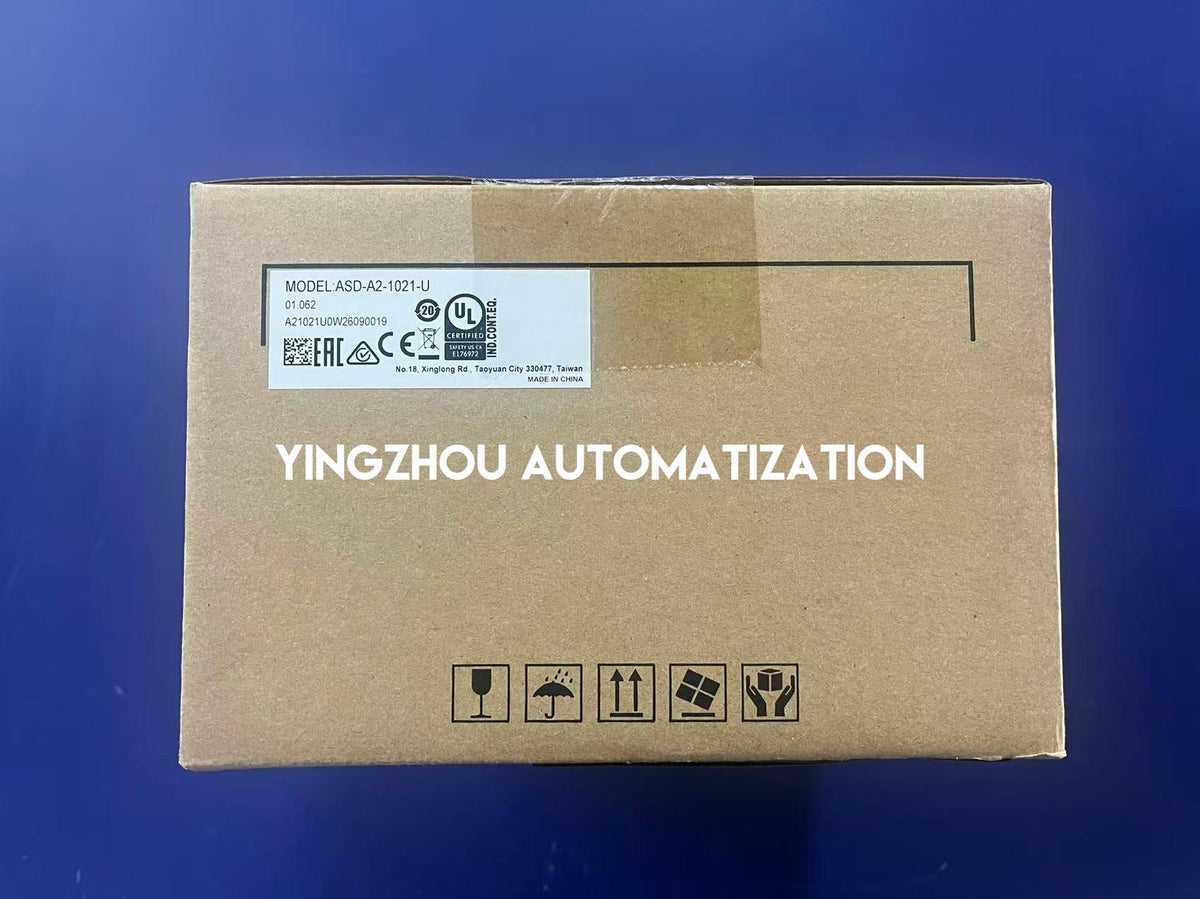

Device and carton labels match model ASD-A2-1021-U
✓
Verify exact model before ordering
In Stock & Ready to Order
Delta ASD-A2-1021-U is currently
in stock. Actual product photos,
the exact model nameplate and matching carton label
are available for verification.
Contact us for project pricing, quantity requirements
and shipping arrangements.
