Delta ASD-A2-0721-U ASDA-A2 AC Servo Drive
750 W | 220 V Class | 1/3-Phase 200-230 VAC | RS-232 / RS-485 Modbus
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
ASD-A2-0721-U |
| Series |
ASDA-A2 |
| Product Type |
Single-Axis AC Servo Drive |
| Rated Motor Capacity |
750 W / 0.75 kW |
| Voltage Class |
220 V Class |
| Main Circuit Input Phase |
Single-Phase / Three-Phase |
| Main Circuit Input Voltage |
200-230 VAC |
| Input Frequency |
50/60 Hz |
| Input Current, Three-Phase |
3.66 A |
| Input Current, Single-Phase |
6.78 A |
| Continuous Output Current |
5.1 A |
| Maximum Instantaneous Output Current |
15.30 A |
| Communication |
RS-232 / RS-485 (Modbus) |
| Communication Interface |
Selectable RS-232 or RS-485 |
| Communication Protocol |
Modbus ASCII / RTU |
| Communication Connector |
CN3 |
| PC Interface |
USB (CN4) |
| Extension Digital Input |
Supported via CN7 |
| Maximum Digital Inputs |
14 |
| Digital Outputs |
5 Programmable Outputs |
| External Pulse Train Input |
Supported |
| Maximum Pulse Input Frequency |
Up to 4 Mpps (Line Driver) |
| Internal Positioning |
PR Mode |
| Control Modes |
Position / Speed / Torque |
| Analog Speed / Torque Command |
Supported |
| Encoder Support |
20-bit Incremental / 17-bit Absolute |
| Full-Closed-Loop Feedback |
CN5 Interface |
| Main Circuit Control |
SVPWM |
| Tuning Method |
Automatic / Manual |
| Speed Frequency Response |
Up to 1 kHz |
| Regenerative Resistor |
Built-In |
| Cooling Method |
Fan Cooling |
| Operating Temperature |
0°C to +55°C (Additional Cooling Above +45°C) |
| Enclosure Protection |
IP20 |
Product Overview
The Delta ASD-A2-0721-U is a
750 W single-axis AC servo drive from
Delta's ASDA-A2 Series.
This 220 V class drive supports
single-phase or three-phase 200-230 VAC
power input and provides
RS-232 / RS-485 Modbus communication
through the CN3 interface.
The A2-U configuration offers extended digital inputs,
external pulse position control and internal PR positioning
for industrial motion control systems using compatible
Delta ECMA servo motors.
Key Product Features
-
750 W Rated Servo Capacity for compatible industrial servo motor systems
-
220 V Class Input with single-phase or three-phase 200-230 VAC supply
-
RS-232 / RS-485 Modbus Communication through the CN3 interface
-
Extended Digital Inputs with up to 14 programmable inputs using the CN7 extension
-
External Pulse Position Control and internal PR positioning functions
-
Flexible Control Modes including position, speed and torque control
-
High-Resolution Encoder Support for compatible 20-bit incremental or 17-bit absolute feedback
-
Full-Closed-Loop Feedback with built-in regeneration and fan cooling

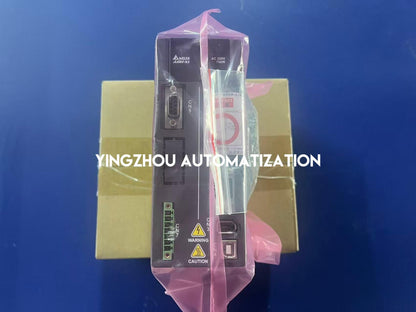

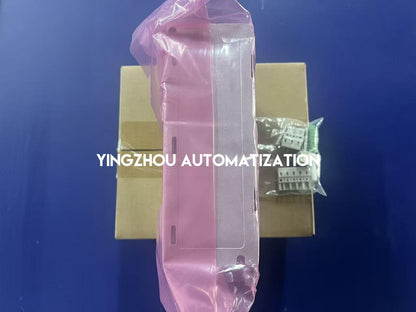

Actual Product Verification
✓

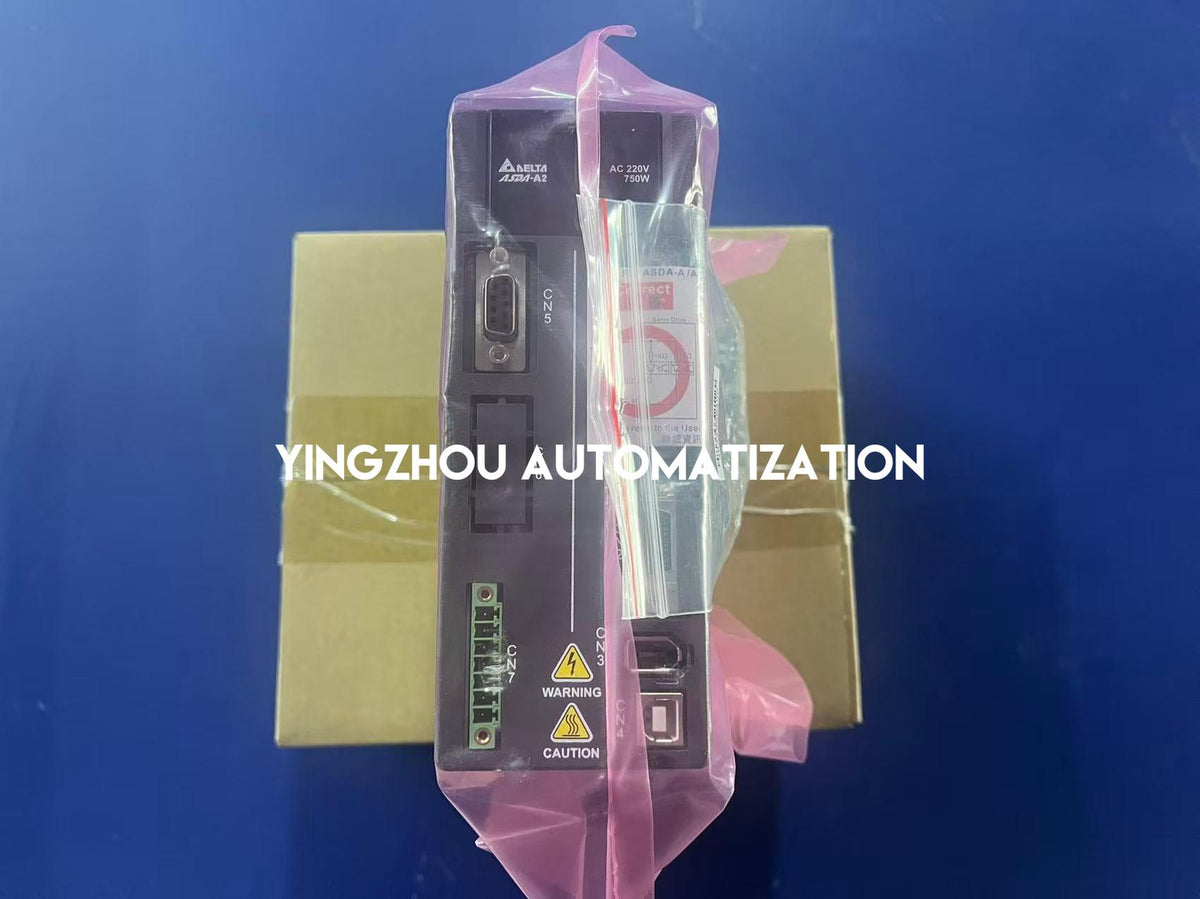

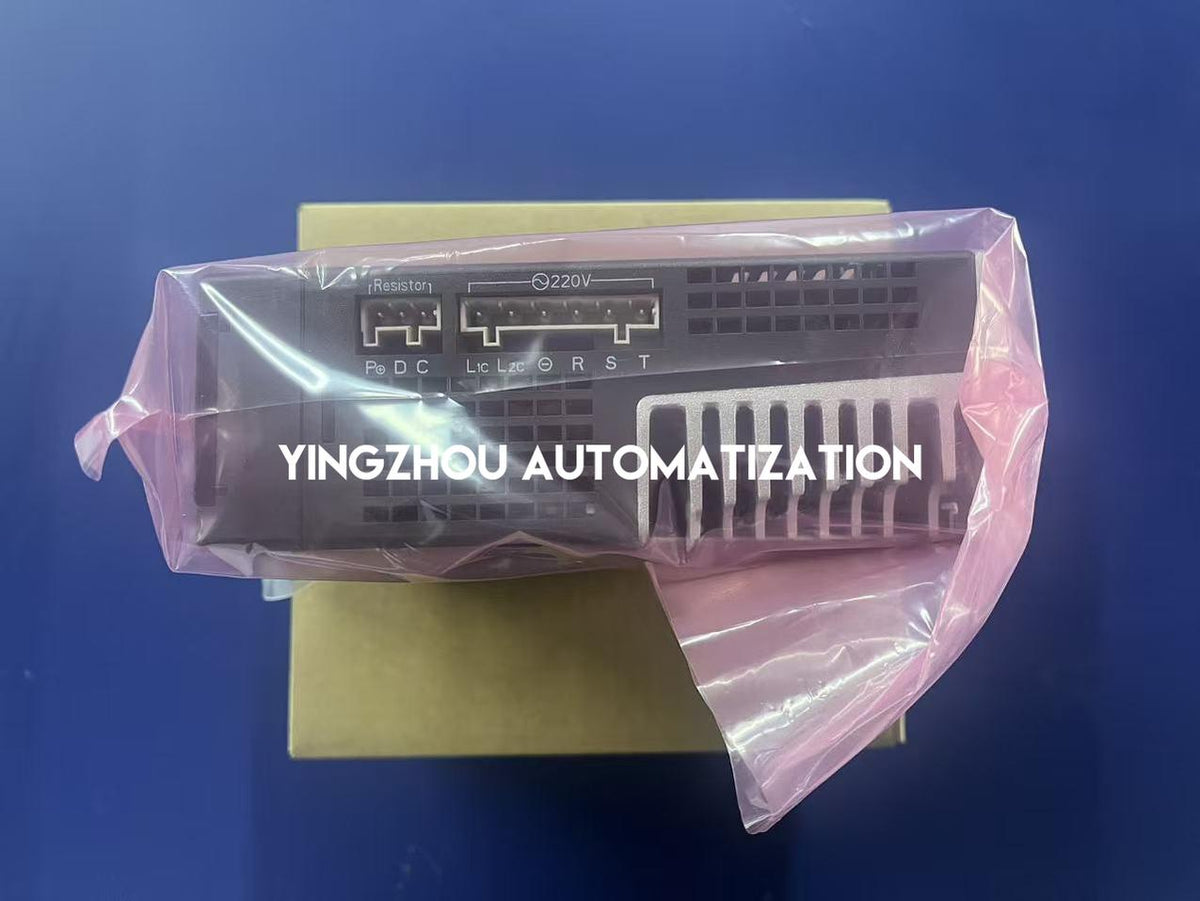

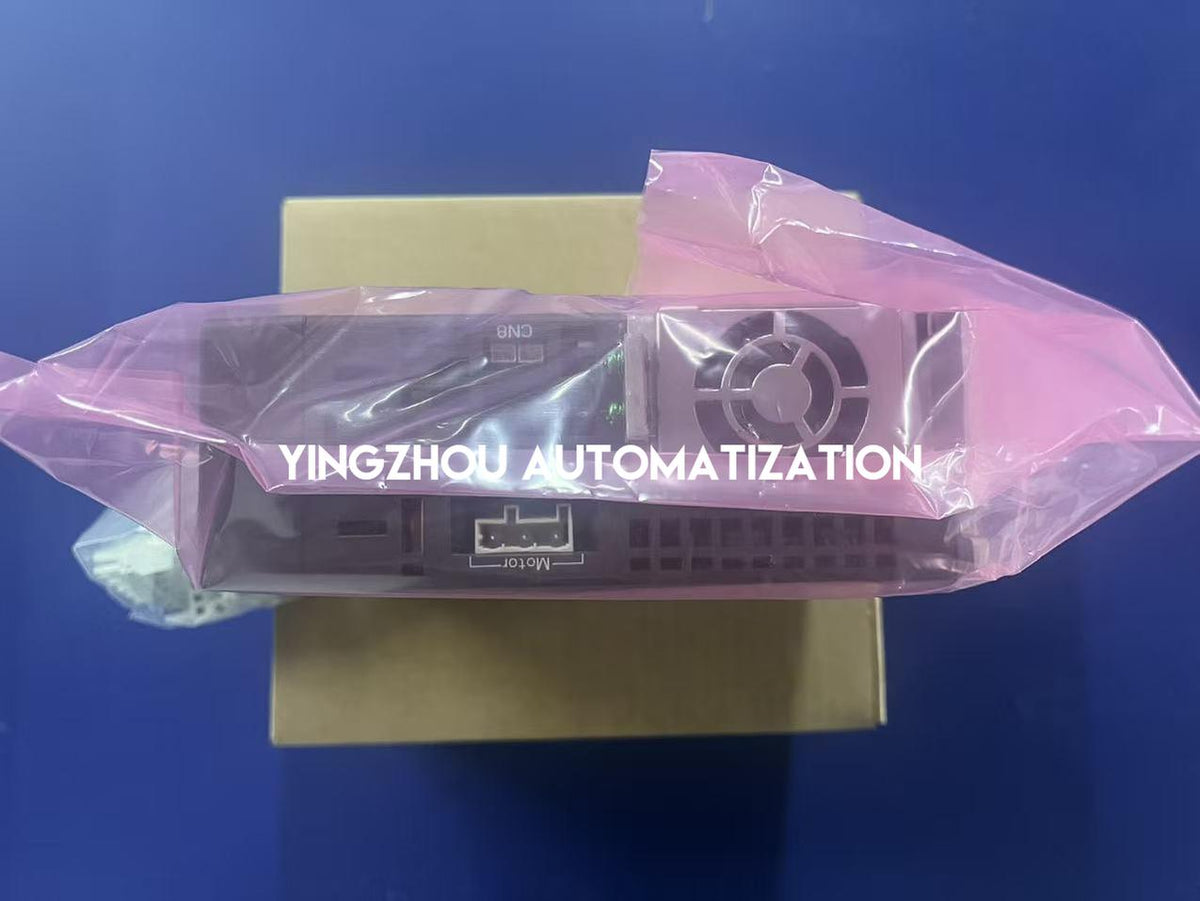

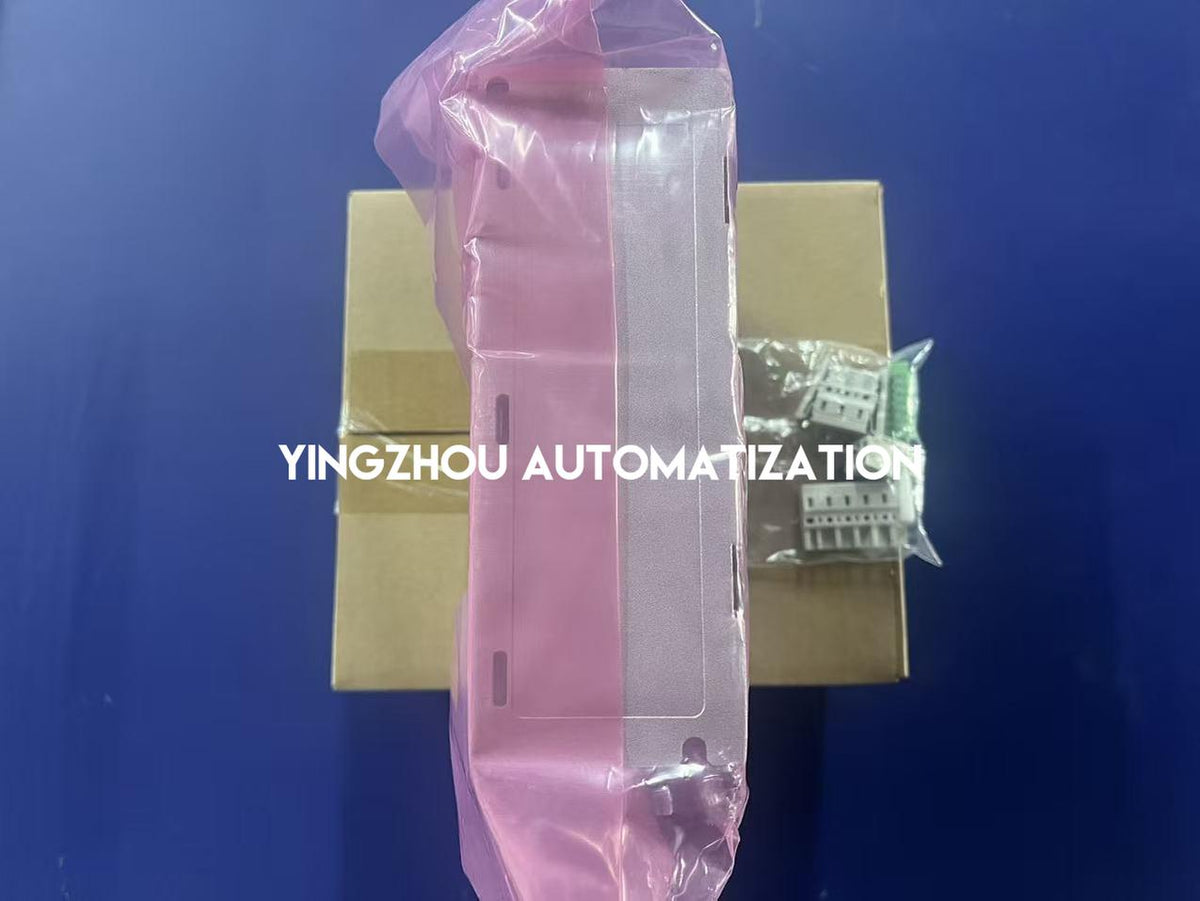

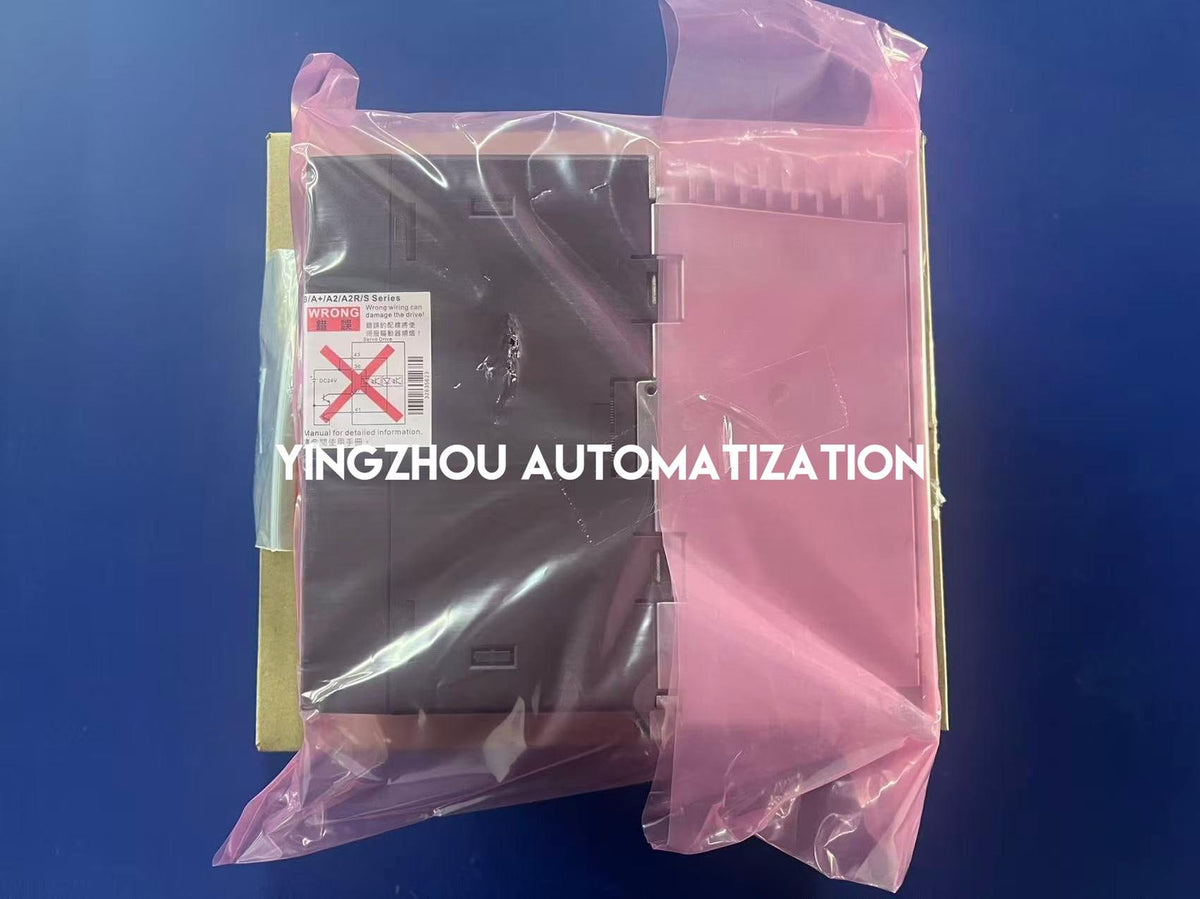

Actual product photos
✓

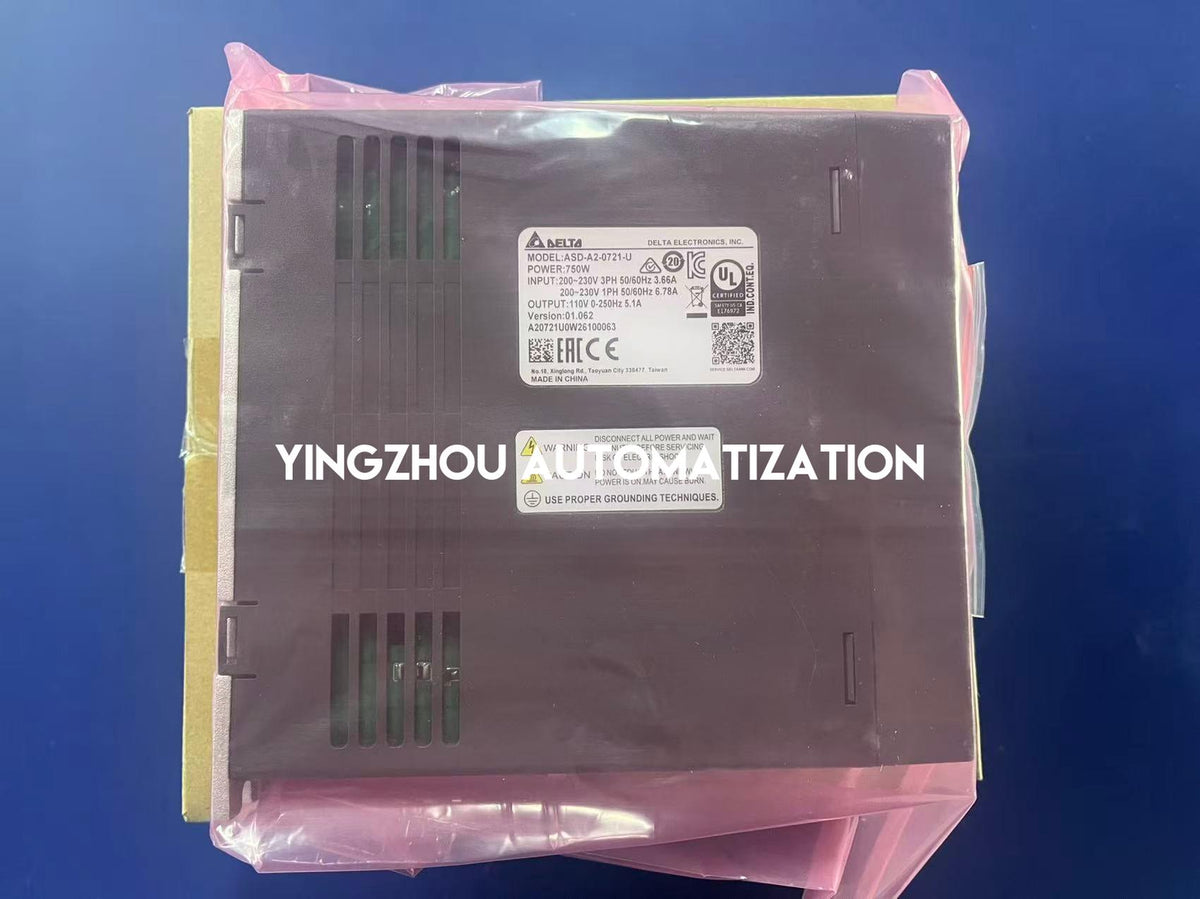

Model/nameplate visible
✓

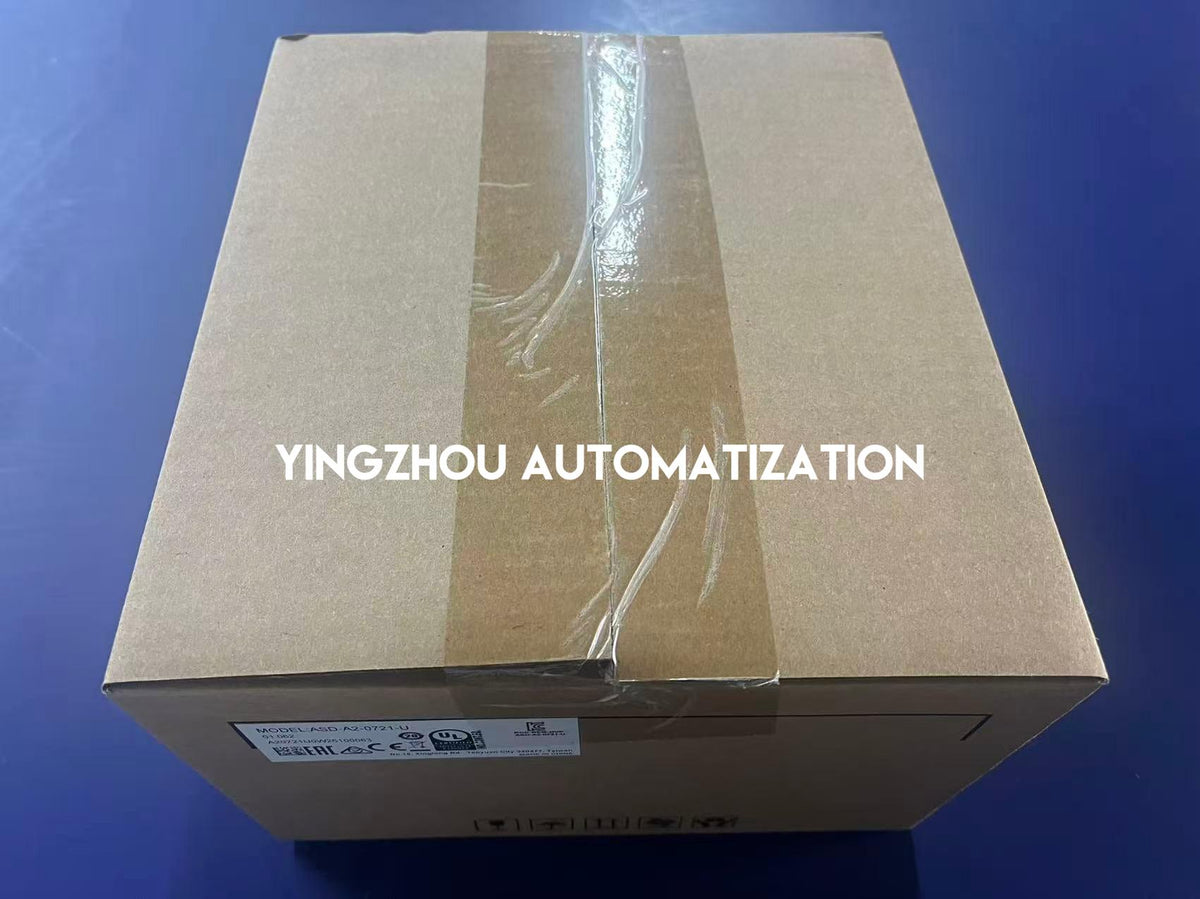

Packaging shown
✓

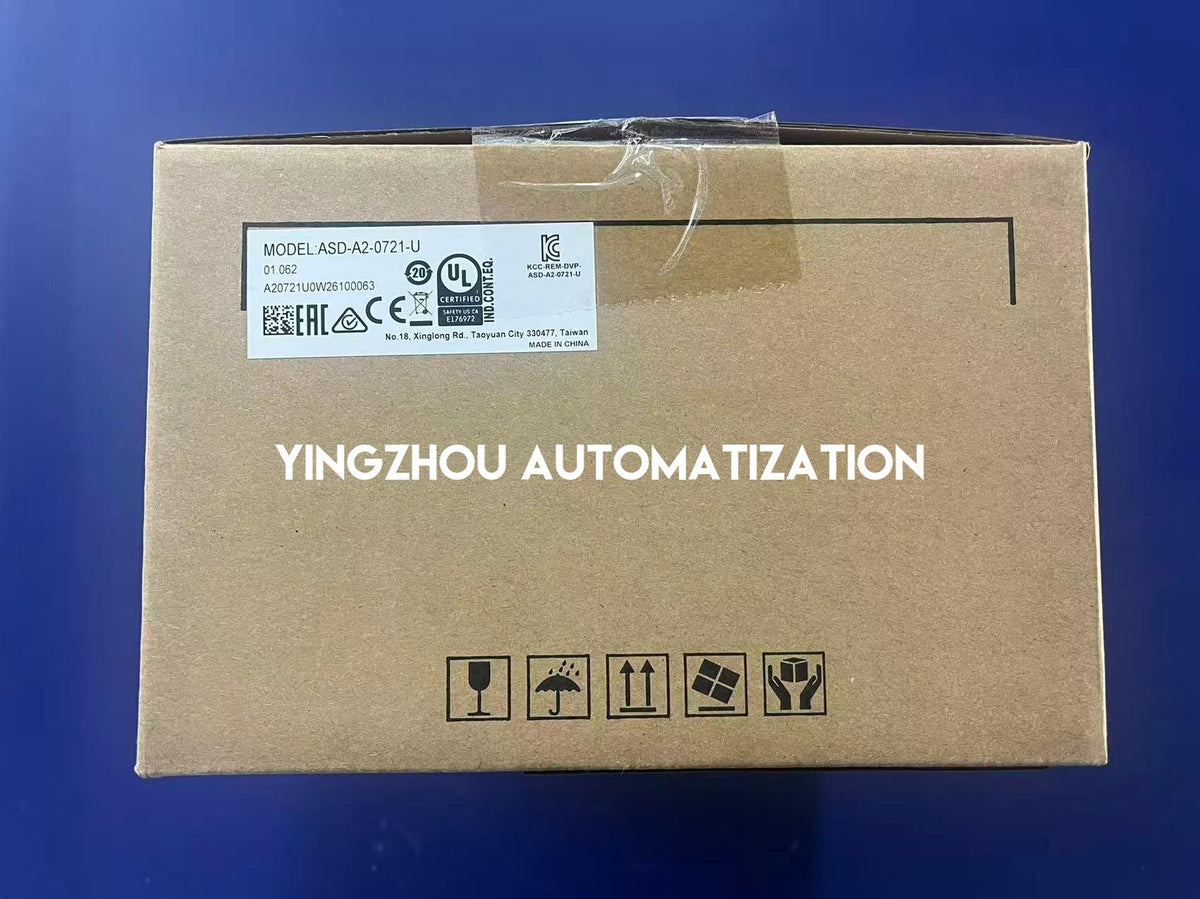

Device and carton labels show model ASD-A2-0721-U
✓
Verify exact model before ordering
In Stock & Ready to Order
Delta ASD-A2-0721-U is currently
in stock. Actual product photos,
the exact model nameplate and matching carton label
are available for verification.
Contact us for project pricing, quantity requirements
and shipping arrangements.
