Danfoss 132H2229 MCD 600 448A Soft Starter 200–525 VAC IP00

Name: Danfoss 132H2229 MCD 600 448A Soft Starter 200–525 VAC IP00
Brand: Danfoss
SKU: MCD60448CT5S2X00CV2
Price: 3591.99 USD
Availability: InStock

Danfoss 132H2229 MCD 600 448A Soft Starter 200–525 VAC IP00

$3,591.99 USD

Sale Sold out

Model Number MCD60448CT5S2X00CV2

Product variants

Quantity

YingZhou Industrial Automation | Product Information

Danfoss 132H2229 VLT® Soft Starter MCD 600 448A

MCD6-0448C-T5-S2X-00-CV2 | 3-Phase 200–525 VAC | IP00 Open Frame

✓ AVAILABLE TO ORDER — ESTIMATED DELIVERY 3–4 WEEKS | Actual Product & Packaging Photos | Exact Part Number 132H2229

Specification	Product Data
Brand	Danfoss
Part Number	132H2229
Exact Type Code	MCD6-0448C-T5-S2X-00-CV2
Series	VLT® Soft Starter MCD 600
Product Type	Digital Soft Starter
Model Current Class	448 A model designation
Supply Voltage	3-phase, 200–525 VAC
Supply Frequency	50/60 Hz
Nameplate Current Rating	474 A at AC-53a: 3.0-10:50-6
Motor Power on Nameplate	250 kW (350 HP) at 400 VAC
Enclosure	IP00 (open frame)
Frame Size	S2X / Frame Size 2
Control Voltage Code	CV2 — 110–120 VAC or 220–240 VAC, per Danfoss type-code guide
Weight	16.0 kg (nameplate / official guide)
Country of Manufacture on Label	New Zealand

Product Overview

The Danfoss 132H2229 is a VLT® Soft Starter MCD 600 with the exact type code MCD6-0448C-T5-S2X-00-CV2. The nameplate identifies a 3-phase 200–525 VAC, 50/60 Hz supply and an AC-53a current rating of 474 A at 3.0-10:50-6. The product code identifies the 448 A model class; the applicable current rating depends on the AC-53 duty conditions and installation method. The nameplate also states 250 kW (350 HP) at 400 VAC, an IP00 open-frame enclosure and a weight of 16.0 kg. Select the soft starter against the motor full-load current and required starting duty using the official Danfoss selection guidance.

Key Product Features

VLT® Soft Starter MCD 600 — Digital soft-start platform for fixed-speed motor applications.
132H2229 Exact Part Number — Matches the part number shown on the supplied product and packaging labels.
3-Phase 200–525 VAC Supply — T5 voltage code, as shown on the product label and Danfoss type-code guide.
474 A at AC-53a: 3.0-10:50-6 — Current rating and duty code shown on the nameplate.
250 kW (350 HP) at 400 VAC — Motor power rating printed on the product label.
IP00 Open-Frame Design — Protection code confirmed by the type-code guide.
Motor and System Protection Functions — The MCD 600 platform includes configurable motor and system protection features documented by Danfoss.

Actual Product Verification

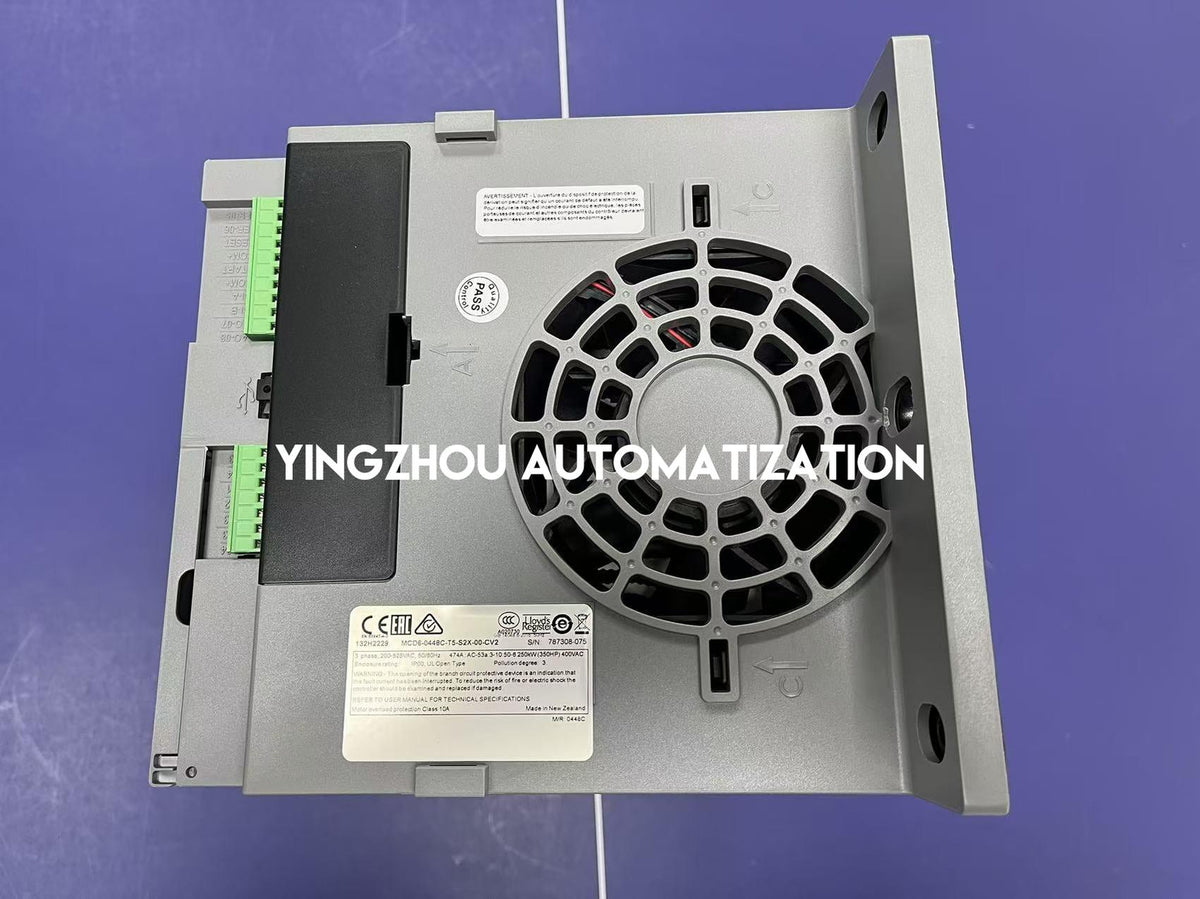

✓ Actual product photo provided — rear / rating label visible

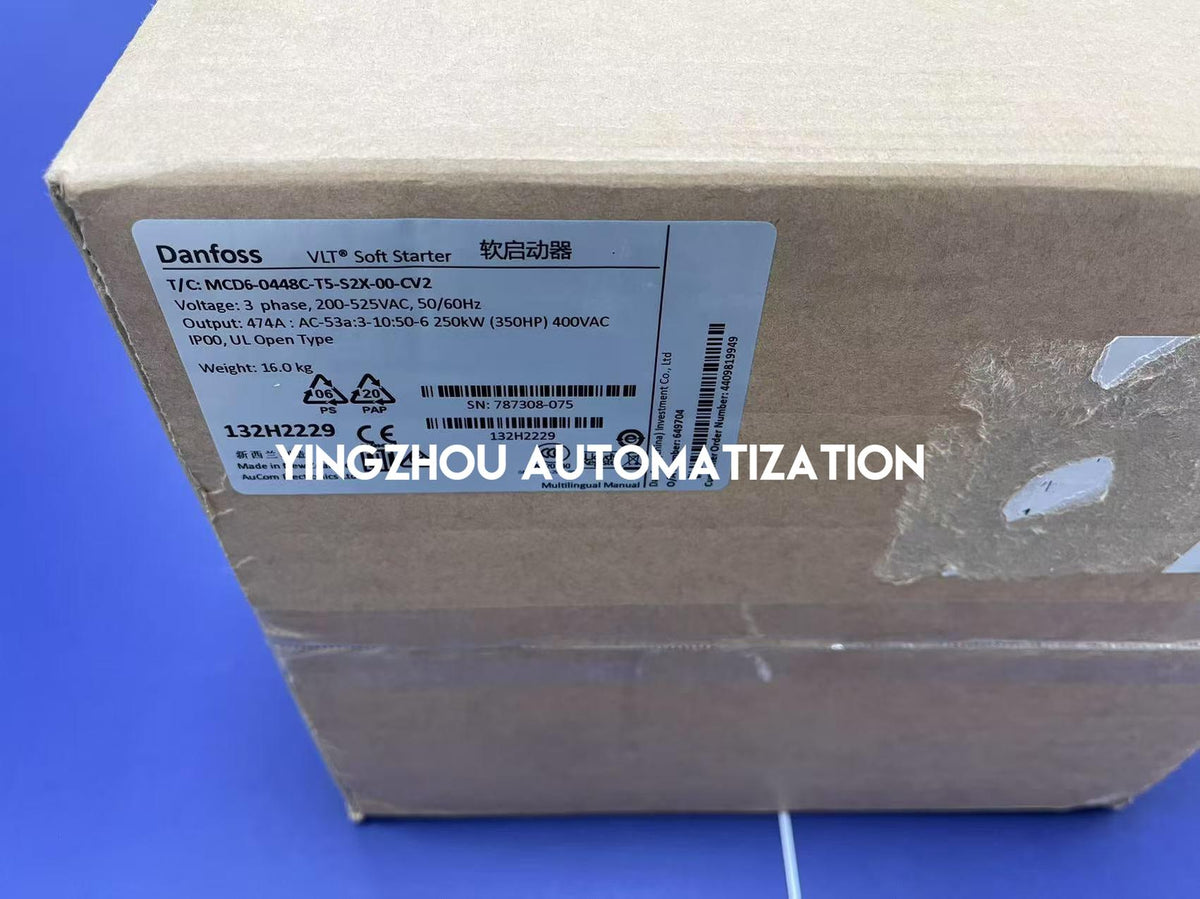

✓ Actual packaging photo provided — part number 132H2229 and type code visible

✓ Product type, voltage code and IP00 marking can be checked against the supplied labels

✓ Confirm motor full-load current, starting duty and installation requirements before ordering

Available to Order — Estimated Delivery 3–4 Weeks

Danfoss 132H2229 is available to order with an estimated delivery time of 3–4 weeks, based on the supplied commercial information. Please reconfirm the delivery schedule when placing the order.

ESTIMATED DELIVERY 3–4 WEEKS
