Aventics R412007261 AS3-BAV G1/2 3/2-Way Mechanical Shut-Off Valve 0–16 Bar

Aventics R412007261 AS3-BAV G1/2 3/2-Way Mechanical Shut-Off Valve 0–16 Bar

$55.99 USD
$55.99 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

Aventics R412007261 AS3-BAV Mechanical Shut-Off Valve

G1/2 | 3/2-Way | 11000 L/min | 0-16 Bar | Rotary Switch
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Part Number Verified
Specification Verified Product Data
Manufacturer AVENTICS / Emerson
Part Number R412007261
Product Series AS3-BAV
Product Type 3/2-Way Mechanical Shut-Off Valve
Type Code AS3-BAV-G012-MAN
Valve Design Ball Valve
Activation Mechanical
Actuating Element Rotary Switch
Pneumatic Connection G 1/2
Exhaust Connection G 1/2
Working Pressure 0-16 bar
Nominal Flow Qn 11000 L/min (Current Manufacturer Listing)
Flow 1 to 2 11000 L/min
Flow 2 to 3 130 L/min
Ambient Temperature -10°C to +50°C
Operating Medium Compressed Air / Neutral Gases
Max. Particle Size 25 µm
Sealing Principle Metal-to-Metal
Lock Type Padlock-Lockable
Modular Assembly Can Be Assembled into Blocks
Housing Material Polyamide
Seal Material PTFE
Front Cover Material ABS
Locking Base Material Die-Cast Zinc
Threaded Bushing Material Die-Cast Zinc
Product Weight 0.446 kg
Availability IN STOCK

Product Overview

The AVENTICS R412007261 is a mechanically operated 3/2-way pneumatic shut-off valve from the AS3-BAV series. The exact manufacturer configuration is AS3-BAV-G012-MAN. This modular ball-type shut-off valve is designed for compressed air supply isolation and downstream pressure relief in compatible pneumatic air preparation systems. It features a G1/2 pneumatic connection, a G1/2 exhaust connection and a 0-16 bar working pressure range. The current manufacturer listing specifies 11000 L/min nominal flow in the supply-to-output direction. Mechanical operation is provided by a rotary switch, with a padlock-lockable arrangement for securing the valve position. The compact AS3 series construction enables integration with compatible air preparation modules. Actual equipment and packaging photographs show the matching part number R412007261 and configuration AS3-BAV-G012-MAN.

Key Product Features

  • AVENTICS AS3-BAV Series — Mechanically operated pneumatic shut-off valve.
  • Exact Part Number R412007261 — Configuration AS3-BAV-G012-MAN.
  • 3/2-Way Ball Valve — Provides compressed air supply isolation and downstream exhaust.
  • G1/2 Pneumatic Connection — G1/2 air inlet/outlet and exhaust connection.
  • 0-16 Bar Working Pressure — Manufacturer-specified working pressure range.
  • 11000 L/min Nominal Flow — Current manufacturer-listed flow specification.
  • Mechanical Rotary Switch — Manual valve actuation.
  • Padlock-Lockable Design — Supports securing the operating position.
  • Modular AS3 Construction — Can be assembled into compatible pneumatic air preparation blocks.
  • Polyamide Housing — Manufacturer-specified housing material with PTFE sealing components.
  • Actual Product Photography — Equipment and packaging markings match R412007261.

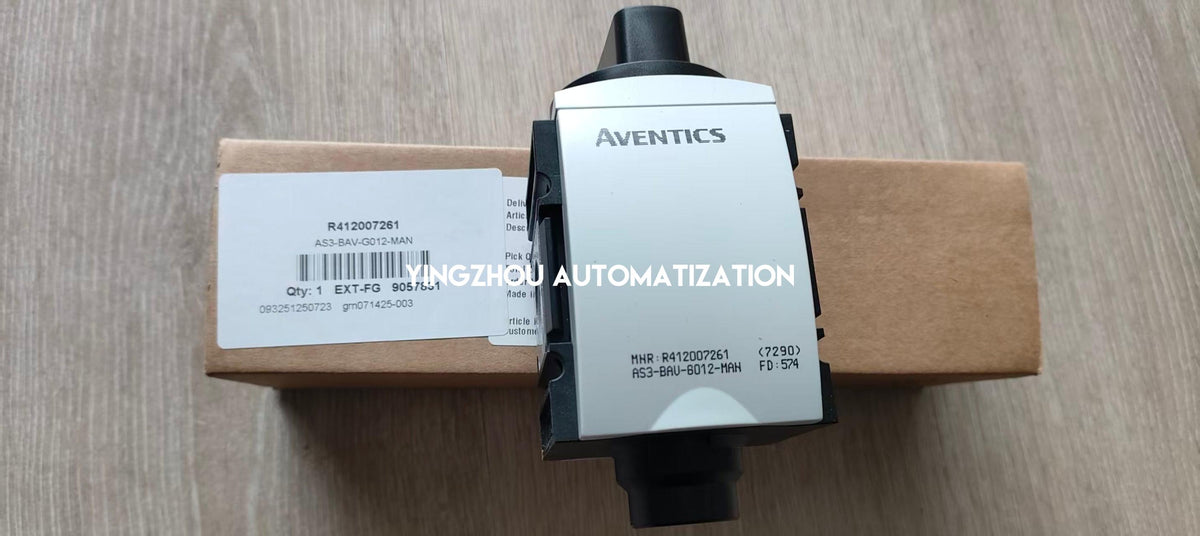

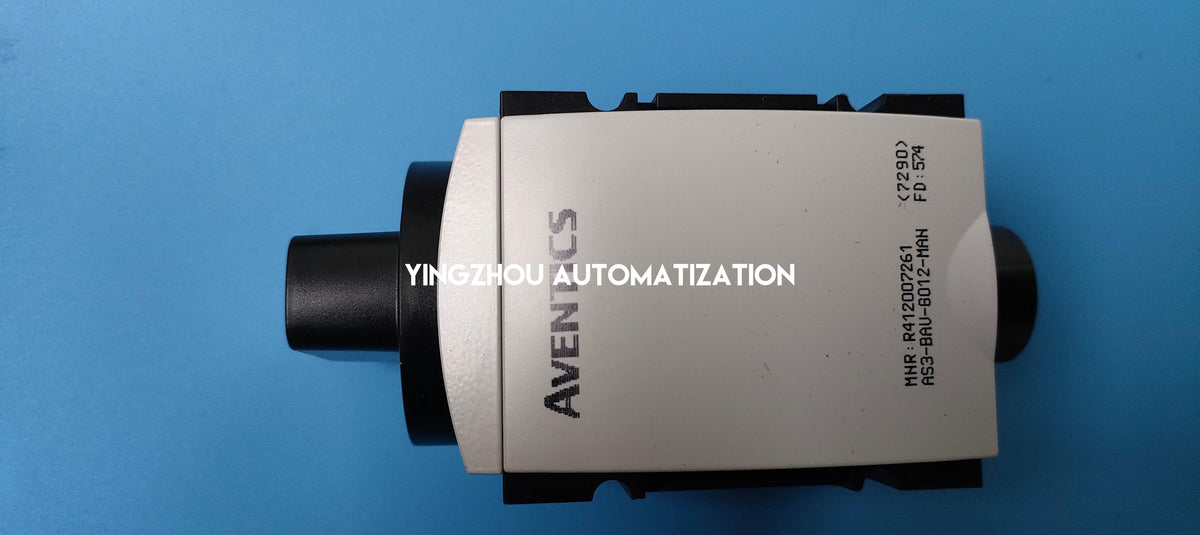

Actual Product Verification

✓ Actual equipment and packaging photographs supplied
✓ Equipment manufacturer marking: AVENTICS
✓ Equipment part number: R412007261
✓ Equipment type code: AS3-BAV-G012-MAN
✓ Packaging part number: R412007261
✓ Packaging type code: AS3-BAV-G012-MAN
✓ Packaging quantity: 1
✓ Equipment and packaging exact part numbers match
✓ Actual operating function and physical condition require inspection before shipment

In Stock & Available to Order

Aventics R412007261 AS3-BAV Mechanical Shut-Off Valve is marked IN STOCK based on the supplied inventory information. The photographed equipment and carton identify the same part number and AS3-BAV-G012-MAN configuration. The unit features a G1/2 pneumatic connection, a 0-16 bar working pressure range and mechanical rotary operation. For industrial maintenance or replacement requirements, please confirm the exact valve configuration, port connections, flow specifications and installation conditions before ordering. Contact YINGZHOU for quotations, quantities and international dispatch arrangements.

IN STOCK

Aventics R412007261 AS3-BAV

Contact us for exact-model verification, single-unit orders and bulk procurement. Please confirm the G1/2 connection, 3/2-way valve function, operating pressure and installation requirements before purchasing.
