Aventics R412006260 AS2-SOV G1/4 3/2-Way Pneumatic Shut-Off Valve 0–16 Bar

Aventics R412006260 AS2-SOV G1/4 3/2-Way Pneumatic Shut-Off Valve 0–16 Bar

$34.99 USD
$34.99 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

Aventics R412006260 AS2-SOV Pneumatic Shut-Off Valve

G1/4 | 3/2-Way | 2000 L/min | 0-16 Bar | Manual Rotary Switch
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Part Number Verified
Specification Verified Product Data
Manufacturer AVENTICS / Emerson
Part Number R412006260
Product Series AS2-SOV
Product Family AS2-BAV
Type Code AS2-SOV-G014-MAN
Product Type 3/2-Way Pneumatic Shut-Off Valve
Operation Mechanical
Actuating Element Rotary Switch
Valve Construction Poppet Valve
Sealing Principle Soft Seal
Pneumatic Input G 1/4
Pneumatic Output G 1/4
Exhaust Connection G 1/4
Nominal Flow Qn 1 to 2 2000 L/min
Nominal Flow Qn 2 to 3 380 L/min
Working Pressure 0-16 bar
Ambient Temperature -10°C to +50°C
Operating Medium Compressed Air / Neutral Gases
Maximum Particle Size 25 µm
Locking Function Padlock Lockable
Modular Assembly Can Be Assembled into Blocks
Housing Material Polyamide
Seal Material NBR
Front Cover Material ABS
Weight 0.206 kg
Availability IN STOCK

Product Overview

The AVENTICS R412006260 is a mechanically operated 3/2-way pneumatic shut-off valve from the AS2-SOV series. Its manufacturer type code is AS2-SOV-G014-MAN. Designed for compressed air preparation systems, this valve uses a manual rotary switch to control the air supply and exhaust function. It features G1/4 inlet, outlet and exhaust connections, a 2000 L/min nominal flow rate from port 1 to port 2 and a 380 L/min exhaust flow rate from port 2 to port 3. The specified working pressure range is 0-16 bar. The soft-sealing poppet valve construction, modular AS2 design and padlock-lockable operation make it suitable for compatible industrial pneumatic systems. The supplied actual product photograph shows the manufacturer marking R412006260 and type code AS2-SOV-G014-MAN, matching the requested model.

Key Product Features

  • AVENTICS AS2-SOV Series — Mechanical 3/2-way shut-off valve for compressed air systems.
  • Exact Part Number R412006260 — Manufacturer type code AS2-SOV-G014-MAN.
  • G1/4 Pneumatic Connections — G1/4 input, output and exhaust ports.
  • 2000 L/min Supply Flow — Nominal flow from port 1 to port 2.
  • 380 L/min Exhaust Flow — Nominal flow from port 2 to port 3.
  • 0-16 Bar Working Pressure — Designed for the specified pneumatic operating pressure range.
  • Manual Rotary Switch — Mechanically operated air shut-off control.
  • Padlock-Lockable Design — Allows the valve position to be secured with a suitable padlock.
  • Soft-Sealing Poppet Valve — Manufacturer-specified valve construction.
  • Modular AS2 Construction — Can be assembled into compatible air preparation blocks.
  • Industrial Materials — Polyamide housing, NBR seals and ABS front cover.
  • Actual Product Photography — Physical markings confirm R412006260.

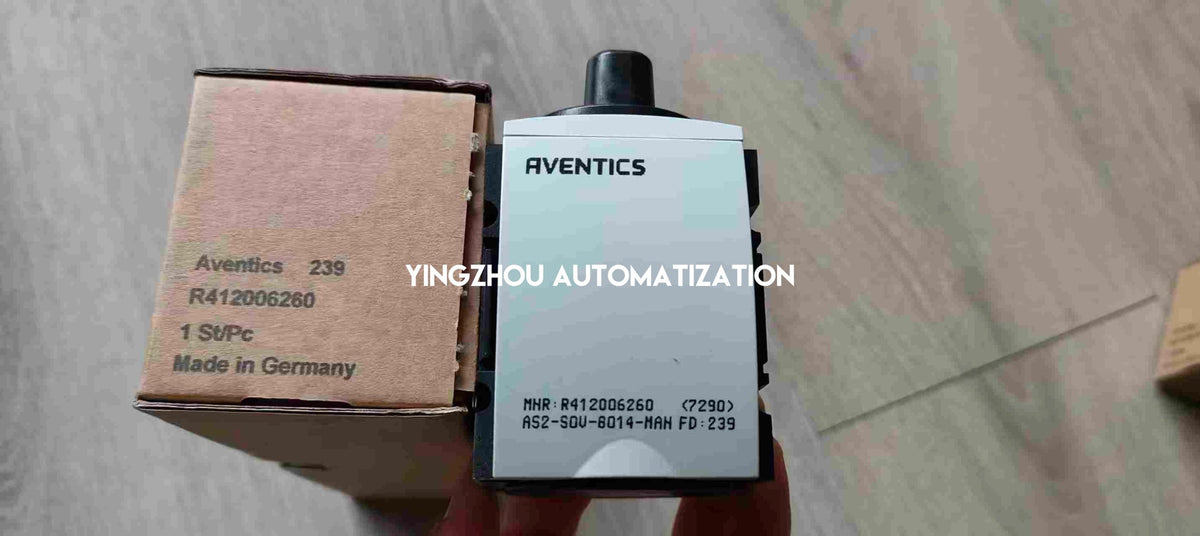

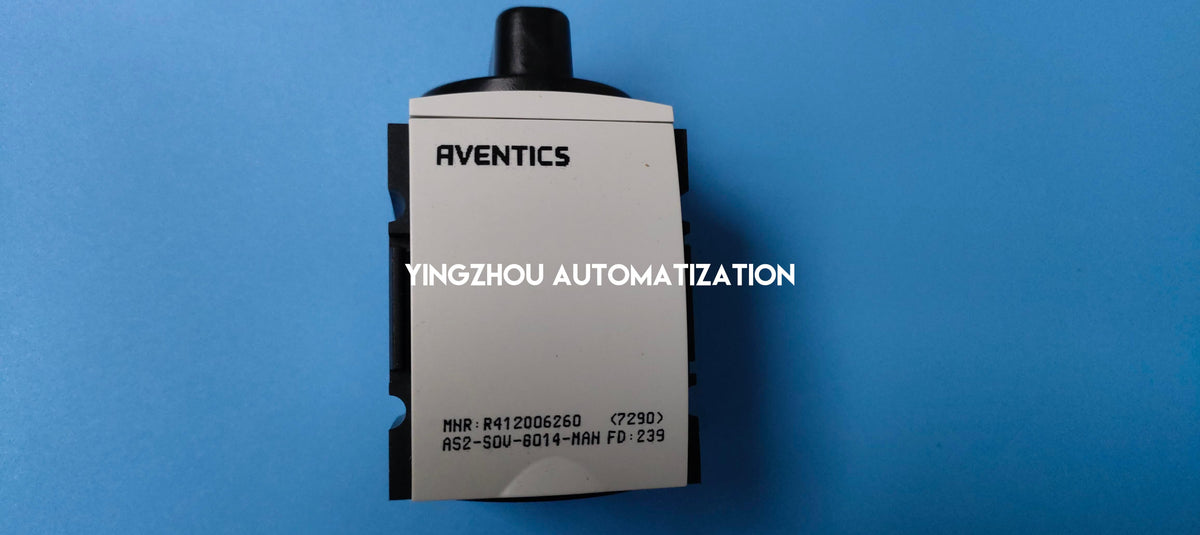

Actual Product Verification

✓ Actual equipment and carton photograph supplied
✓ Manufacturer marking: AVENTICS
✓ Equipment part number: MHR R412006260
✓ Full type code: AS2-SOV-G014-MAN
✓ Carton marking: R412006260
✓ Carton quantity marking: 1 St/Pc
✓ Carton origin marking: Made in Germany
✓ Equipment and packaging part numbers match
✓ Operational and sealing performance require pre-shipment confirmation

In Stock & Available to Order

Aventics R412006260 AS2-SOV-G014-MAN Pneumatic Shut-Off Valve is listed as IN STOCK based on the supplied inventory information. Actual equipment and packaging photographs identify the exact part number R412006260. The valve provides mechanically operated 3/2-way shut-off functionality, G1/4 pneumatic connections and a 0-16 bar working pressure range. Please confirm the required valve configuration, pneumatic connections, system pressure, quantity and delivery arrangements before ordering. YINGZHOU supports industrial pneumatic replacement purchases and multi-brand component procurement.

IN STOCK

Aventics R412006260 AS2-SOV

Contact us for exact-model confirmation, quantity quotations and industrial procurement. Please verify the G1/4 connection, 3/2-way function, working pressure and installation requirements before purchasing.
