Aventics 1827231047 PG1-SNL G1/4 40mm Pneumatic Pressure Gauge 0–16 Bar

Aventics 1827231047 PG1-SNL G1/4 40mm Pneumatic Pressure Gauge 0–16 Bar

$14.99 USD
$14.99 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

Aventics 1827231047 PG1-SNL Pneumatic Pressure Gauge

G1/4 | 40mm | 0-16 Bar Display | 0-10 Bar Application | Accuracy Class 1.6
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Packaging Part Number Verified
Specification Verified Product Data
Manufacturer AVENTICS / Emerson
Part Number 1827231047
Product Series PG1-SNL
Product Family PG1 Pressure Gauges
Type Code PG1-ROB-G014-SNL-D40P(0-16)
Product Type Pneumatic Pressure Gauge / Manometer
Gauge Construction Bourdon Tube Pressure Gauge
Connection Position Back Port / Axial
Pneumatic Connection G1/4
Nominal Diameter 40 mm
Display Range 0-16 bar
Application Range 0-10 bar
Operating Pressure Range 0-16 bar
Scale Division 0.5 bar
Accuracy Class 1.6
Standardization EN 837-1
Ambient Temperature -40°C to +60°C
Operating Medium Compressed Air
Main Scale bar / Green
Secondary Scale psi / White
Dial Background Black
Pointer Color White
Viewing Window Polystyrene
Weight 0.06 kg
Availability IN STOCK

Product Overview

The AVENTICS 1827231047 is a PG1-SNL pneumatic pressure gauge manufactured under the AVENTICS product range of Emerson. Its type code is PG1-ROB-G014-SNL-D40P(0-16). Designed for compressed air pressure indication, this mechanical Bourdon tube pressure gauge features a 40 mm nominal diameter, a G1/4 axial back connection and a 0-16 bar display range. The manufacturer specifies a 0-10 bar application range and a 0-16 bar operating pressure range. The gauge conforms to EN 837-1 accuracy class 1.6 and uses a black dial with a green bar scale, white psi markings and a white pointer. It is intended for pressure indication in compatible compressed air equipment and pneumatic air preparation systems. The supplied actual product photograph shows packaging marked AVENTICS 1 827 231 047, corresponding to part number 1827231047. Connection fitment and instrument performance should be confirmed before installation.

Key Product Features

  • AVENTICS PG1-SNL Series — Industrial pneumatic pressure gauge for compressed air monitoring.
  • Exact Part Number 1827231047 — Type code PG1-ROB-G014-SNL-D40P(0-16).
  • 0-16 Bar Display Range — Analog indication across the specified pressure scale.
  • 0-10 Bar Application Range — Manufacturer-specified application range.
  • 40mm Nominal Diameter — Compact mechanical pressure indicator design.
  • G1/4 Back Connection — Axial pneumatic port connection.
  • Bourdon Tube Construction — Mechanical pressure sensing without an external power supply.
  • Accuracy Class 1.6 — EN 837-1 standardized pressure gauge classification.
  • Dual-Unit Dial — Green bar scale and white psi scale on a black background.
  • Industrial Temperature Range — Ambient operating conditions from -40°C to +60°C.
  • Actual Product Photography — Packaging clearly identifies part number 1827231047.

Actual Product Verification

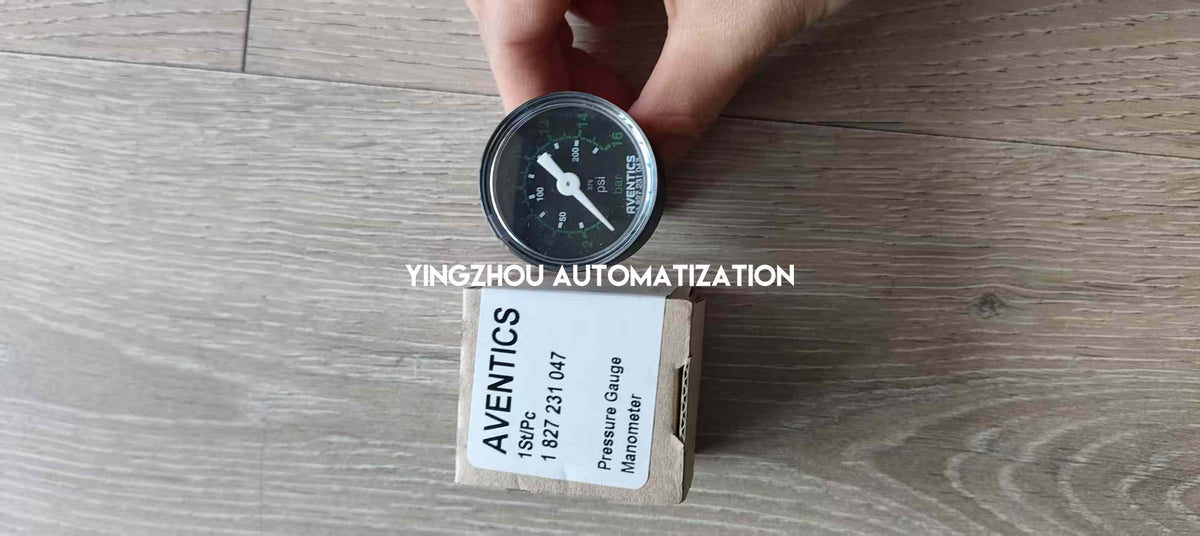

✓ Actual instrument and packaging photograph supplied
✓ Packaging manufacturer: AVENTICS
✓ Packaging part number: 1 827 231 047
✓ Exact part number: 1827231047
✓ Packaging description: Pressure Gauge / Manometer
✓ Package quantity marking: 1 St/Pc

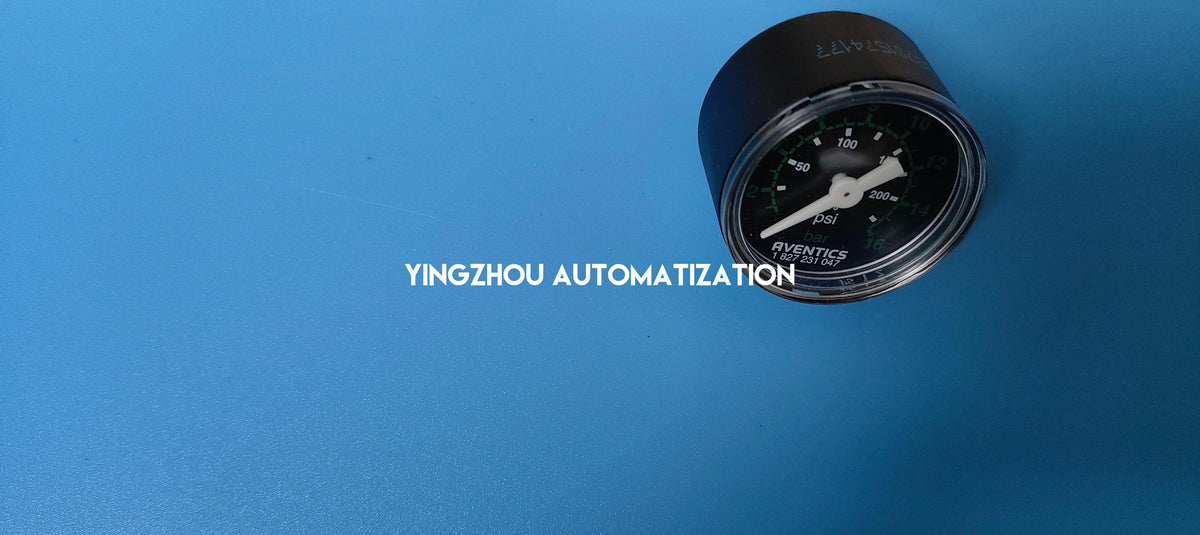

✓ Gauge face shows AVENTICS branding and dual-unit markings
✓ Packaging part number matches the requested model
✓ Rear connection and calibration condition require physical confirmation

In Stock & Available to Order

Aventics 1827231047 PG1-SNL Pneumatic Pressure Gauge is listed as IN STOCK based on supplied inventory information. Actual product and packaging photographs are available, with the carton label identifying the requested part number. The manufacturer specifications include a G1/4 back connection, 40mm nominal diameter, 0-16 bar display range and 0-10 bar application range. Please confirm the pressure range, connection requirements, quantity and delivery arrangements before ordering. YINGZHOU supports industrial pneumatic equipment maintenance and multi-brand component procurement.

IN STOCK

Aventics 1827231047 PG1-SNL

Contact us for exact-model confirmation, multiple units and industrial pneumatic equipment sourcing. Please verify the 0-16 bar display range, 0-10 bar application range, G1/4 back connection and installation requirements before ordering.
