Allen-Bradley 1769-IF4XOF2 Compact I/O Analog Module

4 Analog Inputs | 2 Analog Outputs | 0-10V / 0-20mA | 8-Bit Resolution
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photos  |  Exact Catalog Number 1769-IF4XOF2
Specification Verified Product Data
Manufacturer Allen-Bradley / Rockwell Automation
Catalog Number 1769-IF4XOF2
Product Family Compact I/O / Bulletin 1769
Product Type Analog Combination I/O Module
Total Analog Channels 6
Analog Input Channels 4 Differential or Single-Ended
Analog Output Channels 2 Single-Ended
Analog Input Range 0-10V DC / 0-20mA
Analog Output Range 0-10V DC / 0-20mA
Input Full-Scale Range 0-10.5V / 0-21mA
Output Full-Scale Range 0-10.5V / 0-21mA
Input Resolution 8 Bits Plus Sign
Output Resolution 8 Bits Plus Sign
Input Converter Type Successive Approximation
Output Converter Type Resistor String
Input Response Speed 5ms per Channel
Output Response Speed 0.3ms at Rated Resistive / Inductive Load; 3.0ms at Rated Capacitive Load
Input Accuracy - Current @ 25°C ±0.6% Full Scale
Input Accuracy - Voltage @ 25°C ±0.7% Full Scale
Output Accuracy @ 25°C ±0.5% Full Scale
Current Output Load 0-300 Ohms Including Wire Resistance
Voltage Output Load Greater Than 1k Ohm
Current Draw @ 5.1V DC 120mA
Current Draw @ 24V DC 160mA
Maximum Heat Dissipation 3.03W
Group-to-Bus Isolation Test 500V AC / 710V DC for 1 Minute
Isolation Working Voltage 30V AC / 30V DC
Dimensions (H x W x D) 118 x 35 x 87mm
Approximate Weight 290g
Slot Width 1
Power Supply Distance Rating 8 Modules
Supported 1769 Power Supplies 1769-PA2 / 1769-PB2 / 1769-PA4 / 1769-PB4
Mounting Type DIN Rail or Panel
Enclosure Type Open-Style
Operating Temperature 0°C to +60°C
Manufacturer Lifecycle Active Mature

Product Overview

The Allen-Bradley 1769-IF4XOF2 is a Compact I/O analog combination module manufactured by Rockwell Automation. Designed for supported Bulletin 1769 Compact I/O systems, it combines 4 analog input channels and 2 analog output channels within a single module. The analog inputs support differential or single-ended connections, while the outputs are single-ended. Both input and output channels support 0-10V DC and 0-20mA signals, with 8-bit plus sign resolution. The module has a specified 5ms analog input response per channel, requires 120mA at 5.1V DC and 160mA at 24V DC from the compatible 1769 backplane power system, and has a power supply distance rating of 8. Its open-style, single-slot construction supports DIN rail or panel installation. The supplied actual packaging photograph identifies 1769-IF4XOF2, Series A with firmware marking 2.2. The physical product-unit nameplate is not shown. Confirm the exact catalog number, signal requirements, module arrangement and installation specifications before ordering.

Key Product Features

  • Compact I/O Analog Combination Module — Allen-Bradley Bulletin 1769 input/output module.
  • 4 Analog Inputs and 2 Analog Outputs — Six analog channels within one module.
  • Voltage and Current Signals — Supports 0-10V DC and 0-20mA input and output ranges.
  • 8-Bit Plus Sign Resolution — Manufacturer-specified analog conversion resolution.
  • 5ms Input Response — Specified response speed for each analog input channel.
  • Compact Single-Slot Construction — Open-style module for DIN rail or panel mounting.
  • Power Supply Distance Rating 8 — Supports placement according to Rockwell Automation 1769 system design requirements.

Actual Product Verification

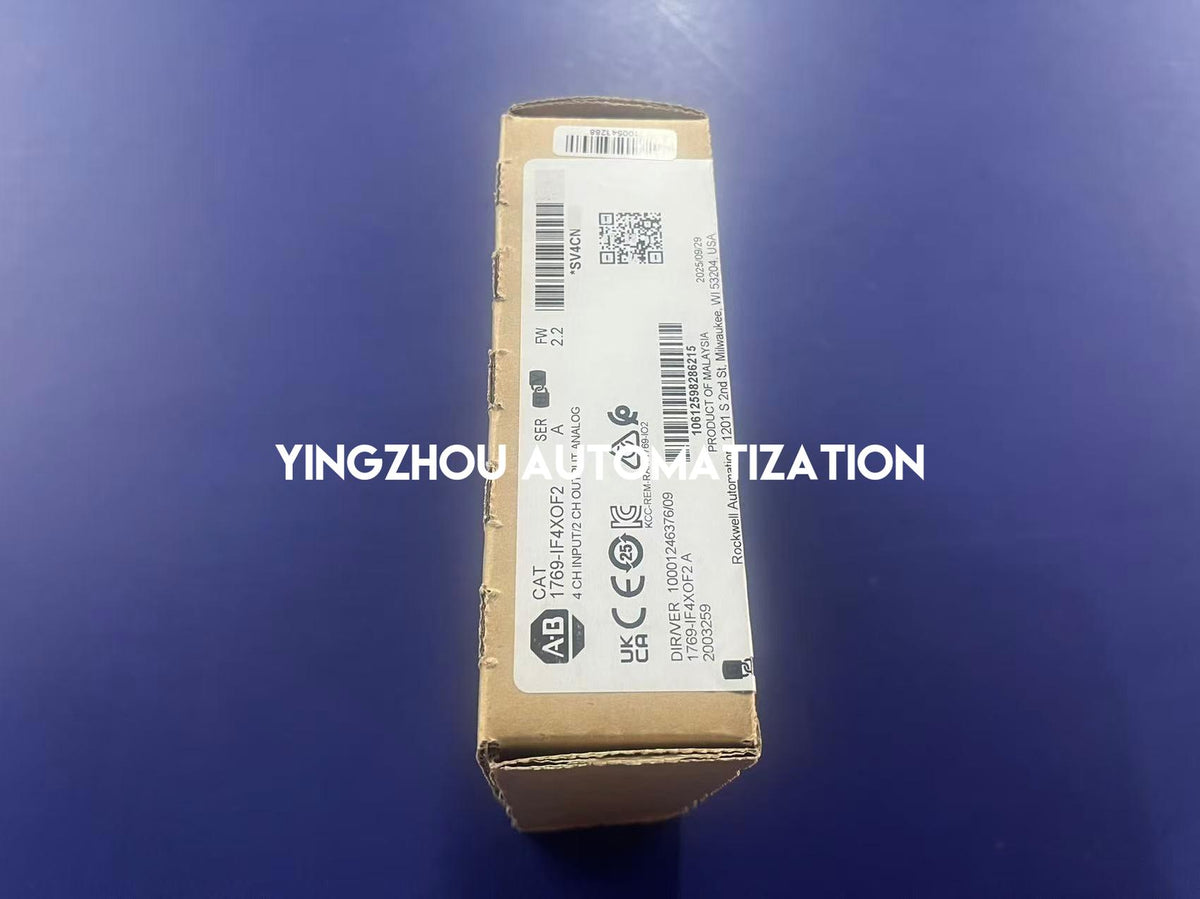

✓ Actual product packaging photograph supplied

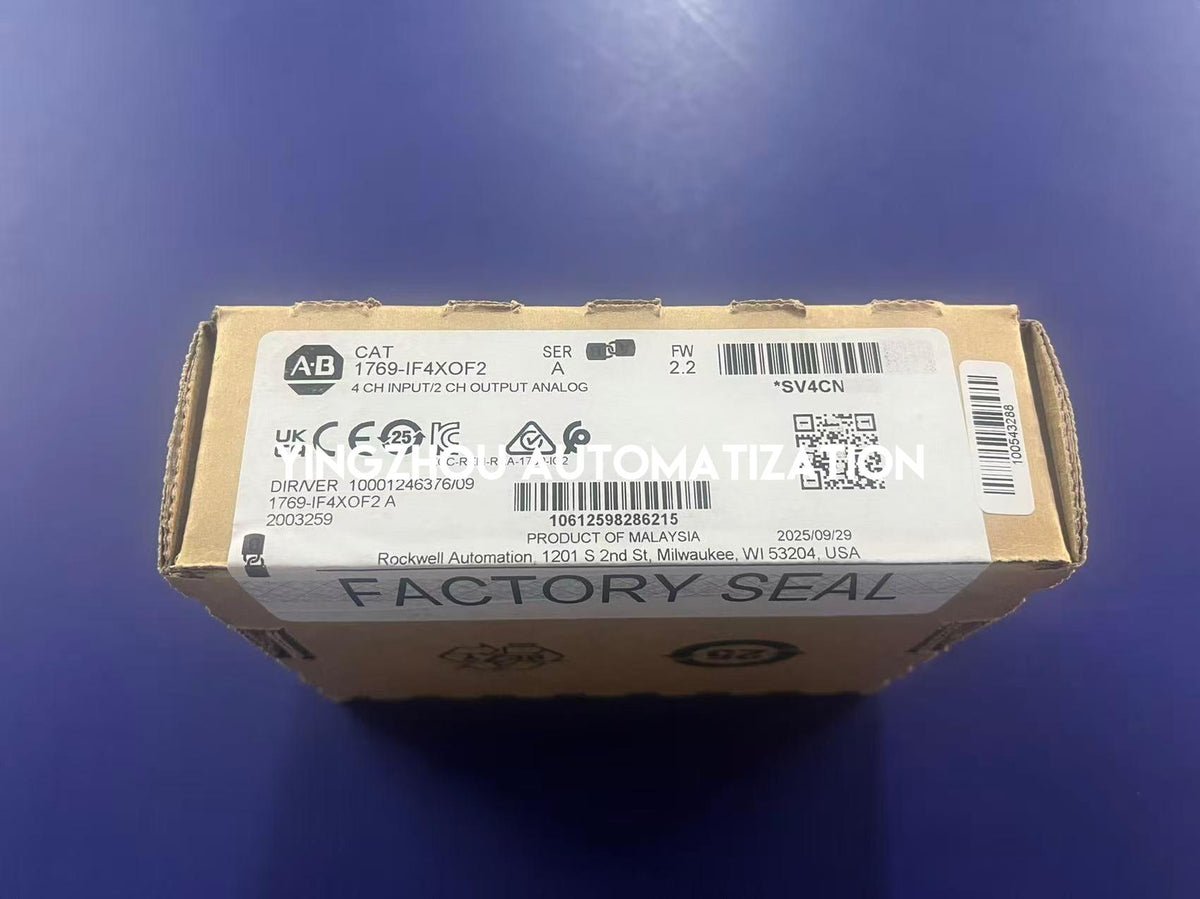

✓ Packaging catalog number 1769-IF4XOF2 clearly visible

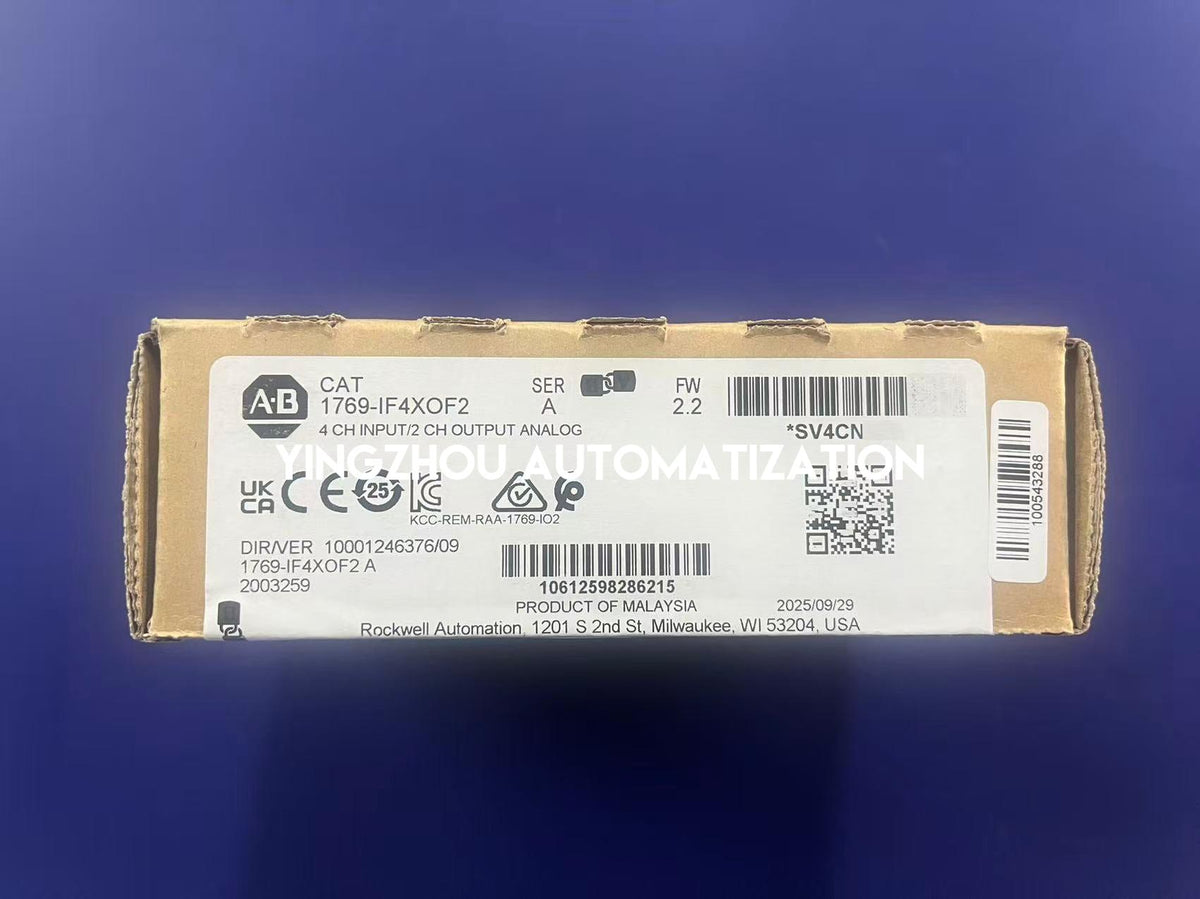

✓ Packaging label identifies Series A and firmware 2.2
✓ Label specifies 4 CH INPUT / 2 CH OUTPUT ANALOG
✓ Manufacturing date 2025/09/29 visible
✓ Packaging label marked PRODUCT OF MALAYSIA

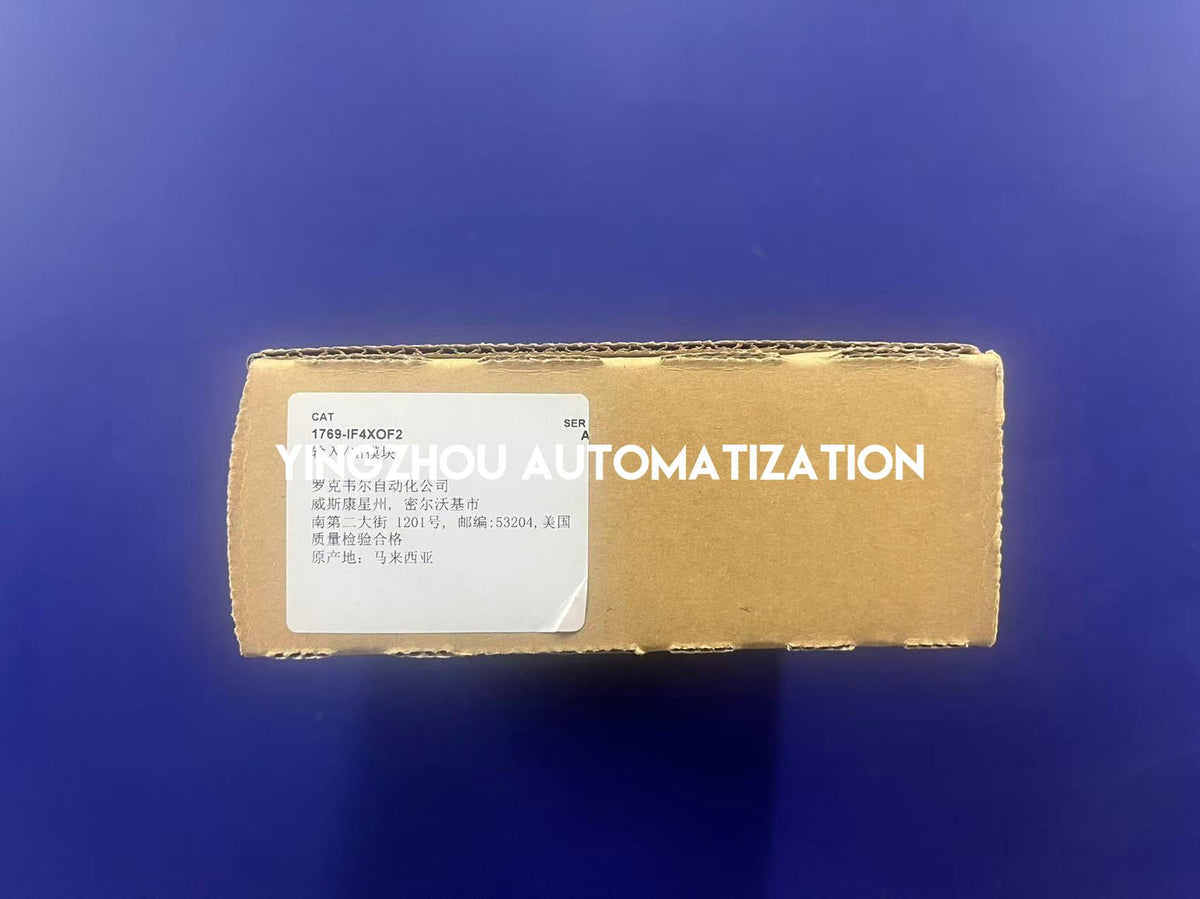

✓ Product-unit nameplate and functional testing are not confirmed by the supplied photograph
✓ Verify the exact module, signal requirements, terminal block and accessories before ordering

In Stock & Available to Order

Allen-Bradley 1769-IF4XOF2 is marked in stock based on the supplied inventory information. Please reconfirm order quantity and dispatch date before checkout. The supplied photograph verifies the packaging label, but the physical product-unit nameplate, included terminal block, accessories and operational testing have not been independently verified. Buyers should confirm their analog signal, 1769 backplane power and system configuration requirements before ordering.

IN STOCK

Allen-Bradley 1769-IF4XOF2

Order online or contact us for multiple units and project sourcing. Please confirm the four analog input channels, two analog output channels, signal ranges, backplane power and installation requirements.

Request Bulk Pricing

Looking for other Allen-Bradley industrial automation products?

Explore Allen-Bradley Industrial Automation Products
View full details
