Allen-Bradley 1734-IJ POINT I/O 5V DC Incremental Encoder Module

Allen-Bradley 1734-IJ POINT I/O 5V DC Incremental Encoder Module

$164.99 USD
$164.99 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

Allen-Bradley 1734-IJ POINT I/O Incremental Encoder Module

5V DC Encoder Input | A/B/Z Interface | 1MHz X1 Counting | POINT I/O
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Catalog Number 1734-IJ
Specification Verified Product Data
Manufacturer Allen-Bradley / Rockwell Automation
Catalog Number 1734-IJ
Product Family POINT I/O / Bulletin 1734
Product Type Incremental Encoder / Counter Interface Module
Number of Encoder Input Groups 1
Encoder Input Channels A/A Return, B/B Return, Z/Z Return
Encoder Signal Type Single-Ended or Differential
Nominal Input Voltage 5V DC
Input Current @ 5V DC 19.1mA
Input Current @ 6V DC 25.7mA
Minimum ON-State Voltage 2.6V DC or Higher
Maximum ON-State Voltage ±6V
Maximum OFF-State Voltage 1.25V DC
Minimum ON-State Current 5mA
Maximum OFF-State Current 0.250mA
Maximum Frequency - Counter / X1 1.0MHz, Input Filter Off
Maximum Frequency - Encoder X2 500kHz, Input Filter Off
Maximum Frequency - Encoder X4 250kHz, Input Filter Off
Input Filter Settings Off / 10us / 100us / 1ms / 10ms
Counter Data 24-Bit Count Expressed in a 32-Bit Word
Counter Range 0 to 16,777,215
Backplane Supply 5V DC
POINTBus Current, Maximum 160mA
Power Dissipation, Maximum 1.1W at Rated Load
Thermal Dissipation, Maximum 3.75 BTU/hr at Rated Load
Isolation Voltage 50V; Type Tested at 1100V DC for 60 Seconds
Additional External DC Power Not Required for Module Operation
Compatible Terminal Bases 1734-TB / 1734-TBS / 1734-TOP / 1734-TOPS
Keyswitch Position 2
Manufacturer Lifecycle Active

Product Overview

The Allen-Bradley 1734-IJ is a POINT I/O 5V DC incremental encoder and counter interface module manufactured by Rockwell Automation. Designed for the Bulletin 1734 distributed I/O system, it provides one encoder input group with A/A Return, B/B Return and Z/Z Return signals. The module accepts supported single-ended or differential encoder signals and operates with a 5V DC encoder input rating. It supports counter and quadrature encoder operating modes, with maximum counting frequencies of 1.0MHz in X1 mode, 500kHz in X2 mode and 250kHz in X4 mode when the input filter is disabled. The module requires a maximum of 160mA from the 5V DC POINTBus backplane and supports selectable input filtering. The user-supplied photographs show the actual product and packaging marked 1734-IJ, Series C. The product nameplate also shows firmware 3.006. Confirm the encoder signal voltage, terminal base, controller configuration and required accessories before ordering.

Key Product Features

  • POINT I/O Encoder Interface — Allen-Bradley Bulletin 1734 incremental encoder and counter module.
  • 5V DC Incremental Encoder Input — Designed for the verified 5V DC encoder signal class.
  • A/B/Z Encoder Channels — One input group with individual signal returns.
  • 1MHz Maximum Counting — Up to 1.0MHz in counter or encoder X1 mode with input filtering disabled.
  • Quadrature Encoder Modes — Supports X1, X2 and X4 configurations with their respective counting limits.
  • Configurable Input Filtering — Selectable filter settings for supported encoder and counter applications.
  • 160mA POINTBus Current — Operates from the 5V DC POINT I/O backplane supply.

Actual Product Verification

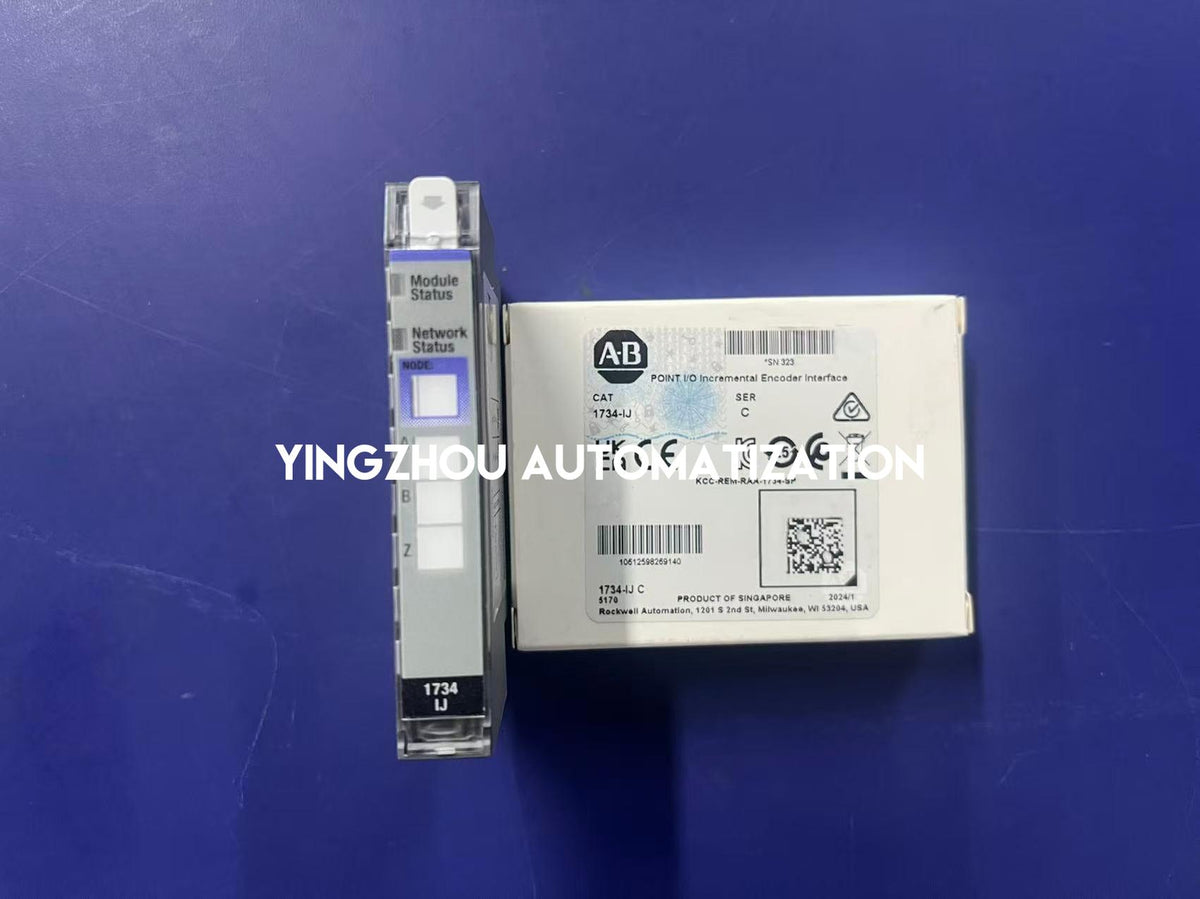

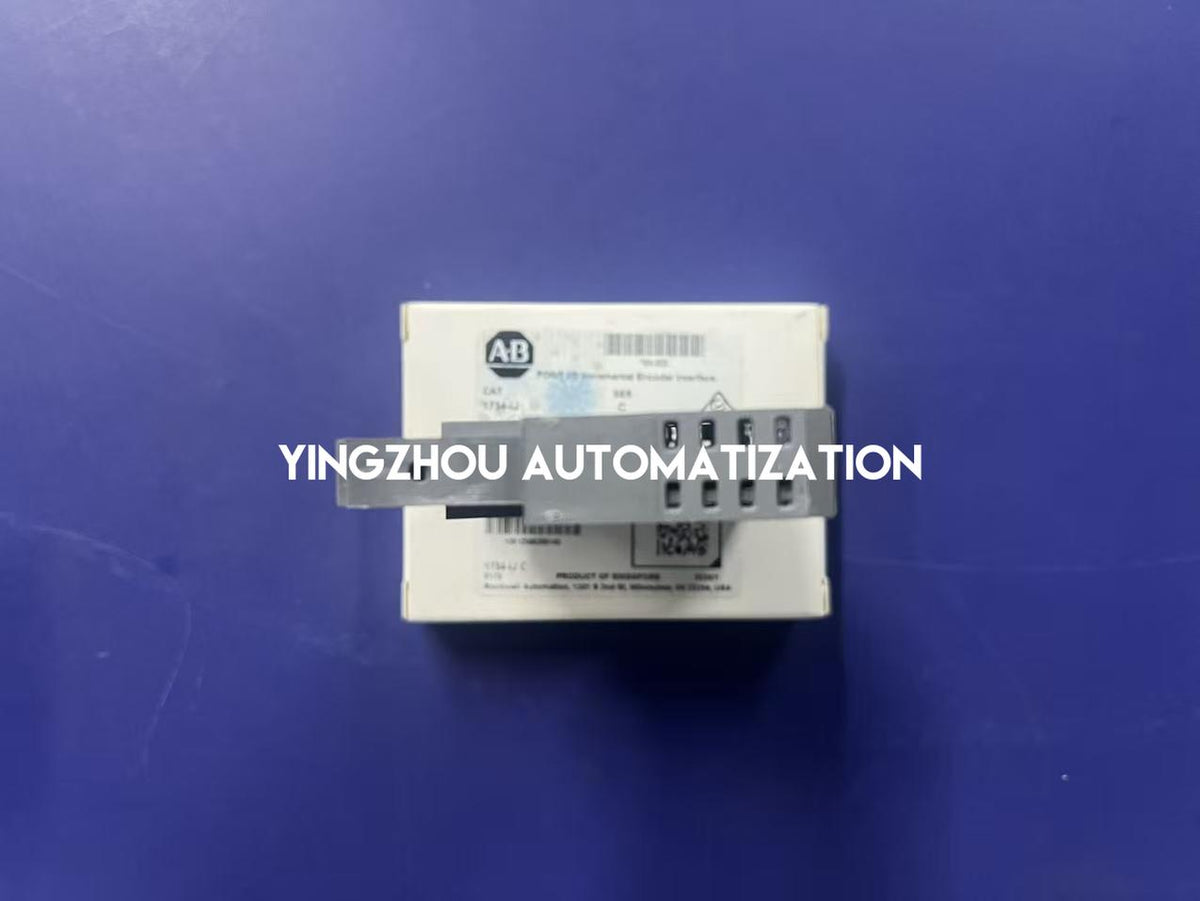

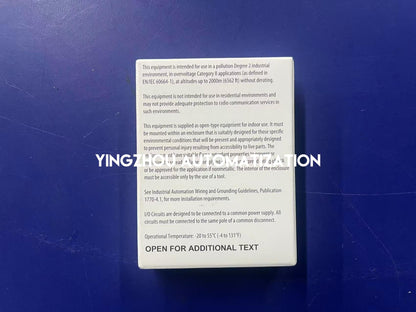

✓ Actual product and packaging photographs supplied

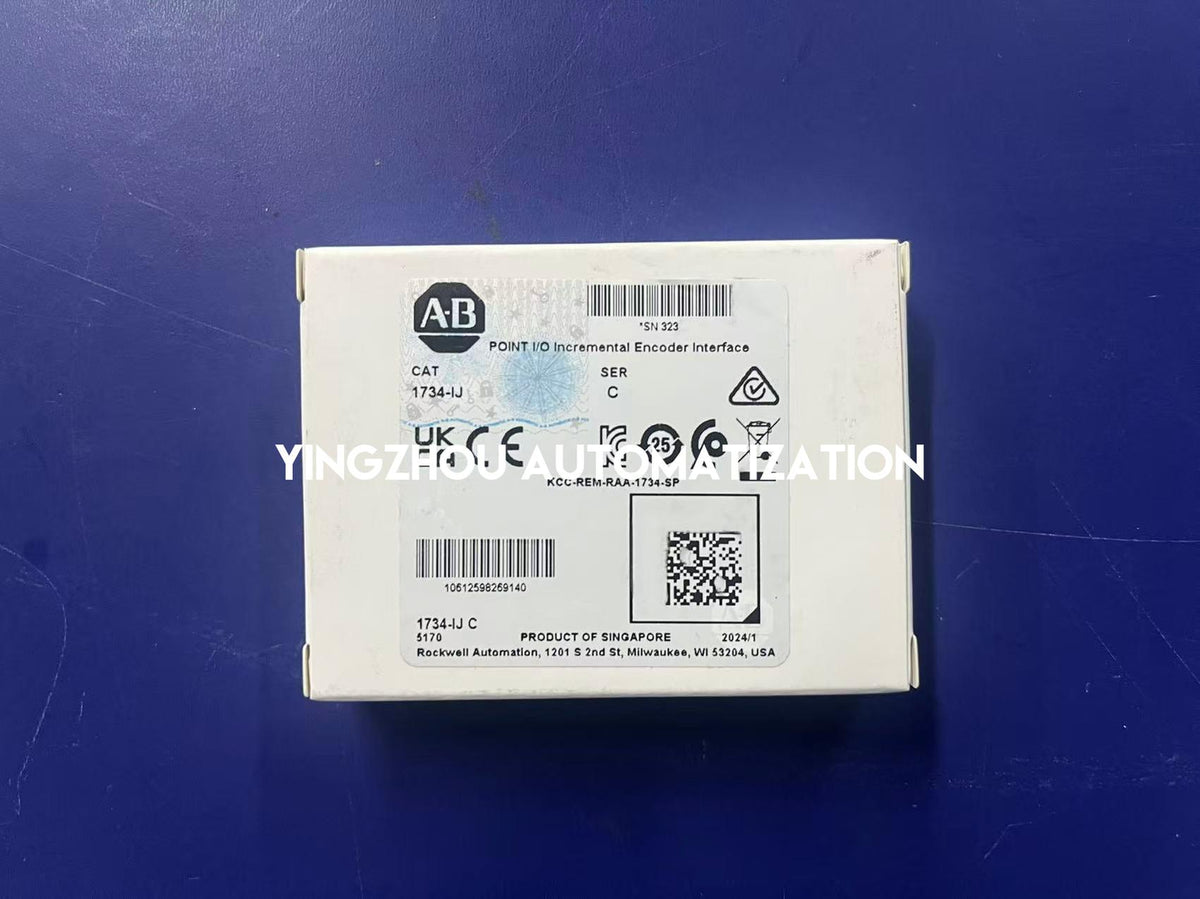

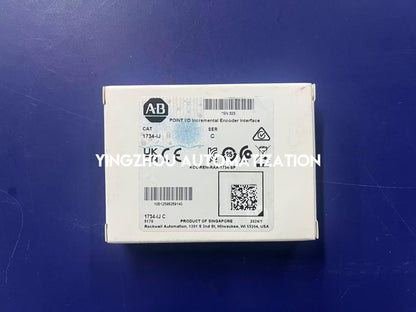

✓ Catalog number 1734-IJ visible on both product and carton labels
✓ Both labels identify Series C

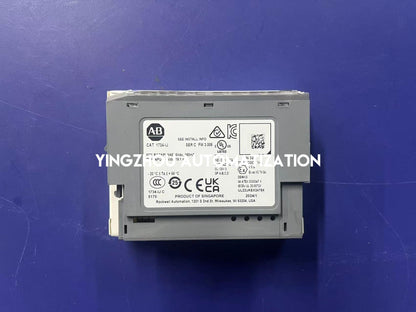

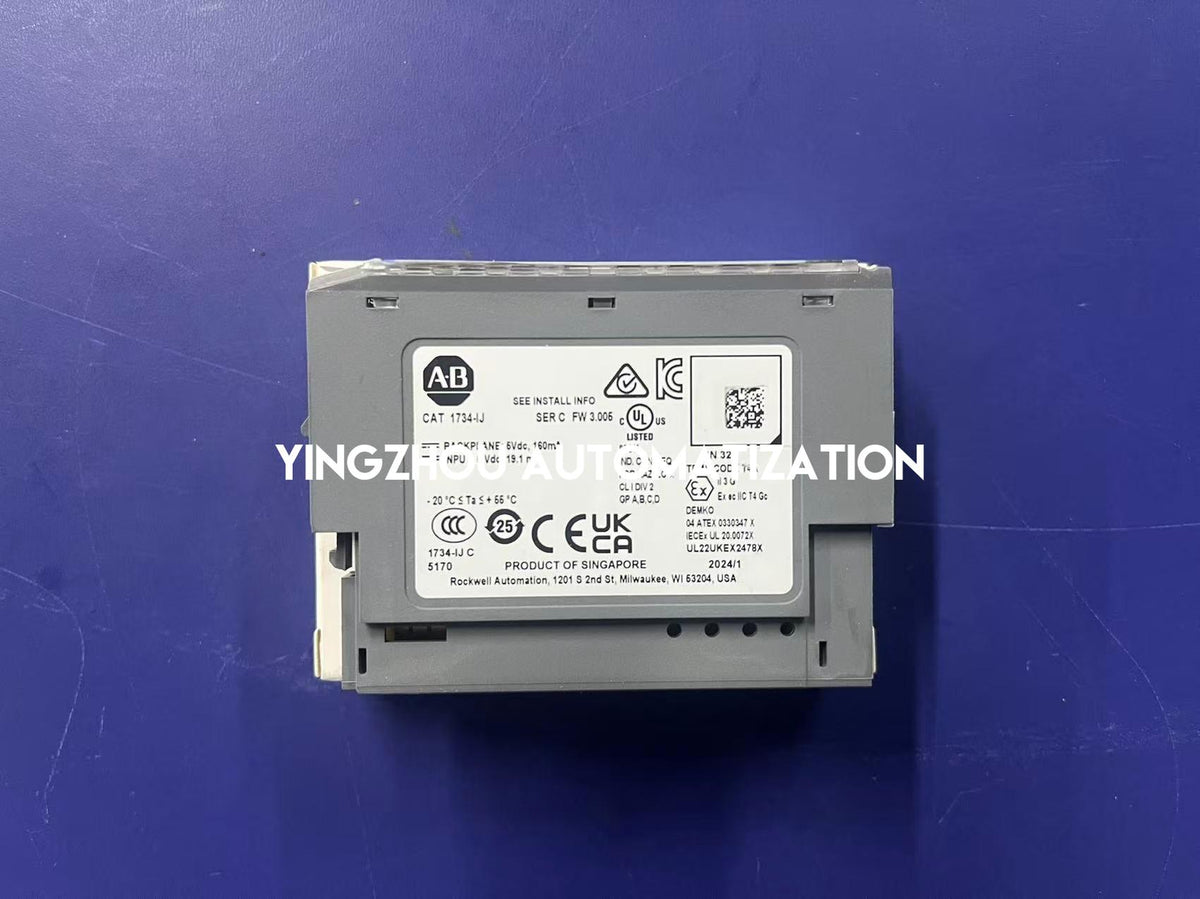

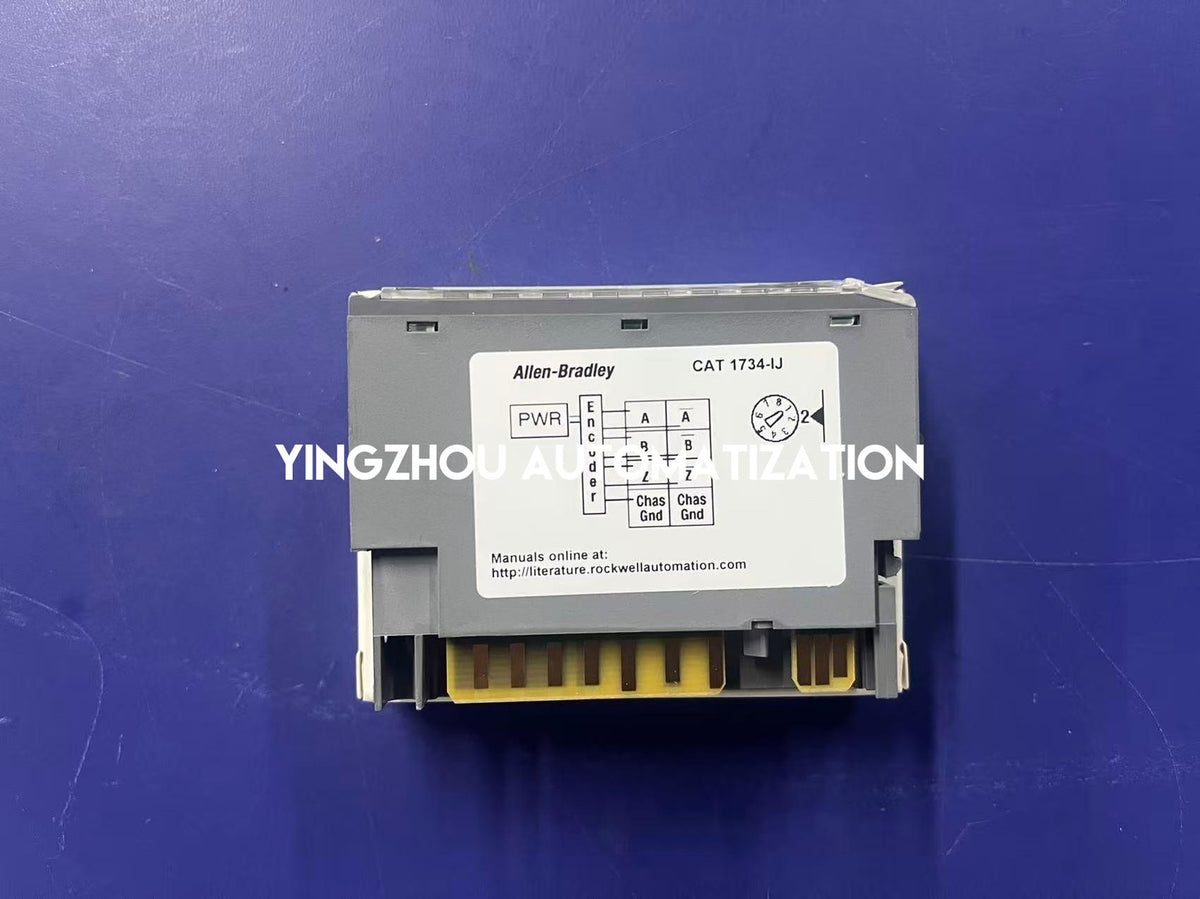

✓ Product nameplate shows firmware 3.006
✓ Nameplate confirms 5V DC encoder input and 5V DC / 160mA backplane ratings
✓ Product and packaging marked PRODUCT OF SINGAPORE
✓ Manufacturing marking 2024/1 visible
✓ Exact serial-number cross-check and operational testing are not confirmed by the photographs
✓ Confirm the required terminal base, encoder signal configuration and included accessories before ordering

In Stock & Available to Order

Allen-Bradley 1734-IJ is marked in stock based on the supplied inventory information. The product and packaging photographs show the exact catalog number and Series C markings. Please reconfirm order quantity and dispatch date before checkout. The included terminal base, additional accessories and functional testing have not been independently verified. Buyers should confirm the 5V DC encoder input requirement and POINT I/O system configuration before ordering.

IN STOCK

Allen-Bradley 1734-IJ

Order online or contact us for multiple units and project sourcing. Please confirm the 5V DC encoder signal rating, A/B/Z connections, counting mode, terminal base and installation requirements.

Request Bulk Pricing

Looking for other Allen-Bradley industrial automation products?

Explore Allen-Bradley Industrial Automation Products
View full details

PRODUCT CATEGORY
