Allen-Bradley 1489-M3C160 Miniature Circuit Breaker
3 Pole | 16A | C Curve | 480Y/277V AC UL/CSA | Bulletin 1489-M
| Specification |
Verified Product Data |
| Manufacturer |
Allen-Bradley / Rockwell Automation |
| Catalog Number |
1489-M3C160 |
| Product Family |
Bulletin 1489-M |
| Product Type |
Thermal-Magnetic Miniature Circuit Breaker |
| Number of Poles |
3 |
| Rated Current (In) |
16 A |
| Trip Characteristic |
C Curve |
| Instantaneous Trip Band |
5–10 × In |
| UL/CSA Maximum AC Voltage |
480Y/277V AC |
| IEC/EN Rated Operational Voltage |
400V AC |
| Rated Frequency |
50/60 Hz |
| UL 489 Interrupting Capacity |
10 kA |
| IEC/EN Ultimate Breaking Capacity (Icu) |
15 kA |
| IEC/EN Service Breaking Capacity (Ics) |
11.25 kA for ratings up to 40A |
| Rated Insulation Voltage — Phase to Ground |
250V AC |
| Rated Insulation Voltage — Phase to Phase |
440V AC |
| Rated Impulse Withstand Voltage |
4 kV |
| Overvoltage Category |
III |
| Pollution Degree |
3 |
| Protection Rating |
IP20 |
| Mounting Method |
35mm DIN Rail |
| Terminal Type |
Dual Terminal |
| Tightening Torque — IEC |
2.8 N·m |
| Operating Ambient Temperature |
−25 to +55°C |
| Storage Temperature |
−40 to +70°C |
| Approximate Dimensions (H × W × D) |
111 × 52.5 × 75mm |
| Applicable Standards |
UL 489 / IEC 60947-2 |
| Manufacturer Lifecycle |
Active |

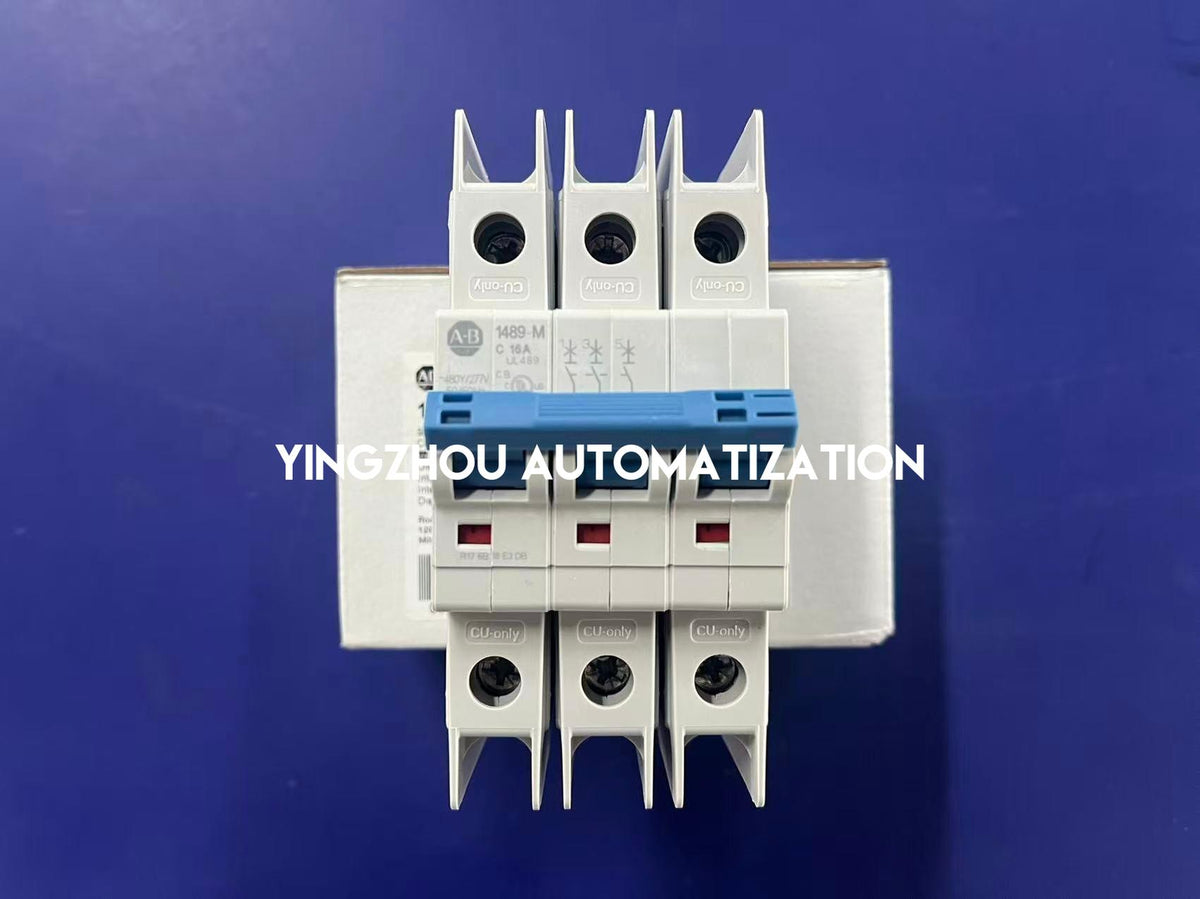

Product Overview
The Allen-Bradley 1489-M3C160 is a Bulletin 1489-M thermal-magnetic miniature circuit breaker manufactured by Rockwell Automation. It provides branch circuit protection in compatible industrial electrical installations and is specified with a three-pole configuration, 16A rated current and C-curve tripping characteristic.
The C characteristic includes a manufacturer-specified magnetic tripping band of 5–10 times rated current, subject to applicable standard test conditions and operating temperature.
The breaker carries a maximum 480Y/277V AC UL/CSA system voltage rating and a separate 400V AC IEC/EN rated operational voltage. These ratings apply under different standards and must not be treated as interchangeable for all electrical distribution configurations.
Rockwell Automation specifies a 10kA interrupting capacity under UL 489 and a 15kA IEC/EN ultimate short-circuit breaking capacity for the applicable 1489-M range. The operating installation must be checked for prospective short-circuit current, voltage system, applicable certification and all required installation conditions.
The Bulletin 1489-M design includes 35mm DIN rail mounting, dual terminals and a compact modular construction. The manufacturer specifies an IP20 protection rating, with an operating ambient temperature range of −25°C to +55°C. Installation and wiring must follow the current manufacturer documentation and local electrical codes.
Rockwell Automation currently lists catalog number 1489-M3C160 as Active.

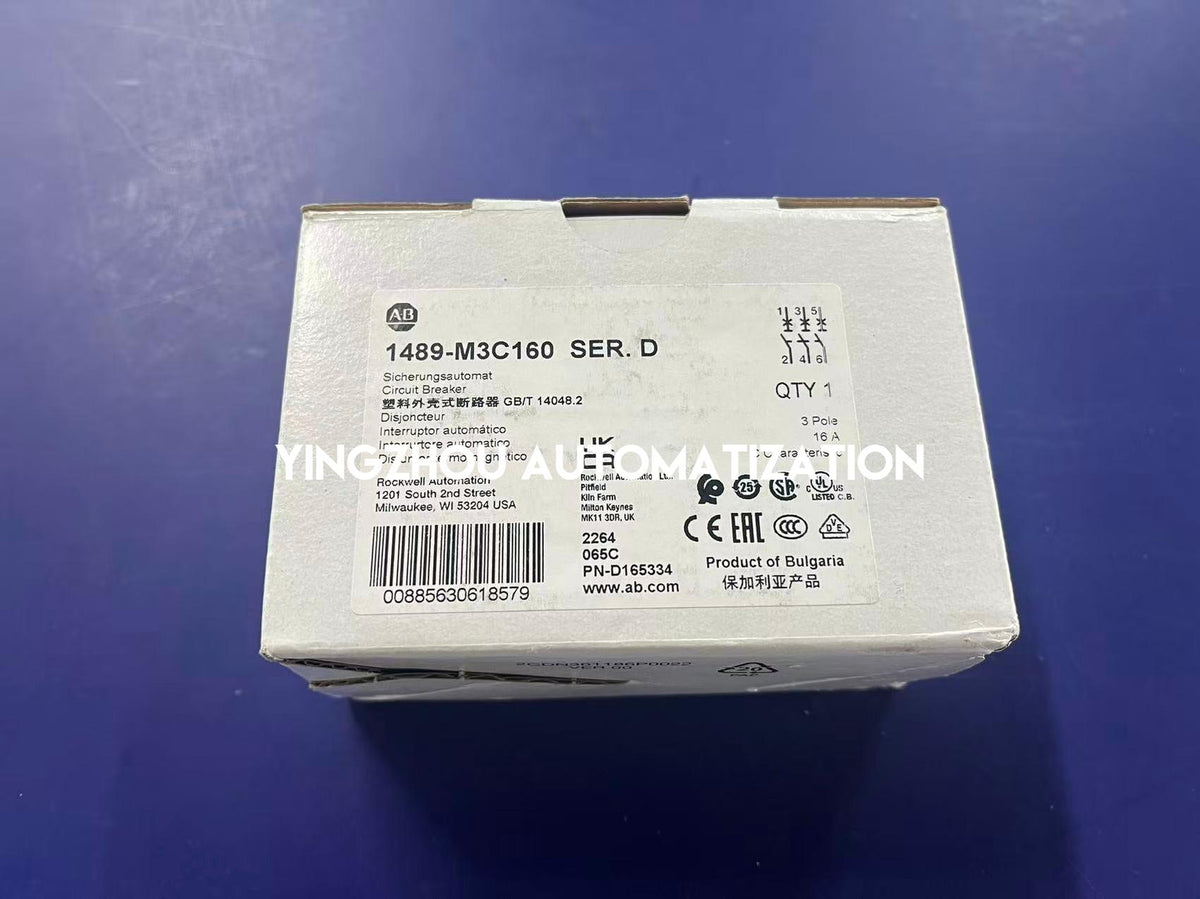

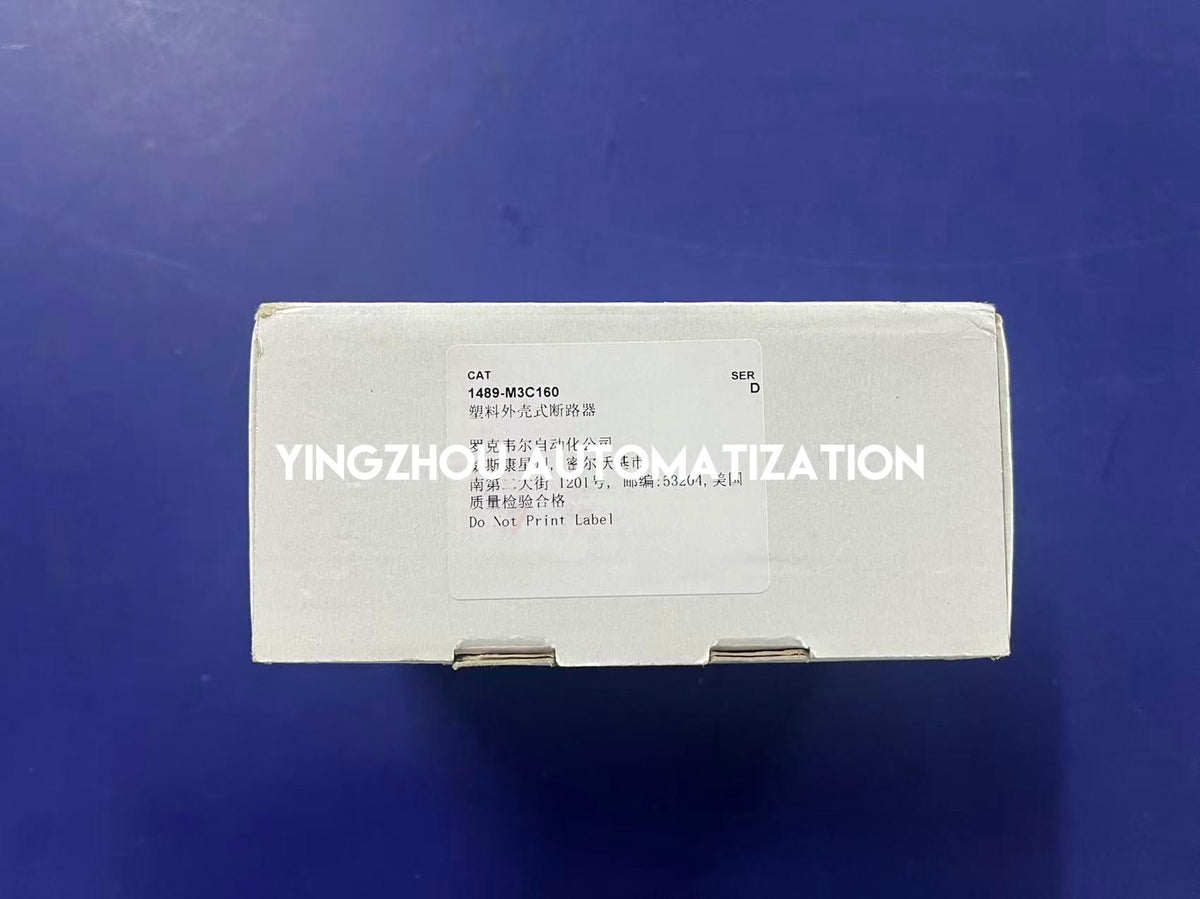

Actual seller photographs show an Allen-Bradley carton marked 1489-M3C160, Series D, with 16A, 3 Pole, C Characteristic and Product of Bulgaria. The carton barcode matches the manufacturer's published UPC 885630618579.

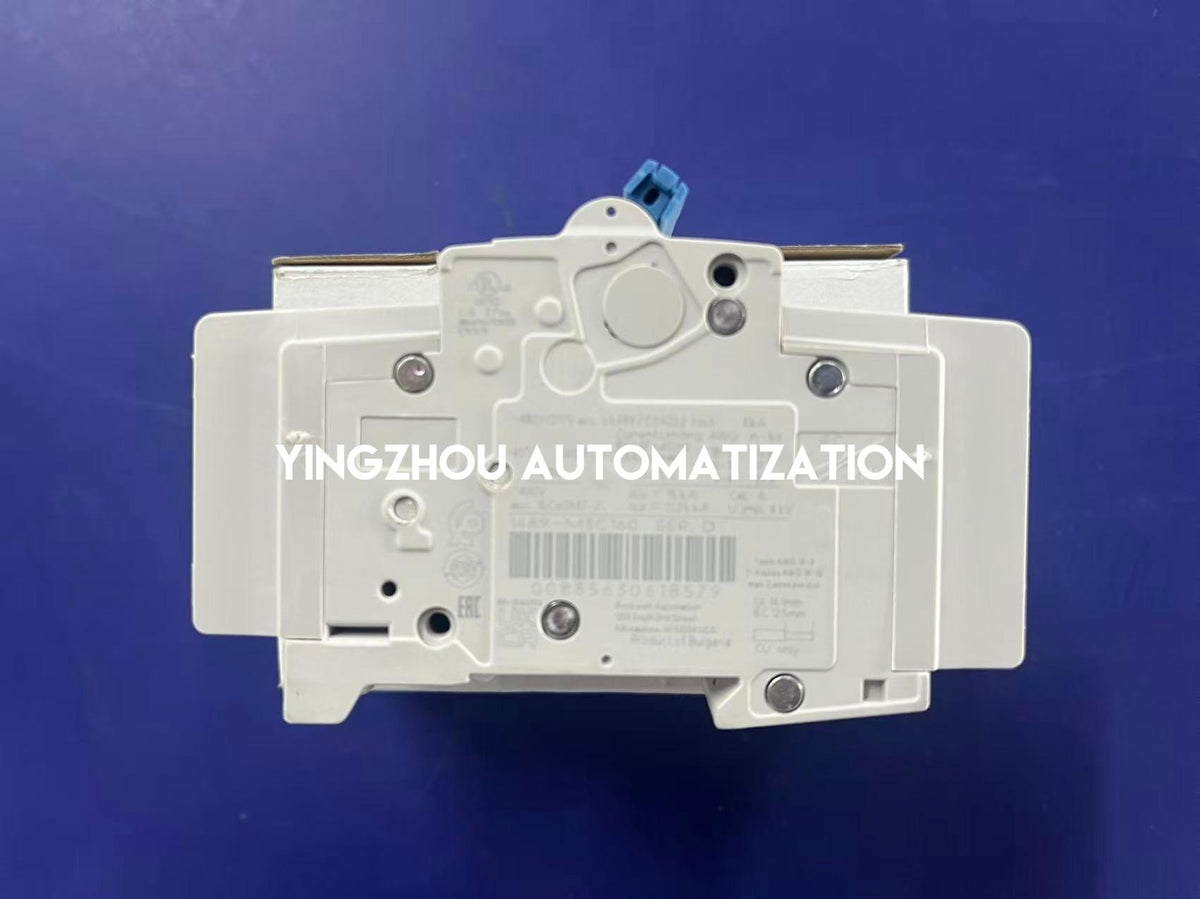

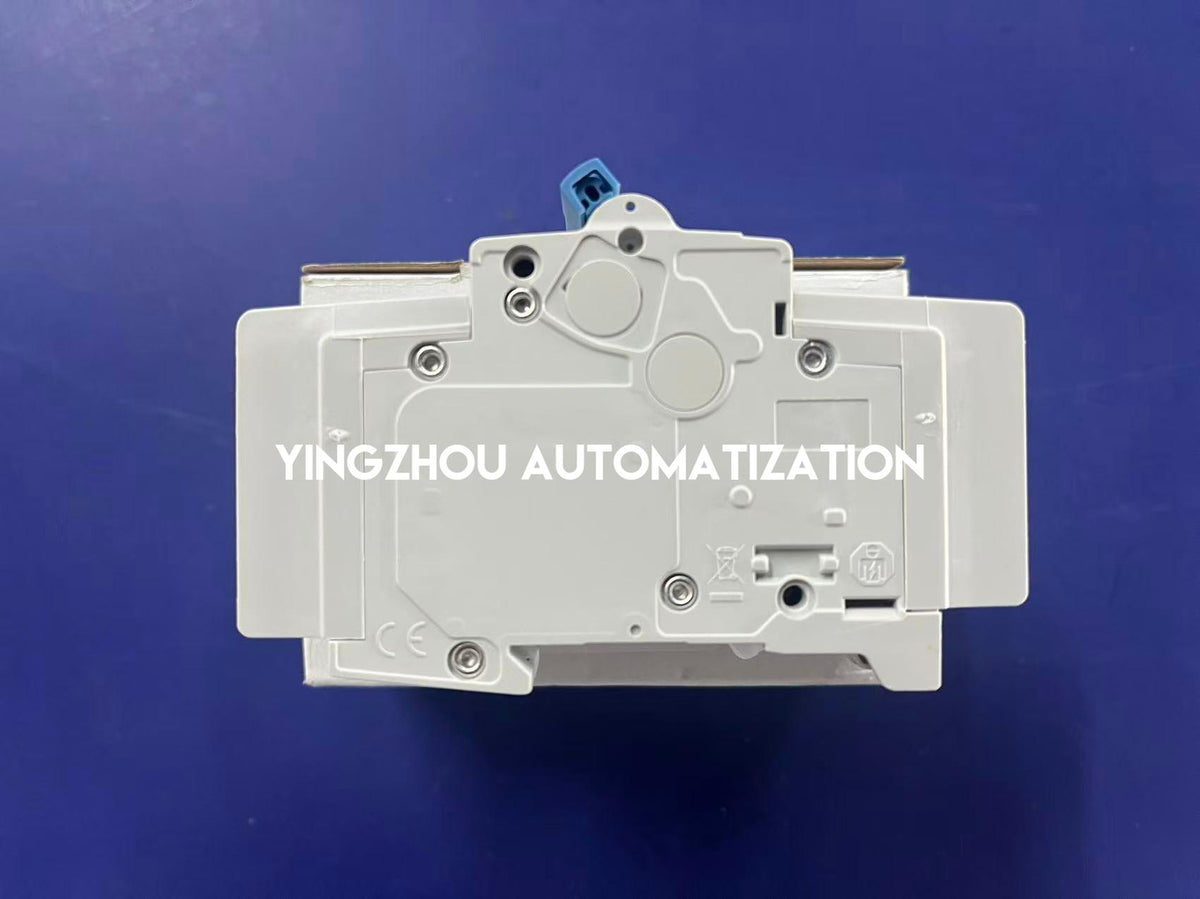

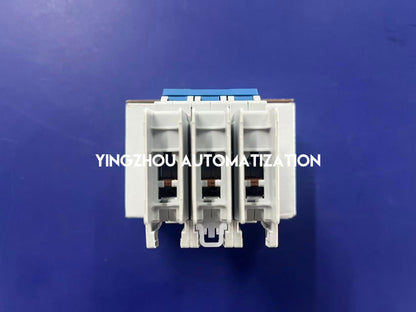

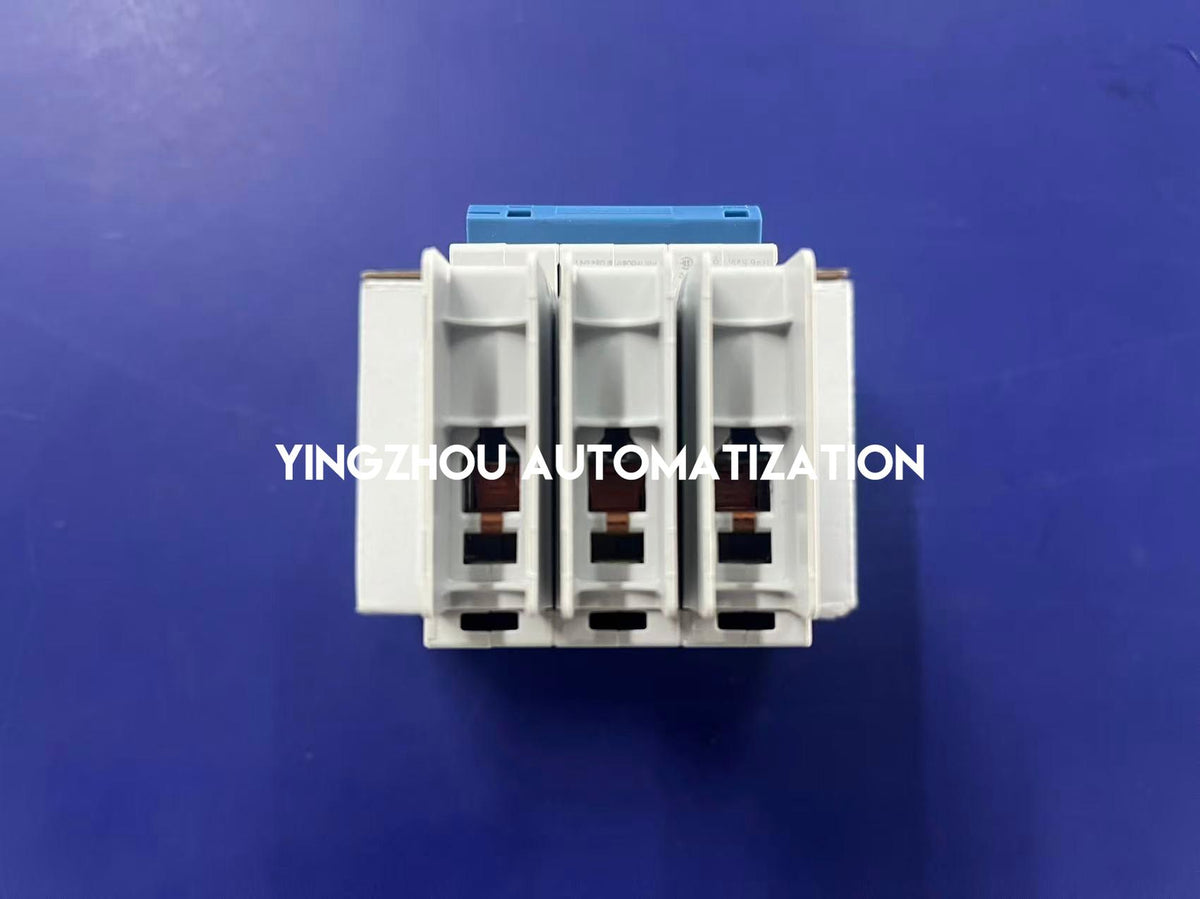

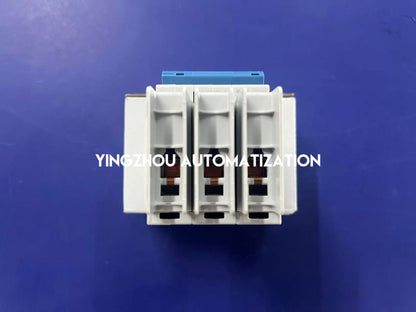

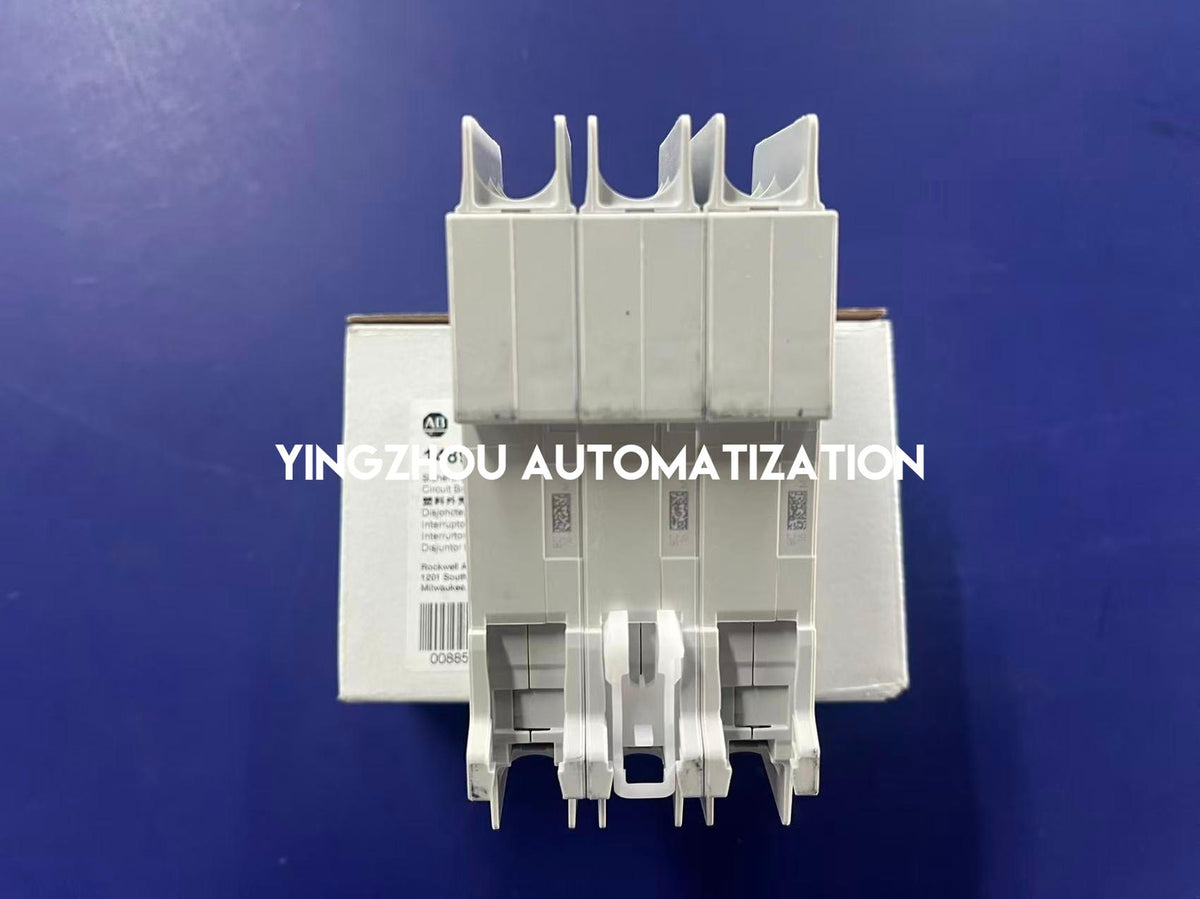

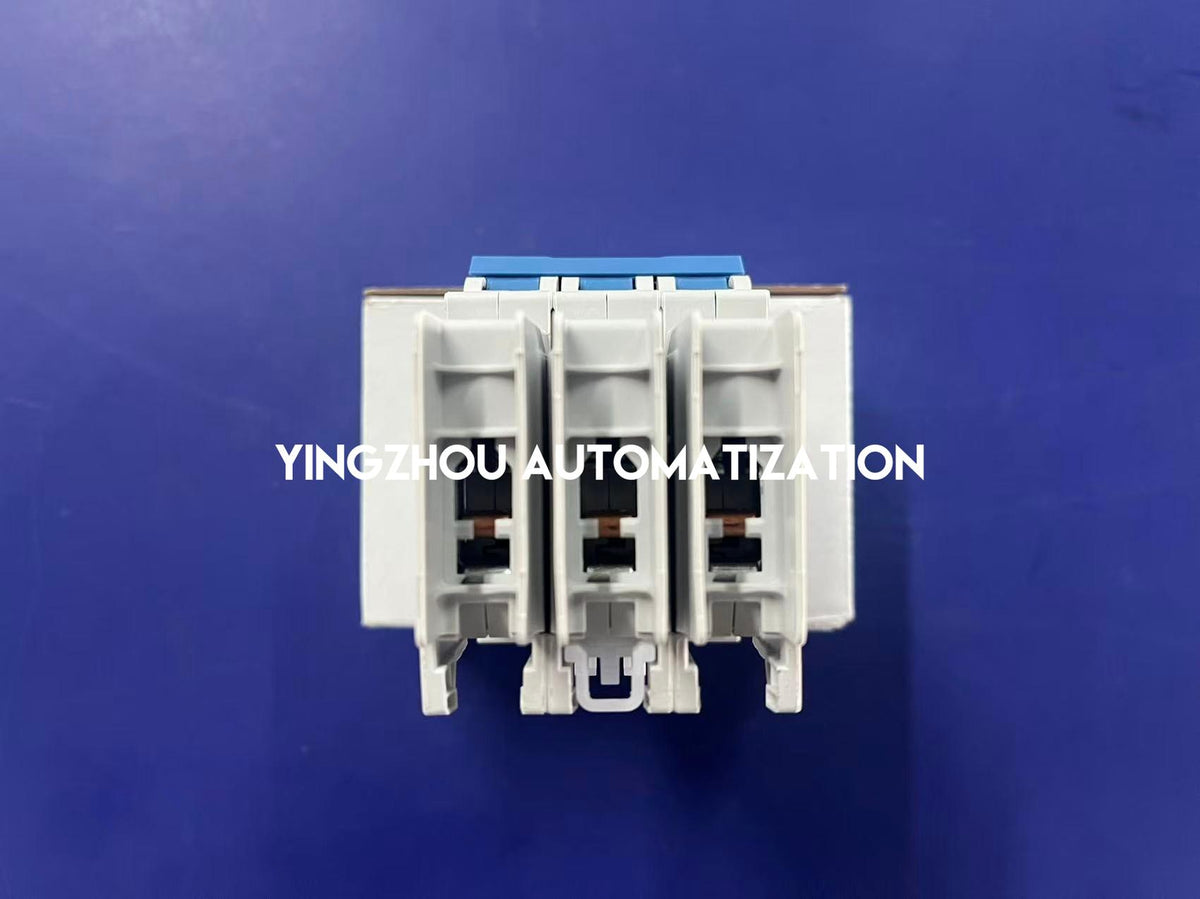

A rear-view photograph of the circuit breaker has also been provided, but the physical unit's printed catalog information is not sufficiently legible for independent exact-model confirmation. Electrical functionality and manufacturer authenticity have not been independently tested or authenticated. Please confirm the actual unit, electrical system rating and installation requirements before ordering.
Key Product Features
-
Bulletin 1489-M Circuit Breaker — Allen-Bradley thermal-magnetic miniature circuit breaker for branch circuit protection.
-
3-Pole Configuration — Three-pole protective switching arrangement.
-
16A Rated Current — Manufacturer-confirmed nominal current rating.
-
C-Curve Tripping Characteristic — Magnetic trip band of 5–10 times rated current under specified conditions.
-
480Y/277V AC UL/CSA Rating — Separate 400V AC IEC/EN rated operational voltage.
-
10kA UL 489 Interrupting Capacity — Short-circuit interrupting capacity under applicable UL test conditions.
-
DIN Rail Mounting — Compact modular construction for industrial control panels.
Actual Product Verification
✓ Actual carton label and circuit breaker rear-view photographs supplied
✓ Packaging catalog number: 1489-M3C160
✓ Packaging Series: D
✓ Packaging rated current: 16 A
✓ Packaging: 3 Pole, C Characteristic
✓ Packaging barcode UPC: 885630618579
✓ Packaging marking: Product of Bulgaria
✓ Packaging model and manufacturer UPC match official product information
Review: Physical circuit breaker rear label is not fully readable in the photograph
Review: Physical unit catalog number and authenticity require confirmation
Review: Electrical trip performance and condition have not been independently tested
