The Schneider Electric Altivar Process ATV600 Series is a family of variable speed drives designed for industrial process and utility applications, combining motor control with process monitoring, energy management and industrial communication functions.
For industrial buyers and maintenance teams, selecting an ATV600 drive requires more than simply matching the motor power in kW or HP. Supply voltage, motor current, application load, enclosure, communication requirements and the complete drive reference should all be checked before ordering.
This guide provides a practical overview of the Schneider ATV600 Series, with particular attention to the ATV630 range, and explains the key information buyers should confirm when selecting a new drive or sourcing a replacement.
What Is the Schneider ATV600 Series?
The Altivar Process ATV600 is Schneider Electric's variable speed drive family designed primarily for industrial process and utility applications.
Rather than providing motor speed control alone, the ATV600 platform integrates functions intended to help users monitor drive operation, process performance and energy use.
Depending on the exact configuration, ATV600 functions can include:
- Variable-speed motor control
- Embedded power measurement
- Energy monitoring
- Process monitoring and control
- Asset monitoring and protection
- Drift monitoring
- Ethernet and serial communication
- Safe Torque Off (STO)
Do not select an ATV600 only by motor power
A request such as “I need a Schneider 22 kW VFD” may not contain enough information to identify the correct drive.
Before ordering, buyers should also confirm:
- Complete drive reference
- Supply voltage
- Motor rated power
- Motor rated current
- Application and load type
- IP / enclosure requirement
- Communication requirements
Understanding the ATV630 Range
ATV630 is an important product family within the Altivar Process ATV600 platform.
ATV630 drives are designed for process and utility applications and are available in multiple power, voltage and enclosure configurations. This means that ATV630 alone is not a complete purchasing reference.
Buyers should always provide the complete catalog number when requesting a quotation or sourcing a replacement.
Schneider Electric identifies ATV630D22N4 as an Altivar Process ATV600 / ATV630 variable speed drive rated at 22 kW / 30 hp for a 380–480 V supply, with IP21 / UL Type 1 protection.
ATV630D22N4: A Real Product Reference
ATV630D22N4 provides a useful example of why the complete model number matters when purchasing an industrial variable speed drive.
| Specification | ATV630D22N4 |
|---|---|
| Manufacturer | Schneider Electric |
| Product Family | Altivar Process ATV600 |
| Device | ATV630 Variable Speed Drive |
| Reference | ATV630D22N4 |
| Motor Power | 22 kW / 30 hp |
| Supply Voltage | 380–480 V |
| Protection | IP21 / UL Type 1 |
| Product Type | Variable Speed Drive |

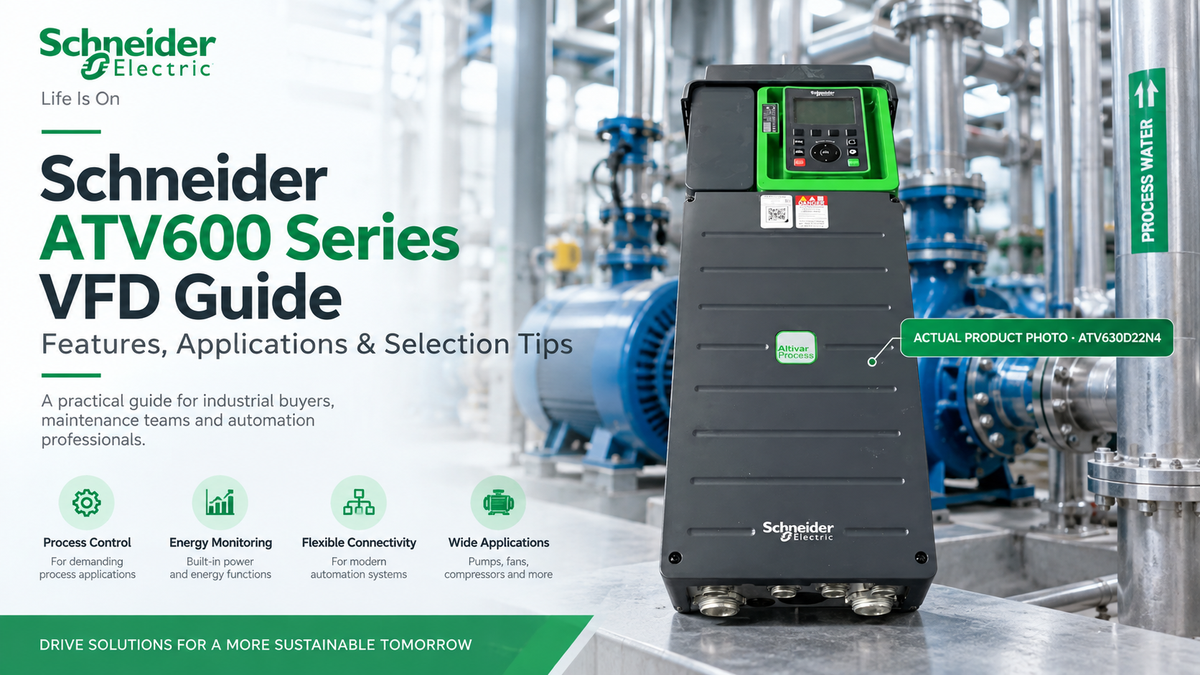

ATV630D22N4 actual product photo
The product image used with this guide is an actual photo of an ATV630D22N4 handled by our team.
Actual product photos can help industrial buyers review the physical product, housing and visible product details before ordering.
More Than Basic Motor Speed Control
The ATV600 platform is positioned around process applications rather than basic motor speed adjustment alone.
Schneider Electric integrates process monitoring and control functions into the drive platform, allowing the drive to participate more directly in process-oriented automation systems.
Typical areas to consider include:
- Motor speed regulation
- Process monitoring
- Energy consumption
- Equipment operating condition
- Process performance
- Drive and motor protection
Embedded Power & Energy Monitoring
Energy management is one of the distinguishing areas of the Altivar Process platform.
Schneider Electric lists embedded power measurement and an energy dashboard among the ATV600 functions.
This can be particularly relevant in applications where motors operate for long periods and energy consumption forms an important part of operating cost.
Examples can include:
- Pumping systems
- Fans
- Compressors
- Process equipment
- Water and wastewater systems
Energy-saving potential depends on the application
A VFD can provide significant operating benefits in suitable variable-speed applications, but energy savings should not be treated as a fixed percentage for every machine.
Actual results depend on load profile, operating speed, motor characteristics and process requirements.
ATV600 Communication & System Integration
Modern process drives frequently operate as part of a larger automation system, making communication an important purchasing consideration.
ATV630 models provide built-in Ethernet and serial communication capabilities, while additional communication options are available for integration with industrial networks.
Depending on the exact configuration and optional modules, the ATV600 platform can support:
- Modbus serial communication
- Modbus TCP
- Ethernet-based communication
- PROFINET
- EtherNet/IP
- PROFIBUS DP
- CANopen
- Other supported industrial network options
Confirm the network before ordering
For an automation-system requirement, provide:
- Exact ATV600 model
- PLC / controller model
- Required communication protocol
- Existing network configuration
- Required communication option card, if applicable
Where Is the Schneider ATV600 Used?
Schneider Electric positions the ATV600 family for process and utility applications across multiple industrial sectors.
Variable-speed operation for process and utility pumping systems.
Motor-speed control according to process demand.
Drive control for applicable industrial compressor systems.
Process-drive applications in water and wastewater infrastructure.
Motor control and monitoring for industrial process machinery.
Schneider Electric also identifies industries including water and wastewater, oil and gas, mining, minerals and metals, and consumer packaged goods within the broader ATV600 application range.
How to Select an ATV600 Drive
The correct ATV600 reference should be selected from the complete electrical and application requirement rather than motor kW alone.
| Selection Item | What to Confirm |
|---|---|
| Supply | Voltage, frequency and supply configuration |
| Motor | Motor type, rated power and rated current |
| Load | Machine type and operating duty |
| Enclosure | Required IP rating and installation environment |
| Communication | Required network and automation-system integration |
| Installation | Mounting, cabinet and environmental requirements |
| Replacement | Existing model, wiring and machine configuration |
Replacing an Existing Schneider VFD
Maintenance requirements often involve replacing an existing drive rather than selecting a VFD for a completely new machine.
A practical replacement workflow is:
Before selecting a replacement, check:
- Existing VFD reference
- Supply voltage
- Motor rated power
- Motor rated current
- Control wiring
- Communication network
- Application and load requirements
- Installation dimensions
Do not replace a VFD by kW alone
Two drives with the same nominal motor power can have different voltage, current, enclosure, communication and application configurations.
If the complete reference is unclear, provide a clear photo of the existing drive and its nameplate.
A Better Way to Request an ATV600 Quotation
Providing the exact purchasing information at the beginning can reduce unnecessary back-and-forth communication.
Compare these two inquiries:
“I need a Schneider 22 kW VFD.”
Voltage, exact model, enclosure and application requirements remain unclear.
Brand: Schneider Electric
Model: ATV630D22N4
Quantity: 1 pc
Supply: 380–480 V
Destination: Mexico
For multiple products, send the complete BOM or purchasing list whenever possible.
Schneider ATV600: Check These Details First
Provide the complete ATV600 / ATV630 catalog number.
Confirm the actual supply voltage and electrical configuration.
Provide motor power and rated current.
Identify the process, machine and operating requirement.
Provide the destination country for quotation and shipment evaluation.
